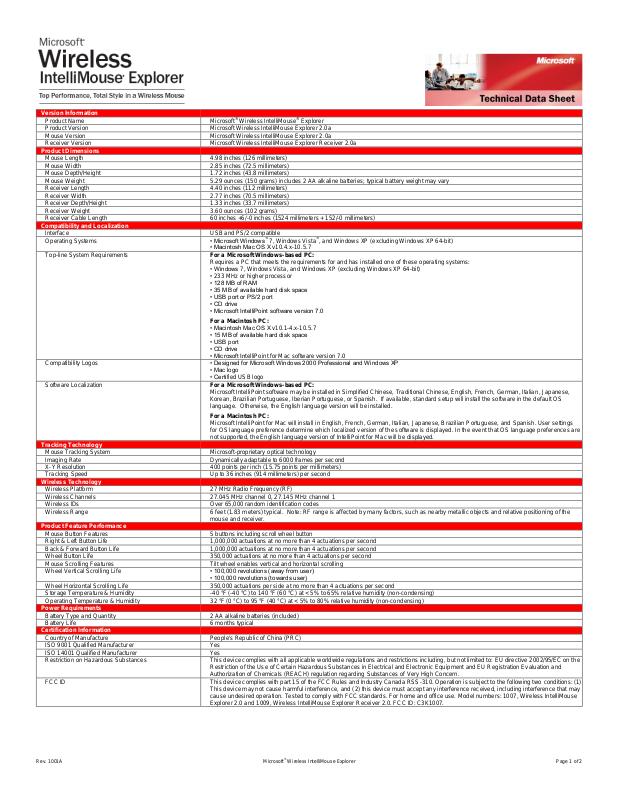

Microsoft WIRELESS INTELLIMOUSE EXPLORER install guide

Version Information

Product Name

Microsoft® Wireless IntelliMouse® Explorer

Product Version

Microsoft Wireless IntelliMouse Explorer 2.0a

Mouse Version

Microsoft Wireless IntelliMouse Explorer 2.0a

Receiver Version

Microsoft Wireless IntelliMouse Explorer Receiver 2.0a

Product Dimensions

Mouse Length

4.98 inches (126 millimeters)

Mouse Width

2.85 inches (72.5 millimeters)

Mouse Depth/Height

1.72 inches (43.8 millimeters)

Mouse Weight

5.29 ounces (150 grams) includes 2 AA alkaline batteries; typical battery weight may vary

Receiver Length

4.40 inches (112 millimeters)

Receiver Width

2.77 inches (70.5 millimeters)

Receiver Depth/Height

1.33 inches (33.7 millimeters)

Receiver Weight

3.60 ounces (102 grams)

Receiver Cable Length

60 inches +6/-0 inches (1524 millimeters + 152/-0 millimeters)

Compatibility and Localization

Interface

USB and PS/2 compatible

Operating Systems

• Microsoft Windows

7, Windows Vista®, and Windows XP (excluding Windows XP 64-bit)

• Macintosh Mac OS X v10.4.x-10.5.7

Top-line System Requirements

For a Microsoft Windows-based PC: Requires a PC that meets the requirements for and has installed one of these operating systems:

• Windows 7, Windows Vista, and Windows XP (excluding Windows XP 64-bit)

• 233 MHz or higher processor

• 128 MB of RAM

• 35 MB of available hard disk space

• USB port or PS/2 port

• CD drive

• Microsoft IntelliPoint software version 7.0

For a Macintosh PC:

• Macintosh Mac OS X v10.1-4.x-10.5.7

• 15 MB of available hard disk space

• USB port

• CD drive

• Microsoft IntelliPoint for Mac software version 7.0

Compatibility Logos

• Designed for Microsoft Windows 2000 Professional and Windows XP

• Mac logo

• Certified USB logo

Software Localization

For a Microsoft Windows-based PC: Microsoft IntelliPoint software may be installed in Simplified Chinese, Traditional Chinese, English, French, German, Italian, Japanese, Korean, Brazilian Portuguese, Iberian Portuguese, or Spanish. If available, standard setup will install the software in the default OS language. Otherwise, the English language version will be installed.

For a Macintosh PC: Microsoft IntelliPoint for Mac will install in English, French, German, Italian, Japanese, Brazilian Portuguese, and Spanish. User settings for OS language preference determine which localized version of the software is displayed. In the event that OS language preferences are not supported, the English language version of IntelliPoint for Mac will be displayed.

Tracking Technology

Mouse Tracking System

Microsoft-proprietary optical technology

Imaging Rate

Dynamically adaptable to 6000 frames per second

X-Y Resolution

400 points per inch (15.75 points per millimeters)

Tracking Speed

Up to 36 inches (914 millimeters) per second

Wireless Technology

Wireless Platform

27 MHz Radio Frequency (RF)

Wireless Channels

27.045 MHz channel 0, 27.145 MHz channel 1

Wireless IDs

Over 65,000 random identification codes

Wireless Range

6 feet (1.83 meters) typical. Note: RF range is affected by many factors, such as nearby metallic objects and relative positioning of the mouse and receiver.

Product Feature Performance

Mouse Button Features

5 buttons including scroll wheel button

Right & Left Button Life

1,000,000 actuations at no more than 4 actuations per second

Back & Forward Button Life

1,000,000 actuations at no more than 4 actuations per second

Wheel Button Life

350,000 actuations at no more than 4 actuations per second

Mouse Scrolling Features

Tilt wheel enables vertical and horizontal scrolling

Wheel Vertical Scrolling Life

• 100,000 revolutions (away from user)

• 100,000 revolutions (towards user)

Wheel Horizontal Scrolling Life

350,000 actuations per side at no more than 4 actuations per second

Storage Temperature & Humidity

-40 °F (-40 °C) to 140 °F (60 °C) at < 5% to 65% relative humidity (non-condensing)

Operating Temperature & Humidity

32 °F (0 °C) to 95 °F (40 °C) at < 5% to 80% relative humidity (non-condensing)

Power Requirements

Battery Type and Quantity

2 AA alkaline batteries (included)

Battery Life

6 months typical

Certification Information

Country of Manufacture

People's Republic of China (PRC)

ISO 9001 Qualified Manufacturer

Yes

ISO 14001 Qualified Manufacturer

Yes

Restriction on Hazardous Substances

This device complies with all applicable worldwide regulations and restrictions including, but not limited to: EU directive 2002/95/EC on the Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment and EU Registration Evaluation and Authorization of Chemicals (REACH) regulation regarding Substances of Very High Concern.

FCC ID

This device complies with part 15 of the FCC Rules and Industry Canada RSS-310. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Tested to comply with FCC standards. For home and office use. Model numbers: 1007, Wireless IntelliMouse Explorer 2.0 and 1009, Wireless IntelliMouse Explorer Receiver 2.0. FCC ID: C3K1007.

Rev. 1001A Microsoft® Wireless IntelliMouse Explorer Page 1 of 2

Certification Information

Agency and Regulatory Marks

• FCC Declaration of Conformity (USA)

• UL and cUL Listed Accessory (USA and Canada)

• RSS-310 and ICES-003 data on file (Canada)

• R&TTE Declaration of Conformity, Safety and EMC (European Union)

• GOST Certificate (Russia)

• CITC Letter (Kingdom of Saudi Arabia)

• VCCI Certificate (Japan)

• ACMA Declaration of Conformity (Australia and New Zealand)

• BSMI and DGT Certificates (Taiwan)

• MIC Certificate (Korea)

• NTC Certificate (Philippines)

• CMII Certificate (China)

• WEEE (European Union)

• EIP Pollution Control Mark, EPUP (China)

• CB Scheme Certificate (International)

Windows Hardware Quality Labs (WHQL)

Mouse ID: 1360203 Microsoft Windows 7

Results stated herein are based on internal Microsoft testing. Individual results and performance may vary. Any device images shown are not actual size. This document is provided for informational purposes only and is subject to change without notice. Microsoft makes no warranty, express or implied, with this document or the information contained herein. Review any public use or publications of any data herein with your local legal counsel.
