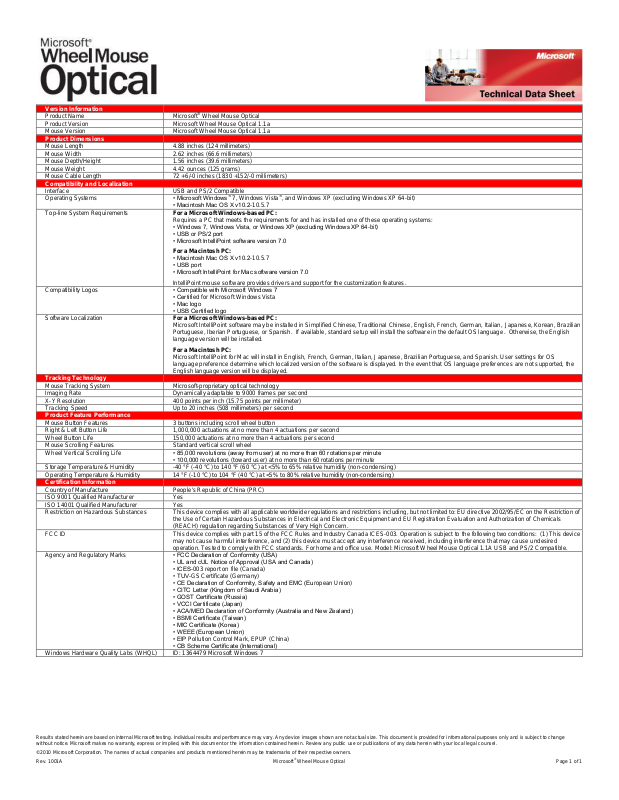

Microsoft WHEEL MOUSE OPTICAL DATASHEET

Version Information

Product Name

Microsoft® Wheel Mouse Optical

Product Version

Microsoft Wheel Mouse Optical 1.1a

Mouse Version

Microsoft Wheel Mouse Optical 1.1a

Product Dimensions

Mouse Length

4.88 inches (124 millimeters)

Mouse Width

2.62 inches (66.6 millimeters)

Mouse Depth/Height

1.56 inches (39.6 millimeters)

Mouse Weight

4.42 ounces (125 grams)

Mouse Cable Length

72 +6/-0 inches (1830 +152/-0 millimeters)

Compatibility and Localization

Interface

USB and PS/2 Compatible

Operating Systems

• Microsoft Windows

7, Windows Vista®, and Windows XP (excluding Windows XP 64-bit)

• Macintosh Mac OS X v10.2-10.5.7

Top-line System Requirements

For a Microsoft Windows-based PC: Requires a PC that meets the requirements for and has installed one of these operating systems:

• Windows 7, Windows Vista, or Windows XP (excluding Windows XP 64-bit)

• USB or PS/2 port

• Microsoft IntelliPoint software version 7.0

For a Macintosh PC:

• Macintosh Mac OS X v10.2-10.5.7

• USB port

• Microsoft IntelliPoint for Mac software version 7.0

IntelliPoint mouse software provides drivers and support for the customization features.

Compatibility Logos

• Compatible with Microsoft Windows 7

• Certified for Microsoft Windows Vista

• Mac logo

• USB Certified logo

Software Localization

For a Microsoft Windows-based PC: Microsoft IntelliPoint software may be installed in Simplified Chinese, Traditional Chinese, English, French, German, Italian, Japanese, Korean, Brazilian Portuguese, Iberian Portuguese, or Spanish. If available, standard setup will install the software in the default OS language. Otherwise, the English language version will be installed.

For a Macintosh PC: Microsoft IntelliPoint for Mac will install in English, French, German, Italian, Japanese, Brazilian Portuguese, and Spanish. User settings for OS language preference determine which localized version of the software is displayed. In the event that OS language preferences are not supported, the English language version will be displayed.

Tracking Technology

Mouse Tracking System

Microsoft-proprietary optical technology

Imaging Rate

Dynamically adaptable to 9000 frames per second

X-Y Resolution

400 points per inch (15.75 points per millimeter)

Tracking Speed

Up to 20 inches (508 millimeters) per second

Product Feature Performance

Mouse Button Features

3 buttons including scroll wheel button

Right & Left Button Life

1,000,000 actuations at no more than 4 actuations per second

Wheel Button Life

150,000 actuations at no more than 4 actuations per second

Mouse Scrolling Features

Standard vertical scroll wheel

Wheel Vertical Scrolling Life

• 85,000 revolutions (away from user) at no more than 60 rotations per minute

• 100,000 revolutions (toward user) at no more than 60 rotations per minute

Storage Temperature & Humidity

-40 °F (-40 °C) to 140 °F (60 °C) at <5% to 65% relative humidity (non-condensing)

Operating Temperature & Humidity

14 °F (-10 °C) to 104 °F (40 °C) at <5% to 80% relative humidity (non-condensing)

Certification Information

Country of Manufacture

People's Republic of China (PRC)

ISO 9001 Qualified Manufacturer

Yes

ISO 14001 Qualified Manufacturer

Yes

Restriction on Hazardous Substances

This device complies with all applicable worldwide regulations and restrictions including, but not limited to: EU directive 2002/95/EC on the Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment and EU Registration Evaluation and Authorization of Chemicals (REACH) regulation regarding Substances of Very High Concern.

FCC ID

This device complies with part 15 of the FCC Rules and Industry Canada ICES-003. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Tested to comply with FCC standards. For home and office use. Model: Microsoft Wheel Mouse Optical 1.1A USB and PS/2 Compatible.

Agency and Regulatory Marks

• FCC Declaration of Conformity (USA)

• UL and cUL Notice of Approval (USA and Canada)

• ICES-003 report on file (Canada)

• TUV-GS Certificate (Germany)

• CE Declaration of Conformity, Safety and EMC (European Union)

• CITC Letter (Kingdom of Saudi Arabia)

• GOST Certificate (Russia)

• VCCI Certificate (Japan)

• ACA/MED Declaration of Conformity (Australia and New Zealand)

• BSMI Certificate (Taiwan)

• MIC Certificate (Korea)

• WEEE (European Union)

• EIP Pollution Control Mark, EPUP (China)

• CB Scheme Certificate (International)

Windows Hardware Quality Labs (WHQL)

ID: 1364479 Microsoft Windows 7

Results stated herein are based on internal Microsoft testing. Individual results and performance may vary. Any device images shown are not actual size. This document is provided for informational purposes only and is subject to change without notice. Microsoft makes no warranty, express or implied, with this document or the information contained herein. Review any public use or publications of any data herein with your local legal counsel.
