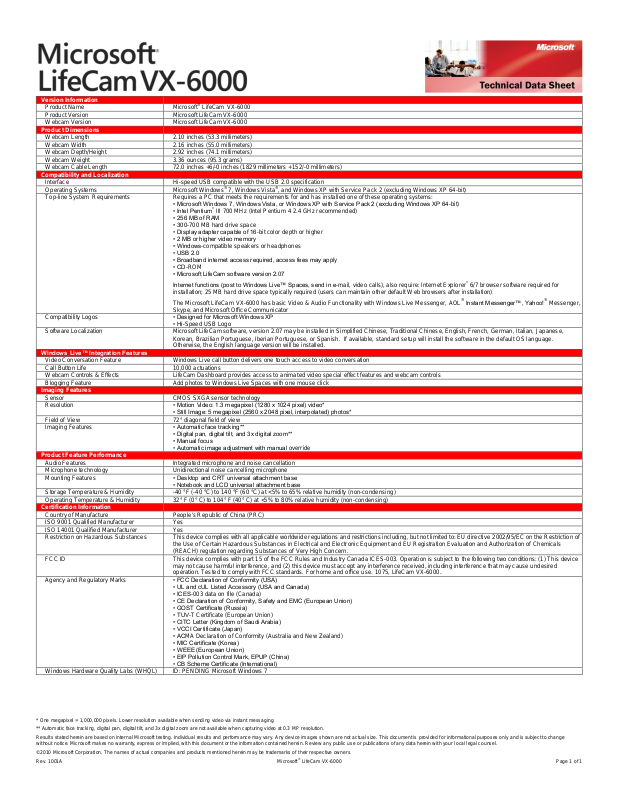

Microsoft LIFECAM VX-6000 DATASHEET
Version Information
Product Name
Microsoft® LifeCam VX-6000
Product Version
Microsoft LifeCam VX-6000
Webcam Version
Microsoft LifeCam VX-6000
Product Dimensions
Webcam Length
2.10 inches (53.3 millimeters)
Webcam Width
2.16 inches (55.0 millimeters)
Webcam Depth/Height
2.92 inches (74.1 millimeters)
Webcam Weight
3.36 ounces (95.3 grams)
Webcam Cable Length
72.0 inches +6/-0 inches (1829 millimeters +152/-0 millimeters)
Compatibility and Localization
Interface
Hi-speed USB compatible with the USB 2.0 specification
Operating Systems
Microsoft Windows® 7, Windows Vista®, and Windows XP with Service Pack 2 (excluding Windows XP 64-bit)
Top-line System Requirements
Requires a PC that meets the requirements for and has installed one of these operating systems:
• Microsoft Windows 7, Windows Vista, or Windows XP with Service Pack 2 (excluding Windows XP 64-bit)
• Intel Pentium
®
III 700 MHz (Intel Pentium 4 2.4 GHz recommended)
• 256 MB of RAM
• 300-700 MB hard drive space
• Display adapter capable of 16-bit color depth or higher
• 2 MB or higher video memory
• Windows-compatible speakers or headphones
• USB 2.0
• Broadband internet access required, access fees may apply
• CD-ROM
• Microsoft LifeCam software version 2.07
Internet functions (post to Windows Live™ Spaces, send in e-mail, video calls), also require: Internet Explorer® 6/7 browser software required for
installation; 25 MB hard drive space typically required (users can maintain other default Web browsers after installation)
The Microsoft LifeCam VX-6000 has basic Video & Audio Functionality with Windows Live Messenger, AOL® Instant Messenger™, Yahoo!® Messenger,
Skype, and Microsoft Office Communicator
Compatibility Logos
• Designed for Microsoft Windows XP
• Hi-Speed USB Logo
Software Localization
Microsoft LifeCam software, version 2.07 may be installed in Simplified Chinese, Traditional Chinese, English, French, German, Italian, Japanese,
Korean, Brazilian Portuguese, Iberian Portuguese, or Spanish. If available, standard setup will install the software in the default OS language.
Otherwise, the English language version will be installed.
Windows Live™ Integration Features
Video Conversation Feature
Windows Live call button delivers one touch access to video conversation
Call Button Life
10,000 actuations
Webcam Controls & Effects
LifeCam Dashboard provides access to animated video special effect features and webcam controls
Blogging Feature
Add photos to Windows Live Spaces with one mouse click
Imaging Features
Sensor
CMOS SXGA sensor technology
Resolution
• Motion Video: 1.3 megapixel (1280 x 1024 pixel) video*
• Still Image: 5 megapixel (2560 x 2048 pixel, interpolated) photos*
Field of View
72° diagonal field of view
Imaging Features
• Automatic face tracking**
• Digital pan, digital tilt, and 3x digital zoom**
• Manual focus
• Automatic image adjustment with manual override
Product Feature Performance
Audio Features
Integrated microphone and noise cancellation
Microphone technology
Unidirectional noise cancelling microphone
Mounting Features
• Desktop and CRT universal attachment base
• Notebook and LCD universal attachment base
Storage Temperature & Humidity
-40 °F (-40 °C) to 140 °F (60 °C) at <5% to 65% relative humidity (non-condensing)
Operating Temperature & Humidity
32° F (0° C) to 104° F (40° C) at <5% to 80% relative humidity (non-condensing)
Certification Information
Country of Manufacture
People's Republic of China (PRC)
ISO 9001 Qualified Manufacturer
Yes
ISO 14001 Qualified Manufacturer
Yes
Restriction on Hazardous Substances
This device complies with all applicable worldwide regulations and restrictions including, but not limited to: EU directive 2002/95/EC on the Restriction of
the Use of Certain Hazardous Substances in Electrical and Electronic Equipment and EU Registration Evaluation and Authorization of Chemicals
(REACH) regulation regarding Substances of Very High Concern.
FCC ID
This device complies with part 15 of the FCC Rules and Industry Canada ICES-003. Operation is subject to the following two conditions: (1) This device
may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired
operation. Tested to comply with FCC standards. For home and office use. 1075, LifeCam VX-6000.
Agency and Regulatory Marks
• FCC Declaration of Conformity (USA)
• UL and cUL Listed Accessory (USA and Canada)
• ICES-003 data on file (Canada)
• CE Declaration of Conformity, Safety and EMC (European Union)
• GOST Certificate (Russia)
• TUV-T Certificate (European Union)
• CITC Letter (Kingdom of Saudi Arabia)
• VCCI Certificate (Japan)
• ACMA Declaration of Conformity (Australia and New Zealand)
• MIC Certificate (Korea)
• WEEE (European Union)
• EIP Pollution Control Mark, EPUP (China)
• CB Scheme Certificate (International)
Windows Hardware Quality Labs (WHQL)
ID: PENDING Microsoft Windows 7
* One megapixel = 1,000,000 pixels. Lower resolution available when sending video via instant messaging.
** Automatic face tracking, digital pan, digital tilt, and 3x digital zoom are not available when capturing video at 0.3 MP resolution.
Results stated herein are based on internal Microsoft testing. Individual results and performance may vary. Any device images shown are not actual size. This document is provided for informational purposes only and is subject to change
without notice. Microsoft makes no warranty, express or implied, with this document or the information contained herein. Review any public use or publications of any data herein with your local legal counsel.
©2010 Microsoft Corporation. The names of actual companies and products mentioned herein may be trademarks of their respective owners.
Rev. 1001A Microsoft® LifeCam VX-6000 Page 1 of 1
