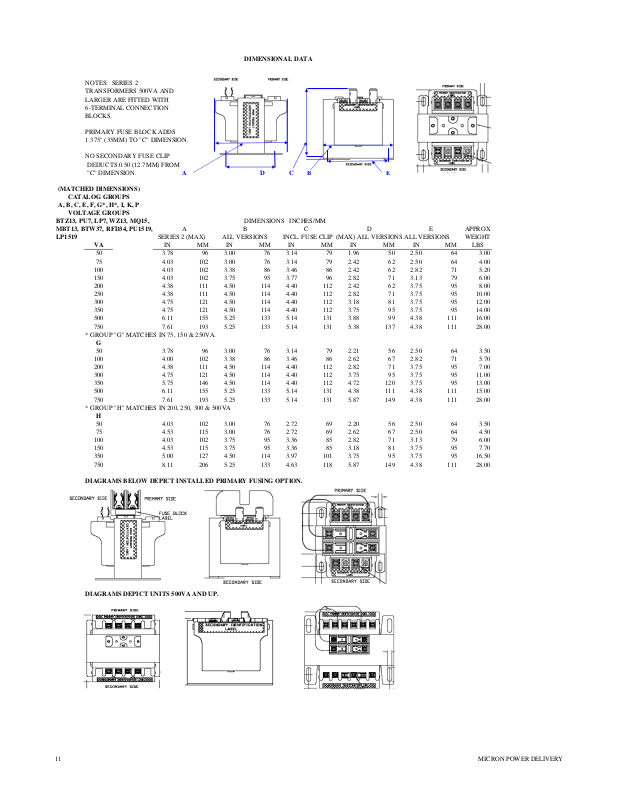

DIMENSIONAL DATA
NOTES: SERIES 2
A DCB E
(MATCHED DIMENSIONS)
CATALOG GROUPS
A, B, C, E, F, G*, H*, I, K, P
VOLTAGE GROUPS
BTZ13, PU7, LP7, WZ13, MQ15,
MBT13, BTW37, RFD34, PU1519,
LP1519
VA
G
H
DIAGRAMS BELOW DEPICT INSTALLED PRIMARY FUSING OPTION.
DIAGRAMS DEPICT UNITS 500VA AND UP.
TRANSFORMERS 500VA AND
LARGER ARE FITTED WITH
6-TERMINAL CONNECTION
BLOCKS.
PRIMARY FUSE BLOCK ADDS
1.375" (35MM) TO "C" DIMENSION.
NO SECONDARY FUSE CLIP
DEDUCTS 0.50 (12.7MM) FROM
"C" DIMENSION.
A B C D E APPROX
SERIES 2 (MAX) ALL VERSIONS INCL. FUSE CLIP
IN MM IN MM IN MM IN MM IN MM LBS
50 3.78 96 3.00 76 3.14 79 1.96 50 2.50 64 3.00
75 4.03 102 3.00 76 3.14 79 2.42 62 2.50 64 4.00
100 4.03 102 3.38 86 3.46 86 2.42 62 2.82 71 5.20
150 4.03 102 3.75 95 3.77 96 2.82 71 3.13 79 6.00
200 4.38 111 4.50 114 4.40 112 2.42 62 3.75 95 8.00
250 4.38 111 4.50 114 4.40 112 2.82 71 3.75 95 10.00
300 4.75 121 4.50 114 4.40 112 3.18 81 3.75 95 12.00
350 4.75 121 4.50 114 4.40 112 3.75 95 3.75 95 14.00
500 6.11 155 5.25 133 5.14 131 3.88 99 4.38 111 16.00
750 7.61 193 5.25 133 5.14 131 5.38 137 4.38 111 28.00
* GROUP "G" MATCHES IN 75, 150 & 250VA.
50 3.78 96 3.00 76 3.14 79 2.21 56 2.50 64 3.50
100 4.00 102 3.38 86 3.46 86 2.62 67 2.82 71 5.70
200 4.38 111 4.50 114 4.40 112 2.82 71 3.75 95 7.00
300 4.75 121 4.50 114 4.40 112 3.75 95 3.75 95 11.00
350 5.75 146 4.50 114 4.40 112 4.72 120 3.75 95 13.00
500 6.11 155 5.25 133 5.14 131 4.38 111 4.38 111 15.00
750 7.61 193 5.25 133 5.14 131 5.87 149 4.38 111 28.00
* GROUP "H" MATCHES IN 200, 250, 300 & 500VA
50 4.03 102 3.00 76 2.72 69 2.20 56 2.50 64 3.50
75 4.53 115 3.00 76 2.72 69 2.62 67 2.50 64 4.50
100 4.03 102 3.75 95 3.36 85 2.82 71 3.13 79 6.00
150 4.53 115 3.75 95 3.36 85 3.18 81 3.75 95 7.70
350 5.00 127 4.50 114 3.97 101 3.75 95 3.75 95 16.50
750 8.11 206 5.25 133 4.63 118 5.87 149 4.38 111 28.00
DIMENSIONS INCHES/MM
ALL VERSIONS WEIGHT
11 MICRON POWER DELIVERY
DIMENSIONAL DATA (KVA SIZES)
KVA SIZES CAN EITHER BE SERIES 2 OR IMPERVITRAN
DIAGRAMS DEPICT SERIES 2 DESIGN.
NOTES:
A DCB E
A (BTZ13)
VA
G (MBT13)
H (BTWZ37)
M
240/480 X 120/240
N
240,347,380 X 120/240
DIAGRAMS DEPICT IMPERVITRAN DESIGN.
TRANSFORMERS 500VA AND
LARGER ARE FITTED WITH
6-TERMINAL CONNECTION
BLOCKS.
PRIMARY FUSE BLOCK ADDS
1.375" (35MM) TO "C" DIMENSION.
NO SECONDARY FUSE CLIP
DEDUCTS 0.50 (12.7MM) FROM
"C" DIMENSION.
A B C D E APPROX
(MAX) INCL. FUSE CLIP (MAX) WEIGHT
IN MM IN MM IN MM IN MM IN MM LBS
1000 6.11 155 6.75 172 6.30 160 3.91 99 6.13 156 30.50
1500 8.11 206 6.75 172 6.32 161 6.12 155 6.13 156 50.10
2000 7.75 197 6.75 172 6.28 160 4.97 126 6.13 156 46.00
3000 8.06 205 9.00 229 7.50 191 5.25 133 7.50 191 55.90
5000 10.38 264 9.00 229 7.50 191 7.56 192 7.50 191 84.40
1000 7.44 189 6.38 162 5.42 138 5.06 129 5.31 135 37.00
1500 8.50 216 6.75 172 5.73 146 6.09 155 6.13 156 53.90
2000 8.13 207 6.75 172 5.75 146 5.25 133 6.13 156 42.00
3000 8.56 217 9.00 229 7.50 191 5.75 146 7.50 191 64.50
5000 10.00 254 9.00 229 7.50 191 7.56 192 7.50 191 97.00
1000 7.00 178 6.38 162 5.42 138 5.06 129 5.31 135 31.80
1500 7.45 189 6.75 172 6.29 160 5.25 133 6.13 156 44.20
2000 7.56 192 9.00 229 7.80 198 4.81 122 7.50 191 57.70
3000 8.75 222 9.00 229 7.50 191 5.94 151 7.50 191 76.20
5000 11.00 279 9.00 229 7.50 191 8.19 208 7.50 191 127.40
DIMENSIONS INCHES/MM
1000 7.00 178 5.25 133 4.25 108 5.38 137 4.38 111 26.30
1500 7.00 178 6.75 172 5.75 146 4.25 108 6.13 156 31.00
2000 7.75 197 6.75 172 5.73 146 4.97 126 6.13 156 46.00
3000 8.06 205 9.00 229 7.50 191 5.25 133 7.50 191 56.00
5000 10.00 254 9.00 229 7.50 191 7.19 183 7.50 191 85.40
1000 7.38 187 6.38 162 5.44 138 5.06 129 5.31 135 29.00
1500 8.13 207 6.38 162 5.44 138 5.06 129 5.31 135 33.30
2000 8.88 226 6.75 172 5.75 146 6.13 156 6.13 156 50.00
3000 8.50 216 9.00 229 7.50 191 5.69 146 7.50 191 74.00
5000 10.38 264 9.00 229 7.50 191 7.56 192 7.50 191 110.00
12 MICRON POWER DELIVERY
DIMENSIONAL DATA
NOTES: SERIES 2
TRANSFORMERS 500VA AND
LARGER ARE FITTED WITH
6-TERMINAL CONNECTION
BLOCKS.
PRIMARY FUSE BLOCK ADDS
1.375" (35MM) TO "C" DIMENSION.
NO SECONDARY FUSE CLIP
DEDUCTS 0.50 (12.7MM) FROM
"C" DIMENSION.
CATALOG (VOLTAGE) GROUP DIMENSIONS INCHES/MM
ORIGINAL IMPERVITRAN SERIES 2 (MAX) ALL VERSIONS INCL. FUSE CLIP
B200MBT713XKF 4.38 111 4.50 114 4.40 112 3.00 76 3.75 95 9.80
ORIGINAL IMPERVITRAN
J A B C D E APPROX
P/N IN MM IN MM IN MM IN MM IN MM LBS
B050MBT713XK 3.50 89 3.00 76 3.14 79 2.25 57 2.50 64 3.40
B075MBT713XK 3.50 89 3.38 86 3.44 87 2.44 62 2.82 71 4.80
B100MBT713XK 3.63 92 3.75 95 3.78 96 2.44 62 3.13 79 5.90
B150MBT713XKF 4.00 102 3.75 95 3.78 96 3.19 81 3.13 79 8.00
B250MBT713XKF 4.38 111 4.50 114 4.40 112 3.75 95 3.75 95 12.00
B300MBT713XKF 5.19 132 5.25 133 5.14 131 3.88 99 4.38 111 14.00
B350MBT713XKF 5.00 127 5.25 133 5.14 131 3.88 99 4.38 111 15.00
B500MBT713XKF 5.50 140 5.25 133 5.14 131 5.38 137 4.38 111 18.00
J
SERIES 2
B050-2000-1 4.53 115 3.00 76 3.14 79 2.82 71 2.50 64 3.40
B075-2001-1 4.53 115 3.75 95 3.78 96 2.82 71 3.13 79 4.80
B100-2002-1 4.53 115 3.75 95 3.78 96 3.00 76 3.13 79 5.90
B150-2003-1F 5.03 128 3.75 95 3.78 96 3.19 81 3.13 79 8.00
B200-2004-1F 4.38 111 4.50 114 4.40 112 3.00 76 3.75 95 9.80
B250-2005-1F 4.75 121 4.50 114 4.40 112 3.75 95 3.75 95 12.00
B300-2006-1F 6.11 155 5.25 133 5.14 131 3.88 99 4.38 111 14.00
B350-2007-1F 6.11 155 5.25 133 5.14 131 3.88 99 4.38 111 15.00
B500-2008-1F 7.11 181 5.25 133 5.14 131 5.38 137 4.38 111 18.00
B750-2009-1F 7.11 181 6.75 172 6.30 160 4.97 126 6.13 156 38.60
B1K0-2010-1F 8.13 207 6.75 172 5.73 146 6.13 156 6.13 156 48.40
L
B050-0482-1 3.44 87 3.88 99 3.38 86 2.41 61 2.81 71 4.00
B100-0483-1 4.00 102 3.75 95 3.50 89 3.00 76 3.13 79 6.60
B150-0484-1F 4.00 102 4.50 114 4.50 114 2.82 71 3.75 95 8.70
B250-0485-1F 5.75 146 4.50 114 4.50 114 4.38 111 3.75 95 11.40
B350-0486-1F 5.14 131 5.25 133 4.75 121 4.38 111 4.38 111 13.60
B500-0487-1F 7.19 183 5.14 131 4.75 121 5.88 149 4.38 111 17.40
B750-0488-1F 6.50 165 6.75 172 6.00 152 4.25 108 6.13 156 27.50
DIAGRAMS BELOW DEPICT INSTALLED PRIMARY FUSING OPTION.
A D C B E
ALL VERSIONS WEIGHT
DIAGRAMS DEPICT UNITS 500VA AND UP.
13 MICRON POWER DELIVERY
