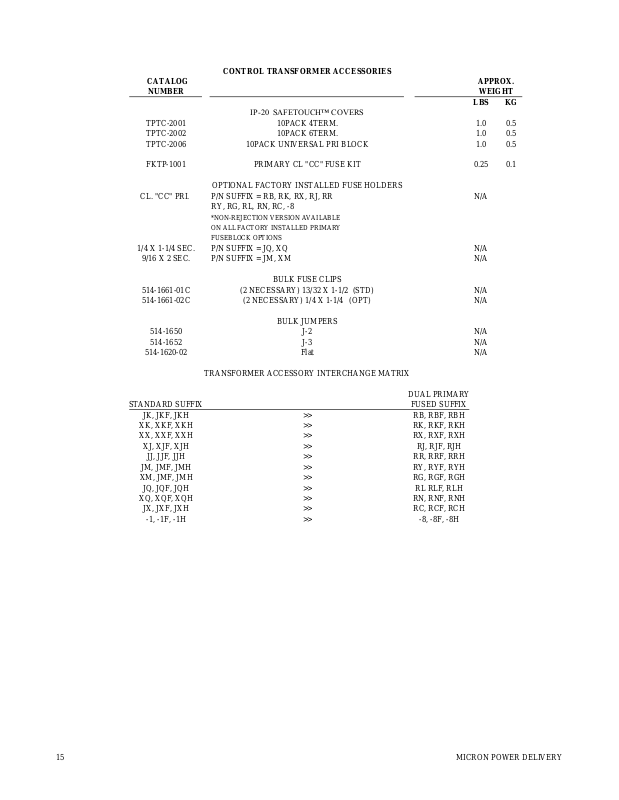

CONTROL TRANSFORMER ACCESSORIES
CATALOG
APPROX.
NUMBER WEIGHT
LBS KG
IP-20 SAFETOUCH™ COVERS
TPTC-2001 10PACK 4TERM. 1.0 0.5
TPTC-2002 10PACK 6TERM. 1.0 0.5
TPTC-2006 10PACK UNIVERSAL PRI BLOCK 1.0 0.5
FKTP-1001 PRIMARY CL "CC" FUSE KIT 0.25 0.1
OPTIONAL FACTORY INSTALLED FUSE HOLDERS
CL. "CC" PRI. P/N SUFFIX = RB, RK, RX, RJ, RR N/A
RY, RG, RL, RN, RC, -8
*NON-REJECTION VERSION AVAILABLE
ON ALL FACTORY INSTALLED PRIMARY
FUSEBLOCK OPTIONS
1/4 X 1-1/4 SEC. P/N SUFFIX = JQ, XQ N/A
9/16 X 2 SEC. P/N SUFFIX = JM, XM N/A
BULK FUSE CLIPS
514-1661-01C (2 NECESSARY) 13/32 X 1-1/2 (STD) N/A
514-1661-02C (2 NECESSARY) 1/4 X 1-1/4 (OPT) N/A
BULK JUMPERS
514-1650 J-2 N/A
514-1652 J-3 N/A
514-1620-02 Flat N/A
TRANSFORMER ACCESSORY INTERCHANGE MATRIX
DUAL PRIMARY
STANDARD SUFFIX FUSED SUFFIX
JK, JKF, JKH >> RB, RBF, RBH
XK, XKF, XKH >> RK, RKF, RKH
XX, XXF, XXH >> RX, RXF, RXH
XJ, XJF, XJH >> RJ, RJF, RJH
JJ, JJF, JJH >> RR, RRF, RRH
JM, JMF, JMH >> RY, RYF, RYH
XM, JMF, JMH >> RG, RGF, RGH
JQ, JQF, JQH >> RL RLF, RLH
XQ, XQF, XQH >> RN, RNF, RNH
JX, JXF, JXH >> RC, RCF, RCH
-1, -1F, -1H >> -8, -8F, -8H
15 MICRON POWER DELIVERY
