Micro Motion 4200 Specifications

Product Data Sheet

Micro Motion® 4200 2-Wire Transmitter

PS-002153, Rev B

May 2019

The Micro Motion 4200 2-wire transmitter enables the use of reliable and accurate Micro Motion Coriolis meters virtually anywhere
in your plant. The 2-wire Coriolis meter delivers measurement accuracy, repeatability, and operational savings on a level not
previously possible in loop-powered applications.

■

Replace existing 2-wire flow devices with minimal effort and without incurring additional power or cabling costs

■

Wireless THUM™ option maximizes installation and operation flexibility

■

Low energy, loop-powered design enables easy integration of Coriolis into existing processes for improved measurement and
reduced maintenance for an even greater number of flow points

■

Reduce the complexity and improve the performance of new process plants with loop-powered mA output and HART protocol
2-wire Coriolis

■

Compact, integral 2-wire transmitter design saves electrical cost and space for use on integrated systems and skids

■

Direct mass measurement improves process control while reducing number of measurement devices required

■

Accurate, repeatable measurement ensures higher quality production and overall improved process profitability

■

Certified for SIL2 and SIL3 Safety applications per IEC 61508

4200 2-Wire Transmitter

May 2019

Overview 4200 2-wire transmitter

The Micro Motion 2-wire Coriolis meter delivers multivariable and diagnostic information through HART® communications.
Comprised of a cutting-edge 4200 transmitter and the proven best-in-class performance of a Micro Motion Coriolis meter, the
Micro Motion 2-wire meter brings reduced costs through improved process consistency and maximized up time. Micro Motion 2­wire Coriolis is ideally suited for use in the chemical, petrochemical and refining industries, and for continuous process and mass
balance applications.

4200 transmitter

The 4200 transmitter is suitable for a range of process conditions, including CSA Class I Div. 1 and ATEX Zone 1 approvals. To
facilitate installation in hazardous areas, Micro Motion offers a Micro Motion 505 barrier as a spare part, or a third-party barrier can
be used.

Installation types for the 4200 transmitter

DANGER

If you are installing the transmitter in a hazardous area, refer to Micro Motion approval instructions, shipped with the product or
available from the Micro Motion web site (www.emerson.com/flowmeasurement). Improper installation in a hazardous area can
cause an explosion.

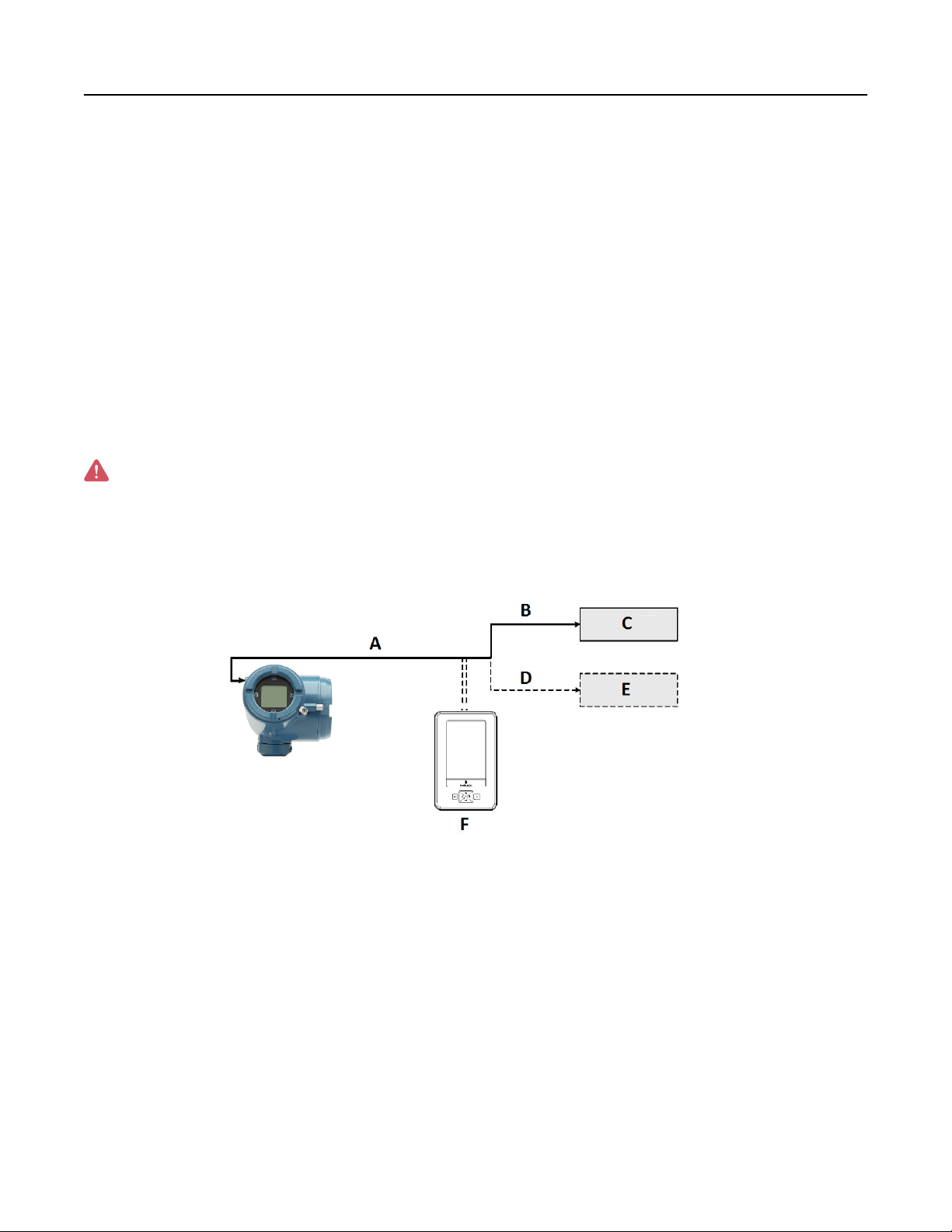

General configuration example

A. 2-wire cable power and signal
B. 4-20 mA
C. mA receiving device

D. HART variables

E. DCS
F. Emerson AMS Trex communicator

2 4200 2-Wire Transmitter

May 2019

Connection example for cases where a barrier is required

A. Hazardous area
B. Safe area
C. 2-wire cable power and signal

D. Barrier

E. 4-20 mA

F. mA receiving device
G. HART variables
H. DCS

I. Emerson AMS Trex communicator

4200 2-Wire Transmitter

www.emerson.com 3

4200 2-Wire Transmitter May 2019

Applications

Applications are custom-designed software available to offer additional functionality and performance to transmitters. These
applications are available through options in the transmitter model code. See the Ordering information section for details.

Smart Meter Verification

■

Provides a quick, complete assessment of a Coriolis meter, determining whether the meter has been affected by erosion,
corrosion, or other influences affecting meter calibration

■

A basic version of Smart Meter Verification is included with the 4200 transmitter that provides simple pass/fail results.

Petroleum measurement and API correction option

■

Accepts inputs from temperature and pressure devices

■

Calculates values as per May, 2004 API Chapter 11.1
— Relative density (specific gravity and API gravity) at reference temperature from observed density and temperature

— Volume corrected to reference temperature and pressure

■

Calculates flow-weighted average temperature and flow-weighted average observed density (specific gravity and API gravity)

Concentration measurement

Provides concentration measurement based on either industry-specific or liquid-specific units and relationships. Standard
measurement options include:

■

Industry-specific:
— °Brix

— °Plato

— °Balling

— °Baumé at SG60/60

— Specific gravity

■

Liquid-specific:
— ﹪HFCS

— Concentration derived from reference density

— Concentration derived from specific gravity

Additionally, the application can be customized for site-specific concentration measurement (such as %HNO3 , %NaOH).

Electrical connections

Connection type

Input/Output

Digital communications
administrative connection

4 4200 2-Wire Transmitter

Transmitter

■

Two pairs of wiring terminals for transmitter input/output, digital communications, and
power

■

Screw terminals accept solid or stranded conductors, 26 AWG (0.129 mm²) to 14 AWG
(2.08 mm²).

■

Two clips inside the terminal cover for a temporary connection to HART/Bell 202 terminals.

■

Loop resistance is required and must be present in the main I/O loop, but not physically on
the main terminal block.

May 2019

4200 2-Wire Transmitter

Input/output signal detail

Transmitter code Descriptions

Channel A One passive 4-20mA output with HART

■

Isolated to ±50 VDC from earth ground

■

Maximum load limit: 600 Ω

■

External power: 17.8 to 30 VDC.

■

Can report mass flow, volume flow, gas standard volume flow, temperature, or
density

■

Intrinsically safe version available

Channel B One passive 4-20mA or frequency or discrete output (Optional Licensed Channel)

■

Isolated to ±50 VDC from earth ground

■

Maximum load limit: 600 Ω

■

External power: 7 to 30 VDC

■

Can report mass flow, volume flow, gas standard volume flow, temperature, or
density

■

Intrinsically safe version available

Digital communications

Connection type

HART Bell 202 The HART signal is superimposed on the milliamp output, and is available for host

Transmitter

system interface:

■

Frequency: 1.2 and 2.2 kHz

■

Amplitude: up to 1.0 mA

■

1200 baud, one stop bit, odd parity

■

Address: 0 (default), configurable

■

Requires 250 to 600 Ohms resistance

Environmental limits

Ambient temperature limits

Type

Operating -40 °F (-40.0 °C) to 149 °F (65.0 °C)

Storage -40 °F (-40.0 °C) to 185 °F (85.0 °C)

Ambient temperature limits

Vibration limits

Meets IEC 60068-2-6, endurance sweep, 5 to 2000 Hz up to 1.0 g.

www.emerson.com 5

4200 2-Wire Transmitter May 2019

Housing rating

Type Value

Transmitter NEMA 4X ( IP66/67/69k) polyurethane-painted cast aluminum

Humidity limits

The humidity limits are 5 to 95% relative humidity, non-condensing between -40 °F (-40.0 °C) to 149 °F (65.0 °C).

Environmental effects

EMI effects

■

Complies with EMC directive 2014/30/EU per EN 61326 Industrial

■

Complies with NAMUR NE-21 (2017-08-01)

Note

For more information, please contact the factory for the certificate of conformance.

Ambient temperature effect

■

On analog outputs: ±0.005% of span per °C change from temperature at which the outputs were trimmed

Hazardous area classifications

Hazardous area classifications

Approval
Type

CSA C-US XP:

Approval

■

CLASS I, DIV. 1, Groups C, D

■

CLASS I, DIV. 2, Groups A, B, C, D

■

CLASS II, Div. 1, Groups E, F, and G

IS:

■

CLASS I, DIV. 1, Groups A, B, C, D

■

CLASS I, DIV. 2, Groups A, B, C, D

■

CLASS II, Div. 1, Groups E, F, and G

NI:

■

CLASS I, DIV. 2, Groups A, B, C, D

■

CLASS II, Div. 2, Groups F, and G

6 4200 2-Wire Transmitter

May 2019 4200 2-Wire Transmitter

Approval
Type

ATEX

IECEx IECEx Z1 Ex d:

Approval

■

II 2(1)G Ex db [ia Ga] IIC T6 Gb

■

II 2(1)D Ex tb [ia Da] IIIC T72°C Db

■

IP66/IP67

or

■

II 2(1)G Ex db eb [ia Ga] IIC T6 Gb

■

II 2(1)D Ex tb [ia Da] IIIC T72°C Db

■

IP66/IP67

or

■

II 1G Ex ia IIC T4 Ga

■

II 1D Ex ia IIIC T77°C Da

■

IP66/IP67

■

II 3(1)G Ex ec [ia Ga] IIC T6 Gc

■

II 3(1)D Ex tc [ia Da] IIIC T72°C Dc

■

IP66/IP67

■

Ex db [ia Ga] IIC T6 Gb

■

Ex tb [ia Da] IIIC T72°C Db

■

IP66/IP67

IECEx Z1 Ex de:

■

Ex db eb [ia Ga] IIC T6 Gb

■

Ex tb [ia Da] IIIC T72°C Db

■

IP66/IP67

IECEx Z0/1 Ex ia:

■

Ex ia IIC T4 Ga

■

Ex ia IIIC T77°C Da

■

IP66/IP67

IECEx Z2 Ex ec:

■

Ex ec [ia Ga] IIC T6 Gc

■

Ex tc [ia Da] IIIC T72°C Dc

■

IP66/IP67

www.emerson.com 7

4200 2-Wire Transmitter

May 2019

Physical specifications

Transmitter

Specification Value

Housing NEMA 4X (IP66/67) polyurethane-painted cast aluminum. Available with 1/2” NPT

or M20 conduit connections

Weight See the sensor product data sheet for combined weight of the flowmeter:

■

Integral mount version 6.48 lbs (2.94 kg)

■

Remote mount version 8.21 lbs (3.72 kg)

Cable gland entrances Two 1/2”–NPT or M20 x1.5 female conduit port

Mounting

Interface/display Standard user interface with LCD panel

■

Integral-mount or remote-mount

■

Available integrally mounted to Micro Motion ELITE and F-Series sensors

■

The transmitter can be rotated on the mounting in 45 degree increments.

■

Suitable for hazardous area installation

■

User interface module can rotate 360° in 90° increments by software selection

■

Four capacitive buttons for local operation without removing transmitter
housing cover

■

Display can be configured to scroll through displayed variables at user­specified rate

■

Display update rate is user-configurable: 500 to 10,000 milliseconds

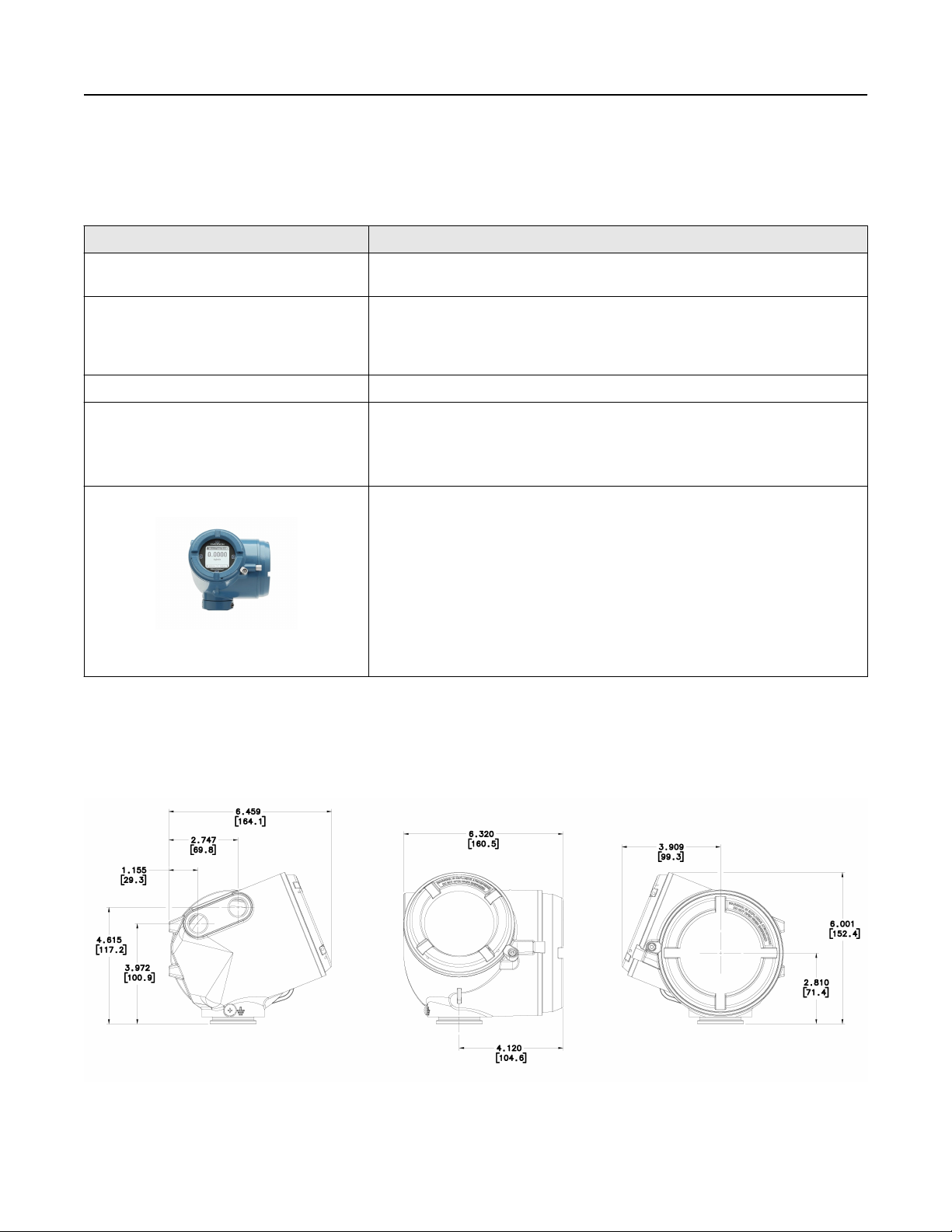

Dimensions

4200 transmitter -- integral installation

8 4200 2-Wire Transmitter

May 2019 4200 2-Wire Transmitter

4200 transmitter -- remote installation

www.emerson.com 9

4200 2-Wire Transmitter May 2019

4200 with Smart Wireless THUM™ Adapter

The 4200 transmitter is available with the Smart Wireless THUM Adapter using order option codes PI (THUM ordered separately
and assembled to 4200 transmitter) and NI (THUM ordered separately and not assembled to 4200 transmitter). Refer to the Add on

options table.

Note

Dimensions are in inches (mm).

Ordering information

4200

Base model

Model Product description

4200 4200 Micro Motion Field Mount Loop-Powered Transmitter

Mounting

Code Options for 4200

I Integral mount transmitter (polyurethane-painted aluminum housing)

C 9-wire remote mount transmitter (polyurethane-painted aluminum housing), 316 stainless steel bracket for wall or

pipe mounting and hardware for 2" (50.8 mm) pipe mount; Includes 10ft. (3M) of CFEPS cable

Power

Code

1 Loop Powered

Power options

Display

Code

Available with all approval codes

2 Dual-line display for process variables and totalizer reset

3 No display

Transmitter display options

Output Hardware Board

Code

A 4-20mA (Loop Powered)

Output Hardware Board

Conduit connection

Code

B 1/2-inch NPT -- no gland

C 1/2-inch NPT with brass nickel cable gland

Conduit connection options

10 4200 2-Wire Transmitter

May 2019 4200 2-Wire Transmitter

Code Conduit connection options

D 1/2-inch NPT with stainless steel cable gland

E M20 -- no gland

F M20 with brass nickel cable gland

G M20 with stainless steel cable gland

K JISB0202 1/2G -- no gland

L Japan -- brass nickel cable gland

M Japan -- stainless steel cable gland

Approval

Code Approval options

MA Micro Motion Standard (no approval)

AA CSA (US and Canada): Class I, Div. 1 Ex Proof

AB CSA (US and Canada): Class I, Div. 1 Intrinsically Safe

ZA ATEX: II 2G, Ex de, Zone 1 and II 2D Ex tb, Zone 21

FA ATEX: II 2G, Ex d, Zone 1 and II 2D Ex tb, Zone 21

ZB ATEX: II 1G, Ex ia, Zone 0/Zone 1 and II 1D, Ex ia, Zone 20/Zone 21

IA IECEx: EPL Gb, Ex d, Zone 1 and EPL Db, Ex tb, Zone 21

EA IECEx: EPL Gb, Ex de, Zone 1 and EPL Db, Ex tb, Zone 21

EB IECEx: EPL Ga, Ex ia, Zone 0/Zone 1 and EPL Da, Ex ia, Zone 20/Zone 21

2A CSA (US and Canada): Class I, Div. 2

Sensor connections will be Intrinsically Safe without additional barrier.

VA ATEX: II 3G, Ex ec, Zone 2 and II 3D Ex tc Zone 22

Sensor connections will be Intrinsically Safe without additional barrier.

3A IECEx: EPL Gc, Ex ec, Zone 2 and EPL Dc, Ex tc Zone 22

Sensor connections will be Intrinsically Safe without additional barrier.

Transmitter option 1

Code

Z Standard

Transmitter Option 1

Transmitter option 2

Code

Transmitter Option 1

Z Standard

Factory options

Code

Z Standard product

Factory options for 4200

www.emerson.com 11

4200 2-Wire Transmitter May 2019

Code Factory options for 4200

X ETO product

Output channel A assignment

Code Output channel A assignment

Available with A Output Hardware Board

A Channel A : 4-20mA/HART (Loop Powered)

Output channel B assignment

Code Output channel B assignment

Available with A Output Hardware Board

A Channel B : One passive 4-20mA output, or frequency output, or discrete output (optional)

Z Channel OFF

Add on Options

Code Add on options (all are optional, none mandatory)

Instrument Tagging

TG Instrument -- customer information required (maximum 24 characters)

Meter Verification

MV Smart Meter Verification

Available with all mounting options, but Mounting C is limited to 60 ft (20m) of 9-wire cable and only available
when purchased with a new 9-wire sensor

Enhanced Measurement (select only one from this group)

PS API Referral Software

CM Concentration Measurement Software

Additional Certifications, Requires "A" option

SI Safety certification of 4-20 mA output per IEC 61508

Only Channel A is certified.

Smart Wireless 775 THUM Ready, Requires "A" board option

PI Smart Wireless 775 THUM Ready -- 775 ordered separately and assembled to the 4200 transmitter

Smart Wireless ready transmitter add on Option "PI" is not available with approval options AA, FA, or IA

NI Smart Wireless 775 THUM Ready -- 775 ordered separately and not assembled to the 4200 transmitter

12 4200 2-Wire Transmitter

May 2019 4200 2-Wire Transmitter

www.emerson.com 13

4200 2-Wire Transmitter May 2019

14 4200 2-Wire Transmitter

May 2019 4200 2-Wire Transmitter

www.emerson.com 15

PS-002153

Rev. B

May 2019

Emerson Automation Solutions

Worldwide Headquarters
7070 Winchester Circle
Boulder, Colorado USA 80301
T: [phone]
T: [phone]
F: [phone]
Mexico: 52 55 5809 5300
Argentina: 54 11 4837 7000
Brazil: 55 15 3413 8147
Chile: 56 2 2928 4800

Emerson Automation Solutions

Central Europe: [phone]
Eastern Europe: [phone]
Dubai: [phone]
Abu Dhabi: [phone]
Austria: [phone]
France: 0800 917 901
Germany: [phone]
Italy: 8008 77334
The Netherlands: [phone]
Belgium: [phone]
Spain: 900 901 986
U.K.: 0870 240 1978
Russian/CIS: [phone]

©

2019 Micro Motion, Inc. All rights reserved.

The Emerson logo is a trademark and service mark of Emerson Electric Co. Micro Motion, ELITE,
ProLink, MVD and MVD Direct Connect marks are marks of one of the Emerson Automation
Solutions family of companies. All other marks are property of their respective owners.

Emerson Automation Solutions

Australia: (61) 3 9721 0200
China: (86) 21 2892 9000
India: (91) 22 6662 0566
Japan: (81) 3 5769 6803
South Korea: (82) 31 8034 0000
Singapore: (65) 6 363 7766
