Micro Motion 3500 MVD Panelmount Installation Instruction Installation Instructions

Installation Manual

20000885, Rev BA

February 2015

Micro Motion® Model 3500 Transmitter
(MVD) or Model 3300 Controller

Installation manual for panel mount

Safety and approval information

This Micro Motion product complies with all applicable European directives when properly installed in accordance with the
instructions in this manual. Refer to the EC declaration of conformity for directives that apply to this product. The EC declaration of
conformity, with all applicable European directives, and the complete ATEX Installation Drawings and Instructions are available on
the internet at www.micromotion.com or through your local Micro Motion support center.

Information affixed to equipment that complies with the Pressure Equipment Directive can be found on the internet at

www.micromotion.com/documentation.

For hazardous installations in Europe, refer to standard EN 60079-14 if national standards do not apply.

Other information

Full product specifications can be found in the product data sheet. Troubleshooting information can be found in the transmitter
configuration manual. Product data sheets and manuals are available from the Micro Motion web site at www.micromotion.com/

documentation.

Return policy

Micro Motion procedures must be followed when returning equipment. These procedures ensure legal compliance with government
transportation agencies and help provide a safe working environment for Micro Motion employees. Failure to follow Micro Motion
procedures will result in your equipment being refused delivery.

Information on return procedures and forms are available on our web support system at www.micromotion.com, or by phoning the
Micro Motion Customer Service department.

Micro Motion customer service

Email:

• Worldwide: [e-mail]

• Asia-Pacific: [e-mail]

Telephone:

North and South America Europe and Middle East Asia Pacific

United States 800-522-6277 U.K. 0870 240 1978 Australia 800 158 727

Canada [phone] The Netherlands [phone] New Zealand 099 128 804

Mexico [phone] France 0800917901 India 800 440 1468

Argentina [phone] Germany 0800 182 5347 Pakistan 888 550 2682

Brazil [phone] Italy 8008 77334 China [phone]

Venezuela [phone] Central & Eastern [phone] Japan [phone]

Russia/CIS [phone] South Korea [phone]

Egypt 0800 000 0015 Singapore [phone]

Oman 800 70101 Thailand 001 800 441 6426

Qatar 431 0044 Malaysia 800 814 008

Kuwait 663 299 01

South Africa 800 991 390

Saudia Arabia 800 844 9564

UAE 800 0444 0684

Contents

Chapter 1 Planning....................................................................................................................... 5

1.1 Installation kit ........................................................................................................................ 5

1.2 Choose a location................................................................................................................... 6

1.3 Cable lengths ......................................................................................................................... 8

1.4 Install the Model 3300 or Model 3500 in the panel ................................................................. 9

Chapter 2 Mounting..................................................................................................................... 11

2.1 Mount the core processor ...................................................................................................... 11

Chapter 3 Wiring ......................................................................................................................... 13

3.1 Connect the input and output wiring ..................................................................................... 13

3.2 Connect the Model 3500 to the sensor .................................................................................. 16

3.3 Wire the sensor to the remote core processor........................................................................ 24

3.4 Connect the power supply wiring........................................................................................... 25

Installation Manual 3

4 Model 3500 Transmitters or Model 3300 Peripherals - Panel Mount

1 Planning

This installation manual explains basic installation guidelines for installing the Micro Motion
Model 3300 or Model 3500 MVD applications platform.

For information on I.S. applications, refer to Micro Motion approval documentation.
For complete instructions about configuration, maintenance, and service, refer to the

instruction manual shipped with the transmitter.

WARNING!

Improper installation in a hazardous area can cause an explosion.

For information about hazardous applications, refer to the appropriate Micro Motion approval
documentation, shipped with the meter or available from the Micro Motion web site.

WARNING!

Hazardous voltage can cause severe injury or death.

Install transmitter and complete all wiring before supplying power.

CAUTION!

Improper installation can cause measurement error or meter failure. Follow all instructions.

Planning

1.1 Installation kit

The installation kit includes a bezel, frame, two mounting brackets with screws, a power
supply wiring connector, and a retaining clip assembly for power supply wiring. See Figure

1-1).

The applications platform fits through a 5 7/16-inch (138 mm) square cutout in a panel
that is 5/64 inch (2 mm) to 1/2 inch (13 mm) thick. The bezel provides a IP65 watertight
seal between the panel cutout and the applications platform housing. See Figure 1-1.

In addition, the installation kit includes either:

• A bracketed wiring connector for screw-type connectors. See Figure 3-2.

• I/O cables and connectors. See Figure 3-3.

Installation Manual 5

Planning

Power supply wiring connector

Retaining-clip assembly for power supply

wiring

2 x mounting bracket with screw

Frame

Bezel

Panel thickness:
5/64 inch (2 mm) minimum
1/2 inch (13 mm) maximum

Figure 1-1: Panel-mount installation kit

1.2 Choose a location

Choose a location for the transmitter based on the requirements described below.

1.2.1 Environmental requirements

Install the Model 3300 or Model 3500 where the ambient temperature is between –4 to
+140 °F (–20 to +60 °C).

1.2.2 Dimensions

Model type Dimension drawing

Screw-type wiring connectors Figure 1-2

I/O cables Figure 1-3

See Figure 3-1 and Figure 3-3 for illustrations of screw-type connectors versus I/O cables.

6 Model 3500 Transmitters or Model 3300 Peripherals - Panel Mount

Figure 1-2: Panel-mount screw-type dimensions

4 1/2
(114)

6 1/2
(165)

Bezel

Panel

6

(152)

Approvals tag

Frame

Intrinsic safety shield

(Model 3500 only)

7 3/4
(197)

1/2

(12)

8 1/2

(216)

6

(152)

inches

(mm)

6 11/16

(170)

6 1/2
(165)

Bezel

Panel

6

(152)

6 11/16

(170)

Minimum 4 1/4"

(108 mm) bend radius

Approvals tag

1/2

(12)

8 3/4
(222)

5 5/16

(135)

Frame

6

(152)

inches

(mm)

Planning

Figure 1-3: Panel-mount dimensions with I/O cables

Installation Manual 7

Planning

Model 3500

4-wire cable

Sensor

Core processor
(standard or enhanced)

Sensor

Junction box

9-wire cable

4-wire cable

Model 3500

Core processor
(standard only)

1.3 Cable lengths

Maximum cable length from the sensor to the Model 3500 transmitter depends on the
installation type and cable type.

Installation type Maximum cable length

4-wire remote transmitter See Figure 1-4, and Table 1-1 for maximum length of the

Remote core processor with remote
transmitter

If you are installing the Model 3300 applications peripheral in combination with a
transmitter, the maximum cable length between the transmitter frequency output and the
Model 3300 frequency input is 500 feet (150 meters).

Figure 1-4: 4-wire remote transmitter

4-wire cable

See Figure 1-5, and Table 1-1 for maximum length of the
4-wire cable and the 9-wire cable

Figure 1-5: Remote core processor with remote transmitter

8 Model 3500 Transmitters or Model 3300 Peripherals - Panel Mount

Table 1-1: Maximum cable lengths between sensor and transmitter

Step 1

Step 2

Step 3

Step 4

Cable type Wire gauge Maximum length

Micro Motion 4-wire Not applicable • 1000 ft (300 m) without

Ex-approval

• 500 ft (150 m) with

IIC-rated sensors

• 1000 ft (300 m) with

IIB-rated sensors

Micro Motion 9-wire Not applicable 60 ft (20 m)

User-supplied 4-wire VDC 22 AWG (0.35 mm

VDC 20 AWG (0.5 mm2) 500 ft (150 m)

VDC 18 AWG (0.8 mm

RS-485 22 AWG (0.35 mm
larger

2

) 300 ft (90 m)

2

) 1000 ft (300 m)

2

) or

1000 ft (300 m)

1.4 Install the Model 3300 or Model 3500 in the panel

Planning

Refer to Figure 1-6 and follow these steps:

1. Insert the Model 3300 or Model 3500 through the cutout.

2. Slide the frame over the housing.

3. Insert the posts on the brackets into the rails on the housing.

4. Tighten the screws evenly to 10 to 14 inch-pounds (1,13 to 1,38 Nm) to ensure a

watertight seal between the gasket and the panel.

Figure 1-6: Panel installation steps

Installation Manual 9

Planning

10 Model 3500 Transmitters or Model 3300 Peripherals - Panel Mount

2Mounting

Core processor lid

Upper conduit ring

Core processor

Lower conduit ring

End-cap

Mounting bracket

Remote core processor

Remote enhanced core processor

2.1 Mount the core processor

Use this section only if you are installing a remote transmitter using a remote core
processor or a remote enhanced core processor. See Figure 1-5. If you have a 4-wire remote
installation, go to Section 3.1.

Figure 2-1 shows both types of core processors and mounting bracket. Using the mounting

bracket, mount the core processor in a location compatible with the cable length
requirements discussed in Section 1.2.

Figure 2-1: Remote core processor and remote enhanced core processor components

Mounting

Installation Manual 11

Mounting

12 Model 3500 Transmitters or Model 3300 Peripherals - Panel Mount

3 Wiring

Non-intrinsically safe input/output wiring terminal strip

Intrinsically safe sensor wiring terminal strip
(Model 3500 only)

Intrinsic safety shield

(Model 3500 only)

Bracketed wiring

connector

Wiring connector for input/output wiring
terminal strip

Wiring connector for sensor wiring terminal strip
(Model 3500 only)

3.1 Connect the input and output wiring

If the Model 3300 or Model 3500 has screw-type connectors:

1. Plug the bracketed wiring connectors onto the terminal strips on the back panel of the

Model 3300 or Model 3500. See Figure 3-1. Tighten the captive screws to secure the
bracket to the back panel.

Figure 3-1: Wiring screw-type connectors and terminals

Wiring

2. Connect input and output wiring to the appropriate terminals in the input/output

wiring connector. Refer to the card that is inserted into the sleeve on the top panel
(shown in Figure 3-2), and Table 3-1.

• Use 24 to 16 AWG (0,25 to 1,5 mm

2

) twisted-pair shielded wire.

• Ground the shields at a single point only.

Figure 3-2: Input/output wiring terminal card for screw-type connectors

Installation Manual 13

Wiring

Non-intrinsically safe input/output wiring
terminal strip

Intrinsically safe sensor

wiring terminal strip

Bracketed wiring connector

Cable for input/output wiring

Cable for sensor wiring (Model 3500 only)

Connector for input/output wiring

Connector for sensor wiring

(Model 3500 only)

Table 3-1: Input/output wiring terminals for screw-type connectors

Terminal number Designation

–

c 2+

a 2

Primary 4–20 mA output / HART

c 4 + a 4 – Secondary 4–20 mA output

c 6 + a 6 – Frequency input

c 8 + a 8 – Discrete input 1

c 10 + a 10 – Discrete input 2

c 12 + a 12 – Frequency output

c 14 + a 14 – Discrete output 1

c 16 + a 16 – Discrete output 2

c 18 + a 18 – Discrete output 3

c 32 (B line a 32 (A line) RS-485 output

3. If the Model 3300 or the Model 3500 has I/O cables, plug the bracketed wiring

connector onto the terminal strips on the back panel of the model. See Figure 3-3.

4. Tighten the captive screws to secure the bracket to the back panel.

Figure 3-3: Wiring connectors and terminals for I/O cables

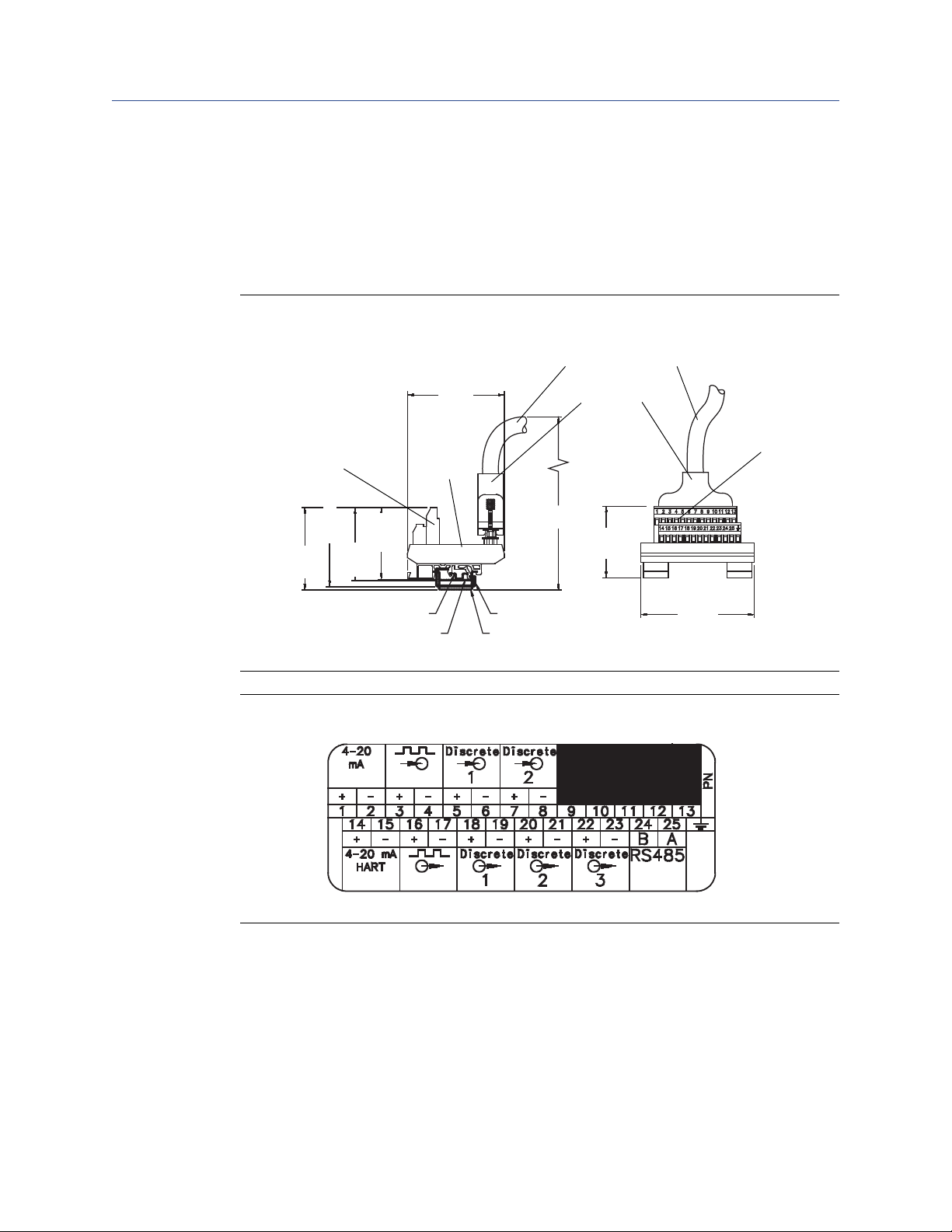

5. Attach the supplied I/O terminal block to a DIN rail.

The terminal block fits various rail types. See Figure 3-4.

6. Plug the connector for input/output wiring onto the I/O terminal block.

7. Tighten the captive screws to secure the connector to the I/O terminal block.

8. Connect input and output wiring to the appropriate terminals on the I/O terminal

block.

14 Model 3500 Transmitters or Model 3300 Peripherals - Panel Mount

Refer to the label attached to the terminal block. See Figure 3-5 and Figure 3-2.

DIN rail type TS 15 DIN rail type TS 32

DIN rail type TS 35 x 7,5

3 3/64

(77)

9

(229)

Label

3 17/32

(90)

Cable for input/output wiring

Connector

I/O terminal block

DIN rail type TS 35 x 15

2 37/

64

(66)

2 31/64

(63)

2 19/64

(59)

2 1/4

(57)

2 15/64

(57)

inches

(mm)

I/O terminal block

• Use 24 to 16 AWG (0,25 to 1,5 mm

2

) twisted-pair shielded wire

• Ground the shields at a single point only

The I/O terminal block ground is available for continuation of user cable shielding to I/
O cable shielding. The cable connector does not connect the I/O cable shielding to the
chassis ground.

Figure 3-4: Terminal block installation steps for I/O wiring on a DIN rail

Wiring

Figure 3-5: Input/output wiring terminal label for I/O cables

Installation Manual 15

Wiring

Table 3-2: Input/output wiring terminals for I/O cables

Terminal number Designation

14 + 15 – Primary 4–20 mA output / HART

1+ 2 – Secondary 4–20 mA output

3 + 4 – Frequency input

5 + 6 – Discrete input 1

7 + 8 – Discrete input 2

16 + 17 – Frequency output

18 + 19 – Discrete output 1

20 + 21 – Discrete output 2

22 + 23 – Discrete output 3

24 (B line) 25 (A line) RS-485 output

3.2 Connect the Model 3500 to the sensor

• If you are installing the Model 3300 applications peripheral, this step is not required.

Go to Section 3.4.

• To connect the Model 3500 transmitter to a Micro Motion sensor, follow the

instructions in this section.

3.2.1 Installation options

The Model 3500 can be wired to the sensor in either of the following configurations:

• 4-wire remote transmitter (requires a 4-wire cable). See Figure 1-4 and Section 3.2.2.

• Remote core processor with remote transmitter (requires both a 4-wire and a 9-wire

cable). See Figure 1-5 and Section 3.2.3.

3.2.2 Wiring instructions for 4-wire remote installations

1. Prepare the cable as described in the sensor documentation.

2. Connect the cable to the core processor as described in the sensor documentation.

3. To connect the cable to the transmitter:

a. Identify the wires in the 4-wire cable.

Use the 4-wire cable supplied by Micro Motion. This cable consists of one pair of 18
AWG (0,75 mm
AWG (0,35 mm

b. For transmitters with screw-type connectors, connect the four wires from the core

processor to the appropriate terminals on the transmitter.

2

) wires (red and black) for the VDC connection, and one pair of 22

2

) wire (green and white) for the RS-485 connection.

See Table 3-3 and Figure 3-6 (standard core processor), or Figure 3-7 (enhanced core
processor).

• Do not leave bare wires exposed.

• Do not ground the shield, braid, or drain wires at the transmitter.

16 Model 3500 Transmitters or Model 3300 Peripherals - Panel Mount

Table 3-3: Transmitter terminals for 4-wire cable

Core processor terminals

4-wire cable

Maximum cable length:

See Table 1-1

VDC+
(Red)

VDC–

(Black)

RS-485B

(Green)

RS-485A

(White)

User-supplied or

factory-supplied cable

Model 3500

Sensor wiring terminals

See Figure 3-1

VDC+
(Red)

RS-485A

(White)

VDC–

(Black)

RS-485B

(Green)

a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a

c
c
c
c
c
c
c
c
c
c
c
c
c
c
c
c

2
4
6
8
10
12
14
16
18
20
22
24
26
28
30
32

Connector type

Wire color

(1)

FunctionTerminal I/O cable

c 4 4 Red VDC+

a 4 10 Black VDC–

c 6 7 White RS-485A

a 6 3 Green RS-485B

(1) Wire colors apply to only 4-wire cable supplied by Micro Motion.

Figure 3-6: 4-wire cable to Model 3500 screw-type connectors for standard and
remote core processors

Wiring

Installation Manual 17

Wiring

Core processor terminals 4-wire cable

Maximum cable length:

See Table 1-1

User-supplied or

factory-supplied cable

Model 3500

Sensor wiring terminals

See Figure 3-1

VDC+
(Red)

RS-485A

(White)

VDC–

(Black)

RS-485B

(Green)

a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a

c
c
c
c
c
c
c
c
c
c
c
c
c
c
c
c

2
4
6
8
10
12
14
16
18
20
22
24
26
28
30
32

VDC+ (Red)

RS-485B (Green)

RS-485A (White)

VDC– (Black)

Figure 3-7: 4-wire cable to Model 3500 screw-type connectors for enhanced and
remote enhanced core processors

18 Model 3500 Transmitters or Model 3300 Peripherals - Panel Mount

Figure 3-8: Terminal block for sensor wiring on the DIN rail

2 11/16

(68)

TS 15 TS 32

TS 35 x 7,5 TS 35 x 15

9

(229)

3 1/16

(77)

2 1/4

(57)

2 5/16

(58)

2 1/2

(63)

2 9/16

(66)

inches

(mm)

Terminal block for sensor wiring

Cable for sensor wiring

(attached to Model 3500)

Connector

Core processor terminals

4-wire cable

Maximum cable length:

See Table 1-1

VDC+

(Red)

VDC–

(Black)

RS-485B

(Green)

RS-485A

(White)

User-supplied or

factory-supplied cable

VDC+
(Red)

RS-485A

(White)

VDC–

(Black)

RS-485B

(Green)

Model 3500

Terminal block for sensor wiring installed

on DIN rail

Wiring

Installation Manual 19

Figure 3-9: 4-wire cable to Model 3500 with I/O cables for standard and remote core
processors

Wiring

Core processor terminals

4-wire cable

Maximum cable length:

See Table 1-1

User-supplied or factory-supplied

cable

VDC+
(Red)

RS-485A

(White)

VDC–

(Black)

RS-485B

(Green)

Model 3500

Terminal block for sensor wiring

installed on DIN rail

RS-485B (Green)

RS-485A (White)

VDC+ (Red)

VDC– (Black)

Figure 3-10: 4-wire cable to Model 3500 with I/O cables for enhanced and remote
enhanced core processors

3.2.3 Wiring instructions for remote core processor with
remote transmitter installations

There are two phases to this procedure:

• Wiring the remote core processor to the transmitter

• Wiring the sensor to the remote core processor

To wire the remote core processor to the transmitter:

1. Use one of the following methods to shield the wiring:

Installation method Procedure

Unshielded wiring in continuous metallic conduit that provides 360°
termination shielding for the enclosed wiring

User-supplied cable gland with shielded cable or armored cable,
terminate the shields in the cable gland. Terminate both the armored
braid and the shield drain wires in the cable gland

A Micro Motion-supplied cable gland at the core processor housing Go to Step 2

2. Do one of the following:

• If you are using shielded cable, prepare the cable and apply shielded heat shrink

as described in Step 6. The shielded heat shrink provides a shield termination

Go to Step 8

Go to Step 8

20 Model 3500 Transmitters or Model 3300 Peripherals - Panel Mount

suitable for use in the gland when using cable whose shield consists of foil and not

4 1/2 in

(114 mm)

3/4 in

(19 mm)

7/8 in

(22 mm)

7/8 in

(22 mm)

Shielded heat shrink

Gland body

Gland nut

Gland clamping

insert

a braid. Go to Step 3.

• If you are using armored cable, prepare the cable as described in Step 6, but do

not apply heat shrink – omit Step 6d, e, f, and g. Go to Step 3.

3. Identify the components shown in Figure 2-1.

4. Remove the core processor lid.

5. Slide the gland nut and the clamping insert over the cable. See Figure 3-11.

Figure 3-11: Gland nut and clamping insert

Wiring

6. For connection at the core processor housing, prepare shielded cable as follows (for
armored cable, omit steps d, e, f, and g):

a. Strip 4 1/2 inches (114 mm) of cable jacket.

b. Remove the clear wrap that is inside the cable jacket, and remove the filler material

between the wires.

c. Remove the foil shield that is around the insulated wires, leaving 3/4 inch (19 mm)

of foil or braid and drain wires exposed, and separate the wires.

d. Wrap the shield drain wires around the exposed foil twice. See Figure 3-12. Cut off

the excess wire.

Installation Manual 21

Wiring

Figure 3-12: Shield drain wires wrapped twice around exposed shield foil

e. Place the shielded heat shrink over the exposed shield drain wires. The tubing

should completely cover the drain wires.

f. Without burning the cable, apply heat (250 °F or 120 °C) to shrink the tubing. See

Figure 3-13.

Figure 3-13: Shielded heat shrink covering exposed drain wires

g. Position the gland clamping insert so that the interior end is flush with the heat

shrink.

h. Fold the cloth shield or braid and drain wires over the clamping insert and

approximately 1/8 inch (3 mm) past the O-ring. See Figure 3-14.

Figure 3-14: Folded cloth

i. Install the gland body into the core processor housing conduit opening. See Figure

3-15.

22 Model 3500 Transmitters or Model 3300 Peripherals - Panel Mount

Wiring

Power supply +

(Red wire)

Power supply –
(Black wire)

RS-485A
(White wire)

RS-485B
(Green wire)

Core processor housing internal ground screw

Figure 3-15: Installing the gland body

7. Insert the wires through the gland body and assemble the gland by tightening the
gland nut.

8. Identify the wires in the 4-wire cable.
The 4-wire cable supplied by Micro Motion consists of one pair of 18 AWG (0,75 mm

wires (red and black) for the VDC connection, and one pair of 22 AWG (0,35 mm

2

) wire

(green and white) for the RS-485 connection.

9. Connect the four wires to the numbered slots on the core processor. See Figure 3-16.

2

)

Figure 3-16: Connect the four wires to the numbered slots

10. Connect the core processor housing internal ground screw if earth ground is required.
Earth ground is required if the core processor cannot be grounded via sensor piping,

and local codes require internal ground connections.
Do not connect shield drain wires to this terminal.

11. Reinstall and tighten the core processor lid.

WARNING!

Do not twist the core processor, as this will damage the sensor.

12. Connect the cable to the transmitter.

Installation Manual 23

Wiring

Connection type Procedure

Screw-type connectors Connect the four wires from the core processor to the appropriate

I/O cables 1. Attach the supplied terminal block to a DIN rail. The terminal

terminals on the transmitter. See Table 3-3 and Figure 3-6.

• Do not expose bare wires.

• Do not ground the shield, braid, or drain wires at the transmitter.

block accommodates various rail types. See Figure 3-8.

2. Plug the I/O cable connector onto the terminal block. Tighten
the captive screws to secure the connector to the terminal
block.

3. Connect the four wires from the core processor to the
appropriate terminals on the terminal block. See Table 3-3 and

Figure 3-9. No bare wires should remain exposed. Do not ground

the shield, braid, or drain wire(s) at the transmitter.

3.3 Wire the sensor to the remote core processor

CAUTION!

Do not allow the shield drain wires to contact the sensor junction box, as this can cause meter
errors.

1. Refer to Micro Motion’s 9-Wire Flowmeter Cable Preparation and Installation Guide and
follow the instructions on cable shielding and preparation.

• At the sensor end, follow the instructions for your cable type.

• At the core processor end, follow the instructions for your cable type with an MVD

transmitter.

2. To connect the wires, refer to Micro Motion’s 9-Wire Flowmeter Cable Preparation and
Installation Guide and follow the instructions for your sensor with an MVD transmitter.
Additional information for connecting the wires at the core processor is provided
below:

a. Identify the components shown in Figure 2-1.

b. Remove the core processor’s end-cap.

c. Insert the 9-wire cable through the conduit opening.

d. Connect the wires to the plugs supplied with the core processor.

e. Insert the plugs into the sockets inside the lower conduit ring. See Figure 3-17.

24 Model 3500 Transmitters or Model 3300 Peripherals - Panel Mount

Figure 3-17: 9-wire cable to core processor

Brown
Red

Green
White

Blue
Gray

Orange
Violet
Yellow

Black
(Drains from all
wire sets)

Plug and

socket

Mounting screw

Blue
Gray
Orange

Red
Green
White

Brown

Violet

Yellow

Ground screw

Black

9-wire cable from sensor Core processor

3. Ground the cable.

Cable type Procedure

Jacketed cable Ground the shield drain wires (the black wire) only on the core

processor end, by connecting it to the ground screw inside the
lower conduit ring. Do not ground to the core processor’s
mounting screw. Do not ground the cable at the sensor junction
box.

Shielded or armored cable Ground the shield drain wires (the black wire) only on the core

processor end, by connecting it to the ground screw inside the
lower conduit ring. Do not ground to the core processor’s
mounting screw. Do not ground the cable at the sensor junction
box.

Ground the cable braid on both ends, by terminating it inside the
cable glands.

Wiring

4. Ensure the integrity of the gaskets, grease all O-rings, then close the junction box
housing and core processor end-cap, and tighten all screws.

CAUTION!

Make sure that the wires are not caught or pinched when you close the housing to reduce the risk of
measurement error or meter failure.

3.4 Connect the power supply wiring

CAUTION!

• Do not install power supply wiring in the same cable tray or conduit as the input/output

wiring to avoid device failure or measurement error.

• Shut off the power supply before installing the applications platform.

• Make sure the power supply voltage matches the voltage that is indicated on the power

Installation Manual 25

supply wiring terminals. See Figure 3-18.

Wiring

DC power supply terminal
designations

AC power supply terminal
designations

Ground lug for power

supply

Power supply wiring

terminals

Connect the Model 3300 or Model 3500 to a power supply using the following steps:

1. Connect 18 to 14 AWG (0,75 to 2,5 mm

2

) wiring to the power supply wiring connector.

See Figure 1-1.

2. Ground the transmitter as follows:

a. Connect the ground wire to the green power supply ground screw. See Figure 3-1.

b. Connect the power supply ground wire directly to earth ground.

c. Keep all ground leads as short as possible.

d. Ensure that all ground wiring has less than 1 ohm impedance.

3. Plug the power supply wiring connector into the power supply wiring terminals. See

Figure 3-18.

4. Slide the retaining clip over the wiring, then tighten the screw to hold the clip in place.
See Figure 1-1.

5. (Optional). Install a user-supplied switch in the power supply line.
In Europe, install the switch close to the Model 3300 or Model 3500 in order to comply

with low-voltage directive 2006/95/EC. For details, see standard EN 61010-1:2010
clause 5.4.3.d.

Figure 3-18: Power supply wiring terminals

26 Model 3500 Transmitters or Model 3300 Peripherals - Panel Mount

Micro Motion Inc. USA

Worldwide Headquarters
7070 Winchester Circle
Boulder, Colorado 80301
T [phone]
T [phone]
F [phone]

www.micromotion.com

Micro Motion Europe

Emerson Process Management
Neonstraat 1
6718 WX Ede
The Netherlands
T [phone]
F [phone]

www.micromotion.nl

*20000885*

20000885

Rev BA

2015

Micro Motion Asia

Emerson Process Management
1 Pandan Crescent
Singapore 128461
Republic of Singapore
T [phone]
F [phone]

Micro Motion United Kingdom

Emerson Process Management Limited
Horsfield Way
Bredbury Industrial Estate
Stockport SK6 2SU U.K.
T [phone]
F [phone]

Micro Motion Japan

Emerson Process Management
1-2-5, Higashi Shinagawa
Shinagawa-ku
Tokyo 140-0002 Japan
T [phone]
F [phone]

©2015 Micro Motion, Inc. All rights reserved.

The Emerson logo is a trademark and service mark of Emerson
Electric Co. Micro Motion, ELITE, ProLink, MVD and MVD Direct
Connect marks are marks of one of the Emerson Process
Management family of companies. All other marks are property of
their respective owners.
