1998 Microchip Technology Inc.

Preliminary

DS40183A-page 1

M

HCS515

FEATURES

Security

• Encrypted storage of manufacturer’s code

• Encrypted storage of encoder decryption keys

• Up to seven transmitters can be learned

• K

EE

L

OQ

code hopping technology

• Normal and secure learning mechanisms

Operating

• 3.0V—5.5V operation

• Internal oscillator

• Auto bit rate detection

Other

• Stand-alone decoder

• Internal EEPROM for transmitter storage

• Synchronous serial interface

• 1 Kbit user EEPROM

• 14-pin DIP/SOIC package

Typical Applications

• Automotive remote entry systems

• Automotive alarm systems

• Automotive immobilizers

• Gate and garage openers

• Electronic door locks

• Identity tokens

• Burglar alarm systems

Compatible Encoders

• HCS200, HCS300, HCS301, HCS360, HCS361,
HCS410 (PWM Mode)

DESCRIPTION

The Microchip Technology Inc. HCS515 is a code hop­ping decoder designed for secure Remote Keyless
Entry (RKE) systems. The HCS515 utilizes the pat­ented K

EE

L

OQ

code hopping system and high security
learning mechanisms to make this a canned solution
when used with the HCS encoders to implement a uni­directional remote and access control systems. The
HCS515 can be used as a stand-alone decoder or in
conjunction with a microcontroller.

PACKA GE TYPE

BLOCK DIAGRAM

The manufacturer’s code, encoder decryption keys,
and synchronization information are stored in
encrypted form in internal EEPROM. The HCS515
uses the S_DAT and S_CLK inputs to communicate
with a host controller device.

The HCS515 operates over a wide voltage range of

3.0 volts to 5.5 volts. The decoder employs automatic
bit-rate detection, which allows it to compensate for
wide variations in transmitter data rate. The decoder
contains sophisticated error checking algorithms to
ensure only valid codes are accepted.

HCS515

PDIP, SOIC

1
2
3
4

NC
NC

Vdd

S0

NC
NC
Vss

RF_IN
5
6

7

14
13
12
11
10

9
8

S1

MCLR

NC

S_CLK

S_DAT

NC

67-bit Reception Register

Internal

CONTROL

DECRYPTOR

RFIN

OSCILLATOR

S_DAT
S_CLK

MCLR

EEPROM

EE_DAT

EE_CLK

S0
S1

Code Hopping Decoder

The K

EE

L

OQ

name, K

EE

L

OQ

logo, and logotype are registered trademarks of Microchip Technology Inc. in the U.S.A. and other countries.

*Code hopping patents issued in Europe, U. S. A. and R. S.—US:5,517,187; Europe: 0459781

HCS515

DS40183A-page 2

Preliminary



1998 Microchip Technology Inc.

1.0 K

EE

L

OQ

SYSTEM OVERVIEW

1.1 Key Terms

• Manufacturer’s Code – A 64-bit word, unique to
each manufacturer, used to produce a unique
encoder decryption key in each transmitter.

• Encoder Decryption Key – A 64-bit key, unique for
each transmitter. The encoder decryption key
controls the K

EE

L

OQ

decryption algorithm and is

stored in EEPROM on the decoder device.

• Learn – The receiver uses information that is
transmitted to derive the transmitter’s encoder
decryption key, decrypt the discrimination value,
and the synchronization counter in learning mode.
The encoder decryption key is a function of the
manufacturer’ s code and the device serial number
and/or seed value.

The HCS encoders and decoders employ the K

EE

L

OQ

code hopping technology and a K

EE

L

OQ

encryption
algorithm to achieve a high level of security. Code
hopping is a method by which the code transmitted
from the transmitter to the receiver is different ever y
time a button is pushed. This method, coupled with a
transmission length of 66 bits, virtually eliminates the
use of code ‘grabbing’ or code ‘scanning’.

1.2 HCS Encoder Overview

The HCS encoders have a small EEPROM arra y which
must be loaded with several parameters before use.
The most important of these values are:

• An encoder decryption key that is generated at
the time of production

• A 16-bit synchronization counter value

• A 28-bit serial number which is meant to be
unique for every encoder

The manufacturer programs the serial number f or each
encoder at the time of production, while the ‘Key Gen­eration Algorithm’ generates the encoder decryption
key (Figure 1-1). Inputs to the k e y generation algorithm
typically consist of the encoder’s serial number and a
64-bit manufacturer’s code, which the manufacturer
creates.

The 16-bit synchronization counter is the basis for the
transmitted code changing for each transmission and is
updated each time a button is pressed. Because of the
complexity of the K

EE

L

OQ

encryption algorithm, a
change in one bit of the synchronization counter value
will result in a large change in the actual transmitted
code. There is a relationship (Figure 1-2) between the
encoder decryption key values in EEPROM and how
they are used in the encoder. Once the encoder
detects that a button has been pressed, the encoder
reads the button and updates the synchronization
counter. The synchronization value is then combined
with the encoder decryption key in the K

EE

L

OQ

encryption algorithm, and the output is 32 bits of
encrypted information. This data will change with e v ery
button press, hence, it is referred to as the code hop­ping portion of the code word. The 32-bit code hopping
portion is combined with the button information and the
serial number to form the code word transmitted to the
receiver.

FIGURE 1-1: CREATION AND STORAGE OF ENCRYPTION KEY DURING PRODUCTION

Note: The manufacturer code is a pivotal part of

the system’s overall security. Conse­quently, all possible precautions must be
taken and maintained for this code.

Transmitter

Manufacturer’s

Serial Number or

Code

Encryption

Key

Key

Generation

Algorithm

Serial Number

Encryption Key

Sync Counter

.
.

.

HCS515 EEPROM Array

Seed

HCS515



1998 Microchip Technology Inc.

Preliminary

DS40183A-page 3

1.3 HCS Decoder Overview

Before a transmitter and receiver can work together,
the receiver must first ‘learn’ and store certain informa­tion from the transmitter. This information includes a
‘check value’ of the serial number, the encoder decryp­tion key, and current synchronization counter value.

When a valid formatted message is detected, the
receiver first compares the serial number. If the serial
number check value is from a learned transmitter, the
message is decrypted. Next, the receiver checks the
decrypted synchronization counter value against what
is stored in memory. If the synchronization counter
value is verified, then a valid transmission message is
sent. Figure 1-3 shows the relationship between some
of the values stored by the receiver and the values
received from the transmitter.

FIGURE 1-2: BASIC OPERATION OF A CODE HOPPING TRANSMITTER (ENCODER)

FIGURE 1-3: BASIC OPERATION OF A CODE HOPPING RECEIVER (DECODER)

KEELOQ

Algorithm

Button Press

Information

Encryption

EEPROM Array

32 Bits of

Encrypted Data

Serial Number

Transmitted Information

Encoder Decryption Key

Sync. Counter Value

Serial Number

Button Press
Information

EEPROM Array

Encoder Decryption Key

32 Bits of

Encrypted Data

Serial Number

Received Information

Decrypted

Synchronization

Counter

Check for

Match

Check for

Match

KEELOQ

Algorithm

Decryption

Sync. Counter Value

Serial Number

Manufacturer Code

HCS515

DS40183A-page 4

Preliminary



1998 Microchip Technology Inc.

2.0 PIN ASSIGNMENT

PIN

Decoder

Function

I/O

(1)

Buffer

Type

(1)

Description

1 NC — — No connection
2 NC — — No connection
3V

DD

— — Power connection
4 S0 O TTL S0 function output
5 S1 O TTL S1 function output
6 MCLR

I ST Master clear input
7 NC — — No connection
8 NC — — No connection
9 S_DAT I/O TTL Synchronous data from controller

10 S_CLK I TTL Synchronous clock from controller
11 RF_IN I TTL RF input from receiver
12 GND — — Ground connection
13 NC — — No connection
14 NC — — No connection

Note: P = power, I = in, O = out, and ST = Schmitt Trigger input.

HCS515



1998 Microchip Technology Inc.

Preliminary

DS40183A-page 5

3.0 DECODER OPERATION

3.1 Learning a Transmitter to a Receiver
(Normal or Secure Learn)

Before the transmitter and receiver can work together,
the receiver must first ‘lear n’ and store the following
information from the transmitter in EEPROM:

• A check value of the serial number

• The encoder decryption key

• The current synchronization counter value

The decoder must also store the manufacturer’s code
(Section 1.2) in protected memory. This code will
typically be the same for all of the decoders in a sys­tem.

The HCS515 has seven memory slots, and, conse­quently, can store up to seven transmitters. During the
learn procedure, the decoder searches for an empty
memory slot for storing the transmitter’s information.
When all of the memory slots are full, the decoder will
overwrite the last transmitter’s information. To erase all
of the memory slots at once, use the ERASE_ALL
command (C3H).

3.1.1 LEARNING PROCEDURE

Learning is initiated by sending the ACTIV ATE_LEARN
(D2H) command to the decoder. The decoder acknowl­edges reception of the command by pulling the data
line high.

For the HCS515 decoder to learn a new transmitter , the
following sequence is required:

1. Activate the transmitter once.

2. Activate the transmitter a second time. (In

secure learning mode, the seed transmission
must be transmitted during the second stage of
learn by activating the appropriate buttons on
the transmitter.)

The HCS515 will transmit a learn-status string,
indicating that the learn was successful.

3. The decoder has now learned the transmitter.

4. Repeat steps 1-3 to learn up to seven

transmitters

Note 1: Learning will be terminated if two

nonsequential codes were received or if two
acceptable codes were not decoded within
30 seconds.

2:

If more than seven transmitters are learned,
the new transmitter will replace the last
transmitter learned. It is, therefore, not pos­sible to erase lost transmitters by
repeatedly learning new transmitters. To
remove lost or stolen transmitters,
ERASE_ALL transmitters and relearn all
available transmitters.

3:

Learning a transmitter with an encoder
decryption key that is identical to a transmit­ter already in memory replaces the existing
transmitter. In practice, this means that all
transmitters should have unique encoder
decryption keys. Learning a previously
learned transmitter does not use any addi­tional memory slots.

The following checks are perfor med by the decoder to
determine if the transmission is valid during learn:

• The first code word is checked for bit integrity.

• The second code word is checked for bit integrity.

• The encoder decryption key is generated accord­ing to the selected algorithm.

• The hopping code is decrypted.

• The discrimination value is checked.

• If all the checks pass, the key, serial number
check value, and synchronization counter values
are stored in EEPROM memory.

Figure 3-1 shows a flow chart of the learn sequence.

FIGURE 3-1: LEARN SEQUENCE

Enter Learn

Mode

Wait for Reception

of Second

Compare Discrimination

Value with Serial Number

Use Generated Key

to Decrypt

Equal?

Sync. counter value

Encoder decryption key

Exit

Learn successful. Store:

Learn

Unsuccessful

No

Yes

Wait for Reception

of a Valid Code

Non-Repeated

Valid Code

Generate Key

from Serial Number/

Seed Value

Serial number check value

HCS515

DS40183A-page 6

Preliminary



1998 Microchip Technology Inc.

3.2 Validation of Codes

The decoder waits for a transmission and checks the
serial number to determine if it is a learned transmitter.
If it is, it takes the code hopping portion of the transmis­sion and decrypts it, using the encoder decryption key .
It uses the discrimination value to determine if the
decryption was valid. If everything up to this point is
valid, the synchronization counter value is evaluated.

3.3 Validation Steps

Validation consists of the following steps:

1. Search EEPROM to find the Serial Number
Check V alue Match

2. Decrypt the Hopping Code

3. Compare the 10 bits of the discrimination value
with the lower 10 bits of serial number

4. Check if the synchronization counter value falls
within the first synchronization window.

5. Check if the synchronization counter value falls
within the second synchronization window.

6. If a valid transmission is found, update the
synchronization counter, else use the next
transmitter block, and repeat the tests.

FIGURE 3-2: DECODER OPERATION

3.4 Synchronization with Decoder

The K

EE

L

OQ

technology features a sophisticated
synchronization technique (Figure 3-3) which does not
require the calculation and storage of future codes. If
the stored synchronization counter value for that
particular transmitter and the synchronization counter
value that was just decrypted are within a formatted
window of 16, the counter is stored, and the command
is executed. If the synchronization counter value was
not within the single operation window , b ut is within the
double operation window of the 16K window, the
transmitted synchronization counter value is stored in a
temporary location, and the decoder goes back to wait­ing for another transmission. When the next valid
transmission is received, it will check the new
synchronization counter value with the one in tempo­rary storage. If the two values are sequential, it is
assumed that the counter had just gotten out of the
single operation ‘windo w’, but is now bac k in synchroni­zation, so the new synchronization counter value is
stored, and the command is executed. If a transmitter
has somehow gotten out of the double operation
window, the transmitter will not work and must be
relearned. Since the entire window rotates after each
valid transmission, codes that hav e been used become
part of the ‘blocked’ (48K) codes and are no longer
valid. This eliminates the possibility of g rabbing a pre vi­ous code and retransmitting to gain entry.

FIGURE 3-3: SYNCHRONIZATION WINDOW

Transmission

Received?

Does

Ser # Check Val

Match?

Decrypt T ransmission

Is

decryption

valid?

Is

counter within

16?

Is

counter within

16K?

Update

Counter

Execute

Command

Save Counter

in T emp Location

Start

No

No

No

No

Yes

Yes

Yes

Yes

Yes

No

and

Blocked

Entire Window
rotates to eliminate
use of previously
used codes

Current
Position

(48K Codes)

Double
Operation
(16K Codes)

Single
Operation
Window
(16 Codes)

HCS515



1998 Microchip Technology Inc.

Preliminary

DS40183A-page 7

4.0 INTERFACING TO A
MICROCONTROLLER

The HCS515 interfaces to a microcontroller via a syn­chronous serial interface. A clock and data line are
used to communicate with the HCS515. The microcon­troller controls the clock line. There are two groups of
data transfer messages. The first is from the decoder
whenever the decoder receives a valid transmission.
The decoder signals reception of a valid code by taking
the data line high (maximum of 500 ms) The microcon­troller then services the request by clocking out a data
string from the decoder. The data string contains the
function code, the status bit, and block indicators. The
second is from the controlling microcontroller to the
decoder in the form of a defined command set.

Figure 4-1 shows the HCS515 decoder and the I/O
interface lines necessary to interface to a microcontrol­ler.

4.1 Valid Transmission Message

The decoder informs the microcontroller of a valid
transmission by taking the data line high for up to
500 ms. The controlling microcontroller must acknowl­edge by taking the clock line high. The decoder then
takes the data line low. The microcontroller can then
begin clocking a data stream out of the HCS515. The
data stream consists of:

• Start bit ‘0’.

• 2 status bits [REPEAT, VLOW].

• 4-bit function code [S3 S2 S1 S0].

• Stop bit ‘1’.

• 4 bits indicating the number of transmitters
learned into the decoder [CNT3…CNT0].

• 4 bits indicating which block was used
[TX3…TX0].

• 64 bits of the received transmission with the hop­ping code decrypted.

The decoder will terminate the transmission of the data
stream at any point where the clock is kept low for
longer than 1 ms.Therefore, the microcontroller can
only clock out the required bits. A maximum of 80 bits
can be clocked out of the decoder.

FIGURE 4-1: HCS515 DECODER AND I/O INTERFACE LINES

FIGURE 4-2: DECODER VALID TRANSMISSION MESSAGE

Note: Data is always clocked in/out Least

Significant Bit (LSB) first.

NC
NC
VDD
S0

RF DATA

SYNC CLOCK

SYNC DATA

S1 OUTPUT

HCS515

S1
MCLR
NC

NC
NC

V

SS

RF_IN

S_CLK

S_DAT

NC

1
2
3
4
5
6
78

9

10

11

12

13

14

VCC

X
X

X

MICRO RESET

S0 OUTPUT

X
X

X

Decoder Signal Valid

TCLKH TDS

AB Cii

TACT

TDHI

TCLA

Received String

Ci

S_DAT

TX0 TX3 RX63REPT VLOW S0 S1 S2 S3 CNT0 CNT30 RX0 RX1 RX621

S_CLK

Information

TACK

TCLKH

TCLKL

Transmission

HCS515

DS40183A-page 8

Preliminary



1998 Microchip Technology Inc.

4.2 Command Mode

4.2.1 MICROCONTROLLER COMMAND MODE
ACTIVATION

The microcontroller command consists of four parts.
The first part activates the command mode, the second
part is the actual command, the third is the address
accessed, and the last part is the data. The microcon­troller starts the command by taking the clock line high
for up to 500 ms. The decoder acknowledges the start­up sequence by taking the data line high. The micro­controller takes the clock line low, after which the
decoder will take the data line low , tri-state the data line
and wait for the command to be clock in. The data must
be set up on the rising edge and will be sampled on the
falling edge of the clock line.

4.2.2 COLLISION DETECTION
The HCS515 uses collision detection to prevent

clashes between the decoder and microcontroller.
Whenever the decoder receives a valid transmission
the following sequence is followed:

• The decoder first checks to see if the clock line is
high. If the clock line is high, the valid transmis­sion notification is aborted, and the microcontrol­ler command mode request is serviced.

• The decoder takes the data line high and checks
that the clock line doesn’t go high within 50 µ s. If
the clock line goes high, the valid transmission
notification is aborted and the command mode
request is serviced.

• If the clock line goes high after 50 µ s but before
500 ms, the decoder will acknowledge by taking
the data line low.

• The microcontroller can then start to clock out the
80-bit data stream of the received transmission.

FIGURE 4-3: MICROCONTROLLER COMMAND MODE ACTIVATION

MSB

A

Command ByteStart Command

T

CLKL

TCLKH

TDS

BC

LSB

TSTART

TCMD

D

TDATA

E

Address Byte Data Byte

TADDR

TREQ

TRESP

CLK

µC Data

HCS515

Data

MSBLSB MSBLSB

TACK

HCS515



1998 Microchip Technology Inc.

Preliminary

DS40183A-page 9

4.2.3 COMMAND ACTIVATION TIMES
The command activation time (Table 4-1) is defined as

the maximum time the microcontroller has to wait for a
response from the decoder. The decoder will abort and
service the command request. The response time
depends on the state of the decoder when the com­mand mode is requested.

4.2.4 DECODER COMMANDS
The command byte specifies the operation required by

the controlling microcontroller. Table 4-2 lists the com­mands.

TABLE 4-1: COMMAND ACTIVATION TIMES

Decoder State Min Max

While receiving transmissions — 2 1/2 BPW

MAX

= 2.7 ms
During the validation of a received transmission — 3 ms
During the update of the sync counters — 40 ms
During learn — 170 ms

TABLE 4-2: DECODER COMMANDS

Instruction Command Byte Operation

READ F0

16

Read a byte from user EEPROM

WRITE E1

16

Write a byte to user EEPROM

ACTIVATE_LRN D2

16

Activate a learn sequence on the decoder

ERASE_ALL C3

16

Activate an erase all function on the decoder

PROGRAM B4

16

Program manufacturer’s code and configuration byte

HCS515

DS40183A-page 10 Preliminary  1998 Microchip Technology Inc.

4.2.5 READ BYTE/S FROM USER EEPROM
The read command (Figure 4-4) is used to read bytes

from the user EEPROM. The offset in the user
EEPROM is specified by the address byte which is
truncated to seven bits (C to D). After the address, a
dummy byte must be clock ed in (D to E). The EEPR OM
data byte is clocked out on the next rising edge of the
clock line with the least significant bit first (E to F).
Sequential reads are possible by repeating sequence E
to F within 1 ms after the falling edge of the previous
byte’s Most Significant Bit (MSB) bit. During the
sequential read, the address value will wrap after 128
bytes. The decoder will terminate the read command if
no clock pulses are received for a period longer than

1.2 ms.

4.2.6 WRITE BYTE/S TO USER EEPROM
The write command (Figure 4-5) is used to write a loca-

tion in the user EEPROM. The address byte is trun­cated to seven bits (C to D). The data is clocked in least
significant bit first. The clock line must be asserted to
initiate the write. Sequential writes of bytes are possib le
by clocking in the byte and then asserting the clock line
(D – F). The decoder will terminate the write command
if no clock pulses are received for a period longer than

1.2 ms After a successful write sequence the decoder
will acknowledge by taking the data line high and keep­ing it high until the clock line goes low.

4.2.7 ERASE ALL
The erase all command (Figure 4-6) erases all the

transmitters in the decoder. After the command and two
dummy bytes are clocked in, the clock line must be
asserted to activate the command. After a successful
completion of an erase all command, the data line is
asserted until the clock line goes low.

FIGURE 4-4: READ BYTES FROM USER EEPROM

FIGURE 4-5: WRITE BYTES TO USER EEPROM

FIGURE 4-6: ERASE ALL

Decoder DATA

MSB

A

Command Byte

Start Command

BC

LSB

D

TRD

E

Address Byte

Dummy Byte

CLK

µC DATA

F

Data Byte

MSBLSB MSBLSB

MSB

LSB

TRD

Decoder DATA

MSB

A

Command Byte

Start Command

BC

LSB

D

TWR

E

Address Byte

Data Byte

CLK

µC DATA

F

Acknowledge

MSBLSB MSBLSB

TACK

TRESP

TACK2

Decoder DATA

MSB

A

Command Byte

Start Command

BC

LSB

D

TERA

E

Subcommand Byte

Dummy Byte

CLK

µC DATA

F

Acknowledge

MSBLSB MSBLSB

TACK

TRESP

TACK2

HCS515

 1998 Microchip Technology Inc. Preliminary DS40183A-page 11

4.2.8 ACTIVATE LEARN
The activate learn command (Figure 4-7) is used to

activate a transmitter learning sequence on the
decoder. The command consists of a command mode
activation sequence, a command byte, and tw o dummy
bytes. The decoder will respond by taking the data line
high to acknowledge that the command was valid and
that learn is active.

Upon reception of the first transmission, the decoder
will respond with a learn status message (Figure 4-8).

During learn, the decoder will acknowledge the recep­tion of the first transmission by taking the data line high
for 60 ms. The controlling microcontroller can clock out
at most eight bits, which will all be zeros. All of the bits
of the status byte are zero, and this is used to distin­guish between a learn time-out status string and the
first transmission received string. The controlling micro­controller must ensure that the clock line does not go
high 60 ms after the falling edge of the data line, for this
will terminate learn.

Upon reception of the second transmission, the
decoder will respond with a learn status message
(Figure 4-9).

The learn status message after the second transmis­sion consists of the following:

• 1 start bit.

• The function code [S3:S0] of the message is zero,
indicating that this is a status string.

• The RESULT bit indicates the result of the learn
sequence. The RESULT bit is set if successful
and cleared otherwise.

• The OVR bit will indicate whether an exiting trans­mitter is over written. The OVR bit will be set if an
existing transmitter is learned over.

• The [CNT3…CNT0] bits will indicate the number
of transmitters learned on the decoder.

• The [TX3…TX0] bits indicate the block number
used during the learning of the transmitter.

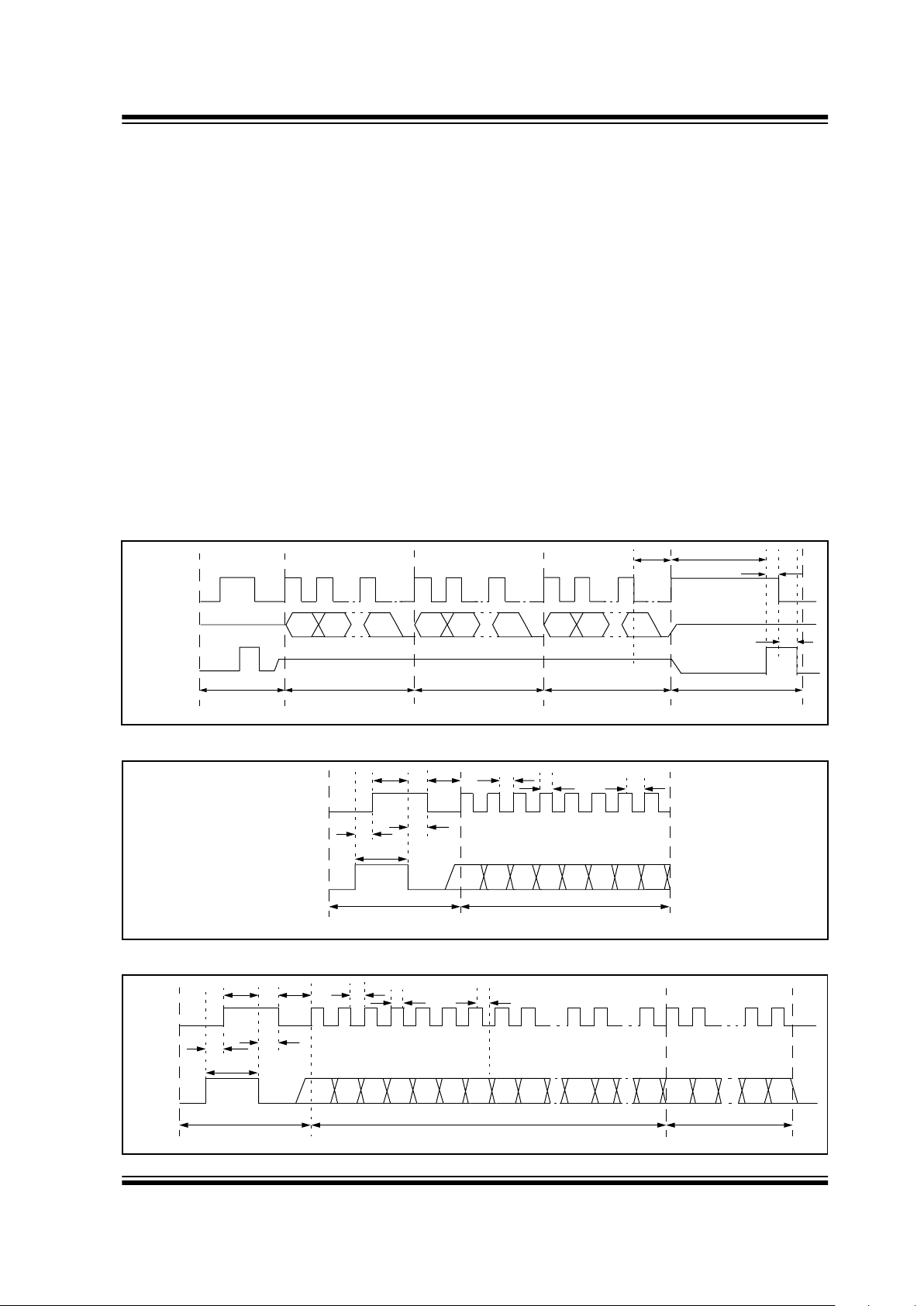

FIGURE 4-7: LEARN MODE ACTIVATION

FIGURE 4-8: LEARN STATUS MESSAGE AFTER FIRST TRANSMISSION

FIGURE 4-9: LEARN STATUS MESSAGE AFTER SECOND TRANSMISSION

Decoder DATA

MSB

A

Command Byte

Start Command

BC

LSB

D

TLRN

E

Dummy Byte Dummy Byte

CLK

µC DATA

F

Acknowledge

MSBLSB MSBLSB

TACK

TRESP

TACK2

Command Request

TCLKL

TCLKH

TCA

TDS

AB

TCLL

TDHI

TCLA

TCLH

CLK

Decoder

0 0 0 0 0 00 0

Status Byte

C

Data

Communications Request

T

CLKL

TCLKH

TACT

TDS

AB Cii

TCLL

TDHI

TCLA

TCLH

CLK

Decoder

TX0 TX3 RX63OVR RSLT 0 0 0 0 CNT0 CNT30 RX0 RX1 RX62

1

Ci

Learn Status Bits

Decoded Tx

Data

HCS515

DS40183A-page 12 Preliminary  1998 Microchip Technology Inc.

4.3 Stand-alone Mode

The HCS515 decoder can also be used in stand-alone
applications. The HCS515 will activate the data line for
up to 500 ms if a valid transmission was received, and
this output can be used to drive a relay circuit. To acti­vate learn or erase all commands, a button must be
connected to the CLK input. User f eedbac k is indicated
on an LED connected to the DATA output line. If the
CLK line is pulled high, using the learn button, the LED
will switch on. After the CLK line is kept high for longer
than 2 seconds, the decoder will switch the LED line off,
indicating that learn will be entered if the button is
released. If the CLK line is kept high for another 6 sec­onds, the decoder will activate an ERASE_ALL Com­mand.

Learn mode can be aborted by taking the clock line
high until the data line goes high (LED switches on).
During learn, the data line will give feedback to the user
and, therefore, must not be connected to the rela y drive
circuitry.

After taking the clock low and before a transmitter is
learn, any low-to-high change on the clock line may ter­minate learn. This has learn implications when a switch
with contact bounce is used.

4.4 Erase All Command and Erase
Command

The Table 4-3 describes two versions of the Erase All
command.

Subcommand 01 can be used where a transmitter with
permanent status is implemented in the microcontroller
software. Use of subcommand 01 ensures that the per­manent transmitter remains in memory even when all
other transmitters are erased. The first transmitter
learned after any of the following events is the first
transmitter in memory and becomes the permanent
transmitter:

1. Programming of the manufacturer’s code.

2. Erasing of all transmitters

(subcommand 00 only).

4.5 Test Mode

A special test mode is activated after:

1. Programming of the manufacturer’s code.

2. Erasing of all transmitters.

Test mode can be used to test a decoder before any
transmitters are learned on it. Test mode enables test­ing of decoders without spending the time to learn a
transmitter. Test mode is terminated after the first suc­cessful learning of an ordinary transmitter. In test
mode, the decoder responds to a test transmitter. The
test transmitter has the following properties:

1. Encoder decryption key = manufacturer’s code.

2. Serial number = any value.

3. Discrimination bits = lower 10 bits of the serial

number.

4. Synchronization counter value = any value

(synchronization information is ignored).

Because the synchronization counter value is ignored
in test mode, any number of test transmitters can be
used, even if their synchronization counter values are
different.

Note: The REPS bit must be cleared in the con-

figuration byte in stand-alone mode.

TABLE 4-3: ERASE ALL COMMAND

Command

Byte

Subcommand

Byte

Description

C3

16

00

16

Erase all
transmitters.

C3

16

01

16

Erase all transmit­ters except 1. The
first transmitter in
memory is not
erased.

HCS515

 1998 Microchip Technology Inc. Preliminary DS40183A-page 13

4.6 Power Supply Supervisor

Reliable operation of the HCS515 requires that the
contents of the EEPROM memory be protected against
erroneous writes. To ensure that erroneous writes do

not occur after supply voltage “brown-out” conditions,
the use of a proper power supply supervisor device is
imperative (Figure 4-11 and Figure 8-4).

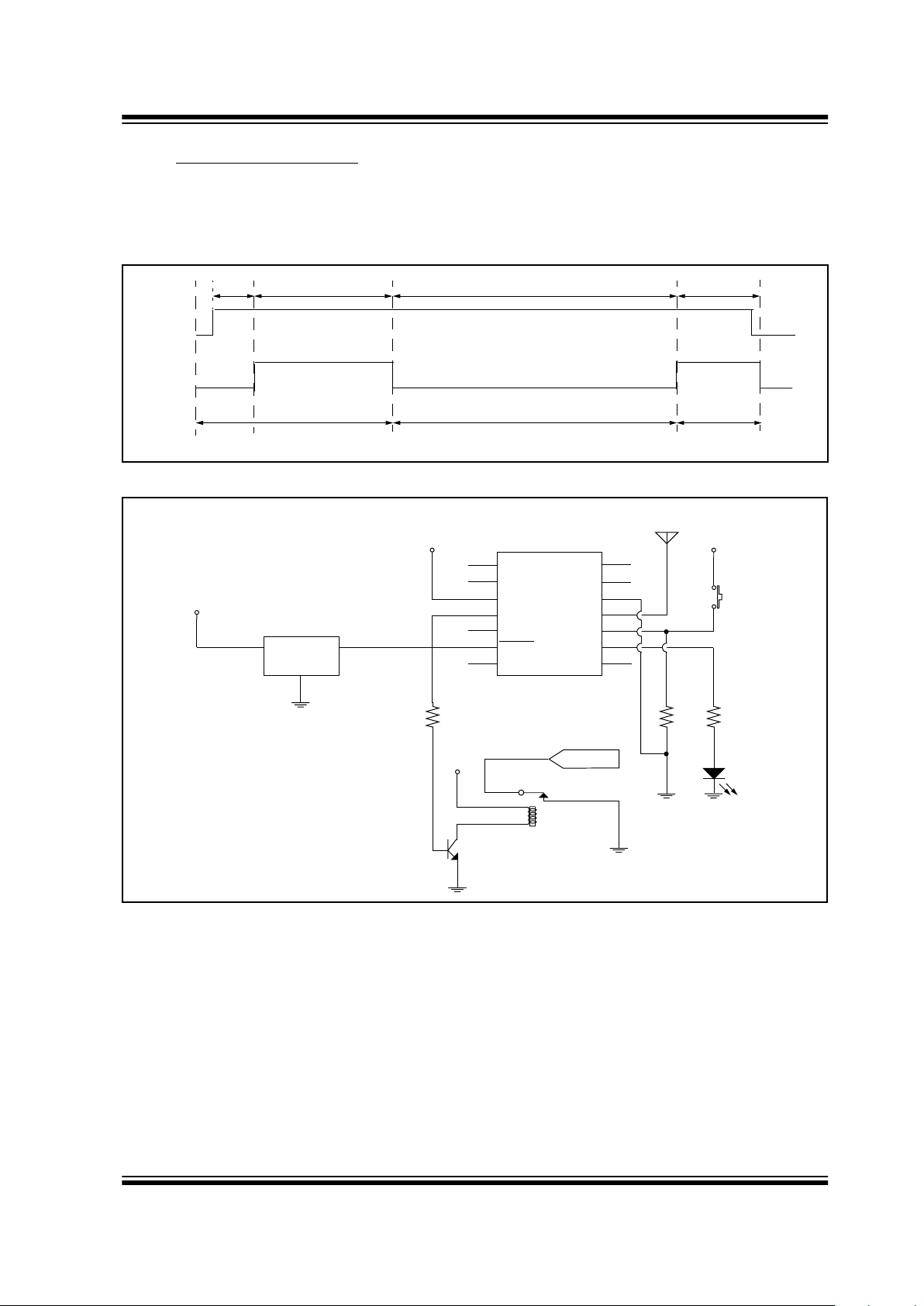

FIGURE 4-10: STAND-ALONE MODE LEARN/ERASE-ALL TIMING

FIGURE 4-11: TYPICAL STAND-ALONE APPLICATION CIRCUIT

DATA

A

Erase-All Activation

TREQ TLRN

CLK

BC D

Learn Activation

TERA

Successful

E

TLRN

OUTPUT

K2

RELAY SPST

Vcc

Vcc

S1
LEARN

Q2
NPN

10K

D1
LED

R2
10K

Vcc

VI

G
N
D

VO

U3
Brown-out Circuit

NC
NC
V

DD

S0

HCS515

S1
MCLR
NC

NC
NC

V

SS

RF_IN

S_CLK

S_DAT

NC

1
2
3
4
5
6
78

9

10

11

12

13

14

X
X

X

X
X

X

R3
10K

X

Vcc

R1
10K

ANT1

RF Circuit

HCS515

DS40183A-page 14 Preliminary  1998 Microchip Technology Inc.

5.0 DECODER PROGRAMMING

The memory is divided between system memory that stores the transmitter information (read protected) and user mem­ory (read/write). Commands to access the user memory are described in Sections 4.2.5 and 4.2.6.

The following information stored in system memory needs to be programmed before the decoder can be used:

• 64-bit manufacturer’s code

• Decoder configuration byte

5.1 Configuration Byte

The decoder is configured during initialization by setting the appropriate bits in the configuration byte. The following tab le
list the options:

5.1.1 LRN_MODE
LRN_MODE selects between two learning modes. With LRN_MODE = 0, the nor mal (serial number der ived) mode is

selected; with LRN_MODE=1, the secure (seed derived) mode is selected. See Section 6.0 for more detail on learning
modes.

5.1.2 REPEAT
The HCS515 can be configured to indicate repeated transmissions. In a stand-alone configuration, repeated transmis-

sions must be disabled.

Note 1: These memory locations are read protected and can only be written to using the program command with

the device powered up.

2: The contents of the system memory is encrypted by a unique 64-bit key that is stored in the HCS515. To

initialize the system memory, the HCS515’s program command must be used.

Bit Mnemonic Description

0 LRN_MODE Learning mode selection

LRN_MODE = 0—Normal Learn

LRN_MODE = 1—Secure Learn
1 Not Used Reserved
2 REPEAT Repeat T r ansmission enable

0 = Disable

1 = Enabled
3 Not Used Reserved
4 Not Used Reserved
5 Not Used Reserved
6 Not Used Reserved
7 Not Used Reserved

HCS515

 1998 Microchip Technology Inc. Preliminary DS40183A-page 15

5.2 Programming Waveform

The programming command consists of the following:

• Command Request Sequence (A to B)

• Command Byte (B to C)

• Configuration Byte (C to D)

• Manufacturer’s Code Eight Data Bytes (D to G)

• Activation and Acknowledge Sequence (G to H)

5.3 Programming Data String

A total of 80 bits are clocked into the decoder . The 8-bit
command byte is clocked in first, followed by the 8-bit
configuration byte and the 64-bit manufacturer’s code.
The data must be clocked in Least Significant Bit (LSB)
first. The decoder will then encr ypt the manufacturer’s
code using the decoder’s unique 64-bit EEPROM
encoder decryption key. After completion of the pro­gramming EEPROM, the decoder will acknowledge by
taking the data line high (G to H). If the data line goes
high within 30 ms after the clock goes high, program­ming also fails.

FIGURE 5-1: PROGRAMMING WAVEFORM

DECODER DATA

MSB MSB

A

Command ByteStart Command

T

CLKL

TCLKHTPP1 TDS

BC

LSB

TPP3

T

PP2

TCMD

D

LSB LSB

Configuration Byte

CLK

µC DATA

MSB

TDATA

G

Most Significant Byte

H

TACK

TWT2

TAW

Acknowledge

MSB

E

Least Significant Byte

F

T

DATATADDR

TPP4

HCS515

DS40183A-page 16 Preliminary  1998 Microchip Technology Inc.

6.0 KEY GENERATION

The HCS515 supports two learning schemes which are selected during the initialization of the system EEPROM. The
learning schemes are:

• Normal learn using the K

EELOQ decryption algorithm

• Secure learn using the K

EELOQ decryption algorithm

6.1 Normal (Serial Number derived) Learn using the KEELOQ Decryption Algorithm

This learning scheme uses the KEELOQ decryption algorithm and the 28-bit ser ial number of the transmitter to derive
the encoder decryption key. The 28-bit serial number is patched with predefined values as indicated below to form two
32-bit seeds.

SourceH = 60000000 00000000H + Serial Number |

28 Bits

SourceL = 20000000 00000000H + Serial Number |

28 Bits

Then, using the KEELOQ decryption algorithm and the manufacturer’s code the encoder decryption key is
derived as follows:

KeyH

Upper 32 bits

= F

KEELOQ Decryption

(SourceH) |

64-Bit Manufacturer’s Code

KeyL

Lower 32 bits

= F

KEELOQ Decryption

(SourceL) |

64-Bit Manufacturer’s Code

6.2 Secure (Seed Derived) Learn using the KEELOQ Decryption Algorithm

This scheme uses the secure seed transmitted by the encoder to derive the two input seeds. The decoder always uses
the lower 64 bits of the transmission to form a 60-bit seed. The upper 4 bits are always forced to zero.

For 32-bit seed encoders (HCS200/HCS300/HCS301):

SourceH = Serial Number

Lower 28 bits

SourceL = Seed

32 bits

For 48-bit seed encoders (HCS360/HCS361):

SourceH = Seed

Upper 16 bits

+ Serial Number

Upper 16 bits

with upper 4 bits set to zero

SourceL = Seed

Lower 32 bits

For 60-bit seed encoders (HCS410):

SourceH = Seed

Upper 32 bits

with upper 4 bits set to zero

SourceL = Seed

Lower 32 bits

The KEELOQ decryption algorithm and the manufacturer’s code is used to derive the encoder decryption key as
follows:

KeyH

Upper 32 bits

= F

KEELOQ Decrypt

(SourceH) |

64 Bit Manufacturer’s Code

KeyL

Lower 32 bits

= F

KEELOQ Decrypt

(SourceL) |

64 Bit Manufacturer’s Code

HCS515

 1998 Microchip Technology Inc. Preliminary DS40183A-page 17

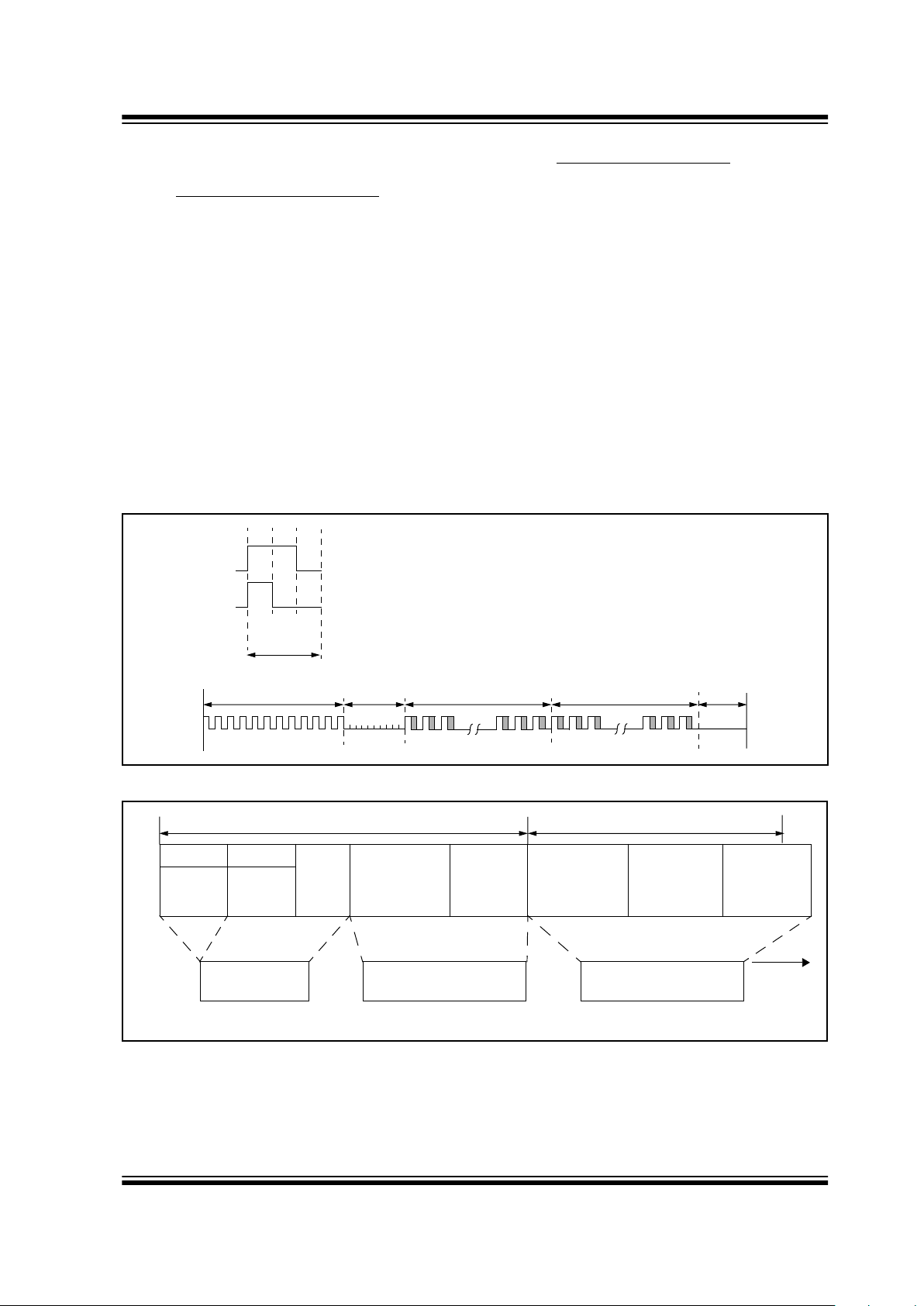

7.0 KEELOQ ENCODERS

7.1 Transmission Format (PWM)

The KEELOQ encoder transmission is made up of sev­eral parts (Figure 7-1). Each transmission begins with
a preamble and a header, followed by the encrypted
and then the fixed data. The actual data is 66/67 bits
which consists of 32 bits of encrypted data and 34/35
bits of non-encrypted data. Each transmission is fol­lowed by a guard period before another transmission
can begin. The code hopping por tion provides up to
four billion changing code combinations and includes
the button status bits (based on which buttons were
activated), along with the synchronization counter
value and some discrimination bits. The non-code hop­ping portion is comprised of the status bits, the function
bits, and the 28-bit serial number. The encrypted and
non-encrypted combined sections increase the num­ber of combinations to 7.38 x 10

19

.

7.2 Code Word Organization

The HCS encoder transmits a 66/67-bit code word
when a button is pressed. The 66/67-bit word is con­structed from a code hopping portion and a non-code
hopping portion (Figure 7-2).

The Encrypted Data is generated from f our button bits,
two overflow counter bits, ten discrimination bits, and
the 16-bit synchronization counter value.

The Non-encrypted Data is made up from 2 status
bits, 4 function bits, and the 28/32-bit serial number.

FIGURE 7-1: CODE WORD TRANSMISSION FORMAT

FIGURE 7-2: CODE WORD ORGANIZATION

LOGIC ‘0’

LOGIC ‘1’

Bit

Period

Preamble

Header

Code Hopping Portion

of Transmission

Fixed Portion of
Transmission

Guard

Time

TP

TH

THOP

TFIX

TG

Repeat

V

LOW

(1 bit)

Button Status

S2S1S0S3

(4 bits)

28-bit
Serial

Number

Button Status

S2S1S0S3

(4 bits)

Discrimination

bits (12 bits)

16-bit
Sync.

Counter

Value

CRC1* CRC0*

3/2 bits

+ Serial Number and

Button Status (32 bits)

+ 32 bits of Encrypted Data

Encrypted DataNon-encrypted Data

*HCS360/361

66/67 bits
of Data
Transmitted

HCS515

DS40183A-page 18 Preliminary  1998 Microchip Technology Inc.

8.0 ELECTRICAL CHARACTERISTICS FOR HCS515

Absolute Maximum Ratings†

Ambient temperature under bias..............................................................................................................-40°C to +85°C

Storage temperature ..............................................................................................................................-65°C to +150°C

Voltage on any pin with respect to V

SS (except VDD)........................................................................ -0.6V to VDD +0.6V

Voltage on V

DD with respect to Vss.................................................................................................................. 0 to +7.0V

Total power dissipation (Note)............................................................................................................................. 700 mW

Maximum current out of V

SS pin........................................................................................................................... 200 mA

Maximum current into V

DD pin ............................................................................................................................. 150 mA

Input clamp current, I

IK (VI < 0 or VI > VDD)........................................................................................................ ± 20 mA

Output clamp current, IOK (V

O < 0 or VO >VDD)................................................................................................. ± 20 mA

Maximum output current sunk by any I/O pin......................................................................................................... 25 mA

Maximum output current sourced by any I/O pin.................................................................................................... 25 mA

Note: Power dissipation is calculated as follows: P

DIS = VDD x {IDD - ∑ IOH} + ∑ {(VDD–VOH) x IOH} + ∑(VOl x IOL)

†

NOTICE: Stresses above those listed under “Absolute Maximum Ratings” may cause permanent damage to the

device. This is a stress rating only and functional operation of the device at those or any other conditions above those
indicated in the operation listings of this specification is not implied. Exposure to maximum rating conditions for
extended periods may affect device reliability.

HCS515

 1998 Microchip Technology Inc. Preliminary DS40183A-page 19

FIGURE 8-3: RESET W ATCHDOG TIMER, OSCILLATOR START-UP TIMER AND POWER-UP TIMER

TIMING

TABLE 8-1: DC CHARACTERISTICS

Standard Operating Conditions (unless otherwise stated)

Operating temperature
Commercial (C): 0°C ≤ T

A ≤ +70‡°C

Industrial (I): -40°C ≤ T

A ≤ +85‡°C

Symbol Parameters Min

Typ

(†)

Max Units Conditions

V

DD Supply voltage 3.0 — 5.5 V

V

POR VDD start voltage to

ensure Reset

— Vss — V

S

VDD VDD rise rate to

ensure reset

0.05* — — V/ms

I

DD Supply current

—
—

1.8

0.3

2.4
5

mAµAF

OSC = 4 MHz, VDD = 5.5V

Sleep mode (no RF input)

I

PD Power Down Current

— 0.25 5 µAV

DD = 3.0V, Commercial

— 0.3 6 µAV

DD = 3.0V, Industrial

V

IL Input low voltage

V

SS — 0.15 VDD V

V

SS — 0.8 V VDD between 4.5V and 5.5V

V

IH Input high voltage

0.25 V

DD + 0.8 — VDD V Except MCLR = 0.85 VDD

2.0 — VDD VVDD between 4.5V and 5.5V

V

OL Output low voltage — — 0.6 V IOL = 8.7 mA, VDD = 4.5V

V

OH Output high voltage VDD - 0.7 — — V IOH = -5.4 mA, VDD = 4.5V

† Data in “T yp” column is at 5.0V, 25°C unless otherwise stated. These parameters are f or design guidance only and

are not tested.
* These parameters are characterized but not tested.
Note: Negative current is defined as coming out of the pin.

TABLE 8-2: AC CHARACTERISTICS

Standard Operating Conditions (unless otherwise specified):

Commercial (C): 0°C ≤ TA ≤ +70°C
Industrial (I): -40°C ≤ TA ≤ +85°C

Symbol Parameters Min Typ Max Units Conditions

TE Transmit elemental period 65 — 660 µs

T

OD Output delay 48 75 237 ms

T

MCLR MCLR low time 150 — — ns

T

OV Time output valid — 150 222 ms

Note: These parameters are characterized but not tested.

VDD

MCLR

I/O Pins

Tov

TMCLR

HCS515

DS40183A-page 20 Preliminary  1998 Microchip Technology Inc.

8.1 AC Electrical Characteristics

8.1.1 VALID TRANSMISSION NOTIFICATION

Standard Operating Conditions (unless otherwise specified)”

Commercial (C): 0°C ≤ TA ≤ +70°C
Industrial (I): -40°C ≤ TA ≤ +85°C

Symbol Parameters Min Typ Max Units

T

DHI Command request time 0.0050 — 500 ms

T

CLA Micro request acknowledge time 0.0050 — 1 ms

T

ACK Decoder Acknowledge time — — 4 µs

T

ACT Start command mode to

first command bit

20 — 1200 µs

T

CLKH Clock high time 20 — 1000 µs

T

CLKL Clock low time 20 — 1000 µs

F

CLK Clock frequency 500 — 25000 Hz

T

DS Data hold time 14 — 1000 µs

Note: These parameters are characterized but not tested.

8.1.2 COMMAND MODE ACTIVATION

Standard Operating Conditions (unless otherwise specified):

Commercial (C): 0°C ≤ TA ≤ +70°C
Industrial (I): -40°C ≤ TA ≤ +85°C

Symbol Parameters Min Typ Max Units

T

REQ Command request time 0.0050 — 500 ms

T

RESP

Microcontroller request
acknowledge time

—— 1ms

T

ACK Decoder acknowledge time — — 4 µs

T

START

Start command mode to first
command bit

20 — 1000 µs

T

CLKH Clock high time 20 — 1000 µs

T

CLKL Clock low time 20 — 1000 µs

F

CLK Clock frequency 500 — 25000 Hz

T

DS Data hold time 14 — — µs

T

CMD Command validate time — — 10 µs

T

ADDR Address validate time — — 10 µs

T

DATA Data validate time — — 10 µs

Note: These parameters are characterized but not tested.

8.1.3 READ FROM USER EEPROM COMMAND

Standard Operating Conditions (unless otherwise specified):

Commercial (C): 0°C ≤ TA ≤ +70°C
Industrial (I): -40°C ≤ TA ≤ +85°C

Symbol Parameters Min Typ Max Units

T

RD Decoder EEPROM read time 1000 — 2000 µs

Note: These parameters are characterized but not tested.

HCS515

 1998 Microchip Technology Inc. Preliminary DS40183A-page 21

8.1.4 WRITE TO USER EEPROM COMMAND

Standard Operating Conditions (unless otherwise specified):

Commercial (C): 0°C ≤ TA ≤ +70°C
Industrial (I): -40°C ≤ TA ≤ +85°C

Symbol Parameters Min Typ Max Units

T

WR Write command activation time 20 — 1000 µs

T

ACK EEPROM write acknowledge time — — 10 ms

T

RESP Microcontroller acknowledge

response time

20 — 1000 µs

T

ACK2 Decoder response

acknowledge time

——10µs

Note: These parameters are characterized but not tested.

8.1.5 ERASE ALL COMMAND

Standard Operating Conditions (unless otherwise specified):

Commercial (C): 0°C ≤ TA ≤ +70°C
Industrial (I): -40°C ≤ TA ≤ +85°C

Symbol Parameters Min Typ Max Units

T

ERA Learn command activation time 20 — 1000 µs

T

ACK Decoder acknowledge time 20 — 210 ms

T

RESP

Microcontroller acknowledge
response time

20 — 1000 µs

T

ACK2 Decoder data line low — — 10 µs

Note: These parameters are characterized but not tested.

8.1.6 ACTIVATE LEARN COMMAND IN MICRO MODE

Standard Operating Conditions (unless otherwise specified):

Commercial (C): 0°C ≤ TA ≤ +70 °C
Industrial (I): -40°C ≤ TA ≤ +85°C

Symbol Parameters Min Typ Max Units

T

LRN Learn command activation time 20 — 1000 µs

T

ACK Decoder acknowledge time — — 20 µs

T

RESP

Microcontroller acknowledge
response time

20 — 1000 µs

T

ACK2 Decoder data line low — — 10 µs

Note: These parameters are characterized but not tested.

8.1.7 ACTIVATE LEARN COMMAND IN STAND-ALONE MODE

Standard Operating Conditions (unless otherwise specified):

Commercial (C): 0°C ≤ TA ≤ +70°C
Industrial (I): -40°C ≤ TA ≤ +85°C

Symbol Parameters Min Typ Max Units

T

REQ Command request time — — 100 ms

T

LRN Learn command activation time — — 2 s

T

ERA Erase-all command activation time — — 6 s

Note: These parameters are characterized but not tested.

HCS515

DS40183A-page 22 Preliminary  1998 Microchip Technology Inc.

8.1.8 LEARN STATUS STRING

Standard Operating Conditions (unless otherwise specified):

Commercial (C): 0°C ≤ TA ≤ +70°C
Industrial (I): -40°C ≤ TA ≤ +85°C

Symbol Parameters Min Typ Max Units

T

DHI Command request time — — 500 ms

T

CLA

Microcontroller command
request time

0.005 — 500 ms

T

ACT Decoder request acknowledge time — — 10 µs

T

CLH Clock high hold time 1.2 ms

T

CLL Clock low hold time 0.020 — 1.2 ms

T

CLKH Clock high time 20 — 1000 µs

T

CLKL Clock low time 20 — 1000 µs

F

CLK Clock frequency 500 — 25000 Hz

T

DS Data hold time — — 5 µs

Note: These parameters are characterized but not tested.

8.1.9 PROGRAMMING COMMAND

Standard Operating Conditions (unless otherwise specified):

Commercial (C): 0°C ≤ TA ≤ +70°C
Industrial (I): -40°C ≤ TA ≤ +85°C

Symbol Parameters Min Typ Max Units

T

PP1 Command request time — — 500 ms

T

PP2 Decoder acknowledge time — — 1 ms

T

PP3

Start command mode to first
command bit

20 — 1000 µs

T

PP4 Data line low before tri-stated — — 5 µs

T

CLKH Clock high time 20 — 1000 µs

T

CLKL Clock low time 20 — 1000 µs

F

CLK Clock frequency 500 — 25000 Hz

T

DS Data hold time — — 5 µs

T

CMD Command validate time — — 10 µs

T

ACK Command acknowledge time 30 — 240 ms

T

WT2 Acknowledge respond time 20 — 1000 µs

T

ALW Data low after clock low — — 10 µs

Note: These parameters are characterized but not tested.

HCS515

 1998 Microchip Technology Inc. Preliminary DS40183A-page 23

FIGURE 8-4: TYPICAL MICROCONTROLLER INTERFACE CIRCUIT

Vcc

VI

G
N
D

VO

Power Supply
Supervisor 4.5V

NC
NC
V

DD

S0

HCS515

S1
MCLR
NC

NC
NC

V

SS

RF_IN

S_CLK

S_DAT

NC

1
2
3
4
5
6
78

9

10

11

12

13

14

X
X

X

X
X

X

X

X

Vcc

RF

Receiver

Microcontroller

RST

In circuit
Programming
Probe Pads

10K

HCS515

DS40183A-page 24 Preliminary  1998 Microchip Technology Inc.

PRODUCT IDENTIFICATION SYSTEM

To order or obtain information, e.g., on pricing or delivery, refer to the factory or the listed sales office.

Sales and Support

Package: P = Plastic DIP (300 mil Body), 14-lead

SM = Plastic SOIC (150 mil Body), 14-lead

Temperature Blank = 0°C to +70°C
Range: I = –40°C to +85°C

Device: HCS515 Code Hopping Decoder

HCS515T Code Hopping Decoder (Tape and Reel)

HCS515 — /P

Data Sheets

Products supported by a preliminary Data Sheet may have an errata sheet describing minor operational differences and recom­mended workarounds. To determine if an errata sheet exists for a particular device, please contact one of the following:

1. Your local Microchip sales office.

2. The Microchip Corporate Literature Center U.S. FAX: [phone].

3. The Microchip’s Bulletin Board, via your local CompuServe number (CompuServe membership NOT required).

HCS515

 1998 Microchip Technology Inc. Preliminary DS40183A-page 25

NOTES:

HCS515

DS40183A-page 26 Preliminary  1998 Microchip Technology Inc.

NOTES:

HCS515

 1998 Microchip Technology Inc. Preliminary DS40183A-page 27

NOTES:

Information contained in this publication regarding device applications and the like is intended for suggestion only and ma y be superseded by updates. No representation or w arranty
is given and no liability is assumed by Microchip Technology Incorporated with respect to the accuracy or use of such information, or infringement of patents or other intellectual
property rights arising from such use or otherwise. Use of Microchip’s products as critical components in life support systems is not authorized except with express written approv al
by Microchip. No licenses are conveyed, implicitly or otherwise, under any intellectual property rights. The Microchip logo and name are registered trademarks of Microchip Tech­nology Inc. in the U.S.A. and other countries. All rights reserved. All other trademarks mentioned herein are the property of their respective companies.

DS40183A-page 28

Preliminary



1998 Microchip Technology Inc.

All rights reserved. © 1998, Microchip Technology Incorporated, USA. 2/98 Printed on recycled paper.

M

AMERICAS

Corporate Office

Microchip T echnology Inc.
2355 West Chandler Blvd.
Chandler, AZ 85224-6199
Tel: [phone] Fax: [phone]

Technical Support:

602 786-7627

Web:

http://www.microchip.com

Atlanta

Microchip T echnology Inc.
500 Sugar Mill Road, Suite 200B
Atlanta, GA 30350
Tel: [phone] Fax: [phone]

Boston

Microchip T echnology Inc.
5 Mount Royal Avenue
Marlborough, MA 01752
Tel: [phone] Fax: [phone]

Chicago

Microchip T echnology Inc.
333 Pierce Road, Suite 180
Itasca, IL 60143
Tel: [phone] Fax: [phone]

Dallas

Microchip T echnology Inc.
14651 Dallas Parkway, Suite 816
Dallas, TX 75240-8809
Tel: [phone] Fax: [phone]

Dayton

Microchip T echnology Inc.
Two Prestige Place, Suite 150
Miamisburg, OH 45342
Tel: [phone] Fax: [phone]

Los Angeles

Microchip T echnology Inc.
18201 Von Karman, Suite 1090
Irvine, CA 92612
Tel: [phone] Fax: [phone]

New Y ork

Microchip T echnology Inc.
150 Motor Parkway, Suite 202
Hauppauge, NY 11788
Tel: [phone] Fax: [phone]

San Jose

Microchip T echnology Inc.
2107 North First Street, Suite 590
San Jose, CA 95131
Tel: [phone] Fax: [phone]

Toronto

Microchip T echnology Inc.
5925 Airport Road, Suite 200
Mississauga, Ontario L4V 1W1, Canada
Tel: [phone] Fax: [phone]

ASIA/PACIFIC

Hong Kong

Microchip Asia Pacific
RM 3801B, To wer Two
Metroplaza
223 Hing Fong Road
Kwai Fong, N.T., Hong Kong
Tel: [phone] Fax: [phone]

India

Microchip T echnology Inc.
India Liaison Office
No. 6, Legacy, Convent Road
Bangalore 560 025, India
Tel: [phone] Fax: [phone]

Japan

Microchip Technology Intl. Inc.
Benex S-1 6F
3-18-20, Shinyokohama
Kohoku-Ku, Yokohama-shi
Kanagawa 222 Japan
Tel: [phone] Fax: [phone]

Korea

Microchip T echnology Korea
168-1, Youngbo Bldg. 3 Floor
Samsung-Dong, Kangnam-Ku
Seoul, Korea
Tel: [phone] Fax: [phone]

Shanghai

Microchip T echnology
RM 406 Shanghai Golden Bridge Bldg.
2077 Yan’an Road West, Hong Qiao District
Shanghai, PRC 200335
Tel: [phone]
Fax: [phone]

Singapore

Microchip T echnology Taiwan
Singapore Branch
200 Middle Road
#07-02 Prime Centre
Singapore 188980
Tel: [phone] Fax: [phone]

ASIA/PACIFIC

(CONTINUED)

Taiwan, R.O.C

Microchip T echnology Taiwan
10F-1C 207
Tung Hua North Road
T aipei, Taiwan, ROC
Tel: [phone] Fax: [phone]

EUROPE

United Kingdom

Arizona Microchip Technology Ltd.
505 Eskdale Road
Winnersh T riangle
Wokingham
Berkshire, England RG41 5TU
Tel: [phone] Fax: [phone]

France

Arizona Microchip Technology SARL
Zone Industrielle de la Bonde
2 Rue du Buisson aux Fraises
91300 Massy, France
Tel: [phone] Fax: [phone]

Germany

Arizona Microchip Technology GmbH
Gustav-Heinemann-Ring 125
D-81739 Müchen, Germany
Tel: [phone] Fax: [phone]

Italy

Arizona Microchip Technology SRL
Centro Direzionale Colleoni
Palazzo Taurus 1 V. Le Colleoni 1
20041 Agrate Brianza
Milan, Italy
Tel: [phone] Fax: [phone]

1/13/98

W

ORLDWIDE

S

ALES

AND

S

ERVICE
