PIC16F630/676

Data Sheet

14-Pin FLASH-Based 8-Bit

CMOS Microcontrollers

 2003 Microchip Technology Inc. DS40039C

Note the following details of the code protection feature on Microchip devices:

• Microchip products meet the specification contained in their particular Microchip Data Sheet.

• Microchip believes that its family of products is one of the most secure families of its kind on the market today, when used in the intended manner and under normal conditions.

• There are dishonest and possibly illegal methods used to breach the code protection feature. All of these methods, to our knowledge, require using the Microchip products in a manner outside the operating specifications contained in Microchip's Data Sheets. Most likely, the person doing so is engaged in theft of intellectual property.

• Microchip is willing to work with the customer who is concerned about the integrity of their code.

• Neither Microchip nor any other semiconductor manufacturer can guarantee the security of their code. Code protection does not mean that we are guaranteeing the product as “unbreakable.”

Code protection is constantly evolving. We at Microchip are committed to continuously improving the code protection features of our products. Attempts to break microchip’s code protection feature may be a violation of the Digital Millennium Copyright Act. If such acts allow unauthorized access to your software or other copyrighted work, you may have a right to sue for relief under that Act.

Information contained in this publication regarding device applications and the like is intended through suggestion only and may be superseded by updates. It is your responsibility to ensure that your application meets with your specifications. No representation or warranty is given and no liability is assumed by Microchip Technology Incorporated with respect to the accuracy or use of such information, or infringement of patents or other intellectual property rights arising from such use or otherwise. Use of Microchip’s products as critical components in life support systems is not authorized except with express written approval by Microchip. No licenses are conveyed, implicitly or otherwise, under any intellectual property rights.

Trademarks

The Microchip name and logo, the Microchip logo, K

EELOQ,

MPLAB, PIC, PICmicro, PICSTART, PRO MATE and PowerSmart are registered trademarks of Microchip Technology Incorporated in the U.S.A. and other countries.

FilterLab, microID, MXDEV, MXLAB, PICMASTER, SEEVAL and The Embedded Control Solutions Company are registered trademarks of Microchip Technology Incorporated in the U.S.A.

Accuron, dsPIC, dsPICDEM.net, ECONOMONITOR, FanSense, FlexROM, fuzzyLAB, In-Circuit Serial Programming, ICSP, ICEPIC, microPort, Migratable Memory, MPASM, MPLIB, MPLINK, MPSIM, PICC, PICkit, PICDEM, PICDEM.net, PowerCal, PowerInfo, PowerTool, rfPIC, rfLAB, Select Mode, SmartSensor, SmartShunt, SmartTel and Total Endurance are trademarks of Microchip Technology Incorporated in the U.S.A. and other countries.

Serialized Quick Turn Programming (SQTP) is a service mark of Microchip Technology Incorporated in the U.S.A.

All other trademarks mentioned herein are property of their respective companies.

Printed on recycled paper.

Microchip received QS-9000 quality system certification for its worldwide headquarters, design and wafer fabrication facilities in Chandler and Tempe, Arizona in July 1999 and Mountain View, California in March 2002. The Company’s quality system processes and procedures are QS-9000 compliant for its PICmicro devices, Serial EEPROMs, microperipherals, non-volatile memory and analog products. In addition, Microchip’s quality system for the design and manufacture of development systems is ISO 9001 certified.

8-bit MCUs, KEELOQ

code hopping

DS40039C - page ii  2003 Microchip Technology Inc.

PIC16F630/676

14-Pin FLASH-Based 8-Bit CMOS Microcontroller

High Performance RISC CPU:

• Only 35 instructions to learn

- All single cycle instructions except branches

• Operating speed:

- DC - 20 MHz oscillator/clock input

- DC - 200 ns instruction cycle

• Interrupt capability

• 8-level deep hardware stack

• Direct, Indirect, and Relative Addressing modes

Low Power Features:

• Standby Current:

- 1 nA @ 2.0V, typical

• Operating Current:

-8.5µA @ 32 kHz, 2.0V, typical

-100µA @ 1 MHz, 2.0V, typical

• Watchdog Timer Current

- 300 nA @ 2.0V, typical

• Timer1 oscillator current:

-4µA @ 32 kHz, 2.0V, typical

Special Microcontroller Features:

• Internal and external oscillator options

- Precision Internal 4 MHz oscillator factory calibrated to ±1%

- External Oscillator support for crystals and resonators

-5µs wake-up from SLEEP, 3.0V, typical

• Power saving SLEEP mode

• Wide operating voltage range - 2.0V to 5.5V

• Industrial and Extended temperature range

• Low power Power-on Reset (POR)

• Power-up Timer (PWRT) and Oscillator Start-up Timer (OST)

• Brown-out Detect (BOD)

• Watchdog Timer (WDT) with independent oscillator for reliable operation

• Multiplexed MCLR

• Interrupt-on-pin change

• Individual programmable weak pull-ups

• Programmable code protection

• High Endurance FLASH/EEPROM Cell

- 100,000 write FLASH endurance

- 1,000,000 write EEPROM endurance

- FLASH/Data EEPROM Retention: > 40 years

Device

PIC16F630 1024 64 128 12 – 1 1/1

PIC16F676 1024 64 128 12 8 1 1/1

/Input-pin

Program

Memory

FLASH

(words)

Data Memory

SRAM (bytes)

EEPROM

(bytes)

Peripheral Features:

• 12 I/O pins with individual direction control

• High current sink/source for direct LED drive

• Analog comparator module with:

- One analog comparator

- Programmable on-chip comparator voltage

(ch)

REF) module

Comparators

(ICSPTM) via

reference (CV

- Programmable input multiplexing from device inputs

- Comparator output is externally accessible

• Analog-to-Digital Converter module (PIC16F676):

- 10-bit resolution

- Programmable 8-channel input

- Voltage reference input

• Timer0: 8-bit timer/counter with 8-bit programmable prescaler

• Enhanced Timer1:

- 16-bit timer/counter with prescaler

- External Gate Input mode

- Option to use OSC1 and OSC2 in LP mode

as Timer1 oscillator, if INTOSC mode selected

• In-Circuit Serial Programming two pins

I/O

10-bit A/D

Timers

8/16-bit

 2003 Microchip Technology Inc. DS40039C-page 1

PIC16F630/676

Pin Diagrams

14-pin PDIP, SOIC, TSSOP

RA5/T1CKI/OSC1/CLKIN

/OSC2/CLKOUT

RA4/T1G

RA3/MCLR

VDD

/VPP RC5 RC4 RC3

PIC16F630

2 3 4 5 6 7

14 13 12

11 10 9 8

VSS RA0/CIN+/ICSPDAT RA1/CIN-/ICSPCLK RA2/COUT/T0CKI/INT RC0 RC1 RC2

RA5/T1CKI/OSC1/CLKIN

RA4/T1G

/OSC2/AN3/CLKOUT

RA3/MCLR

VDD

/VPP RC5 RC4

RC3/AN7

PIC16F676

2 3 4 5 6 7

14 13 12 11 10 9 8

VSS RA0/AN0/CIN+/ICSPDAT RA1/AN1/CIN-/V RA2/AN2/COUT/T0CKI/INT RC0/AN4 RC1/AN5 RC2/AN6

REF/ICSPCLK

DS40039C-page 2  2003 Microchip Technology Inc.

PIC16F630/676

Table of Contents

1.0 Device Overview ......................................................................................................................................................................... 5

2.0 Memory Organization .................................................................................................................................................................. 7

3.0 Ports A and C ............................................................................................................................................................................ 19

4.0 Timer0 Module .......................................................................................................................................................................... 29

5.0 Timer1 Module with Gate Control ............................................................................................................................................. 32

6.0 Comparator Module .................................................................................................................................................................. 37

7.0 Analog-to-Digital Converter (A/D) Module (PIC16F676 only) ................................................................................................... 43

8.0 Data EEPROM Memory............................................................................................................................................................ 49

9.0 Special Features of the CPU .................................................................................................................................................... 53

10.0 Instruction Set Summary ........................................................................................................................................................... 71

11.0 Development Support ............................................................................................................................................................... 79

12.0 Electrical Specifications ............................................................................................................................................................ 85

13.0 DC and AC Characteristics Graphs and Tables ..................................................................................................................... 107

14.0 Packaging Information ............................................................................................................................................................ 117

Appendix A: Data Sheet Revision History ......................................................................................................................................... 121

Appendix B: Device Differences ....................................................................................................................................................... 121

Appendix C: Device Migrations ......................................................................................................................................................... 122

Appendix D: Migrating from other PICmicro

Index ................................................................................................................................................................................................. 123

On-Line Support ................................................................................................................................................................................ 127

Systems Information and Upgrade Hot Line ..................................................................................................................................... 127

Reader Response ............................................................................................................................................................................. 128

Product Identification System ........................................................................................................................................................... 129

Devices ...................................................................................................................... 122

TO OUR VALUED CUSTOMERS

It is our intention to provide our valued customers with the best documentation possible to ensure successful use of your Microchip products. To this end, we will continue to improve our publications to better suit your needs. Our publications will be refined and enhanced as new volumes and updates are introduced.

If you have any questions or comments regarding this publication, please contact the Marketing Communications Department via E-mail at docerrors@mail.microchip.com or fax the Reader Response Form in the back of this data sheet to (480) 792-4150. We welcome your feedback.

Most Current Data Sheet

To obtain the most up-to-date version of this data sheet, please register at our Worldwide Web site at:

http://www.microchip.com

You can determine the version of a data sheet by examining its literature number found on the bottom outside corner of any page. The last character of the literature number is the version number, (e.g., DS30000A is version A of document DS30000).

Errata

An errata sheet, describing minor operational differences from the data sheet and recommended workarounds, may exist for current devices. As device/documentation issues become known to us, we will publish an errata sheet. The errata will specify the revision of silicon and revision of document to which it applies.

To determine if an errata sheet exists for a particular device, please check with one of the following:

• Microchip’s Worldwide Web site; http://www.microchip.com

• Your local Microchip sales office (see last page)

• The Microchip Corporate Literature Center; U.S. FAX: (480) 792-7277 When contacting a sales office or the literature center, please specify which device, revision of silicon and data sheet (include liter-

ature number) you are using.

Customer Notification System

 2003 Microchip Technology Inc. DS40039C-page 3

PIC16F630/676

NOTES:

DS40039C-page 4  2003 Microchip Technology Inc.

PIC16F630/676

1.0 DEVICE OVERVIEW

This document contains device specific information for the PIC16F630/676. Additional information may be found in the PICmicro (DS33023), which may be obtained from your local Microchip Sales Representative or downloaded from the Microchip web site. The Reference Manual should be considered a complementary document to this Data

FIGURE 1-1: PIC16F630/676 BLOCK DIAGRAM

OSC1/CLKIN

OSC2/CLKOUT

Mid-Range Reference Manual

Configuration

FLASH

1K x 14

Program

Memory

Program

Oscillator

Bus

Internal

Instruction reg

Instruction

Decode &

Control

Timing

Generation

INT

Program Counter

8-Level Stack

(13-bit)

Direct Addr

Power-up

Time r

Oscillator

Start-up Timer

Power-on

Reset

Watchdog

Time r

Brown-out

Detect

RAM Addr

Sheet and is highly recommended reading for a better understanding of the device architecture and operation of the peripheral modules.

The PIC16F630 and PIC16F676 devices are covered by this Data Sheet. They are identical, except the PIC16F676 has a 10-bit A/D converter. They come in 14-pin PDIP, SOIC and TSSOP packages. Figure 1-1 shows a block diagram of the PIC16F630/676 devices. Table 1-1 shows the pinout description.

Data Bus

Registers

Addr MUX

RAM

bytes

File

FSR reg

STATUS reg

ALU

W reg

MUX

Indirect

Addr

PORTA

RA0

RA1

RA2

RA3

RA4

RA5

PORTC

RC0

RC1

RC2

RC3

RC4

RC5

T1G

T1CKI

T0CKI

VREF

AN0 AN1 AN2 AN3

Timer0 Timer1

Analog to Digital Converter

(PIC16F676 only)

AN4 AN5 AN6 AN7

MCLR

VSS

Comparator

and reference

CIN- CIN+ COUT

Analog

EEDATA

128 bytes

EEPROM

EEADDR

DATA

 2003 Microchip Technology Inc. DS40039C-page 5

PIC16F630/676

TABLE 1-1: PIC16F630/676 PINOUT DESCRIPTION

Name Function

RA0/AN0/CIN+/ICSPDAT RA0 TTL CMOS Bi-directional I/O w/ programmable pull-up and

AN0 AN — A/D Channel 0 input

CIN+ AN Comparator input

ICSPDAT TTL CMOS Serial Programming Data I/O

RA1/AN1/CIN-/V ICSPCLK

RA2/AN2/COUT/T0CKI/INT RA2 ST CMOS Bi-directional I/O w/ programmable pull-up and

RA3/MCLR

RA4/T1G CLKOUT

RA5/T1CKI/OSC1/CLKIN

RC0/AN4 RC0 TTL CMOS Bi-directional I/O

RC1/AN5 RC1 TTL CMOS Bi-directional I/O

RC2/AN6 RC2 TTL CMOS Bi-directional I/O

RC3/AN7 RC3 TTL CMOS Bi-directional I/O

RC4 RC4 TTL CMOS Bi-directional I/O RC5 RC5 TTL CMOS Bi-directional I/O

SS VSS Power — Ground reference

DD VDD Power — Positive supply

V Legend: Shade = PIC16F676 only

TTL = TTL input buffer

REF/

/VPP RA3 TTL — Input port with Interrupt-on-change

/AN3/OSC2/

ST = Schmitt Trigger input buffer

RA1 TTL CMOS Bi-directional I/O w/ programmable pull-up and

AN1 AN — A/D Channel 1 input CIN- AN — Comparator input

VREF AN — External Voltage reference

ICSPCLK ST — Serial Programming Clock

AN2 AN — A/D Channel 2 input COUT — CMOS Comparator output T0CKI ST — Timer0 clock input

INT ST — External Interrupt

MCLR

PP HV — Programming voltage

RA4 TTL CMOS Bi-directional I/O w/ programmable pull-up and

T1G

AN3 AN3 — A/D Channel 3 input OSC2 — XTAL Crystal/Resonator

CLKOUT — CMOS F

RA5 TTL CMOS Bi-directional I/O w/ programmable pull-up and

T1CKI ST — Timer1 clock OSC1 XTAL — Crystal/Resonator

CLKIN ST — External clock input/RC oscillator connection

AN4 AN4 — A/D Channel 4 input

AN5 AN5 — A/D Channel 5 input

AN6 AN6 — A/D Channel 6 input

AN7 AN7 — A/D Channel 7 input

Input

Type

ST — Master Clear

ST — Timer1 gate

Output

Type

Description

Interrupt-on-change

OSC/4 output

Interrupt-on-change

DS40039C-page 6  2003 Microchip Technology Inc.

PIC16F630/676

2.0 MEMORY ORGANIZATION

2.1 Program Memory Organization

The PIC16F630/676 devices have a 13-bit program counter capable of addressing an 8K x 14 program memory space. Only the first 1K x 14 (0000h - 03FFh) for the PIC16F630/676 devices is physically implemented. Accessing a location above these boundaries will cause a wrap around within the first 1K x 14 space. The RESET vector is at 0000h and the interrupt vector is at 0004h (see Figure 2-1).

FIGURE 2-1: PROGRAM MEMORY MAP

AND STACK FOR THE PIC16F630/676

PC<12:0>

CALL, RETURN RETFIE, RETLW

Stack Level 1 Stack Level 2

Stack Level 8

2.2 Data Memory Organization

The data memory (see Figure 2-2) is partitioned into two banks, which contain the General Purpose registers and the Special Function registers. The Special Function registers are located in the first 32 locations of each bank. Register locations 20h-5Fh are General Purpose registers, implemented as static RAM and are mapped across both banks. All other RAM is unimplemented and returns ‘0’ when read. RP0 (STATUS<5>) is the bank select bit.

• RP0 = 0 Bank 0 is selected

• RP0 = 1 Bank 1 is selected

Note: The IRP and RP1 bits STATUS<7:6> are

reserved and should always be maintained as ‘0’s.

2.2.1 GENERAL PURPOSE REGISTER FILE

The register file is organized as 64 x 8 in the PIC16F630/676 devices. Each register is accessed, either directly or indirectly, through the File Select Register FSR (see Section 2.4).

RESET Vector

Interrupt Vector

On-chip Program

Memory

000h

0004 0005

03FFh

0400h

1FFFh

 2003 Microchip Technology Inc. DS40039C-page 7

PIC16F630/676

2.2.2 SPECIAL FUNCTION REGISTERS

The Special Function registers are registers used by the CPU and peripheral functions for controlling the desired operation of the device (see Table 2-1). These registers are static RAM.

The special registers can be classified into two sets: core and peripheral. The Special Function registers associated with the “core” are described in this section. Those related to the operation of the peripheral features are described in the section of that peripheral feature.

FIGURE 2-2: DATA MEMORY MAP OF

THE PIC16F630/676

File

Address

PCL

FSR

PIR1

(1)

00h 01h 02h

03h 04h 05h 06h 07h 08h 09h 0Ah 0Bh 0Ch 0Dh 0Eh 0Fh 10h 11h 12h 13h 14h 15h 16h 17h 18h 19h 1Ah 1Bh 1Ch 1Dh

(2)

1Eh

(2)

1Fh 20h

Indirect addr.

OPTION_REG

EECON2 ADRESL ADCON1

Indirect addr.

TMR0

STATUS

PORTA

PORTC

PCLATH INTCON

TMR1L TMR1H T1CON

CMCON VRCON

ADRESH ADCON0

PCL

STATUS

FSR

TRISA

TRISC

PCLATH INTCON

PIE1

PCON

OSCCAL

ANSEL

WPUA

IOCA

EEDAT

EEADR

EECON1

(2)

(1)

(2)

Address

(1)

File

80h 81h 82h

83h 84h 85h 86h 87h 88h 89h 8Ah 8Bh 8Ch 8Dh 8Eh 8Fh 90h 91h 92h 93h 94h 95h 96h 97h 98h 99h 9Ah 9Bh 9Ch 9Dh 9Eh 9Fh A0h

General Purpose

Registers

64 Bytes

5Fh 60h

7Fh

Bank 0

Unimplemented data memory locations, read as '0'.

1: Not a physical register. 2: PIC16F676 only.

DS40039C-page 8  2003 Microchip Technology Inc.

accesses

20h-5Fh

DFh E0h

FFh

Bank 1

PIC16F630/676

TABLE 2-1: PIC16F630/676 SPECIAL REGISTERS SUMMARY BANK 0

Value on

Addr Name Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0

Bank 0 00h INDF Addressing this location uses contents of FSR to address data memory (not a physical register) xxxx xxxx 18,61 01h TMR0 Timer0 Module’s Register xxxx xxxx 29 02h PCL Program Counter's (PC) Least Significant Byte 0000 0000 17

03h STATUS 04h FSR Indirect data memory address pointer xxxx xxxx 18

05h PORTA 06h — Unimplemented — —

07h PORTC 08h — Unimplemented — —

09h — Unimplemented — —

0Ah PCLATH 0Bh INTCON GIE PEIE T0IE INTE RAIE T0IF INTF RAIF 0000 0000 13

0Ch PIR1 0Dh — Unimplemented — — 0Eh TMR1L Holding register for the Least Significant Byte of the 16-bit TMR1 xxxx xxxx 32 0Fh TMR1H Holding register for the Most Significant Byte of the 16-bit TMR1 xxxx xxxx 32

10h T1CON 11h — Unimplemented — — 12h — Unimplemented — — 13h — Unimplemented — — 14h — Unimplemented — — 15h — Unimplemented — — 16h — Unimplemented — — 17h — Unimplemented — — 18h — Unimplemented — —

19h CMCON 1Ah — Unimplemented — — 1Bh — Unimplemented — — 1Ch — Unimplemented — — 1Dh — Unimplemented — —

1Eh ADRESH

1Fh ADCON0

Legend: — = Unimplemented locations read as ‘0’, u = unchanged, x = unknown, q = value depends on condition shaded = unimplemented

Note 1: Other (non Power-up) Resets include MCLR

2: IRP & RP1 bits are reserved, always maintain these bits clear. 3: PIC16F676 only.

(3)

(2)

IRP

— —

— — — Write buffer for upper 5 bits of program counter ---0 0000 17

EEIF ADIF — —CMIF— — TMR1IF 00-- 0--0 15

— T1GE T1CKPS1 T1CKPS0 T1OSCEN T1SYNC TMR1CS TMR1ON

— COUT — CINV CIS CM2 CM1 CM0 -0-0 0000 37

Most Significant 8 bits of the left shifted A/D result or 2 bits of right shifted result xxxx xxxx 44

ADFM VCFG — CHS2 CHS1 CHS0 GO/DONE ADON

RP1

(2)

RP0 TO PD ZDCC

I/O Control Registers --xx xxxx 19

I/O Control Registers --xx xxxx 26

Reset, Brown-out Detect and Watchdog Timer Reset during normal operation.

POR,

Page

BOD

0001 1xxx 11

-000 0000 34

00-0 0000 45,61

 2003 Microchip Technology Inc. DS40039C-page 9

PIC16F630/676

TABLE 2-2: PIC16F630/676 SPECIAL FUNCTION REGISTERS SUMMARY BANK 1

Value on

Addr Name Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0

Bank 1 80h INDF Addressing this location uses contents of FSR to address data memory (not a physical register) xxxx xxxx 18,61

81h OPTION_REG 82h PCL Program Counter's (PC) Least Significant Byte 0000 0000 17

83h STATUS 84h FSR Indirect data memory address pointer xxxx xxxx 18

85h TRISA 86h — Unimplemented — —

87h TRISC 88h — Unimplemented — — 89h — Unimplemented — —

8Ah PCLATH 8Bh INTCON GIE PEIE T0IE INTE RAIE T0IF INTF RAIF 0000 0000 13

8Ch PIE1 EEIE ADIE 8Dh — Unimplemented — —

8Eh PCON 8Fh — —

90h OSCCAL CAL5 CAL4 CAL3 CAL2 CAL1 CAL0

91h ANSEL 92h — Unimplemented — — 93h — Unimplemented — — 94h — Unimplemented — —

95h WPUA

96h IOCA 97h — Unimplemented — — 98h — Unimplemented — —

99h VRCON VREN 9Ah EEDAT EEPROM data register 0000 0000 49

9Bh EEADR

9Ch EECON1 9Dh EECON2 EEPROM control register 2 (not a physical register) ---- ---- 49

9Eh ADRESL

9Fh ADCON1

Legend: — = Unimplemented locations read as ‘0’, u = unchanged, x = unknown, q = value depends on condition, shaded = unimplemented

Note 1: Other (non Power-up) Resets include MCLR

2: IRP & RP1 bits are reserved, always maintain these bits clear. 3: PIC16F676 only.

(3)

RAPU

IRP

— — TRISA5 TRISA4 TRISA3 TRISA2 TRISA1 TRISA0 --11 1111 19

— — TRISC5 TRISC4 TRISC3 TRISC2 TRISC1 TRISC0 --11 1111 —

— — — Write buffer for upper 5 bits of program counter ---0 0000 17

— — — — — — POR BOD

ANS7 ANS6 ANS5 ANS4 ANS3 ANS2 ANS1 ANS0 1111 1111 46

— — — — IOCA5 IOCA4 IOCA3 IOCA2 IOCA1 IOCA0 --00 0000 21

— EEPROM address register 0000 0000 49 — — — — WRERR WREN WR RD ---- x000 50

Least Significant 2 bits of the left shifted result or 8 bits of the right shifted result xxxx xxxx 44

(3)

— ADCS2 ADCS1 ADCS0 — — — — -000 ---- 45,61

INTEDG T0CS T0SE PSA PS2 PS1 PS0

(2)

RP1

—VRR— VR3 VR2 VR1 VR0 0-0- 0000 42

RP0 TO PD ZDCC

— — CMIE — — TMR1IE 00-- 0--0 14

WPUA5 WPUA4

Reset, Brown-out Detect and Watchdog Timer Reset during normal operation.

—

WPUA2 WPUA1 WPUA0

— —

POR,

Page

BOD

1111 1111 12,30

0001 1xxx 11

---- --qq 16

1000 00-- 16

--11 -111 20

DS40039C-page 10  2003 Microchip Technology Inc.

PIC16F630/676

2.2.2.1 STATUS Register

The STATUS register, shown in Register 2-1, contains:

• the arithmetic status of the ALU

• the RESET status

• the bank select bits for data memory (SRAM)

The STATUS register can be the destination for any instruction, like any other register. If the STATUS register is the destination for an instruction that affects the Z, DC or C bits, then the write to these three bits is disabled. These bits are set or cleared according to the device logic. Furthermore, the TO writable. Therefore, the result of an instruction with the STATUS register as destination may be different than intended.

For example, CLRF STATUS will clear the upper three bits and set the Z bit. This leaves the STATUS register as 000u u1uu (where u = unchanged).

and PD bits are not

It is recommended, therefore, that only BCF, BSF, SWAPF and MOVWF instructions are used to alter the STATUS register, because these instructions do not affect any STATUS bits. For other instructions not affecting any STATUS bits, see the “Instruction Set Summary”.

Note 1: Bits IRP and RP1 (STATUS<7:6>) are not

used by the PIC16F630/676 and should be maintained as clear. Use of these bits is not recommended, since this may affect upward compatibility with future products.

2: The C and DC bits operate as a Borrow

and Digit Borrow out bit, respectively, in subtraction. See the SUBLW and SUBWF instructions for examples.

Reserved Reserved R/W-0 R-1 R-1 R/W-x R/W-x R/W-x

IRP RP1 RP0 TO PD ZDCC

bit 7 bit 0

bit 7 IRP: This bit is reserved and should be maintained as ‘0’

bit 6 RP1: This bit is reserved and should be maintained as ‘0’

bit 5 RP0: Register Bank Select bit (used for direct addressing)

1 = Bank 1 (80h - FFh) 0 = Bank 0 (00h - 7Fh)

bit 4 TO

bit 3 PD

bit 2 Z: Zero bit

bit 1 DC: Digit carry/borrow

bit 0 C: Carry/borrow

: Time-out bit

1 = After power-up, CLRWDT instruction, or SLEEP instruction 0 = A WDT time-out occurred

: Power-down bit

1 = After power-up or by the CLRWDT instruction 0 = By execution of the SLEEP instruction

1 = The result of an arithmetic or logic operation is zero 0 = The result of an arithmetic or logic operation is not zero

bit (ADDWF, ADDLW,SUBLW,SUBWF instructions)

For borrow,

1 = A carry-out from the 4th low order bit of the result occurred 0 = No carry-out from the 4th low order bit of the result

1 = A carry-out from the Most Significant bit of the result occurred 0 = No carry-out from the Most Significant bit of the result occurred

Note: For borrow

the polarity is reversed.

bit (ADDWF, ADDLW, SUBLW, SUBWF instructions)

the polarity is reversed. A subtraction is executed by adding the two’s

complement of the second operand. For rotate (RRF, RLF) instructions, this bit is loaded with either the high or low order bit of the source register

Legend:

R = Readable bit W = Writable bit U = Unimplemented bit, read as ‘0’

- n = Value at POR ’1’ = Bit is set ’0’ = Bit is cleared x = Bit is unknown

 2003 Microchip Technology Inc. DS40039C-page 11

PIC16F630/676

2.2.2.2 OPTION Register

The OPTION register is a readable and writable register, which contains various control bits to configure:

• TMR0/WDT prescaler

• External RA2/INT interrupt

•TMR0

• Weak pull-ups on PORTA

R/W-1 R/W-1 R/W-1 R/W-1 R/W-1 R/W-1 R/W-1 R/W-1

RAPU

bit 7 bit 0

INTEDG T0CS T0SE PSA PS2 PS1 PS0

Note: To achieve a 1:1 prescaler assignment for

TMR0, assign the prescaler to the WDT by setting PSA bit to ‘1’ (OPTION<3>). See Section 4.4.

bit 7 RAPU

bit 6 INTEDG: Interrupt Edge Select bit

bit 5 T0CS: TMR0 Clock Source Select bit

bit 4 T0SE: TMR0 Source Edge Select bit

bit 3 PSA: Prescaler Assignment bit

bit 2-0 PS2:PS0: Prescaler Rate Select bits

: PORTA Pull-up Enable bit

1 = PORTA pull-ups are disabled 0 = PORTA pull-ups are enabled by individual port latch values

1 = Interrupt on rising edge of RA2/INT pin 0 = Interrupt on falling edge of RA2/INT pin

1 = Transition on RA2/T0CKI pin 0 = Internal instruction cycle clock (CLKOUT)

1 = Increment on high-to-low transition on RA2/T0CKI pin 0 = Increment on low-to-high transition on RA2/T0CKI pin

1 = Prescaler is assigned to the WDT 0 = Prescaler is assigned to the Timer0 module

Bit Value TMR0 Rate WDT Rate

000 001 010 011 100 101 110 111

1 : 2 1 : 4 1 : 8 1 : 16 1 : 32 1 : 64 1 : 128 1 : 256

1 : 1 1 : 2 1 : 4 1 : 8 1 : 16 1 : 32 1 : 64 1 : 128

Legend:

R = Readable bit W = Writable bit U = Unimplemented bit, read as ‘0’

- n = Value at POR ’1’ = Bit is set ’0’ = Bit is cleared x = Bit is unknown

DS40039C-page 12  2003 Microchip Technology Inc.

PIC16F630/676

2.2.2.3 INTCON Register

The INTCON register is a readable and writable register, which contains the various enable and flag bits for TMR0 register overflow, PORTA change and external RA2/INT pin interrupts.

Note: Interrupt flag bits are set when an interrupt

condition occurs, regardless of the state of its corresponding enable bit or the global enable bit, GIE (INTCON<7>). User software should ensure the appropriate interrupt flag bits are clear prior to enabling an interrupt.

R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0

GIE PEIE T0IE INTE RAIE T0IF INTF RAIF

bit 7 bit 0

bit 7 GIE: Global Interrupt Enable bit

1 = Enables all unmasked interrupts 0 = Disables all interrupts

bit 6 PEIE: Peripheral Interrupt Enable bit

1 = Enables all unmasked peripheral interrupts 0 = Disables all peripheral interrupts

bit 5 T0IE: TMR0 Overflow Interrupt Enable bit

1 = Enables the TMR0 interrupt 0 = Disables the TMR0 interrupt

bit 4 INTE: RA2/INT External Interrupt Enable bit

1 = Enables the RA2/INT external interrupt 0 = Disables the RA2/INT external interrupt

bit 3 RAIE: Port Change Interrupt Enable bit

1 = Enables the PORTA change interrupt 0 = Disables the PORTA change interrupt

bit 2 T0IF: TMR0 Overflow Interrupt Flag bit

1 = TMR0 register has overflowed (must be cleared in software) 0 = TMR0 register did not overflow

bit 1 INTF: RA2/INT External Interrupt Flag bit

1 = The RA2/INT external interrupt occurred (must be cleared in software) 0 = The RA2/INT external interrupt did not occur

bit 0 RAIF: Port Change Interrupt Flag bit

1 = When at least one of the PORTA <5:0> pins changed state (must be cleared in software) 0 = None of the PORTA <5:0> pins have changed state

(1)

(2)

Note 1: IOCA register must also be enabled.

2: T0IF bit is set when Timer0 rolls over. Timer0 is unchanged on RESET and should

be initialized before clearing T0IF bit.

Legend:

R = Readable bit W = Writable bit U = Unimplemented bit, read as ‘0’

- n = Value at POR ’1’ = Bit is set ’0’ = Bit is cleared x = Bit is unknown

 2003 Microchip Technology Inc. DS40039C-page 13

PIC16F630/676

2.2.2.4 PIE1 Register

The PIE1 register contains the interrupt enable bits, as shown in Register 2-4.

R/W-0 R/W-0 U-0 U-0 R/W-0 U-0 U-0 R/W-0

EEIE ADIE

bit 7 bit 0

bit 7 EEIE: EE Write Complete Interrupt Enable bit

1 = Enables the EE write complete interrupt 0 = Disables the EE write complete interrupt

bit 6 ADIE: A/D Converter Interrupt Enable bit (PIC16F676 only)

1 = Enables the A/D converter interrupt 0 = Disables the A/D converter interrupt

bit 5-4 Unimplemented: Read as ‘0’

bit 3 CMIE: Comparator Interrupt Enable bit

1 = Enables the comparator interrupt 0 = Disables the comparator interrupt

bit 2-1 Unimplemented: Read as ‘0’

bit 0 TMR1IE: TMR1 Overflow Interrupt Enable bit

1 = Enables the TMR1 overflow interrupt 0 = Disables the TMR1 overflow interrupt

— — CMIE — — TMR1IE

Note: Bit PEIE (INTCON<6>) must be set to

enable any peripheral interrupt.

Legend:

R = Readable bit W = Writable bit U = Unimplemented bit, read as ‘0’

- n = Value at POR ’1’ = Bit is set ’0’ = Bit is cleared x = Bit is unknown

DS40039C-page 14  2003 Microchip Technology Inc.

PIC16F630/676

2.2.2.5 PIR1 Register

The PIR1 register contains the interrupt flag bits, as shown in Register 2-5.

R/W-0 R/W-0 U-0 U-0 R/W-0 U-0 U-0 R/W-0

EEIF ADIF

bit 7 bit 0

bit 7 EEIF: EEPROM Write Operation Interrupt Flag bit

1 = The write operation completed (must be cleared in software) 0 = The write operation has not completed or has not been started

bit 6 ADIF: A/D Converter Interrupt Flag bit (PIC16F676 only)

1 = The A/D conversion is complete (must be cleared in software) 0 = The A/D conversion is not complete

bit 5-4 Unimplemented: Read as ‘0’

bit 3 CMIF: Comparator Interrupt Flag bit

1 = Comparator input has changed (must be cleared in software) 0 = Comparator input has not changed

bit 2-1 Unimplemented: Read as ‘0’

bit 0 TMR1IF: TMR1 Overflow Interrupt Flag bit

1 = TMR1 register overflowed (must be cleared in software) 0 = TMR1 register did not overflow

— — CMIF — —TMR1IF

Note: Interrupt flag bits are set when an interrupt

Legend:

R = Readable bit W = Writable bit U = Unimplemented bit, read as ‘0’

- n = Value at POR ’1’ = Bit is set ’0’ = Bit is cleared x = Bit is unknown

 2003 Microchip Technology Inc. DS40039C-page 15

PIC16F630/676

2.2.2.6 PCON Register

The Power Control (PCON) register contains flag bits to differentiate between a:

• Power-on Reset (POR)

• Brown-out Detect (BOD)

• Watchdog Timer Reset (WDT)

• External MCLR

The PCON Register bits are shown in Register 2-6.

Reset

U-0 U-0 U-0 U-0 U-0 U-0 R/W-0 R/W-x

— — — — — —PORBOD

bit 7 bit 0

bit 7-2 Unimplemented: Read as '0'

bit 1 POR

bit 0 BOD

: Power-on Reset STATUS bit

1 = No Power-on Reset occurred 0 = A Power-on Reset occurred (must be set in software after a Power-on Reset occurs)

: Brown-out Detect STATUS bit

1 = No Brown-out Detect occurred 0 = A Brown-out Detect occurred (must be set in software after a Brown-out Detect occurs)

Legend:

R = Readable bit W = Writable bit U = Unimplemented bit, read as ‘0’

- n = Value at POR ’1’ = Bit is set ’0’ = Bit is cleared x = Bit is unknown

2.2.2.7 OSCCAL Register

The Oscillator Calibration register (OSCCAL) is used to calibrate the internal 4 MHz oscillator. It contains 6 bits to adjust the frequency up or down to achieve 4 MHz.

The OSCCAL register bits are shown in Register 2-7.

R/W-1 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 U-0 U-0

CAL5 CAL4 CAL3 CAL2 CAL1 CAL0

bit 7 bit 0

bit 7-2 CAL5:CAL0: 6-bit Signed Oscillator Calibration bits

111111 = Maximum frequency 100000 = Center frequency 000000 = Minimum frequency

bit 1-0 Unimplemented: Read as '0'

— —

Legend:

R = Readable bit W = Writable bit U = Unimplemented bit, read as ‘0’

- n = Value at POR ’1’ = Bit is set ’0’ = Bit is cleared x = Bit is unknown

DS40039C-page 16  2003 Microchip Technology Inc.

PIC16F630/676

2.3 PCL and PCLATH

The program counter (PC) is 13-bits wide. The low byte comes from the PCL register, which is a readable and writable register. The high byte (PC<12:8>) is not directly readable or writable and comes from PCLATH. On any RESET, the PC is cleared. Figure 2-3 shows the two situations for the loading of the PC. The upper example in Figure 2-3 shows how the PC is loaded on a write to PCL (PCLATH<4:0> → PCH). The lower example in Figure 2-3 shows how the PC is loaded during a CALL or GOTO instruction (PCLATH<4:3> → PCH).

FIGURE 2-3: LOADING OF PC IN

DIFFERENT SITUATIONS

PCH PCL

12 8 7 0

PCLATH<4:0>

PCLATH

PCH PCL

12 11 10 0

PCLATH<4:3>

Instruction with PCL as Destination

ALU result

GOTO, CALL

Opcode <10:0>

2.3.2 STACK

The PIC16F630/676 family has an 8-level x 13-bit wide hardware stack (see Figure 2-1). The stack space is not part of either program or data space and the stack pointer is not readable or writable. The PC is PUSHed onto the stack when a CALL instruction is executed or an interrupt causes a branch. The stack is POPed in the event of a RETURN, RETLW or a RETFIE instruction execution. PCLATH is not affected by a PUSH or POP operation.

The stack operates as a circular buffer. This means that after the stack has been PUSHed eight times, the ninth push overwrites the value that was stored from the first push. The tenth push overwrites the second push (and so on).

Note 1: There are no STATUS bits to indicate

stack overflow or stack underflow conditions.

2: There are no instructions/mnemonics

called PUSH or POP. These are actions that occur from the execution of the CALL, RETURN, RETLW and RETFIE instructions or the vectoring to an interrupt address.

PCLATH

2.3.1 COMPUTED GOTO

A computed GOTO is accomplished by adding an offset to the program counter (ADDWF PCL). When perform- ing a table read using a computed GOTO method, care should be exercised if the table location crosses a PCL memory boundary (each 256-byte block). Refer to the Application Note “Implementing a Table Read" (AN556).

 2003 Microchip Technology Inc. DS40039C-page 17

PIC16F630/676

2.4 Indirect Addressing, INDF and FSR Registers

The INDF register is not a physical register. Addressing

A simple program to clear RAM location 20h-2Fh using indirect addressing is shown in Example 2-1.

EXAMPLE 2-1: INDIRECT ADDRESSING

the INDF register will cause indirect addressing.

Indirect addressing is possible by using the INDF register. Any instruction using the INDF register actually accesses data pointed to by the File Select register (FSR). Reading INDF itself indirectly will produce 00h. Writing to the INDF register indirectly results in a no operation (although STATUS bits may be affected). An effective 9-bit address is obtained by

NEXT clrf INDF ;clear INDF register

CONTINUE ;yes continue

movlw 0x20 ;initialize pointer

movwf FSR ;to RAM

incf FSR ;inc pointer

btfss FSR,4 ;all done?

goto NEXT ;no clear next

concatenating the 8-bit FSR register and the IRP bit (STATUS<7>), as shown in Figure 2-4.

FIGURE 2-4: DIRECT/INDIRECT ADDRESSING PIC16F630/676

(1)

RP1

RP0 6

Bank Select Location Select

From Opcode

00 01 10 11

00h

(1)

IRP

Bank Select

180h

Indirect AddressingDirect Addressing

FSR Register

Location Select

Data Memory

7Fh

Bank 0 Bank 1 Bank 2 Bank 3

For memory map detail see Figure 2-2.

Note 1: The RP1 and IRP bits are reserved; always maintain these bits clear.

Not Used

1FFh

DS40039C-page 18  2003 Microchip Technology Inc.

PIC16F630/676

3.0 PORTS A AND C

There are as many as twelve general purpose I/O pins available. Depending on which peripherals are enabled, some or all of the pins may not be available as general purpose I/O. In general, when a peripheral is enabled, the associated pin may not be used as a general purpose I/O pin.

Note: Additional information on I/O ports may be

found in the PICmicro™ Mid-Range Reference Manual, (DS33023)

3.1 PORTA and the TRISA Registers

PORTA is an 6-bit wide, bi-directional port. The corresponding data direction register is TRISA. Setting a TRISA bit (= 1) will make the corresponding PORTA pin an input (i.e., put the corresponding output driver in a Hi-impedance mode). Clearing a TRISA bit (= 0) will make the corresponding PORTA pin an output (i.e., put the contents of the output latch on the selected pin). The exception is RA3, which is input only and its TRIS bit will always read as ‘1’. Example 3-1 shows how to initialize PORTA.

Reading the PORTA register reads the status of the pins, whereas writing to it will write to the port latch. All write operations are read-modify-write operations. Therefore, a write to a port implies that the port pins are read, this value is modified and then written to the port data latch. RA3 reads ‘0’ when MCLREN = 1.

The TRISA register controls the direction of the PORTA pins, even when they are being used as analog inputs. The user must ensure the bits in the TRISA

Note: The ANSEL (9Fh) and CMCON (19h)

registers must be initialized to configure an analog channel as a digital input. Pins configured as analog inputs will read ‘0’. The ANSEL register is defined for the PIC16F676.

EXAMPLE 3-1: INITIALIZING PORTA

bcf STATUS,RP0 ;Bank 0 clrf PORTA ;Init PORTA movlw 05h ;Set RA<2:0> to movwf CMCON ;digital I/O bsf STATUS,RP0 ;Bank 1 clrf ANSEL ;digital I/O movlw 0Ch ;Set RA<3:2> as inputs movwf TRISA ;and set RA<5:4,1:0>

;as outputs

bcf STATUS,RP0 ;Bank 0

3.2 Additional Pin Functions

Every PORTA pin on the PIC16F630/676 has an interrupt-on-change option and every PORTA pin, except RA3, has a weak pull-up option. The next two sections describe these functions.

3.2.1 WEAK PULL-UP

Each of the PORTA pins, except RA3, has an individually configurable weak internal pull-up. Control bits WPUAx enable or disable each pull-up. Refer to Register 3-3. Each weak pull-up is automatically turned off when the port pin is configured as an output. The pull-ups are disabled on a Power-on Reset by the

bit (OPTION<7>).

RAPU

U-0 U-0 R/W-x R/W-x R/W-x R/W-x R/W-x R/W-x

— —

bit 7 bit 0

bit 7-6: Unimplemented: Read as ’0’

bit 5-0: PORTA<5:0>: PORTA I/O pin

1 = Port pin is >V 0 = Port pin is <VIL

Legend:

R = Readable bit W = Writable bit U = Unimplemented bit, read as ‘0’

- n = Value at POR ’1’ = Bit is set ’0’ = Bit is cleared x = Bit is unknown

 2003 Microchip Technology Inc. DS40039C-page 19

RA5 RA4 RA3 RA2 RA1 RA0

PIC16F630/676

U-0 U-0 R/W-x R/W-x R-1 R/W-x R/W-x R/W-x

— —

bit 7 bit 0

bit 7-6: Unimplemented: Read as ’0’

bit 5-0: TRISA<5:0>: PORTA Tri-State Control bit

1 = PORTA pin configured as an input (tri-stated) 0 = PORTA pin configured as an output

Note: TRISA<3> always reads 1.

Legend:

R = Readable bit W = Writable bit U = Unimplemented bit, read as ‘0’

- n = Value at POR ’1’ = Bit is set ’0’ = Bit is cleared x = Bit is unknown

U-0 U-0 R/W-1 R/W-1 U-0 R/W-1 R/W-1 R/W-1

— —WPUA5WPUA4— WPUA2 WPUA1 WPUA0

bit 7 bit 0

TRISA5 TRISA4 TRISA3 TRISA2 TRISA1 TRISA0

bit 7-6 Unimplemented: Read as ‘0’

bit 5-4 WPUA<5:4>: Weak Pull-up Register bit

1 = Pull-up enabled 0 = Pull-up disabled

bit 3 Unimplemented: Read as ‘0’

bit 2-0 WPUA<2:0>: Weak Pull-up Register bit

1 = Pull-up enabled 0 = Pull-up disabled

Note 1: Global RAPU

2: The weak pull-up device is automatically disabled if the pin is in Output mode

(TRISA = 0).

Legend:

R = Readable bit W = Writable bit U = Unimplemented bit, read as ‘0’

- n = Value at POR ’1’ = Bit is set ’0’ = Bit is cleared x = Bit is unknown

must be enabled for individual pull-ups to be enabled.

3.2.2 INTERRUPT-ON-CHANGE

Each of the PORTA pins is individually configurable as an interrupt-on-change pin. Control bits IOCAx enable or disable the interrupt function for each pin. Refer to Register 3-4. The interrupt-on-change is disabled on a Power-on Reset.

For enabled interrupt-on-change pins, the values are compared with the old value latched on the last read of PORTA. The ‘mismatch’ outputs of the last read are OR'd together to set, the PORTA Change Interrupt flag bit (RAIF) in the INTCON register.

This interrupt can wake the device from SLEEP. The user, in the Interrupt Service Routine, can clear the interrupt in the following manner:

a) Any read or write of PORTA. This will end the

mismatch condition.

b) Clear the flag bit RAIF.

A mismatch condition will continue to set flag bit RAIF. Reading PORTA will end the mismatch condition and allow flag bit RAIF to be cleared.

Note: If a change on the I/O pin should occur

when the read operation is being executed (start of the Q2 cycle), then the RAIF interrupt flag may not get set.

DS40039C-page 20  2003 Microchip Technology Inc.

PIC16F630/676

U-0 U-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0

— — IOCA5 IOCA4 IOCA3 IOCA2 IOCA1 IOCA0

bit 7 bit 0

bit 7-6 Unimplemented: Read as ‘0’

bit 5-0 IOCA<5:0>: Interrupt-on-Change PORTA Control bit

1 = Interrupt-on-change enabled 0 = Interrupt-on-change disabled

Note: Global interrupt enable (GIE) must be enabled for individual interrupts to be

recognized.

Legend:

R = Readable bit W = Writable bit U = Unimplemented bit, read as ‘0’

- n = Value at POR ’1’ = Bit is set ’0’ = Bit is cleared x = Bit is unknown

 2003 Microchip Technology Inc. DS40039C-page 21

PIC16F630/676

3.2.3 PIN DESCRIPTIONS AND

DIAGRAMS

Each PORTA pin is multiplexed with other functions. The pins and their combined functions are briefly described here. For specific information about individual functions such as the comparator or the A/D, refer to the appropriate section in this Data Sheet.

3.2.3.1 RA0/AN0/CIN+

Figure 3-1 shows the diagram for this pin. The RA0 pin is configurable to function as one of the following:

• a general purpose I/O

• an analog input for the A/D (PIC16F676 only)

• an analog input to the comparator

3.2.3.2 RA1/AN1/CIN-/VREF

Figure 3-1 shows the diagram for this pin. The RA1 pin is configurable to function as one of the following:

• as a general purpose I/O

• an analog input for the A/D (PIC16F676 only)

• an analog input to the comparator

• a voltage reference input for the A/D (PIC16F676

only)

FIGURE 3-1: BLOCK DIAGRAM OF RA0

AND RA1 PINS

Analog

Data Bus

WPUA

PORTA

TRISA

PORTA

IOCA

Input Mode

RAPU

Analog

Input Mode

VDD

Weak

VDD

I/O pin

VSS

Interrupt-on-Change

To Comparator

To A/D Converter

RD PORTA

DS40039C-page 22  2003 Microchip Technology Inc.

PIC16F630/676

3.2.3.3 RA2/AN2/T0CKI/INT/COUT

Figure 3-2 shows the diagram for this pin. The RA2 pin is configurable to function as one of the following:

• a general purpose I/O

• an analog input for the A/D (PIC16F676 only)

• a digital output from the comparator

• the clock input for TMR0

• an external edge triggered interrupt

FIGURE 3-2: BLOCK DIAGRAM OF RA2

Analog

Data Bus

WPUA

PORTA

TRISA

Input Mode

RAPU

COUT

Enable

COUT

Analog

Input Mode

Analog

Input

Mode

VDD

Weak

VDD

I/O pin

VSS

3.2.3.4 RA3/MCLR

/VPP

Figure 3-3 shows the diagram for this pin. The RA3 pin is configurable to function as one of the following:

• a general purpose input

• as Master Clear Reset

FIGURE 3-3: BLOCK DIAGRAM OF RA3

Data Bus

TRISA

PORTA

IOCA

Interrupt-on-Change

RESET

VSS

MCLRE

RD PORTA

I/O pin

PORTA

IOCA

Interrupt-on-Change

To TMR0

To I N T

To A/D Converter

RD PORTA

 2003 Microchip Technology Inc. DS40039C-page 23

PIC16F630/676

3.2.3.5 RA4/AN3/T1G/OSC2/CLKOUT

Figure 3-4 shows the diagram for this pin. The RA4 pin is configurable to function as one of the following:

• a general purpose I/O

• an analog input for the A/D (PIC16F676 only)

• a TMR1 gate input

• a crystal/resonator connection

• a clock output

FIGURE 3-4: BLOCK DIAGRAM OF RA4

Analog

Data Bus

WPUA

PORTA

TRISA

PORTA

IOCA

Interrupt-on-Change

Input Mode

OSC1

OSC/4

CLKOUT

Enable

INTOSC/ RC/EC

CLKOUT

Enable

Input Mode

CLK

Modes

RAPU

Oscillator

Circuit

CLKOUT

Enable

(2)

Analog

(1)

VDD

Weak

VDD

I/O pin

VSS

3.2.3.6 RA5/T1CKI/OSC1/CLKIN

Figure 3-5 shows the diagram for this pin. The RA5 pin is configurable to function as one of the following:

• a general purpose I/O

• a TMR1 clock input

• a crystal/resonator connection

• a clock input

FIGURE 3-5: BLOCK DIAGRAM OF RA5

INTOSC

Data Bus

WPUA

PORTA

TRISA

PORTA

IOCA

Interrupt-on-Change

Mode

RAPU

OSC2

INTOSC

Mode

RD PORTA

TMR1LPEN

Oscillator

Circuit

(1)

VDD

Weak

VDD

I/O pin

VSS

(1)

To TMR1 T1G

To A/D Converter

Note 1: CLK modes are XT, HS, LP, LPTMR1 and CLKOUT

Enable.

2: With CLKOUT option.

RD PORTA

To TMR1 or CLKGEN

Note 1: Timer1 LP Oscillator enabled

2: When using Timer1 with LP oscillator, the Schmitt

Trigger is by-passed.

DS40039C-page 24  2003 Microchip Technology Inc.

PIC16F630/676

TABLE 3-1: SUMMARY OF REGISTERS ASSOCIATED WITH PORTA

Value on:

Address Name Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0

POR,

BOD

05h PORTA — — RA5 RA4 RA3 RA2 RA1 RA0 --xx xxxx --uu uuuu

0Bh/8Bh INTCON GIE

19h CMCON

81h OPTION_REG RAPU

85h TRISA

91h ANSEL

95h WPUA

96h IOCA

Note 1: PIC16F676 only.

Legend: x = unknown, u = unchanged, - = unimplemented locations read as '0'. Shaded cells are not used by PORTA.

(1)

ANS7 ANS6 ANS5 ANS4

PEIE T0IE INTE RAIE T0IF INTF RAIF 0000 0000 0000 000u

— COUT — CINV CIS CM2 CM1 CM0 -0-0 0000 -0-0 0000

INTEDG T0CS T0SE PSA PS2 PS1 PS0 1111 1111 1111 1111

— — TRISA5 TRISA4 TRISA3 TRISA2 TRISA1 TRISA0 --11 1111 --11 1111

ANS3 ANS2 ANS1 ANS0

— — WPUA5 WPUA4 — WPUA2 WPUA1 WPUA0 --11 -111 --11 -111

— — IOCA5 IOCA4 IOCA3 IOCA2 IOCA1 IOCA0 --00 0000 --00 0000

1111 1111 1111 1111

Value on

all

other

RESETS

 2003 Microchip Technology Inc. DS40039C-page 25

PIC16F630/676

3.3 PORTC

PORTC is a general purpose I/O port consisting of 6 bidirectional pins. The pins can be configured for either digital I/O or analog input to A/D converter. For specific information about individual functions such as the comparator or the A/D, refer to the appropriate section in this Data Sheet.

Note: The ANSEL register (9Fh) must be clear to

configure an analog channel as a digital input. Pins configured as analog inputs will read ‘0’. The ANSEL register is defined for the PIC16F676.

EXAMPLE 3-2: INITIALIZING PORTC

bcf STATUS,RP0 ;Bank 0 clrf PORTC ;Init PORTC bsf STATUS,RP0 ;Bank 1 clrf ANSEL ;digital I/O movlw 0Ch ;Set RC<3:2> as inputs movwf TRISC ;and set RC<5:4,1:0>

;as outputs

bcf STATUS,RP0 ;Bank 0

3.3.1 RC0/AN4, RC1/AN5, RC2/AN6, RC3/

AN7

3.3.2 RC4 AND RC5

The RC4 and RC5 pins are configurable to function as a general purpose I/Os.

FIGURE 3-7: BLOCK DIAGRAM OF RC4

AND RC5 PINS

Data bus

VDD

I/O Pin

VSS

PORTC

TRISC

PORTC

The RC0/RC1/RC2/RC3 pins are configurable to function as one of the following:

• a general purpose I/O

• an analog input for the A/D Converter

(PIC16F676 only)

FIGURE 3-6: BLOCK DIAGRAM OF

RC0/RC1/RC2/RC3 PINs

Data bus

VDD

I/O Pin

VSS

PORTC

TRISC

PORTC

Analog Input

Mode

To A/D Converter

DS40039C-page 26  2003 Microchip Technology Inc.

PIC16F630/676

U-0 U-0 R/W-x R/W-x R/W-x R/W-x R/W-x R/W-x

— —

bit 7 bit 0

bit 7-6: Unimplemented: Read as ’0’

bit 5-0: PORTC<5:0>: General Purpose I/O pin

1 = Port pin is >V

0 = Port pin is <VIL

Legend:

R = Readable bit W = Writable bit U = Unimplemented bit, read as ‘0’

- n = Value at POR ’1’ = Bit is set ’0’ = Bit is cleared x = Bit is unknown

U-0 U-0 R/W-1 R/W-1 R/W-1 R/W-1 R/W-1 R/W-1

— —

bit 7 bit 0

RC5 RC4 RC3 RC2 RC1 RC0

TRISC5 TRISC4 TRISC3 TRISC2 TRISC1 TRISC0

bit 7-6: Unimplemented: Read as ’0’

bit 5-0: TRISC<5:0>: PORTC Tri-State Control bit

1 = PORTC pin configured as an input (tri-stated) 0 = PORTC pin configured as an output

Legend:

R = Readable bit W = Writable bit U = Unimplemented bit, read as ‘0’

- n = Value at POR ’1’ = Bit is set ’0’ = Bit is cleared x = Bit is unknown

TABLE 3-2: SUMMARY OF REGISTERS ASSOCIATED WITH PORTC

Address Name Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0

07h PORTC — — RC5 RC4 RC3 RC2 RC1 RC0 --xx xxxx --uu uuuu

87h TRISC

91h ANSEL

Note 1: PIC16F676 only.

Legend:

(1)

x = unknown, u = unchanged, - = unimplemented locations read as '0'. Shaded cells are not used by PORTC.

— — TRISC5 TRISC4 TRISC3 TRISC2 TRISC1 TRISC0 --11 1111 --11 1111

ANS7 ANS6 ANS5 ANS4 ANS3 ANS2 ANS1 ANS0

Value on:

POR, BOD

1111 1111 1111 1111

Value on all

other

RESETS

 2003 Microchip Technology Inc. DS40039C-page 27

PIC16F630/676

NOTES:

DS40039C-page 28  2003 Microchip Technology Inc.

PIC16F630/676

4.0 TIMER0 MODULE

The Timer0 module timer/counter has the following features:

• 8-bit timer/counter

• Readable and writable

• 8-bit software programmable prescaler

• Internal or external clock select

• Interrupt on overflow from FFh to 00h

• Edge select for external clock

Figure 4-1 is a block diagram of the Timer0 module and the prescaler shared with the WDT.

Note: Additional information on the Timer0

module is available in the PICmicro Range Reference Manual, (DS33023).

4.1 Timer0 Operation

Timer mode is selected by clearing the T0CS bit (OPTION_REG<5>). In Timer mode, the Timer0 module will increment every instruction cycle (without prescaler). If TMR0 is written, the increment is inhibited for the following two instruction cycles. The user can work around this by writing an adjusted value to the TMR0 register.

Mid-

Counter mode is selected by setting the T0CS bit (OPTION_REG<5>). In this mode, the Timer0 module will increment either on every rising or falling edge of pin RA2/T0CKI. The incrementing edge is determined by the source edge (T0SE) control bit (OPTION_REG<4>). Clearing the T0SE bit selects the rising edge.

Note: Counter mode has specific external clock

requirements. Additional information on these requirements is available in the

PICmicro

Mid-Range Reference

Manual, (DS33023).

4.2 Timer0 Interrupt

A Timer0 interrupt is generated when the TMR0 register timer/counter overflows from FFh to 00h. This overflow sets the T0IF bit. The interrupt can be masked by clearing the T0IE bit (INTCON<5>). The T0IF bit (INTCON<2>) must be cleared in software by the Timer0 module Interrupt Service Routine before reenabling this interrupt. The Timer0 interrupt cannot wake the processor from SLEEP since the timer is shut-off during SLEEP.

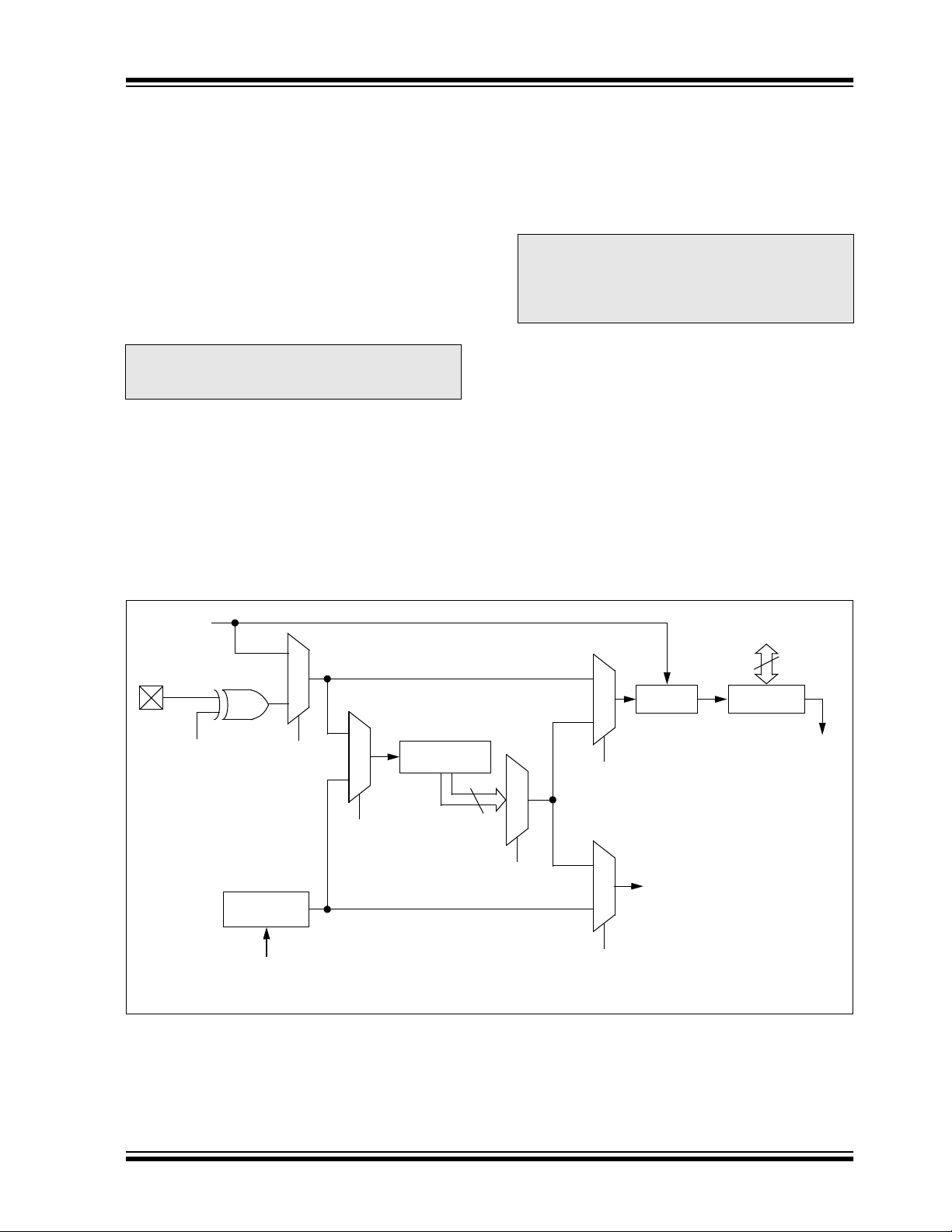

FIGURE 4-1: BLOCK DIAGRAM OF THE TIMER0/WDT PRESCALER

CLKOUT

(= FOSC/4)

T0CKI

T0SE

Note 1: T0SE, T0CS, PSA, PS0-PS2 are bits in the Option register.

T0CS

Watchdog

Timer

WDTE

8-bit

Prescaler

PSA

PS0 - PS2

PSA

SYNC 2

Cycles

WDT

Time-out

Data Bus

TMR0

Set Flag bit T0IF

on Overflow

 2003 Microchip Technology Inc. DS40039C-page 29

PIC16F630/676

4.3 Using Timer0 with an External Clock

When no prescaler is used, the external clock input is the same as the prescaler output. The synchronization of T0CKI, with the internal phase clocks, is accomplished by sampling the prescaler output on the Q2 and Q4 cycles of the internal phase clocks. Therefore, it is necessary for T0CKI to be high for at least 2T

OSC (and

a small RC delay of 20 ns) and low for at least 2T (and a small RC delay of 20 ns). Refer to the electrical specification of the desired device.

Note: The ANSEL (9Fh) and CMCON (19h)

registers must be initialized to configure an analog channel as a digital input. Pins configured as analog inputs will read ‘0’. The ANSEL register is defined for the PIC16F676.

R/W-1 R/W-1 R/W-1 R/W-1 R/W-1 R/W-1 R/W-1 R/W-1

PU INTEDG T0CS T0SE PSA PS2 PS1 PS0

bit 7 bit 0

bit 7 RAPU

bit 6 INTEDG: Interrupt Edge Select bit

bit 5 T0CS: TMR0 Clock Source Select bit

bit 4 T0SE: TMR0 Source Edge Select bit

bit 3 PSA: Prescaler Assignment bit

bit 2-0 PS2:PS0: Prescaler Rate Select bits

: PORTA Pull-up Enable bit

1 = PORTA pull-ups are disabled 0 = PORTA pull-ups are enabled by individual port latch values

1 = Interrupt on rising edge of RA2/INT pin 0 = Interrupt on falling edge of RA2/INT pin

1 = Transition on RA2/T0CKI pin 0 = Internal instruction cycle clock (CLKOUT)

1 = Increment on high-to-low transition on RA2/T0CKI pin 0 = Increment on low-to-high transition on RA2/T0CKI pin

1 = Prescaler is assigned to the WDT 0 = Prescaler is assigned to the Timer0 module

Bit Value TMR0 Rate WDT Rate

000 001 010 011 100 101 110 111

1 : 2 1 : 4 1 : 8 1 : 16 1 : 32 1 : 64 1 : 128 1 : 256

1 : 1 1 : 2 1 : 4 1 : 8 1 : 16 1 : 32 1 : 64 1 : 128

OSC

Legend:

R = Readable bit W = Writable bit U = Unimplemented bit, read as ‘0’

- n = Value at POR ’1’ = Bit is set ’0’ = Bit is cleared x = Bit is unknown

DS40039C-page 30  2003 Microchip Technology Inc.

PIC16F630/676

4.4 Prescaler

An 8-bit counter is available as a prescaler for the Timer0 module, or as a postscaler for the Watchdog Timer. For simplicity, this counter will be referred to as “prescaler” throughout this Data Sheet. The prescaler assignment is controlled in software by the control bit PSA (OPTION_REG<3>). Clearing the PSA bit will assign the prescaler to Timer0. Prescale values are selectable via the PS2:PS0 bits (OPTION_REG<2:0>).

The prescaler is not readable or writable. When assigned to the Timer0 module, all instructions writing to the TMR0 register (e.g., CLRF 1, MOVWF 1,

BSF 1, x....etc.) will clear the prescaler. When

assigned to WDT, a CLRWDT instruction will clear the prescaler along with the Watchdog Timer.

4.4.1 SWITCHING PRESCALER ASSIGNMENT

The prescaler assignment is fully under software control (i.e., it can be changed “on the fly” during program execution). To avoid an unintended device RESET, the following instruction sequence (Example 4-1) must be executed when changing the prescaler assignment from Timer0 to WDT.

EXAMPLE 4-1: CHANGING PRESCALER

(TIMER0→WDT)

bcf STATUS,RP0 ;Bank 0

clrwdt ;Clear WDT

clrf TMR0 ;Clear TMR0 and

; prescaler

bsf STATUS,RP0 ;Bank 1

movlw b’00101111’ ;Required if desired

movwf OPTION_REG ; PS2:PS0 is

clrwdt ; 000 or 001

;

movlw b’00101xxx’ ;Set postscaler to

movwf OPTION_REG ; desired WDT rate

bcf STATUS,RP0 ;Bank 0

To change prescaler from the WDT to the TMR0 module, use the sequence shown in Example 4-2. This precaution must be taken even if the WDT is disabled.

EXAMPLE 4-2: CHANGING PRESCALER

(WDT→TIMER0)

clrwdt ;Clear WDT and

; postscaler

bsf STATUS,RP0 ;Bank 1

movlw b’xxxx0xxx’ ;Select TMR0,

; prescale, and

; clock source

movwf OPTION_REG ;

bcf STATUS,RP0 ;Bank 0

TABLE 4-1: REGISTERS ASSOCIATED WITH TIMER0

Address Name Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0

01h TMR0 Timer0 Module Register xxxx xxxx uuuu uuuu

0Bh/8Bh INTCON GIE PEIE T0IE

81h OPTION_REG RAPU INTEDG T0CS T0SE PSA PS2 PS1 PS0 1111 1111 1111 1111

85h TRISA Legend: — = Unimplemented locations, read as ‘0’, u = unchanged, x = unknown.

Shaded cells are not used by the Timer0 module.

— — TRISA5 TRISA4 TRISA3 TRISA2 TRISA1 TRISA0 --11 1111 --11 1111

INTE RAIE T0IF INTF RAIF 0000 0000 0000 000u

Value on

POR, BOD

Value on

all other

RESETS

 2003 Microchip Technology Inc. DS40039C-page 31

PIC16F630/676

5.0 TIMER1 MODULE WITH GATE CONTROL

The PIC16F630/676 devices have a 16-bit timer. Figure 5-1 shows the basic block diagram of the Timer1 module. Timer1 has the following features:

• 16-bit timer/counter (TMR1H:TMR1L)

• Readable and writable

• Internal or external clock selection

• Synchronous or asynchronous operation

• Interrupt on overflow from FFFFh to 0000h

• Wake-up upon overflow (Asynchronous mode)

• Optional external enable input (T1G

• Optional LP oscillator

FIGURE 5-1: TIMER1 BLOCK DIAGRAM

Set Flag bit TMR1IF on Overflow

TMR1H

)

TMR1

TMR1L

The Timer1 Control register (T1CON), shown in Register 5-1, is used to enable/disable Timer1 and select the various features of the Timer1 module.

Note: Additional information on timer modules is

available in the PICmicro

Mid-Range

Reference Manual, (DS33023).

TMR1ON TMR1GE

Synchronized

Clock Input

T1G

INTOSC

w/o CLKOUT

T1OSCEN

OSC1

OSC2

LP Oscillator

OSC/4

Internal Clock

TMR1CS

T1SYNC

Prescaler

1, 2, 4, 8

T1CKPS<1:0>

Synchronize

Detect

SLEEP Input

DS40039C-page 32  2003 Microchip Technology Inc.

PIC16F630/676

5.1 Timer1 Modes of Operation

Timer1 can operate in one of three modes:

• 16-bit timer with prescaler

• 16-bit synchronous counter

• 16-bit asynchronous counter

In Timer mode, Timer1 is incremented on every instruction cycle. In Counter mode, Timer1 is incremented on the rising edge of the external clock input T1CKI. In addition, the Counter mode clock can be synchronized to the microcontroller system clock or run asynchronously.

In Counter and Timer modules, the counter/timer clock can be gated by the T1G

If an external clock oscillator is needed (and the microcontroller is using the INTOSC w/o CLKOUT), Timer1 can use the LP oscillator as a clock source.

Note: In Counter mode, a falling edge must be

registered by the counter prior to the first incrementing rising edge.

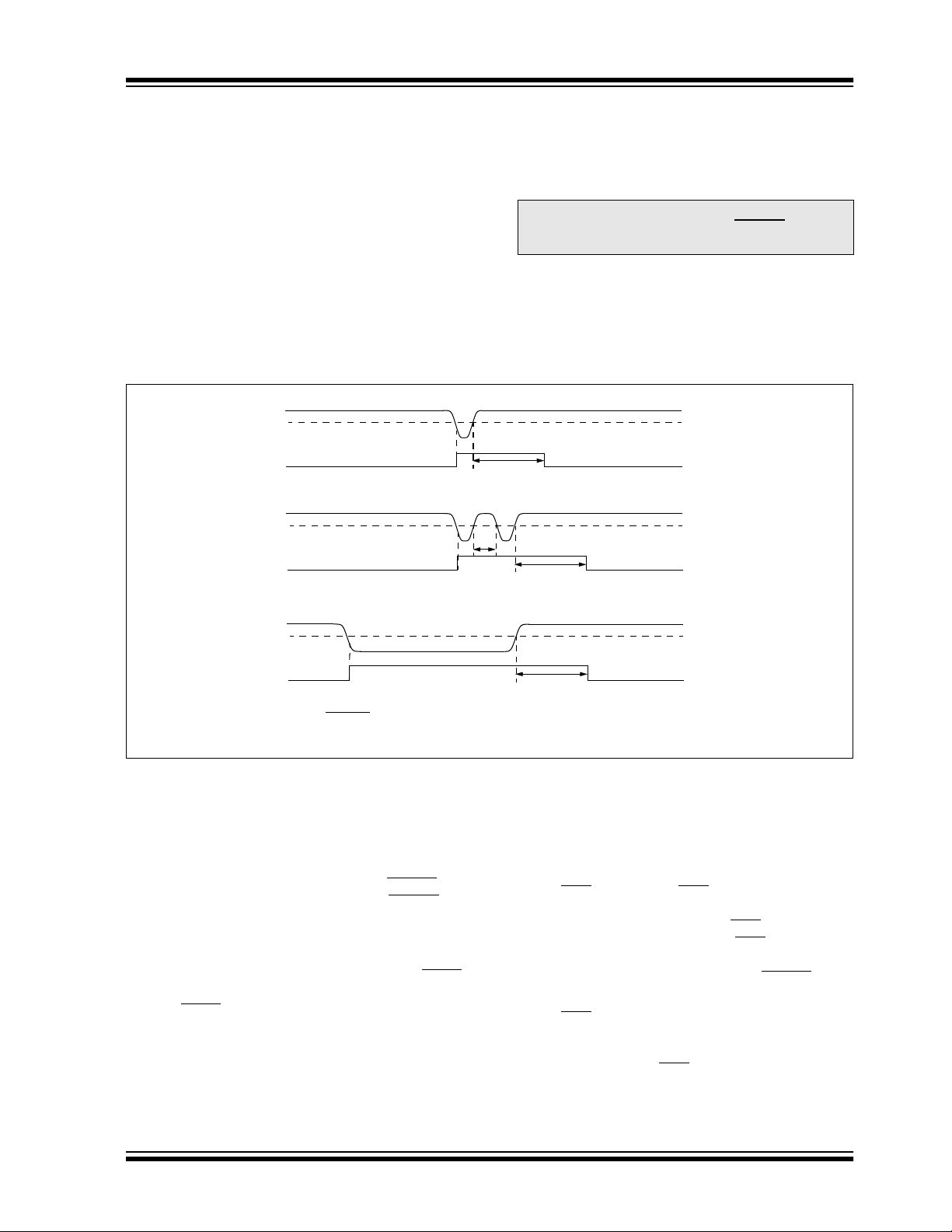

FIGURE 5-2: TIMER1 INCREMENTING EDGE

input.

5.2 Timer1 Interrupt

The Timer1 register pair (TMR1H:TMR1L) increments to FFFFh and rolls over to 0000h. When Timer1 rolls over, the Timer1 interrupt flag bit (PIR1<0>) is set. To enable the interrupt on rollover, you must set these bits:

• Timer1 interrupt Enable bit (PIE1<0>)

• PEIE bit (INTCON<6>)

• GIE bit (INTCON<7>).

The interrupt is cleared by clearing the TMR1IF in the Interrupt Service Routine.

Note: The TMR1H:TTMR1L register pair and the

TMR1IF bit should be cleared before enabling interrupts.

5.3 Timer1 Prescaler

Timer1 has four prescaler options allowing 1, 2, 4, or 8 divisions of the clock input. The T1CKPS bits (T1CON<5:4>) control the prescale counter. The prescale counter is not directly readable or writable; however, the prescaler counter is cleared upon a write to TMR1H or TMR1L.

T1CKI = 1

when TMR1 Enabled

T1CKI = 0

when TMR1 Enabled

Note 1: Arrows indicate counter increments.

2: In Counter mode, a falling edge must be registered by the counter prior to the first incrementing rising edge of the

clock.

 2003 Microchip Technology Inc. DS40039C-page 33

PIC16F630/676

U-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0

—

bit 7 bit 0

bit 7 Unimplemented: Read as ‘0’

bit 6 TMR1GE: Timer1 Gate Enable bit

If TMR1ON = 0: This bit is ignored If TMR1ON = 1:

1 = Timer1 is on if T1G pin is low 0 = Timer1 is on

bit 5-4 T1CKPS1:T1CKPS0: Timer1 Input Clock Prescale Select bits

11 = 1:8 Prescale Value 10 = 1:4 Prescale Value 01 = 1:2 Prescale Value 00 = 1:1 Prescale Value

bit 3 T1OSCEN: LP Oscillator Enable Control bit

If INTOSC without CLKOUT oscillator is active:

1 = LP oscillator is enabled for Timer1 clock 0 = LP oscillator is off

Else: This bit is ignored

bit 2 T1SYNC

TMR1CS = 1:

1 = Do not synchronize external clock input 0 = Synchronize external clock input

TMR1CS = 0: This bit is ignored. Timer1 uses the internal clock.

bit 1 TMR1CS: Timer1 Clock Source Select bit

1 = External clock from T1OSO/T1CKI pin (on the rising edge) 0 = Internal clock (F

bit 0 TMR1ON: Timer1 On bit

1 = Enables Timer1 0 = Stops Timer1

TMR1GE T1CKPS1 T1CKPS0 T1OSCEN T1SYNC

: Timer1 External Clock Input Synchronization Control bit

OSC/4)

TMR1CS TMR1ON

Legend:

R = Readable bit W = Writable bit U = Unimplemented bit, read as ‘0’

- n = Value at POR ’1’ = Bit is set ’0’ = Bit is cleared x = Bit is unknown

DS40039C-page 34  2003 Microchip Technology Inc.

PIC16F630/676

5.4 Timer1 Operation in Asynchronous Counter Mode

If control bit T1SYNC (T1CON<2>) is set, the external clock input is not synchronized. The timer continues to increment asynchronous to the internal phase clocks. The timer will continue to run during SLEEP and can generate an interrupt on overflow, which will wake-up the processor. However, special precautions in software are needed to read/write the timer (Section 5.4.1).

Note: The ANSEL (9Fh) and CMCON (19h)

registers must be initialized to configure an analog channel as a digital input. Pins configured as analog inputs will read ‘0’. The ANSEL register is defined for the PIC16F676.

5.4.1 READING AND WRITING TIMER1 IN ASYNCHRONOUS COUNTER MODE

Reading TMR1H or TMR1L, while the timer is running from an external asynchronous clock, will ensure a valid read (taken care of in hardware). However, the user should keep in mind that reading the 16-bit timer in two 8-bit values itself, poses certain problems, since the timer may overflow between the reads.

For writes, it is recommended that the user simply stop the timer and write the desired values. A write contention may occur by writing to the timer registers, while the register is incrementing. This may produce an unpredictable value in the timer register.

Reading the 16-bit value requires some care. Examples 12-2 and 12-3 in the PICmicro™ Mid-Range MCU Family Reference Manual (DS33023) show how to read and write Timer1 when it is running in Asynchronous mode.

5.5 Timer1 Oscillator

A crystal oscillator circuit is built-in between pins OSC1 (input) and OSC2 (amplifier output). It is enabled by setting control bit T1OSCEN (T1CON<3>). The oscillator is a low power oscillator rated up to 32 kHz. It will continue to run during SLEEP. It is primarily intended for a 32 kHz crystal. Table 9-2 shows the capacitor selection for the Timer1 oscillator.

The Timer1 oscillator is shared with the system LP oscillator. Thus, Timer1 can use this mode only when the system clock is derived from the internal oscillator. As with the system LP oscillator, the user must provide a software time delay to ensure proper oscillator start-up.

TRISA5 and TRISA4 bits are set when the Timer1 oscillator is enabled. RA5 and RA4 read as ‘0’ and TRISA5 and TRISA4 bits read as ‘1’.

Note: The oscillator requires a start-up and

stabilization time before use. Thus, T1OSCEN should be set and a suitable delay observed prior to enabling Timer1.

5.6 Timer1 Operation During SLEEP

Timer1 can only operate during SLEEP when setup in Asynchronous Counter mode. In this mode, an external crystal or clock source can be used to increment the counter. To setup the timer to wake the device:

• Timer1 must be on (T1CON<0>)

• TMR1IE bit (PIE1<0>) must be set

• PEIE bit (INTCON<6>) must be set

The device will wake-up on an overflow. If the GIE bit (INTCON<7>) is set, the device will wake-up and jump to the Interrupt Service Routine on an overflow.

TABLE 5-1: REGISTERS ASSOCIATED WITH TIMER1 AS A TIMER/COUNTER

Address Name Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0

0Bh/8Bh INTCON GIE PEIE

0Ch PIR1

0Eh TMR1L Holding Register for the Least Significant Byte of the 16-bit TMR1 Register xxxx xxxx uuuu uuuu

0Fh TMR1H Holding Register for the Most Significant Byte of the 16-bit TMR1 Register xxxx xxxx uuuu uuuu

10h T1CON

8Ch PIE1 Legend: x = unknown, u = unchanged, - = unimplemented, read as '0'. Shaded cells are not used by the Timer1 module.

 2003 Microchip Technology Inc. DS40039C-page 35

EEIF ADIF — — CMIF — — TMR1IF 00-- 0--0 00-- 0--0

— TMR1GE T1CKPS1 T1CKPS0 T1OSCEN T1SYNC TMR1CS TMR1ON -000 0000 -uuu uuuu

EEIE ADIE — — CMIE — —TMR1IE00-- 0--0 00-- 0--0

T0IE INTE RAIE T0IF INTF RAIF 0000 0000 0000 000u

Value on

POR, BOD

Value on all other RESETS

PIC16F630/676

NOTES:

DS40039C-page 36  2003 Microchip Technology Inc.

PIC16F630/676

6.0 COMPARATOR MODULE

The PIC16F630/676 devices have one analog comparator. The inputs to the comparator are multiplexed with the RA0 and RA1 pins. There is an on-chip Comparator

Voltage Reference that can also be applied to an input of the comparator. In addition, RA2 can be configured as the comparator output. The Comparator Control Register (CMCON), shown in Register 6-1, contains the bits to control the comparator.

U-0 R-0 U-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0

—COUT— CINV CIS CM2 CM1 CM0

bit 7 bit 0

bit 7 Unimplemented: Read as ‘0’

bit 6 COUT: Comparator Output bit

When C

1 = VIN+ > VIN0 = V

When C

1 = VIN+ < VIN0 = V

bit 5 Unimplemented: Read as ‘0’

bit 4 CINV: Comparator Output Inversion bit

1 = Output inverted 0 = Output not inverted

bit 3 CIS: Comparator Input Switch bit

When CM2:CM0 =

1 = VIN- connects to CIN+ 0 = V

bit 2-0 CM2:CM0: Comparator Mode bits

Figure 6-2 shows the Comparator modes and CM2:CM0 bit settings

INV = 0:

IN+ < VIN-

INV = 1:

IN+ > VIN-

110 or 101:

IN- connects to CIN-

Legend:

R = Readable bit W = Writable bit U = Unimplemented bit, read as ‘0’

- n = Value at POR ’1’ = Bit is set ’0’ = Bit is cleared x = Bit is unknown

 2003 Microchip Technology Inc. DS40039C-page 37

PIC16F630/676

6.1 Comparator Operation

A single comparator is shown in Figure 6-1, along with the relationship between the analog input levels and the digital output. When the analog input at V than the analog input V

IN-, the output of the comparator

is a digital low level. When the analog input at V greater than the analog input V

IN-, the output of the

comparator is a digital high level. The shaded areas of the output of the comparator in Figure 6-1 represent the uncertainty due to input offsets and response time.

Note: To use CIN+ and CIN- pins as analog

inputs, the appropriate bits must be programmed in the CMCON (19h) register.

The polarity of the comparator output can be inverted by setting the CINV bit (CMCON<4>). Clearing CINV results in a non-inverted output. A complete table showing the output state versus input conditions and the polarity bit is shown in Table 6-1.

IN+ is less

IN+ is

TABLE 6-1: OUTPUT STATE VS. INPUT

CONDITIONS

Input Conditions CINV COUT

IN- > VIN+ 00 IN- < VIN+ 01

IN- > VIN+ 11

IN- < VIN+ 10

FIGURE 6-1: SINGLE COMPARATOR

–

Output

IN-

VIN+

Output

IN+

IN-

Note: CINV bit (CMCON<4>) is clear.

DS40039C-page 38  2003 Microchip Technology Inc.

PIC16F630/676

6.2 Comparator Configuration

Comparator mode is changed, the comparator output level may not be valid for a specified period of time.

There are eight modes of operation for the comparator. The CMCON register, shown in Register 6-1, is used to select the mode. Figure 6-2 shows the eight possible modes. The TRISA register controls the data direction of the comparator pins for each mode. If the

Refer to the specifications in Section 12.0.

Note: Comparator interrupts should be disabled

during a Comparator mode change. Otherwise, a false interrupt may occur.

FIGURE 6-2: COMPARATOR I/O OPERATING MODES

Comparator Reset (POR Default Value - low power) Comparator Off (Lowest power) CM2:CM0 = 000 CM2:CM0 = 111

RA1/CIN-

RA0/CIN+

RA2/COUT D

Comparator without Output Comparator w/o Output and with Internal Reference CM2:CM0 = 010 CM2:CM0 = 100

RA1/CIN-

RA0/CIN+

RA2/COUT D

Off (Read as '0')

COUT

RA1/CIN-

RA0/CIN+

RA2/COUT D

RA1/CIN-

RA0/CIN+

RA2/COUT D

From CVREF Module

Off (Read as '0')

COUT

Comparator with Output and Internal Reference Multiplexed Input with Internal Reference and Output CM2:CM0 = 011 CM2:CM0 = 101

RA1/CIN-

RA0/CIN+

RA2/COUT D

From CVREF Module

COUT

RA1/CIN-

RA0/CIN+

RA2/COUT D

CIS = 0

CIS = 1

From CVREF Module

COUT

Comparator with Output Multiplexed Input with Internal Reference CM2:CM0 = 001 CM2:CM0 = 110

RA1/CIN-

RA0/CIN+

RA2/COUT D

COUT

RA1/CIN-

RA0/CIN+

RA2/COUT D

CIS = 0

CIS = 1

From CVREF Module

COUT

A = Analog Input, ports always reads ‘0’

D = Digital Input

CIS = Comparator Input Switch (CMCON<3>)

 2003 Microchip Technology Inc. DS40039C-page 39

PIC16F630/676

6.3 Analog Input Connection Considerations

A simplified circuit for an analog input is shown in Figure 6-3. Since the analog pins are connected to a digital output, they have reverse biased diodes to V and VSS. The analog input, therefore, must be between

SS and VDD. If the input voltage deviates from this

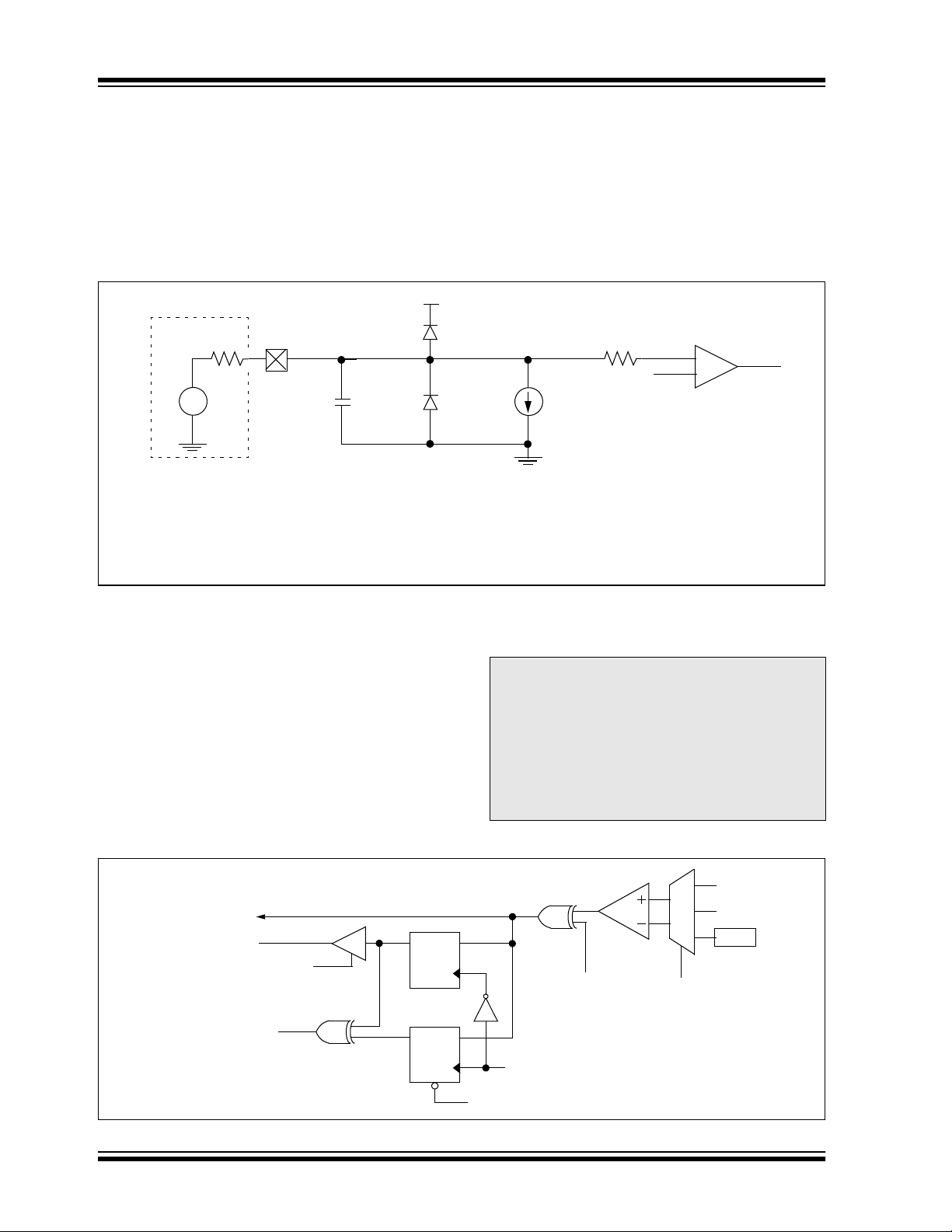

FIGURE 6-3: ANALOG INPUT MODE

Rs < 10K

Legend: CPIN = Input Capacitance

CPIN

5 pF

T = Threshold Voltage

LEAKAGE = Leakage Current at the pin due to Various Junctions

IC = Interconnect Resistance

S = Source Impedance

R VA = Analog Voltage

VT = 0.6V

T = 0.6V

range by more than 0.6V in either direction, one of the diodes is forward biased and a latchup may occur. A maximum source impedance of 10 kΩ is recommended for the analog sources. Any external component connected to an analog input pin, such as a capacitor or a Zener diode, should have very little leakage current.

Leakage ±500 nA

Vss

6.4 Comparator Output

The comparator output, COUT, is read through the CMCON register. This bit is read-only. The comparator output may also be directly output to the RA2 pin in three of the eight possible modes, as shown in Figure 6-2. When in one of these modes, the output on RA2 is asynchronous to the internal clock. Figure 6-4 shows the comparator output block diagram.

The TRISA<2> bit functions as an output enable/ disable for the RA2 pin while the comparator is in an Output mode.

Note 1: When reading the PORTA register, all

pins configured as analog inputs will read as a ‘0’. Pins configured as digital inputs will convert an analog input according to the TTL input specification.

2: Analog levels on any pin that is defined as

a digital input, may cause the input buffer to consume more current than is specified.

FIGURE 6-4: MODIFIED COMPARATOR OUTPUT BLOCK DIAGRAM

To RA2/T0CKI pin

To Data Bus

RD CMCON

Set CMIF bit

CINV

RA0/CIN+

RA1/CIN-

CVREF

CM2:CM0

DS40039C-page 40  2003 Microchip Technology Inc.

RD CMCON

RESET

PIC16F630/676

6.5 Comparator Reference

The comparator module also allows the selection of an internally generated voltage reference for one of the comparator inputs. The internal reference signal is used for four of the eight Comparator modes. The VRCON register, Register 6-2, controls the voltage reference module shown in Figure 6-5.

6.5.1 CONFIGURING THE VOLTAGE REFERENCE

The voltage reference can output 32 distinct voltage levels, 16 in a high range and 16 in a low range.

The following equations determine the output voltages:

VRR = 1 (low range): CV

VRR = 0 (high range): CV

DD / 32)

REF = (VR3:VR0 / 24) x VDD

REF = (VDD / 4) + (VR3:VR0 x

6.5.2 VOLTAGE REFERENCE ACCURACY/ERROR

The full range of VSS to VDD cannot be realized due to the construction of the module. The transistors on the top and bottom of the resistor ladder network (Figure 6-5) keep CV V

DD. The Voltage Reference is VDD derived and there-

fore, the CV

DD. The tested absolute accuracy of the Comparator

V Voltage Reference can be found in Section 12.0.

REF output changes with fluctuations in

REF from approaching VSS or

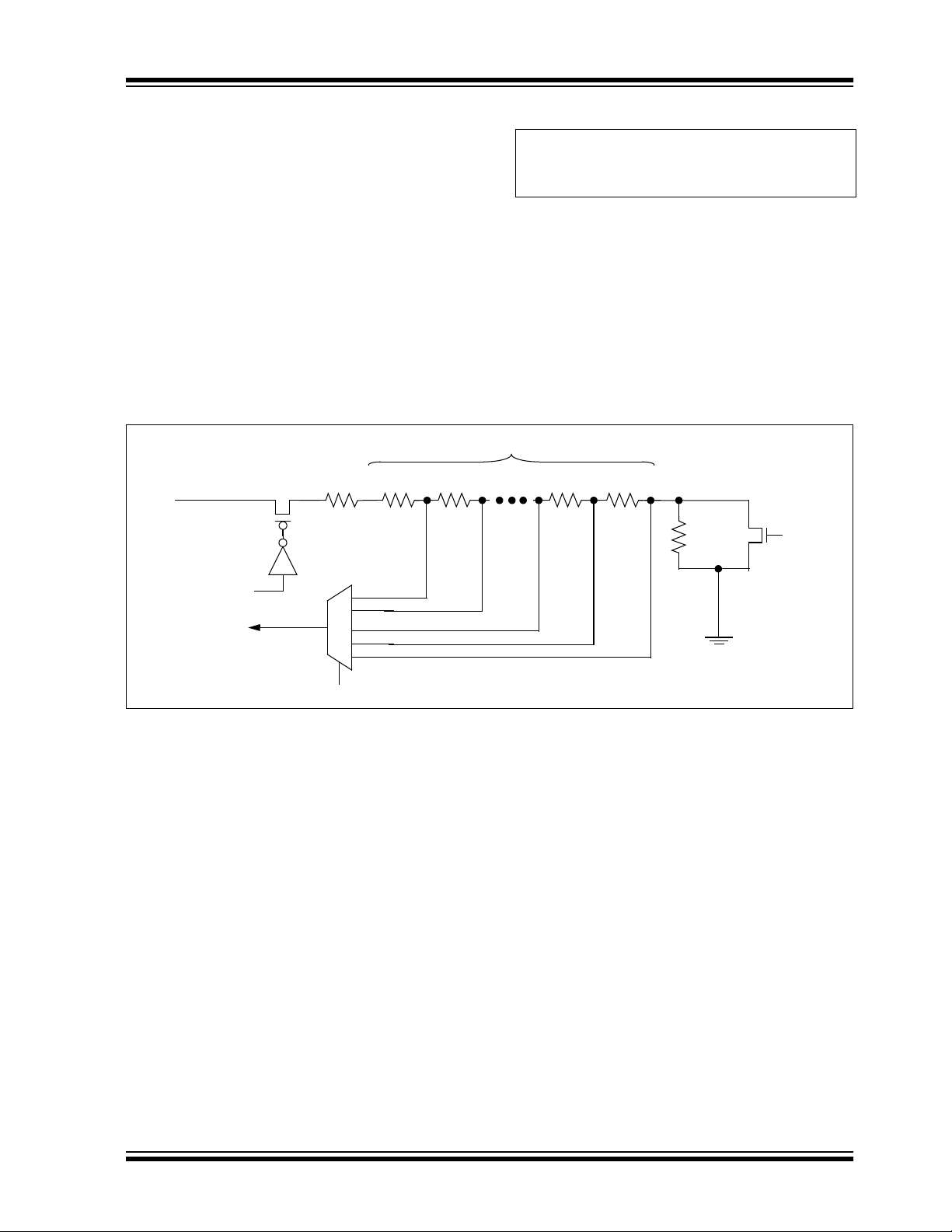

FIGURE 6-5: COMPARATOR VOLTAGE REFERENCE BLOCK DIAGRAM

16 Stages

8R R R R R

VDD

16-1 Analog

MUX

VREN

CVREF to

Comparator

Input

VRR

VR3:VR0

6.6 Comparator Response Time

Response time is the minimum time, after selecting a new reference voltage or input source, before the comparator output is ensured to have a valid level. If the internal reference is changed, the maximum delay of the internal voltage reference must be considered when using the comparator outputs. Otherwise, the maximum delay of the comparators should be used (Table 12-7).

6.7 Operation During SLEEP

Both the comparator and voltage reference, if enabled before entering SLEEP mode, remain active during SLEEP. This results in higher SLEEP currents than shown in the power-down specifications. The additional current consumed by the comparator and the voltage reference is shown separately in the specifications. To minimize power consumption while in SLEEP mode, turn off the comparator, CM2:CM0 = 111, and voltage reference, VRCON<7> = 0.

While the comparator is enabled during SLEEP, an interrupt will wake-up the device. If the device wakes up from SLEEP, the contents of the CMCON and VRCON registers are not affected.

6.8 Effects of a RESET

A device RESET forces the CMCON and VRCON registers to their RESET states. This forces the comparator module to be in the Comparator Reset mode, CM2:CM0 = 000 and the voltage reference to its off state. Thus, all potential inputs are analog inputs with the comparator and voltage reference disabled to consume the smallest current possible.

 2003 Microchip Technology Inc. DS40039C-page 41

PIC16F630/676

R/W-0 U-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0

VREN

bit 7 bit 0

—VRR— VR3 VR2 VR1 VR0

bit 7 VREN: CV

1 = CV 0 = CV

REF Enable bit REF circuit powered on REF circuit powered down, no IDD drain

bit 6 Unimplemented: Read as '0'

bit 5 VRR: CV

REF Range Selection bit

1 = Low range 0 = High range

bit 4 Unimplemented: Read as '0'

bit 3-0 VR3:VR0: CV

When VRR = 1: CV

REF value selection 0 ≤ VR [3:0] ≤ 15

REF = (VR3:VR0 / 24) * VDD

When VRR = 0: CVREF = VDD/4 + (VR3:VR0 / 32) * VDD

Legend:

R = Readable bit W = Writable bit U = Unimplemented bit, read as ‘0’

- n = Value at POR ’1’ = Bit is set ’0’ = Bit is cleared x = Bit is unknown

6.9 Comparator Interrupts

The comparator interrupt flag is set whenever there is a change in the output value of the comparator. Software will need to maintain information about the status of the output bits, as read from CMCON<6>, to determine the actual change that has occurred. The CMIF bit, PIR1<3>, is the comparator interrupt flag. This bit must be reset in software by clearing it to ‘0’. Since it is also possible to write a '1' to this register, a simulated interrupt may be initiated.

The CMIE bit (PIE1<3>) and the PEIE bit (INTCON<6>) must be set to enable the interrupt. In addition, the GIE bit must also be set. If any of these bits are cleared, the interrupt is not enabled, though the CMIF bit will still be set if an interrupt condition occurs.

The user, in the Interrupt Service Routine, can clear the interrupt in the following manner:

a) Any read or write of CMCON. This will end the

mismatch condition.

b) Clear flag bit CMIF.

A mismatch condition will continue to set flag bit CMIF. Reading CMCON will end the mismatch condition and allow flag bit CMIF to be cleared.

Note: If a change in the CMCON register (COUT)

should occur when a read operation is being executed (start of the Q2 cycle), then the CMIF (PIR1<3>) interrupt flag may not get set.

TABLE 6-2: REGISTERS ASSOCIATED WITH COMPARATOR MODULE

Address Name Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0

0Bh/8Bh INTCON GIE PEIE

0Ch PIR1

19h CMCON

8Ch PIE1

85h TRISA

99h VRCON VREN

Legend: x = unknown, u = unchanged, - = unimplemented, read as ‘0’. Shaded cells are not used by the comparator module.

DS40039C-page 42  2003 Microchip Technology Inc.

EEIF ADIF — — CMIF — — TMR1IF 00-- 0--0 00-- 0--0

—COUT— CINV CIS CM2 CM1 CM0

EEIE ADIE — — CMIE — — TMR1IE 00-- 0--0 00-- 0--0

— — TRISA5 TRISA4 TRISA3 TRISA2 TRISA1 TRISA0 --11 1111 --11 1111

—VRR— VR3 VR2 VR1 VR0 0-0- 0000 0-0- 0000

T0IE INTE RAIE T0IF INTF RAIF 0000 0000 0000 000u

Value on

POR, BOD

-0-0 0000 -0-0 0000

Value on all other RESETS

PIC16F630/676

7.0 ANALOG-TO-DIGITAL CONVERTER (A/D) MODULE (PIC16F676 ONLY)

The analog-to-digital converter (A/D) allows conversion of an analog input signal to a 10-bit binary representation of that signal. The PIC16F676 has eight analog inputs, multiplexed into one sample and hold circuit.

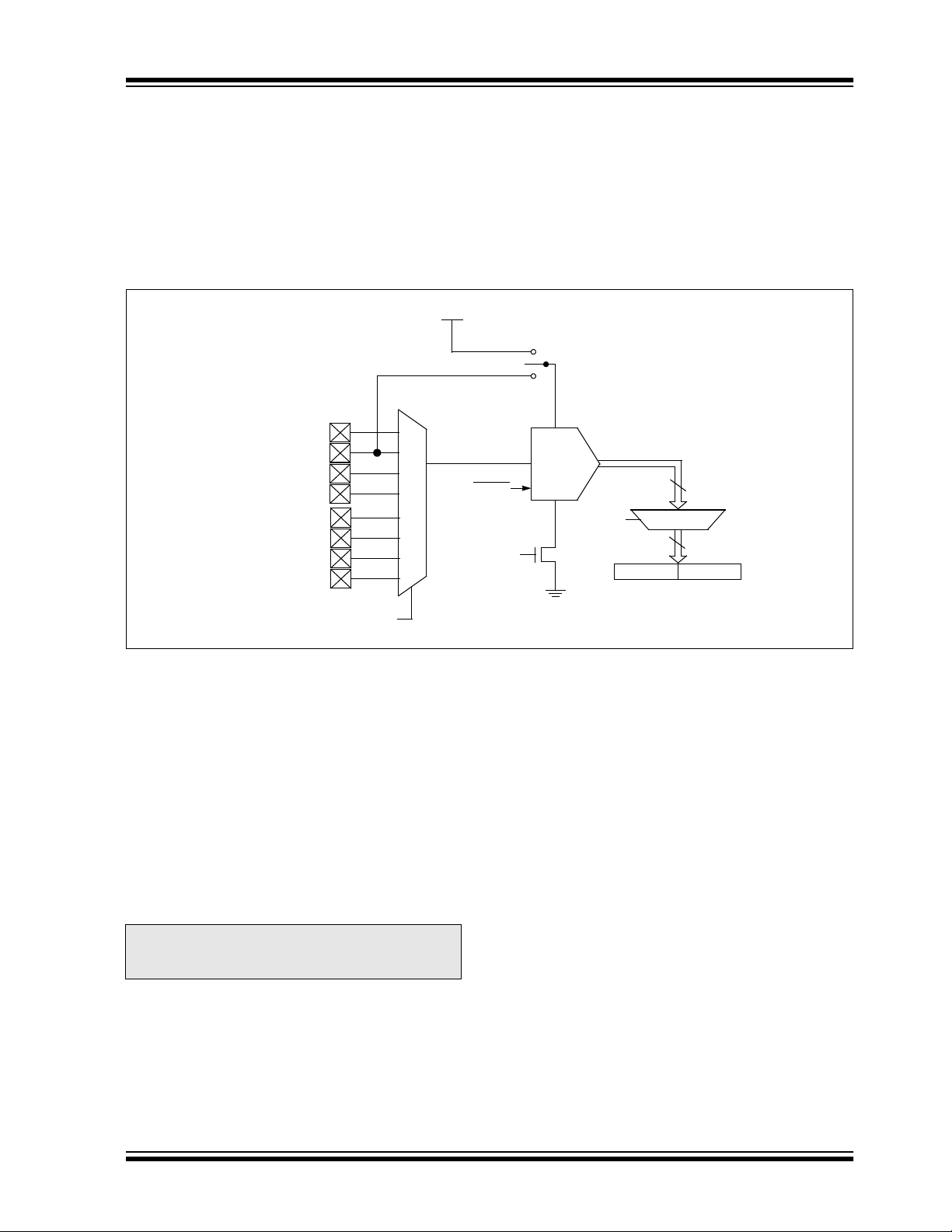

FIGURE 7-1: A/D BLOCK DIAGRAM

VDD

VREF

RA0/AN0

RA1/AN1/VREF

RA2/AN2

RA4/AN3

RC0/AN4

RC1/AN5

RC2/AN6

RC3/AN7

VCFG = 0

VCFG = 1

GO/DONE

ADON

The output of the sample and hold is connected to the input of the converter. The converter generates a binary result via successive approximation and stores the result in a 10-bit register. The voltage reference used in the conversion is software selectable to either

DD or a voltage applied by the VREF pin. Figure 7-1

V shows the block diagram of the A/D on the PIC16F676.

ADC

ADFM

VSS

ADRESH ADRESL

CHS2:CHS0

7.1 A/D Configuration and Operation

There are three registers available to control the functionality of the A/D module:

1. ADCON0 (Register 7-1)

2. ADCON1 (Register 7-2)

3. ANSEL (Register 7-3)

7.1.1 ANALOG PORT PINS

The ANS7:ANS0 bits (ANSEL<7:0>) and the TRISA bits control the operation of the A/D port pins. Set the corresponding TRISA bits to set the pin output driver to its high impedance state. Likewise, set the corresponding ANS bit to disable the digital input buffer.

Note: Analog voltages on any pin that is defined

as a digital input may cause the input buffer to conduct excess current.

7.1.2 CHANNEL SELECTION

There are eight analog channels on the PIC16F676, AN0 through AN7. The CHS2:CHS0 bits (ADCON0<4:2>) control which channel is connected to the sample and hold circuit.

7.1.3 VOLTAGE REFERENCE

There are two options for the voltage reference to the A/D converter: either V applied to V

REF is used. The VCFG bit (ADCON0<6>)

DD is used, or an analog voltage

controls the voltage reference selection. If VCFG is set, then the voltage on the V otherwise, V

DD is the reference.

REF pin is the reference;

7.1.4 CONVERSION CLOCK

The A/D conversion cycle requires 11 TAD. The source of the conversion clock is software selectable via the ADCS bits (ADCON1<6:4>). There are seven possible clock options:

OSC/2

•F

OSC/4

•F

OSC/8 OSC/16

•F

OSC/32

•F

OSC/64 RC (dedicated internal oscillator)

•F

For correct conversion, the A/D conversion clock (1/T

AD) must be selected to ensure a minimum TAD of

1.6 µs. Table 7-1 shows a few T selected frequencies.

AD calculations for

 2003 Microchip Technology Inc. DS40039C-page 43

PIC16F630/676

TABLE 7-1: TAD vs. DEVICE OPERATING FREQUENCIES

A/D Clock Source (TAD) Device Frequency

Operation ADCS2:ADCS0 20 MHz 5 MHz 4 MHz 1.25 MHz

OSC 000 100 ns

2 T 4 T

OSC 100 200 ns OSC 001 400 ns

8 T

OSC 101 800 ns

16 T 32 TOSC 010 1.6 µs6.4 µs 8.0 µs 64 TOSC 110 3.2 µs 12.8 µs

A/D RC x11 2 - 6 µs

Legend: Shaded cells are outside of recommended range.

Note 1: The A/D RC source has a typical T

2: These values violate the minimum required T 3: For faster conversion times, the selection of another clock source is recommended. 4: When the device frequency is greater than 1 MHz, the A/D RC clock source is only recommended if the

conversion will be performed during SLEEP.

(2)

(1,4)

AD time of 4 µs for VDD > 3.0V.

2 - 6 µs

AD time.

(2)

400 ns

(2)

800 ns

1.6 µs2.0 µs6.4 µs

3.2 µs4.0 µs 12.8 µs

(3)

(1,4)

500 ns

1.0 µs

16.0 µs

2 - 6 µs

(2)

(3)

(1,4)

1.6 µs

3.2 µs

25.6 µs

51.2 µs

2 - 6 µs

(3)

(1,4)

7.1.5 STARTING A CONVERSION

The A/D conversion is initiated by setting the GO/DONE complete, the A/D module:

• Clears the GO/DONE

bit (ADCON0<1>). When the conversion is

bit

previous conversion. After an aborted conversion, a

AD delay is required before another acquisition can

2T be initiated. Following the delay, an input acquisition is automatically started on the selected channel.

Note: The GO/DONE bit should not be set in the

• Sets the ADIF flag (PIR1<6>)

• Generates an interrupt (if enabled).

If the conversion must be aborted, the GO/DONE

bit can be cleared in software. The ADRESH:ADRESL registers will not be updated with the partially complete A/D conversion sample. Instead, the

7.1.6 CONVERSION OUTPUT

The A/D conversion can be supplied in two formats: left or right shifted. The ADFM bit (ADCON0<7>) controls the output format. Figure 7-2 shows the output formats.

ADRESH:ADRESL registers will retain the value of the

FIGURE 7-2: 10-BIT A/D RESULT FORMAT

ADRESH ADRESL

(ADFM = 0) MSB LSB

bit 7 bit 0 bit 7 bit 0

10-bit A/D Result Unimplemented: Read as ‘0’

(ADFM = 1)

bit 7 bit 0 bit 7 bit 0

MSB LSB

same instruction that turns on the A/D.

Unimplemented: Read as ‘0 10-bit A/D Result

DS40039C-page 44  2003 Microchip Technology Inc.

PIC16F630/676

R/W-0 R/W-0 U-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0

ADFM VCFG

bit 7 bit 0

bit 7 ADFM: A/D Result Formed Select bit

1 = Right justified 0 = Left justified

bit 6 VCFG: Voltage Reference bit

REF pin

1 = V

0 = V

bit 5 Unimplemented: Read as zero

bit 4-2 CHS2:CHS0: Analog Channel Select bits

000 =Channel 00 (AN0) 001 =Channel 01 (AN1) 010 =Channel 02 (AN2) 011 =Channel 03 (AN3) 100 =Channel 04 (AN4) 101 =Channel 05 (AN5) 110 =Channel 06 (AN6) 111 =Channel 07 (AN7)

bit 1 GO/DONE

: A/D Conversion STATUS bit

1 = A/D conversion cycle in progress. Setting this bit starts an A/D conversion cycle. This bit is automatically cleared by hardware when the A/D conversion has completed. 0 = A/D conversion completed/not in progress

bit 0 ADON: A/D Conversion STATUS bit

1 = A/D converter module is operating 0 = A/D converter is shut-off and consumes no operating current

— CHS2 CHS1 CHS0 GO/DONE ADON

Legend:

R = Readable bit W = Writable bit U = Unimplemented bit, read as ‘0’

- n = Value at POR ’1’ = Bit is set ’0’ = Bit is cleared x = Bit is unknown

U-0 R/W-0 R/W-0 R/W-0 U-0 U-0 U-0 U-0

— ADCS2 ADCS1 ADCS0 — — — —

bit 7 bit 0

bit 7: Unimplemented: Read as ‘0’.

bit 6-4: ADCS<2:0>: A/D Conversion Clock Select bits

000 =FOSC/2 001 =F 010 =F x11 =F 100 =F 101 =F 110 =F

bit 3-0: Unimplemented: Read as ‘0’.

OSC/8 OSC/32 RC (clock derived from a dedicated internal oscillator = 500 kHz max) OSC/4 OSC/16 OSC/64

Legend:

R = Readable bit W = Writable bit U = Unimplemented bit, read as ‘0’

- n = Value at POR ’1’ = Bit is set ’0’ = Bit is cleared x = Bit is unknown

 2003 Microchip Technology Inc. DS40039C-page 45

PIC16F630/676

R/W-1 R/W-1 R/W-1 R/W-1 R/W-1 R/W-1 R/W-1 R/W-1

ANS7 ANS6 ANS5 ANS4 ANS3 ANS2 ANS1 ANS0

bit 7 bit 0

bit 7-0: ANS<7:0>: Analog Select between analog or digital function on pins AN<7:0>, respectively.

1 = Analog input. Pin is assigned as analog input. 0 = Digital I/O. Pin is assigned to port or special function.

Note 1: Setting a pin to an analog input automatically disables the digital input circuitry,

weak pull-ups, and interrupt-on-change if available. The corresponding TRIS bit must be set to Input mode in order to allow external control of the voltage on the pin.

Legend:

R = Readable bit W = Writable bit U = Unimplemented bit, read as ‘0’

- n = Value at POR ’1’ = Bit is set ’0’ = Bit is cleared x = Bit is unknown

(1)

DS40039C-page 46  2003 Microchip Technology Inc.

PIC16F630/676

7.2 A/D Acquisition Requirements

For the A/D converter to meet its specified accuracy, the charge holding capacitor (C to fully charge to the input channel voltage level. The analog input model is shown in Figure 7-3. The source impedance (R

S) and the internal sampling switch (RSS)

impedance directly affect the time required to charge the capacitor C

HOLD. The sampling switch (RSS)

impedance varies over the device voltage (V Figure 7-3. The maximum recommended imped- ance for analog sources is 10 kΩ. As the impedance is decreased, the acquisition time may be decreased.

EQUATION 7-1: ACQUISITION TIME

TACQ

Amplifier Settling Time + Hold Capacitor Charging Time + Temperature Coefficient

AMP + TC + TCOFF

T 2µs + TC + [(Temperature -25°C)(0.05µs/°C)]

HOLD (RIC + RSS + RS) In(1/2047)

- 120pF (1kΩ + 7kΩ + 10kΩ) In(0.0004885)

16.47µs

2µs + 16.47µs + [(50°C -25°C)(0.05µs/°C)

19.72µs

HOLD) must be allowed

DD), see

After the analog input channel is selected (changed), this acquisition must be done before the conversion can be started.

To calculate the minimum acquisition time, Equation 7-1 may be used. This equation assumes that 1/2 LSb error is used (1024 steps for the A/D). The 1/2 LSb error is the maximum error allowed for the A/D to meet its specified resolution.

To calculate the minimum acquisition time, T

ACQ, see

the PICmicro™ Mid-Range Reference Manual (DS33023).

Note 1: The reference voltage (VREF) has no effect on the equation, since it cancels itself out.

2: The charge holding capacitor (C

HOLD) is not discharged after each conversion.

3: The maximum recommended impedance for analog sources is 10 kΩ. This is required to meet the pin

leakage specification.

FIGURE 7-3: ANALOG INPUT MODEL

Legend CPIN

VT I LEAKAGE

RIC SS

HOLD

VDD

ANx

CPIN 5 pF

= input capacitance = threshold voltage

= leakage current at the pin due to

various junctions = interconnect resistance = sampling switch = sample/hold capacitance (from DAC)

VT = 0.6V

T = 0.6V

RIC ≤ 1K

LEAKAGE

± 500 nA

Sampling Switch

6V 5V

4V 3V 2V

567891011 Sampling Switch

CHOLD = DAC capacitance = 120 pF

(kΩ)

 2003 Microchip Technology Inc. DS40039C-page 47

PIC16F630/676

7.3 A/D Operation During SLEEP

The A/D converter module can operate during SLEEP. This requires the A/D clock source to be set to the internal oscillator. When the RC clock source is selected, the A/D waits one instruction before starting

When the A/D clock source is something other than RC, a SLEEP instruction causes the present conversion to be aborted, and the A/D module is turned off. The ADON bit remains set.

7.4 Effects of RESET

the conversion. This allows the SLEEP instruction to be executed, thus eliminating much of the switching noise from the conversion. When the conversion is complete, the GO/DONE

bit is cleared, and the result is loaded

into the ADRESH:ADRESL registers. If the A/D

A device RESET forces all registers to their RESET state. Thus, the A/D module is turned off and any pending conversion is aborted. The ADRESH:ADRESL registers are unchanged.

interrupt is enabled, the device awakens from SLEEP. If the A/D interrupt is not enabled, the A/D module is turned off, although the ADON bit remains set.

TABLE 7-2: SUMMARY OF A/D REGISTERS

Address Name Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0

05h PORTA

07h PORTC

0Bh, 8Bh INTCON GIE PEIE

0Ch PIR1

1Eh ADRESH Most Significant 8 bits of the Left Shifted A/D result or 2 bits of the Right Shifted Result xxxx xxxx uuuu uuuu

1Fh ADCON0 ADFM VCFG

85h TRISA

87h TRISC

8Ch PIE1

91h ANSEL ANS7 ANS6 ANS5 ANS4 ANS3 ANS2 ANS1 ANS0 1111 1111 1111 1111

9Eh ADRESL Least Significant 2 bits of the Left Shifted A/D Result or 8 bits of the Right Shifted Result xxxx xxxx uuuu uuuu

9Fh ADCON1 Legend: x = unknown, u = unchanged, - = unimplemented read as '0'. Shaded cells are not used for A/D converter module.

— — PORTA5 PORTA4 PORTA3 PORTA2 PORTA1 PORTA0 --xx xxxx --uu uuuu

— — PORTC5 PORTC4 PORTC3 PORTC2 PORTC1 PORTC0 --xx xxxx --uu uuuu

T0IE INTE RAIE T0IF INTF RAIF 0000 0000 0000 000u

EEIF ADIF — — CMIF — — TMR1IF 00-- 0--0 00-- 0--0

— CHS2 CHS1 CHS0 GO ADON 00-0 0000 00-0 0000

— — TRISA5 TRISA4 TRISA3 TRISA2 TRISA1 TRISA0 --11 1111 --11 1111

— — TRISC5 TRISC4 TRISC3 TRISC2 TRISC1 TRISC0 --11 1111 --11 1111

EEIE ADIE — — CMIE — — TMR1IE 00-- 0--0 00-- 0--0

— ADCS2 ADCS1 ADCS0 — — — — -000 ---- -000 ----

Value on:

POR, BOD

Value on

all other

RESETS

DS40039C-page 48  2003 Microchip Technology Inc.

PIC16F630/676

8.0 DATA EEPROM MEMORY

The EEPROM data memory is readable and writable during normal operation (full V is not directly mapped in the register file space. Instead, it is indirectly addressed through the Special Function Registers. There are four SFRs used to read and write this memory:

•EECON1

• EECON2 (not a physically implemented register)

•EEDATA

•EEADR

EEDATA holds the 8-bit data for read/write, and EEADR holds the address of the EEPROM location being accessed. PIC16F630/676 devices have 128 bytes of data EEPROM with an address range from 0h to 7Fh.

DD range). This memory

The EEPROM data memory allows byte read and write. A byte write automatically erases the location and writes the new data (erase before write). The EEPROM data memory is rated for high erase/write cycles. The write time is controlled by an on-chip timer. The write time will vary with voltage and temperature as well as from chip to chip. Please refer to AC Specifications for exact limits.

When the data memory is code protected, the CPU may continue to read and write the data EEPROM memory. The device programmer can no longer access this memory.

Additional information on the Data EEPROM is available in the PICmicro™ Mid-Range Reference Manual, (DS33023).

R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0

EEDAT7 EEDAT6 EEDAT5 EEDAT4 EEDAT3 EEDAT2 EEDAT1 EEDAT0

bit 7 bit 0

bit 7-0 EEDATn: Byte value to write to or read from Data EEPROM

Legend:

R = Readable bit W = Writable bit U = Unimplemented bit, read as ‘0’

- n = Value at POR ’1’ = Bit is set ’0’ = Bit is cleared x = Bit is unknown

U-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0

— EADR6 EADR5 EADR4 EADR3 EADR2 EADR1 EADR0

bit 7 bit 0

bit 7 Unimplemented: Should be set to '0'

bit 6-0 EEADR: Specifies one of 128 locations for EEPROM Read/Write Operation

Legend:

R = Readable bit W = Writable bit U = Unimplemented bit, read as ‘0’

- n = Value at POR ’1’ = Bit is set ’0’ = Bit is cleared x = Bit is unknown

 2003 Microchip Technology Inc. DS40039C-page 49

PIC16F630/676

8.1 EEADR

The EEADR register can address up to a maximum of 128 bytes of data EEPROM. Only seven of the eight bits in the register (EEADR<6:0>) are required. The MSb (bit 7) is ignored.

The upper bit should always be ‘0’ to remain upward compatible with devices that have more data EEPROM memory.

8.2 EECON1 AND EECON2 REGISTERS

EECON1 is the control register with four low order bits physically implemented. The upper four bits are nonimplemented and read as '0's.

Control bits RD and WR initiate read and write, respectively. These bits cannot be cleared, only set, in software. They are cleared in hardware at completion

of the read or write operation. The inability to clear the WR bit in software prevents the accidental, premature termination of a write operation.

The WREN bit, when set, will allow a write operation. On power-up, the WREN bit is clear. The WRERR bit is set when a write operation is interrupted by a MCLR Reset, or a WDT Time-out Reset during normal operation. In these situations, following RESET, the user can check the WRERR bit, clear it, and rewrite the location. The data and address will be cleared, therefore, the EEDATA and EEADR registers will need to be re-initialized.

Interrupt flag bit EEIF in the PIR1 register is set when write is complete. This bit must be cleared in software.

EECON2 is not a physical register. Reading EECON2 will read all '0's. The EECON2 register is used exclusively in the Data EEPROM write sequence.

U-0 U-0 U-0 U-0 R/W-x R/W-0 R/S-0 R/S-0

— — — — WRERR WREN WR RD

bit 7 bit 0

bit 7-4 Unimplemented: Read as ‘0’

bit 3 WRERR: EEPROM Error Flag bit

1 =A write operation is prematurely terminated (any MCLR

normal operation or BOD detect)

0 =The write operation completed

bit 2 WREN: EEPROM Write Enable bit

1 = Allows write cycles 0 = Inhibits write to the data EEPROM

bit 1 WR: Write Control bit

1 = Initiates a write cycle (The bit is cleared by hardware once write is complete. The WR bit

can only be set, not cleared, in software.)

0 = Write cycle to the data EEPROM is complete

bit 0 RD: Read Control bit

1 = Initiates an EEPROM read (Read takes one cycle. RD is cleared in hardware. The RD bit

can only be set, not cleared, in software.)

0 = Does not initiate an EEPROM read

Legend: S = Bit can only be set

R = Readable bit W = Writable bit U = Unimplemented bit, read as ‘0’

- n = Value at POR ’1’ = Bit is set ’0’ = Bit is cleared x = Bit is unknown

Reset, any WDT Reset during

DS40039C-page 50  2003 Microchip Technology Inc.

PIC16F630/676

8.3 READING THE EEPROM DATA MEMORY

To read a data memory location, the user must write the address to the EEADR register and then set control bit RD (EECON1<0>), as shown in Example 8-1. The data is available, in the very next cycle, in the EEDATA register. Therefore, it can be read in the next instruction. EEDATA holds this value until another read, or until it is written to by the user (during a write operation).

EXAMPLE 8-1: DATA EEPROM READ

bsf STATUS,RP0 ;Bank 1

movlw CONFIG_ADDR ;

movwf EEADR ;Address to read

bsf EECON1,RD ;EE Read

movf EEDATA,W ;Move data to W

8.4 WRITING TO THE EEPROM DATA MEMORY

To write an EEPROM data location, the user must first write the address to the EEADR register and the data to the EEDATA register. Then the user must follow a specific sequence to initiate the write for each byte, as shown in Example 8-2.

After a write sequence has been initiated, clearing the WREN bit will not affect this write cycle. The WR bit will be inhibited from being set unless the WREN bit is set.

At the completion of the write cycle, the WR bit is cleared in hardware and the EE Write Complete Interrupt Flag bit (EEIF) is set. The user can either enable this interrupt or poll this bit. The EEIF bit (PIR<7>) register must be cleared by software.

8.5 WRITE VERIFY

Depending on the application, good programming practice may dictate that the value written to the Data EEPROM should be verified (see Example 8-3) to the desired value to be written.

EXAMPLE 8-3: WRITE VERIFY

bcf STATUS,RP0 ;Bank 0

: ;Any code

bsf STATUS,RP0 ;Bank 1 READ

movf EEDATA,W ;EEDATA not changed

;from previous write

bsf EECON1,RD ;YES, Read the

;value written

xorwf EEDATA,W

btfss STATUS,Z ;Is data the same

goto WRITE_ERR ;No, handle error

: ;Yes, continue

EXAMPLE 8-2: DATA EEPROM WRITE

bsf STATUS,RP0 ;Bank 1

bsf EECON1,WREN ;Enable write

bcf INTCON,GIE ;Disable INTs

movlw 55h ;Unlock write

movwf EECON2 ;

movlw AAh ;

movwf EECON2 ;

Required

Sequence

bsf EECON1,WR ;Start the write

bsf INTCON,GIE ;Enable INTS

The write will not initiate if the above sequence is not exactly followed (write 55h to EECON2, write AAh to EECON2, then set WR bit) for each byte. We strongly recommend that interrupts be disabled during this code segment. A cycle count is executed during the required sequence. Any number that is not equal to the required cycles to execute the required sequence will prevent the data from being written into the EEPROM.

Additionally, the WREN bit in EECON1 must be set to enable write. This mechanism prevents accidental writes to data EEPROM due to errant (unexpected) code execution (i.e., lost programs). The user should keep the WREN bit clear at all times, except when updating EEPROM. The WREN bit is not cleared by hardware.

8.5.1 USING THE DATA EEPROM

The Data EEPROM is a high-endurance, byte addressable array that has been optimized for the storage of frequently changing information (e.g., program variables or other data that are updated often). Frequently changing values will typically be updated more often than specifications D120 or D120A. If this is not the case, an array refresh must be performed. For this reason, variables that change infrequently (such as constants, IDs, calibration, etc.) should be stored in FLASH program memory.

8.6 PROTECTION AGAINST SPURIOUS WRITE

There are conditions when the user may not want to write to the data EEPROM memory. To protect against spurious EEPROM writes, various mechanisms have been built in. On power-up, WREN is cleared. Also, the Power-up Timer (72 ms duration) prevents EEPROM write.

The write initiate sequence and the WREN bit together help prevent an accidental write during:

• brown-out

• power glitch

• software malfunction

 2003 Microchip Technology Inc. DS40039C-page 51

PIC16F630/676

8.7 DATA EEPROM OPERATION DURING CODE PROTECT

Data memory can be code protected by programming the CPD bit to ‘0’.

When the data memory is code protected, the CPU is able to read and write data to the Data EEPROM. It is recommended to code protect the program memory when code protecting data memory. This prevents anyone from programming zeroes over the existing code (which will execute as NOPs) to reach an added routine, programmed in unused program memory, which outputs the contents of data memory. Programming unused locations to ‘0’ will also help prevent data memory code protection from becoming breached.

TABLE 8-1: REGISTERS/BITS ASSOCIATED WITH DATA EEPROM

Address Name Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0

0Ch PIR1 EEIF

9Ah EEDATA EEPROM Data Register 0000 0000 0000 0000

9Bh EEADR

9Ch EECON1

9Dh EECON2 Legend: x = unknown, u = unchanged, - = unimplemented read as '0', q = value depends upon condition.

Shaded cells are not used by Data EEPROM module.

Note 1: EECON2 is not a physical register.

— EEPROM Address Register -000 0000 -000 0000

— — — — WRERR WREN WR RD ---- x000 ---- q000

(1)

EEPROM Control Register 2 ---- ---- ---- ----

ADIF — — CMIF — — TMR1IF 00-- 0--0 00-- 0--0

Value on

POR, BOD

Value on all

other

RESETS

DS40039C-page 52  2003 Microchip Technology Inc.

PIC16F630/676

9.0 SPECIAL FEATURES OF THE CPU

Certain special circuits that deal with the needs of real time applications are what sets a microcontroller apart from other processors. The PIC16F630/676 family has a host of such features intended to:

• maximize system reliability

• minimize cost through elimination of external

components

• provide power saving operating modes and offer

code protection.

These features are:

• Oscillator selection

• RESET

- Power-on Reset (POR)

- Power-up Timer (PWRT)

- Oscillator Start-up Timer (OST)

- Brown-out Detect (BOD)

• Interrupts

• Watchdog Timer (WDT)

•SLEEP

• Code protection

• ID Locations

• In-Circuit Serial Programming

The PIC16F630/676 has a Watchdog Timer that is controlled by configuration bits. It runs off its own RC oscillator for added reliability. There are two timers that offer necessary delays on power-up. One is the Oscillator Start-up Timer (OST), intended to keep the chip in RESET until the crystal oscillator is stable. The other is the Power-up Timer (PWRT), which provides a fixed delay of 72 ms (nominal) on power-up only, designed to keep the part in RESET while the power supply stabilizes. There is also circuitry to reset the device if a brown-out occurs, which can provide at least a 72 ms RESET. With these three functions on-chip, most applications need no external RESET circuitry.

The SLEEP mode is designed to offer a very low current Power-down mode. The user can wake-up from SLEEP through:

• External RESET

• Watchdog Timer wake-up

• An interrupt

Several oscillator options are also made available to allow the part to fit the application. The INTOSC option saves system cost while the LP crystal option saves power. A set of configuration bits are used to select various options (see Register 9-1).

 2003 Microchip Technology Inc. DS40039C-page 53

PIC16F630/676

9.1 Configuration Bits

The configuration bits can be programmed (read as '0'), or left unprogrammed (read as '1') to select various device configurations, as shown in Register 9-1. These bits are mapped in program memory location 2007h.

R/P-1 R/P-1 U-0 U-0 U-0 R/P-1 R/P-1 R/P-1 R/P-1 R/P-1 R/P-1 R/P-1 R/P-1 R/P-1

BG1 BG0

bit 13 bit 0

— — —CPDCP BODEN MCLRE PWRTE WDTE F0SC2 F0SC1 F0SC0

Note: Address 2007h is beyond the user program

memory space. It belongs to the special configuration memory space (2000h - 3FFFh), which can be accessed only during programming. See PIC16F630/676 Programming Specification for more information.

bit 13-12 BG1:BG0: Bandgap Calibration bits for BOD and POR voltage

00 = Lowest bandgap voltage 11 = Highest bandgap voltage

bit 11-9 Unimplemented: Read as ‘0’ bit 8 CPD

bit 7 CP

bit 6 BODEN: Brown-out Detect Enable bit

bit 5 MCLRE: RA3/MCLR

bit 4 PWRTE: Power-up Timer Enable bit

bit 3 WDTE: Watchdog Timer Enable bit

bit 2-0 FOSC2:FOSC0: Oscillator Selection bits

: Data Code Protection bit

1 = Data memory code protection is disabled 0 = Data memory code protection is enabled

: Code Protection bit

1 = Program Memory code protection is disabled 0 = Program Memory code protection is enabled

1 = BOD enabled 0 = BOD disabled

pin function select

1 = RA3/MCLR pin function is MCLR 0 = RA3/MCLR

1 = PWRT disabled 0 = PWRT enabled

1 = WDT enabled 0 = WDT disabled

111 = RC oscillator: CLKOUT function on RA4/OSC2/CLKOUT pin, RC on RA5/OSC1/CLKIN 110 = RC oscillator: I/O function on RA4/OSC2/CLKOUT pin, RC on RA5/OSC1/CLKIN 101 = INTOSC oscillator: CLKOUT function on RA4/OSC2/CLKOUT pin, I/O function on RA5/OSC1/CLKIN 100 = INTOSC oscillator: I/O function on RA4/OSC2/CLKOUT pin, I/O function on RA5/OSC1/CLKIN 011 = EC: I/O function on RA4/OSC2/CLKOUT pin, CLKIN on RA5/OSC1/CLKIN 010 = HS oscillator: High speed crystal/resonator on RA4/OSC2/CLKOUT and RA5/OSC1/CLKIN 001 = XT oscillator: Crystal/resonator on RA4/OSC2/CLKOUT and RA5/OSC1/CLKIN 000 = LP oscillator: Low power crystal on RA4/OSC2/CLKOUT and RA5/OSC1/CLKIN

pin function is digital I/O, MCLR internally tied to VDD

(2)

(3)

(4)

(5)

(1)

Note 1: The Bandgap Calibration bits are factory programmed and must be read and saved prior to erasing

the device as specified in the PIC16F630/676 Programming Specification. These bits are reflected in an export of the configuration word. Microchip Development Tools maintain all calibration bits to factory settings.

2: The entire data EEPROM will be erased when the code protection is turned off. 3: The entire program memory will be erased, including OSCCAL value, when the code protection is

turned off.

4: Enabling Brown-out Detect does not automatically enable Power-up Timer. 5: When MCLR

Legend: P = Programmed using ICSP

R = Readable bit W = Writable bit U = Unimplemented bit, read as ‘0’

-n = Value at POR 1 = bit is set 0 = bit is cleared x = bit is unknown

DS40039C-page 54  2003 Microchip Technology Inc.

is asserted in INTOSC or RC mode, the internal clock oscillator is disabled.

PIC16F630/676

9.2 Oscillator Configurations

9.2.1 OSCILLATOR TYPES

The PIC16F630/676 can be operated in eight different Oscillator Option modes. The user can program three configuration bits (FOSC2 through FOSC0) to select one of these eight modes:

• LP Low Power Crystal

• XT Crystal/Resonator

• HS High Speed Crystal/Resonator

• RC External Resistor/Capacitor (2 modes)

• INTOSC Internal Oscillator (2 modes)

• EC External Clock In

Note: Additional information on oscillator config-

urations is available in the PICmicro Range Reference Manual, (DS33023).

9.2.2 CRYSTAL OSCILLATOR / CERAMIC

RESONATORS

In XT, LP or HS modes a crystal or ceramic resonator is connected to the OSC1 and OSC2 pins to establish oscillation (see Figure 9-1). The PIC16F630/676 oscillator design requires the use of a parallel cut crystal. Use of a series cut crystal may yield a frequency outside of the crystal manufacturers specifications. When in XT, LP or HS modes, the device can have an external clock source to drive the OSC1 pin (see Figure 9-2).

FIGURE 9-1: CRYSTAL OPERATION (OR

CERAMIC RESONATOR) (HS, XT OR LP OSC CONFIGURATION)

OSC1

(1)

XTAL

OSC2

(2)

(1)

Note 1: See Table 9-1 and Table 9-2 for recommended

values of C1 and C2.

2: A series resistor may be required for AT strip cut

crystals.

3: RF varies with the Oscillator mode selected

(Approx. value = 10 MΩ).

(3)

SLEEP

PIC16F630/676

To Internal

Logic

Mid-

FIGURE 9-2: EXTERNAL CLOCK INPUT

OPERATION (HS, XT, EC, OR LP OSC CONFIGURATION)

Clock from External System

Open

Note 1: Functions as RA4 in EC Osc mode.

OSC1

PIC16F630/676

(1)

OSC2

TABLE 9-1: CAPACITOR SELECTION FOR

CERAMIC RESONATORS

Ranges Characterized:

Mode Freq OSC1(C1) OSC2(C2)

XT 455 kHz

2.0 MHz

4.0 MHz

HS 8.0 MHz

16.0 MHz

68 - 100 pF

15 - 68 pF 15 - 68 pF

10 - 68 pF 10 - 22 pF

68 - 100 pF

15 - 68 pF 15 - 68 pF

10 - 68 pF 10 - 22 pF

Note 1: Higher capacitance increases the stability

of the oscillator but also increases the start-up time. These values are for design guidance only. Since each resonator has its own characteristics, the user should consult the resonator manufacturer for appropriate values of external components.

TABLE 9-2: CAPACITOR SELECTION FOR

CRYSTAL OSCILLATOR

Mode Freq OSC1(C1) OSC2(C2)

LP 32 kHz 68 - 100 pF 68 - 100 pF

XT 100 kHz

2 MHz 4 MHz

HS 8 MHz

10 MHz 20 MHz

Note 1: Higher capacitance increases the stability

of the oscillator but also increases the start-up time. These values are for design guidance only. Rs may be required in HS mode as well as XT mode to avoid overdriving crystals with low drive level specification. Since each crystal has its own characteristics, the user should consult the crystal manufacturer for appropriate values of external components.

68 - 150 pF

15 - 30 pF 15 - 30 pF

15 - 30 pF 15 - 30 pF 15 - 30 pF

150 - 200 pF

15 - 30 pF 15 - 30 pF

15 - 30 pF 15 - 30 pF 15 - 30 pF

 2003 Microchip Technology Inc. DS40039C-page 55

PIC16F630/676

9.2.3 EXTERNAL CLOCK IN

For applications where a clock is already available elsewhere, users may directly drive the PIC16F630/ 676 provided that this external clock source meets the AC/DC timing requirements listed in Section 12.0. Figure 9-2 shows how an external clock circuit should be configured.

9.2.4 RC OSCILLATOR

For applications where precise timing is not a requirement, the RC oscillator option is available. The operation and functionality of the RC oscillator is dependent upon a number of variables. The RC oscillator frequency is a function of:

• Supply voltage

• Resistor (R

EXT) and capacitor (CEXT) values

• Operating temperature.

The oscillator frequency will vary from unit to unit due to normal process parameter variation. The difference in lead frame capacitance between package types will also affect the oscillation frequency, especially for low

EXT values. The user also needs to account for the

C tolerance of the external R and C components. Figure 9-3 shows how the R/C combination is connected.

Two options are available for this Oscillator mode which allow RA4 to be used as a general purpose I/O or to output F

OSC/4.

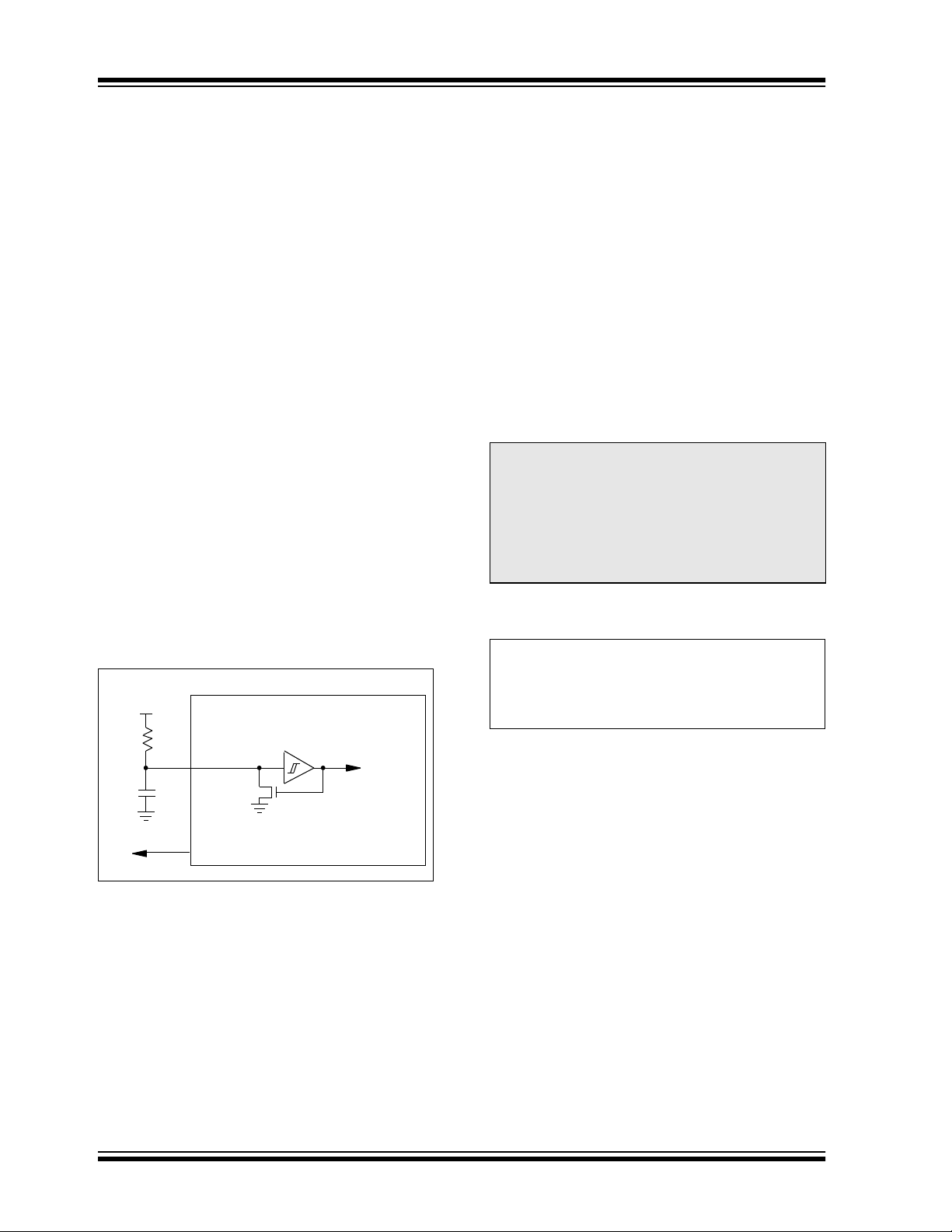

FIGURE 9-3: RC OSCILLATOR MODE

REXT

CEXT

VSS

VDD

OSC/4

RA5/OSC1/ CLKIN

RA4/OSC2/CLKOUT

PIC16F630/676

Internal

Clock

9.2.5 INTERNAL 4 MH

Z OSCILLATOR

When calibrated, the internal oscillator provides a fixed 4 MHz (nominal) system clock. See Electrical Specifications, Section 12.0, for information on variation over voltage and temperature.

Two options are available for this Oscillator mode which allow RA4 to be used as a general purpose I/O or to output F

OSC/4.

9.2.5.1 Calibrating the Internal Oscillator

A calibration instruction is programmed into the last location of program memory. This instruction is a RETLW XX, where the literal is the calibration value. The literal is placed in the OSCCAL register to set the calibration of the internal oscillator. Example 9-1 demonstrates how to calibrate the internal oscillator. For best operation, decouple (with capacitance) V

and VSS as close to the device as possible.

Note: Erasing the device will also erase the pre-

programmed internal calibration value for the internal oscillator. The calibration value must be saved prior to erasing part as specified in the PIC16F630/676 Programming specification. Microchip Development Tools maintain all calibration bits to factory settings.

EXAMPLE 9-1: CALIBRATING THE

INTERNAL OSCILLATOR

bsf STATUS, RP0 ;Bank 1 call 3FFh ;Get the cal value movwf OSCCAL ;Calibrate bcf STATUS, RP0 ;Bank 0

9.2.6 CLKOUT

The PIC16F630/676 devices can be configured to provide a clock out signal in the INTOSC and RC Oscillator modes. When configured, the oscillator frequency divided by four (F RA4/OSC2/CLKOUT pin. F purposes or to synchronize other logic.

OSC/4) is output on the

OSC/4 can be used for test

DS40039C-page 56  2003 Microchip Technology Inc.

PIC16F630/676

9.3 RESET

The PIC16F630/676 differentiates between various kinds of RESET:

a) Power-on Reset (POR) b) WDT Reset during normal operation c) WDT Reset during SLEEP d) MCLR e) MCLR f) Brown-out Detect (BOD)

Some registers are not affected in any RESET condition; their status is unknown on POR and

Reset during normal operation Reset during SLEEP

They are not affected by a WDT wake-up, since this is viewed as the resumption of normal operation. TO

bits are set or cleared differently in different RESET

PD situations as indicated in Table 9-4. These bits are used in software to determine the nature of the RESET. See Table 9-7 for a full description of RESET states of all registers.

A simplified block diagram of the On-Chip Reset Circuit is shown in Figure 9-4.

The MCLR

Reset path has a noise filter to detect and ignore small pulses. See Table 12-4 in Electrical Specifications Section for pulse width specification.

unchanged in any other RESET. Most other registers are reset to a “RESET state” on:

• Power-on Reset

•MCLR

Reset

• WDT Reset

• WDT Reset during SLEEP

• Brown-out Detect (BOD)

FIGURE 9-4: SIMPLIFIED BLOCK DIAGRAM OF ON-CHIP RESET CIRCUIT

External

Reset

and

MCLR/

PP pin

WDT

Module

DD Rise

Detect

OSC1/

CLKIN

Note 1: This is a separate oscillator from the INTOSC/EC oscillator.

Brown-out

Detect

OST/PWRT

(1)

On-chip

RC OSC

OST

PWRT

SLEEP

WDT

Time-out Reset

Power-on Reset

BODEN

10-bit Ripple Counter

Enable PWRT

Enable OST

See Table 9-3 for time-out situations.

Chip_Reset

 2003 Microchip Technology Inc. DS40039C-page 57

PIC16F630/676

9.3.1 MCLR

PIC16F630/676 devices have a noise filter in the

Reset path. The filter will detect and ignore

MCLR small pulses.

It should be noted that a WDT Reset does not drive

pin low.

MCLR

The behavior of the ESD protection on the MCLR

pin has been altered from previous devices of this family. Voltages applied to the pin that exceed its specification can result in both MCLR

Resets and excessive current beyond the device specification during the ESD event. For this reason, Microchip recommends that the MCLR pin no longer be tied directly to VDD. The use of an RC network, as shown in Figure 9-5, is suggested.

An internal MCLR

option is enabled by setting the

MCLRE bit in the configuration word. When enabled,

is internally tied to VDD. No internal pull-up

MCLR option is available for the MCLR

pin.

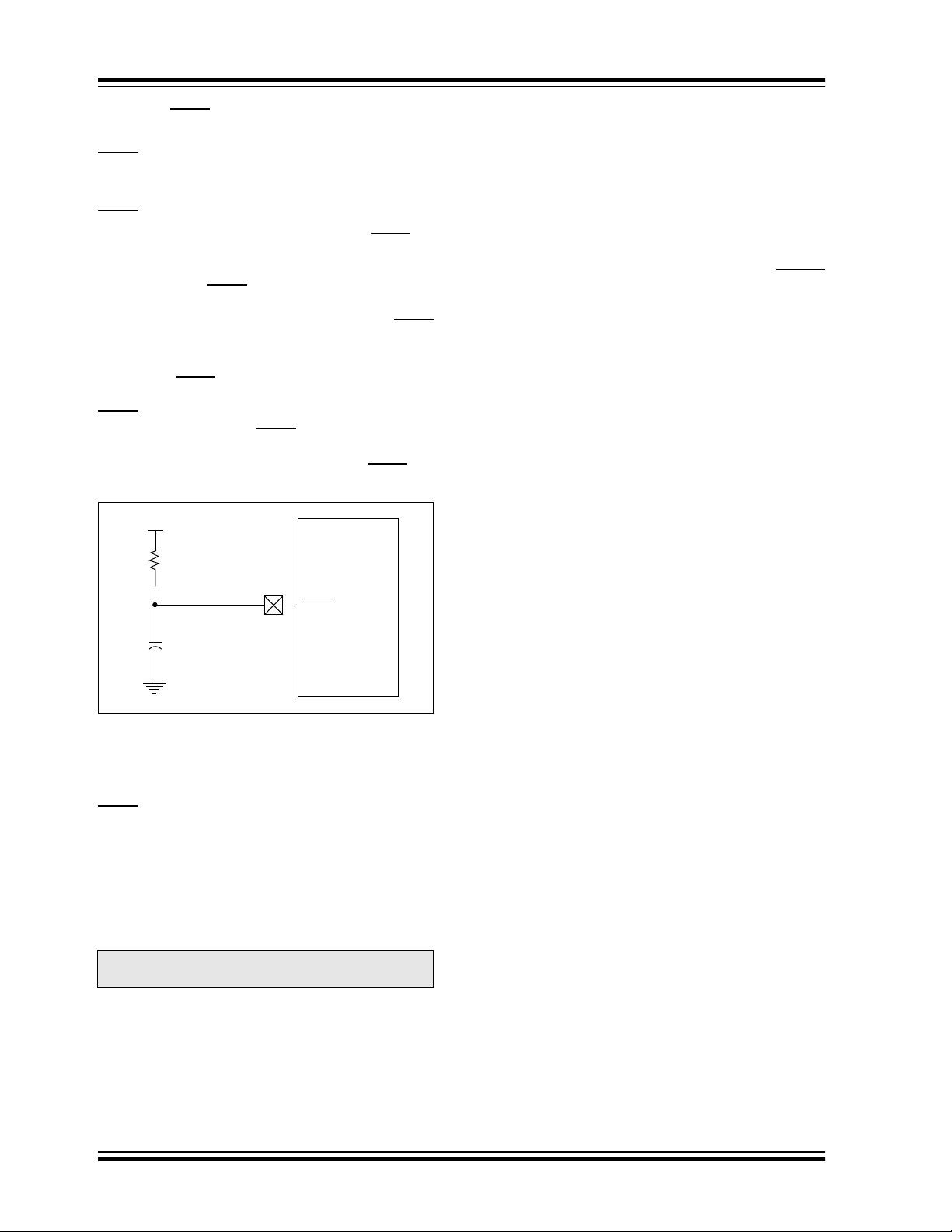

FIGURE 9-5: RECOMMENDED MCLR

CIRCUIT

VDD

R1 1 kΩ (or greater)

0.1

µf

(optional, not critical)

PIC16F630/676

MCLR

For additional information, refer to Application Note AN607 “Power-up Trouble Shooting”.

9.3.3 POWER-UP TIMER (PWRT)

The Power-up Timer provides a fixed 72 ms (nominal) time-out on power-up only, from POR or Brown-out Detect. The Power-up Timer operates on an internal RC oscillator. The chip is kept in RESET as long as PWRT is active. The PWRT delay allows the V

DD to

rise to an acceptable level. A configuration bit, PWRTE can disable (if set) or enable (if cleared or programmed) the Power-up Timer. The Power-up Timer should always be enabled when Brown-out Detect is enabled.

The Power-up Time delay will vary from chip to chip and due to:

DD variation

•V

• Temperature variation

• Process variation.

See DC parameters for details (Section 12.0).

9.3.4 OSCILLATOR START-UP TIMER (OST)

The Oscillator Start-up Timer (OST) provides a 1024 oscillator cycle (from OSC1 input) delay after the PWRT delay is over. This ensures that the crystal oscillator or resonator has started and stabilized.

The OST time-out is invoked only for XT, LP and HS modes and only on Power-on Reset or wake-up from SLEEP.

9.3.2 POWER-ON RESET (POR)

The on-chip POR circuit holds the chip in RESET until

DD has reached a high enough level for proper

V operation. To take advantage of the POR, simply tie the MCLR

pin through a resistor to VDD. This will eliminate external RC components usually needed to create Power-on Reset. A maximum rise time for V required. See Electrical Specifications for details (see Section 12.0). If the BOD is enabled, the maximum rise time specification does not apply. The BOD circuitry will keep the device in RESET until V

DD reaches VBOD (see

Section 9.3.5).

Note: The POR circuit does not produce an inter-

nal RESET when V

DD declines.

When the device starts normal operation (exits the RESET condition), device operating parameters (i.e., voltage, frequency, temperature, etc.) must be met to ensure operation. If these conditions are not met, the device must be held in RESET until the operating conditions are met.

DS40039C-page 58  2003 Microchip Technology Inc.

DD is

PIC16F630/676

9.3.5 BROWN-OUT DETECT (BOD)

The PIC16F630/676 members have on-chip Brown-out Detect circuitry. A configuration bit, BODEN, can disable (if clear/programmed) or enable (if set) the Brown-out Detect circuitry. If V greater than parameter (T

DD falls below VBOD for

BOD) in Table 12-4 (see

Section 12.0), the Brown-out situation will reset the device. This will occur regardless of VDD slew-rate. A RESET is not guaranteed to occur if V

BOD for less than parameter (TBOD).

DD falls below

FIGURE 9-6: BROWN-OUT SITUATIONS

Internal

RESET

Internal

RESET

<72 ms

On any RESET (Power-on, Brown-out Detect, Watchdog, etc.), the chip will remain in RESET until V

DD rises above BVDD (see Figure 9-6). The Power-up

Timer will now be invoked, if enabled, and will keep the chip in RESET an additional 72 ms.

Note: A Brown-out Detect does not enable the

Power-up Timer if the PWRTE

bit in the

configuration word is set.

DD drops below BVDD while the Power-up Timer is

If V running, the chip will go back into a Brown-out Detect and the Power-up Timer will be re-initialized. Once V rises above BVDD, the Power-up Timer will execute a 72 ms RESET.

VBOD

(1)

72 ms

VBOD

(1)

72 ms

Internal

RESET

Note 1: 72 ms delay only if PWRTE bit is programmed to ‘0’.

9.3.6 TIME-OUT SEQUENCE

On power-up, the time-out sequence is as follows: first, PWRT time-out is invoked after POR has expired. Then, OST is activated. The total time-out will vary based on oscillator configuration and PWRTE status. For example, in EC mode with PWRTE erased (PWRT disabled), there will be no time-out at all. Figure 9-7, Figure 9-8 and Figure 9-9 depict timeout sequences.

Since the time-outs occur from the POR pulse, if MCLR is kept low long enough, the time-outs will expire. Then bringing MCLR

high will begin execution immediately (see Figure 9-8). This is useful for testing purposes or to synchronize more than one PIC16F630/676 device operating in parallel.

Table 9-6 shows the RESET conditions for some special registers, while Table 9-7 shows the RESET conditions for all the registers.

bit

VBOD

(1)

72 ms

9.3.7 POWER CONTROL (PCON) STATUS REGISTER

The power CONTROL/STATUS register, PCON (address 8Eh) has two bits.

Bit0 is BOD on Reset. It must then be set by the user and checked on subsequent RESETS to see if BOD that a brown-out has occurred. The BOD a don’t care and is not necessarily predictable if the brown-out circuit is disabled (by setting BODEN in the Configuration word).

Bit1 is POR Reset and unaffected otherwise. The user must write a ‘1’ to this bit following a Power-on Reset. On a subsequent RESET, if POR Power-on Reset must have occurred (i.e., V have gone too low).

(Brown-out). BOD is unknown on Power-

= 0, indicating

STATUS bit is

bit = 0

(Power-on Reset). It is a ‘0’ on Power-on

is ‘0’, it will indicate that a

DD may

 2003 Microchip Technology Inc. DS40039C-page 59

PIC16F630/676

TABLE 9-3: TIME-OUT IN VARIOUS SITUATIONS

Power-up Brown-out Detect

Oscillator Configuration

PWRTE

= 0 PWRTE = 1 PWRTE = 0 PWRTE = 1

Wake-up

from SLEEP

XT, HS, LP T

RC, EC, INTOSC TPWRT —TPWRT ——

PWRT +

1024•T

OSC

1024•TOSC TPWRT +

OSC

1024•T

1024•TOSC 1024•TOSC

TABLE 9-4: STATUS/PCON BITS AND THEIR SIGNIFICANCE

POR BOD TO PD

0u11Power-on Reset

1011Brown-out Detect

uu0uWDT Reset

uu00WDT Wake-up

uuuuMCLR

uu10MCLR

Legend: u = unchanged, x = unknown

Reset during normal operation

Reset during SLEEP

TABLE 9-5: SUMMARY OF REGISTERS ASSOCIATED WITH BROWN-OUT

Value on all

other

RESETS

Address Name Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0

Value on

POR, BOD

(1)

03h STATUS IRP RP1 RPO TO PD Z DC C 0001 1xxx 000q quuu

8Eh PCON Legend: u = unchanged, x = unknown, - = unimplemented bit, reads as ‘0’, q = value depends on condition.

Note 1: Other (non Power-up) Resets include MCLR

normal operation.

— — — — — —PORBOD ---- --0x ---- --uq

Reset, Brown-out Detect and Watchdog Timer Reset during

TABLE 9-6: INITIALIZATION CONDITION FOR SPECIAL REGISTERS

Condition

Power-on Reset 000h 0001 1xxx ---- --0x

MCLR

Reset during normal operation 000h 000u uuuu ---- --uu

MCLR

Reset during SLEEP 000h 0001 0uuu ---- --uu

WDT Reset 000h 0000 uuuu ---- --uu

WDT Wake-up PC + 1 uuu0 0uuu ---- --uu

Brown-out Detect 000h 0001 1uuu ---- --10

Interrupt Wake-up from SLEEP PC + 1 Legend: u = unchanged, x = unknown, - = unimplemented bit, reads as ‘0’.

Note 1: When the wake-up is due to an interrupt and global enable bit GIE is set, the PC is loaded with the

interrupt vector (0004h) after execution of PC+1.

Program

Counter

(1)

STATUS Register

uuu1 0uuu ---- --uu

PCON

DS40039C-page 60  2003 Microchip Technology Inc.

PIC16F630/676

TABLE 9-7: INITIALIZATION CONDITION FOR REGISTERS

Reset

(1)

Power-on

Reset

•MCLR

• WDT Reset

• Brown-out Detect

W—xxxx xxxx uuuu uuuu uuuu uuuu

INDF 00h/80h — — —

TMR0 01h xxxx xxxx uuuu uuuu uuuu uuuu

PCL 02h/82h 0000 0000 0000 0000 PC + 1

STATUS 03h/83h 0001 1xxx 000q quuu

(4)

FSR 04h/84h xxxx xxxx uuuu uuuu uuuu uuuu

PORTA 05h --xx xxxx --uu uuuu --uu uuuu

PORTC 07h --xx xxxx --uu uuuu --uu uuuu

PCLATH 0Ah/8Ah ---0 0000 ---0 0000 ---u uuuu

INTCON 0Bh/8Bh 0000 0000 0000 000u uuuu uuqq

PIR1 0Ch 00-- 0--0 00-- 0--0 qq-- q--q

T1CON 10h -000 0000 -uuu uuuu -uuu uuuu

CMCON 19h -0-0 0000 -0-0 0000 -u-u uuuu

ADRESH 1Eh xxxx xxxx uuuu uuuu uuuu uuuu

ADCON0 1Fh 00-0 0000 00-0 0000 uu-u uuuu

OPTION_REG 81h 1111 1111 1111 1111 uuuu uuuu

TRISA 85h --11 1111 --11 1111 --uu uuuu

TRISC 87h --11 1111 --11 1111 --uu uuuu

PIE1 8Ch 00-- 0--0 00-- 0--0 uu-- u--u

PCON 8Eh ---- --0x ---- --uu

(1,6)

OSCCAL 90h 1000 00-- 1000 00-- uuuu uu--

ANSEL 91h 1111 1111 1111 1111 uuuu uuuu

WPUA 95h --11 -111 --11 -111 uuuu uuuu

IOCA 96h --00 0000 --00 0000 --uu uuuu

VRCON 99h 0-0- 0000 0-0- 0000 u-u- uuuu

EEDATA 9Ah 0000 0000 0000 0000 uuuu uuuu

EEADR 9Bh -000 0000 -000 0000 -uuu uuuu

EECON1 9Ch ---- x000 ---- q000 ---- uuuu

EECON2 9Dh ---- ---- ---- ---- ---- ----

ADRESL 9Eh xxxx xxxx uuuu uuuu uuuu uuuu

ADCON1 9Fh -000 ---- -000 ---- -uuu ---- Legend: u = unchanged, x = unknown, - = unimplemented bit, reads as ‘0’, q = value depends on condition.

Note 1: If V

DD goes too low, Power-on Reset will be activated and registers will be affected differently.

2: One or more bits in INTCON and/or PIR1 will be affected (to cause wake-up). 3: When the wake-up is due to an interrupt and the GIE bit is set, the PC is loaded with the interrupt

vector (0004h).

4: See Table 9-6 for RESET value for specific condition. 5: If wake-up was due to data EEPROM write completing, bit 7 = 1; A/D conversion completing, bit 6 = 1;

Comparator input changing, bit 3 = 1; or Timer1 rolling over, bit 0 = 1. All other interrupts generating a wake-up will cause these bits to = u.

6: If RESET was due to brown-out, then bit 0 = 0. All other RESETS will cause bit 0 = u.

• Wake-up from SLEEP through interrupt

• Wake-up from SLEEP through WDT time-out

(3)

uuuq quuu

---- --uu

(4)

(2)

(2,5)

 2003 Microchip Technology Inc. DS40039C-page 61

PIC16F630/676

FIGURE 9-7: TIME-OUT SEQUENCE ON POWER-UP (MCLR NOT TIED TO VDD): CASE 1

VDD

MCLR

Internal POR

TPWRT

PWRT Time-out

OST Time-out

Internal RESET

FIGURE 9-8: TIME-OUT SEQUENCE ON POWER-UP (MCLR

VDD

MCLR

Internal POR

PWRT

PWRT Time-out

OST Time-out

Internal RESET

TOST

NOT TIED TO VDD): CASE 2

TOST

FIGURE 9-9: TIME-OUT SEQUENCE ON POWER-UP (MCLR

VDD

MCLR

Internal POR

TPWRT

PWRT Time-out

OST Time-out

Internal RESET

DS40039C-page 62  2003 Microchip Technology Inc.

TOST

TIED TO VDD)

PIC16F630/676

9.4 Interrupts

The PIC16F630/676 has 7 sources of interrupt:

• External Interrupt RA2/INT

• TMR0 Overflow Interrupt

• PORTA Change Interrupts

• Comparator Interrupt

• A/D Interrupt (PIC16F676 only)

• TMR1 Overflow Interrupt

• EEPROM Data Write Interrupt

The Interrupt Control register (INTCON) and Peripheral Interrupt register (PIR) record individual interrupt requests in flag bits. The INTCON register also has individual and global interrupt enable bits.

A global interrupt enable bit, GIE (INTCON<7>) enables (if set) all unmasked interrupts, or disables (if cleared) all interrupts. Individual interrupts can be disabled through their corresponding enable bits in INTCON register and PIE register. GIE is cleared on RESET.

The return from interrupt instruction, interrupt routine, as well as sets the GIE bit, which reenables unmasked interrupts.

The following interrupt flags are contained in the INTCON register:

• INT pin interrupt

• PORTA change interrupt

• TMR0 overflow interrupt

The peripheral interrupt flags are contained in the special register PIR1. The corresponding interrupt enable bit is contained in Special Register PIE1.

The following interrupt flags are contained in the PIR register:

• EEPROM data write interrupt

• A/D interrupt

• Comparator interrupt

• Timer1 overflow interrupt

When an interrupt is serviced:

• The GIE is cleared to disable any further interrupt

• The return address is pushed onto the stack

• The PC is loaded with 0004h

Once in the Interrupt Service Routine, the source(s) of the interrupt can be determined by polling the interrupt flag bits. The interrupt flag bit(s) must be cleared in software before re-enabling interrupts to avoid RA2/INT recursive interrupts.

For external interrupt events, such as the INT pin, or PORTA change interrupt, the interrupt latency will be three or four instruction cycles. The exact latency depends upon when the interrupt event occurs (see Figure 9-11). The latency is the same for one or twocycle instructions. Once in the Interrupt Service Routine, the source(s) of the interrupt can be determined by polling the interrupt flag bits. The

RETFIE, exits

interrupt flag bit(s) must be cleared in software before re-enabling interrupts to avoid multiple interrupt requests.

Note 1: Individual interrupt flag bits are set,

regardless of the status of their corresponding mask bit or the GIE bit.

2: When an instruction that clears the GIE

bit is executed, any interrupts that were pending for execution in the next cycle are ignored. The interrupts which were ignored are still pending to be serviced when the GIE bit is set again.

 2003 Microchip Technology Inc. DS40039C-page 63

PIC16F630/676

FIGURE 9-10: INTERRUPT LOGIC

IOCA-RA0

IOCA0

IOCA-RA1

IOCA1

IOCA-RA2

IOCA2

IOCA-RA3

IOCA3

IOCA-RA4

IOCA4

IOCA-RA5

IOCA5

TMR1IF TMR1IE

CMIF CMIE

ADIF ADIE

EEIF EEIE

Note 1: PIC16F676 only.

(1)

T0IF T0IE

INTF INTE

RAIF

RAIE

PEIE

GIE

Wake-up (If in SLEEP mode)

Interrupt to CPU

DS40039C-page 64  2003 Microchip Technology Inc.

PIC16F630/676

9.4.1 RA2/INT INTERRUPT

External interrupt on RA2/INT pin is edge-triggered; either rising if INTEDG bit (OPTION<6>) is set, or falling, if INTEDG bit is clear. When a valid edge appears on the RA2/INT pin, the INTF bit (INTCON<1>) is set. This interrupt can be disabled by clearing the INTE control bit (INTCON<4>). The INTF bit must be cleared in software in the Interrupt Service Routine before re-enabling this interrupt. The RA2/INT interrupt can wake-up the processor from SLEEP if the INTE bit was set prior to going into SLEEP. The status of the GIE bit decides whether or not the processor branches to the interrupt vector following wake-up. See Section 9.7 for details on SLEEP and Figure 9-13 for timing of wake-up from SLEEP through RA2/INT interrupt.

Note: The ANSEL 9Fh) and CMCON (19h)

registers must be initialized to configure an analog channel as a digital input. Pins configured as analog inputs will read ‘0’. The ANSEL register is defined for the PIC16F676.

9.4.2 TMR0 INTERRUPT

An overflow (FFh → 00h) in the TMR0 register will set the T0IF (INTCON<2>) bit. The interrupt can be enabled/disabled by setting/clearing T0IE (INTCON<5>) bit. For operation of the Timer0 module, see Section 4.0.

9.4.3 PORTA INTERRUPT

An input change on PORTA change sets the RAIF (INTCON<0>) bit. The interrupt can be enabled/ disabled by setting/clearing the RAIE (INTCON<3>) bit. Plus individual pins can be configured through the IOCA register.

Note: If a change on the I/O pin should occur

when the read operation is being executed (start of the Q2 cycle), then the RAIF interrupt flag may not get set.

9.4.4 COMPARATOR INTERRUPT

See Section 6.9 for description of comparator interrupt.

9.4.5 A/D CONVERTER INTERRUPT

After a conversion is complete, the ADIF flag (PIR<6>) is set. The interrupt can be enabled/disabled by setting or clearing ADIE (PIE<6>).

See Section 7.0 for operation of the A/D converter interrupt.

FIGURE 9-11: INT PIN INTERRUPT TIMING

Q2Q1 Q3 Q4 Q2Q1 Q3 Q4 Q2Q1 Q3 Q4 Q2Q1 Q3 Q4 Q2Q1 Q3 Q4

OSC1

CLKOUT

INT pin

INTF Flag (INTCON<1>)

GIE bit (INTCON<7>)

INSTRUCTION FLOW

Instruction Fetched

Instruction Executed

Note 1: INTF flag is sampled here (every Q1).

2: Asynchronous interrupt latency = 3-4 T

is the same whether Inst (PC) is a single cycle or a 2-cycle instruction.

3: CLKOUT is available only in RC Oscillator mode. 4: For minimum width of INT pulse, refer to AC specs. 5: INTF is enabled to be set any time during the Q4-Q1 cycles.

Inst (PC)

Inst (PC-1)

PC+1

Inst (PC+1)

Inst (PC)

CY. Synchronous latency = 3 TCY, where TCY = instruction cycle time. Latency

Interrupt Latency

PC+1

—

Dummy Cycle

0004h

Inst (0004h)

Dummy Cycle

0005h

Inst (0005h)

Inst (0004h)

 2003 Microchip Technology Inc. DS40039C-page 65

PIC16F630/676

TABLE 9-8: SUMMARY OF INTERRUPT REGISTERS

Address Name Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0

0Bh, 8Bh INTCON GIE PEIE T0IE INTE RAIE T0IF INTF RAIF 0000 0000 0000 000u

0Ch PIR1

8Ch PIE1 EEIE ADIE

Legend: x = unknown, u = unchanged, - = unimplemented read as '0', q = value depends upon condition.

Shaded cells are not used by the Interrupt module.

EEIF ADIF — — CMIF — — TMR1IF 00-- 0--0 00-- 0--0

— — CMIE — —TMR1IE00-- 0--0 00-- 0--0

Value on

POR, BOD

Value on all

other

RESETS

9.5 Context Saving During Interrupts

During an interrupt, only the return PC value is saved on the stack. Typically, users may wish to save key registers during an interrupt (e.g., W register and STATUS register). This must be implemented in software.

Example 9-2 stores and restores the STATUS and W registers. The user register, W_TEMP, must be defined in both banks and must be defined at the same offset from the bank base address (i.e., W_TEMP is defined at 0x20 in Bank 0 and it must also be defined at 0xA0 in Bank 1). The user register, STATUS_TEMP, must be defined in Bank 0. The Example 9-2:

• Stores the W register

• Stores the STATUS register in Bank 0

• Executes the ISR code

• Restores the STATUS (and bank select bit register)

• Restores the W register

EXAMPLE 9-2: SAVING THE STATUS AND

W REGISTERS IN RAM

MOVWF W_TEMP ;copy W to temp register,

SWAPF STATUS,W ;swap status to be saved into W BCF STATUS,RP0 ;change to bank 0 regardless of

MOVWF STATUS_TEMP ;save status to bank 0 register

: :(ISR) :

SWAPF STATUS_TEMP,W;swap STATUS_TEMP register into

MOVWF STATUS ;move W into STATUS register SWAPF W_TEMP,F ;swap W_TEMP SWAPF W_TEMP,W ;swap W_TEMP into W

could be in either bank

current bank

W, sets bank to original state

9.6 Watchdog Timer (WDT)

The Watchdog Timer is a free running, on-chip RC oscillator, which requires no external components. This RC oscillator is separate from the external RC oscillator of the CLKIN pin. That means that the WDT will run, even if the clock on the OSC1 and OSC2 pins of the device has been stopped (for example, by execution of

SLEEP instruction). During normal operation, a WDT

a time-out generates a device RESET. If the device is in SLEEP mode, a WDT time-out causes the device to wake-up and continue with normal operation. The WDT can be permanently disabled by programming the configuration bit WDTE as clear (Section 9.1).

9.6.1 WDT PERIOD

The WDT has a nominal time-out period of 18 ms, (with no prescaler). The time-out periods vary with tempera-

DD and process variations from part to part (see

ture, V DC specs). If longer time-out periods are desired, a prescaler with a division ratio of up to 1:128 can be assigned to the WDT under software control by writing to the OPTION register. Thus, time-out periods up to

2.3 seconds can be realized.

CLRWDT and SLEEP instructions clear the WDT

The and the prescaler, if assigned to the WDT, and prevent it from timing out and generating a device RESET.

The TO a Watchdog Timer time-out.

9.6.2 WDT PROGRAMMING

It should also be taken in account that under worst case conditions (i.e., V WDT prescaler) it may take several seconds before a WDT time-out occurs.

bit in the STATUS register will be cleared upon

CONSIDERATIONS

DD = Min., Temperature = Max., Max.

DS40039C-page 66  2003 Microchip Technology Inc.

FIGURE 9-12: WATCHDOG TIMER BLOCK DIAGRAM

CLKOUT

(= FOSC/4)

T0CKI

T0SE

T0CS

8-bit

Prescaler

PIC16F630/676

Data Bus

SYNC 2

Cycles

PSA

TMR0

Set Flag bit T0IF

on Overflow

PS0 - PS2

PSA

WDT

Time-out

Watchdog

Timer

WDTE

PSA

Note 1: T0SE, T0CS, PSA, PS0-PS2 are bits in the Option register.

TABLE 9-9: SUMMARY OF WATCHDOG TIMER REGISTERS

Address Name Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0

81h OPTION_REG

2007h Config. bits CP BODEN MCLRE PWRTE WDTE F0SC2 F0SC1 F0SC0 uuuu uuuu uuuu uuuu

Legend: u = Unchanged, shaded cells are not used by the Watchdog Timer.

RAPU INTEDG T0CS T0SE PSA PS2 PS1 PS0 1111 1111 1111 1111

Value on

POR, BOD

Value on all

other

RESETS

 2003 Microchip Technology Inc. DS40039C-page 67

PIC16F630/676

9.7 Power-Down Mode (SLEEP)

The Power-down mode is entered by executing a

SLEEP instruction.

If the Watchdog Timer is enabled:

• WDT will be cleared but keeps running

•PD

bit in the STATUS register is cleared

•TO

bit is set

• Oscillator driver is turned off

• I/O ports maintain the status they had before

SLEEP was executed (driving high, low, or

hi-impedance).

For lowest current consumption in this mode, all I/O pins should be either at V circuitry drawing current from the I/O pin and the comparators and CV that are hi-impedance inputs should be pulled high or low externally to avoid switching currents caused by floating inputs. The T0CKI input should also be at V or VSS for lowest current consumption. The contribution from on-chip pull-ups on PORTA should be considered.

The MCLR

pin must be at a logic high level (VIHMC).

Note: It should be noted that a RESET generated

by a WDT time-out does not drive MCLR pin low.

9.7.1 WAKE-UP FROM SLEEP

DD, or VSS, with no external

REF should be disabled. I/O pins

a peripheral interrupt.

The first event will cause a device RESET. The two latter events are considered a continuation of program execution. The TO

and PD bits in the STATUS register can be used to determine the cause of device RESET. The PD bit, which is set on power-up, is cleared when SLEEP is invoked. TO

bit is cleared if WDT Wake-up

occurred.

When the

SLEEP instruction is being executed, the

next instruction (PC + 1) is pre-fetched. For the device to wake-up through an interrupt event, the corresponding interrupt enable bit must be set (enabled). Wake-up is regardless of the state of the GIE bit. If the GIE bit is clear (disabled), the device continues execution at the instruction after the

SLEEP instruction. If the GIE bit is

set (enabled), the device executes the instruction after

SLEEP instruction, then branches to the interrupt

the address (0004h). In cases where the execution of the instruction following should have an

SLEEP is not desirable, the user

NOP after the SLEEP instruction.

Note: If the global interrupts are disabled (GIE is

cleared), but any interrupt source has both its interrupt enable bit and the corresponding interrupt flag bits set, the device will immediately wake-up from SLEEP. The SLEEP instruction is completely executed.

The WDT is cleared when the device wakes up from SLEEP, regardless of the source of wake-up.

The device can wake-up from SLEEP through one of the following events:

1. External RESET input on MCLR

2. Watchdog Timer Wake-up (if WDT was enabled)

3. Interrupt from RA2/INT pin, PORTA change, or

FIGURE 9-13: WAKE-UP FROM SLEEP THROUGH INTERRUPT

Q1 Q2 Q3 Q4 Q1 Q2 Q3 Q4 Q1

OSC1

(4)

CLKOUT

INT pin

INTF flag

(INTCON<1>)

GIE bit

(INTCON<7>)

INSTRUCTION FLOW

Instruction Fetched

Instruction Executed

Note 1: XT, HS or LP Oscillator mode assumed.

2: T

3: GIE = '1' assumed. In this case after wake-up, the processor jumps to the interrupt routine. If GIE = '0', execution will continue in-line. 4: CLKOUT is not available in XT, HS, LP or EC Osc modes, but shown here for timing reference.

PC PC+1 PC+2

Inst(PC) = SLEEP

Inst(PC - 1)

OST = 1024TOSC (drawing not to scale). Approximately 1 µs delay for RC Oscillator mode. See Section 12 for wake-up from SLEEP

delay in INTOSC mode.

Inst(PC + 1)

SLEEP

Processor in

SLEEP

Q1 Q2 Q3 Q4 Q1 Q2 Q3 Q4 Q1 Q2 Q3 Q4 Q1 Q2 Q3 Q4

(2)

OST

Interrupt Latency

(Note 3)

PC+2

Inst(PC + 2)

Inst(PC + 1)

Dummy cycle

PC + 2 0004h 0005h

Inst(0004h)

Dummy cycle

Inst(0005h)

Inst(0004h)

DS40039C-page 68  2003 Microchip Technology Inc.

PIC16F630/676

9.8 Code Protection

If the code protection bit(s) have not been programmed, the on-chip program memory can be read out for verification purposes.

Note: The entire data EEPROM and FLASH

program memory will be erased when the code protection is turned off. The INTOSC calibration data is also erased. See PIC16F630/676 Programming Specification for more information.

9.9 ID Locations

Four memory locations (2000h-2003h) are designated as ID locations where the user can store checksum or other code identification numbers. These locations are not accessible during normal execution but are readable and writable during Program/Verify. Only the Least Significant 7 bits of the ID locations are used.

9.10 In-Circuit Serial Programming

The PIC16F630/676 microcontrollers can be serially programmed while in the end application circuit. This is simply done with two lines for clock and data, and three other lines for:

•power

•ground

• programming voltage

This allows customers to manufacture boards with unprogrammed devices and then program the microcontroller just before shipping the product. This also allows the most recent firmware or a custom firmware to be programmed.

The device is placed into a Program/Verify mode by holding the RA0 and RA1 pins low, while raising the

(VPP) pin from VIL to VIHH (see Programming

MCLR Specification). RA0 becomes the programming data and RA1 becomes the programming clock. Both RA0 and RA1 are Schmitt Trigger inputs in this mode.

After RESET, to place the device into Programming/ Verify mode, the program counter (PC) is at location 00h. A 6-bit command is then supplied to the device. Depending on the command, 14 bits of program data are then supplied to or from the device, depending on whether the command was a load or a read. For complete details of serial programming, please refer to the PIC16F630/676 Programming Specification.

A typical In-Circuit Serial Programming connection is shown in Figure 9-14.

FIGURE 9-14: TYPICAL IN-CIRCUIT

SERIAL PROGRAMMING CONNECTION

To Normal

External Connector Signals

+5V

CLK

Data I/O

Connections

To Normal Connections

PIC16F630/676

VSS

RA3/MCLR/VPP

RA1

RA0

9.11 In-Circuit Debugger

Since in-circuit debugging requires the loss of clock, data and MCLR an 14-pin device is not practical. A special 20-pin PIC16F676-ICD device is used with MPLAB ICD 2 to provide separate clock, data and MCLR all normally available pins to the user.

This special ICD device is mounted on the top of the header and its signals are routed to the MPLAB ICD 2 connector. On the bottom of the header is an 14-pin socket that plugs into the user’s target via the 14-pin stand-off connector.

When the ICD held low, the In-Circuit Debugger functionality is enabled. This function allows simple debugging functions when used with MPLAB ICD 2. When the microcontroller has this feature enabled, some of the resources are not available for general use. Table 9-10 shows which features are consumed by the background debugger:

TABLE 9-10: DEBUGGER RESOURCES

Program Memory Address 0h must be NOP

For more information, see 14-Pin MPLAB ICD 2 Header Information Sheet (DS51299) available on Microchip’s website (www.microchip.com).

pins, MPLAB® ICD 2 development with

pins and frees

pin on the PIC16F676-ICD device is

I/O pins ICDCLK, ICDDATA

Stack 1 level

300h - 3FEh

 2003 Microchip Technology Inc. DS40039C-page 69

PIC16F630/676

NOTES:

DS40039C-page 70  2003 Microchip Technology Inc.

PIC16F630/676

10.0 INSTRUCTION SET SUMMARY

The PIC16F630/676 instruction set is highly orthogonal and is comprised of three basic categories:

• Byte-oriented operations

• Bit-oriented operations

• Literal and control operations

Each PIC16 instruction is a 14-bit word divided into an opcode, which specifies the instruction type, and one or more operands, which further specify the operation of the instruction. The formats for each of the categories is presented in Figure 10-1, while the various opcode fields are summarized in Table 10-1.

Table 10-2 lists the instructions recognized by the MPASM instruction is also available in the PICmicro™ MidRange Reference Manual (DS33023).

For byte-oriented instructions, ‘f’ represents a file register designator and ‘d’ represents a destination designator. The file register designator specifies which file register is to be used by the instruction.

The destination designator specifies where the result of the operation is to be placed. If ‘d’ is zero, the result is placed in the W register. If ‘d’ is one, the result is placed in the file register specified in the instruction.

For bit-oriented instructions, ‘b’ represents a bit field designator, which selects the bit affected by the operation, while ‘f’ represents the address of the file in which the bit is located.

For literal and control operations, ‘k’ represents an 8-bit or 11-bit constant, or literal value

One instruction cycle consists of four oscillator periods; for an oscillator frequency of 4 MHz, this gives a normal instruction execution time of 1 µs. All instructions are executed within a single instruction cycle, unless a conditional test is true, or the program counter is changed as a result of an instruction. When this occurs, the execution takes two instruction cycles, with the second cycle executed as a NOP.

All instruction examples use the format ‘0xhh’ to represent a hexadecimal number, where ‘h’ signifies a hexadecimal digit.

assembler. A complete description of each

Note: To maintain upward compatibility with

future products, do not use

the OPTION

and TRIS instructions.

For example, a CLRF PORTA instruction will read PORTA, clear all the data bits, then write the result back to PORTA. This example would have the unintended result of clearing the condition that set the RAIF flag.

TABLE 10-1: OPCODE FIELD

DESCRIPTIONS

Field Description

Working register (accumulator)

Bit address within an 8-bit file register

Literal field, constant data or label

Don't care location (= 0 or 1). The assembler will generate code with x = 0. It is the recommended form of use for compatibility with all Microchip software tools.

Destination select; d = 0: store result in W, d = 1: store result in file register f. Default is d = 1.

Program Counter

Time-out bit

Power-down bit

FIGURE 10-1: GENERAL FORMAT FOR

INSTRUCTIONS

Byte-oriented file register operations

13 8 7 6 0

OPCODE d f (FILE #)

d = 0 for destination W d = 1 for destination f f = 7-bit file register address

Bit-oriented file register operations

13 10 9 7 6 0

OPCODE b (BIT #) f (FILE #)

b = 3-bit bit address f = 7-bit file register address

Literal and control operations

General

13 8 7 0

OPCODE k (literal)

k = 8-bit immediate value

10.1 READ-MODIFY-WRITE OPERATIONS

Any instruction that specifies a file register as part of the instruction performs a Read-Modify-Write (R-M-W) operation. The register is read, the data is modified,

CALL and GOTO instructions only

13 11 10 0

OPCODE k (literal)

k = 11-bit immediate value

and the result is stored according to either the instruction, or the destination designator ‘d’. A read operation is performed on a register even if the instruction writes to that register.

 2003 Microchip Technology Inc. DS40039C-page 71

PIC16F630/676

TABLE 10-2: PIC16F630/676 INSTRUCTION SET

Mnemonic,

Operands

ADDWF ANDWF CLRF CLRW COMF DECF DECFSZ INCF INCFSZ IORWF MOVF MOVWF NOP RLF RRF SUBWF SWAPF XORWF

BCF BSF BTFSC BTFSS

ADDLW ANDLW CALL CLRWDT GOTO IORLW MOVLW RETFIE RETLW RETURN SLEEP SUBLW XORLW

Note 1: When an I/O register is modified as a function of itself (e.g., MOVF

f, d

Add W and f

f, d

AND W with f

Clear f

Clear W

f, d

Complement f

f, d

Decrement f

f, d

Decrement f, Skip if 0

f, d

Increment f

f, d

Increment f, Skip if 0

f, d

Inclusive OR W with f

f, d

Move f

Move W to f

No Operation

f, d

Rotate Left f through Carry

f, d

Rotate Right f through Carry

f, d

Subtract W from f

f, d

Swap nibbles in f

f, d

Exclusive OR W with f

f, b

Bit Clear f

f, b

Bit Set f

f, b

Bit Test f, Skip if Clear

f, b

Bit Test f, Skip if Set

Add literal and W

AND literal with W

Call subroutine

Clear Watchdog Timer

Go to address

Inclusive OR literal with W

Move literal to W

Return from interrupt

Return with literal in W

Return from Subroutine

Go into Standby mode

Subtract W from literal

Exclusive OR literal with W

on the pins themselves. For example, if the data latch is '1' for a pin configured as input and is driven low by an external device, the data will be written back with a '0'.

2: If this instruction is executed on the TMR0 register (and, where applicable, d = 1), the prescaler will be cleared if

assigned to the Timer0 module.

3: If Program Counter (PC) is modified, or a conditional test is true, the instruction requires two cycles. The second cycle is

executed as a NOP.

Description Cycles

BYTE-ORIENTED FILE REGISTER OPERATIONS

1 1 1 1 1 1

1(2)

1 1 1 1 1 1 1 1 1

BIT-ORIENTED FILE REGISTER OPERATIONS

1 1 (2) 1 (2)

LITERAL AND CONTROL OPERATIONS

PORTA, 1), the value used will be that value present

14-Bit Opcode

MSb LSb

0111

dfff 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00

01 01 01 01

11 11 10 00 10 11 11 00 11 00 00 11 11

0101 0001 0001 1001 0011 1011 1010 1111 0100 1000 0000 0000 1101 1100 0010 1110 0110

00bb 01bb 10bb 11bb

111x 1001 0kkk 0000 1kkk 1000 00xx 0000 01xx 0000 0000 110x 1010

dfff

lfff

0xxx

dfff

lfff

0xx0

dfff

bfff

kkkk

0110

kkkk

0000

kkkk

0000

0110

kkkk

ffff ffff ffff xxxx ffff ffff ffff ffff ffff ffff ffff ffff 0000 ffff ffff ffff ffff ffff

ffff ffff ffff ffff

kkkk kkkk kkkk 0100 kkkk kkkk kkkk 1001 kkkk 1000 0011 kkkk kkkk

Status

Affected

C,DC,Z

Z Z Z Z Z

Z Z

C C

,PD

Notes

1,2 1,2

1,2,3

1,2

1,2,3

1,2 1,2

1,2 1,2 1,2 1,2 1,2

1,2 1,2

3 3

Note: Additional information on the mid-range instruction set is available in the PICmicro™ Mid-Range MCU

Family Reference Manual (DS33023).

DS40039C-page 72  2003 Microchip Technology Inc.

10.2 Instruction Descriptions

PIC16F630/676

ADDLW Add Literal and W

Syntax: [label] ADDLW k Operands: 0 ≤ k ≤ 255 Operation: (W) + k → (W)

Status Affected: C, DC, Z

Description: The contents of the W register

are added to the eight-bit literal 'k' and the result is placed in the W register.

ADDWF Add W and f

Syntax: [label] ADDWF f,d Operands: 0 ≤ f ≤ 127

d ∈ [0,1]

Operation: (W) + (f) → (destination)

Status Affected: C, DC, Z

Description: Add the contents of the W register

with register 'f'. If 'd' is 0, the result is stored in the W register. If 'd' is 1, the result is stored back in register 'f'.

BCF Bit Clear f

Syntax: [label] BCF f,b Operands: 0 ≤ f ≤ 127

0 ≤ b ≤ 7

Operation: 0 → (f<b>)

Status Affected: None

Description: Bit 'b' in register 'f' is cleared.

BSF Bit Set f

Syntax: [label] BSF f,b Operands: 0 ≤ f ≤ 127

0 ≤ b ≤ 7

Operation: 1 → (f<b>)

Status Affected: None

Description: Bit 'b' in register 'f' is set.

ANDLW AND Literal with W

Syntax: [label] ANDLW k Operands: 0 ≤ k ≤ 255 Operation: (W) .AND. (k) → (W)

Status Affected: Z

Description: The contents of W register are

AND’ed with the eight-bit literal 'k'. The result is placed in the W register.

ANDWF AND W with f

Syntax: [label] ANDWF f,d Operands: 0 ≤ f ≤ 127

d ∈ [0,1]

Operation: (W) .AND. (f) → (destination)

Status Affected: Z

Description: AND the W register with register

'f'. If 'd' is 0, the result is stored in the W register. If 'd' is 1, the result is stored back in register 'f'.

BTFSS Bit Test f, Skip if Set

Syntax: [label] BTFSS f,b Operands: 0 ≤ f ≤ 127

0 ≤ b < 7

Operation: skip if (f<b>) = 1

Status Affected: None

Description: If bit 'b' in register 'f' is '0', the next

instruction is executed. If bit 'b' is '1', then the next instruction is discarded and a NOP is executed instead, making this a 2-cycle instruction.

BTFSC Bit Test, Skip if Clear

Syntax: [label] BTFSC f,b Operands: 0 ≤ f ≤ 127

0 ≤ b ≤ 7

Operation: skip if (f<b>) = 0

Status Affected: None

Description: If bit 'b' in register 'f' is '1', the next

instruction is executed. If bit 'b', in register 'f', is '0', the next instruction is discarded, and a NOP is executed instead, making this a 2-cycle instruction.

 2003 Microchip Technology Inc. DS40039C-page 73

PIC16F630/676

CALL Call Subroutine

Syntax: [ label ] CALL k Operands: 0 ≤ k ≤ 2047 Operation: (PC)+ 1→ TOS,

k → PC<10:0>, (PCLATH<4:3>) → PC<12:11>

Status Affected: None

Description: Call Subroutine. First, return

address (PC+1) is pushed onto the stack. The eleven-bit immediate address is loaded into PC bits <10:0>. The upper bits of the PC are loaded from PCLATH. CALL is a two-cycle instruction.

CLRF Clear f

Syntax: [label] CLRF f Operands: 0 ≤ f ≤ 127 Operation: 00h → (f)

1 → Z

Status Affected: Z

Description: The contents of register 'f' are

cleared and the Z bit is set.

CLRWDT Clear Watchdog Timer

Syntax: [ label ] CLRWDT

Operands: None Operation: 00h → WDT

0 → WDT prescaler, 1 → TO 1 → PD

Status Affected: TO, PD Description: CLRWDT instruction resets the

Watchdog Timer. It also resets the prescaler of the WDT. STATUS bits TO

COMF Complement f

Syntax: [ label ] COMF f,d Operands: 0 ≤ f ≤ 127

d ∈ [0,1]

Operation: (f

Status Affected: Z

Description: The contents of register 'f' are

) → (destination)

complemented. If 'd' is 0, the result is stored in W. If 'd' is 1, the result is stored back in register 'f'.

and PD are set.

CLRW Clear W

Syntax: [ label ] CLRW

Operands: None Operation: 00h → (W)

1 → Z

Status Affected: Z

Description: W register is cleared. Zero bit (Z)

is set.

DECF Decrement f

Syntax: [label] DECF f,d Operands: 0 ≤ f ≤ 127

d ∈ [0,1]

Operation: (f) - 1 → (destination)

Status Affected: Z

Description: Decrement register 'f'. If 'd' is 0,

the result is stored in the W register. If 'd' is 1, the result is stored back in register 'f'.

DS40039C-page 74  2003 Microchip Technology Inc.

PIC16F630/676

DECFSZ Decrement f, Skip if 0

Syntax: [ label ] DECFSZ f,d Operands: 0 ≤ f ≤ 127

d ∈ [0,1]

Operation: (f) - 1 → (destination);

skip if result = 0

Status Affected: None

Description: The contents of register 'f' are

decremented. If 'd' is 0, the result is placed in the W register. If 'd' is 1, the result is placed back in register 'f'. If the result is 1, the next instruction is executed. If the result is 0, then a NOP is executed instead, making it a 2-cycle instruction.

GOTO Unconditional Branch

Syntax: [ label ] GOTO k Operands: 0 ≤ k ≤ 2047 Operation: k → PC<10:0>

PCLATH<4:3> → PC<12:11>

Status Affected: None Description: GOTO is an unconditional branch.

The eleven-bit immediate value is loaded into PC bits <10:0>. The upper bits of PC are loaded from PCLATH<4:3>. GOTO is a two- cycle instruction.

INCFSZ Increment f, Skip if 0

Syntax: [ label ] INCFSZ f,d Operands: 0 ≤ f ≤ 127

d ∈ [0,1]

Operation: (f) + 1 → (destination),

skip if result = 0

Status Affected: None

Description: The contents of register 'f' are

incremented. If 'd' is 0, the result is placed in the W register. If 'd' is 1, the result is placed back in register 'f'. If the result is 1, the next instruction is executed. If the result is 0, a NOP is executed instead, making it a 2-cycle instruction.

IORLW Inclusive OR Literal with W

Syntax: [ label ] IORLW k Operands: 0 ≤ k ≤ 255 Operation: (W) .OR. k → (W)

Status Affected: Z

Description: The contents of the W register are

OR’ed with the eight-bit literal 'k'. The result is placed in the W register.

INCF Increment f

Syntax: [ label ] INCF f,d Operands: 0 ≤ f ≤ 127

d ∈ [0,1]

Operation: (f) + 1 → (destination)

Status Affected: Z

Description: The contents of register 'f' are

incremented. If 'd' is 0, the result is placed in the W register. If 'd' is 1, the result is placed back in register 'f'.

 2003 Microchip Technology Inc. DS40039C-page 75

IORWF Inclusive OR W with f

Syntax: [ label ] IORWF f,d Operands: 0 ≤ f ≤ 127

d ∈ [0,1]

Operation: (W) .OR. (f) → (destination)

Status Affected: Z

Description: Inclusive OR the W register with

register 'f'. If 'd' is 0, the result is placed in the W register. If 'd' is 1, the result is placed back in register 'f'.

PIC16F630/676

MOVF Move f

Syntax: [ label ] MOVF f,d Operands: 0 ≤ f ≤ 127

d ∈ [0,1]

Operation: (f) → (destination)

Status Affected: Z

Description: The contents of register f are

moved to a destination dependant upon the status of d. If d = 0, destination is W register. If d = 1, the destination is file register f itself. d = 1 is useful to test a file register, since status flag Z is affected.

MOVLW Move Literal to W

Syntax: [ label ] MOVLW k Operands: 0 ≤ k ≤ 255 Operation: k → (W)

Status Affected: None

Description: The eight-bit literal 'k' is loaded

into W register. The don’t cares will assemble as 0’s.

NOP No Operation

Syntax: [ label ] NOP

Operands: None

Operation: No operation

Status Affected: None

Description: No operation.

RETFIE Return from Interrupt

Syntax: [ label ] RETFIE

Operands: None Operation: TOS → PC,

1 → GIE

Status Affected: None

MOVWF Move W to f

Syntax: [ label ] MOVWF f Operands: 0 ≤ f ≤ 127 Operation: (W) → (f)

Status Affected: None

Description: Move data from W register to

RETLW Return with Literal in W

Syntax: [ label ] RETLW k Operands: 0 ≤ k ≤ 255 Operation: k → (W);

TOS → PC

Status Affected: None

Description: The W register is loaded with the

eight-bit literal 'k'. The program counter is loaded from the top of the stack (the return address). This is a two-cycle instruction.

DS40039C-page 76  2003 Microchip Technology Inc.

PIC16F630/676

RLF Rotate Left f through Carry

Syntax: [ label ] RLF f,d Operands: 0 ≤ f ≤ 127

d ∈ [0,1]

Operation: See description below

Status Affected: C

Description: The contents of register 'f' are rotated

one bit to the left through the Carry Flag. If 'd' is 0, the result is placed in the W register. If 'd' is 1, the result is stored back in register 'f'.

RETURN Return from Subroutine

Syntax: [ label ] RETURN

Operands: None Operation: TOS → PC

Status Affected: None

Description: Return from subroutine. The stack

is POPed and the top of the stack (TOS) is loaded into the program counter. This is a two-cycle instruction.

SLEEP

Syntax: [ label ]SLEEP

Operands: None Operation: 00h → WDT,

0 → WDT prescaler, 1 → TO 0 → PD

Status Affected: TO, PD

Description: The power-down STATUS bit,

PD bit, TO and its prescaler are cleared. The processor is put into SLEEP mode with the oscillator stopped.

SUBLW Subtract W from Literal

Syntax: [ label ] SUBLW k Operands: 0 ≤ k ≤ 255 Operation: k - (W) → (W)

Status Affected: C, DC, Z

Description: The W register is subtracted (2’s

complement method) from the eight-bit literal 'k'. The result is placed in the W register.

is cleared. Time-out STATUS

is set. Watchdog Timer

RRF Rotate Right f through Carry

Syntax: [ label ] RRF f,d Operands: 0 ≤ f ≤ 127

d ∈ [0,1]

Operation: See description below

Status Affected: C

Description: The contents of register 'f' are

rotated one bit to the right through the Carry Flag. If 'd' is 0, the result is placed in the W register. If 'd' is 1, the result is placed back in register 'f'.

SUBWF Subtract W from f

Syntax: [ label ] SUBWF f,d Operands: 0 ≤ f ≤ 127

d ∈ [0,1]

Operation: (f) - (W) → (destination)

Status Affected:

Description: Subtract (2’s complement method)

C, DC, Z

W register from register 'f'. If 'd' is 0, the result is stored in the W register. If 'd' is 1, the result is stored back in register 'f'.

 2003 Microchip Technology Inc. DS40039C-page 77

PIC16F630/676

SWAPF Swap Nibbles in f

Syntax: [ label ] SWAPF f,d Operands: 0 ≤ f ≤ 127

d ∈ [0,1]

Operation: (f<3:0>) → (destination<7:4>),

(f<7:4>) → (destination<3:0>)

Status Affected: None

Description: The upper and lower nibbles of

register 'f' are exchanged. If 'd' is 0, the result is placed in the W register. If 'd' is 1, the result is placed in register 'f'.

XORLW Exclusive OR Literal with W

Syntax: [label]XORLW k Operands: 0 ≤ k ≤ 255 Operation: (W) .XOR. k → (W)

Status Affected: Z

Description: The contents of the W register

are XOR’ed with the eight-bit literal 'k'. The result is placed in the W register.

XORWF Exclusive OR W with f

Syntax: [label] XORWF f,d Operands: 0 ≤ f ≤ 127

d ∈ [0,1]

Operation: (W) .XOR. (f) → (destination)

Status Affected: Z

Description: Exclusive OR the contents of the

W register with register 'f'. If 'd' is 0, the result is stored in the W register. If 'd' is 1, the result is stored back in register 'f'.

DS40039C-page 78  2003 Microchip Technology Inc.

PIC16F630/676

11.0 DEVELOPMENT SUPPORT

The PICmicro® microcontrollers are supported with a full range of hardware and software development tools:

• Integrated Development Environment

- MPLAB

• Assemblers/Compilers/Linkers

-MPASM

- MPLAB C17 and MPLAB C18 C Compilers

-MPLINK MPLIB

- MPLAB C30 C Compiler

- MPLAB ASM30 Assembler/Linker/Library

• Simulators

- MPLAB SIM Software Simulator

- MPLAB dsPIC30 Software Simulator

• Emulators

- MPLAB ICE 2000 In-Circuit Emulator

- MPLAB ICE 4000 In-Circuit Emulator

• In-Circuit Debugger

- MPLAB ICD 2

• Device Programmers

-PRO MATE

- PICSTART

• Low Cost Demonstration Boards

- PICDEM

- PICDEM.net

- PICDEM 2 Plus Demonstration Board

- PICDEM 3 Demonstration Board

- PICDEM 17 Demonstration Board

- PICDEM 18R Demonstration Board

- PICDEM LIN Demonstration Board

- PICDEM USB Demonstration Board

• Evaluation Kits

-K

- PICDEM MSC

- microID

-CAN

- PowerSmart

-Analog

EELOQ

IDE Software

Assembler

Object Linker/

Object Librarian

II Universal Device Programmer

Plus Development Programmer

1 Demonstration Board

Demonstration Board

11.1 MPLAB Integrated Development Environment Software

The MPLAB IDE software brings an ease of software development previously unseen in the 8/16-bit microcontroller market. The MPLAB IDE is a Windows based application that contains:

• An interface to debugging tools

- simulator

- programmer (sold separately)

- emulator (sold separately)

- in-circuit debugger (sold separately)

• A full-featured editor with color coded context

• A multiple project manager

• Customizable data windows with direct edit of

contents

• High level source code debugging

• Mouse over variable inspection

• Extensive on-line help

The MPLAB IDE allows you to:

• Edit your source files (either assembly or C)

• One touch assemble (or compile) and download

to PICmicro emulator and simulator tools (automatically updates all project information)

• Debug using:

- source files (assembly or C)

- absolute listing file (mixed assembly and C)

- machine code

MPLAB IDE supports multiple debugging tools in a single development paradigm, from the cost effective simulators, through low cost in-circuit debuggers, to full-featured emulators. This eliminates the learning curve when upgrading to tools with increasing flexibility and power.

11.2 MPASM Assembler

The MPASM assembler is a full-featured, universal macro assembler for all PICmicro MCUs.

The MPASM assembler generates relocatable object files for the MPLINK object linker, Intel files, MAP files to detail memory usage and symbol reference, absolute LST files that contains source lines and generated machine code and COFF files for debugging.

The MPASM assembler features include:

• Integration into MPLAB IDE projects

• User defined macros to streamline assembly code

• Conditional assembly for multi-purpose source

files

• Directives that allow complete control over the

assembly process

standard HEX

 2003 Microchip Technology Inc. DS40039C-page 79

PIC16F630/676

11.3 MPLAB C17 and MPLAB C18 C Compilers

The MPLAB C17 and MPLAB C18 Code Development Systems are complete ANSI C compilers for Microchip’s PIC17CXXX and PIC18CXXX family of microcontrollers. These compilers provide powerful integration capabilities, superior code optimization and ease of use not found with other compilers.

For easy source level debugging, the compilers provide symbol information that is optimized to the MPLAB IDE debugger.

11.4 MPLINK Object Linker/ MPLIB Object Librarian

The MPLINK object linker combines relocatable objects created by the MPASM assembler and the MPLAB C17 and MPLAB C18 C compilers. It can link relocatable objects from pre-compiled libraries, using directives from a linker script.

The MPLIB object librarian manages the creation and modification of library files of pre-compiled code. When a routine from a library is called from a source file, only the modules that contain that routine will be linked in with the application. This allows large libraries to be used efficiently in many different applications.

The object linker/library features include:

• Efficient linking of single libraries instead of many

smaller files

• Enhanced code maintainability by grouping

related modules together

• Flexible creation of libraries with easy module

listing, replacement, deletion and extraction

11.5 MPLAB C30 C Compiler

The MPLAB C30 C compiler is a full-featured, ANSI compliant, optimizing compiler that translates standard ANSI C programs into dsPIC30F assembly language source. The compiler also supports many commandline options and language extensions to take full advantage of the dsPIC30F device hardware capabilities, and afford fine control of the compiler code generator.

MPLAB C30 is distributed with a complete ANSI C standard library. All library functions have been validated and conform to the ANSI C library standard. The library includes functions for string manipulation, dynamic memory allocation, data conversion, timekeeping, and math functions (trigonometric, exponential and hyperbolic). The compiler provides symbolic information for high level source debugging with the MPLAB IDE.

11.6 MPLAB ASM30 Assembler, Linker, and Librarian

MPLAB ASM30 assembler produces relocatable machine code from symbolic assembly language for dsPIC30F devices. MPLAB C30 compiler uses the assembler to produce it’s object file. The assembler generates relocatable object files that can then be archived or linked with other relocatable object files and archives to create an executable file. Notable features of the assembler include:

• Support for the entire dsPIC30F instruction set

• Support for fixed-point and floating-point data

• Command line interface

• Rich directive set

• Flexible macro language

• MPLAB IDE compatibility

11.7 MPLAB SIM Software Simulator

The MPLAB SIM software simulator allows code development in a PC hosted environment by simulating the PICmicro series microcontrollers on an instruction level. On any given instruction, the data areas can be examined or modified and stimuli can be applied from a file, or user defined key press, to any pin. The execution can be performed in Single-Step, Execute Until Break, or Trace mode.

The MPLAB SIM simulator fully supports symbolic debugging using the MPLAB C17 and MPLAB C18 C Compilers, as well as the MPASM assembler. The software simulator offers the flexibility to develop and debug code outside of the laboratory environment, making it an excellent, economical software development tool.

11.8 MPLAB SIM30 Software Simulator

The MPLAB SIM30 software simulator allows code development in a PC hosted environment by simulating the dsPIC30F series microcontrollers on an instruction level. On any given instruction, the data areas can be examined or modified and stimuli can be applied from a file, or user defined key press, to any of the pins.

The MPLAB SIM30 simulator fully supports symbolic debugging using the MPLAB C30 C Compiler and MPLAB ASM30 assembler. The simulator runs in either a Command Line mode for automated tasks, or from MPLAB IDE. This high speed simulator is designed to debug, analyze and optimize time intensive DSP routines.

DS40039C-page 80  2003 Microchip Technology Inc.

PIC16F630/676

11.9 MPLAB ICE 2000 High Performance Universal In-Circuit Emulator

The MPLAB ICE 2000 universal in-circuit emulator is intended to provide the product development engineer with a complete microcontroller design tool set for PICmicro microcontrollers. Software control of the MPLAB ICE 2000 in-circuit emulator is advanced by the MPLAB Integrated Development Environment, which allows editing, building, downloading and source debugging from a single environment.

The MPLAB ICE 2000 is a full-featured emulator system with enhanced trace, trigger and data monitoring features. Interchangeable processor modules allow the system to be easily reconfigured for emulation of different processors. The universal architecture of the MPLAB ICE in-circuit emulator allows expansion to support new PICmicro microcontrollers.

The MPLAB ICE 2000 in-circuit emulator system has been designed as a real-time emulation system with advanced features that are typically found on more expensive development tools. The PC platform and Microsoft chosen to best make these features available in a simple, unified application.

Windows 32-bit operating system were

11.10 MPLAB ICE 4000 High Performance Universal In-Circuit Emulator

The MPLAB ICE 4000 universal in-circuit emulator is intended to provide the product development engineer with a complete microcontroller design tool set for highend PICmicro microcontrollers. Software control of the MPLAB ICE in-circuit emulator is provided by the MPLAB Integrated Development Environment, which allows editing, building, downloading and source debugging from a single environment.

The MPLAB ICD 4000 is a premium emulator system, providing the features of MPLAB ICE 2000, but with increased emulation memory and high speed performance for dsPIC30F and PIC18XXXX devices. Its advanced emulator features include complex triggering and timing, up to 2 Mb of emulation memory, and the ability to view variables in real-time.

The MPLAB ICE 4000 in-circuit emulator system has been designed as a real-time emulation system with advanced features that are typically found on more expensive development tools. The PC platform and Microsoft Windows 32-bit operating system were chosen to best make these features available in a simple, unified application.

11.11 MPLAB ICD 2 In-Circuit Debugger

Microchip’s In-Circuit Debugger, MPLAB ICD 2, is a powerful, low cost, run-time development tool, connecting to the host PC via an RS-232 or high speed USB interface. This tool is based on the FLASH PICmicro MCUs and can be used to develop for these and other PICmicro microcontrollers. The MPLAB ICD 2 utilizes the in-circuit debugging capability built into the FLASH devices. This feature, along with Microchip’s In-Circuit Serial Programming protocol, offers cost effective in-circuit FLASH debugging from the graphical user interface of the MPLAB Integrated Development Environment. This enables a designer to develop and debug source code by setting breakpoints, single-stepping and watching variables, CPU status and peripheral registers. Running at full speed enables testing hardware and applications in real-time. MPLAB ICD 2 also serves as a development programmer for selected PICmicro devices.

(ICSPTM)

11.12 PRO MATE II Universal Device Programmer

The PRO MATE II is a universal, CE compliant device programmer with programmable voltage verification at

DDMIN and VDDMAX for maximum reliability. It features

V an LCD display for instructions and error messages and a modular detachable socket assembly to support various package types. In Stand-alone mode, the PRO MATE II device programmer can read, verify, and program PICmicro devices without a PC connection. It can also set code protection in this mode.

11.13 PICSTART Plus Development Programmer

The PICSTART Plus development programmer is an easy-to-use, low cost, prototype programmer. It connects to the PC via a COM (RS-232) port. MPLAB Integrated Development Environment software makes using the programmer simple and efficient. The PICSTART Plus development programmer supports most PICmicro devices up to 40 pins. Larger pin count devices, such as the PIC16C92X and PIC17C76X, may be supported with an adapter socket. The PICSTART Plus development programmer is CE compliant.

 2003 Microchip Technology Inc. DS40039C-page 81

PIC16F630/676

11.14 PICDEM 1 PICmicro Demonstration Board

The PICDEM 1 demonstration board demonstrates the capabilities of the PIC16C5X (PIC16C54 to PIC16C58A), PIC16C61, PIC16C62X, PIC16C71, PIC16C8X, PIC17C42, PIC17C43 and PIC17C44. All necessary hardware and software is included to run basic demo programs. The sample microcontrollers provided with the PICDEM 1 demonstration board can be programmed with a PRO MATE II device programmer, or a PICSTART Plus development programmer. The PICDEM 1 demonstration board can be connected to the MPLAB ICE in-circuit emulator for testing. A prototype area extends the circuitry for additional application components. Features include an RS-232 interface, a potentiometer for simulated analog input, push button switches and eight LEDs.

11.15 PICDEM.net Internet/Ethernet Demonstration Board

The PICDEM.net demonstration board is an Internet/ Ethernet demonstration board using the PIC18F452 microcontroller and TCP/IP firmware. The board supports any 40-pin DIP device that conforms to the standard pinout used by the PIC16F877 or PIC18C452. This kit features a user friendly TCP/IP stack, web server with HTML, a 24L256 Serial EEPROM for Xmodem download to web pages into Serial EEPROM, ICSP/MPLAB ICD 2 interface connector, an Ethernet interface, RS-232 interface, and a 16 x 2 LCD display. Also included is the book and CD-ROM “TCP/IP Lean, Web Servers for Embedded Systems,” by Jeremy Bentham

11.16 PICDEM 2 Plus Demonstration Board

The PICDEM 2 Plus demonstration board supports many 18-, 28-, and 40-pin microcontrollers, including PIC16F87X and PIC18FXX2 devices. All the necessary hardware and software is included to run the demonstration programs. The sample microcontrollers provided with the PICDEM 2 demonstration board can be programmed with a PRO MATE II device programmer, PICSTART Plus development programmer, or MPLAB ICD 2 with a Universal Programmer Adapter. The MPLAB ICD 2 and MPLAB ICE in-circuit emulators may also be used with the PICDEM 2 demonstration board to test firmware. A prototype area extends the circuitry for additional application components. Some of the features include an RS-232 interface, a 2 x 16 LCD display, a piezo speaker, an on-board temperature sensor, four LEDs, and sample PIC18F452 and PIC16F877 FLASH microcontrollers.

11.17 PICDEM 3 PIC16C92X Demonstration Board

The PICDEM 3 demonstration board supports the PIC16C923 and PIC16C924 in the PLCC package. All the necessary hardware and software is included to run the demonstration programs.

11.18 PICDEM 17 Demonstration Board

The PICDEM 17 demonstration board is an evaluation board that demonstrates the capabilities of several Microchip microcontrollers, including PIC17C752, PIC17C756A, PIC17C762 and PIC17C766. A programmed sample is included. The PRO MATE II device programmer, or the PICSTART Plus development programmer, can be used to reprogram the device for user tailored application development. The PICDEM 17 demonstration board supports program download and execution from external on-board FLASH memory. A generous prototype area is available for user hardware expansion.

DS40039C-page 82  2003 Microchip Technology Inc.

PIC16F630/676

11.19 PICDEM 18R PIC18C601/801 Demonstration Board

The PICDEM 18R demonstration board serves to assist development of the PIC18C601/801 family of Microchip microcontrollers. It provides hardware implementation of both 8-bit Multiplexed/De-multiplexed and 16-bit Memory modes. The board includes 2 Mb external FLASH memory and 128 Kb SRAM memory, as well as serial EEPROM, allowing access to the wide range of memory types supported by the PIC18C601/801.

11.20 PICDEM LIN PIC16C43X Demonstration Board

The powerful LIN hardware and software kit includes a series of boards and three PICmicro microcontrollers. The small footprint PIC16C432 and PIC16C433 are used as slaves in the LIN communication and feature on-board LIN transceivers. A PIC16F874 FLASH microcontroller serves as the master. All three microcontrollers are programmed with firmware to provide LIN bus communication.

11.21 PICkit

A complete "development system in a box", the PICkit FLASH Starter Kit includes a convenient multi-section board for programming, evaluation, and development of 8/14-pin FLASH PIC USB, the board operates under a simple Windows GUI. The PICkit 1 Starter Kit includes the user's guide (on CD ROM), PICkit ous applications. Also included are MPLAB grated Development Environment) software, software and hardware "Tips 'n Tricks for 8-pin FLASH PIC Microcontrollers" Handbook and a USB Interface Cable. Supports all current 8/14-pin FLASH PIC microcontrollers, as well as many future planned devices.

1 FLASH Starter Kit

microcontrollers. Powered via

1 tutorial software and code for vari-

IDE (Inte-

11.22 PICDEM USB PIC16C7X5 Demonstration Board

The PICDEM USB Demonstration Board shows off the capabilities of the PIC16C745 and PIC16C765 USB microcontrollers. This board provides the basis for future USB products.

11.23 Evaluation and Programming Tools

In addition to the PICDEM series of circuits, Microchip has a line of evaluation kits and demonstration software for these products.

EELOQ evaluation and programming tools for

•K

Microchip’s HCS Secure Data Products

• CAN developers kit for automotive network

applications

• Analog design boards and filter design software

• PowerSmart battery charging evaluation/

calibration kits

•IrDA

• microID development and rfLab

• SEEVAL

• PICDEM MSC demo boards for Switching mode

Check the Microchip web page and the latest Product Line Card for the complete list of demonstration and evaluation kits.

development kit

development

software

endurance calculations

power supply, high power IR driver, delta sigma ADC, and flow rate sensor

designer kit for memory evaluation and

 2003 Microchip Technology Inc. DS40039C-page 83

PIC16F630/676

NOTES:

DS40039C-page 84  2003 Microchip Technology Inc.

PIC16F630/676

12.0 ELECTRICAL SPECIFICATIONS

Absolute Maximum Ratings†

Ambient temperature under bias........................................................................................................... -40 to +125°C

Storage temperature ........................................................................................................................ -65°C to +150°C

Voltage on V

Voltage on MCLR

Voltage on all other pins with respect to V

Total power dissipation

Maximum current out of V

Maximum current into V

Input clamp current, I

Output clamp current, I

Maximum output current sunk by any I/O pin.................................................................................................... 25 mA

Maximum output current sourced by any I/O pin ..............................................................................................25 mA

Maximum current sunk by PORTA and PORTC (combined) ..........................................................................200 mA

Maximum current sourced PORTA and PORTC (combined).......................................................................... 200 mA

DD with respect to VSS ..................................................................................................... -0.3 to +6.5V

with respect to Vss .................................................................................................. -0.3 to +13.5V

SS ........................................................................... -0.3V to (VDD + 0.3V)

(1)

............................................................................................................................... 800 mW

SS pin .....................................................................................................................300 mA

DD pin ........................................................................................................................ 250 mA

IK (VI < 0 or VI > VDD)...............................................................................................................± 20 mA

OK (Vo < 0 or Vo >VDD).........................................................................................................± 20 mA

Note 1: Power dissipation is calculated as follows: P

DIS = VDD x {IDD - ∑ IOH} + ∑ {(VDD-VOH) x IOH} + ∑(VOl x IOL).

† NOTICE: Stresses above those listed under ‘Absolute Maximum Ratings’ may cause permanent damage to the device. This is a stress rating only and functional operation of the device at those or any other conditions above those indicated in the operation listings of this specification is not implied. Exposure to maximum rating conditions for extended periods may affect device reliability.

Note: Voltage spikes below VSS at the MCLR pin, inducing currents greater than 80 mA, may cause latchup. Thus,

a series resistor of 50-100 this pin directly to V

Ω should be used when applying a "low" level to the MCLR pin, rather than pulling

SS.

 2003 Microchip Technology Inc. DS40039C-page 85

PIC16F630/676

FIGURE 12-1: PIC16F630/676 WITH A/D DISABLED VOLTAGE-FREQUENCY GRAPH,

(Volts)

-40°C ≤ T

5.5

5.0

4.5

4.0

3.5

3.0

2.5

2.0

A ≤ +125°C

Note 1: The shaded region indicates the permissible combinations of voltage and frequency.

81612 20

Frequency (MHz)

FIGURE 12-2: PIC16F676 WITH A/D ENABLED VOLTAGE-FREQUENCY GRAPH,

A ≤ +125°C

(Volts)

-40°C ≤ T

5.5

5.0

4.5

4.0

3.5

3.0

2.5

2.0

Note 1: The shaded region indicates the permissible combinations of voltage and frequency.

DS40039C-page 86  2003 Microchip Technology Inc.

81612 20

Frequency (MHz)

PIC16F630/676

FIGURE 12-3: PIC16F676 WITH A/D ENABLED VOLTAGE-FREQUENCY GRAPH,

(Volts)

0°C ≤ T

5.5

5.0

4.5

4.0

3.5

3.0

2.5

2.2

2.0

A ≤ +125°C

Note 1: The shaded region indicates the permissible combinations of voltage and frequency.

81612 20

Frequency (MHz)

 2003 Microchip Technology Inc. DS40039C-page 87

PIC16F630/676

12.1 DC Characteristics: PIC16F630/676-I (Industrial), PIC16F630/676-E (Extended)

Standard Operating Conditions (unless otherwise stated)

DC CHARACTERISTICS

Param

No.

Sym Characteristic Min Typ† Max Units Conditions

DD Supply Voltage

V D001 D001A D001B D001C D001D

D002 V

D003 V

DR RAM Data Retention

Vol tage

POR VDD Start Voltage to

(1)

ensure internal Power-on Reset signal

D004 S

VDD VDD Rise Rate to ensure

internal Power-on Reset signal

D005 V

BOD —2.1— V

* These parameters are characterized but not tested. † Data in "Typ" column is at 5.0V, 25°C unless otherwise stated. These parameters are for design guidance

only and are not tested.

Note 1: This is the limit to which V

DD can be lowered in SLEEP mode without losing RAM data.

Operating temperature -40°C ≤ TA ≤ +85°C for industrial

A ≤ +125°C for extended

OSC < = 4 MHz:

Z < FOSC < = 10 MHz

2.0

2.2

2.5

3.0

4.5

— — — — —

5.5

-40°C ≤ T

PIC16F630/676 with A/D off

PIC16F676 with A/D on, 0°C to +125°C

PIC16F676 with A/D on, -40°C to +125°C

4 MH

1.5* — — V Device in SLEEP mode

—VSS — V See section on Power-on Reset for details

0.05* — — V/ms See section on Power-on Reset for details

DS40039C-page 88  2003 Microchip Technology Inc.

12.2 DC Characteristics: PIC16F630/676-I (Industrial)

Standard Operating Conditions (unless otherwise stated)

Operating temperature -40°C ≤ T

PIC16F630/676

A ≤ +85°C for industrial

Param

No.

D010 Supply Current (I

Device Characteristics Min Typ† Max Units

DD) —916µA2.0FOSC = 32 kHz

—1828 µA3.0

DD Note

LP Oscillator Mode

—3554 µA5.0

D011 — 110 150 µA2.0F

— 190 280 µA3.0

OSC = 1 MHz

XT Oscillator Mode

— 330 450 µA5.0

D012 — 220 280 µA2.0F

— 370 650 µA3.0

OSC = 4 MHz

XT Oscillator Mode

— 0.6 1.4 mA 5.0

D013 — 70 110 µA2.0F

— 140 250 µA3.0

OSC = 1 MHz

EC Oscillator Mode

— 260 390 µA5.0

D014 — 180 250 µA2.0F

— 320 470 µA3.0

OSC = 4 MHz

EC Oscillator Mode

— 580 850 µA5.0

D015 — 340 450 µA2.0F

— 500 780 µA3.0

OSC = 4 MHz

INTOSC Mode

— 0.8 1.1 mA 5.0

D016 — 180 250 µA2.0F

— 320 450 µA3.0

OSC = 4 MHz

EXTRC Mode

— 580 800 µA5.0

D017 — 2.1 2.95 mA 4.5 F

— 2.4 3.0 mA 5.0

OSC = 20 MHz

HS Oscillator Mode

† Data in ‘Typ’ column is at 5.0V, 25°C unless otherwise stated. These parameters are for design guidance

only and are not tested.

Note 1: The test conditions for all I

from rail to rail; all I/O pins tri-stated, pulled to V

DD measurements in Active Operation mode are: OSC1 = external square wave,

DD; MCLR = VDD; WDT disabled.

2: The supply current is mainly a function of the operating voltage and frequency. Other factors such as I/O

pin loading and switching rate, oscillator type, internal code execution pattern, and temperature also have an impact on the current consumption.

Conditions

 2003 Microchip Technology Inc. DS40039C-page 89

PIC16F630/676

12.3 DC Characteristics: PIC16F630/676-I (Industrial)

Standard Operating Conditions (unless otherwise stated)

Operating temperature -40°C ≤ T

A ≤ +85°C for industrial

Param

No.

Device Characteristics Min Typ† Max Units

D020 Power-down Base Current

PD)

DD Note

— 0.99 700 nA 2.0 WDT, BOD, Comparators, V

— 1.2 770 nA 3.0

and T1OSC disabled

Conditions

— 2.9 995 nA 5.0

D021 — 0.3 1.5 µA 2.0 WDT Current

(1)

— 1.8 3.5 µA3.0 —8.417 µA5.0

D022 — 58 70 µA 3.0 BOD Current

(1)

— 109 130 µA5.0

D023 — 3.3 6.5 µA 2.0 Comparator Current

— 6.1 8.5 µA3.0 —11.516 µA5.0

D024 — 58 70 µA2.0CV

REF Current

(1)

— 85 100 µA3.0 — 138 160 µA5.0

D025 — 4.0 6.5 µA 2.0 T1 O

SC Current

(1)

— 4.6 7.0 µA3.0 — 6.0 10.5 µA5.0

D026 — 1.2 755 nA 3.0 A/D Current

(1)

— 0.0022 1.0 µA5.0

† Data in ‘Typ’ column is at 5.0V, 25°C unless otherwise stated. These parameters are for design guidance

only and are not tested.

Note 1: The peripheral current is the sum of the base I

DD or IPD and the additional current consumed when this

peripheral is enabled. The peripheral ∆ current can be determined by subtracting the base I current from this limit. Max values should be used when calculating total current consumption.

2: The power-down current in SLEEP mode does not depend on the oscillator type. Power-down current is

measured with the part in SLEEP mode, with all I/O pins in hi-impedance state and tied to V

REF,

(1)

DD or IPD

DD.

DS40039C-page 90  2003 Microchip Technology Inc.

12.4 DC Characteristics: PIC16F630/676-E (Extended)

Standard Operating Conditions (unless otherwise stated)

Operating temperature -40°C ≤ T

PIC16F630/676

A ≤ +125°C for extended

Param

No.

D010E Supply Current (I

Device Characteristics Min Typ† Max Units

DD) —916µA2.0FOSC = 32 kHz

—1828 µA3.0

DD Note

LP Oscillator Mode

—3554 µA5.0

D011E — 11 0 1 5 0 µA2.0F

— 190 280 µA3.0

OSC = 1 MHz

XT Oscillator Mode

— 330 450 µA5.0

D012E — 220 280 µA2.0F

— 370 650 µA3.0

OSC = 4 MHz

XT Oscillator Mode

— 0.6 1.4 mA 5.0

D013E — 70 110 µA2.0F

— 140 250 µA3.0

OSC = 1 MHz

EC Oscillator Mode

— 260 390 µA5.0

D014E — 180 250 µA2.0F

— 320 470 µA3.0

OSC = 4 MHz

EC Oscillator Mode

— 580 850 µA5.0

D015E — 340 450 µA2.0F

— 500 780 µA3.0

OSC = 4 MHz

INTOSC Mode

— 0.8 1.1 mA 5.0

D016E — 180 250 µA2.0F

— 320 450 µA3.0

OSC = 4 MHz

EXTRC Mode

— 580 800 µA5.0

D017E — 2.1 2.95 mA 4.5 F

— 2.4 3.0 mA 5.0

OSC = 20 MHz

HS Oscillator Mode

† Data in ‘Typ’ column is at 5.0V, 25°C unless otherwise stated. These parameters are for design guidance

only and are not tested.

Note 1: The test conditions for all I

from rail to rail; all I/O pins tri-stated, pulled to V

DD measurements in Active Operation mode are: OSC1 = external square wave,

DD; MCLR = VDD; WDT disabled.

2: The supply current is mainly a function of the operating voltage and frequency. Other factors such as I/O

pin loading and switching rate, oscillator type, internal code execution pattern, and temperature also have an impact on the current consumption.

Conditions

 2003 Microchip Technology Inc. DS40039C-page 91

PIC16F630/676

12.5 DC Characteristics: PIC16F630/676-E (Extended)

Standard Operating Conditions (unless otherwise stated)

Operating temperature -40°C ≤ T

A ≤ +125°C for extended

Param

No.

Device Characteristics Min Typ† Max Units

D020E Power-down Base Current

PD)

DD Note

— 0.00099 3.5 µA 2.0 WDT, BOD, Comparators, V — 0.0012 4.0 µA3.0

Conditions

and T1OSC disabled

— 0.0029 8.0 µA5.0

D021E — 0.3 6.0 µA2.0WDT Current

(1)

—1.89.0µA3.0 —8.420µA5.0

D022E — 58 70 µA 3.0 BOD Current

(1)

— 109 130 µA5.0

D023E — 3.3 10 µA 2.0 Comparator Current

—6.113µA3.0 — 11.5 24 µA5.0

D024E — 58 70 µA2.0CV

REF Current

(1)

—85100µA3.0 — 138 165 µA5.0

D025E — 4.0 10 µA 2.0 T1 O

SC Current

(1)

—4.612µA3.0 —6.020µA5.0

D026E — 0.0012 6.0 µA 3.0 A/D Current

(1)

— 0.0022 8.5 µA5.0

† Data in ‘Typ’ column is at 5.0V, 25°C unless otherwise stated. These parameters are for design guidance

only and are not tested.

Note 1: The peripheral current is the sum of the base I

DD or IPD and the additional current consumed when this

peripheral is enabled. The peripheral ∆ current can be determined by subtracting the base I current from this limit. Max values should be used when calculating total current consumption.

2: The power-down current in SLEEP mode does not depend on the oscillator type. Power-down current is

measured with the part in SLEEP mode, with all I/O pins in hi-impedance state and tied to V

REF,

(1)

DD or IPD

DD.

DS40039C-page 92  2003 Microchip Technology Inc.

PIC16F630/676

12.6 DC Characteristics: PIC16F630/676-I (Industrial), PIC16F630/676-E (Extended)

Standard Operating Conditions (unless otherwise stated)

DC CHARACTERISTICS

Param

Sym Characteristic Min Typ† Max Units Conditions

No.

Input Low Voltage

IL I/O ports

D030 with TTL buffer V D030A V D031 with Schmitt Trigger buffer V D032 MCLR

, OSC1 (RC mode) VSS D033 OSC1 (XT and LP modes) V D033A OSC1 (HS mode) V

Input High Voltage

IH I/O ports

D040

with TTL buffer 2.0

D040A D041 with Schmitt Trigger buffer 0.8 V D042 MCLR D043 OSC1 (XT and LP modes) 1.6 D043A OSC1 (HS mode) 0.7 V D043B OSC1 (RC mode) 0.9 V D070 I

PUR PORTA Weak Pull-up

Current

Input Leakage Current

D060 IIL I/O ports

D060A Analog inputs D060B VREF D061 MCLR

(2)

D063 OSC1

Output Low Voltage

D080 V

OL I/O ports

D083 OSC2/CLKOUT (RC mode)

Output High Voltage

D090 V

OH I/O ports VDD - 0.7

D092 OSC2/CLKOUT (RC mode) V

* These parameters are characterized but not tested.

† Data in ‘Typ’ column is at 5.0V, 25°C unless otherwise stated. These parameters are for design guidance only

and are not tested.

Note 1: In RC oscillator configuration, the OSC1/CLKIN pin is a Schmitt Trigger input. It is not recommended to use

an external clock in RC mode.

2: The leakage current on the MCLR

represent normal operating conditions. Higher leakage current may be measured at different input voltages.

3: Negative current is defined as current sourced by the pin.

Operating temperature -40°C ≤ TA ≤ +85°C for industrial

A ≤ +125°C for extended

0.8 V 4.5V ≤ VDD ≤ 5.5V

0.3 V (Note 1)

VV4.5V ≤ VDD ≤ 5.5V

otherwise

(0.25 V

0.8 VDD

DD+0.8)

-40°C ≤ T

—

0.15 VDD VOtherwise

—

0.2 VDD V Entire range

—

0.2 VDD V

—

0.3 VDD V (Note 1)

—

— —

—

VDD VDD

VDD entire range VDD V VDD V (Note 1) VDD V (Note 1) VDD V

50* 250 400* µAVDD = 5.0V, VPIN = VSS

(3)

—

± 0.1 ± 1 µAVSS ≤ VPIN ≤ VDD,

Pin at hi-impedance

—

± 0.1 ± 1 µAVSS ≤ VPIN ≤ VDD ± 0.1 ± 1 µAVSS ≤ VPIN ≤ VDD ± 0.1 ± 5 µAVSS ≤ VPIN ≤ VDD ± 0.1 ± 5 µAVSS ≤ VPIN ≤ VDD, XT, HS and

LP osc configuration

——

DD - 0.7

——

0.6 V IOL = 8.5 mA, VDD = 4.5V (Ind.)

0.6 V IOL = 1.6 mA, VDD = 4.5V (Ind.)

OL = 1.2 mA, VDD = 4.5V (Ext.)

VIOH = -3.0 mA, VDD = 4.5V (Ind.) VIOH = -1.3 mA, VDD = 4.5V (Ind.)

OH = -1.0 mA, VDD = 4.5V (Ext.)

pin is strongly dependent on the applied voltage level. The specified levels

 2003 Microchip Technology Inc. DS40039C-page 93

PIC16F630/676

12.7 DC Characteristics: PIC16F630/676-I (Industrial), PIC16F630/676-E (Extended) (Cont.)

Standard Operating Conditions (unless otherwise stated)

DC CHARACTERISTICS

Param

No.

Sym Characteristic Min Typ† Max Units Conditions

Capacitive Loading Specs on Output Pins

D100 C

D101 C

OSC2 OSC2 pin — — 15* pF In XT, HS and LP modes when

IO All I/O pins — — 50* pF

Data EEPROM Memory

D120 E D120A E D121 V

D122 T D123 T

D124 T

D Byte Endurance 100K 1M — E/W -40°C ≤ TA ≤ +85°C D Byte Endurance 10K 100K — E/W +85°C ≤ TA ≤ +125°C DRW VDD for Read/Write VMIN — 5.5 V Using EECON to read/write

DEW Erase/Write cycle time — 5 6 ms RETD Characteristic Retention 40 — — Year Provided no other specifications

REF Number of Total Erase/Write

Cycles before Refresh

(1)

Program FLASH Memory

D130 E D130A E D131 V

D132 V D133 T D134 T

P Cell Endurance 10K 100K — E/W -40°C ≤ TA ≤ +85°C D Cell Endurance 1K 10K — E/W +85°C ≤ TA ≤ +125°C PR VDD for Read VMIN —5.5VVMIN = Minimum operating

PEW VDD for Erase/Write 4.5 — 5.5 V PEW Erase/Write cycle time — 2 2.5 ms RETD Characteristic Retention 40 — — Year Provided no other specifications

* These parameters are characterized but not tested.

† Data in ‘Typ’ column is at 5.0V, 25°C unless otherwise stated. These parameters are for design guidance

only and are not tested.

Note 1: See Section 8.5.1 for additional information.

Operating temperature -40°C ≤ TA ≤ +85°C for industrial

-40°C ≤ T

A ≤ +125°C for extended

external clock is used to drive OSC1

MIN = Minimum operating

V voltage

are violated

1M 10M — E/W -40°C ≤ TA ≤ +85°C

voltage

are violated

DS40039C-page 94  2003 Microchip Technology Inc.

PIC16F630/676

12.8 TIMING PARAMETER SYMBOLOGY

The timing parameter symbols have been created with one of the following formats:

1. TppS2ppS

2. TppS

F Frequency T Time Lowercase letters (pp) and their meanings:

cc CCP1 osc OSC1 ck CLKOUT rd RD cs CS rw RD or WR di SDI sc SCK do SDO ss SS dt Data in t0 T0CKI io I/O port t1 T1CKI mc MCLR Uppercase letters and their meanings:

F Fall P Period HHigh RRise I Invalid (Hi-impedance) V Valid L Low Z Hi-impedance

wr WR

FIGURE 12-4: LOAD CONDITIONS

Load Condition 1 Load Condition 2

VDD/2

Pin Pin

RL =464Ω

L = 50 pF for all pins

15 pF for OSC2 output

 2003 Microchip Technology Inc. DS40039C-page 95

PIC16F630/676

12.9 AC CHARACTERISTICS: PIC16F630/676 (INDUSTRIAL, EXTENDED)

FIGURE 12-5: EXTERNAL CLOCK TIMING

Q4 Q1 Q2 Q3 Q4 Q1

OSC1

CLKOUT

TABLE 12-1: EXTERNAL CLOCK TIMING REQUIREMENTS

Param

No.

Sym Characteristic Min Typ† Max Units Conditions

OSC External CLKIN Frequency

(1)

DC — 37 kHz LP Osc mode

DC — 4 MHz XT mode DC — 20 MHz HS mode DC — 20 MHz EC mode

Oscillator Frequency

(1)

5 — 37 kHz LP Osc mode

— 4 — MHz INTOSC mode

DC — 4 MHz RC Osc mode

0.1 — 4 MHz XT Osc mode 1 — 20 MHz HS Osc mode

OSC External CLKIN Period

(1)

27 — ∞µs LP Osc mode 50 — ∞ ns HS Osc mode 50 — ∞ ns EC Osc mode

250 — ∞ ns XT Osc mode

Oscillator Period

(1)

27 200 µs LP Osc mode

— 250 — ns INTOSC mode 250 — — ns RC Osc mode 250 — 10,000 ns XT Osc mode

50 — 1,000 ns HS Osc mode

3 TosL,

4TosR,

To sH

To sF

Instruction Cycle Time External CLKIN (OSC1) High

External CLKIN Low

External CLKIN Rise External CLKIN Fall

(1)

200 TCY DC ns TCY = 4/FOSC

2* — — µs LP oscillator, T

20* — — ns HS oscillator, T

100 * — — ns XT oscillator, T

OSC L/H duty cycle

— — 50* ns LP oscillator

— — 25* ns XT oscillator

— — 15* ns HS oscillator

* These parameters are characterized but not tested. † Data in ‘Typ’ column is at 5V, 25°C unless otherwise stated. These parameters are for design guidance only

and are not tested.

Note 1: Instruction cycle period (T

CY) equals four times the input oscillator time-base period. All specified values are

based on characterization data for that particular oscillator type under standard operating conditions with the device executing code. Exceeding these specified limits may result in an unstable oscillator operation and/or higher than expected current consumption. All devices are tested to operate at ‘min’ values with an external clock applied to OSC1 pin. When an external clock input is used, the ‘max’ cycle time limit is ‘DC’ (no clock) for all devices.

DS40039C-page 96  2003 Microchip Technology Inc.

PIC16F630/676

TABLE 12-2: PRECISION INTERNAL OSCILLATOR PARAMETERS

Param

No.

F10

Sym Characteristic

OSC

Internal Calibrated INTOSC Frequency

F14

TIOSC

Oscillator Wake-up from

SLEEP start-up time*

* These parameters are characterized but not tested. † Data in ‘Typ’ column is at 5.0V, 25°C unless otherwise stated. These parameters are for design guidance

only and are not tested.

Freq

Tole rance

Min Typ† Max Units Conditions

±1 3.96 4.00 4.04 MHz V ±2 3.92 4.00 4.08 MHz 2.5V ≤ V

±5 3.80 4.00 4.20 MHz 2.0V ≤ V

——6 8µsV ——4 6µsV ——3 5µsV

DD = 3.5V, 25°C

DD ≤ 5.5V

A ≤ +85°C

0°C ≤ T

DD ≤ 5.5V

-40°C ≤ T

DD = 2.0V, -40°C to +85°C DD = 3.0V, -40°C to +85°C DD = 5.0V, -40°C to +85°C

A ≤ +85°C (IND) A ≤ +125°C (EXT)

 2003 Microchip Technology Inc. DS40039C-page 97

PIC16F630/676

FIGURE 12-6: CLKOUT AND I/O TIMING

OSC1

CLKOUT

I/O pin (Input)

I/O pin (Output)

Old Value

22 23

20, 21

Q2 Q3

New Value

TABLE 12-3: CLKOUT AND I/O TIMING REQUIREMENTS

Param

No.

10 TosH2ckL OSC1↑ to CLOUT↓ —75200ns(Note 1)

11 TosH2ckH O S C1↑ to CLOUT↑ —75200ns(Note 1)

12 TckR CLKOUT rise time — 35 100 ns (Note 1)

13 TckF CLKOUT fall time — 35 100 ns (Note 1) 14 TckL2ioV CLKOUT↓ to Port out valid — — 20 ns (Note 1) 15 TioV2ckH Port in valid before CLKOUT↑ T 16 TckH2ioI Port in hold after CLKOUT↑ 0 — — ns (Note 1) 17 TosH2ioV OSC1↑ (Q1 cycle) to Port out valid — 50 150 * ns

18 TosH2ioI OSC1↑ (Q2 cycle) to Port input

19 TioV2osH Port input valid to OSC1↑

20 TioR Port output rise time — 10 40 ns

21 TioF Port output fall time — 10 40 ns

22 Tinp INT pin high or low time 25 — — ns

23 Trbp PORTA change INT high or low

* These parameters are characterized but not tested.

† Data in ‘Typ’ column is at 5.0V, 25°C unless otherwise stated.

Note 1: Measurements are taken in RC mode where CLKOUT output is 4xT

Sym Characteristic Min Typ† Max Units Conditions

OSC + 200 ns — — ns (Note 1)

——300ns

100 — — ns

invalid (I/O in hold time)

0——ns

(I/O in setup time)

CY ——ns

time

OSC.

DS40039C-page 98  2003 Microchip Technology Inc.

MICROCHIP PIC16F630, PIC16F676 Technical data

Specifications and Main Features

Frequently Asked Questions

User Manual

14-Pin FLASH-Based 8-Bit CMOS Microcontroller

1.0 DEVICE OVERVIEW

FIGURE 1-1: PIC16F630/676 BLOCK DIAGRAM

TABLE 1-1: PIC16F630/676 PINOUT DESCRIPTION

2.0 MEMORY ORGANIZATION

2.1 Program Memory Organization

2.2 Data Memory Organization

TABLE 2-1: PIC16F630/676 SPECIAL REGISTERS SUMMARY BANK 0

TABLE 2-2: PIC16F630/676 SPECIAL FUNCTION REGISTERS SUMMARY BANK 1

2.3 PCL and PCLATH

2.4 Indirect Addressing, INDF and FSR Registers

FIGURE 2-4: DIRECT/INDIRECT ADDRESSING PIC16F630/676

3.0 PORTS A AND C

3.1 PORTA and the TRISA Registers

3.2 Additional Pin Functions

FIGURE 3-2: BLOCK DIAGRAM OF RA2

FIGURE 3-3: BLOCK DIAGRAM OF RA3

FIGURE 3-4: BLOCK DIAGRAM OF RA4

FIGURE 3-5: BLOCK DIAGRAM OF RA5

TABLE 3-1: SUMMARY OF REGISTERS ASSOCIATED WITH PORTA

3.3 PORTC

TABLE 3-2: SUMMARY OF REGISTERS ASSOCIATED WITH PORTC

4.0 TIMER0 MODULE

4.1 Timer0 Operation

4.2 Timer0 Interrupt

FIGURE 4-1: BLOCK DIAGRAM OF THE TIMER0/WDT PRESCALER

4.3 Using Timer0 with an External Clock

4.4 Prescaler

TABLE 4-1: REGISTERS ASSOCIATED WITH TIMER0

5.0 TIMER1 MODULE WITH GATE CONTROL

FIGURE 5-1: TIMER1 BLOCK DIAGRAM

5.1 Timer1 Modes of Operation

FIGURE 5-2: TIMER1 INCREMENTING EDGE

5.2 Timer1 Interrupt

5.3 Timer1 Prescaler

5.4 Timer1 Operation in Asynchronous Counter Mode

5.5 Timer1 Oscillator

5.6 Timer1 Operation During SLEEP

TABLE 5-1: REGISTERS ASSOCIATED WITH TIMER1 AS A TIMER/COUNTER

6.0 COMPARATOR MODULE

6.1 Comparator Operation

FIGURE 6-1: SINGLE COMPARATOR

6.2 Comparator Configuration

FIGURE 6-2: COMPARATOR I/O OPERATING MODES

6.3 Analog Input Connection Considerations

FIGURE 6-3: ANALOG INPUT MODE

6.4 Comparator Output

FIGURE 6-4: MODIFIED COMPARATOR OUTPUT BLOCK DIAGRAM

6.5 Comparator Reference

FIGURE 6-5: COMPARATOR VOLTAGE REFERENCE BLOCK DIAGRAM

6.6 Comparator Response Time

6.7 Operation During SLEEP

6.8 Effects of a RESET

6.9 Comparator Interrupts

TABLE 6-2: REGISTERS ASSOCIATED WITH COMPARATOR MODULE

7.0 ANALOG-TO-DIGITAL CONVERTER (A/D) MODULE (PIC16F676 ONLY)

FIGURE 7-1: A/D BLOCK DIAGRAM

7.1 A/D Configuration and Operation

TABLE 7-1: TAD vs. DEVICE OPERATING FREQUENCIES

FIGURE 7-2: 10-BIT A/D RESULT FORMAT

7.2 A/D Acquisition Requirements

FIGURE 7-3: ANALOG INPUT MODEL

7.3 A/D Operation During SLEEP

7.4 Effects of RESET

TABLE 7-2: SUMMARY OF A/D REGISTERS

8.0 DATA EEPROM MEMORY

8.1 EEADR

8.2 EECON1 AND EECON2 REGISTERS

8.5 WRITE VERIFY

8.6 PROTECTION AGAINST SPURIOUS WRITE

8.7 DATA EEPROM OPERATION DURING CODE PROTECT

TABLE 8-1: REGISTERS/BITS ASSOCIATED WITH DATA EEPROM

9.0 SPECIAL FEATURES OF THE CPU

9.1 Configuration Bits

9.2 Oscillator Configurations

FIGURE 9-3: RC OSCILLATOR MODE
