1 INTRODUCTION
The Michell Instruments Easidew is a 4-20mA loop-powered dew-point transmitter, designed to make dew point measurements in a owing sample. The Easidew transmitter is available with 3 dierent process connections:
5/8" - 18 UNF : Easidew 2-wire, Easidew M12
3/4" - 16 UNF : Easidew 34, Easidew M12
G1/2 : Easidew M12
The Easidew 2-wire is available with a choice of electrical connections:
DIN 43650 Form C
M12 5-Pin
INTRODUCTION
Michell Instruments 1
INSTALLATION
87653 421
2 INSTALLATION
2.1 Unpacking the Instrument
On delivery, please check that all the following standard components are in the packing tube:
Easidew Transmitter
Certicate of Calibration
Connector (for sensor/cable)
The Transmitter will also be supplied with a process seal, which will be tted to the unit. Depending on the version, this will either be a bonded seal (5/8" or G1/2" thread versions) or an o-ring seal (3/4" thread versions).
Unpack the dew-point transmitter tube as follows:
Easidew Transmitter User’s Manual
Figure 1
1. Unscrew the cap (1) from the packing tube (8).
2. Remove the foam block (3) containing the connector (2).
3. Pull out the transmitter (5) from the tube, complete with the two foam covers (6) and (7) and the red protective cap (4).
4. Remove the foam covers from the transmitter but leave the blue plastic protective cover (5) and the red cap (4) in place until ready for installation.
NOTE: The transmitter sensing element is protected while in transit by a blue cover containing a small desiccant capsule. The connection pins are protected by a red plastic cap. None of these plastic items are required for the operation of the transmitter.
NOTE: Keep the connector (2) in a safe place until the transmitter is ready for wiring.
DIN43650 Transmitter Unpacking Method
2 97504 Issue 3.1, May 2019
Easidew Transmitter User’s Manual
2.2 Preparation of the Sensor Cable
The sensor cable is NOT supplied as standard. Cables can be obtained by contacting your local Michell Instruments representative (see www.michell.com for details).
DIN 43650 Version
Cable connection to the Easidew transmitter is made via the removable connector. Removing the central screw enables the connector terminal block to be removed from the outer housing by using a small screwdriver to prise it clear.
O-ring
and washer
INSTALLATION
Figure 2
Connector Terminal Block Removal
Caution: When removing the central screw ensure that the
small sealing O-ring and the washer are retained on the screw
and are present during re-installation.
The sensor cables are terminated as per the following diagram:
BRAID
SCALE 2:1
SHORT
AS POSSIBLE
+POWER
GREEN
SIGNAL (SOURCE)
1
3
RED
2
VIEW ON REAR
OF CONNECTOR
BLUE
GND
4
Figure 3
BRAID
SCREEN
GREEN
YELLOW
BLUE
RED
Wiring Connections
GN
RD BL
GREEN 4-20 mA RED + POWER BLUE - GND / SCREEN
GREEN 4-20 mA
(SOURCE)
BLUE - GND / SCREEN RED + POWER
Note: The screen should only be connected to a ground point at either the transmitter installation side, or at the receiving equipment. Failure to observe this precaution can result in ground loops and equipment malfunction.
Michell Instruments 3
INSTALLATION
M12 5-Pin Version
Cables with moulded M12 connectors are available from Michell Instruments in the following lengths:
0.8m
2m
5m
Easidew Transmitter User’s Manual
Always connect the 4-20 mA return signal to a suitable load
(see
Figure 3)
connection, the transmitter may be damaged if allowed to
PIN 1 Modbus B PIN 2 Modbus A PIN 3 4-20 mA PIN 4 Power supply PIN 5 0V
before the power is applied. Without this
operate for prolonged periods.
4-20 mA 2-wire
M12 5-WAY A CODED
12
5
3 4
Figure 4
The other end of the sensor cable is unterminated, for straightforward connection into the desired monitoring system.
CABLE ASSEMBLY CONNECTIONS FUNCTION PIN WIRE COLOUR
MODBUS B 1 BROWN MODBUS A 2 WHITE 4 - 20 mA 3 BLUE POWER SUPPLY 4 BLACK Ov 5 GREY
Sensor Connector Installation
Figure 5
If longer cable runs are required, o-the-shelf 5-pin M12 cables can be connected between the Easidew transmitter and the cable provided by Michell Instruments.
Note: The screen should only be connected to a ground point at either the transmitter installation side, or at the receiving equipment. Failure to observe this precaution can result in ground loops and equipment malfunction.
Cable connections
4 97504 Issue 3.1, May 2019
Easidew Transmitter User’s Manual
2.3 Cable Connection
DIN 43650 Version
To ensure the specied ingress protection is achieved, when installing the connector, the securing screw (with the O-ring and washer) must be tightened to a minimum torque of 3.4 Nm (2.5 ft-lbs). The sensor cable used must be a minimum diameter of 4.6mm (0.2”).
INSTALLATION
O-ring
and washer
M12 5-Pin Version
The connector should be installed by aligning the locating pin on the transmitter with the slot on the cable. The connector can then be pushed into place and rotated until nger-tight.
2.4 Electrical Schematic
Note: The screen should only be connected to a ground point at either the transmitter installation side, or at the receiving equipment. Failure to observe this precaution can result in ground loops and equipment malfunction.
3
1
Figure 6
Connector Installation
Screen/ Shield
Max Load 200R @ 12V 500R @ 24V
+
Supply 12V Min 28V Max
Figure 7
2-Wire Connection Diagram
Michell Instruments 5
INSTALLATION
2.4.1 Electrical Boundaries
600
500
400
300
Resistance (ohms)
200
Easidew Transmitter User’s Manual
100
12 14 16 18 20 22 24 26 28
Supply Voltage
Figure 8
2.4.2 Digital Communication (M12 Version only)
Modbus RTU over RS485 communication is available on the Easidew M12, and can be used simultaneously with the 2-wire current output. Section 2.2 describes the electrical connections to the transmitter.
The Modbus register map can be found at the end of this manual.
2.5 Transmitter Installation

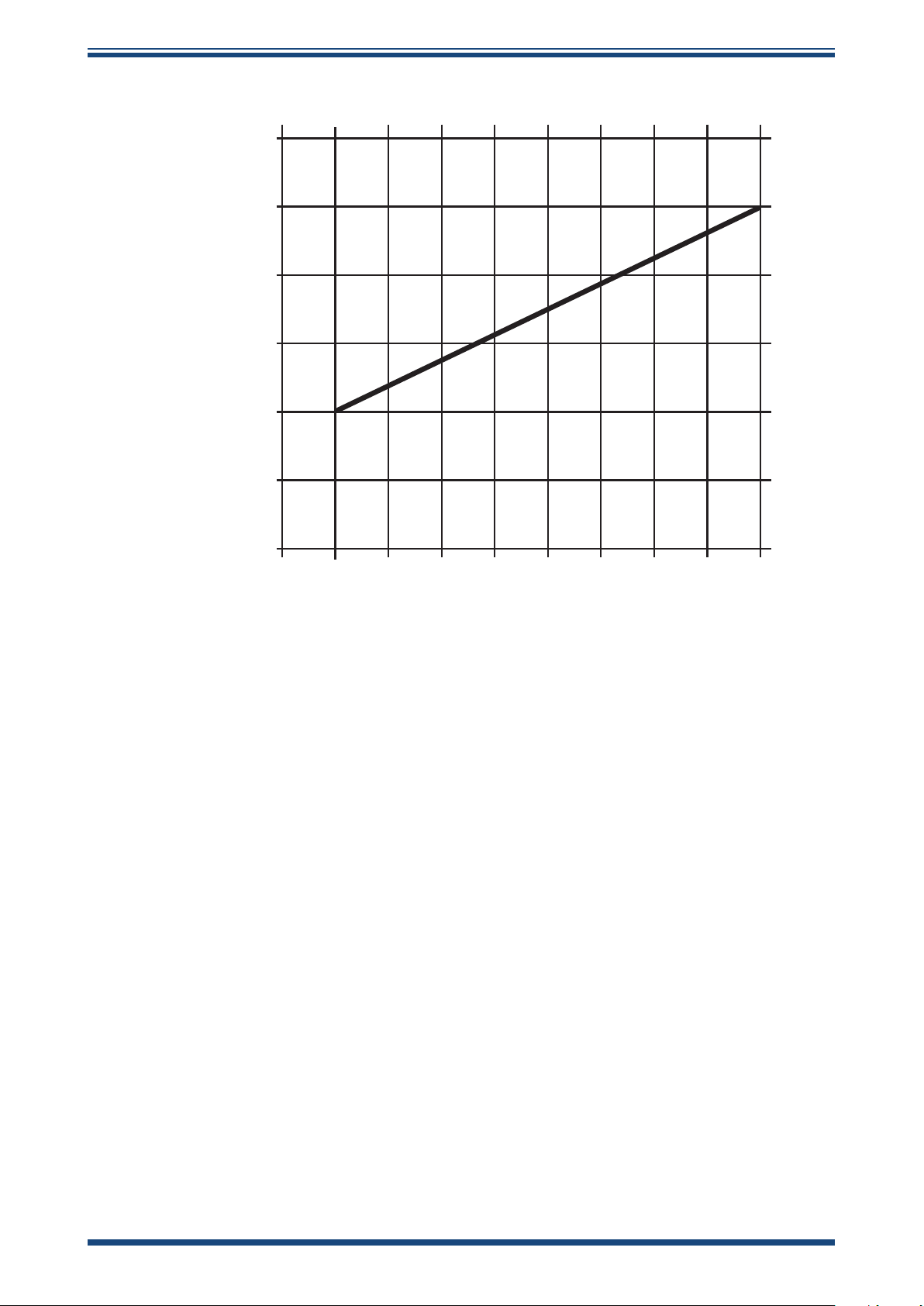

Maximum Load of Easidew - Including Cable Resistance
2.5.1 Sampling Considerations
There are two basic methods of measuring a sample with the Easidew Transmitter: In-situ measurements are made by placing the transmitter inside the environment to be measured. Extractive measurements are made by installing the sensor into a block within a sample handling system, and owing the sample outside of the environment to be measured through this system.
Extractive measurements are recommended when the conditions in the environment to be measured are not conducive to making reliable measurements with the product.
6 97504 Issue 3.1, May 2019
Easidew Transmitter User’s Manual
Examples of such conditional limitations are:
Excessive ow rate
Presence of particulates matter
Presence of entrained liquids
Excessive sample temperature
The basic considerations for each measurement type are as follows:
In-Situ
1. Dew-Point Sensor Position – will the sensor see an area of the
environment that is representative of what you want to measure?
For example, if the sensor is to be mounted into a glove box, there are three dierent positions in which it could be installed – each giving a dierent measurement:
Position A is on the purge inlet. In this position the sensor will conrm the dew point of the gas entering the glove box, but will not detect any leaks in the glove box itself, or any moisture released from the work piece.
INSTALLATION
Position B is on the gas outlet. In this position the sensor will be exposed to the gas leaving the glove box, and will therefore be detecting any moisture which has entered into the system (e.g. ingress/leaks), or has been released by the work piece.
Position C is in the glovebox itself, in this position the sensor will be only detecting any moisture in its immediate vicinity. Leaks not in close proximity to the measurement point may not be detected as this moisture could be drawn directly to the outlet.
A
1 2
B
C
1. Purge Inlet
2. Gas Outlet
Figure 9
If the transmitter is to be mounted directly into a pipe or duct, then consider that the installation point should not be too close to the bottom of a bend where oil or other condensate may collect.
Installation Location
Michell Instruments 7
INSTALLATION
Easidew Transmitter User’s Manual
Figure 10
2. Gas speed – if you are planning on installing the sensor in a duct, consider how fast the sample gas is moving through it.
If the gas speed is very low, or occasionally static, then the moisture content through the length (and width, if it is more than a few cm across) of the duct is unlikely to be uniform.
Extremely high gas speeds can cause damage to the sensor. Direct insertion is not recommended in gas speeds in excess of 10m/s (32.8ft/s).
3. Particulates – Particulates travelling at speed can cause severe and irreversible damage to the sensor. At low velocity they can cling to the sensor, reducing its’ surface area, and therefore response speed.
The sensor is provided with a basic level of particulate protection in the form of a sintered guard; either HDPE (10μm pore size) or Stainless Steel (80μm pore size). If the sample stream contains smaller particulates than this, or generally large amounts of dust; extractive measurement is recommended to accommodate proper in-line ltration.
Installation Location
4. Sample Temperature – Although the Easidew can be operated at sample temperatures up to 70°C, it is advisable to keep the sample temperature as close to ambient, and as stable as possible to keep adsorption & desorption characteristics as consistent as possible (see section X.X Sampling Hints for more information).
Extractive
If the sensor is to be mounted into a sample conditioning system, then the above points are still of relevance, but it is important to consider the extraction point itself – make sure that the chosen extraction point is representative of the process, i.e. that the sample of interest is owing past the extraction point, and it is not being pulled from a dead volume.
8 97504 Issue 3.1, May 2019
Easidew Transmitter User’s Manual
2
INSTALLATION
1
2.5.2 Sampling Hints
Measurement of moisture content is a complex subject, but does not need to be dicult. This section aims to explain the common mistakes made in measurement situations, the causes of the problem, and how to avoid them. Mistakes and bad practices can cause the measurement to vary from the expectation; therefore a good sampling technique is crucial for accurate and reliable results.
2a
Figure 11
4
3
Transmitter Mounting - Sensor Block
Figure 12
All materials are permeable to water vapour, as the water molecule is extremely small compared to the structure of solids, even when compared to the crystalline structure of metals. The graph above shows the dew point inside tubing of dierent materials when purged with very dry gas, where the exterior of the tubing is in the ambient environment.
Many materials contain moisture as part of their structure, particularly organic materials (natural or synthetic), salts (or anything which contains them) and anything which has small pores. It is important to ensure that the materials used are suitable for the application.
If the partial water vapour pressure exerted on the outside of a compressed air line is higher than on the inside, the atmospheric water vapour will naturally push through the
Material Permeability Comparison
Michell Instruments 9
INSTALLATION
porous medium causing water to migrate into the pressurised air line. This eect is called transpiration.
Adsorption and Desorption
Adsorption is the adhesion of atoms, ions, or molecules from a gas, liquid, or dissolved solid to the surface of a material, creating a lm. The rate of adsorption is increased at higher pressures and lower temperatures.
Desorption is the release of a substance from or through the surface of a material. In constant environmental conditions, an adsorbed substance will remain on a surface almost indenitely. However, as the temperature rises, so does the likelihood of desorption occurring.
In practical terms, as the temperature of the environment uctuates, water molecules are adsorbed and desorbed from the internal surfaces of the sample tubing, causing small uctuations in the measured dew point.
Sample Tubing Length
The sample point should always be as close to the critical measurement point as possible, in order to obtain a truly representative measurement. The length of the sample line to the sensor or instrument should be as short as possible. Interconnection points and valves trap moisture, so using the simplest sampling arrangement possible will reduce the time it takes for the sample system to dry out when purged with dry gas.
Easidew Transmitter User’s Manual
Over a long tubing run, water will inevitably migrate into any line, and the effects of adsorption and desorption will become more apparent. It is clear from the graph shown above that the best materials to resist transpiration are stainless steel and PTFE.
Trapped Moisture
Dead volumes (areas which are not in a direct flow path) in sample lines, hold onto water molecules which are slowly released into the passing gas; this results in increased purge and response times, and wetter than expected readings. Hygroscopic materials in filters, valves (e.g. rubber from pressure regulators) or any other parts of the system can also trap moisture.
Figure 13
Sample Conditioning
Sample conditioning is often necessary to avoid exposure of sensitive measuring components to liquids and other contaminants which may cause damage or affect the accuracy over time, depending on the measurement technology.
Particulate filters are used for removing dirt, rust, scale and any other solids that may be in a sample stream. For protection against liquids, a coalescing filter should be used.
Dead volume
10 97504 Issue 3.1, May 2019
Easidew Transmitter User’s Manual
The membrane filter is a more expensive but highly effective alternative to a coalescing filter. It provides protection from liquid droplets, and can even stop flow to the analyser completely when a large slug of liquid is encountered.
Condensation and Leaks
Maintaining the temperature of the sample system tubing above the dew point of the sample is vital to prevent condensation. Any condensation invalidates the sampling process as it changes the water vapour content of the gas being measured. Condensed liquid can alter the humidity elsewhere by dripping or running to other locations where it may re-evaporate.
The integrity of all connections is also an important consideration, especially when sampling low dew points at an elevated pressure. If a small leak occurs in a high pressure line, gas will leak out but vortices at the leak point and a negative vapour pressure differential will also allow water vapour to contaminate the flow.
Flow Rates
Theoretically flow rate has no direct effect on the measured moisture content, but in practice it can have unanticipated effects on response speed and accuracy. The optimal flow rate varies depending on the measurement technology, and can always be found in the instrument or sensor manual.
INSTALLATION
An inadequate ow rate can:
Accentuate adsorption and desorption eects on the gas passing through the sampling system.
Allow pockets of wet gas to remain undisturbed in a complex sampling system, which will then gradually be released into the sample ow.
Increase the chance of contamination from back diusion: ambient air that is wetter than the sample can ow from the exhaust back into the system. A longer exhaust (sometimes called a pigtail) can also help alleviate this problem.
Slow the response of the sensor to changes in moisture content.
2.5.3 Transmitter Mounting
Once an installation location has been chosen, this point will require a thread to match the transmitter thread. Fixing dimensions are shown in Figure 6. For circular pipework, to ensure the integrity of a gas tight seal, a mounting ange will be required on the pipework in order to provide a at surface to seal against.
Michell Instruments 11
INSTALLATION
Easidew Transmitter User’s Manual
1
2
3
1
2
Figure 14
2.5.3.1 5/8” 18 UNF Version
1. Remove the protective cover and desiccant capsule from the transmitter and retain for future use
2. Prevent any contamination of the sensor before installation by handling the transmitter by the main body only, avoiding contact with the sensor guard.
3. Pass the bonded seal over the 5/8”- 18 UNF mounting thread.
4. Screw the transmitter into the sampling location or sample block by hand using the wrench flats only. DO NOT grip and twist the sensor cover
when installing the sensor.
5. When installed, fully tighten using a wrench to a torque setting of 30.5 Nm (22.5 ft-lbs)
48mm
3
Transmitter Mounting - Pipe or Duct
12 97504 Issue 3.1, May 2019
Easidew Transmitter User’s Manual
2.5.3.2 3/4” - 16 UNF Version
1. Remove the protective cover and desiccant capsule from the transmitter and retain for future use.
2. Prevent any contamination of the sensor before installation by handling the transmitter by the main body only, avoiding contact with the sensor guard.
3. Ensure that the O-ring is seated in the recess at the top of the transmitter body.
4. Screw the transmitter into the sampling location or sample block by hand using the wrench flats only. DO NOT grip and twist the sensor cover
when installing the sensor.
5. When installed, fully tighten using a wrench to a torque setting of 40 Nm (29.5 ft-lbs).
2.5.3.3 G1/2" BSPP Version
INSTALLATION
1. Remove the protective cover and desiccant capsule from the transmitter and retain for future use
2. Prevent any contamination of the sensor before installation by handling the transmitter by the main body only, avoiding contact with the sensor guard.
3. Pass the bonded seal over the G1/2" mounting thread.
4. Screw the transmitter into the sampling location or sample block by hand using the wrench flats only. DO NOT grip and twist the sensor cover
when installing the sensor.
5. When installed, fully tighten using a wrench to a torque setting of 30.5 Nm (22.5 ft-lbs)
2.5.3.4 Installation using Additional Thread Adaptor
1. Remove the protective cover and desiccant capsule from the transmitter and retain for future use
2. Prevent any contamination of the sensor before installation by handling the transmitter by the main body only, avoiding contact with the sensor guard.
3. Pass the bonded seal over the 5/8”- 18 UNF mounting thread.
4. Screw the transmitter into the adaptor, and tighten to 30.5 Nm (22.5 ft-lbs)
5. NOTE: Use the flats of the hexagonal nut and not the sensor body.
6. Screw the transmitter (1) with its seal (3) and adapter (4) into the sampling location block (and fully tighten using a wrench to the following torque settings:
G 1/2” BSP 56 Nm (41.3 ft-lbs)
3/4” - 16 UNF ` 40 Nm (29.5 ft-lbs)
1/2” NPT Use a suitable sealant e.g. PTFE tape using correct taping
procedures
Michell Instruments 13
INSTALLATION
2
r
Easidew Transmitter User’s Manual
2a
4
1
Figure 15
Calibration
Annual recalibration of the Easidew is recommended to maintain the performance. Calibration services traceable to the UK
US
National Institute of Standards and Technology
Instruments.
Transmitter Mounting with Adapter
National Physical Laboratory
3
MAINTENANCE
(NPL) and the
(NIST) are provided by Michell
Michell Instruments oers a variety of re-calibration and exchange sensor schemes to suit specic needs. A Michell representative can provide detailed, custom advice (for Michell Instruments’ contact information go to www.michell.com).
Sensor Guard Replacement
The sensor is supplied with a white HDPE guard (standard) or a stainless steel guard (if specied at time or order).
The sensor guard should be replaced if the surface shows any damage or signs of discolouration. When replacing a guard, make sure to wear clkean disposable gloves, and handle by the threaded base section only.
Replacement HDPE or stainless steel guards can be ordered from your Michell Instruments representative.
HANDLE,
USING
GLOVES, BY BLACK PART
ON LY
E
n
e
H
m
C
u
I
r
6
t
s
0
M
n
9
I
0
Figure 16
Replacement of HDPE Guard
14 97504 Issue 3.1, May 2019
Easidew Transmitter User’s Manual
Bonded Seal
If the supplied bonded seal is damaged or lost, a pack of 5 replacement bonded seals can be obtained by your Michell Instruments representative.
O-ring Seal
If the supplied O-ring seal is damaged or lost a pack of 5 replacement O-ring seals can be obtained by contacting your Michell Instruments representative.
INSTALLATION
Michell Instruments 15
APPENDIX A
Easidew Transmitter User’s Manual
Appendix A
Technical Specications
16 97504 Issue 3.1, May 2019
Easidew Transmitter User’s Manual
APPENDIX A
Appendix A Technical Specications
Product Easidew, Easidew M12 and Easidew 34
Transmitter
Performance Specications
Measurement range –110 to +20°C dew point; –100 to +20°C dew point; non standard ranges available on request
Accuracy ±2°C dew point*
Response time 5 mins to T95 (dry to wet)
Repeatability 0.5°C dew point
Calibration Traceable 13 point calibration certicate
Electrical Specications
Output signal
Output Dew point or moisture content
Analog output scaled range Dew point: –110 up to +20°C; Moisture content in gas: 0– up to 3000 ppm
Supply voltage 12 to 28 V DC
Load resistance Max 250 Ω @ 14 V (500 Ω @ 24 V)
Current consumption 23 mA max, depending on output signal
CE conformity 2014/30/EU
UL approval Approved
UL61010-1 & CAN/CSA C22.2 No. 61010-1
4–20 mA (2-wire connection, current source); User congurable over range
Easidew M12: Modbus RTU over RS485
Operating Specications
Operating temperature –40 to +60°C
Compensated temperature range -20 to +50°C
Storage Temperature -40 to +60°C
Operating pressure 45 MPa (450 barg) maximum
Flow rate 1 to 5 Nl/min mounted in standard sampling block; 0 to 10 m/sec direct insertion
Mechanical Specications
Ingress protection
Intrinsically safe area certicates
Oxigen service Optional: cleaned for enriched oxygen service
Housing material 316 stainless steel
Dimensions
Filter (sensor protection)
Process connection
Weight 150g
Electrical connections
Mating Electrical Connectors
Diagnostic conditions (factory programmed)
Approved galvanic isolators
IP66 in accordance with standard BS EN 60529:1992; NEMA 4 protection in accordance
MiniDIN 43650 form C L=132mm x ø45mm (with connector cable)
Easidew M12: M12 5 pin L = 155mm x ø45mm (with connector cable)
Optional: 316 stainless steel sintered guard <80µm
Easidew M12: 5/8” -18 UNF, 3/4” - 16 UNF, G1/2” BSP
Easidew M12: optional 0.8, 2, 5 metre M12 A coded connector/cable available
with standard NEMA 250–2003
Easidew M12: IP65
ATEX: II 1 G Ex ia IIC T4 Ga (-20 to +70 °C) IECEx: EX ia IIC T4 Ga (-20 to +70 °C) TC TR@ 0Ex ia IICT4 Ga (-20 to +70 °C) FM: Class I, Division 1, Groups A B C D, T4
CSAUS: Class I, Division 1, Groups A B C D, T4
C
Standard: HDPE <10µm
Easidew: 5/8” - 18 UNF
Easidew: G1/2" BSPP
Easidew 34: 3/4” - 16 UNF
Easidew: MiniDIN 43650 form C
Easidew M12: M12 5 Pin (A coded)
Mating connector supplied as standard
Conditions
Sensor fault
Under-range dew point
Over-range dew point
Output
23 mA
4 mA
20 mA
KFD2-CR-EX1.20200 KFD2-CR-EX1.30200 KFD0-CS-EX1.50P KFD0-CS-EX2.50P KFD2-STC4-EX1.H MTL5041 MTL5040
Easidew I.S. Transmitter
V;
NOTES * Over Compensated Temperature Range
Michell Instruments 17
APPENDIX A
1/8” NPT
13.0 0.512
46.0 1.811
60.3 2.374
12.7 0.500
8.0 0.315
27.0 1.063
O
5/8" UNF THREAD
BONDED SEAL
M12 5-WAY A CODED
27.0 1.063 A/F
DIMENSIONS IN mm [INCHES]
13.0 0.512
46.0 1.811 60.3 2.374 12.7 0.500
8.0 0.315
27.0 1.063
O
G1/2 THREAD
BONDED SEAL
M12 5-WAY A CODED
27.0 1.063 A/F
DIMENSIONS IN mm [INCHES]
13.0 0.512
44.0 1.732 62.3 2.453 12.7 0.500
10.0 0.394
27.0 1.063
O
3/4" UNF THREAD
O-RING SEAL
M12 5-WAY A CODED
27.0 1.063 A/F
DIMENSIONS IN mm [INCHES]
Dimensions
Product Dimensions
Easidew Easidew M12
10mm
(0.39”)
132mm
(5.19”)
ø27mm
(1.06”)
10mm (0.39”)
46mm (1.81”)
5/8” UNF
5/8” Bonded Seal
ø25.4 x 2mm
(ø1 x 0.07”)
27mm (1.06”)
A/F
Easidew Transmitter User’s Manual
45mm (1.77”)
46mm (1.81”)
G1/2” BSP
46mm (1.81”)
3/4” UNF
G1/2” BSP Bonded Seal
ø28.65 x 2.61mm
(ø1.12 x 0.10”)
3/4” O-Ring
ø18.72 x 2.62mm
(ø0.75 x 0.09”)
Figure 6
27mm (1.06”)
A/F
27mm (1.06”)
A/F
45mm (1.77”)
45mm (1.77”)
27 A/F
1/8” NPT
(see accessories and spare parts)
55.2mm
Optional Sample Block
Dimensions - Easidew
ø30mm
30mm
5/8”-18 UNF
3/4” UNF
G1/2” BSP
5/8”-18 UNF
3/4” UNF
G1/2” BSP
10mm
(0.39”)
10mm
(0.39”)
132mm
(5.19”)
ø27mm
(1.06”)
132mm
(5.19”)
ø27mm
(1.06”)
10mm (0.39”)
10mm
(0.39”)
18 97504 Issue 3.1, May 2019
Easidew Transmitter User’s Manual
APPENDIX B
Appendix B
Quality, Recycling
& Warranty
Information
Michell Instruments 19
APPENDIX B
Easidew Transmitter User’s Manual
Appendix B Quality, Recycling & Warranty Information
Michell Instruments is dedicated to complying to all relevant legislation and directives. Full information can be found on our website at:
www.michell.com/compliance
This page contains information on the following directives:
ATEX Directive
Calibration Facilities
Conict Minerals
FCC Statement
Manufacturing Quality
Modern Slavery Statement
Pressure Equipment Directive
REACH
RoHS2
WEEE2
Recycling Policy
Warranty and Returns
This information is also available in PDF format.
20 97504 Issue 3.1, May 2019
Easidew Transmitter User’s Manual
APPENDIX C
Appendix C
Return Document &
Decontamination Declaration
Michell Instruments 21
APPENDIX C
Easidew Transmitter User’s Manual
Appendix C Return Document & Decontamination Declaration
Decontamination Certicate
IMPORTANT NOTE: Please complete this form prior to this instrument, or any components, leaving your site and being returned to us, or, where applicable, prior to any work being carried out by a Michell engineer at your site.
Instrument Serial Number
Warranty Repair? YES NO Original PO #
Company Name Contact Name
Address
Telephone # E-mail address
Reason for Return /Description of Fault:
Has this equipment been exposed (internally or externally) to any of the following? Please circle (YES/NO) as applicable and provide details below
Biohazards YES NO
Biological agents YES NO
Hazardous chemicals YES NO
Radioactive substances YES NO
Other hazards YES NO
Please provide details of any hazardous materials used with this equipment as indicated above (use continuation sheet if necessary)
Your method of cleaning/decontamination
Has the equipment been cleaned and decontaminated? YES NOT NECESSARY
Michell Instruments will not accept instruments that have been exposed to toxins, radio-activity or bio-hazardous
materials. For most applications involving solvents, acidic, basic, ammable or toxic gases a simple purge with dry gas (dew point <-30°C) over 24 hours should be sufcient to decontaminate the unit prior to return.
Work will not be carried out on any unit that does not have a completed decontamination declaration.
Decontamination Declaration
I declare that the information above is true and complete to the best of my knowledge, and it is safe for Michell personnel to service or repair the returned instrument.
Name (Print) Position
Signature Date
F0121, Issue 2, December 2011
22 97504 Issue 3.1, May 2019
Easidew Transmitter User’s Manual
APPENDIX D
Appendix D
Modbus Register Map
Michell Instruments 23
APPENDIX D
Appendix D Modbus Register Map
All the data values relating to the Easidew are stored in 16-bit wide holding registers. Registers can contain either measured or calculated values (dew-point, temperature, etc.), or conguration data (output settings).
Modbus RTU Implementation
This is a partial implementation of the Modbus RTU Standard with the following codes implemented:
Function Code Description
3 Read Holding Register
6 Write Holding Register
16 Write Multiple Holding Registers
Register Types
Easidew Transmitter User’s Manual
Data Type Description
uint16
int16 16 bit signed integer.
int32 32 bit signed integer, stored across 2 16 bit registers.
special Refer to register description/comments for data structure.
Serial Port Settings (RS485)
9600 Baud Rate, 8 Data Bits, No Parity, 1 Stop Bit, No Flow Control
http://www.simplymodbus.ca/FAQ.htm is an excellent resource covering the basics of the Modbus protocol. Full descriptions of the function codes (FC03/FC06/FC16) can be found in the sidebar.
16 bit unsigned integer, can contain options list e.g. 0 = Dew Point, 1 = Temperature.
https://www.scadacore.com/tools/programming-calculators/ online-hex-converter/ is an excellent resource for determining register types/byte order issues in raw received Modbus data.
24 97504 Issue 3.1, May 2019
Easidew Transmitter User’s Manual
Register Address
APPENDIX D
Dec Hex Access Data
Type
0 0000 R/W uint16 Instrument Modbus Address 1-255 3 0003 R special Status/Fault Indication
bit0, Sensor short circuit bit1, Sensor open circuit bit2, Thermistor short circuit bit3, Thermistor open circuit bit4, Sensor over range bit5, Sensor under range bit6, Thermistor over range bit7, Thermistor under range
4 0004 R/W special Output Configuration
Sensor fault output bit0, 4mA bit1, 20mA bit2, 23mA bit3, 3mA Dew-point under-range output bit4, 4mA bit5, 20mA bit6, 23mA bit7, 3mA Dew-point over-range output bit8, 4mA bit9, 20mA bit10, 23mA bit11, 3mA Output parameter bit12, Temperature bit13, ppmV bit14, ppmW
bit15, Natural gas 8 0008 R special Transmitter Firmware Version 0x0100 = 1.0 10 000A R/W int16 Measurement Range Low 10x multiplier, i.e. -1000 =
11 000B R/W int16 Measurement Range High 10x multiplier, i.e. 200 = 20.0 15 000F R special Sensor Batch Number Batch 0xA123 16 0010 R special Sensor Serial Number
17 0011 R/W special Year of Calibration 0x2018 = 2018 18 0012 R/W special Month & Day of Calibration 0x317 = March 17th 54 0036 R/W int16 Pressure value for ppmV
(barg)
Description Comment
Only one bit can be set for each parameter, for example ‘sensor fault’ can be EITHER 4mA OR 20mA OR 23mA OR 3mA.
If bits 13 – 16 are not set, then the output will be dew point.
Natural gas parameter set in register 78.
-100.0
Serial 0x0001 Complete sensor serial would be A123-001
10x multiplier, i.e. 100 = 10.0
Michell Instruments 25
APPENDIX D
Easidew Transmitter User’s Manual
78 004E R/W special Natural Gas Configuration &
Precision Select
Register conguration in 1 decimal place precision mode
Dec Hex Access Data
Type
1 0001 R int16 Humidity Parameter Default dew-point, selected
2 0002 R int16 Ambient Temperature 10x multiplier, i.e. 214 = 21.4
Register configuration in 4 decimal place precision mode
Description Comment
Natural gas configuration bit1, 0=IGT, 1=ISO bit2, lb/MMscf bit3, ppmV NG bit4, mg/m3 NG Precision Select bit15, 0=1 Decimal Place, 1=4 Decimal Places
with register 4 (and 78 for Natural gas)
10x multiplier, i.e. -811 = -81.1
Dec Hex Access Data
Type
1 0001 R special Humidity Parameter (Low
Word)
2 0002 R special Humidity Parameter (High
Word)
7 0007 R int16 Ambient Temperature 10x multiplier, i.e. 214 = 21.4
Description Comment
Default dew-point, selected with register 4 (and 78 for Natural gas)
1000x multiplier, i.e. 14321 = 1.4321
26 97504 Issue 3.1, May 2019
Easidew Transmitter User’s Manual
NOTES:
Michell Instruments 27
http://www.michell.com
Loading...
