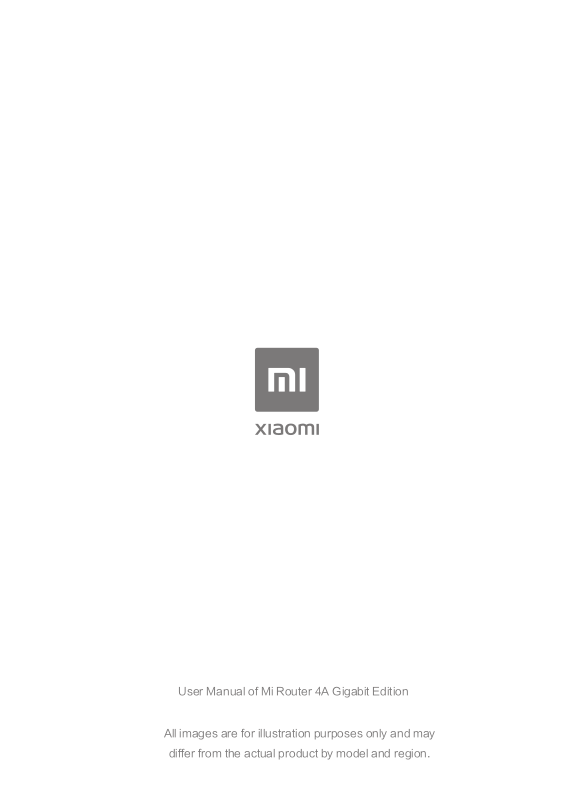

User Manual of Mi Router 4A Gigabit Edition
All images are for illustration purposes only and may
differ from the actual product by model and region.
Step 1: Connect the cables
the power
Internet
Satellite modem
Or
Power on the router, then connect the Internet (WAN) port
to the DSL/Cable/satellite modem
* If your Internet network is connected via an Ethernet cable at the wall, connect
the Ethernet cable directly to the Internet (WAN) port on the router
DSL/Cable/
LAN
Step 2: Set up the network connection
WLAN
Turn on WLAN
Xiaomi_XXXX
Xiaomi_XXXX_5G
router.miwifi.com
Thank you for using
Mi Router
Start
Set up the router
Broadband account name
Password
Next
1
Connect to the Wi-Fi using a phone or co-
-mputer (no password). The Wi-Fi name can be found on the panel at the base of the router
* Wait until the system indicator light
turns blue. Search for the Wi-Fi network and connect
2
At this point, you will automatically be directed to the landing page for connecting to the Internet (if you aren’t, open up the browser that comes with your system and enter "router.miwifi.com" or "192.168.31.1")
* Mi Router EULA is available at
-hp://www1.miwifi.com/router/eula/20191230.html
3
Please enter the account name and password provided by your broadband provider, then click Next (there are different ways of connecting to the internet, so this step may be skipped)
* If you have forgoen your broadband account
name or password, you can get them by contacting your broadband provider
Seing Wi-Fi
Wi-Fi name
Wi-Fi password
Next
Set admin password
Same as Wi-Fi password
Admin password
Done
4
Set a new Wi-Fi and administrator password. You can choose to use your Wi-Fi password as your administrator password as well
* Please wait until the indicator light turns blue
and stops flashing, then reconnect to the Wi-Fi
Network established
successfully
Manage Mi WiFi
The web management website is router.miwifi.com and supports basic Internet functions
Scan the QR code, download the Mi WiFi app, and manage your router anytime, anywhere
QoS
Unauthorized access prevention
Wi-Fi optimization
More features
FAQ
I have finished seing up my network. Why can't I connect to the Internet?
Use your phone to search for the Wi-Fi network set by your router. If you can’t
Step 1:
find it, make sure that the router is connected to the power and has finished booting up
Step 2: Connect your phone to your router's Wi-Fi network, go to "router.miwifi.com", and try
to fix the problem based on the network diagnostics results
I've forgoen the administrator password for my router. What should I do?
If you haven’t set a specific password, your administrator password will be the same as your Wi-Fi password, so try using this to log in. If the problem persists, it is recommended that you restore your router to the factory seings, then set up the network again
How do I restore my router to the factory seings?
First make sure that the router has finished booting up, then hold down the Reset buon at the base of the router for more than 5 seconds and let go when the system status light turns orange. When the router finishes booting up again, the reset was successful
What do the different indicator lights mean on the router?
There should be two indicator lights on the front panel, which are the network status light (blue light) and the system status light (three colors: blue, orange, and purple)
System status light Network status light
Network status light
Off
System status light
Orange
Light with one color (blue)
Nothing is plugged into the external Internet port or there is a problem with the connection
Network connection normalOn
Sending or receiving dataFlashing
three colors (blue, orange, and purple)
Switched off or not connected to the powerOff
System updating (flashing), system booting up (on, not flashing) Functioning normally (on, not flashing)blue
Safe mode (flashing), system failure (on, not flashing)purple
English
Specifications:
Name: Mi Router 4A Gigabit Edition
Model: R4A
Operating Temperature: 0~40
12V, 1A
Input:
Operating Frequency: 2400MHz~2483.5MHz(≤20dBm), 5150MHz~5250MHz(≤23dBm)
Certifications:
Hereby, Xiaomi Communications Co., Ltd declares that the radio equipment type R4A is in
compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is
available at the following internet address:
hp://www.mi.com/global/service/support/declaration.html
All products bearing this symbol are waste electrical and electronic equipment (WEEE as
in directive 2012/19/EU) which should not be mixed with unsorted household waste.
Instead, you should protect human health and the environment by handing over your waste
equipment to a designated collection point for the recycling of waste electrical and
electronic equipment, appointed by the government or local authorities. Correct disposal
and recycling will help prevent potential negative consequences to the environment and
human health. Please contact the installer or local authorities for more information about
the location as well as terms and conditions of such collection points.
Caution:
The product can be used within all European Union countries.
To comply with CE RF exposure requirements, the device must be installed and operated
20cm (8 inches) or more between the product and all person’s body.
The adapter shall be installed near the equipment and shall be easily accessible.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
Changes or modifications to this unit not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
NOTE:
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and
can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
—Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications not expressly approved by the party responsible for compliance could
void the user’s authority to operate the equipment.
FCC radiation exposure
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance of 20 cm
between the radiator and your body. This transmier must not be co-located or operating in
conjunction with any other antenna or transmier.
This device is restricted to indoor use only when operating in 5150-5250MHz frequency range
UK
Manufactured by: Xiaomi Communications Co., Ltd #019, 9th Floor, Building 6, 33 Xi'erqi Middle Road, Haidian District, Beijing, China, 100085
Importer: Beryko s.r.o., Na Roudné 1162/76, 301 00 Plzeň www.beryko.cz
