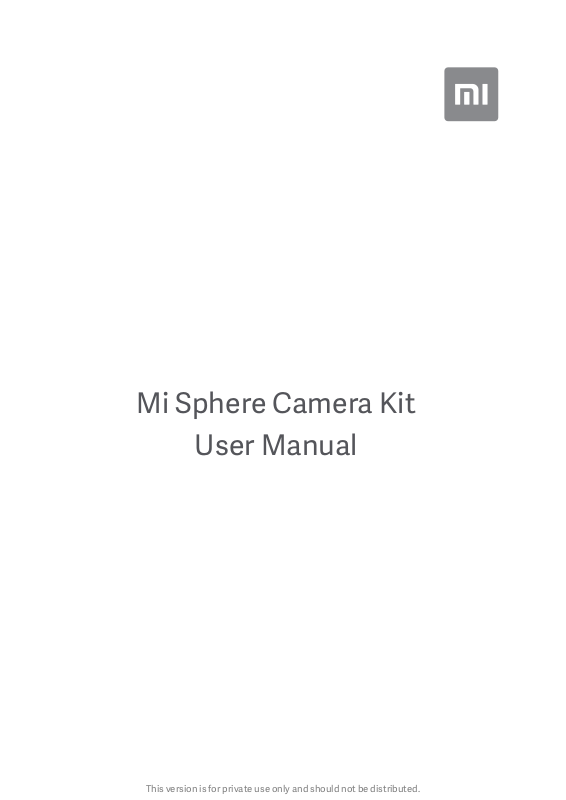

Mi QJTZ01FJ User Manual

This version is for private use only and should not be distributed.

Mi Sphere Camera Kit

User Manual

This version is for private use only and should not be distributed.

Product overview

Package contents: Mi Sphere Camera, USB Cable, Tripod, Pouch, User Manual

01

This version is for private use only and should not be distributed.

Your camera

Baery Indicator

Mic

Shuer/OK Buon

Wi-Fi Buon

Wi-Fi Indicator

Power/Mode Buon

microSD Card Slot&
Mini-USB Port

Mic

Photo Status Indicator

Lens

Video Status Indicator

Buzzer

Tripod Thread Selfie Stick Lock

Charging Contacts

02

This version is for private use only and should not be distributed.

Instructions

1. Turning on/off

Turning on: Press the Power/Mode buon. Photo and video status indicators will light up,
and the indicator of the current mode will remain steady. Turning off: Press and hold the
Power/Mode buon until the status indicator of the current mode is off.

2. Switching between photo and video mode

Press the Power/Mode buon to switch between photo and video modes. Video mode is
set as factory default.

3. Recording videos

Video status indicator is steady blue in video mode.

Press the Shuer/OK buon to start recording.

Video status indicator will turn red and start blinking.

Press the Shuer/OK buon to stop recording.

Video status indicator will flash 3 times and turn steady blue again.

4. Short videos

While in video mode, long press the Shuer/OK buon to record a short video. Video
status indicator will turn red and start blinking. Your camera will stop recording automati­cally in 10 seconds. The length of short videos can be set in the App.

5. Taking photos

Photo status indicator is steady blue in the photo mode. Press the Shuer/OK buon to
take a photo. Photo status indicator will flash once with every photo you take.

6. Reseing Wi-Fi password

Press and hold the Wi-Fi buon for 5 seconds to reset Wi-Fi password.

7. Baery indicator

a. Charger isn't connected

Low baery: Baery indicator is flashing red.

Out of power: Baery indicator is off.

b. Charger is connected

Charging: Baery indicator is steady red.

Fully charged: Baery indicator turns steady blue.

03

This version is for private use only and should not be distributed.

8. Standby

Your camera will go into standby mode if you don’t use it for 2 minutes. Baery indicator
will turn blue and start blinking. Press any buon to wake up your camera.

Connecting your camera

1. Download and install the camera App.

2. Press the Wi-Fi buon on your camera. Wi-Fi indicator will start flashing blue.

3. Open the App and tap the camera buon. Wi-Fi indicator will stop flashing when the
connection is established.

4. The default Wi-Fi password of your camera is 12345678.

Download the App

Search for “Mi Sphere Camera” in your preferred App market or scan this QR code to
download the App.

Scan QR code to download

04

This version is for private use only and should not be distributed.

Maintenance

1. The camera may lower its performance or shut down automatically while being used in
extreme weather conditions.

2. Do not use the camera when air temperature or humidity are changing drastically;
otherwise, condensation may appear inside the camera. If this happens, open the
Mini-USB port cover to facilitate evaporation.

3. Do not place the camera on rough surfaces directly to avoid scratching the lens.

4. Mi Sphere Camera passed our controlled lab tests which showed that it meets the IP67
standard. It means that Mi Sphere Camera is protected from dust and the effects of
immersion in water to depth up to 1 meter for 30 minutes. However, the camera’s dust-,
water-, and splash-resistance capabilities are not permanent and will decrease as the
camera is being used.

CAUTION

RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE

DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS

05

This version is for private use only and should not be distributed.

Notices for Customers in the U.S.A.

FCC Statement

This device complies with Part 15 of the FCC Rules.

Operation is subject to the following two conditions:

• This device may not cause harmful interference.

• This device must accept any interference received, including interference that may

cause undesired operation.

Any changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.

RF Exposure Information and Statement

The SAR limit of USA (FCC) is 1.6 W/kg averaged over one gram of tissue. Device types
QJXJ01FJ (FCC ID: 2AJ2LQJXJ01FJ) has also been tested against this SAR limit. The
highest SAR value reported under this standard during product certification for use at the
ear is 0.226 W/kg and when properly worn on the body is 0.031 W/kg.

WARNING: This product can expose you to chemicals including Pb, which is/are known
to the State of California to cause cancer, and Pb, which is/are known to the State of
California to cause birth defects or other reproductive harm. For more information go to
www.P65Wamings.ca.gov.

06

This version is for private use only and should not be distributed.

Notices for Customers in Canada

IC Statement

English: This device complies with Industry Canada's license-exempt RSSs. Operation is
subject to the following two conditions:

• This device may not cause interference.

• This device must accept any interference, including interference that may cause unde­sired operation of the device.

French: Le present appareil est conforme aux CNR d'Industrie Canada applicables aux
appareils radio exempts de licence. L'exploitation est autorisee aux deux conditions
suivantes:

• I'appareil ne doit pas produire de brouillage.

• I'utilisateur de I'appareil doit accepter tout brouillage radioelectrique subi, meme si le
brouillage est susceptible d'en compromere le fonctionnement.

Notices for Customers in Europe

EU Regulatory Conformance

Hereby, we, Beijing MADV Technology Co., Ltd. declares that this equipment type QJXJ01
FJ is in compliance with the essential requirements and other relevant provisions of
Directive 2014/53/EU. The declaration of conformity may be consulted at
www.madv360.com

RF Exposure Information and Statement

A minimum separation distance of 0.5 cm must be maintained between the user's body
and the device, including the antenna during body-worn operation to comply with the RF
exposure requirements in Europe. The SAR limit for mobile devices is 2.0 W/kg and the
highest SAR value for this device when tested for use at the body was 0.268 W/kg.

RED RF Output table

Function

Frequency

Maximum Out Power (EIRP)

WiFi

Bluetooth

Please don't use the camera in a confined environment with temperature higher than
35 degrees Celsius.

2412-2472 Mhz

2402-2480 Mhz

17.64 dBm

5.72 dBm

07

This version is for private use only and should not be distributed.

Specs

Product name: Mi Sphere Camera Kit

Model: QJTZ01FJ

Dimensions: 78.00x67.40x24.03mm

Weight: 108g Input: 5V 2A

Focal length: 1.43 Aperture: f/2.0

Protection: IP67

Standby power consumption: 3.8W

Storage temperature: -20—45°C

Storage humidity: 10%—90%

Baery capacity: 1600mAh

Image resolution: up to 6912x3456

Video resolution: up to 3456x1728

Wireless connectivity: Wi-Fi IEEE 802.11b/g/n 2.4GHz, Bluetooth 4.0

Expandable storage options: microSD card (up to 128GB, at least Class 10).

Use U3 microSD cards for recording video in the highest resolution.

System requirements: Android 5.0/iOS 8 or later

Power adapter specs:

Input: 100-240~50/60Hz

Output: 5V 2A/9V 2A/12V 1.5A

Supported standards:

QC2.0, USB-A

08

This version is for private use only and should not be distributed.

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be followed
including the following:

1. Read all instructions.

2. To protect against unexpected damage do not immerse the whole appliances in water or
other liquid.

3. The use of accessory aachments not recommended by the appliance manufacturer
may cause a fire or personal injury.

4. Close supervision is necessary when any appliance is used by or near children.

5. Disconnect the charger from the socket when not in use, failing to do so may result in
fire or other unexpected danger.

6. Do not place on or near a hot gas or electric burner, or in a heated oven.

7. Do not use appliance for other than intended use.

SAVE THESE INSTRUCTIONS

Principal: Xiaomi Communications Co., Ltd.

Manufacturer: Beijing MADV Technology Co., Ltd. (a Mi Ecosystem Company)

Address: 30-17 Shixing St, Shijingshan District, Beijing, China

Online support: www.mi.com/us/supports

Go to www.mi.com to learn more Made in China
