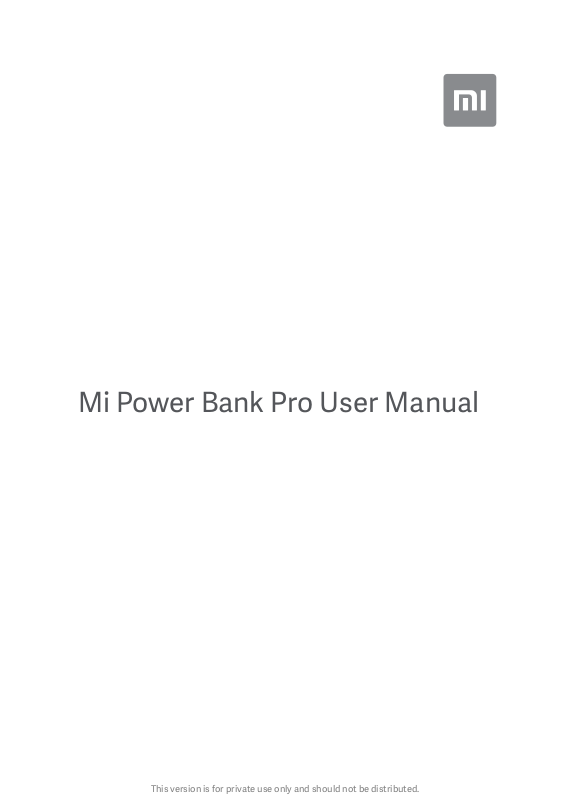

Mi Power Bank Pro User Manual
Page 2
This version is for private use only and should not be distributed.
Please read the user manual before using the product
Specifications
Model: PLM03ZM
Baery type: Li-polymer
Cell capacity: 10000mAh 3.85V (38.5Wh)
Operating temperature: 0°C~45°C
Dimensions: 128.5×75×12.6mm
Input: 5.0V 2.0A 9.0V 2.0A 12V 1.5A
Output: 5.0V 2.4A 9.0V 2.0A 12V 1.5A
Charging time: approx. 3.5 hours (9V/2A or 12V/1.5A adapter,
standard cable),
approx. 5.5 hours (5V/2A adapter, standard cable)
Product Introduction
Thank you for choosing Mi Power Bank Pro. The product is a high-capacity portable
charger that uses Li-polymer baeries and TI chips for a safe, efficient, and compatible
user experience.
Product Features
Safety: Mi Power Bank Pro has multiple safeguard technologies to provide over-charge,
over-discharge, high temperature, and short circuit protection in all working conditions.
Efficiency: Supports fast charging and discharging at 5.0V 2.4A 9.0V 2.0A 12V
1.5A output.
Compatibility: The product has a built-in USB charging controller, compatible with most
smartphones, tablets, and devices. It supports mainstream fast charging devices, and
can boost to 9V/12V.
Quality: Li-polymer baeries and TI chips.
01
Page 3
This version is for private use only and should not be distributed.
USB (Output)
Power Check
Type C (Input)
Note:
The Power check buon is not a Power buon. Mi Power Bank Pro detects charging and
discharging automatically. The Power indicator turns off 2 minutes aer discharging is
completed.
Power Indicator
Charging
Connect with Mi AC Adapter to charge Mi Power Bank Pro.
The indicator shows charging conditions as follows:
Power Level LED1 LED2 LED3 LED3
LED1
LED3
LED2
LED4
0-25%
25-50%
50-75%
75-96%
Fully Charged
Charging Error Blinking
Blinking
On
On
On
On
02
Off
Blinking
On
On
On
Blinking
Off
Off
Blinking
On
On
Blinking
Off
Off
Off
Blinking
On
Blinking
Page 4
This version is for private use only and should not be distributed.
Notes
Please make sure to fully charge Mi Power Bank Pro on its first use.
When charging a device with Mi Power Bank Pro, please check whether your device
displays the baery charging icon to confirm that Mi Power Bank Pro is working
properly.
When charging Mi Power Bank Pro or charging a device with Mi Power Bank Pro, please
be sure to use the right charging cable.
When all indicator LEDs lights go out, Mi Power Bank Pro is in low power mode. Please
recharge as soon as possible.
When charging a device with Mi Power Bank Pro, the device will use Mi Power Bank
Pro's baery first.
Once your device is fully charged, please disconnect it from Mi Power Bank Pro to avoid
further discharge.
When the product enters protection mode (LEDs don't light up aer pressing the Power
check buon) due to output short circuit or other reasons, please charge Mi Power
Bank Pro with an external charger to resume.
Warnings
Mi Power Bank Pro contains Li-ion baeries. Do not open the casing to avoid baery
damage or other dangers.
Please do not dismantle, press, puncture and short circuit Mi Power Bank Pro, or expose
the product to liquids, fire, or environments where temperature is higher than 60°C
(140°F).
03
Page 5
This version is for private use only and should not be distributed.
Discharging
Connect with Mi Power Bank Pro to charge your device.
The indicator shows discharging conditions as follows:
Power Level
Undervoltage
0-25%
25-50%
50-75%
75-96%
* Small current discharge: when Mi Power Bank Pro is not charging, double press the
Power check buon to enter Small current discharge mode to charge small devices,
such as Bluetooth headphones and smart bands.
The indicator LEDs will turn on one by one in succession, indicating that Mi Power Bank
Pro has entered Small current discharge mode.
To exit Small current discharge mode, press the Power check buon once.
LED1 LED2 LED3 LED4
Off
Blinking
Blinking
Blinking
Blinking
Off
Off
Blinking
Blinking
Blinking
Off
Off
Off
Blinking
Blinking
Blinking
Off
Off
Off
Off
FCC Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference that may
cause undesired operation.
BC
04
Page 6
This version is for private use only and should not be distributed.
About anti-counterfeit labels
Anti-counterfeit labels are placed on the outer packaging of every certified 10000mAh Mi
Power Bank Pro. Please scratch the coating to see the verification code, and check if the
product is genuine on this website: hp://www.mi.com/verify
Anti-counterfeit label
Scratched off label
Principal: Xiaomi Communications Co., Ltd.
Manufacturer: Zimi Corporation (a Mi Ecosystem company)
Address: 159 Chengiang Road Unit A913, Jiangyin City, Jiangsu, China
To promote environmental protection,
Xiaomi avoids excessive packaging.
05
