Page 1
OPERATING INSTRUCTIONS
JM-1P Arrayable Loudspeaker
JM SERIES
Keep these important operating instructions.
Check www.meyersound.com for updates.
Page 2
DECLARATION OF CONFORMITY ACCORDING TO ISO/IEC GUIDE 22 AND EN 45014
Manufacturer’s Name: Meyer Sound Laboratories Inc.
Manufacturer’s Address: 2832 San Pablo Avenue
Berkeley, CA 94702-2204, USA
Declares that the product:
Product Names: JM-1P Arrayable Loudspeaker
Product Options: All
Conforms to the following Product Specifications:
Safety: EN 60065:2002
EMC:
EN55103-1: 1997 emission
EN55103-2: 1997 immunity
This device also complies with EN 55103-1 & -2. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference
that may cause undesired operation.
Supplementary Information: The product herewith complies with the requirements of the Low Voltage
Directive (LVD) 2006/95/EC and the EMC Directive 2004/108/EC.
Signature:
1
2
Ms. Margie Garza
Director of Quality
Meyer Sound Laboratories Inc.
Berkeley, California 94702 USA
Issued November 3, 2009
European Contact:
Your local Meyer Sound dealer or
Meyer Sound Germany, GmbH.
© 2009
Meyer Sound. All rights reserved.
JM-1P Operating Instructions, PN 05.202.005.01 A
The contents of this manual are furnished for informational purposes only, are subject to change without notice, and should not be construed as a commitment by Meyer Sound Laboratories Inc. Meyer Sound assumes no responsibility or liability for any errors or inaccuracies that may appear in this manual. Except as permitted by applicable copyright law, no part of this publication may be reproduced,
stored in a retrieval system, or transmitted, in any form or by any means, electronic, mechanical, recording or otherwise, without prior written permission from Meyer Sound.
GuideALink, Intelligent AC, JM-1P, MAPP Online Pro, RMS, QuietCool, and all alpha-numeric designations for Meyer Sound products and
accessories are trademarks of Meyer Sound. Compass, Galileo, Meyer Sound, the Meyer Sound wave logo, QuickFly, and SIM are registered trademarks of Meyer Sound Laboratories Inc. (Reg. U.S. Pat. & Tm. Off.). All third-party trademarks mentioned herein are the property of their respective trademark holders.
Printed in the USA.
ii
Page 3
SYMBOLS USED
!
!
!
These symbols indicate important safety or operating features in this booklet and on the chassis:
Dangerous voltages: risk of
electric shock
Pour indiquer les risques
résultant de tensions dangereuses
Warnung vor gef
elektrischer Spannung
Para indicar voltajes peligrosos Instrucciones importantes de
ährlicher
Important operating instructions Frame or chassis Protective earth ground
Pour indequer important
instructions
Wichtige Betriebsanweisung oder
Gebrauchsanleitung
funcionamiento y/o manteniento
IMPORTANT SAFETY INSTRUCTIONS
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this loudspeaker near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with Meyer Sound’s installation instructions.
8. Do not install near any heat sources such as radiators,
heat registers, stoves, or other apparatus that produce
heat.
9. Do not defeat the safety purpose of the grounding-type
plug. A grounding type plug has two blades and a third
grounding prong. The third prong is provided for your
safety. If the provided plug does not fit into your outlet,
consult an electrician for replacement of the obsolete
outlet.
10.Protect the power cord from being walked on or pinched,
particularly at plugs, convenience receptacles, and the
point where they exit from the loudspeaker. The AC
mains plug or appliance coupler shall remain readily
accessible for operation.
Masse, châssis Terre de protection
Rahmen oder Geh
Armadura o chassis Tierra proteccionista
äuse
Masse Schutzleiter
11.Only use attachments/accessories specified by Meyer
Sound.
12.Use only with the caster rails or rigging specified by
Meyer Sound, or sold with the loudspeaker. Handles are
for carrying only.
CAUTION: Rigging should only be done by
experienced professionals.
13.Unplug this loudspeaker during lightning storms or when
unused for long periods of time.
14.Disconnect the mains plug before disconnecting the
power cord from the loudspeaker.
15.Refer all servicing to qualified service personnel. Servicing is required when the loudspeaker has been damaged
in any way, such as when the power-supply cord or plug
has been damaged; liquid has been spilled or objects
have fallen into the loudspeaker; rain or moisture has
entered the loudspeaker; the loudspeaker has been
dropped; or when for undetermined reasons the loudspeaker does not operate normally.
CAUTION: To reduce the risk of electric shock,
do not expose this loudspeaker to rain or moisture. Do not install the loudspeaker in wet or humid
locations without using weather protection equipment from Meyer Sound.
iii
Page 4
SAFETY SUMMARY
English
To reduce the risk of electric shock, dis-
connect the loudspeaker from the AC
mains before installing audio cable.
Reconnect the power cord only after
making all signal connections.
Connect the loudspeaker to a two-pole,
three-wire grounding mains receptacle.
The receptacle must be connected to a
fuse or circuit breaker. Connection to
any other type of receptacle poses a
shock hazard and may violate local
electrical codes.
Do not install the loudspeaker in wet or
humid locations without using weather
protection equipment from Meyer
Sound.
Do not allow water or any foreign object
to get inside the loudspeaker. Do not
put objects containing liquid on or near
the unit.
To reduce the risk of overheating the
loudspeaker, avoid exposing it to direct
sunlight. Do not install the unit near
heat-emitting appliances, such as a
room heater or stove.
This loudspeaker contains potentially
hazardous voltages. Do not attempt to
disassemble the unit. The unit contains
no user-serviceable parts. Repairs
should be performed only by factorytrained service personnel.
Français
Pour réduire le risque d’électrocution,
débrancher la prise principale de l’hautparleur, avant d’installer le câble d’interface allant à l’audio. Ne rebrancher le
bloc d’alimentation qu’après avoir
effectué toutes les connections.
Branchez l’haut-parleur dans une prise
de courant à 3 dérivations (deux pôles
et la terre). Cette prise doit être munie
d’une protection adéquate (fusible ou
coupe-circuit). Le branchement dans
tout autre genre de prise pourrait
entraîner un risque d’électrocution et
peut constituer une infraction à la réglementation locale concernant les installations électriques.
Ne pas installer l’haut-parleur dans un
endroit où il y a de l’eau ou une humidité excessive.
Ne pas laisser de l’eau ou tout objet
pénétrer dans l’haut-parleur. Ne pas
placer de r´cipients contenant un liquide
sur cet appareil, ni à proximité de celuici.
Pour éviter une surchauffe de l’haut-
parleur, conserver-la à l’abri du soleil.
Ne pas installer à proximité d’appareils
dégageant de la chaleur tels que radiateurs ou appareils de chauffage.
Ce haut-parleur contient des circuits
haute tension présentant un danger. Ne
jamais essayer de le démonter. Il n’y a
aucun composant qui puisse être
réparé par l’utilisateur. Toutes les réparations doivent être effectuées par du
personnel qualifié et agréé par le constructeur.
Deutsch
Um die Gefahr eines elektrischen
Schlages auf ein Minimum zu
reduzieren, den Lautsprecher vom
Stromnetz trennen, bevor ggf. ein
Audio-Schnittstellensignalkabel angeschlossen wird. Das Netzkabel erst
nach Herstellung aller Signalverbindungen wieder einstecken.
Der Lautsprecher an eine geerdete
zweipolige Dreiphasen-Netzsteckdose
anschließen. Die Steckdose muß mit
einem geeigneten Abzweigschutz
(Sicherung oder Leistungsschalter) verbunden sein. Der Anschluß der unterbrechungsfreien Stromversorgung an
einen anderen Steckdosentyp kann zu
Stromschlägen führen und gegen die
örtlichen Vorschriften verstoßen.
Der Lautsprecher nicht an einem Ort
aufstellen, an dem sie mit Wasser oder
übermäßig hoher Luftfeuchtigkeit in
Berührung kommen könnte.
Darauf achten, daß weder Wasser noch
Fremdkörper in das Innere den
Lautsprecher eindringen. Keine
Objekte, die Flüssigkeit enthalten, auf
oder neben die unterbrechungsfreie
Stromversorgung stellen.
Um ein Überhitzen dem Lautsprecher
zu verhindern, das Gerät vor direkter
Sonneneinstrahlung fernhalten und
nicht in der Nähe von wärmeabstrahlenden
Haushaltsgeräten (z.B. Heizgerät oder
Herd) aufstellen.
Im Inneren diesem Lautsprecher herr-
schen potentiell gefährliche Spannungen. Nicht versuchen, das Gerät zu
öffnen. Es enthält keine vom Benutzer
reparierbaren Teile. Reparaturen dürfen
nur von ausgebildetem Kundenienstpersonal durchgeführt werden.
Español
Para reducir el riesgo de descarga eléc-
trica, desconecte de la red de voltaje el
altoparlante antes de instalar el cable
de señal de audio. Vuelva a conectar la
alimentacion de voltaje una vez efectuadas todas las interconexiones de
señalizacion de audio.
Conecte el altoparlante a un tomacorri-
ente bipolar y trifilar con neutro de
puesta a tierra. El tomacorriente debe
estar conectado a la protección de derivación apropiada (ya sea un fusible o un
disyuntor). La conexión a cualquier otro
tipo de tomacorriente puede constituir
peligro de descarga eléctrica y violar los
códigos eléctricos locales.
No instale el altoparlante en lugares
donde haya agua o humedad excesiva.
No deje que en el altoparlante entre
agua ni ningún objeto extraño. No
ponga objetos con líquidos encima de
la unidad ni cerca de ella.
Para reducir el riesgo de sobrecalen-
tamiento, no exponga la unidad a los
rayos directos del sol ni la instale cerca
de artefactos que emiten calor, como
estufas o cocinas.
Este altoparlante contiene niveles de
voltaje peligrosos en potencia. No
intente desarmar la unidad, pues no
contiene piezas que puedan ser repardas por el usuario. Las reparaciones
deben efectuarse únicamente por parte
del personal de mantenimiento capacitado en la fábrica.
iv
Page 5
CONTENTS
Chapter 1: Introduction 7
How to Use This Manual 7
Introducing the JM-1P Loudspeaker 7
Chapter 2: Power Requirements 9
AC Power Distribution 9
The AC Connectors 9
Power Connector Wiring 10
JM-1P Voltage Requirements 10
JM-1P Current Requirements 11
Electrical Safety Issues 12
Chapter 3: Amplification and Audio 13
VEAM Cabling 13
The Looping Audio Input Module 13
Amplifier Cooling System 15
Chapter 4: Adding Subwoofers to a JM-1P Loudspeaker System 17
The Galileo® Loudspeaker Management System 17
Using Digital Signal Processors 18
Chapter 5: QuickFly® Rigging 19
The JM-1P GuideALinks™ 19
The MPA-JM1 Pickup Plate 21
The MTG-JM1 Vertical Grid 24
The MDB-JM1 Dolly Board 25
Chapter 6: The RMS™ Remote Monitoring System 27
The RMS Software 27
The RMS Module 28
Resetting the RMS Module 29
Chapter 7: System Design and Integration Tools 31
MAPP Online Pro™ 31
The SIM
®
3 Measurement System 32
Appendix A: Optional VEAM Multipin Connector 33
Appendix B: Optional Rain Hoods 35
Appendix C: JM-1P Specifications 39
v
Page 6
CONTENTS
vi
Page 7
CHAPTER 1: INTRODUCTION
!
HOW TO USE THIS MANUAL
Make sure to read these operating instructions in their
entirety before configuring a loudspeaker system with
JM-1P loudspeakers. In particular, pay close attention to
material related to safety issues.
As you read these operating instructions, you will encounter
the following icons for notes, tips, and cautions:
NOTE: A note identifies an important or useful
piece of information relating to the topic under
discussion.
TIP: A tip offers a helpful tip relevant to the topic
at hand.
CAUTION: A caution gives notice that an
action may have serious consequences and
could cause harm to equipment or personnel, or
could cause delays or other problems.
Information and specifications are subject to change.
Updates and supplementary information are available on the
Meyer Sound website:
INTRODUCING THE JM-1P LOUDSPEAKER
The JM-1P self-powered loudspeaker is a high-Q, arrayable
loudspeaker suited for a wide range of applications. Utilizing
Meyer Sound's patented REM™ technology and trapezoidal
cabinet design, the JM-1P can be deployed in tightlypacked array clusters to deliver coverage that is proportional to the number of units in the array. While JM-1P point
source arrays are optimized for horizontal installations, they
can also be used vertically when necessary. With its scalable coverage and versatile QuickFly
JM-1P loudspeaker can be used for touring, rental, and
fixed installations.
®
rigging options, the
http://www.meyersound.com
Meyer Sound Technical Support is available at:
Te l: +1 510 486.1166
Fax: +1 510 486.8356
Email: techsupport@meyersound.com
JM-1P Arrayable Loudspeaker
Boasting a wide operating frequency range of 53 Hz to
18 kHz, the JM-1P delivers a remarkably smooth sound with
ample low-frequency headroom. Designed and manufactured at Meyer Sound headquarters in Berkeley, California,
the JM-1P's drivers include one low-frequency 15-inch long
excursion cone driver, and one high-frequency 4-inch compression driver with an REM manifold coupled to an
extremely accurate horn. The JM-1P is distinguished by its
constant-Q horn that provides a 20-degree horizontal by 60degree vertical coverage. The unit's consistent polar
response and trapezoidal enclosure allow for tightly packed
arrays with minimal overlap in high frequencies.
7
Page 8
CHAPTER 1: INTRODUCTION
The JM-1P's sophisticated onboard amplification and processing produces consistent and predictable results in any
system design. A proprietary two-channel, class AB/H
power amplifier with complementary MOSFET output stages
yields a total power output of 1275 W (2550 W peak). Builtin signal processing includes an electronic crossover, driver
protection, and correction filters for achieving flat phase and
frequency responses. Each amplifier channel has peak and
rms limiters that prevent driver overexcursion and regulate

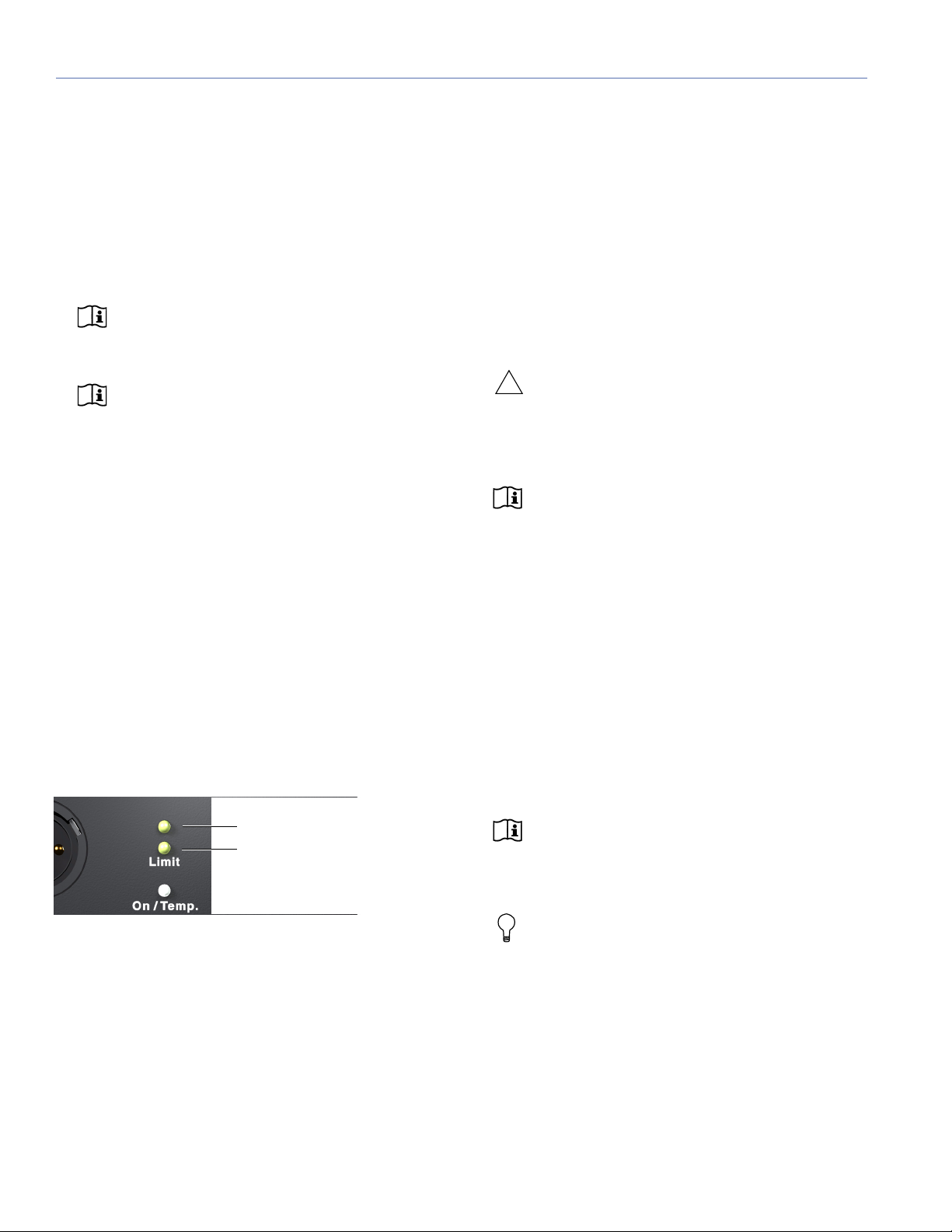

voice coil temperatures. Limiting activity is easily monitored
with the rear panel limit LEDs. The optional RMS™ remote
monitoring system provides comprehensive monitoring of
system parameters on a Windows
®
-based computer.
The JM-1P's end plates include captive GuideALinks™ and
quick-release pins that allow the unit to be easily linked with
other JM-1Ps in arrays. The optional MPA-JM1 pickup plate
suspends JM-1P horizontal arrays of up to four units with
uptilt or downtilt from a single hanging point; two pickup
plates can suspend arrays of up to six units from a single
hanging point or motor using the MTGSB-4B spreader bar.
The optional MTG-JM1 grid suspends vertical arrays of up
to six JM-1Ps.
MTG-JM1 Vertical Grid with Two JM-1Ps
Constructed of premium birch plywood, the durable JM-1P
enclosure is coated with a black-textured, hard-shell finish.
A hex-stamped, steel grille with acoustical black mesh protects the unit's drivers. Other options include weather protection and custom color finishes for fixed installations and
applications with specific cosmetic requirements. The
optional MDB-JM1 dolly board transports the JM-1P on
caster wheels; multiple dolly boards can be interlocked to
transport up to three linked JM-1Ps.
JM-1P Horizontal Array with MPA-JM1 Pickup Plates and MTGSB-4B
Spreader Bar
8
Page 9
CHAPTER 2: POWER REQUIREMENTS
!
Line 1
Line 2 Line 3
Neutral
Earth Ground
!
The JM-1P loudspeaker combines advanced loudspeaker
technology with equally advanced power capabilities.
Understanding power distribution, voltage and current
requirements, as well as electrical safety issues, is critical to
the safe operation of the JM-1P.
AC POWER DISTRIBUTION
All components in an audio system (self-powered loudspeakers, processors, etc.) must be properly connected to
an AC power distribution system, ensuring that AC line
polarity is preserved, and that all grounding points are connected to a single node or common point using the same
cable gauge as the neutral and line cables.
NOTE: Improper grounding connections
between loudspeakers and the rest of the
audio system may produce noise or hum, or cause
serious damage to the input and output stages of the
system’s electronic components.
CAUTION: Before applying AC power to any
Meyer Sound self-powered loudspeaker, make
sure that the voltage potential difference between
neutral and earth ground is less than 5 V AC.
Figure 1 illustrates a basic three-phase AC distribution system with the loudspeaker load distributed across the three
phases. All loudspeakers are connected to common neutral
and earth-ground points.
THE AC CONNECTORS

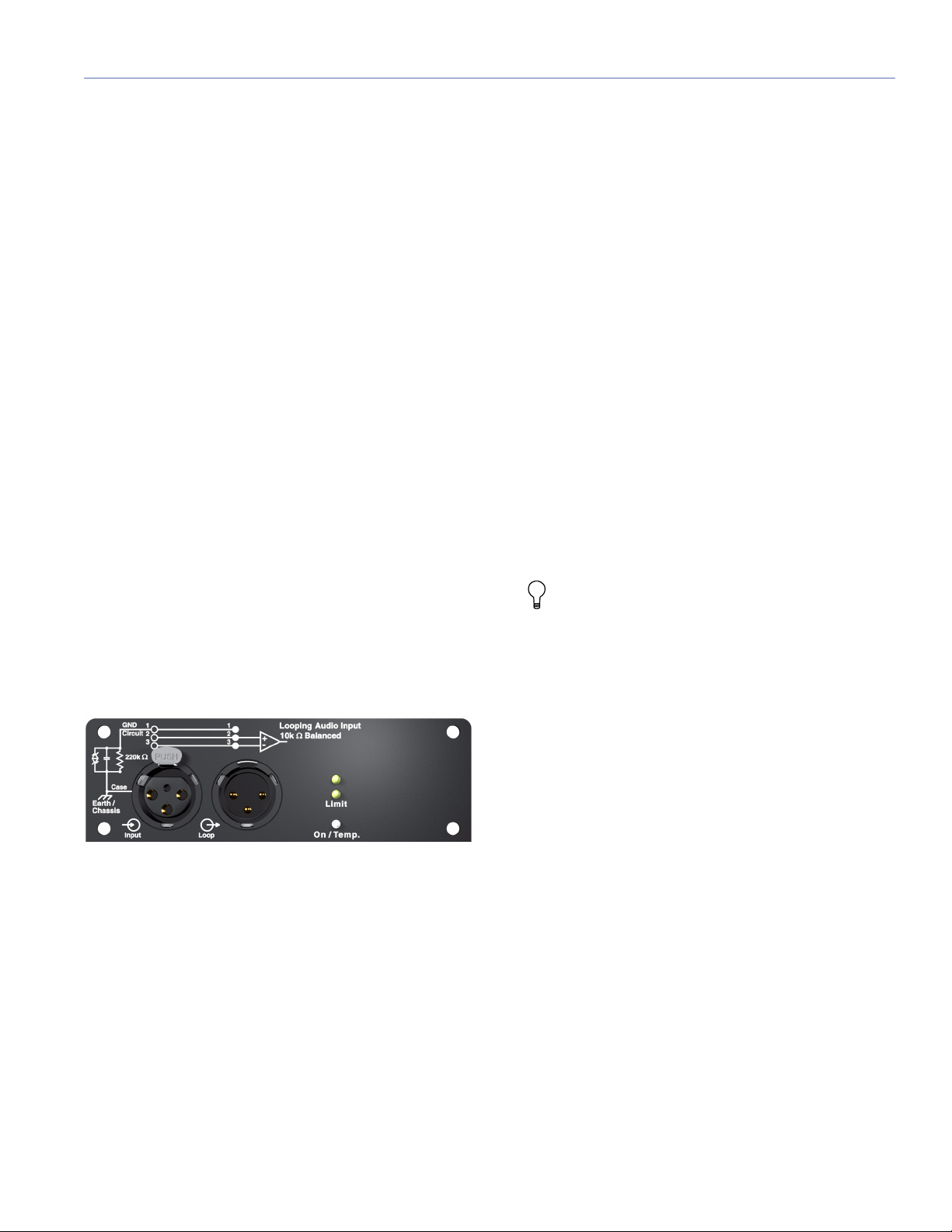

The user panel on the back of the JM-1P includes the fol-
®
lowing PowerCon
JM-1P AC Input (left) and AC Loop Output (right) Connectors
AC connectors:
The AC Input Connector (Blue)
The blue AC Input connector supplies power to the JM-1P.
The connector is rated at 20 amps and uses a PowerCon AC
mains locking connector that prevents accidental disconnections. A 10-foot AC power cable, rated at 15 amps, is
included with each loudspeaker. If you replace the included
AC power cable, make sure to use a cable with the appropriate power plug (on the other end) for the area in which you
will operate the unit.
The AC Input connector also supplies power to any additional loudspeakers connected to the loudspeaker’s gray
Loop Output connector. Each JM-1P loudspeaker requires
approximately 5 A rms (maximum long-term continuous
current) at 115 V AC for proper operation.
Figure 1: AC Power Distribution System
CAUTION: When using the included AC power
cable, do not loop more than two additional
JM-1P loudspeakers from the AC Loop Output connector at 115 V (three total for the circuit), and not
more than five at 230 V (six total for the circuit).
The AC Loop Output Connector (Gray)
The gray AC Loop Output connector allows multiple JM-1P
loudspeakers to be looped and powered from a single
power source. Connect the AC Loop Output of the first
loudspeaker to the AC Input of the second, and so forth. The
AC Loop Output uses a PowerCon3 AC mains locking connector that prevents accidental disconnections.
9
Page 10
CHAPTER 2: POWER REQUIREMENTS
!
Blue = neutral
Brown = hot
Yell ow /gr e en =
earth ground
(chassis
!
!
The maximum number of loudspeakers that can be looped
from the Loop Output connector is determined by the voltage of the power source, the circuit breaker rating, and the
rating of the AC power cable connected to the first JM-1P
loudspeaker.
Number of JM-1Ps that Can Be Looped with AC Power
Circuit Breaker/
Connector Rating
15 amps 2 looped
20 amps 3 looped
115 V AC 230 V AC 100 V AC
(3 total)
(4 total)
5 looped
(6 total)
7 looped
(8 total)
1 looped
(2 total)
2 looped
(3 total)
Each JM-1P loudspeaker ships with one AC looping connector for making AC looping cables. Assembled AC looping cables are available from Meyer Sound (15-inch UL AC
looping cable, PN 28.115.032.01; 0.35 m CE AC looping
cable, PN 28.115.032.02).
CAUTION: Do not exceed the current capabil-
ity of the 20-amp Input connector for the
JM-1P loudspeakers. When looping loudspeakers,
consider the total current draw for all loudspeakers
on the circuit, including the first loudspeaker.
When wiring international or special-purpose power connectors:
Connect the blue wire to the black terminal, or the termi-
nal marked with an N.
Connect the brown wire to the red terminal, or the termi-
nal marked with an L.
Connect the yellow and green wire to the green (or green
and yellow) terminal, or the terminal marked with an E.
CAUTION: When creating AC power cables
and distribution systems, it is important to preserve AC line polarity and connect the earth ground
on both ends of the cable. The JM-1P requires a
grounded connection. Always use a grounded outlet
and plug. It is extremely important that the system be
properly grounded in order to operate safely and
properly. Do not ground-lift the AC cable.
JM-1P VOLTAGE REQUIREMENTS
The JM-1P operates safely and continuously when the AC
voltage stays within 95–125 V AC and 208–235 V AC at 50
or 60 Hz. The JM-1P allows any combination of voltage to
GND (neutral-line-ground or line-line-ground).
AC Connections with VEAM Cabling
The JM-1P can be ordered from the factory with a VEAM allin-one connector. VEAM connectors consolidate AC power,
audio, and RMS into a single cable, facilitating easy connections and quick setups. For more information, see
Appendix A, “Optional VEAM Multipin Connector.”
POWER CONNECTOR WIRING
The JM-1P requires a grounded outlet. To operate safely
and effectively, it is extremely important that the entire system be properly grounded.
AC Cable Wiring Scheme
If the voltage drops below 85 V (brownout), the JM-1P uses
stored power to continue operating temporarily; the loudspeaker will shut down if the voltage does not rise above the
low boundary before the stored power is used.
If the voltage rises above 235 V, the power supply could
become damaged.
CAUTION: The power source for the JM-1P
should always operate within the required voltage range, at least a few volts from the upper and
lower ranges. This will ensure that AC voltage variations from the service entry — or peak voltage drops
due to cable runs — will not cause the loudspeaker’s
amplifiers to cycle on and off or cause damage to the
power supply.
Powering Up the JM-1P
When AC power is applied to the JM-1P, its Intelligent AC™
power supply automatically selects the correct operating
voltage, allowing it to be used internationally without manually setting voltage switches. In addition, Intelligent AC also
suppresses high-voltage transients up to several kilovolts,
filters common mode and differential mode radio frequencies (EMI), and sustains operation temporarily during lowvoltage periods.
10
Page 11
JM-1P OPERATING INSTRUCTIONS
!
!
When powering up the JM-1P, the following startup events
take place over several seconds.
1. Audio output is muted.
2. Voltage is detected and the power supply mode is automatically adjusted as necessary.
3. The power supply ramps up.
4. The green On/Temp LED on the user panel lights up,
indicating the loudspeaker is ready to output audio.
NOTE: The fan remains off at turn-on. It is con-
trolled by audio level and operates only at high
audio levels.
CAUTION: If the On/Temp LED does not light
up, or the loudspeaker does not output audio
after ten seconds, remove AC power immediately
and verify that the voltage is within the required
range. If the problem persists, contact Meyer Sound
Technical Support.
CAUTION: If either of the loudspeaker’s circuit
breakers trip (the white center buttons disengage), make sure to disconnect the AC power cable
before resetting the breakers. If necessary, contact
Meyer Sound for repair information.
JM-1P CURRENT REQUIREMENTS
The current draw for the JM-1P is dynamic and fluctuates as
operating levels change. Since different cables and circuit
breakers heat up at varying rates, it is important to understand the following types of current ratings and how they
affect circuit breaker and cable specifications.
Idle Current — The maximum rms current during idle
periods.
Maximum Long-Term Continuous Current — The
maximum rms current during a period of at least 10 seconds. The Maximum Long-Term Continuous Current is
used to calculate temperature increases for cables, to
ensure that cable sizes and gauges conform to electrical
code standards. The current rating is also used as a rating for slow-reacting thermal breakers. In addition, the
Maximum Long-Term Continuous Current can be used to
calculate the AC looping capability of the JM-1P.
Burst Current — The maximum rms current during a
period of around one second. The Burst Current is used
as a rating for magnetic breakers. It is also used for calculating the peak voltage drop in long AC cable runs
according to the following formula:
V pk (drop) = I pk x R (cable total)
Ultimate Short-Term Peak Current — A rating for fast-
reacting magnetic breakers.
Inrush Current — The spike of initial current encoun-
tered when powering on.
You can use the following table as a guide for selecting
cable gauges and circuit breaker ratings for the system’s
operating voltage.
JM-1P Current Draw
Current Draw 115 V AC 230 V AC 100 V AC
Idle Current 0.50 A rms 0.28 A rms 0.56 A rms
Maximum Long-Term
Continuous Current
Burst Current 8.0 A rms 4.1 A rms 9.2 A rms
Ultimate Short-Term
Peak Current
Inrush Current 7.1 A peak 8.4 A peak 7.1 A peak
4.55 A rms 2.50 A rms 5.25 A rms
20.8 A peak 13.0 A peak 21.6 A peak
The minimum electrical service amperage required by a
JM-1P loudspeaker system is the sum of the Maximum
Long-Term Continuous Current for each loudspeaker. An
additional 30 percent above the minimum amperage is recommended to prevent peak voltage drops at the service
entry.
NOTE: For best performance, the AC cable
voltage drop should not exceed 10 V, or
10 percent at 115 V and 5 percent at 230 V. Make
sure that even with AC voltage drops that the AC
voltage always remains within the operating windows.
11
Page 12
CHAPTER 2: POWER REQUIREMENTS
Earth ground
Chassis ground
ELECTRICAL SAFETY ISSUES
Pay close attention to these important electrical and safety
issues.
The JM-1P requires a grounded outlet. Always use a
grounded outlet and plug.
Do not use a ground-lifting adapter or cut the AC cable
ground pin.
Do not exceed the current capability of the 20-amp AC
Input connector for the loudspeaker. When looping loudspeakers, consider the total current draw for all loudspeakers on the circuit, including the first loudspeaker.
Make sure the AC power cable for the loudspeaker has
the appropriate power plug (on the other end) for the
area in which you will operate the loudspeaker. In addition, the AC power cable must be rated for the total current draw of all loudspeakers looped from the power
source.
Do not operate the unit if the power cables are frayed or
broken.
Keep all liquids away from the JM-1P to avoid hazards
from electrical shock.
12
Page 13
CHAPTER 3: AMPLIFICATION AND AUDIO
The JM-1P low- and high-frequency drivers are powered by
a proprietary two-channel Meyer Sound amplifier with
MOSFET output stages. The audio signal is processed with
an electronic crossover, correction filters for phase and frequency response, and driver protection circuitry. Each channel has peak and rms limiters that prevent driver overexcursion and regulate the temperature of the voice coil.
The user panel on the back of the JM-1P has two slots for
modules. The top slot contains an audio input module
(described in this chapter). The bottom slot is reserved for
the optional RMS module, used for connecting to the RMS
remote monitoring system (see Chapter 6, “The RMS
Remote Monitoring System”).
VEAM CABLING
The JM-1P can be ordered from the factory with a VEAM allin-one connector. VEAM connectors consolidate AC power,
audio, and RMS into a single cable, facilitating easy connections and quick setups. For more information, see
Appendix A, “Optional VEAM Multipin Connector.”
THE LOOPING AUDIO INPUT MODULE
The Looping Audio Input module includes input and looping
connectors, and LEDs for monitoring temperature and limiting.
Input Connector
The female XLR Input connector accepts a balanced audio
signal with an input impedance of 10 kOhm. The connector
uses the following wiring:
Pin 1 — 220 kOhm to chassis and earth ground (ESD
clamped)
Pin 2 — Signal (+)
Pin 3 — Signal (–)
Case — Earth (AC) ground and chassis
Pins 2 and 3 carry the input as a differential signal. Pin 1 is
connected to earth through a 220 kOhm, 1000 pF, 15 V
clamped network. This circuitry provides virtual ground lift
for audio frequencies while allowing unwanted signals to
bleed to ground. Make sure to use standard, balanced XLR
audio cables with all three pins connected on both ends.
Telescopic grounding is not recommended, and shorting an
input connector pin to the case may cause a ground loop,
resulting in hum.
TIP: If unwanted noise or hiss is produced by
the loudspeaker, disconnect its input cable. If
the noise stops, there is most likely nothing wrong
with the loudspeaker. To locate the source of the
noise, check the audio cable, source audio, and AC
power.
Looping Audio Input Module
Loop Connector
The male XLR Loop connector allows multiple JM-1P loudspeakers to be looped from a single audio source. Connect
the Loop output of the first loudspeaker to the Input of the
second, and so forth. The Loop connector is wired in parallel
to the Input connector and transmits the unbuffered source
signal even when the loudspeaker is powered off.
To avoid distortion when looping multiple JM-1P loudspeakers, make sure the source device can drive the total load
impedance of the looped loudspeakers. In addition, the
source device must be capable of delivering 20 dBV
(10 V rms into 600 ohms) to yield the maximum peak SPL
over the operating bandwidth of the loudspeaker.
13
Page 14
CHAPTER 3: AMPLIFICATION AND AUDIO
High-frequency limiter LED
Low-frequency limiter LED
!
To calculate the load impedance for the looped loudspeakers, divide 10 kOhms (the input impedance for a single
JM-1P) by the number of looped loudspeakers. For example, the load impedance for 10 JM-1P loudspeakers is
1000 ohms (10 kOhms / 10). To drive this number of looped
loudspeakers, the source device should have an output
impedance of 100 ohms or less. This same rule applies
when looping JM-1P loudspeakers with other self-powered
Meyer Sound loudspeakers and subwoofers.
NOTE: Most source devices are capable of
driving loads no smaller than 10 times their
output impedance.
NOTE: Make sure that all cabling for looped
loudspeakers is wired correctly (Pin 1 to Pin 1,
Pin 2 to Pin 2, and so forth) to prevent the polarity
from being reversed. If one or more loudspeakers in a
system have reversed polarity, frequency response
and coverage can be significantly degraded.
Limit LEDs
The low- and high-frequency drivers for the JM-1P are powered by separate amplifier channels, each with their own
limiter. Limiting activity is indicated with the two yellow Limit
LEDs. The top LED indicates limiting for the high-frequency
channel and the bottom LED indicates limiting for the lowfrequency channel. When engaged, a channel’s limiter not
only protects the driver, but also prevents signal peaks from
causing excessive distortion in the amplifier’s channel,
thereby preserving headroom and maintaining smooth frequency responses at high levels. When a channel’s level
returns to normal, below the limiter’s threshold, limiting
ceases.
The JM-1P performs within its acoustical specifications at
normal temperatures when the Limit LEDs are unlit, or if the
LEDs are lit for two seconds or less and then turn off for at
least one second. If an LED remains lit for longer than three
seconds, that channel enters hard limiting where:
Increases to the input level have no effect.
Distortion increases due to clipping and nonlinear driver
operation.
The driver is subjected to excessive heat and excursion,
which will compromise its life span and may eventually
lead to damage over time.
CAUTION: The Limit LEDs indicate when a
safe, optimum level is exceeded. If a JM-1P
loudspeaker begins to limit before reaching the
required SPL, consider adding more loudspeakers to
the system.
NOTE: The JM-1P loudspeaker uses optical
limiters that add no noise and have no effect
on the signal when the limiters are not engaged and
the Limit LEDs are not lit.
On/Temp LED
When the JM-1P is powered on, its On/Temp LED turns
green. If the temperature of the heat sink reaches 85° C
(185° F), the On/Temp LED changes from green to red and
the limiter threshold is lowered to a safe level to prevent the
system from overheating. Under high temperature conditions the output level is reduced by approximately 6 dB.
When the heat sink temperature decreases to 80° C
(176° F), the On/Temp LED changes from red back to green
and the limiter threshold returns to normal.
Limit LEDs
14
NOTE: When the On/Temp LED is red, this is
an indication that the unit is reaching its maximum dissipation and a reduction in SPL is recommended.
TIP: When the JM-1P is connected to an RMS
network, the RMS software provides additional
feedback on the loudspeaker’s operating temperature. For more information, see Chapter 6, “The RMS
Remote Monitoring System.”
Page 15
JM-1P OPERATING INSTRUCTIONS
!
!
!
AMPLIFIER COOLING SYSTEM
The amplifier for JM-1P uses natural convection for cooling
at low to moderate audio levels; for high audio levels, it uses
Meyer Sound’s proprietary QuietCool fan technology to prevent overheating. The QuietCool™ fan only engages at high
audio levels, making it virtually inaudible.
CAUTION: To keep the JM-1P from getting too
hot, allow for proper ventilation around the
loudspeaker, especially when it is operated in tightly
packed conditions.
CAUTION: In the unlikely event that the heat
sink temperature for the JM-1P reaches 95° C
(203° F), the loudspeaker will automatically shut
down until AC power is removed to allow the heat
sink to cool. If after cooling and reapplying AC power
the loudspeaker shuts down again, contact Meyer
Sound for repair information.
QuietCool Fan Technology
CAUTION: The heat sink for the JM-1P can
reach temperatures of up to 85° C (185° F) during extreme operation. Use extreme caution when
approaching the rear of the loudspeaker.
15
Page 16
CHAPTER 3: AMPLIFICATION AND AUDIO
16
Page 17
CHAPTER 4: ADDING SUBWOOFERS TO A JM-1P LOUDSPEAKER SYSTEM
INPUT OUTPUT
12345678
SIGNAL / CLIP
MUTE
700-HP subwoofers can be added to JM-1P loudspeaker
systems to enhance the low-frequency response and
increase the overall acoustic power of the system in the lowest frequencies. The ideal ratio of JM-1P loudspeakers to
700-HP subwoofers depends on the frequency content of
the source material and headroom required for low frequencies.
Table 2: Recommended Ratio of JM-1Ps to Subwoofers
Sub-
woofer
700-HP 30 Hz – 125 Hz
Frequency
Response
±4 dB
Recommended Ratio
(Number of JM-1Ps per Subwoofer)
2 x 1 for normal applications
3 x 2 for bass-heavy applications
requiring additional low-frequency
headroom
700-HPs can be added to JM-1P systems by daisy-chaining
them to JM-1P loudspeakers. Full-range signals can be
connected directly to Meyer Sound self-powered loudspeakers because the loudspeakers have built-in active
crossovers. In more complex systems, subwoofers should
be integrated using line drivers or digital signal processor to
send multiple outputs to each sub-system. In addition, you
can use low-cut filters to flatten the overall frequency
response of the system while increasing the JM-1P headroom in the lower frequencies.
THE GALILEO LOUDSPEAKER MANAGEMENT SYSTEM
Meyer Sound’s Galileo® loudspeaker management system is
a comprehensive solution for driving and aligning loudspeaker systems, especially those comprised of Meyer
Sound self-powered loudspeakers. The system is available
in two hardware configurations:
The Galileo 616 is a two-space rack unit with six inputs
and 16 low-latency outputs. Processing for the outputs
includes gain, polarity, delay, high- and low-pass filters,
equalization (parametric and TruShaping), and atmospheric correction.
Galileo 616
The Galileo 408 shares the same 24-bit, 96 kHz audio
quality and 32-bit floating point internal processing as
the Galileo 616, though with fewer inputs and outputs.
NOTE: When JM-1P loudspeakers and
700-HP subwoofers are daisy-chained using
the JM-1P’s Loop connector, the result is a fairly flat
frequency response. However, the response will show
an increase in the 60 Hz – 200 Hz range where the
loudspeaker and subwoofer overlap at certain ratios
(see Table 2).
NOTE: If the 700-HP exhibits limiting (its Limit
LED lights) before reaching the required SPL,
consider adding more subwoofers to meet the SPL
requirements without exposing the drivers to excessive heat and excursion.
TIP: MAPP Online Pro™ can be used to accu-
rately predict the appropriate loudspeaker and
subwoofer integration in systems, complete with coverage data, system delay and equalization settings,
rigging information, and detailed design illustrations.
For more information, see “MAPP Online Pro” on
page 31.
Galileo 408
All system parameters for the Galileo 616 and Galileo 408
can be configured from the extensive Compass™ software
®
running on a Windows or Mac
computer. The Galileo 616
can also be configured from its intuitive front panel controls.
The Galileo system interfaces seamlessly with Meyer
Sound’s SIM
®
3 audio analyzer.
TIP: The Galileo 616 and Galileo 408 include
presets optimized for JM-1P loudspeaker sys-
tems.
17
Page 18
CHAPTER 4: ADDING SUBWOOFERS TO A JM-1P LOUDSPEAKER SYSTEM
USING DIGITAL SIGNAL PROCESSORS
Full-range signals can be connected directly to Meyer
Sound self-powered loudspeakers because the loudspeakers have built-in active crossovers. External crossovers and
digital signal processors are optional and should be used
with caution as they can introduce phase shifts that cause
destructive cancellations.
If a digital signal processor is used, both the JM-1P loudspeakers and subwoofer should be driven from the same
processor to keep their delay times the same. Otherwise a
phase shift between the JM-1Ps and subwoofer may be
encountered. In addition, you should verify the delay time
between channels: some digital signal processors may incur
channel-to-channel delays when the processor is near maximum throughput, which becomes more likely as the number
of filters in use by the processor is increased.
Third-order filters (and higher) are not recommended. If they
must be used, they should be used cautiously, since they
may cause phase shifts that deteriorate the impulse
response; in addition, their higher roll-off may also interfere
with crossover interaction.
TIP: To address the collective concerns of sys-
tem design verification, subwoofer integration,
digital signal processors, delay systems, and acoustical conditions, a measurement system like Meyer
Sound’s SIM 3 is strongly recommended.
18
Page 19
CHAPTER 5: QUICKFLY RIGGING
!
The JM-1P loudspeaker is compatible with Meyer Sound’s
QuickFly system, a comprehensive collection of customdesigned rigging, flying, and mounting options. Comprised
of rugged, reliable, and easy-to-configure components,
QuickFly lets you deploy JM-1P loudspeakers as arrays at
precise angles to take full advantage of their directional
components. The top and bottom plates for the JM-1P cabinets are constructed of heavy-duty, high-strength, corrosion-resistant 6061-T6 aluminum and include threaded
metric holes (for M10 screws) for easy connection to QuickFly rigging and third-party mounting options.
Important Safety Considerations!
When installing Meyer Sound loudspeakers, the following
precautions should always be observed:
All Meyer Sound products must be used in accordance
with local, state, federal, and industry regulations. It is
the owner’s and user’s responsibility to evaluate the reliability of any rigging method for their application. Rigging
should only be carried out by experienced professionals.
Use mounting and rigging hardware that has been rated
to meet or exceed the weight being hung.
THE JM-1P GUIDEALINKS
The JM-1P is equipped with GuideALinks on its four right corners that attach to an adjacent JM-1P with the links inserted
in the left corner slots of the linked unit. GuideALinks are
extended and retracted with front and rear knobs. The links
are secured to the linked JM-1P with the quick-release pins
included with each loudspeaker. GuideALinks are also used
when flying JM-1Ps from the MTG-JM1 vertical grid.
Make sure to attach mounting hardware to the building's
structural components (studs or joists), and not just to
the wall surface. Verify that the building's structure and
the anchors used for the installation will safely support
the total weight of the mounted loudspeakers.
Use mounting hardware appropriate for the surface
where the loudspeaker will be installed.
Make sure bolts and eyebolts are tightened securely.
Meyer Sound recommends using Loctite
®
on eyebolt
threads and safety cables.
Inspect mounting and rigging hardware regularly. Imme-
diately replace any worn or damaged components.
JM-1P GuideALinks
CAUTION: When moving and linking JM-1Ps,
avoid placing fingers between the units to pre-
vent injury.
19
Page 20
CHAPTER 5: QUICKFLY RIGGING
Stow quick-release pin here
Stow quick-release pin here
The JM-1P Quick-Release Pins
Each JM-1P ships with four quick-release pins that secure
the units when they are linked. When inserting and removing
the pins, press the button at the top of the pin to disengage
it. When inserted in the GuideALink holes (in the front left
corners and rear right corners), the pins latch and lock to the
links inserted into the corner slots.
Rear Quick-Release Pin, GuideALink Inserted (Left); GuideALink Not
Present (Right)
When the GuideALinks are not present in the corner slots,
the quick-release pins should be removed from the corner
link holes and placed in their stowed location: in the front,
just to the left of the top and bottom GuideALink knobs; and
in the rear, in the top and bottom center holes.
Linking JM-1Ps
To link JM-1Ps:
1. Place the JM-1Ps next to each other on a flat surface
and align the adjacent back corners so they are as close
as possible to each other.
2. Face the rear of the loudspeakers and slide the top and
bottom rear GuideALink knobs to the left to insert the
links into the corner slots of the adjacent loudspeaker.
Stowed Quick-Release Pin, Front Bottom
Stowed Quick-Release Pin, Rear Bottom
20
Page 21
JM-1P OPERATING INSTRUCTIONS
!
23.00
[584 mm]
10.87
[276 mm]
2.00
[51 mm]
Ø0.81 (x12)
[Ø21 mm]
5.95
[151 mm]
Ø0.47 (x4)
[Ø12 mm]
3. Secure the rear GuideALinks with the quick-release pins
stored at the center top and center bottom of the loudspeaker. The pins can be inserted top down or bottom
up.
4. Face the front of the loudspeakers and position the loudspeakers so their adjacent front corners are as close as
possible to each other. The previously attached rear
GuideALinks act as a hinge.
5. Slide the top and bottom front GuideALink knobs to the
right to insert the links into the corner slots of the adjacent loudspeaker.
THE MPA-JM1 PICKUP PLATE
The optional MPA-JM1 pickup plate suspends JM-1P horizontal arrays with uptilt or downtilt. A single pickup plate
supports 1–4 loudspeakers. Two pickup plates support 5–6
loudspeakers. The pickup plate comes with M10 knobs,
bolts, and washers for securing the plate to the JM-1P.
Bolts are recommended for fixed installations, while knobs
are recommended for touring and portable applications.
MPA-JM1 Pickup Plate Dimensions; Weight, 16 lbs (7.26 kg)
6. Secure the front GuideALinks with the quick-release pins
stored at the right top and right bottom of the loudspeaker. The pins are inserted from the front.
CAUTION: Routine maintenance inspections
of the JM-1P should include a check of all
GuideALink knobs. Rotate each knob counterclockwise to make sure they are tight. If a knob turns, reset
it in the link with Loctite 290 and let it cure for 48
hours. Retest the link before the unit is flown.
The MPA-JM1 has a row of 12 hanging points in the center
of the plate. When suspending the pickup plate from a single hanging point, the location of the hanging point determines the uptilt or downtilt of the suspended JM-1Ps. For
greater control, two or more hanging points can be used.
MPA-JM1 Pickup Plate with JM-1P
21
Page 22
CHAPTER 5: QUICKFLY RIGGING
NOTE: When using M10 knobs to secure the
MPA-JM1 pickup plate to the JM-1P, the sec-
ond hanging point from the rear is inaccessible.
JM-1P Arrays with a Single Pickup Plate
A single MPA-JM1P pickup plate can suspend arrays of 2–4
loudspeakers:
For arrays of two JM-1Ps (with 40 degrees of horizontal
coverage), attach the single pickup plate between the
two loudspeakers.
For arrays of three JM-1Ps (with 60 degrees of horizontal
coverage), attach the single pickup plate to the second
loudspeaker.
MPA-JM1 Pickup Plate with Three JM-1Ps
For arrays of four JM-1Ps (with 80 degrees of horizontal
coverage), attach the single pickup plate between the
third and fourth loudspeaker.
MPA-JM1 Pickup Plate with Two JM-1Ps
MPA-JM1 Pickup Plate with Four JM-1Ps
TIP: For greater control and stability, use two
MPA-JM1 pickup plates for arrays of four
JM-1Ps.
22
Page 23
JM-1P OPERATING INSTRUCTIONS
JM-1P Arrays with Two Pickup Plates
Two MPA-JM1 pickup plates can suspend arrays of 4–6
loudspeakers:
For arrays of four JM-1Ps (with 80 degrees of horizontal
coverage), attach the two pickup plates between the first
and second, and third and fourth loudspeakers.
Two MPA-JM1 Pickup Plates with Four JM-1Ps
For arrays of five JM-1Ps (with 100 degrees of horizontal
coverage), attach the two pickup plates to the second
and fourth loudspeakers.
For arrays of six JM-1Ps (with 120 degrees of horizontal
coverage), attach the two pickup plates to the second
and fifth loudspeakers.
Two MPA-JM1 Pickup Plates with Six JM-1Ps
The MTGSB-4B Spreader Bar
The optional MTGSB-4B spreader bar can suspend two
MPA-JM1P pickup plates from a single motor point. Six hanging points are provided at each end of the spreader bar to
adjust the spread between the pickup plates. The MTGSB-B
spreader bar includes shackles and connecting links.
Two MPA-JM1 Pickup Plates with Five JM-1Ps
Two MPA-JM1 Pickup Plates with Six JM-1Ps Suspended from the
MGTSB-4B Spreader Bar
23
Page 24
CHAPTER 5: QUICKFLY RIGGING
29.00
[737 mm]
37.39
[950 mm]
3.00
[76 mm]
34.64
[880 mm]
Ø0.94 (x9)
[Ø24 mm]
THE MTG-JM1 VERTICAL GRID
The optional MTG-JM1 vertical grid suspends JM-1P vertical arrays of up to six units. The grid was designed specifically for the JM-1P and is compatible with the GuideALinks
and quick-release pins included with the JM-1P.
The MTG-JM1 vertical grid has a row of nine hanging points
in the center of the grid. Two additional attachment points
are located at the left and right rear corners of the grid to
provide additional control and stability.
MTG-JM1 Vertical Grid Dimensions; Weight, 47 lbs (21.32 kg)
The MTG-JM1 vertical grid comes with four quick-release
pins for securing the JM-1P connected directly to the grid.
To secure the front GuideALinks, the quick-release pins are
inserted at the front of the grid. To secure the rear
GuideALinks, the pins are inserted from the inside of the
grid. Additional JM-1Ps in the array are secured with the
quick-release pins included with each loudspeaker.
MTG-JM1 Vertical Grid with Three JM-1Ps
Rotating the Meyer Sound Logo
To accommodate the orientation of the JM-1P, the Meyer
Sound logo on the unit’s grille frame can be rotated.
To rotate the Meyer Sound logo on the JM-1P grille frame:
Pull up on the logo, rotate it to the desired position, and
release.
MTG-JM1 Vertical Grid with JM-1P
24
Page 25
THE MDB-JM1 DOLLY BOARD
30.63
[778 mm]
6.77
[172 mm]
13.43
[341 mm]
12.19
[310 mm]
21.88
[556 mm]
16.40
[417 mm]
42.20
[1072 mm]
50.33
[1278 mm]
32.97
[838 mm]
44.58
[1132 mm]
42.21
[1072 mm]
31.53
[801 mm]
40.64
[1032 mm]
The optional MDB-JM1 dolly board transports the JM-1P on
caster wheels. Up to three dolly boards can be interlocked
for transporting up to three linked JM-1Ps. The interlocked
dolly boards can be oriented normally with all three units
facing the same direction, or they can be staggered to
occupy less space during transport.
JM-1P OPERATING INSTRUCTIONS
MDB-JM1 Dolly Board Dimensions
MDB-JM1 Dolly Board with JM-1P
TIP: The JM-1Ps can remain in their MDB-JM1
dolly boards during performances. When doing
so, make sure the boards’ wheels are securely
blocked so the units won’t move their positions.
Dimensions for Three MDB-JM1 Dolly Boards, Normal
Dimensions for Three MDB-JM1 Dolly Boards, Staggered
25
Page 26
CHAPTER 5: QUICKFLY RIGGING
26
Page 27
CHAPTER 6: THE RMS REMOTE MONITORING SYSTEM
An optional RMS remote monitoring system module can be
installed in the JM-1P, allowing it to be connected to an
RMS network. RMS allows real-time monitoring of multiple
Meyer Sound self-powered loudspeakers from a Windowsbased computer. The RMS host computer communicates
with Meyer Sound loudspeakers (equipped with RMS modules) via a simple twisted pair network, or an Ethernet network using an FT-10 to Ethernet adapter.
NOTE: For the latest RMS system require-
ments, go to the Meyer Sound website
(http://www.meyersound.com
NOTE: RMS-equipped loudspeakers include a
Mute Jumper that can be installed to enable
the loudspeaker’s mute and solo capability. Meyer
Sound currently ships RMS-equipped loudspeakers
with the Mute Jumper installed. These mute-enabled
loudspeakers can be identified by the blue “ME”
sticker on the face of the RMS module. Older RMSequipped loudspeakers can easily be mute-enabled
by installing the Mute Jumper. For more information,
refer to the RMS User Guide.
).
THE RMS SOFTWARE
The optional RMS software provides extensive system status and performance data for each loudspeaker, including
amplifier voltage, limiting activity, power output, driver status, as well as mute and solo capability. Loudspeakers are
added to the RMS network and assigned a node name during a one-time commissioning procedure where the loudspeaker is identified by either entering its unique Neuron ID,
or by pressing its Service button.
RMS Add Loudspeaker Dialog Box
NOTE: The RMS software allows you to dis-
able Mute and Solo functions to eliminate any
possibility of accidentally muting loudspeakers. Mute
and solo capability can also be disabled by removing
the Mute Jumper from RMS modules. For more information, refer to the RMS User Guide.
NOTE: RMS does not control AC power.
Once loudspeakers are identified on the RMS network, they
appear in the RMS software as icons and views; they are
also automatically added to the RMS database on the host
computer.
JM-1P RMS Icon
27
Page 28
CHAPTER 6: THE RMS REMOTE MONITORING SYSTEM
The RMS software displays all loudspeakers on the network
in a panel with icons, Meter views, and Text views that can
be customized to suit your needs. Loudspeaker data is
updated 2–5 times per second. Individual loudspeakers can
be physically identified with the Wink option in RMS, which
lights the Wink LED on the RMS module for that particular
loudspeaker. Conversely, a loudspeaker can be identified in
the RMS software by pressing the Service button on the
loudspeaker’s RMS module.
THE RMS MODULE
The RMS module is installed in the bottom slot of the user
panel on the back of the Meyer Sound loudspeaker. The
RMS user panel has three LEDs, two buttons, and two Network connectors.
RMS Module
NOTE: The LEDs and buttons on the RMS user
panel are used exclusively by RMS and have
no effect on the acoustical or electrical activity of the
JM-1P loudspeaker.
Service LED (Red)
The red Service LED provides the following feedback:
When unlit, the loudspeaker is successfully connected to
the network and commissioned.
RMS User Panel
Loudspeaker icons and views can be arranged to represent
how the loudspeakers have been deployed in the system.
Multiple panels can be saved and recalled for specific performances and venues.
NOTE: When the heat sink for the JM-1P
reaches 85° C (185° F), the On/Temp LED turns
red, while its loudspeaker icon in the RMS software
turns yellow — indicating the loudspeaker is running
hot, but still within safe operating limits. Make sure
that the loudspeaker is properly ventilated.
When blinking once every two seconds, the loudspeaker
is connected to the network but not yet commissioned in
the RMS software.
When lit continuously, the loudspeaker’s RMS hardware
has failed and may indicate that the module has been
damaged (contact Meyer Sound Technical Support).
NOTE: The Service LED on the RMS user
panel is used exclusively by RMS and has no
effect on the acoustical or electrical activity of the
JM-1P loudspeaker.
Service Button
Pressing the Service button identifies the loudspeaker on
the RMS network and notifies the RMS software that the
loudspeaker is connected. You can simultaneously press the
Reset and Service buttons to reset the RMS module and
decommission the loudspeaker from the network (see
“Resetting the RMS Module” on page 29).
28
Page 29
Wink LED (Green)
The green Wink LED lights when a signal is sent from the
RMS software by clicking the Wink button on the loudspeaker’s icon or on its Text view. This is useful for identifying the physical loudspeaker corresponding to a
loudspeaker icon in the RMS software.
Reset Button
Pressing the Reset button causes the RMS module’s firmware to reboot; this will not affect whether the loudspeaker
is commissioned (which is stored in flash memory). You can
simultaneously press the Reset and Service buttons to reset
the RMS module and decommission the loudspeaker from
the network (see “Resetting the RMS Module” on page 29).
Activity LED (Green)
The green Activity LED flashes continuously when the loudspeaker has been successfully commissioned.
JM-1P OPERATING INSTRUCTIONS
Network Connectors
The two bi-directional Weidmuller locking connectors transfer data to and from the RMS network. Two connectors are
provided to allow for easy connection of multiple (daisychained) loudspeakers on the network.
RESETTING THE RMS MODULE
You can use the Reset and Service buttons to reset the RMS
module, which will cause the module to be decommissioned
from the network.
To reset the RMS module:
1. Press and hold the Service button for 10 seconds.
2. While continuing to hold down the Service button, press
and hold the Reset button for 5 seconds.
3. After releasing the Reset button, continue holding down
the Service button for 5 seconds. The RMS module is
reset and the loudspeaker is decommissioned. The RMS
module’s red Service LED blinks.
29
Page 30
CHAPTER 6: THE RMS REMOTE MONITORING SYSTEM
30
Page 31
CHAPTER 7: SYSTEM DESIGN AND INTEGRATION TOOLS
Meyer Sound offers two comprehensive tools to assist with
the acoustical and functional requirements of system design
and optimization. This chapter introduces you to MAPP
Online Pro, Meyer Sound’s patented online acoustical prediction tool, and SIM 3, a comprehensive system for measurement and analysis.
MAPP ONLINE PRO
MAPP Online Pro is a powerful, cross-platform, Java-based
application for accurately predicting the coverage pattern,
frequency response, impulse response, and maximum SPL
output of single or arrayed Meyer Sound loudspeakers.
Residing on your local computer, the MAPP Online Pro client
lets you configure Meyer Sound loudspeaker systems and
define the environment in which they will operate, including
air temperature, pressure, humidity, and even the location
and composition of walls. CAD (DXF) files containing
detailed venue information can also be imported.
detailed design illustrations. MAPP Online Pro’s accurate,
high-resolution predictions ensure that systems will perform
as expected, thereby eliminating unexpected coverage
problems and minimizing on-site adjustments.
The key to the accuracy of MAPP Online Pro’s predictions is
its exhaustive database of Meyer Sound loudspeaker measurements. Performance predictions for each loudspeaker
are based on 360 1/48th-octave-band measurements taken
with a SIM audio analyzer in the Meyer Sound anechoic
chamber. The extraordinary consistency between Meyer
Sound loudspeakers guarantees that predictions from
MAPP Online Pro will closely match their actual performance.
MAPP Online Pro predictions are requested by the client
software and sent via the Internet to the high-speed Meyer
Sound servers where high-resolution (magnitude and phase)
polar data is processed with sophisticated acoustical prediction algorithms. The resulting predictions are then
returned to and displayed on the local computer running the
MAPP Online Pro client software.
MAPP Online Pro Applications
With MAPP Online Pro, you can:
MAPP Online Pro
Whether planning for fixed installations or tours with multiple
venues, sound system designers can use MAPP Online Pro
to accurately predict the appropriate loudspeaker deployment for each job, complete with coverage data, system
delay and equalization settings, rigging information, and
■ Simulate different loudspeaker configurations to refine
system design and zero-in on the best coverage for
intended audience areas
■ Monitor loudspeaker interactions to locate destructive
interferences so that loudspeakers can be re-aimed and
repositioned as necessary
■ Place microphones anywhere in the sound field and pre-
dict their frequency response, impulse response, and
sound pressure
■ Determine delay settings for fill loudspeakers
■ Try out virtual Galileo equalization to determine optimum
real-world settings for the best system response
■ Automatically calculate load information for arrays to
determine rigging capacities, front-to-back weight distribution, and center of gravity
■ Generate and export system images for client presenta-
tions
31
Page 32
CHAPTER 7: SYSTEM DESIGN AND INTEGRATION TOOLS
Using MAPP Online Pro
MAPP Online Pro is compatible with the following operating
systems:
■ Windows
■ Linux
■ Unix
■ Mac OS
Additional system requirements and recommendations are
available on the MAPP Online Pro website:
Downloading and Installing MAPP Online Pro
To use MAPP Online Pro, you can register at the following
link:
After entering your registration information, an email will be
sent to you with your user name, password, and the MAPP
Online Pro download location. On-screen instructions will
guide you through the download and installation process.
The MAPP Online Pro client software is regularly upgraded
to add support for the latest Meyer Sound loudspeakers, as
well as to add feature enhancements. Most upgrades are
downloaded automatically when logging on to a MAPP
Online Pro session. The MAPP Online Pro database includes
nearly all of the current Meyer Sound loudspeakers, subwoofers, and processors.
®
®
®
10.4 or later
http://www.meyersound.com/products/mapponline/pro/
http://www.meyersound.com/products/mapponline/pro/
register/
Source Independent Measurement Technique
The SIM 3 audio analyzer implements Meyer Sound’s source
independent measurement technique, a dual-channel
method that accommodates statistically unpredictable excitation signals. Any excitation signal within a desired frequency range can be used to obtain highly accurate
measurements for acoustical or electronic systems. For
example, concert halls and loudspeaker systems can be
captured during a performance and used as a SIM 3 test
signal, so you can:
■ View measurement data as amplitude versus time
(impulse response) or amplitude and phase versus frequency (frequency response)
■ Utilize a single-channel spectrum mode
■ View frequency domain data with a logarithmic fre-
quency axis
■ Determine and internally compensate for propagation
delays using the SIM 3 Delay Finder
SIM 3 Applications
SIM 3’s main applications are testing and aligning loudspeaker systems, which entails:
■ Measuring propagation delays between subsystems to
determine appropriate polarities and delay times
■ Measuring variations in frequency response caused by
the acoustical environment and the placement and interaction of loudspeakers to determine corrective equalization
■ Optimizing subwoofer integrations
THE SIM 3 MEASUREMENT SYSTEM
The SIM 3 audio analyzer is a high-resolution audio measurement system comprised of software, hardware, microphones, and accessory cables. SIM 3 is optimized for
measuring audio frequencies with resolutions up 1/48th of
an octave, allowing you to apply precise corrections to balance system response using frequency and phase domain
information.
32
■ Optimizing loudspeaker arrays
SIM 3 can also be used in the following applications:
■ Microphone calibration and equalization
■ Transducer evaluation and correction
■ Echo detection and analysis
■ Vibration analysis
■ Architectural acoustics
■ Underwater acoustics
Page 33
APPENDIX A: OPTIONAL VEAM MULTIPIN CONNECTOR
Line (brown)
Ground (green/yellow)
Neutral (blue)
The JM-1P can be ordered from the factory with a VEAM allin-one connector. VEAM connectors consolidate AC power,
audio, and RMS into a single cable, facilitating easy connections and quick setups.
JM-1P loudspeakers require a grounded outlet. It is very
important that the system be properly grounded in order to
operate safely and properly. Figure 3 illustrates correct wiring for the creation of power cables and distribution systems
for JM-1P loudspeakers equipped with VEAM multipin connectors.
Figure 3: VEAM Multipin Connector Pin-Outs for Power
For complete wiring conventions and pin-outs for AC, audio,
and RMS connections, refer to the Meyer Sound document
VEAM Cable Wiring Reference (PN 06.033.113.01).
Meyer Sound offers the VIM-4 VEAM interface module with
four VEAM connectors in the front and a single-phase
IEC 309 32-amp connector in the rear to distribute power,
audio, and RMS to JM-1P loudspeakers equipped with
VEAM connectors.
VIM-4 Module, Front and Rear Panels
33
Page 34
APPENDIX A: OPTIONAL VEAM MULTIPIN CONNECTOR
34
Page 35
APPENDIX B: OPTIONAL RAIN HOODS
6.22
[158 mm]
4.22
[107 mm]
6.25
[159 mm]
5.57
[141 mm]
2.50
[64 mm]
4.68
[119 mm]
12.49
[317 mm]
4.79
[122 mm]
6.08
[154 mm]
2.76
[70 mm]
4.73
[120 mm]
A weather-protected version of the JM-1P is available with
rain hood kits that safeguard the loudspeaker’s electronics
from the elements in fixed, outdoor installations. The rain
hood is available in both vertical (PN 40.185.038.01) and
horizontal (PN 40.185.084.02) versions. The rain hood kits
are comprised of an upper rain hood that protects the heat
sink, and a lower rain hood that protects the user panel and
connectors. The rain hoods are made of a durable, highimpact polycarbonate that is also transparent, allowing the
loudspeaker's connections and LEDs to be visible.
VERTICAL RAIN HOOD KIT CONTENTS
The JM-1P vertical rain hood is used when the loudspeaker
is oriented vertically. The JM-1P vertical rain hood kit
(PN 40.185.038.01) includes the following parts:
JM-1P Vertical Rain Hood Kit
Part Part Number Quant.
Upper rain hood assembly 45.185.084.02 1
Upper rain hood frame 45.185.084.01 1
Lower rain hood assembly 45.152.031.01 1
Flat head screws, 8-32 x .25" 101.827 4
Pan head screws, 8-32 x .50" 101.008 2
Lock pins, 5/16” x .63" 134.024 2
Vertical Rain Hood Dimensions: Upper Rain Hood Assembly (Right)
Installing the Vertical Rain Hood
To install the JM-1P vertical rain hood:
Vertical Rain Hood Dimensions: Lower Rain Hood Assembly
1. Attach any required cables to the loudspeaker and orient
it vertically.
2. Remove the bottom two pan head screws from the
amplifier face.
35
Page 36
APPENDIX B: OPTIONAL RAIN HOODS
Upper rain
hood frame
Lower rain
hood assembly
Upper rain
hood assembly
Lock
pins (2)
8-32 pan head
screws (4)
8-32 flat head
screws (2)
6.06
[154 mm]
4.22
[107 mm]
6.25
[159 mm]
5.57
[141 mm]
5.13
[130 mm]
2.50
[64 mm]
12.49
[317 mm]
7.86
[200 mm]
10.91
[277 mm]
6.08
[154 mm]
4.79
[122 mm]
3. Secure the upper rain hood frame to the amplifier face
with the four 8-32 x .25 flat head screws, two at the top
and two at the bottom.
HORIZONTAL RAIN HOOD KIT CONTENTS
The JM-1P horizontal rain hood is used when the loudspeaker is oriented horizontally. The JM-1P horizontal rain
hood kit (PN 40.185.084.02) includes the following parts:
JM-1P Horizontal Rain Hood Kit
Part Part Number Quant.
Upper rain hood assembly 45.185.089.02 1
Upper rain hood frame 45.185.084.01 1
Lower rain hood assembly 45.185.090.01 1
Flat head screws, 8-32 x .25" 101.827 4
Pan head screws, 8-32 x .50" 101.008 2
Lock pins, 5/16” x .63" 134.024 2
Figure 4: JM-1P Vertical Rain Hood Installation
4. Attach the upper rain hood assembly to the upper rain
hood frame, slipping it under the frame's top flange and
securing it to the bottom of the frame with the two
8-32 x .50 pan head screws.
5. Attach the lower rain hood assembly to the user panel,
slipping it under the flange at the top of the user panel
and securing it to the bottom of the panel with the two
lock pins.
NOTE: The vertical rain hood should only be
used when the loudspeaker is oriented verti-
cally (see Figure 4).
assemblies should be installed. For touring applications, the upper rain hood assembly can be removed,
since the heat sinks and fan and can be safely
exposed to occasional rain. However, for all outdoor
applications, the lower rain hood assembly should
NOTE: For permanent, fixed outdoor installa-
tions, both the lower and upper rain hood
always be installed to shield the unit’s connectors
from rain.
Horizontal Rain Hood Dimensions: Lower Rain Hood Assembly
Horizontal Rain Hood Dimensions: Upper Rain Hood Assembly
36
Page 37
JM-1P OPERATING INSTRUCTIONS
Upper rain
hood frame
Lower rain
hood
assembly
Upper rain
hood
assembly
Lock
pins (2)
8-32 pan head
screws (2)
8-32 flat head
screws (4)
Installing the Horizontal Rain Hood
To install the JM-1P horizontal rain hood:
1. Attach any required cables to the loudspeaker and orient
it horizontally.
2. Remove the bottom two pan head screws from the
amplifier face.
3. Secure the upper rain hood frame to the amplifier face
with the four 8-32 x .25 flat head screws, two at the top
and two at the bottom.
5. Attach the lower rain hood assembly to the user panel,
slipping it under the flange at the top of the user panel
and securing it to the bottom of the panel with the two
lock pins.
NOTE: The horizontal rain hood should only be
used when the loudspeaker is oriented hori-
zontally (see Figure 5).
NOTE: For permanent, fixed outdoor installa-
tions, both the lower and upper rain hood
assemblies should be installed. For touring applications, the upper rain hood assembly can be removed,
since the heat sinks and fan and can be safely
exposed to occasional rain. However, for all outdoor
applications, the lower rain hood assembly should
always be installed to shield the unit’s connectors
from rain.
Figure 5: JM-1P Horizontal Rain Hood Installation
4. Attach the upper rain hood assembly to the upper rain
hood frame, slipping it under the frame's top flange and
securing it to the bottom of the frame with the two
8-32 x .50 pan head screws.
37
Page 38
APPENDIX B: OPTIONAL RAIN HOODS
38
Page 39
APPENDIX C: JM-1P SPECIFICATIONS
ACOUSTICAL
Operating Frequency
Range
Frequency Response 56 Hz – 16.5 kHz ±4 dB
Phase Response 580 Hz to 16 kHz ±45°
Maximum Peak SPL 138 dB
Dynamic Range >110 dB
Coverage 20° x 60°
Crossover 520 Hz
TRANSDUCERS
Low Frequency One 15” cone driver with neodymium magnet
High Frequency One 4” compression driver
AUDIO INPUT
Type Differential, electronically balanced
Maximum Common
Mode Range
Connectors Female XLR input with male XLR loop output or VEAM all-in-one (integrates AC power,
Input Impedance 10 kΩ differential between pins 2 and 3
Wiring Pin 1: Chassis/earth through 220 kΩ, 1000 pF, 15 V clamp network to provide virtual
DC Blocking Differential DC blocking up to maximum common mode voltage
CMRR >50 dB, typically 80 dB (50 Hz – 500 Hz)
RF Filter Common mode: 425 kHz
TIM Filter <80 kHz, integral to signal processing
53 Hz – 18 kHz
Note: Recommended maximum operating frequency range. Response depends on loading conditions and room acoustics.
Note: Measured free field with 1/3 octave frequency resolution at 4 meters.
Note: Measured with music referred to 1 meter.
Note: At this frequency, the transducers produce equal sound pressure levels.
Nominal impedance: 2 Ω
Voice coil size: 4”
Power-handling capability: 1200 W (AES)
Note: Power handling measured using AES standards: transducer driven continuously
for two hours with a band limited noise signal having a 6 dB peak-average ratio.
Nominal impedance: 8 Ω
Voice coil size: 4”
Diaphragm size: 4”
Exit size: 1.5”
Power-handling capability: 250 W (AES)
Note: Power handling measured using AES standards: transducer driven continuously
for two hours with a band limited noise signal having a 6 dB peak-average ratio.
±15 V DC, clamped to earth for voltage transient protection
audio, and network)
ground lift at audio frequencies
Pin 2: Signal +
Pin 3: Signal –
Case: Earth ground and chassis
Differential mode: 142 kHz
39
Page 40
APPENDIX C: JM-1P SPECIFICATIONS
Nominal Input Sensitivity
Input Level Audio source must be capable of producing +20 dBV (10 V rms, 14 V peak) into 600 Ω to
AMPLIFIER
Type Two-channel complementary MOSFET output stages (class AB/H)
Output Power 1275 W total (1 x 1000 W, 1 x 275 W)
Total Output 2550 W peak
THD, IM TIM <.02%
Load Capacity 2 Ω low channel, 8 Ω high channel
Cooling Convection at low to mid audio levels; fan-assisted only at high audio levels
AC POWER
Connectors PowerCon with loop output or VEAM all-in-one (integrates AC power, audio, and net-
Voltage Selection Automatic, two ranges, each with high-low voltage tap (uninterrupted)
Safety Agency Rated
Operating Voltage
Turn On/Turn Off
Points
Note: No automatic turn-off voltages. Voltages above 265 V AC are fuse protected but may cause permanent
damage to the power supply. Voltages below 90 V AC may result in intermittent operation.
Current Draw
Idle Current 0.50 A rms (115 V AC); 0.28 A rms (230 V AC); 0.56 A rms (100 V AC)
Maximum Long-Term
Continuous Current
Burst Current 8.0 A rms (115 V AC); 4.1 A rms (230 V AC); 9.2 A rms (100 V AC)
Ultimate Short-Term
Peak Current
Inrush Current 7.1 A peak (115 V AC); 8.4 A peak (230 V AC); 7.1 A peak (100 V AC)
Note: Current draw for a single loudspeaker. Loop output not used.
PHYSICAL
Enclosure Multi-ply hardwood
Finish Black textured
Protective Grille Hex-stamped steel with black mesh screen
Rigging Aluminum end plates with side links for arraying units; threaded metric M10 points for
Dimensions 16.79" w x 36.08" h x 29.30" d (427 mm x 916 mm x 744 mm)
0 dBV (1 V rms, 1.4 V peak) continuous average is typically the onset of limiting for noise
and music
produce maximum peak SPL over the operating bandwidth of the loudspeaker
Note: Wattage rating is based on the maximum unclipped burst sine-wave rms
voltage the amplifier will produce into the nominal load impedance.
Note: Peak power based on the maximum unclipped peak voltage that the amplifier will
produce for at least 100 milliseconds into the nominal load impedance.
Note: The fan is controlled by audio level, remaining off at turn-on and at low to mid
audio levels and operating only at high audio levels, making it virtually inaudible.
work)
95–125 V AC; 208–235 V AC; 50/60 Hz
85–134 V AC; 165–264 V AC
4.55 A rms (115 V AC); 2.50 A rms (230 V AC); 5.25 A rms (100 V AC)
Note: AC power cabling must be of sufficient gauge so that under burst current rms conditions, cable transmission losses do not drop voltage below specified operating range at
the speaker.
20.8 A peak (115 V AC); 13.0 A peak (230 V AC); 21.6 A peak (100 V AC)
rigging accessories; optional pickup plate and vertical grid for suspending arrays with
uptilt or downtilt
40
Page 41
Weight Weight 147 lbs (66.68 kg)
o
f
N
o
r
t
h
A
m
e
r
i
c
a
,
I
n
c
.
C
US
T
U
V
R
h
e
i
n
l
a
n
d
36.08
[916 mm]
16.79
[427 mm]
20°
7.32
[186 mm]
28.00
[711 mm]
29.30
[744 mm]
13.04
[331 mm]
18.04
[458 mm]
ENVIRONMENTAL
Operating Temperature 0° C to +45° C
Non Operating Tem-
<–40° C or >+75° C
perature
Humidity To 95% at 35° C
Operating Altitude To 4600 m (15,000 ft)
Non operating Altitude To 95% at 35° C
Shock 30 g 11 msec half-sine on each of 6 sides
Vibration 10 Hz – 55 Hz (0.010 m peak-to-peak excursion)
JM-1P COMPLIANCE
JM-1P OPERATING INSTRUCTIONS
JM-1P DIMENSIONS
JM-1P Dimensions
41
Page 42
APPENDIX C: JM-1P SPECIFICATIONS
42
