1 Introduction
Your Ionizer Module is an accessory for METTLER TOLEDO analytical balances. The ionizer produces a corona of
ionized air, providing ions of the opposite polarity to neutralize static charges in the object being weighed.
The guidelines stated in the Reference Manual of the METTLER TOLEDO balance connected to your ionizer also
fully apply to your Ionizer Module.
Conventions and symbols
Refers to an external document.
Key and/or button designations and display texts are shown in graphic or bold text (e.g.
, Edit).
Elements of instructions
Prerequisites
§
1 Steps
2 ...
ð Intermediate results
ð Results
2 Safety Information
2.1 Definition of signal warnings and symbols
Safety notes contain important information on safety issues. Ignoring the safety notes may lead to personal
injury, damage to the instrument, malfunctions and false results. Safety notes are marked with the following
signal words and warning symbols:
Signal words
WARNING
CAUTION
NOTICE
Warning symbols
Electrical shock
General hazard
A hazardous situation with medium risk, possibly resulting in death or severe injury if not
avoided.
A hazardous situation with low risk, resulting in minor or moderate injury if not avoided.
A hazardous situation with low risk, resulting in damage to the instrument, other material
damage, malfunctions and erroneous results, or loss of data.
Notice
Prohibition symbol
Pacemaker
4 Ionizer Module
Page 5
2.2 Product-specific safety notes
Responsibilities of the instrument owner
The instrument owner is the person holding the legal title to the instrument and who uses the instrument or
authorizes any person to use it, or the person who is deemed by law to be the operator of the instrument. The
instrument owner is responsible for the safety of all users of the instrument and third parties.
METTLER TOLEDO assumes that the instrument owner trains users to safely use the instrument in their workplace
and deal with potential hazards. METTLER TOLEDO assumes that the instrument owner provides the necessary
protective gear.
Intended use
Your ionizer is an accessory for METTLER TOLEDO analytical balances and is used to discharge electrostatically
charged objects. Use the ionizer exclusively for this purpose. Any other type of use and operation beyond the
limits of technical specifications without written consent from Mettler-Toledo GmbH, is considered as not
intended.
Intended use also includes compliance with all the instruction in this Reference Manual and the Reference
Manual of your balance.
WARNING
Malfunction of cardiac pacemakers
− Persons with cardiac pacemakers must maintain a safety distance of more than 50cm from
the Ionizer.
CAUTION
Injury due to spiky emitters
− Do not touch the emitter pins directly.
NOTICE
Reduced performance due to inert gas
An inert gas atmosphere or an inert gas purging system influences the transfer of ions and will
result in reduced ionization efficacy.
− Only use the Ionizer Module in air.
5Ionizer Module
Page 6
3 Installation and Putting into Operation
22
11
Note
Mettler-Toledo GmbH recommends that the Ionizer Module be installed by a METTLER TOLEDO service representative.
3.1 Scope of delivery
• Ionizer Module
• Wedge-shaped tool
• Reference Manual
Check the package, the packaging elements and the delivered components for damages. If any components are
damaged, please contact your METTLER TOLEDO service representative.
3.2 Installing the Ionizer Module
NOTICE
Damage to the instrument due to the use of unsuitable tools
Using a screwdriver or the like to remove the module-compartment cover can damage the
instrument.
− Use the wedge-shaped tool provided with the Ionizer Module to remove the modulecompartment cover.
For full information, always consult and download the Reference Manual (RM).
u www.mt.com/XPR-analytical-RM
Balance is disconnected from the power supply.
§
Front panel draft shield is removed, see Reference Manual of the balance.
§
Side and top panel draft shields are opened, see Reference Manual of the balance
§

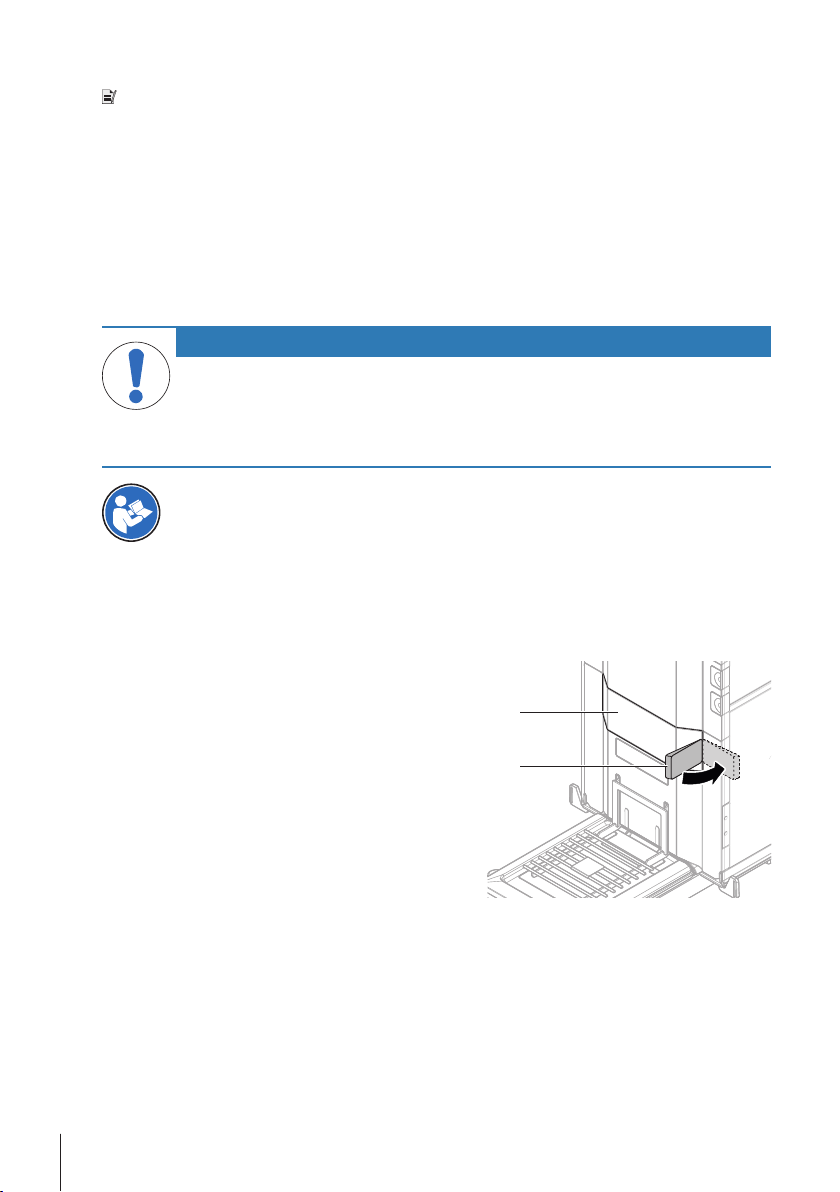

1 Insert the wedge-shaped tool (1) provided with the Ionizer
Module on either side of the module-compartment cover
(2) and flip to lift the cover off.
6 Ionizer Module
Page 7
22

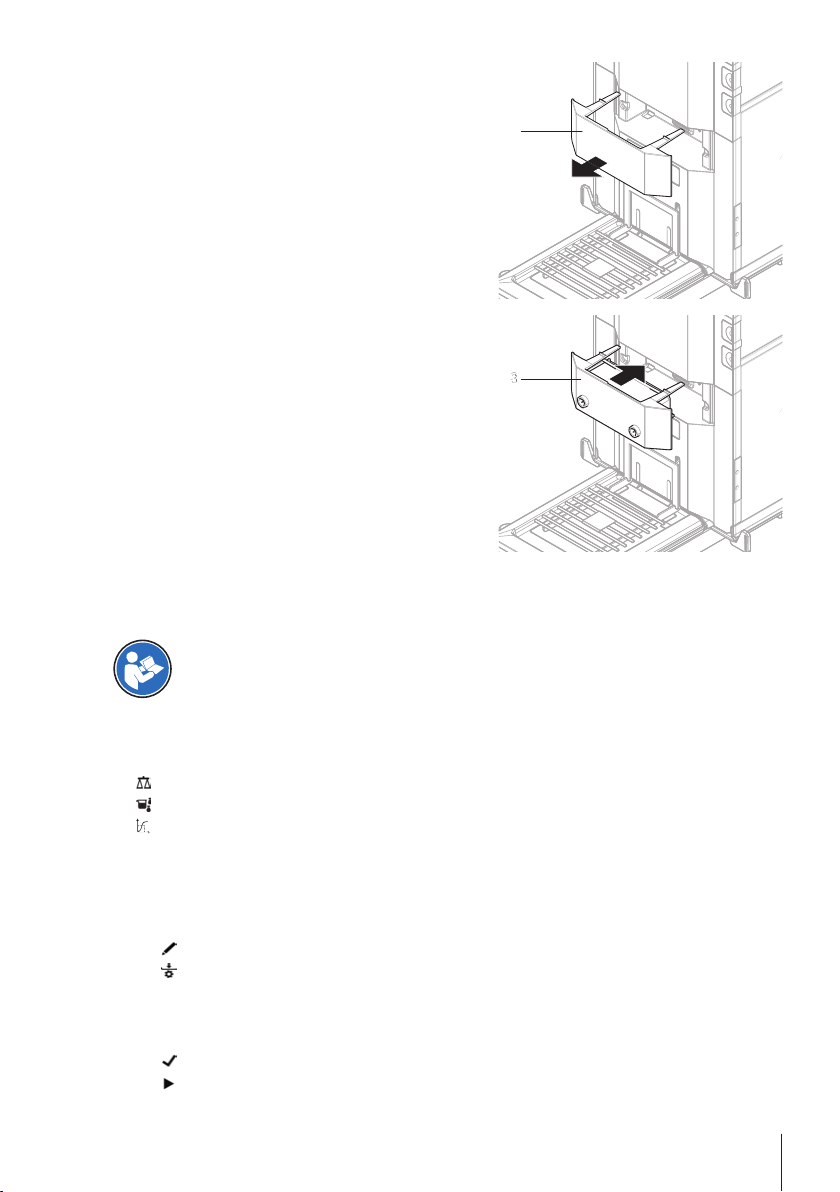

2 Remove the module-compartment cover (2).
3
3
3 Insert the Ionizer Module (3).
4 Put back the top, side, and front draft shield.
5 Reconnect the balance to the power supply.
6 Switch the balance on.
ð The Ionizer Module is installed and ready to use.
4 Operation
The ionizer is controlled by the balance. When used, it is activated for a duration of 5 seconds and it is
deactivated afterwards.
For full information, always consult and download the Reference Manual (RM).
u www.mt.com/XPR-analytical-RM
4.1 Methods compatible with ionization
•
General Weighing
Simple formulation
•
Titration
•
4.2 Using the Ionizer Module with StaticDetect
For information about creating or editing methods, see Reference Manual of the balance.
1 Generate a new compatible method (see [Methods compatible with ionization}Page7]) or select a
compatible method from the list of existing methods.
2 Tap
3 Tap
4 In the section Electrostatic, set the Ionizer to Active.
5 Set the Detection to Active.
6 Set the Threshold to the desired value.
7 Tap
8 Tap
Edit.
Weighing.
Save.
Start method.
7Ionizer Module
Page 8
9 Open the door and place the weighing container on the weighing pan.
H
10 Close the door.
ð When all doors are closed, static detection is performed, indicated by
ð If the detected electric charges are lower than the defined Threshold, the icon
ionization is necessary.
ð If the detected electric charges are higher than the defined Threshold, the Ionizer Module is discharging
ions for a duration of 5s, indicated by
corresponding to the outcome is shown, either
ð If the detected electric charges are still higher than the defined Threshold, the ionization can be started
manually (see [Triggering the Ionizer Module manually}Page8]).
11 Tap
ð The weighing is ready to be performed.
Note
The static detection / ionization sequence is performed every time the door is opened and closed.
Note
If the detected charges are above the defined Threshold, the weighing value can still be added to the protocol.
See also
2 Methods compatible with ionization}Page7
.
. When done, static detection is started again and the icon
or .
.
is displayed. No
4.3 Triggering the Ionizer Module manually
A method with Ionizer Active is running.
§
1 Tap
2 If Detection is set to Active for this method, the user can perform static detection by tapping
ð The weighing is ready to be performed.
The ionization is started every time the user taps
If an external ionizer is used simultaneously, both ionizers are started by tapping
If the detected charges are above the defined Threshold, the weighing value can still be added to the protocol.
Discharge.
ð The ionizer is discharging ions for a duration of 5s, indicated by
ð If the detected electric charges are lower than the defined Threshold, the icon
ð If the detected electric charges are higher than the defined Threshold, the icon
can try to hold the object closer to the point electrodes and tap
Note
Discharge.
Note
Note
.
Discharge again.
is displayed.
is displayed. The user
Discharge.
Detect.
5 Maintenance
5.1 Cleaning
WARNING
Electric shock
1 The balance must be disconnected from the power supply before maintenance.
2 Ensure that no liquid comes into contact with the AC adapter.
3 Never open the balance, terminal, ionizer or AC adapter – they contain no internal components
that can be cleaned, repaired or replaced by the user.
4 Do not reconnect the balance until the cleaned parts are dry.
8 Ionizer Module
Page 9
CAUTION
Injury due to spiky emitters
− Do not touch the emitter pins directly.
Clean the ionizer once a month with a soft brush or with ethyl alcohol and a lint-free cloth.
1 Clean the insulation, white PTFE, around the emitter pin and the emitter pin itself.
Note Avoid touching this area with fingers to prevent contamination.
ð PTFE is white again.
2 Check that no ethyl alcohol is left on the ionizer.
Note
Please contact your METTLER TOLEDO service representative for details of the available service options.
5.2 Disposal
In conformance with the European Directive 2012/19/EU on Waste Electrical and Electronic
Equipment (WEEE) this device may not be disposed of in domestic waste. This also applies to
countries outside the EU, per their specific requirements.
Please dispose of this product in accordance with local regulations at the collecting point
specified for electrical and electronic equipment. If you have any questions, please contact the
responsible authority or the distributor from which you purchased this device. Should this
device be passed on to other parties, the content of this regulation must also be related.
6 Troubleshooting
6.1 Error messages
Error message Possible cause Diagnostic Remedy
Ionizer could
not be found
Ionizer Module disconnected
Ionizer Module defective – Contact your METTLER TOLEDO
– Push the Ionizer Module in the
module slot.
service representative.
6.2 Error symptoms
Error symptom Possible cause Diagnostic Remedy
Button
Discharge
does not
appear on the
display
Inappropriate method
settings
Check the status of Ionizer
in the method settings
Set Ionizer to Active
9Ionizer Module
Page 10
7 Technical Data
116
60
2
42
7.1 General data
Ionizer
Input voltage: 12VDC +/- 10 %
Input corrent (operating): 175 mA
Weight: 260 g (complete with packaging)
Protection and standards
Overvoltage category: II
Degree of pollution: 2
Range of application: For use only in closed interior rooms
Environmental conditions
Height above mean sea level: up to 5000m
Ambient temperature: 5-40°C
Relative air humidity: Max. 80 % up to 31°C, linearly decreasing to 50% at 40°C,
Atmosphere: Do not use under inert gas atmosphere
Ozone
All high-voltage ionizers produce a trace of ozone. The METTLER TOLEDO ionizer ozone level is considerably
below the international safety limit of 0.1ppm.

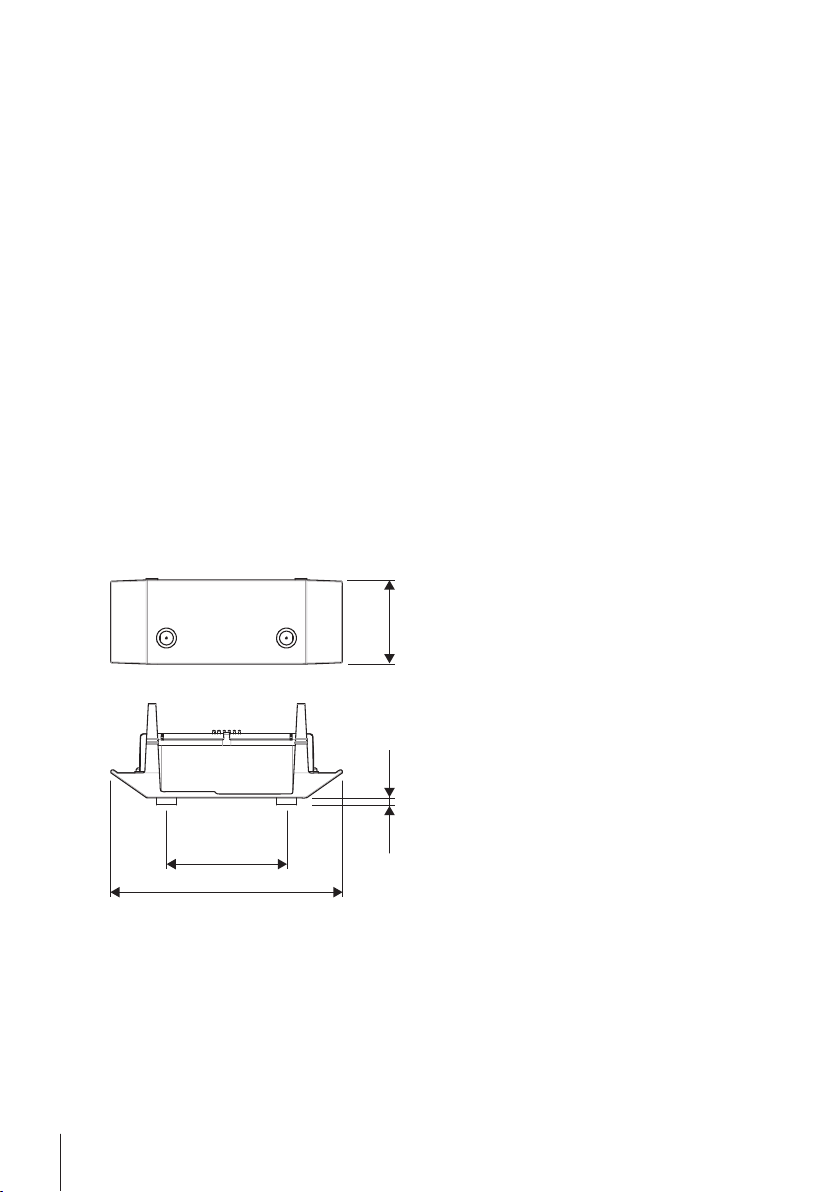

7.2 Dimensions
Dimensions in mm.
noncondensing
10 Ionizer Module
