I
NTRODUCTION
Product Overview
Metrologic's MS9500 Voyager® series of hand-held (single-line) laser scanners
offers the user an aggressive solution for scanning all standard 1D bar codes
including GS1 DataBar™ (RSS) bar codes. The MS9500 series is equipped with
both in-stand and out-of-stand operation enabling hand-held or fixed projection
scanning. The MS9520 Voyager model includes all of the same features as the
MS9540 VoyagerCG model, with the exception of Metrologic’s patented
CodeGate® technology.
The MS9540, VoyagerCG incorporates Metrologic’s patented auto-trigger and
CodeGate button feature. When a bar code is place in the scanner’s IR range,
the auto-trigger activates the laser enabling the user to align the visible laser line
over the bar code selected for scanning. The user can then press the CodeGate
button, to transmit the data to the host system. When the MS9540 is placed in
the stand the CodeGate button feature will automatically deactivating for hands
free operation.
Some additional key product features for the MS9500 series include:
• Auto-trigger operation and auto-stand detect
• CodeGate data transmission technology (MS9540 only)
• Flash – upgradeable firmware
®
• Easy configuration with MetroSelect
Windows
®
compatible software
bar codes and MetroSet®2
• Support for common interfaces including USB (see chart below)
V
OYAGER
V
OYAGER
CG I
NTERFACE
MS9520 – 00 MS9540 – 00 Laser Emulation RS232 Transmit/Receive
MS9520 – 11 MS9540 – 11
MS9520 – 14 MS9540 – 14 RS232 (TXD, RXD, RTS, CTS, DTR, DSR)
MS9520 – 38 MS9540 – 38 Low Speed USB*, RS232 (TXD, RXD, RTS, CTS)
MS9520 – 40 MS9540 – 40 Full Speed USB, RS232 (TXD, RXD, RTS, CTS)
MS9520 – 41 MS9540 – 41 RS232/Light Pen Emulation
MS9520 – 47 MS9540 – 47
* Configurable for Keyboard Emulation Mode or Serial Emulation Mode. The default
setting is Keyboard Emulation Mode.
Applicable for IBM® host applications.
, RS232 (TXD, RXD, RTS, CTS)
RS485
Keyboard Wedge, Stand-Alone Keyboard and
RS232 Transmit/Receive
1
I
NTRODUCTION
Scanner and Accessories
B
ASIC KIT
Part # Description
MS9520
or
MS9540
Voyager Bar Code Scanner
or
VoyagerCG Bar Code Scanner with CodeGate
00-02544 MetroSelect Single-Line Configuration Guide*
00-02410
*
Available for download on the Metrologic website - www.metrologic.com
MS9500 Voyager Series Single-Line Hand Held Laser
Scanner Installation and User’s Guide*
O
PTIONAL ACCESSORIES
Part # Description
AC to DC Power Transformer - Regulated 5.2VDC @ 1A output.
46-00525 90VAC to 255VAC, United States, Canada and Japan
46-00526 90VAC to 255VAC, Continental European
46-00527 90VAC to 255VAC, United Kingdom
46-00528 90VAC to 255VAC, Australia
46-00529 90VAC to 255VAC, China
53-53000x-3
59-59000x-3
53-53002x-3
RS232 PowerLink Cable with Built in Power Jack
Black, Coiled Cord, with Long Strain Relief
RS232 PowerLink Cable with Built in Power Jack
Black, Straight cord, with Short Strain Relief
Keyboard Wedge PowerLink Cable with Adapter Cable
Black, Coiled cord, with Long Strain Relief
53-53020x-3
Other items may be ordered for the specific protocol being used. To order additional items,
contact the dealer, distributor or call Metrologic’s Customer Service Department at
1-800-ID-METRO or 1-800-436-3876.
Stand Alone Keyboard Wedge PowerLink Cable
Black, Coiled cord, with Long Strain Relief
2
I
NTRODUCTION
Scanner and Accessories
O
PTIONAL ACCESSORIES
Part # Description
53-53213x-N-3
USB Full Speed Cable Locking Plus-Power™ Type A,
Black, Coiled Cord with Long Strain Relief
USB Full Speed Cable Locking Plus-Power™ Type A,
Black, Coiled Cord with Long Strain Relief, Extended
53-53214x-N-3
Length
Not for use with Low Speed USB scanners.
53-53235x-N-3
MVC**
Use with Full Speed USB scanners only.
USB Low Speed Communication Cable, Type A
Black, Coiled Cord with Long Strain Relief
RS485
Metrologic Voltage Converter Cable
±12VDC to +5.2VDC
** Contact a Metrologic customer service representative for additional
information on the MVC converter cable series and the host connections
available.
46-46128 Free-Standing Stand with Accessories
46-46351 Hard Mount Accessory Kit (used with kit #46-46128)
46-46508 Wall Mount Hanger Accessory Kit
Other items may be ordered for the specific protocol being used. To order additional items,
contact the dealer, distributor or call Metrologic’s Customer Service Department at
1-800-ID-METRO or 1-800-436-3876.
Applicable for IBM® host applications.
3
INTRODUCTION
Scanner Components
No. Item Description
Green LED
1
Red LED
2
Yellow LED
3
Button
4
♦
♦
♦♦
♦♦
See Visual Indicators on page 18
See Visual Indicators on page 18
See Visual Indicators on page 18
See How to use CodeGate on page 12
5 Red Window Laser Aperture
6 Speaker See Audible Indicators on page 17
7 Cable Release Pin-Hole See The PowerLink Cable on page 5
8 Cable Connection
♦
In some custom units the standard green LED has been replaced with a
10-pin RJ45, Female Socket,
See Scanner Pinout Connections on page 38
Figure 1. Scanner Components
blue LED and the red LED has been replaced with a white LED.
♦♦
Items are provided with the MS9540, VoyagerCG model only.
4
I
NTRODUCTION
Disconnecting the PowerLink Cable
Before removing the cable from the scanner, Metrologic recommends that the
power on the host system is off and the power supply has been disconnected
from the PowerLink cable.
Figure 2.
1. Locate the small ‘pin-hole’ on the top of the unit near the bottom of the
Voyager logo.
2. Bend an ordinary paperclip into the shape shown above.
3. Insert the paperclip (or other small metallic pin) into the small ‘pin-hole’.
4. There will be an audible click when the connector lock releases. Pull gently
on the strain-relief of the PowerLink cable to separate the cable from the
scanner.
Connecting the PowerLink Cable
Important: If the PowerLink cable is not fully latched, the unit can power
intermittently.
Figure 3.
Figure 4.
5
I
NTRODUCTION
Labels
Every scanner has labels and molded text located on the underside of the unit.
The labels and text contain important information such as the unit’s date of
manufacture, serial number, CE and caution information. Figure 5 provides
examples of the labels and the molded text.
Figure 5 . Molded Text and Label Examples
Caution:
To maintain compliance with applicable standards, all circuits connected to the scanner
must meet the requirements for SELV (Safety Extra Low Voltage) according to EN/IEC
60950-1.
To maintain compliance with standard CSA-C22.2 No. 60950-1/UL 60950-1 and norm
EN/IEC 60950-1, the power source should meet applicable performance requirements for
a limited power source.
Maintenance
Smudges and dirt on the unit's window can interfere with the unit's performance.
If the window requires cleaning, use only a mild glass cleaner containing no
ammonia. When cleaning the window, spray the cleaner onto a lint free,
non-abrasive cleaning cloth then gently wipe the window clean.
If the unit's case requires cleaning, use a mild cleaning agent that does not
contain strong oxidizing chemicals. Strong cleaning agents may discolor or
damage the unit's exterior.
6
I
NSTALLING THE SCANNER TO THE HOST SYSTEM
RS232, Laser Emulation, and Light Pen Emulation
1. Turn off the host system.
2. Connect the 10-pin RJ45 male
connector into the jack on the
scanner. There will be an audible
click when the connector lock
engages.
3. Connect the L-shaped plug of the
4. Verify the AC input requirements of
5. Connect the PowerLink cable to
6. Turn on the host system.
If the scanner is receiving
power from the host system,
skip to step #5.
power supply into the power jack
on the PowerLink cable.
the power supply match the AC
outlet. Connect the power supply
into an AC outlet. The outlet should
be near the equipment and easily
accessible.
the proper port on the host system.
Figure 6.
Plugging the scanner into a port on the host system does not guarantee
that scanned information will be communicated properly to the host
system. Please refer to the MetroSelect Single-Line Configuration
Guide or MetroSet2’s help files for instructions on changing the
scanner’s factory default configuration. The scanner and host system
must use the same communication protocols.
All MS95x0-00 scanners leave the factory with the Laser Emulation
Mode enabled. If you recall defaults while re-configuring your scanner
the Laser Emulation Mode will no longer be enabled. Refer to the
MS95x0-00 Laser Emulation Mode section of the MetroSelect SingleLine Configuration Guide for information on enabling the Laser
Emulation Mode.
See caution on page 6
.
7
I
NSTALLING THE SCANNER TO THE HOST SYSTEM
RS485
1. Turn off the host system.
2. Plug the male 10-pin RJ45 end of the
MVC cable into the 10-pin socket on
the scanner. You will hear a ‘click’
when the connection is made.
3. Connect the other end of the MVC
cable to the host device.
4. Turn on the host system.
Plugging the scanner into a port on the host system does not guarantee
that scanned information will be communicated properly to the host
system. Please refer to the MetroSelect Single-Line Configuration
Guide or MetroSet2’s help files for instructions on changing the
scanner’s factory default configuration. The scanner and host system
must use the same communication protocols.
See caution on page 6.
Figure 7.
Applicable for IBM® host applications.
8
I
NSTALLING THE SCANNER TO THE HOST SYSTEM
Keyboard Wedge
1. Turn off the host system.
2. Connect the 10-pin RJ45 male
connector into the jack on the scanner.
You will hear a ‘click’ when the
connection is made.
If the scanner is receiving
power from the host system,
3. Connect the L-shaped plug of the
4. Verify the AC input requirements
5. Disconnect the keyboard from the PC.
6. Connect the PowerLink cable to the
7. Power up the host system.
skip to step #5.
power supply into the power jack on
the PowerLink cable.
of the power supply match the AC
outlet. Connect the power supply into
an AC outlet. The outlet should be near
the equipment and easily accessible.
keyboard and the PC’s keyboard port.
If necessary use the supplied adapter
cable (5-pin male DIN to 6-pin female
mini DIN adapter).
Plugging the scanner into a port on the host system does not guarantee that
scanned information will be communicated properly to the host system. Please
refer to the MetroSelect Single-Line Configuration Guide or MetroSet2’s help files
for instructions on changing the scanner’s factory default configuration.
The scanner and host system must use the same communication protocols.
Powering the MS95x0-47 directly from the computer can sometimes cause
interference with the operation of the scanner or the computer. Not all computers
supply the same current through the keyboard port, explaining why a scanner
may work on one computer and not another. Contact a Metrologic Customer
Service Representative if you require an external power supply.
Figure 8.
See caution on page 6.
9
I
NSTALLING THE SCANNER TO THE HOST SYSTEM
Stand-Alone Keyboard
1. Turn off the host system.
2. Connect the 10-pin RJ45 male
connector into the jack on the
scanner. You will hear a ‘click’
when the connection is made.
If the scanner is receiving
power from the host system,
skip to step #5.
3. Connect the L-shaped plug of the
power supply into the power jack
on the PowerLink cable.
4. Verify the AC input requirements
of the power supply match the AC
outlet. Connect the power supply
into an AC outlet. The outlet
should be near the equipment and
easily accessible.
5. Connect the PowerLink cable
to the keyboard port on the host
system.
6. Turn on the host system.
Powering the MS95x0-47 directly from the computer can sometimes cause
interference with the operation of the scanner or the computer. Not all computers
supply the same current through the keyboard port, explaining why a scanner
would work on one computer and not another. Contact a Metrologic Customer
Service Representative if you require an external power supply.
Plugging the scanner into a port on the host system does not guarantee that
scanned information will be communicated properly to the host system. Please
refer to the MetroSelect Single-Line Configuration Guide or MetroSet2’s help files
for instructions on changing the scanner’s factory default configuration.
The scanner and host system must use the same communication protocols.
See caution on page 6.
Figure 9.
10
I
NSTALLING THE SCANNER TO THE HOST SYSTEM
Integrated USB: Full Speed (-40)
Low Speed (-38)
1. Turn off the host system.
2. Connect the 10-pin RJ45 male
connector of the USB cable into the
jack on the scanner. You will hear a
‘click’ when the connection is made.
3. Connect the other end of the USB
cable to the host USB port.
4. Turn on the host system.
As a default, the MS95x0-38 leaves the factory with USB Keyboard
Emulation Mode enabled.
For information on configuring the MS95x0-38 for USB Serial
Emulation Mode, please refer to the USB section of the MetroSelect
Single-Line Configuration Guide (
Plugging the scanner into a port on the host system does not guarantee
that scanned information will be communicated properly to the host
system. Please refer to the MetroSelect Single-Line Configuration
Guide or MetroSet2’s help files for instructions on changing the
scanner’s factory default configuration. The scanner and host system
must use the same communication protocols.
See caution on page 6.
MLPN
00-02544).
Figure 10.
11
T
HE
MS9540 V
OYAGER
CG
®
SERIES
How to Use CodeGate and the Manual Activation Mode
C
ODEGATE
®
M
ANUAL ACTIVATION MODE
*
*
This feature is not a default setting.
Refer to the MetroSelect Configuration
Guide for instructions on enabling the
Manual Activation Mode.
Figure 11.
Three Modes of Operation
Figure 12.
Auto Trigger, In-Stand
• Auto-triggers while in the stand
• Bar code is automatically decoded and transmitted
CodeGate, Out-of-Stand
• CodeGate activates when removed from the stand
• Bar code data is transmitted when the button is pressed
Manual Activation Mode*, Out-of-Stand
• Button activates laser
• Bar code data is scanned and transmitted while button is held down
12
S
TAND KITS
Types
Free Standing Kit #46-46128
(Figure 13)
Kit Contains:
a. Stand...........................................................Qty. 1
b. Apron........................................................... Qty. 1
c. Screw, M3 x 6 mm ...................................... Qty. 2
d. Washer, #5 x .5 OD..................................... Qty. 2
e. Stand Anchor .............................................. Qty. 1
f. M3 x 20 mm Set Screw ............................... Qty. 1
Optional Hard Mount Accessory Kit #46-46351
(Figure 14)
This kit, used in conjunction with the stand kit
(#46-46128), can be used to hard mount (bolt)
the MS9500 to the countertop.
Kit Contains:
a. Screw, #8 Round Head .............................. Qty. 4
b. Base ........................................................... Qty. 1
Optional Wall Mount Hanger Accessory Kit #46-46433
(Figure 15)
Kit Contains:
a. Screw #8 Round Head ................................ Qty. 2
b. Wall Mount Hanger ..................................... Qty. 1
Optional Wall Mount Hanger Kit #46-46508
(Figure 16)
Kit Contains:
a. Wall Mount Hanger ..................................... Qty. 1
b. Wall Mount Base ........................................ Qty. 1
c. 4.8 x 13 mm, Self Tapping Screw ..............Qty. 2
d. Double-Sided Adhesive Tape .................... Qty. 1
e. #8 Wood Screw.......................................... Qty. 2
c.
a
.
d
.
e
.
f.
b
.
b
.
Figure 13.
Figure 14.
Figure 15.
a
.
Figure 16.
13
A
w
S
TAND KITS
Assembly

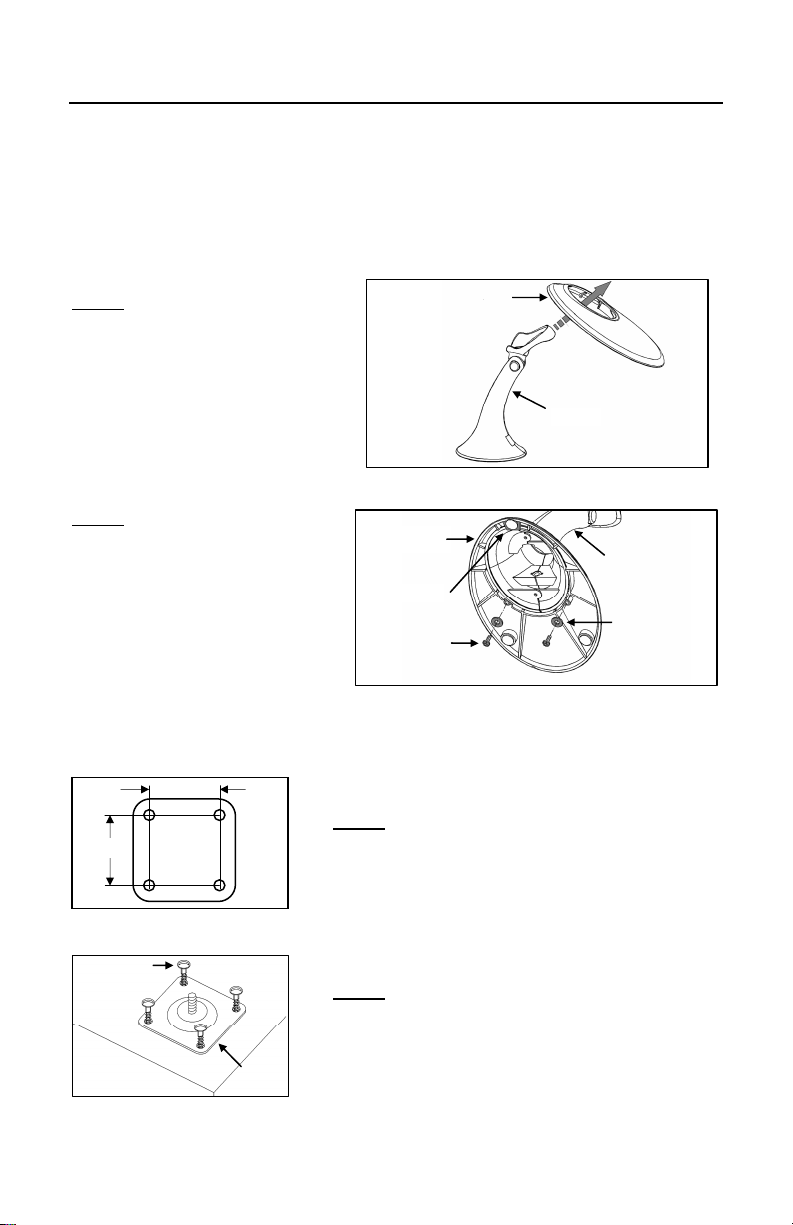

There are two options for assembling the stand. The first option is a selfsupporting stand that can be moved freely about on the countertop. The second
option is used if the stand will be bolted or hard-mounted to the countertop.
Stand Option 1: Self-Supported Stand Kit #46-46128
Step 1
Slide the apron over the stand.
Step 2
Position the stand so that it sits
under the tab on the apron.
Then secure the apron to the
stand using the two M3 x 6 mm
screws and the two #5 washers
provided.
M3 x 6 mm
Scre
Stand Option 2: Hard-Mount Accessory Kit #46-46351
2.00
2.00
Step 1
Drill four #39 holes in the countertop.
Figure 19.
#8 Wood
Screw
Step 2
Secure the base to the countertop with
the four #8 wood screws provided.
Figure 20.
Base
pron
Apron
Figure 17.
Figure 18.
Stand
#5 Washer
14
r
S
TAND KITS
Assembly
Stand Option 2: Hard-Mount Kits #46-46128 and #46-46351
Anchor from
Kit #46-46128
Base Assembly from
Kit #46-46351 o
MS951 Stand Base
Figure 21.
Figure 22.
Figure 23.
Figure 24.
Step 3
Screw the stand anchor onto the base
assembly until it sits flush.
Step 4
Remove the logo plate on the stand by
gently using an exacto knife to release
the plate hook.
Step 5
Position the stand over the base
assembly.
Step 6
Secure the stand to the base assembly
by installing and tightening the M3 set
screw under the logo plate as shown.
Step 7
Snap the logo plate back into place.
Figure 25.
15
S
TAND KITS
Assembly

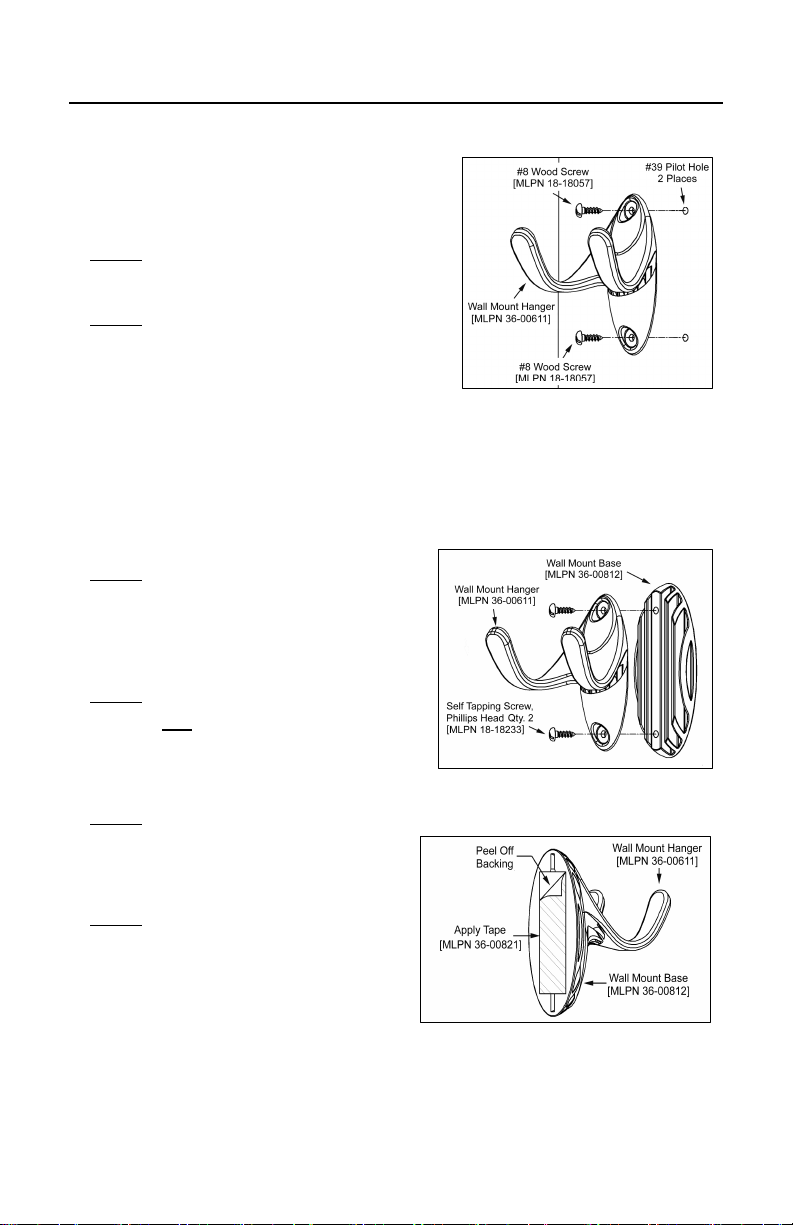

Wall Mount, Option 1:
For Kit #46-46508
Step 1
Drill two #39 pilot holes 3.00″ apart.
Step 2
Attach the Wall Mount Hanger to the wall
with the two #8 wood screws provided.
Wall Mount, Option 2:
Kit #46-46508
Step 1
Attach the Wall Mount Base to the
Wall Mount Hanger with the two
4.8 x 13 mm self-tapping screws.
Step 2
Remove one side of the protective
backing from the double-sided
adhesive tape.
Step 3
Attach the tape to the back of the
Wall Mount Hanger as shown.
Step 4
Remove the protective backing from
the double-sided adhesive tape and
apply hook to the wall.
Figure 26.
Figure 27.
Figure 28.
16
I
NDICATORS
Audible

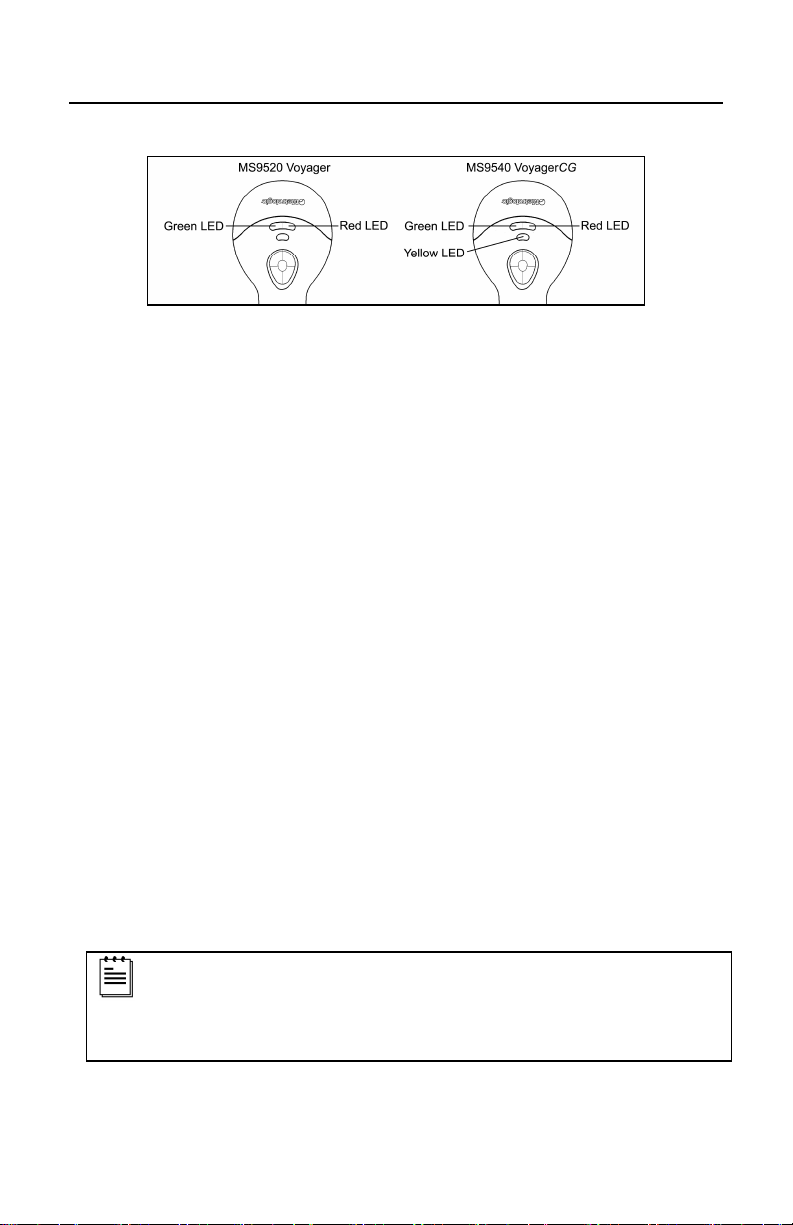

When the Voyager is in operation, it provides audible feedback. These sounds
indicate the status of the scanner. Eight settings are available for the tone of the
beep (normal, 6 alternate tones and no tone). To change the beeper tone, refer
to the MetroSelect Single-Line Configuration Guide or MetroSet2’s help files.
One Beep
When the scanner first receives power, the green* LED will turn on, the red*
LED will flash, and the scanner will beep once. The scanner is ready to scan.
When the scanner successfully reads a bar code, the red LED will flash and
the scanner will beep once.
Three Beeps
During Operation
When entering the configuration mode, the red* LED will flash while the
scanner simultaneously beeps three times.
When exiting the configuration mode, the scanner will beep three times and
the red LED will stop blinking.
Three beeps can also indicate a communication timeout during normal
scanning mode if the scanner is configured to give this indication.
During Start-up
This is a failure indicator. Refer to “Failure Modes” on page 19.
Three Beeps
When using the single-code-configuration method, the scanner will sound a
3-combination tone (a single beep then a short pause followed by, a high tone,
and a low tone). This beep sequence signals that the single configuration bar
code has successfully configured the scanner.
Razzberry Tone
On startup, this tone indicates a failure mode. Refer to “Failure Modes" on
page 19.
When in configuration mode, a short razzberry tone will sound if an invalid bar
code is scanned.
* In some custom units the standard green LED has been replaced with a blue LED and
the red LED has been replaced with a white LED.
17
I
NDICATORS
Visual
Figure 29. LED Configuration
The MS9540 has three LED indicators located on the head of the scanner.
The MS9520 has two LED indicators located on the head of the scanner.
When the scanner is in operation, the flashing, or stationary activity of the LEDs
indicates the status of the scanner and the current scan.
All LEDs are Off
The LEDs will not be illuminated if the scanner is not receiving power from the
host or transformer.
The scanner is in stand-by mode, and CodeGate is enabled. Present a bar
code to the scanner and the green LED will turn on when the laser turns on.
Steady Yellow (MS9540’s Only)
The CodeGate button is not active. If a bar code is in the scan field, the laser
will turn on. The bar code will be decoded and transmitted to the host
automatically.
Steady Green
When the laser is active, the green LED is illuminated. The green* LED will
remain illuminated until the laser is deactivated (default mode only).
Steady Green and Single Red Flash
When the scanner successfully reads a bar code, the red* LED will flash and
the scanner will beep once. If the red LED does not flash or the scanner does
not beep once, then the bar code has not been successfully read (default mode
only).
After a successful scan, the scanner transmits the data to the host
device. Some communication modes require that the host inform the
scanner when data is ready to be received. If the host is not ready to
accept the information, the scanner’s red LED will remain on until the
data can be transmitted.
* In some custom units the standard green LED has been replaced with a blue LED and
the red LED has been replaced with a white LED.
18
I
NDICATORS
Failure Modes
Razzberry Tone – On Start-Up
This indicates the scanner has experienced a flipper/motor failure.
Return the unit for repair to an authorized service center.
Continuous Razzberry Tone with all LEDs Off
If, upon power, the scanner emits a continuous razzberry tone, then the
scanner has an experienced an electronic failure. Return the unit for repair to
an authorized service center.
Three Beeps – on power up
If the scanner beeps three times on power up then the non-volatile memory
(NovRAM) that holds the scanner configuration has failed. If the scanner does
not respond after reconfiguring, return the scanner for repair to an authorized
service center.
19
C
ONFIGURATION MODES
The MS9500 Voyager has three modes of configuration.
• Bar Codes
Voyager or VoyagerCG can be configured by scanning the bar codes
located in the MetroSelect
(
MLPN
00-02544). This manual can be downloaded for FREE at
www.metrologic.com.
• MetroSet
®
2
This user-friendly Windows-based configuration software allows you to
simply ‘point-and-click’ at the desired scanner options. This software can be
downloaded for FREE at www.metrologic.com or set-up disks can be
ordered by calling 1-800-ID-METRO.
• Serial Configuration
This mode of configuration is ideal for OEM applications. This mode gives
the end-user the ability to send a series of commands using the serial port of
the host system. The commands are equivalent to the numerical values of
the bar codes located in the MetroSelect Single-Line Configuration Guide
(
MLPN
00-02544).
How does Serial Configuration work?
1. Each command sent to the scanner is the ASCII representation of each
numeral in the configuration bar code. The entire numeric string is framed
with an ASCII [stx] and an ASCII [etx].
EXAMPLE #1
:
Command for Disabling Codabar
Command = [stx]100104[etx]
String Sent to Scanner = 02h 31h 30h 30h 31h 30h 34h 03h
(All values are hexadecimal).
2. If the command sent to the scanner is valid, the scanner will respond with an
[ack].
3. If the command sent to the scanner in invalid, the scanner will respond with
a [nak].
NOTE: If this occurs, the end-user must start over at the very beginning of
the configuration sequence. Re-transmitting the invalid command
will not work, the user must start over.
®
Single-Line Configuration Guide
20
C
ONFIGURATION MODES
4. During configuration, the motor and laser turn off. YOU CANNOT SCAN A
BAR CODE WHILE IN SERIAL CONFIGURATION MODE.
5. There is a 20 second window between commands. If a 20 second timeout
occurs, the scanner will send a [nak] and you must start over.
6. To enter serial configuration mode, send the following command
[stx]999999[etx].
7. To exit serial configuration mode, send the following command
[stx]999999[etx], the scanner will respond with an [ack] followed by 3 beeps.
8. This mode uses the current Baud Rate, Parity, Stop Bits and Data Bits
settings that are configured in the scanner. The default settings of the
scanner are 9600, Space, 2, 7 respectively. If a command is sent to the
scanner to change any of these settings, the change will NOT take effect
until after serial configuration mode is exited.
EXAMPLE #2
:
The following example will set the scanner to the factory default settings,
Disable Scanning of Code 128 bar codes, change the beeper tone, and add
a “G” as a configurable prefix.
FEATURE
Enter Configuration Mode
Load Defaults
Disable Code 128
Alternate Tone 1
Configure. Prefix #1
Code Byte 0
Code Byte 7
Code Byte 1
Exit Configuration Mode
The scanner will beep three times!
COMMAND
[stx]999999[etx] 02h 39h 39h 39h 39h 39h 39h 03h [ack] or 06h
[stx]999998[etx] 02h 39h 39h 39h 39h 39h 38h 03h [ack] or 06h
[stx]100113[etx] 02h 31h 30h 30h 31h 31h 33h 03h [ack] or 06h
[stx]318565[etx] 02h 33h 31h 38h 35h 36h 35h 03h [ack] or 06h
[stx]903500[etx] 02h 39h 30h 33h 35h 30h 30h 03h [ack] or 06h
[stx]0[etx] 02h 30h 03h [ack] or 06h
[stx]7[etx] 02h 37h 03h [ack] or 06h
[stx]1[etx] 02h 31h 03h [ack] or 06h
[stx]999999[etx] 02h 39h 39h 39h 39h 39h 39h 03h [ack] or 06h
HOST
ASCII
REPRESENTATION
SCANNER
RESPONSE
The commands sent to the scanner do not include the small superscripted
‘3’ that you see in front of each bar code string in the MetroSelect manual.
THE ‘3’ SHOULD NOT BE SENT. IT IS A CODE TYPE DESIGNATION
ONLY!
As you will note for commands requiring additional bar codes to be scanned
(such as prefixes, suffixes, timeouts, etc.), simply send the code bytes in the
same order that you would normally scan the bar codes.
21
C
ONFIGURATION MODES
EXAMPLE #3
:
The following example shows the events that occur when an invalid bar code
is sent. This sample will load the factory default settings and then set the
baud rate to 19200.
FEATURE
Enter Configuration Mode
Load Defaults
Invalid command was sent, you must start over!
Enter Configuration Mode
Load Defaults
19200 Baud Rate
Exit Configuration Mode
The scanner will beep three times!
This example illustrates two important points.
HOST
COMMAND
[stx]999999[etx] 02h 39h 39h 39h 39h 39h 39h 03h [ack] or 06h
[stx]99999:[etx] 02h 39h 39h 39h 39h 39h 3Ah 03h [nak] or 15h
[stx]999999[etx] 02h 39h 39h 39h 39h 39h 39h 03h [ack] or 06h
[stx]999998[etx] 02h 39h 39h 39h 39h 39h 39h 03h [ack] or 06h
[stx]415870[etx] 02h 34h 31h 35h 38h 37h 30h 03h [ack] or 06h
[stx]999999[etx] 02h 39h 39h 39h 39h 39h 39h 03h [ack] or 06h
ASCII
REPRESENTATION
First, if an invalid command is sent from the host, the scanner responds with
a [nak] and the end-user must start over from the beginning.
Second, if a command is sent to change the Baud Rate, the new baud rate
does not take effect until after the end-user exits configuration mode.
Character Hex Value Decimal Value
ABBREVIATED ASCII TABLE
[STX] 02h 2
[ETX] 03h 3
[ACK] 06h 6
[NAK] 15h 21
0 30h 48
1 31h 49
2 32h 50
3 33h 51
4 34h 52
5 35h 53
6 36h 54
7 37h 55
8 38h 56
9 39h 57
22
SCANNER
RESPONSE
U
PGRADING THE FIRMWARE
The Voyager series is part of Metrologic's line of scanners with flash upgradeable
firmware. The upgrade process requires a new firmware file supplied to the
customer by a customer service representative and Metrologic's MetroSet2
software
available RS232 serial or USB port is required to complete the upgrade.
To upgrade the firmware in the MS9520/MS9540:
. A personal computer running Windows 95 or greater with an
Do not use the standard cable supplied with Keyboard Wedge or
RS485 interface kits for firmware upgrades. Use either cable
#54-54014x or #53-53014x. If using USB or RS232 for the upgrade
process, the standard USB or RS232 cable provided with the scanner
can be used.
1. Plug the scanner into a serial communication port on the host system.
2. Start the MetroSet2 software.
3. Click on the plus sign (+) next to POS Scanners to expand the supported
scanner list.
4. Choose the Voyager/9520 N/R or Voyager/9540 N/R from the list.
5. Click on the C
onfigure Scanner button.
6. Choose Flash Utility from the options list located on the left side of the
screen.
7. Click on the Open File button in the Flash Utility window.
8. Locate and open the flash upgrade file supplied by Metrologic.
9. Select the COM port that the scanner is connected to on the host system.
10. Verify the settings listed in the Flash Utility window.
11. Click on the Flash Scanner button to begin the flash upgrade.
12. A message will appear on the screen when the upgrade is complete.
Metrologic's customer service department can be reached at
1-800-ID-METRO or 1-800-436-3876.
MetroSet2 is available for download, at no additional cost, from
http://www.metrologic.com/corporate/download
Applicable for IBM® host applications
.
23
D
EPTH OF FIELD
M
INIMUM BAR CODE ELEMENT WIDTH
A B C D E F G H J K
mm .13 .15 - - .19 - .25 .33 .53 -
mils 5.2 5.7 - - 7.5 - 10 13 21 -
Figure 30. Depth of Field
24
IR A
CTIVATION RANGE
The scanner's laser will turn off if the scanner has been idle. When the scanner's
IR detects movement in the activation area (see figure below), the laser will
automatically turn on, preparing the scanner for bar code recognition, decoding,
and transmission. The default laser/scan mode for the MS9500 series is normal
scan.

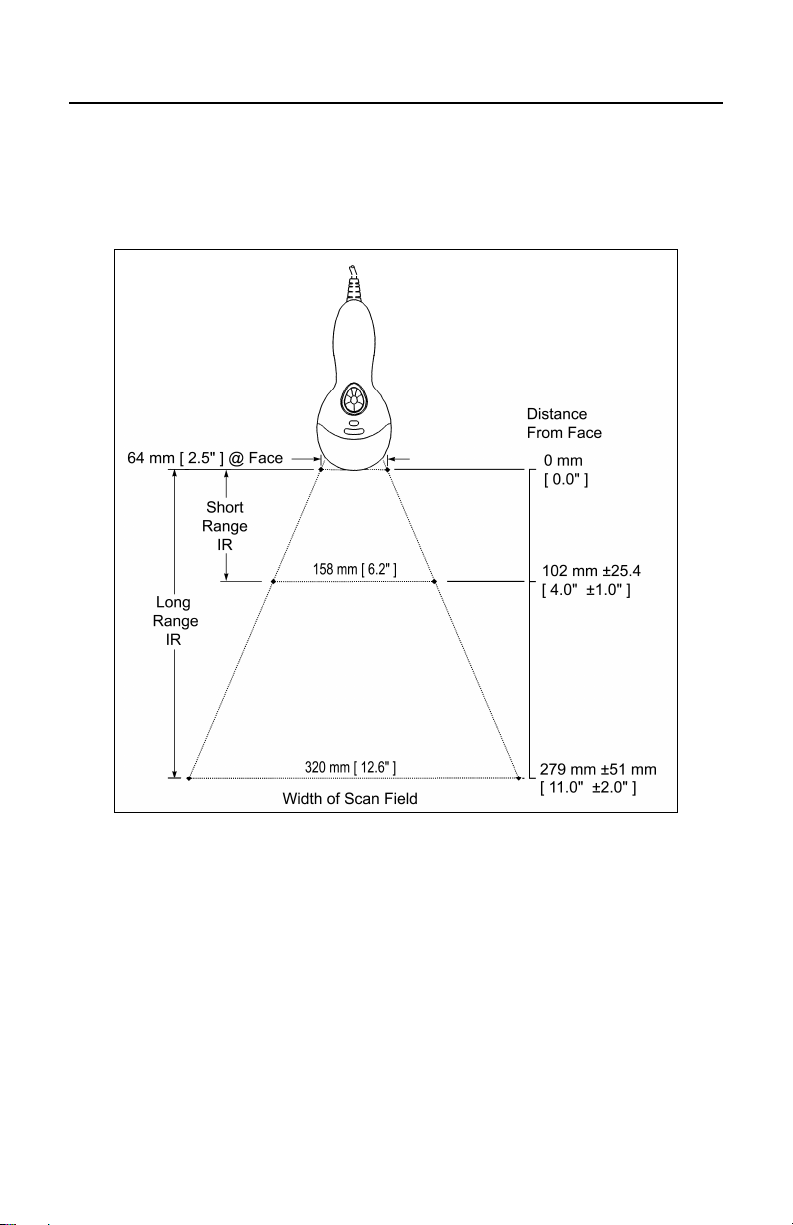

Figure 31. Short and Long IR Activation Area
25
A
PPLICATIONS AND PROTOCOLS
The model number on each scanner includes the scanner number and factory
default communication protocol.
Scanner Version Identifier Communication Protocol(s)
00 Laser Emulation and RS232 Transmit/Receive
11
RS485
, RS232 - TXD, RXD, RTS, CTS
MS9520
Or
MS9540
Applicable for IBM® host applications.
14 RS232 - TXD, RXD, RTS, CTS, DTR, DSR
38
40 Full Speed Integrated USB
41 RS232/Light Pen Emulation
47
Low Speed USB,
Serial Emulation or Keyboard Emulation
Keyboard Wedge, Stand-Alone Keyboard and
RS232 Transmit/Receive
The MS9520/9540 Keyboard Wedge Series (-47) is designed for keyboard
emulation only. Many RS232 configurable functions available in other Metrologic
scanners are also available as keyboard wedge functions.
The following are the most important selectable options specific to keyboard
wedge:
Keyboard Type
• **AT (includes IBM
®
PS2 models 50, 55, 60, 80)
• IBM PS2 (includes models 30, 70, 8556)
Keyboard Country Type
• **USA • Italian • Swiss
• Belgian • Japanese • Swedish/Finnish
• French • Russian Cyrillic • Turkish
• German • Slovenian • United Kingdom
• Hungarian • Spanish
** Indicates a default setting (see pages 33 - 37 for additional information).
Refer to the MetroSelect Single-Line Configuration Guide (
MLPN
00-02544) or
MetroSet2’s help files for information on how to change the default settings.
26
T
ROUBLESHOOTING GUIDE
The following guide is for reference purposes only. Contact a Metrologic
representative at 1-800-ID-Metro or 1-800-436-3876 to preserve the limited
warranty terms.
Symptoms Possible Causes Solution
All Interfaces
Check the transformer, the outlet
and power strip. Make sure the
cable is plugged into the unit.
Some host systems cannot supply
enough current to power Voyager.
A power supply may be needed.
A flash ROM upgrade is required.
The unit has no
LEDs, beep or laser.
At power up the
unit beeps 2 times
and alternately
flashes the LEDs.
No power is being
supplied to the unit.
No power is being
supplied to the unit
from host.
There is a ROM
failure.
At power up the
unit beeps 3 times.
At power up there
is a continuous
razz tone.
At power up there
is a razz tone and
the green* LED
flashes.
At power up there
is a razz tone and
both LEDs flash.
The unit scans,
communicates, and
beeps twice.
The unit powers up,
but does not beep.
The unit powers up,
but does not scan
and/or beep.
*
In some custom units, the standard green LED has been replaced with a blue LED and the red
LED has been replaced with a white LED.
There is a nonvolatile RAM failure.
There has been a
diagnostic failure.
There is a VLD
failure.
There is a scanning
mechanism failure.
The same symbol
timeout is set too
short.
The beeper may be
disabled or no tone
has been selected.
The unit is trying to
scan a particular
symbology that is
not enabled.
Contact a Metrologic service
representative.
Adjust the same symbol timeout for
a longer time.
Enable beeper and select a tone.
UPC/EAN, Code 39, interleaved 2 of
5, Code 93, Code 128 and Codabar
are enabled by default. Verify that
the type of bar code being read has
been selected.
27
T
ROUBLESHOOTING GUIDE
Symptoms Possible Causes Solution
The unit powers
up, but does not
scan and/or
beep.
The following item is only relevant for RS232 and Serial Emulation USB interfaces.
The unit scans a
bar code, but
locks up after the
first scan and the
red* LED stays on.
The unit scans,
but the data
transmitted to the
host is incorrect.
The unit beeps at
some bar codes
but NOT for
others of the
same bar code
symbology.
The bar code being
scanned does not
satisfy the configured
criteria for character
length lock or minimum
length.
The unit is configured
to support some form
of host handshaking
but is not receiving the
signal.
The unit’s data format
does not match the
host system’s
requirements.
The bar code may
have been printed
incorrectly.
The unit is not
configured correctly for
the type of bar code
being scanned.
The minimum symbol
length setting does not
work with the bar code.
Verify that the bar code being
scanned falls into the configured
criteria.
The scanner defaults to a minimum
of 3 character bar code.
If the unit is setup to support
ACK/NAK, RTS/CTS, XON/XOFF or
D/E, verify that the host cable and
host are supporting the handshaking
properly.
Verify that the unit’s data format
matches that required by the host.
Make sure that the unit is connected
to the proper host port.
Check if it is a check digit/character
or border problem.
Check if the correct minimum
symbol length is set.
The unit scans
the bar code but
there is no data.
The host is
receiving data
but the data does
not look correct.
Characters are
being dropped.
*
In some custom units, the standard green LED has been replaced with a blue LED and the red
LED has been replaced with a white LED.
The unit’s configuration
is not correct.
The scanner and host
may not be configured
for the same interface
parameters.
Inter-character delay
needs to be added to
the transmitted output.
Make sure the scanner is configured
for the appropriate mode.
Check that the scanner and the host
are configured for the same
interface parameters.
Add some inter-character delay to
the transmitted output by using the
MetroSelect Single-Line
Configuration Guide.
28
T
ROUBLESHOOTING GUIDE
Symptoms Possible Causes Solution
The following four items are relevant for a Keyboard Wedge interface only.
The unit scans
but the data is
not correct.
The unit’s configuration
is not correct.
Make sure that the proper PC type
AT, PS2 or XT is selected. Verify
the correct country code and data
format is selected. Adjust the intercharacter delay symptom.
The unit is
transmitting each
character twice.
Alpha characters
show as lower
case.
Everything works
except for a
couple of
characters.
The following item is relevant for an RS232 interface only.
The unit will
power-up and
scan but does
not communicate
properly to the
host.
The unit will
power-up and
scan but does not
communicate
properly to the
host.
The unit’s configuration
is not correct.
The computer is in
Caps Lock mode.
These characters may
not be supported by
that country’s key look
up table.
The com port at the
host is not working or
not configured
properly.
The cable is not
connected to the
proper com port.
Increase the interscan code delay
setting. Adjust whether the F0
break is transmitted.
It may be necessary to try this in
both settings.
Enable the Caps Lock detect feature
of the scanner to detect whether the
PC is operating in Caps Lock.
Try operating the scanner in Alt
mode.
Check to make sure that the baud
rate and parity of the scanner and
the communication port match and
that the program is looking for
“RS232” data.
Check to make sure that the unit is
connected to the correct com port
on the host device.
29
RS232 D
If an RS232 scanner is not communicating with an IBM compatible PC, key in the
following BASIC program to test that the communication port and scanner are
working.
This program is for demonstration purposes only. It is only intended to prove that
cabling is correct, the COM port is working, and the scanner is working. If the
bar code data displays on the screen while using this program, the hardware
interface and scanner are working. The next step would be to investigate
whether the application software and the scanner configuration match.
If the application does not support RS232 scanners, a software wedge program
is available that will take RS232 data and place it into a keyboard buffer. This
program tells the PC to ignore RTS-CTS, Data Set Ready (DSR) and Data
Carrier Detect (DCD) signals. If the demonstration program works but the
customer's application software does not, jumper RTS to CTS and Data Terminal
Reading (DTR) to DCD and DSR on the back of your PC.
10 CLS
20 ON ERROR GOTO 100
30 OPEN “COM1:9600,S,7,1,CSO,DSO,CD0,LF” AS#1
35 PRINT “SCAN A FEW BAR CODES”
40 LINE INPUT #1, BARCODE$
50 PRINT BARCODE$
60 K$ = INKEY$: IF K$ = CHR$(27) THEN GOTO 32766
70 GOTO 40
100 PRINT “ERROR NO.”; ERR ;“PRESS ANY KEY TO TERMINATE.”
110 KK$ = INKEY$: IF K$ = “”THEN GOTO 110
32766 CLOSE: SYSTEM
32767 END
EMONSTRATION PROGRAM
30
D
ESIGN SPECIFICATIONS
MS9500 Series Specifications
O
PERATIONAL
Light Source Visible Laser Diode 650 nm
Laser Power: Less than 1 mW (peak)
Depth of Scan Field:
Scan Speed: 72 scan lines per second
Scan Pattern: Single scan line
Minimum Bar Width: 0.127 mm (5.0 mil)
Infrared Activation:
Decode Capability:
System Interfaces:
Print Contrast: 35% minimum reflectance difference
Number Characters
Read:
0 mm - 203 mm (0" - 8") for
0.330 mm (13 mil) bar code at default settings
Long Range: 0 mm – 279 mm ± 51 mm (0" – 11" ± 2")
Short Range: 0 mm – 102 mm ± 25 mm (0" – 4" ± 1")
Autodiscriminates all standard bar codes for others call
a Metrologic service representative
RS232, PC Keyboard Wedge, Stand-Alone Keyboard,
RS485 IBM 468X/469X, Light Pen Emulation, Laser
Emulation, RS232 with DSR, Low Speed USB (Serial
Emulation or Keyboard Emulation), Full Speed USB
Up to 80 data characters (Maximum number will vary
based on symbology & density)
Roll, Pitch, Yaw: 42°, 68°, 52°
Beeper Operation: 7 tones or no beep
Green* LED laser on, ready to scan
Visual Indicators:
Default Settings
* In some custom units, the standard green LED has been replaced with a blue LED
and the red LED has been replaced with a white LED.
Specifications are subject to change without notice.
31
Red* LED good read
Yellow LED
(MS9540 Only)
ON, CodeGate button is inactive
OFF, CodeGate button is active
D
ESIGN SPECIFICATIONS
MS9500 Series Specifications
M
ECHANICAL
E
LECTRICAL
Input Voltage: 5VDC ± 0.25V
DC Transformers: Class 2; 5.2V @ 1A
For regulatory compliance information see pages 43 – 45.
E
NVIRONMENTAL
Length: 198 mm (7.8")
Width: Handle - 45 mm (1.8"), Head - 78 mm (3.1")
Depth: 40 mm (1.6")
Weight: 149 g (5.25 oz)
Power:
Current:
Temperature:
Operating = 0.825 W typical
Standby = 0.600 W typical
Operating = 165 mA @ 5VDC typical
Standby = 120 mA @ 5VDC typical
Operating = 0°C to 40° (32° to 104°F)
Storage = -40°C to 60°C (-40°F to 140°F)
Humidity: 5% to 95% relative humidity, non-condensing
Light Levels: Up to 4842 Lux (450 footcandles)
Shock: Designed to withstand 1.5 m (5 ft.) drops
Contaminants: Sealed to resist airborne particulate contaminants
Ventilation: None required
Specifications are subject to change without notice.
32
D
EFAULT SETTINGS
Many functions of the scanner can be configured or enabled/disabled.
The scanner is shipped from the factory configured to a set of default conditions.
All default parameters of the scanner have an asterisk ( * ) marked in the default
column. If an asterisk is not in the default column then the default setting is off or
disabled. Not every interface supports every parameter. A check
mark () will appear in the interface column if it supports the parameter listed.
Parameter Default RS232
Normal Scan Mode
Continuous Scan Mode
Blinky Scan
Continuous Blinky Scan
Custom (one shot) Scan
Manual Activation Mode
Long-Range In-Stand
Short-Range In-Stand
Long-Range Out-of-Stand
Short-Range Out-of-Stand
CodeGate Active In-Stand
CodeGate Inactive In-Stand
CodeGate Active
Out-of Stand
CodeGate Inactive
Out-of Stand
UPC/EAN
Code 128
Code 93
Codabar
Interleaved 2 of 5 (ITF)
MOD 10 check on ITF
Code 11
Code 39
Full ASCII Code 39
*
*
*
*
*
*
*
*
*
*
*
Light
RS485 KBW USB Laser Emulation
Pen
33
D
EFAULT SETTINGS
Parameter Default RS232
Mod 43 Check on Code 39
MSI-Plessy 10/10
Check Digit
MSI-Plessy Mod 10
Check Digit
Paraf Support ITF
ITF Symbol Lengths Variable
Minimum Symbol Length 3
Symbol Length Lock None
Bars High as Code 39
Spaces High as Code 39
Bars High as Scanned
Spaces High as Scanned
DTS/SIEMENS
Light
RS485 KBW USB Laser Emulation
Pen
*
*
DTS/NIXDORF
NCR F
NCR S
Poll light pen source
Beeper tone Normal
Beep Transmit Sequence
Communication Timeout None
Razzberry Tone on Timeout
Three Beeps on Timeout
Same symbol rescan timeout:
250 msecs
Same symbol rescan timeout:
375 msecs
Same symbol rescan timeout:
500 msecs
Same symbol rescan timeout:
625 msecs
34
*
Before
transmit
D
EFAULT SETTINGS
Parameter Default RS232
Same symbol rescan timeout:
750 msecs
Same symbol rescan timeout:
875 msecs
Same symbol rescan timeout:
1000 msecs
No Same symbol timeout
Infinite Same symbol timeout
Inter-character delay
Configurable in 1 msec steps
(max 255 msecs)
Number of scan buffers
(maximum)
Transmit UPC-A check digit
Transmit UPC-E check digit
Expand UPC-E
Convert UPC-A to EAN-13
Transmit lead zero on UPC-E
Transmit UPC-A number
system
Transmit UPC-A
Manufacturer ID#
1 msecs
10 msecs
in KBW
Light
RS485 KBW USB Laser Emulation
Pen
*
4
*
*
*
Transmit UPC –A Item ID#
Transmit Codabar Start/Stop
Characters
CLSI Editing (Enable)
Transmit Mod 43 Check digit
on Code 39
Transit Mod 10/ITF
Transmit MSI-Plessy
Parity Space
Baud Rate 9600
8 Data Bits
7 Data Bits
Stop Bits 2
*
*
35
D
EFAULT SETTINGS
Parameter Default RS232
Transmit Sanyo ID
Characters
Nixdorf ID
LRC Enabled
UPC Prefix
UPC Suffix
Carriage Return
Line Feed-Disabled by
default in KBW
Tab Prefix
Tab Suffix
“DE” Disable Command
“FL” Laser
Enable Command
DTR Handshaking support
RTS/CTS Handshaking
Character
Message RTS/CTS
XON/XOFF Handshaking
ACK/NAK
Two Digit Supplements
Five Digit Supplements
Bookland
977 (2 digit) Supplemental
Requirement
Supplements are not
Required
Two Digit Redundancy
Five digit Redundancy
Light
RS485 KBW USB
Pen
*
*
*
*
*
as
code 39
as
code 39
as
code 39
Laser
Emulation
as
code 39
as
code 39
as
code 39
36
s
D
EFAULT SETTINGS
Parameter Default RS232
100 msec to Find Supplement
Configurable in 100 msec step
(max 800 msec)
Light
RS485 KBW USB
Pen
*
Laser
Emulation
Coupon Code 128
† Configurable Code Lengths 7 avail
† Code Selects with
configurable Code Length
Locks
Configurable Prefix
characters
Suffix characters 10 avail
Prefixes for Individual
Code types
Editing
Inter Scan-Code delay
configurable
(100 µsec steps)
Function/control Key Support
Minimum Element width
Configurable in 5.6 µsec
steps
3 avail
10 avail
800 µsec
1 msec
as
code 39
as
code 39
† These options are mutually exclusive. One cannot be used in conjunction with the other.
37

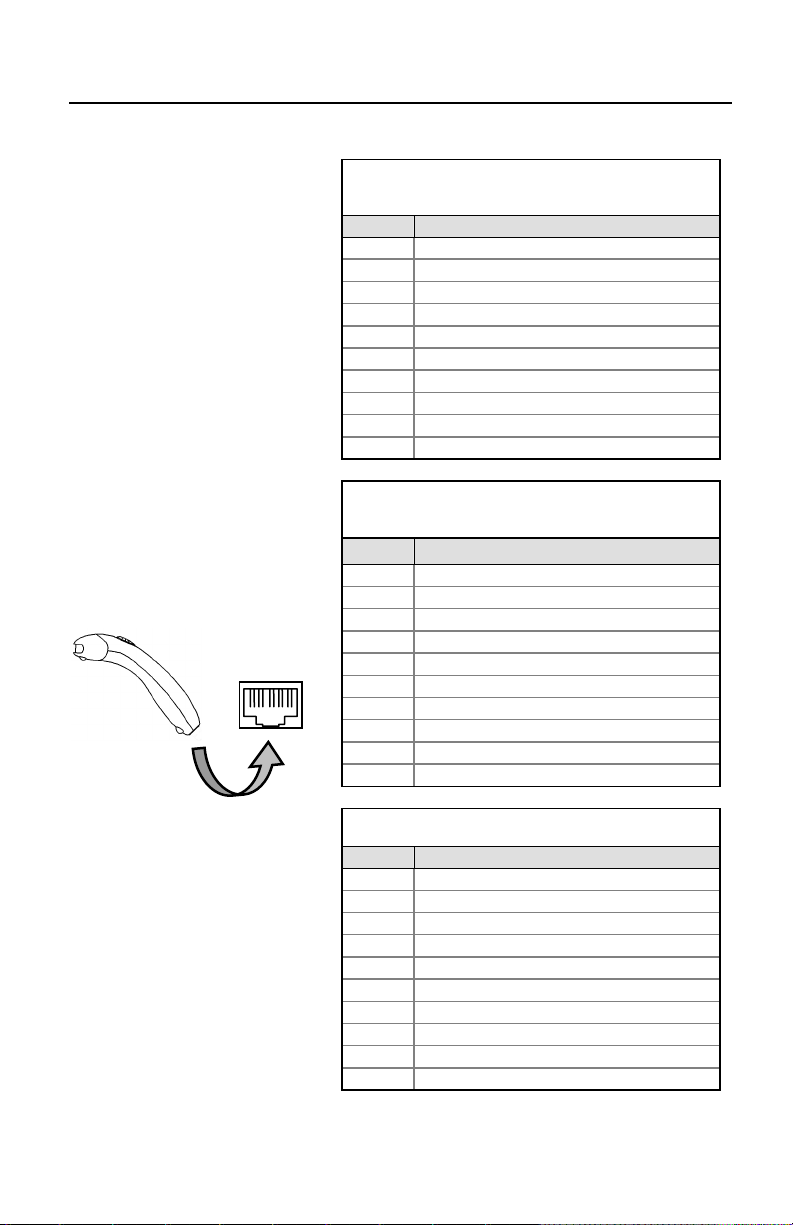

S
CANNER AND CABLE TERMINATIONS
Scanner Pinout Connections
The MS9520 and MS9540
scanner interfaces terminate to
a 10-pin modular jack.
The serial # label indicates the
interface enabled when the
scanner is shipped from the
factory.
Pin Function
1 Ground
2 RS232 Transmit Output
3 RS232 Receive Input
4 RTS Output
5 CTS Input
6 DTR Input/LTPN Source
7 Reserved
8 LTPN Data
9 +5VDC
10 Shield Ground
Keyboard Wedge and Stand-Alone Keyboard
Pin Function
1 Ground
2 RS232 Transmit Output
3 RS232 Receive Input
4 PC Data
5 PC Clock
10
6 KB Clock
7 PC +5V
8 KB Data
9 +5VDC
10 Shield Ground
Pin Function
1 Ground
2 RS232 Transmit Output
3 RS232 Receive Input
4 RTS Output
5 CTS Input
6 DTR Input
7 IBM B-Transmit
8 IBM A+ Receive
9 +5VDC
10 Shield Ground
Applicable for IBM® host applications.
MS95x0-41
RS232 and Light Pen Emulation
MS95x0-47
MS95x0-11 RS485
38
S
CANNER AND CABLE TERMINATIONS
Scanner Pinout Connections
MS95x0-00 Laser Emulation
Pin Function
1 Ground
2 RS232 Transmit Output
3 RS232 Receive Input
4 Flip Sense/Start of Scan Output
5 Proximity Detect/Trigger Emulation Output
6 Scan/Laser Enable Input
7 Reserved
8 Data Out
9 +5VDC
10 Shield Ground
MS95x0-14 RS232
MS95x0-40 Full Speed USB &
MS95x0-38 Low Speed USB
Pin Function Pin Function
1 Ground 1 Ground
2 RS232 Transmit Output 2 RS232 Transmit Output
3 RS232 Receive Input 3 RS232 Receive Input
4 RTS Output 4 RTS Output
5 CTS Input 5 CTS Input
6 DTR Input 6 D+
7 Reserved 7 PC +5V/V_USB
8 DSR Out 8 D9 +5VDC 9 N/C
10 Shield Ground
10 Drain Wire
39
S
CANNER AND CABLE TERMINATIONS
Cable Connector Configuration (Host End)
RS232 PowerLink Cable
MLPN
53-53000x-3
Pin Function
1 Shield Ground
2 RS232 Transmit Output
3 RS232 Receive Input
4 DTR Input/Light Pen Source
5 Signal Ground
Light Pen Data
6
(DSR Out for -14 interfaces)
7 CTS Input
8 RTS Output
9 +5VDC
USB Cables
MLPN
53-53213x-N-3, 53-53214x-N-3
or 53-53235x-N-3
Pin Function
1 PC +5V/V_USB
2 D3 D+
4 Ground
Locking
Type A
Shield Shield
Stand-Alone Keyboard PowerLink
Cable
MLPN
53-53020x-3
Pin Function
1 PC Data
2 NC
3 Power Ground
4 +5VDC PC Power to KB
5 PC Clock
6 NC
6-Pin Male Mini-DIN Connector
9-Pin Female, D-Type
Non-Locking
Type A
40
S
CANNER AND CABLE TERMINATIONS
Cable Connector Configuration (Host End)
Keyboard Wedge PowerLink Cable
MLPN
53-53002x-3
Pin Function
1 Keyboard Clock
2 Keyboard Data
3 No Connect
4 Power Ground
5 +5 Volts DC
Pin Function
1 PC Data
2 No Connect
3 Power Ground
4 +5 Volts DC
5 PC Clock
6 No Connect
Metrologic will supply an adapter cable with a 5-pin DIN male connector on one
end and a 6-pin mini DIN female connector on the other. According to the
termination required, connect the appropriate end of the adapter cable to the
PowerLink cable, leaving the necessary termination exposed for connecting to
the keyboard and the keyboard port on the PC.
Keyboard Wedge Adapter Cable
Pin Function
1 PC Clock
2 PC Data
3 No Connect
4 Power Ground
5 +5 Volts DC
Pin Function
1 Keyboard Data
2 No Connect
3 Power Ground
4 +5 Volts DC
5 Keyboard Clock
6 No Connect
5-Pin DIN, Female
6-Pin DIN, Male
5-Pin DIN, Male
6-pin Mini DIN, Female
41
L
IMITED WARRANTY
The MS9500 Voyager and VoyagerCG series scanners are manufactured by Metrologic at its Suzhou
China facility. The MS9500 Voyager and VoyagerCG series scanners have a five (5) year limited
warranty from the date of manufacture. Metrologic warrants and represents that all MS9500 Voyager
and VoyagerCG series scanners are free of all defects in material, workmanship and design, and have
been produced and labeled in compliance with all applicable U.S. Federal, state and local laws,
regulations and ordinances pertaining to their production and labeling.
This warranty is limited to repair, replacement of product or refund of product price at the sole discretion
of Metrologic. Faulty equipment must be returned to one of the following Metrologic repair facilities:
Blackwood, New Jersey, USA; Madrid, Spain; or Suzhou, China. To do this, contact the appropriate
Metrologic Customer Service/Repair Department to obtain a Returned Material Authorization (RMA)
number.
In the event that it is determined the equipment failure is covered under this warranty, Metrologic
shall, at its sole option, repair the Product or replace the Product with a functionally equivalent unit
and return such repaired or replaced Product without charge for service or return freight, whether
distributor, dealer/reseller, or retail consumer, or refund an amount equal to the original purchase
price.
This limited warranty does not extend to any Product which, in the sole judgment of Metrologic,
has been subjected to abuse, misuse, neglect, improper installation, or accident, nor any damage
due to use or misuse produced from integration of the Product into any mechanical, electrical or
computer system. The warranty is void if: (i) the case of the Product is opened by anyone other
than Metrologic's repair department or authorized repair centers; or (ii) any software is installed on
the Product other than a software program approved by Metrologic.
THIS LIMITED WARRANTY, EXCEPT AS TO TITLE, IS IN LIEU OF ALL OTHER WARRANTIES
OR GUARANTEES, EITHER EXPRESS OR IMPLIED, AND SPECIFICALLY EXCLUDES,
WITHOUT LIMITATION, WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE UNDER THE UNIFORM COMMERCIAL CODE, OR ARISING OUT OF
CUSTOM OR CONDUCT. THE RIGHTS AND REMEDIES PROVIDED HEREIN ARE
EXCLUSIVE AND IN LIEU OF ANY OTHER RIGHTS OR REMEDIES. IN NO EVENT SHALL
METROLOGIC BE LIABLE FOR ANY INDIRECT OR CONSEQUENTIAL DAMAGES,
INCIDENTAL DAMAGES, DAMAGES TO PERSON OR PROPERTY, OR EFFECT ON
BUSINESS OR PROPERTY, OR OTHER DAMAGES OR EXPENSES DUE DIRECTLY OR
INDIRECTLY TO THE PRODUCT, EXCEPT AS STATED IN THIS WARRANTY. IN NO EVENT
SHALL ANY LIABILITY OF METROLOGIC EXCEED THE ACTUAL AMOUNT PAID TO
METROLOGIC FOR THE PRODUCT. METROLOGIC RESERVES THE RIGHT TO MAKE ANY
CHANGES TO THE PRODUCT DESCRIBED HEREIN.
C
ORPORATE HEADQUARTERS
N
ORTH AMERICA
Metrologic Instruments, Inc. Metrologic Eria Ibérica, SL
90 Coles Rd. C/Alfonso Gomez, 38-40, 1D
Blackwood, NJ 08012-4683 28037 Madrid
Customer Service Department Tel: +34 913 751 249
Tel: 1-800-ID-METRO Fax: +34 913 270 437
Fax: 856-228-6673
Email: info@metrologic.com
MTLG
AUTO ID INSTRUMENTS (SHANGHAI) CO., LTD
Suzhou Sales Office
BLK A, Room# 03/03-04
No.5 Xinghan Street, Xinsu Industrial Square
China-Singapore Suahou Industrial Park, Suzhou, PRC
Tel: 86-512-67622550
Fax: 86-512-67622560
Email: info@cn.metrologic.com
,
M
ETROLOGIC EUROPEAN REPAIR CENTER
(MERC)
42
R
EGULATORY COMPLIANCE
Safety
ITE Equipment
IEC 60950-1, EN 60950-1
Laser
Laser Class 1: IEC 60825-1:1993+A1+A2,
Caution
Use of controls or adjustments or performance of procedures other than those specified
herein may result in hazardous laser light exposure. Under no circumstances should the
customer attempt to service the laser scanner. Never attempt to look at the laser beam, even
if the scanner appears to be nonfunctional. Never open the scanner in an attempt to look into
the device. Doing so could result in hazardous laser light exposure. The use of optical
instruments with the laser equipment will increase eye hazard.
Atención
La modificación de los procedimientos, o la utilización de controles o ajustes distintos de los
especificados aquí, pueden provocar una luz de láser peligrosa. Bajo ninguna
circunstancia el usuario deberá realizar el mantenimiento del láser del escáner. Ni intentar
mirar al haz del láser incluso cuando este no esté operativo. Tampoco deberá abrir el
escáner para examinar el aparato. El hacerlo puede conllevar una exposición peligrosa a la
luz de láser. El uso de instrumentos ópticos con el equipo láser puede incrementar el
riesgo para la vista.
Attention
L'emploi de commandes, réglages ou procédés autres que ceux décrits ici peut entraîner de
graves irradiations. Le client ne doit en aucun cas essayer d'entretenir lui-même le scanner
ou le laser. Ne regardez jamais directement le rayon laser, même si vous croyez que le
scanner est inactif. N'ouvrez jamais le scanner pour regarder dans l'appareil. Ce faisant,
vous vous exposez à une rayonnement laser qú êst hazardous. L'emploi d'appareils
optiques avec cet équipement laser augmente le risque d'endommagement de la vision.
Achtung
Die Verwendung anderer als der hier beschriebenen Steuerungen, Einstellungen oder
Verfahren kann eine gefährliche Laserstrahlung hervorrufen. Der Kunde sollte unter keinen
Umständen versuchen, den Laser-Scanner selbst zu warten. Sehen Sie niemals in den
Laserstrahl, selbst wenn Sie glauben, daß der Scanner nicht aktiv ist. Öffnen Sie niemals
den Scanner, um in das Gerät hineinzusehen. Wenn Sie dies tun, können Sie sich einer
gefährlichen Laserstrahlung aussetzen. Der Einsatz optischer Geräte mit dieser
Laserausrüstung erhöht das Risiko einer Sehschädigung.
Attenzione
L’utilizzo di sistemi di controllo, di regolazioni o di procedimenti diversi da quelli descritti nel
presente Manuale può provocare delle esposizioni a raggi laser rischiose. Il cliente non
deve assolutamente tentare di riparare egli stesso lo scanner laser. Non guardate mai il
raggio laser, anche se credete che lo scanner non sia attivo. Non aprite mai lo scanner per
guardare dentro l’apparecchio. Facendolo potete esporVi ad una esposizione laser
rischiosa. L’uso di apparecchi ottici, equipaggiati con raggi laser, aumenta il rischio di
danni alla vista.
EN 60825-1:1994+A1+A2
43
R
EGULATORY COMPLIANCE
EMC
Emissions
FCC Part 15, ICES-003, CISPR 22, EN 55022
Immunity
CISPR 24, EN 55024
Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
Class A Devices
The following is applicable when the scanner cable is greater in length than 3 meters
(9.8 feet) when fully extended:
Les instructions ci-dessous s’appliquent aux cables de scanner dépassant 3 métres
(9.8 pieds) de long en extension maximale:
Folgendes trifft zu, wenn das Scannerkabel länger als 3 Meter ist:
This equipment has been tested and found to comply with limits for a Class A digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio frequency energy and,
if not installed and used in accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this equipment in a residential area is
likely to cause harmful interference, in which case the user will be required to correct the
interference at their own expense. Any unauthorized changes or modifications to this
equipment could void the user’s authority to operate this device.
This device complies with part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) This device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired
operation.
Notice
This Class A digital apparatus complies with Canadian ICES-003.
Remarque
Cet appareil numérique de classe A est conforme à la norme canadienne NMB-003.
European Standard
Funkstöreigenschaften nach EN55022:1998
Standard Europeo
Warning
This is a class A product. In a domestic environment this product may cause radio
interference in which case the user may be required to take adequate measures.
Warnung!
Dies ist eine Einrichtung der Klasse A. Diese Einrichtung kann im Wohnbereich
Funkstörungen verursachen. In diesem Fall kann vom Betreiber verlangt werden,
angemessene Massnahmen durchzuführen.
Attenzione
Questo e’ un prodotto di classe A. Se usato in vicinanza di residenze private potrebbe
causare interferenze radio che potrebbero richiedere all’utilizzatore opportune misure.
Attention
Ce produit est de classe “A”. Dans un environnement domestique, ce produit peut être la
cause d’interférences radio. Dans ce cas l’utiliseteur peut être amené à predre les
mesures adéquates.
44
R
EGULATORY COMPLIANCE
EMC
Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
Class B Devices
The following is applicable when the scanner cable is less than 3 meters
(9.8 feet) in length when fully extended:
Les instructions ci-dessous s’appliquent aux cables de scanner ne dépassant
pas 3 métres (9.8 pieds) de long en extension maximale:
Folgendes trifft zu, wenn das Scannerkabel kürzer als 3 Meter ist:
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
• Reorient or relocate the receiving antenna
• Increase the separation between the equipment and receiver
• Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected
• Consult the dealer or an experienced radio/TV technician for help
Notice
This Class B digital apparatus complies with Canadian ICES-003.
Remarque
Cet appareil numérique de classe B est conforme à la norme canadienne NMB-003.
45
P
ATENTS
This METROLOGIC product may be covered by, but not limited to, one or more
of the following US Patents:
US Patent No. 5,081,342; 5,260,553; 5,340,971; 5,340,973; 5,424,525;
5,468,951; 5,484,992; 5,525,789; 5,528,024; 5,591,953; 5,616,908; 5,627,359;
5,661,292; 5,777,315; 5,789,730; 5,789,731; 5,811,780; 5,825,012; 5,828,048;
5,883,375; 5,886,337; 5,895,907; 5,925,870; 5,925,871; 5,939,698; 6,029,894;
6,189,793; 6,209,789; 6,227,450; 6,283,375; 6,347,743; 6,412,700; 6,499,664;
6,575,369; 6,607,133; 6,619,549; 6,637,655; 6,637,659; 6,863,217; 6,874,689;
6,905,071; 6,975,456; 6,976,632; 7,007,849; 7,017,813; 7,044,383; 7,124,950;
7,156,310; 7,252,238; 7,255,280; 7,278,578; 7,325,740; D408,532;
No license right or sublicense is granted, either expressly or by implication,
estoppel, or otherwise, under any METROLOGIC or third party intellectual
property rights (whether or not such third party rights are licensed to
METROLOGIC), including any third party patent listed above, except for an
implied license only for the normal intended use of the specific equipment,
circuits, and devices represented by or contained in the METROLOGIC products
that are physically transferred to the user, and only to the extent of
METROLOGIC’s license rights and subject to any conditions, covenants and
restrictions therein.
Other worldwide patents pending.
46
I
NDEX
A
AC .................................. see power
accessories ...............................2, 3
adapter ..........................................2
C
cable.............................. 2–3, 27–29
adapter ......................................2
communication ...1, 2–3, 5, 7–11,
29, 33, 38–41
disconnect .................................5
MVC.......................................3, 8
pin assignments................. 38–41
caution..................................... 6, 43
labels .........................................6
laser...........................................6
CE .................................see caution
CodeGate....................1, 12, 18, 33
communication ...................... 27–29
compliance ............................ 43–45
configuration..20, 21, 26, 30, 33–37
converter .......................................3
current ...................................27, 32
customer service .........................42
D
default..................21, 22, 26, 33–37
depth of field................................ 24
E
EMC ......................................44, 45
EMI..............................................44
emissions ....................................44
F
firmware.......................................23
G
green LED ...................see indicator
I
IBM ................see interface: RS485
immunity...................................... 44
indicator
audible............................... 21, 31
failure ................................ 27–29
visual....................... 4, 27–29, 31
interface .......................... 31, 38–41
Keyboard Wedge 1, 9, 26, 33–37,
38, 41
Laser Emulation . 1, 7, 26, 33–37,
39
Light Pen ....... 1, 7, 26, 33–37, 38
RS232 .... 1, 7, 26, 29, 30, 33–37,
39, 40
RS485 ........... 1, 8, 26, 33–37, 38
Stand Alone Keyboard . 1, 10, 38,
40
USB....... 1, 11, 26, 33–37, 39, 40
IR range ...................................... 25
K
Keyboard Wedge ........see interface
L
labels ............................................ 6
laser .......................... 31, 43–45, 43
laser emulation............see interface
LED.............................see indicator
light level..................................... 32
Light Pen.....................see interface
M
maintenance ................................. 6
manual .......................................... 2
O
output window............................... 4
47
I
NDEX
P
parameter ..............................33–37
pin assignments .............. see cable
power ......................2, 7–11, 27, 32
PowerLink...................41, see cable
protocols..................... see interface
R
razzberry tone .............see indicator
Red LED......................see indicator
regulatory compliance ...........43–45
repair ...........................................42
RMA ............................................42
RS232 ........................ see interface
RS485 ........................ see interface
S
safety........................................... 43
SELV .............................see caution
serial number.................................6
specifications ........................ 31, 32
stand ................................. 3, 13–16
T
termination ............................ 38–41
troubleshooting ..................... 27–29
U
UL ................................. see caution
USB ............................see interface
V
ventilation.................................... 32
voltage ................2, 32, see caution
W
warranty ...................................... 42
window...................................... 4, 6
48
49
April 2008
Printed in China
00-02410K
January 2008, Version 03
Printed in the USA
00-02410J
Loading...
