Metrologic Instruments MS860i User Manual

METROLOGIC INSTRUMENTS, INC.

MS860i Mini-Slot™

Laser Bar Code Scanner

Installation and User’s Guide

MLPN 2202
Printed in USA
January 1999

Locations:

USA Corporate Headquarters Europe

Metrologic Instruments, Inc. Metrologic Instruments GmbH
90 Coles Road Dornierstrasse 2
Blackwood, NJ 08012 82178 Puchheim b.
Customer Service: 1-800-ID-METRO Munich, Germany
Tel: [phone] Tel: [phone]
Fax: [phone] Fax: [phone]
[e-mail] [e-mail]
www.metrologic.com

ASIA

South America Metrologic Asia (PTE) Ltd.

Metrologic Instruments 31, Kaki Bukit Road 3
Rua Flórida, 1.821-5°Andar-Brooklin #05-08 Techlink
CEP 04571-090, São Paulo-SP, Brasil Singapore 417818
Outside Brazil: Tel: [phone]
Tel: [phone]

ii

Table of Contents

Introduction .................................................. 1

Unpacking List ................................................. 2

Scanner Connections to the Host ................................... 3

Configuration of the Scanner to the Host System ...................... 4

Cloning Feature ................................................ 5

Version 11 IBM 46XX Scanner ................................... 6

Configuring the MS860i-11 Scanner ........................ 7

Configuring the IBM 46XX ............................... 8

IBM 4683 and 4693 Terminals Driven by a 46XX Store

Controller Running 4680.OS or 4690.OS ............ 8

IBM 4684 and 4694 Systems .............................. 8

Version 17 Keyboard Wedge Scanner .............................. 9

Connection of a MS860i-17 Scanner to a PC ........................ 10

Installing the Scanner into a Counter .............................. 11

Attaching the Vertical Stand to the Work Surface .................... 12

MS860i Features .............................................. 13

Touch Plate ............................................... 14, 15

Visual Indicators ........................................... 16-19

Volume Settings ............................................... 20

Labels ...................................................... 21

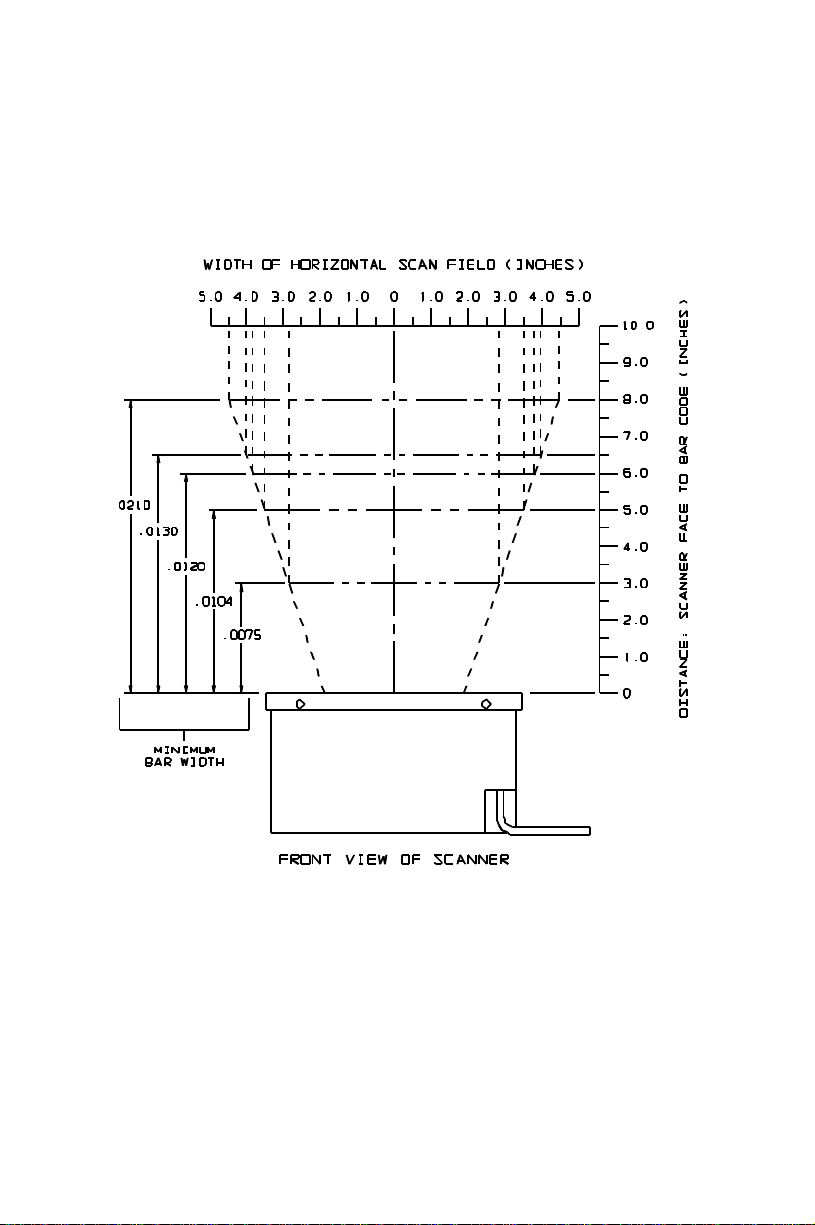

Depth of Field ................................................ 22

Depth of Field and Symbol Specification ........................ 23, 24

iii

Maintenance .................................................. 25

Applications and Protocols ..................................... 25

Appendix A

Specifications ...................................... 26, 27

Appendix B

Default Settings ..................................... 28-35

Appendix C

Pin Assignments .................................... 36-41

Appendix D

Warranty and Disclaimer ............................. 42, 43

Appendix E

Notices ........................................... 44, 45

Appendix F

Patents ............................................... 46

Volume Control Card ....................................... 47, 48

Index .................................................... 49, 50

iv

Introduction

Metrologic's MS860i Mini-Slot™ Laser Bar Code Scanner is a high-speed,
aggressive in-counter scanner. The MS860i unsurpassed scanning accuracy and
incorporates the most advanced laser technology in a smaller, yet rugged and
durable housing. Designed to be used where counter space is at a premium, the
MS860i can be used in a variety of applications.

The MS860i autodiscriminates all standard bar codes, eliminating the need to
"key in" unprogrammed codes increasing productivity and efficiency. A code
correcting feature (MECCA)© enables the MS860i to decode damaged or
truncated codes on the first pass, making the MS860i an excellent choice for
reclamation and coupon redemption applications. Each version of the MS860i
provides three interface options, with full RS-232 protocol available on every
scanner. Three most popular protocols (RS-232, OCIA and Light Pen Emulation)
are consolidated into the standard model. For simple PC connectivity, a keyboard
wedge interface is also available. Metrologic also offers a patented Hand-Held
Option, which allows users to connect the MS941 Hand-Held Scanner to the
MS860i for greater scanning versatility.

The MS860i is easy to program via bar code menus from ScanSelect™ Scanner
Programming Guide or by using Metrologic's ScanSet™ IBM compatible

®

software program. Other key features of the MS860i are the auto-off/touch-on
plate and easily visible LED indicators mounted on the brushed stainless steel top
plate. An optional hardened glass window is also available. Universal adaptor
plates make it simple to replace older, larger flatbed scanners with the smaller
MS860i. Metrologic also provides a vertical mounting option, so customers can
use the MS860i as a projection scanner as well.

Most importantly, the MS860i is easy to afford. It offers a superior, versatile and
low cost alternative to larger, more expensive in-counter scanners.

1

Unpacking List

The shipping carton contains the following:

! Installation and User’s Guide (MLPN: 2202)

ScanSelect™ Scanner Programming Guide (MLPN: 2186)
Volume Control Card (MLPN: 2346)

! MS860i Laser Bar Code Projection Scanner
! Installation Plate (MLPN: 45471)
! Power Supply (optional)
! Communication cable with connection for power supply (optional) or

Communication Cable (optional)

! Adaptor Plate or Vertical Stand (optional)

If any item is missing or to order additional items, contact the dealer, distributor
or call Metrologic’s Customer Service Department at 1-800-ID-METRO or 1­800-436-3876.

2

Scanner Connections to the Host

To maintain compliance with applicable standards, all circuits connected to the
scanner must meet the requirements for SELV (Safety Extra Low Voltage)
according to EN 60950. To avoid potential problems, do not power up the

scanner until the communication cable is secured to the host.

1. Turn off the host system.

2. Connect the 25-pin D-type connector on the scanner’s head cable to the
communication cable. Connect the other end of the communication cable
to the host device. (If the scanner will not receive power from a
transformer, skip to Step 5.)

3. If the scanner will receive power from an external power source, check the
AC input requirements of the transformer to make sure the voltage
matches the AC outlet. (A socket-outlet shall be installed near the
equipment and shall be easily accessible.)

4. Plug the transformer into the side of the female D-type connector located
on the communication cable. Plug the transformer into the AC outlet to
supply power to the scanner.

5. Power up the host system.

Note: When the scanner first receives power, the LEDs will flash and then

the scanner will beep once. After the scanner performs this start up
sequence, the green LED will remain on for a specified time
indicating that the laser is on.

3

Configuration of the Scanner to the Host System

The scanner is shipped from the factory programmed to a set of default conditions
noted in the Default Settings section of this guide and in the ScanSelect™
Scanner Programming Guide. The default settings in the ScanSelect guide have
an asterisk that appears before the brief definition
next to the bar code.

To communicate with the host system properly, it needs to be programmed to
meet specific scanning needs. Since each host system is unique, configure the
scanner to match the host system requirements. Configure the scanner by entering
program mode and scanning the appropriate bar codes that appear in the
ScanSelect Scanner Programming Guide. (When using ScanSet™, refer to the
ScanSet documentation for information on how to configure the scanner.)

1. Connect the scanner to the host system. (Refer to the Scanner
Connections to the Host section in this guide)

2. Enter program mode by scanning the ENTER/EXIT program mode bar
code as the first bar code after a power up cycle.
(The unit will beep three times.)

3. Scan the appropriate bar code(s) that appear in the ScanSelect Scanner
Programming Guide. (Reveal only one bar code to the scanner each time.
With your hand, cover the bar code that is not to be scanned.)

4. Exit program mode by scanning the ENTER/EXIT program mode bar
code again. (The new options will be saved and the scanner is ready for
normal operation.)

Note: Non-RS-232 interfaces chosen in Section B of the ScanSelect

Programming Guide do not match the default settings that are loaded
when the same interface is selected with ScanSet.

4

Cloning Feature

To program several scanners with the same settings, use the Cloning feature. This
is done by connecting the cloning cable (MLPN: #51544) between two scanners.

1. Turn off both scanners.

2. Connect the cloning cable between the two scanners.

3. Turn both scanners on by plugging in the transformers.

4. Once each scanner is ready, scan the cloning bar code with the scanner
that has the settings that need to be transferred to the other scanner.

5

Version 11 IBM 46XX Scanner

Output Format: IBM RS-485 serial input/output for the 4680 and 4690

(46XX) point-of-sale terminals

The Version 11 46XX interface can be used in several different ways. Both the
46XX terminal and the scanner must be configured to match each other.

Warning: Power to the scanner and 46XX terminal should be turned off

before making physical connection.

The 4680 and 4690 series terminals have different types of physical ports for
connecting bar code scanners. Scanner ports include Port 5B, Port 17, and Port
9? (? = A, B, C, or E). A Port 9 type connector is present on all versions of the
46XX families of terminals. That is one reason why it is the normal point of
connection for Metrologic scanners. Another reason is that there is enough 12
volt power available to operate many Metrologic scanners. If your terminal
configuration requires the use of a different physical port for connecting bar code
scanners, contact Metrologic to get particular adaptor cable information.

All devices use a common communications bus inside the 46XX terminal, despite
what port that is in use for the physical connection. Each device has a different
address that it uses when it communicates. The terminal must be configured to
look for a device at a logical address.

The IBM 1520 mode/address was selected as a default because it was the first
IBM 46XX family scanner to support UPC/EAN, Code 39 and Interleaved 2 of
5 (I 2 of 5). The Version 11 scanner formats Codabar, Code 128, and Code 93
using the Code 39 function code designation supported by the IBM device driver
for this scanner type. Other emulation modes currently available are the IBM
3687-2 Port 17 fixed scanner and the Port 9B IBM 4500 CCD hand-held bar
code reader. The use one of these other emulation modes may be needed
depending on which operating system (4680.OS, 4690.OS, POS/DOS or
DOS/RIPPS) is in use at your site.

Note: The IBM 4683 and IBM 4684 terminals have a good proven track

record of supplying power to Metrologic scanners. The IBM 4693 and
IBM 4694 terminals may be restricted from supplying power to certain
scanner models. Specifically, Metrologic currently recommends using
an external power supply for the scanner when connecting to an IBM

4694. Metrologic has no recommendations at this time for IBM 4693
terminals.

6

Configuring the MS860i-11 Scanner

Located in the Version 11 scanner are two computer boards. One computer board
is for decoding and the other for 46XX IO processing. The decode board is
configured using ScanSet™ or ScanSelect™ while the IO board is configured
with an internal DIP Switch bank.

For UPC/EAN scanning, the decode board should be set as follows:

Enable IBM 4680 Communication
Enable UPC/EAN
Beep after Transmit
Enable Communication Timeouts
Transmit UPC-A Check Digit
Transmit UPC-E Check Digit

These settings configure the decode board to beep after transmitting the data to
the terminal device driver. If the data does not clear the communications buffer
within two seconds, it is discarded without giving the operator a good scan
indication. This accommodates newer versions of the IBM device drivers that
enable/disable scanning in many different situations.

The default setting of the interface board is to emulate the IBM 1520 hand
scanner that supports UPC/EAN and alphanumeric code types. The following is
a list of switch settings for the internal interface board that handles the 46XX
SIOC communications.

There are eight DIP switches on the board that are both software and hardware
switches.

Switch 1 Switch 2 Emulation Mode

OFF OFF Port 5B, IBM 1520 Model 2 Laser Scanner

(default setting)
OFF ON Port 9B, CCD (IBM 4500/Opticon)
ON OFF Port 17, IBM 4014 Adaptor for 3687-2 to 468X
ON ON Reserved

Switch 3 Reserved (Should be OFF)
Switches 4, 5, 6, and 7 Must be ON
Switch 8 Should be OFF (Reserved)

7

Configuring the IBM 46XX

The 4683 and 4693 terminals are configured on the store controller. The 4684
and 4694 terminals are typically configured on the individual terminals. Follow
the appropriate guide for your type of equipment.

IBM 4683 and 4693 Terminals Driven by a 46XX Store Controller Running

4680.OS or 4690.OS

Access the terminal configuration menu on the store controller. If not already
selected, select an IBM 1520 laser hand scanner (4680.OS Port 5B), an IBM
4500 hand-held bar code reader (CCD, 4680.OS Port 9B), or an IBM 3687-2
fixed scanner (4680.OS Port 17) that matches the configuration of your scanner.
Regarding the 4690.OS, at the time of this printing, Metrologic does not know
exactly which terminal port configuration screen is used for selecting scanners.
It should be listed under the Port 9A, 9B, 9C, or 9E sections. The 4693 terminal
has a Port 5B that was originally used for the IBM 1520 scanner. While IBM has
withdrawn this product, it was not clear how terminal configuration and device
driver support would be provided for the installed base of users.

Save the configuration and activate it for the desired terminals. Download the
configuration to the terminal(s) per standard procedures.

IBM 4684 and 4694 Systems

Initialize the RIPPS drivers for a hand scanner if hand scanner emulation was
selected. Initialize the RIPPS drivers for a “POS scanner” if the 3687-2 scanner
has been selected.

8

Version 17 Keyboard Wedge Scanner

The MS860i scanner (version 17) provides keyboard emulation by converting the
scanned bar code data to the PC keyboard scan code equivalent. The following
are the supported keyboard and country types:

PC Type

! AT (includes IBM PS/2 and compatible models 50, 55, 60, 80)

®

! XT
! PS/2 (includes IBM PC and compatible models 30, 70, 8556)

Keyboard Country Type

! USA ! Germany
! France ! Spain
! Italy ! Belgium
! United Kingdom ! Swiss

With the appropriate communication cable, the scanner will also provide an RS­232 or light pen emulation interface. When configuring the scanner for one
interface versus another, change all necessary parameters for that particular
interface. For instance, when configuring the scanner for keyboard wedge
emulation, recall defaults, select the PC type, keyboard country type and
intercharacter delay. For further information, refer to the ScanSelect Scanner
Programming Guide or ScanSet Scanner Configuration Guide.

9

Connection of a MS860i-17 Scanner to a PC

To maintain compliance with applicable standards, all circuits connected to the
scanner must meet the requirements for SELV (Safety Extra Low Voltage)
according to EN 60950.

1. Attach the adaptor to the communication cable if needed.

2. If the PC is on, exit your application and turn the PC off.

3. Disconnect the keyboard from the PC. Plug the communication cable to
the PC and the keyboard. Connect the 25-pin D-type connector on the
scanner’s head cable to the communication cable. (Refer to Figure 1)

4. Check the AC input requirements of
the transformer to make sure the
voltage matches the AC outlet. (A
socket outlet shall be installed near
the equipment and shall be easily
accessible.)

5. Plug the transformer into the side of
the female D-type connector located
on the communication cable. Plug the
transformer into the AC outlet to
supply power to the scanner. Turn the
PC on.

Figure 1

Note: Once the scanner is connected to the PC, the PC can be turned on and

will operate normally even if the scanner’s transformer is not plugged
in. However, bar codes will not be read until power is applied to the
scanner.

When the scanner first receives power, the LEDs will flash and the
scanner will beep once. After the scanner performs this start up
sequence, the green LED will remain on for a specified time
indicating the laser is on.

For information concerning keyboard wedge features, refer to the
section, Version 17 Keyboard Wedge Scanner.

10

Installing the Scanner into a Counter

Metrologic has designed three plates to accommodate in-counter installation of
the scanner. Included automatically with the purchase of the scanner is
Metrologic part #45471, Installation Plate. The universal and replacement plates
are available at an extra charge. Contact the distributor, dealer or Metrologic to
order one of these plates.

Metrologic Part Number 45471, Installation Plate:

This plate is designed for use in counters with no previous cut outs. No routing
is necessary for a flush fit as the stainless steel top is only .60mm (.024") thick.
The cut out measurements are 180.34mmL x 175.26mmW (7.1" x 6.9"). The
final cut out must not be greater than 1.5mm (1/16") or less than the exact
measurement. For easier installation, use the mounting template that accompanies
this guide.

Metrologic Part Number 45474, Universal Plate:

This plate is designed to fit into an existing cut out up to 292.1mmL x 508mmW
(11.5" x 20").

Metrologic Part Number 45470, Replacement Plate:

This plate is designed to fit into a cut out that previously contained an MS260 or
MS362 scanner. This plate fits into the existing 293.62mmL x 245.36mmW
(11.56" x 9.66") cut out.

11

Attaching the Vertical Stand to the Work Surface

With the Metrologic stand (Part #45472), there is a choice of four directions the
scanner can be positioned for the scanner for greater flexibility. Figure 2
illustrates one direction that can be chosen. The stand requires a mounting space
of 91.44mmL x 165.1mmW (3.6" x 6.5") to stabilize the stand. Since the arrow
of the scanner in Figure 3 is pointing to the right, items must be presented to the
scanner from left to right.

Figure 2

1. Drill four holes into the work
surface that correspond with
the holes in the 161.93mm x

85.73mm (6.38" x 3.38") base
of the stand.(See Figure 3)

2. Screw the stand to the work
surface with the four screws
that are provided.

3. Place the scanner into the
cradle of the stand.
(See Figure 4)

4. Align the two holes located on
the back of the scanner with
two holes on the stand.

5. Screw the scanner to the
stand.

12

Figure 3

Figure 4

MS860i Features

Becoming familiar with the features of the MS860i will help when operating the
scanner. The following illustration and list explain the pertinent parts.

Figure 5

1 Touch Plate When a specified time has elapsed without any

scanning, the unit will enter a “standby” mode.
Touching the touch plate arrow on the top cover
will reactivate the scanner.

2 Green and Red LEDs When the green LED is on, this indicates the

unit is receiving power and the laser is on.
When the red LED flashes on, the scanner has
read a bar code successfully. When the red light
turns off, communication to the host is
complete.

3 Scanner Window This aperture emits laser light.
4 Head Cable This cable can be connected directly to the host

device or to a communication cable.

13

Touch Plate

The scanner will enter “standby” when it remains dormant for a time. When the
scanner’s computer is on “standby," touching the touch plate will “wake up” the
scanner and activate the laser. When the green LED comes on, the scanner is
powering up for full operation. After approximately three seconds, the scanner
will be ready to operate.

The default touch plate timeout is ten minutes. However, this can be changed
through ScanSet or by scanning a bar code in Section C of the ScanSelect
Programming Guide. The available times are two minutes, thirty minutes or no
timeout.

Plaque de palpeur

Le scanner passe en mode 'Stand-by' quand il n'est pas utilisé pendant une certaine période.
Si le calculateur du scanner se trouve en mode 'Stand-by', le contacte de la plaque de
palpeur "réveille" le scanner et active le laser. L'allumage de la diode verte indique que le
scanner se met en service en attente d'utilisation. Au bout d'environ 3 secondes, le scanner
est prêt à servir.

La temporisation standard de plaque de palpeur est de 10 minutes. Ceci peut toutefois être
modifié avec ScanSet ou par lecture d'un code barres au chapitre C du manuel de
programmation ScanSelect. Les durées disponibles sont deux minutes, trente minutes ou
même aucune temporisation.

Sensorplatte

Der Scanner tritt in den 'Stand-by'-Modus ein, wenn er für einen bestimmten Zeitraum
untätig geblieben ist. Befindet sich der Rechner des Scanners im 'Stand-by'-Modus,
"weckt" die Berührung der Sensorplatte den Scanner und aktiviert den Laser. Das
Aufleuchten der grünen Leuchtdiode zeigt an, daß der Scanner sich für volle
Betriebsbereitschaft einschaltet. Nach etwa drei Sekunden ist der Scanner betriebsbereit.

Der Standard-Sensorfeld-Timeout liegt bei zehn Minuten. Dies kann jedoch geändert
werden durch ScanSet oder Einlesen eines Barcodes in Abschnitt C des ScanSelect
Programmierhandbuchs. Die verfügbaren Zeiträume sind zwei Minuten, dreißig Minuten
oder gar kein Timeout.

14

Piastra sensore

Se lo scanner è rimasto disattivato per un determinato periodo esso passa in modalità
'stand-by'. Quando il calcolatore dello scanner si trova in modalità 'stand-by', occorre
toccare la piastra sensore per "svegliare" lo scanner ed attivare il laser. L’accensione del
diodo luminoso verde indica che lo scanner si accende per diventare completamente
pronto. Dopo circa tre secondi lo scanner ha raggiunto la condizione "pronto".

Il timeout standard della zona sensore è regolato su dieci minuti. Questo valore può, però,
essere modificato con lo ScanSet oppure con la lettura di un codice a barre, come descritto
nella sezione C del Manuale di programmazione ScanSelect. Gli intervalli possibili sono
due minuti, trenta minuti oppure nessun timeout.

15

Visual Indicators

There is a red and green LED at the top of the scanner. When the scanner is on,
the flashing or stationary activity of the LEDs indicates the status of the scan and
scanner.

Steady Green

When the laser is on, the green LED is also on. This occurs when the touch plate
has been touched. The green LED will remain on until the touch plate timeout
elapses or until the scanner turns off.

Steady Green; Red Flash

When the scanner successfully reads a bar code, the red LED will flash then beep
once. If this does not happen, then the bar code has not been successfully read.

Steady Red and Green

After a successful scan, the scanner transmits the data to the host device. When
the host is not ready to accept the information, the scanner’s red LED will remain
on until the data can be transmitted.

Alternating Red and Green

This indicates the scanner is in program mode.

Steady Red

This indicates the scanner is in ScanSet mode.

No Red or Green LED

There are two reasons why the LEDs will not be illuminated. First, if the scanner
is receiving power and the LEDs are not on, then the scanner has remained
dormant for a specified time and the laser has turned off. To reactivate the unit,
touch the touch plate. Secondly, if the scanner is not receiving power from the
host or transformer, then the LEDs will not turn on.

Flashing Red

This indicates the scanner has experienced a laser subsystem failure. Return the
unit for repair at an authorized service center.

16

Signaux optiques

Sur la partie supérieure du scanner se trouvent une diode LED rouge et une diode LED
verte. Quand le scanner est sous tension, les diodes rouge et verte clignotantes ou allumées
vous informent sur l'état du scanner.

Ni la diode rouge, ni la diode verte n'est allumée

Il existe deux raisons possibles pour que les diodes ne s'allument pas. Premièrement: si le
scanner reçoit de l'énergie sans que les diodes ne s'allument, le scanner est resté sans servir
pendant une certaine période et le laser est désactivé. Pour le réactiver, touchez le palpeur
infrarouge. Deuxièmement: quand le scanner ne reçoit de l'énergie ni de l'ordinateur
central, ni du transformateur, les diodes restant éteintes.

Diode verte reste allumée

Quand le laser est en service, la diode verte s'allume également. C'est le cas quand vous
avez touché le palpeur. La diode verte reste allumée tant que la temporisation de
l'infrarouge dure ou jusqu'à ce que le scanner soit désactivé.

Diode verte reste allumée; diode rouge clignotante

Après lecture avec succès d'un code barres par le scanner, la diode rouge se met à clignoter,
suivie d'un bip sonore unique. Si la diode rouge ne clignote pas ou quand aucun bip sonore
n'est émis, cela signifie que le code barres n'a pas pu être lu avec succès.

Diode rouge et verte reste allumées

Une fois le palpage effectué avec succès, le scanner transmet les données à l'ordinateur
central. Si ce dernier n'est pas prêt à recevoir les données, la diode rouge du scanner
s'allume jusqu'à ce que les données puissent être transmises.

Diode rouge et verte en alternance

Indique que le scanner se trouve en mode de programmation.

Diode rouge reste allumée

Indique que le scanner se trouve en mode ScanSet.

Diode rouge clignotante

Indique une panne de laser pendant le palpage. Veuillez envoyer votre appareil chez un c­oncessionnaire pour réparation.

17

Optische Anzeigen

Auf dem Scanner befinden sich eine rote und eine grüne Leuchtdiodenanzeige. Bei
eingeschaltetem Scanner geben Ihnen die blinkenden oder feststehenden
Leuchtdiodenanzeigen Aufschluß über den Abtast- und Scannerstatus.

Weder rote noch grüne Leuchtdiodenanzeige

Es gibt zwei mögliche Gründe, weshalb die Leuchtdiodenanzeigen nicht aufleuchten.
Erstens: Wenn der Scanner mit Strom versorgt wird und die Leuchtdiodenanzeigen nicht
aufleuchten, so ist der Scanner für einen bestimmten Zeitraum untätig geblieben und der
Laser ist abgeschaltet. Berühren Sie das Sensorfeld zur Reaktivierung der Einheit.
Zweitens: Wenn der Scanner weder vom Hostrechner noch vom Transformator Energie
erhält, leuchten die Leuchtdiodenanzeigen ebenfalls nicht auf.

Feststehende grüne Anzeige

Wenn der Laser eingeschaltet ist, leuchtet die grüne Leuchtdiodenanzeige ebenfalls auf.
Dies ist der Fall, wenn das Sensorfeld berührt wurde. Die grüne Leuchtdiodenanzeige
leuchtet solange auf, bis das Sensorfeld-Timeout abgelaufen ist oder bis der Scanner
abgeschaltet wird.

Feststehende grüne Leuchtanzeige; rote Blinkanzeige

Nach erfolgreichem Lesen eines Barcodes durch den Scanner blinkt die rote Leuchtdiode
auf, gefolgt von einem einmaligen Piep-Signal. Blinkt die rote Leuchtdiodenanzeige nicht
auf oder sendet der Scanner kein einmaliges Piep-Signal aus, so konnte der Barcode nicht
erfolgreich gelesen werden.

Feststehende rote und grüne Leuchtanzeige

Nach erfolgreichem Abtasten überträgt der Scanner die Daten an das Hostgerät. Falls das
Hostgerät zur Datenannahme nicht bereit ist, leuchtet die rote Leuchtdiodenanzeige
solange auf, bis die Daten übertragen werden können.

Alternierende rote und grüne Leuchtanzeige

Zeigt an, daß sich der Scanner im Programmiermodus befindet.

Feststehende rote Leuchtanzeige

Zeigt an, daß sich der Scanner im ScanSet-Modus befindet.

Aufblinkende rote Leuchtanzeige

Zeigt an, daß beim Scanner ein Laserausfall vorliegt. Bringen Sie das Gerät zur Reparatur
in ein Vertragsservicecenter.

18

Segnali ottici

Sullo scanner si trovano due diodi luminosi: uno rosso e uno verde. Quando lo scanner è
inserito, i diodi luminosi, che possono o essere accesi in continuazione o lampeggiare, Vi
informano sullo stato della scansione e dell’apparecchio.

Né il diodo luminoso rosso né quello verde sono accesi

Vi sono due possibili cause se i diodi luminosi non sono accesi. Prima causa: se lo scanner
viene alimentato e i diodi luminosi non sono accesi, lo scanner è rimasto disattivato per un
determinato periodo e il laser è spento. Per riattivare l’unità dovreste toccare la zona
sensore. Seconda causa: se lo scanner non viene alimentato né dal calcolatore host né dal
trasformatore, i due diodi luminosi non sono accesi.

Il diodo luminoso verde è acceso

Quando il laser è inserito, è acceso anche il diodo luminoso verde. Questo si ha quando la
zona sensore è stata toccata. Il diodo luminoso verde è acceso fino al raggiungimento del
timeout della zona sensore oppure fino allo spegnimento dello scanner.

Il diodo luminoso verde è acceso; quello rosso lampeggia

Dopo la lettura riuscita di un codice a barre da parte dello scanner il diodo luminoso rosso
lampeggia e quindi viene emesso un unico segnale beep. Se il diodo luminoso rosso non
lampeggia oppure lo scanner non emette un segnale beep unico, ciò significa che la lettura
del codice a barre non è riuscita.

Sono accesi sia il diodo luminoso rosso che quello verde

Dopo la scansione riuscita lo scanner trasmette i dati all’host. Se l’host non è pronto per
accettare i dati, il diodo luminoso rosso dello scanner è acceso fino a che i dati possono
essere trasmessi.

Il diodo luminoso rosso e quello verde sono accesi in alternanza

Ciò indica che lo scanner si trova nella modalità di programmazione.

Il diodo luminoso rosso è acceso

Ciò indica che lo scanner si trova nella modalità ScanSet.

Il diodo luminoso rosso lampeggia

Ciò indica che lo scanner ha un guasto a livello del laser. Fate riparare l’apparecchio da un
centro di assistenza autorizzato.

19

Volume Settings

There are four volume settings available: low, medium, high and no volume. The
operator can temporarily change the volume of the scanner by scanning the bar
codes on the volume control card. To change the volume of the scanner
permanently, enter program mode and scan the appropriate volume setting bar
code in Section C of the ScanSelect Programming Guide or use ScanSet.

Note: A copy of the volume control card is at the end of this guide.

20

Labels

There is one label located inside the window of the scanner noting that the device
is a CDRH Class IIa laser product and IEC 825 LASERKLASSE 1. Also, on
each scanner is a label located on the back of the unit. This label contains
information such as the model number, date of manufacture, and serial number.
The following are samples of these labels:

21

Depth of Field

Through the glass at the front of the scanner, safe, low powered laser beams are
projected in a complex pattern that resembles a spider web. Each of the five scan
fields that generate the scan pattern extends to a range of 127mm (5.0"). This
range begins from the face of the scanner window and extends from the unit for
a distance of 127mm (5.0") measured along the scanning beam at the center of
each scan segment. This 0.0mm - 127mm (0" - 5") range is the depth of field for
the MS860i scanner (see figure 6).

The scan pattern is projected at an angle away from the touch plate (approx­imately 20 degrees, overall). As the scan fields move outward, they expand. Like
an image expands from a film projector as it moves toward the screen at a movie
theater, the scan pattern projects out to a well-defined region. Any label that is
facing toward the scanner can be read at any point within the scanning field.

22

Figure 6

Depth of Field and Symbol Specification (See Figure 7)

Code Type Minimum Small Code Density Depth of Field

Element

Mil. (1/1000")

UPC/EAN 10.4 80% 0" - 5"
UPC/EAN 13.0 100% 0" - 6.5"
Code 39 7.5 High 0" - 3"
Code 39 12.0 Medium 0" - 6"
Code 39 21.0 Low 0" - 8"
I 2 of 5 7.5 High 0" - 3"
I 2 of 5 12.0 Medium 0" - 6"
I 2 of 5 21.0 Low 0" - 8"
Codabar 6.5 High 0" - 3"
Codabar 9.8 Medium 0" - 5"
Codabar 13.0 Low 0" - 6.5"
Code 93 10.4 80% 0" - 5"
Code 93 13.0 100% 0" - 6.5"
Code 128 10.4 80% 0" - 5"
Code 128 13.0 100% 0" - 6.5"

23

24

Figure 7

Maintenance

Smudges and dirt can interfere with the proper scanning of a bar code. Therefore,
the output window will need occasional cleaning.

1. Spray glass cleaner onto lint free, non-abrasive cleaning cloth.

2. Gently wipe the scanner window.

Applications and Protocols

The model number on each scanner includes the scanner number and
communications protocol.

Version Identifier Communication Protocol(s)

1 RS-232, OCIA, Light Pen Emulation

2 Parallel Output (OCR A/B)
26 RS-232, OCIA, Light Pen Emulation, Multi-drop RS-422
11 IBM 46XX - RS-485, RS-232, OCIA
17 Keyboard Wedge, RS-232, Light Pen

25

Appendix A

Specifications

Application: In-Counter Laser Bar Code Scanner
Light Source: VLD 675 ± 5 nm, Maximum output 1mW
CDRH: CLASS IIa laser product
IEC: Class 1 laser product, EN 60825/09.91
UL/CSA/TUV: UL Listed, UL 114; CSA certified, C22.2 No. 950;

TUV certified, GS Mark, EN 60825 and EN 60950

EMI: Complies with FCC & VDE Class A

Mechanical

Dimensions: 175mm x 173mm x 97mm

(6.9"L x 6.8"W x 3.8"D)
Weight (w/o cable): 2.45kg (5.4 lbs.)
Orientation: May be used in any orientation
Top Cover: Brushed stainless steel, with auto-off/touch-on plate;

Easily replaced window
Cable Length: 1.8m (6') terminated with 25-pin connector

Electrical

Power Consumption: 8 watts, host system or tabletop power supply
Voltage: Input: 11-30 VDC
Operating Current: 350mA @ 24 VDC
Standby Current: 175mA @ 24 VDC
DC Transformers: 6061 (220V AC in) and 6062 (120V AC in) output

24 VDC @ 750mA

Specifications subject to change without notice.

Patent Numbers: 5,216,232; 5,081,342; 1,268,257; Other Patents Pending

26

Operational

Depth of Field: 0.0mm - 127mm (0" - 5")
Minimum Bar Width: 0.075 inches
Scan Speed: 2000 scan lines per second
Scan Pattern: 5 scan fields: 1 horizontal, 4 at angles
Exit Angle: 70E
Indicators: LED: green=laser on; red=good read
Beeper Operation: 3 tones for “Good Read”
Maintenance Required: Clean window periodically
Decode Capability: Standard programming automatically

discriminates:
UPC - A & E; EAN - 8 & 13; JAN - 8 & 13;
Codabar; Code 128; Code 39; Code 93; I 2 of 5,
Code 11; MSI Plessey. Other symbologies are
supported as well as supplemental codes. For
further information, contact Metrologic.

System Interfaces: RS-232C/OCIA, Parallel, IBM 468X/469X,

®

Light Pen Emulation, Multi-drop RS-422,
Keyboard Wedge

Print Contrast: 35% minimum reflectance difference
Roll, Pitch, Yaw: 360E, 60E, 60E

Environmental

Storage Temperature: -40EC - 60EC (-40EF - 140EF)
Operating Temperature: 0EC - 35EC (32EF - 95EF)
Humidity: 5% - 95% relative humidity, non-condensing
Light Levels: Up to 3200 foot candles
Ventilation: None required
Shock: 100g for 1ms
ESD: 8 kV IEC 801-2
Contaminants: Sealed to resist airborne particulate

Specifications subject to change without notice.

27

Appendix B

Default Settings

The scanner is shipped from the factory programmed to a set of default
conditions. The default parameter of the scanner has an asterisk ( * ) in the
charts on the following pages. If an asterisk is not in the default column then
the default setting is Off or Disabled.

Every communication does not support every parameter. If the communica­tion supports a parameter listed in the charts on the following pages, a check
mark will appear.

For the scanner to communicate with your host system properly, program it to
meet the specific scanning needs. Since each host system is unique, change the
default settings to match the host system requirements. For information on how
to change the default settings, refer to the Configuration of the Scanner to the
Host System section or the ScanSelect™ Scanner Programming Guide.

Parameter Default OCIA IBM Key RS- Parallel Light

UPC/EAN * T T T T T T

Code 128 * T T T T T

Code 93 * T T T T T

Codabar * T T T T T

Interleaved 2 of 5 * T T T T T
(ITF)

MOD 10 Check T T T T T
on ITF

Code 11 T T T T T

Code 39 * T T T T T

Full ASCII T T T T T
Code 39

MOD 43 Check T T T T T
on Code 39

MSI Plessey T T T T T

46XX Wedge 232* Pen

28

Parameter Default OCIA IBM Key RS- Parallel Light

MSI Plessey 10/10 T T T T T
Check Digit

MSI Plessey * T T T T T
MOD 10 Check
Digit

UK Plessey T T T T

Airline 2 of 5 T T T T

Telepen T T T T

MECCA T T T T T T

Paraf Support T T T T T

Matrix 2 of 5 T T T T

EAN-8 * T T T T T T

EAN-13 * T T T T T T

UPC-E * T T T T T T

UPC-A * T T T T T T

ITF Symbol Var. T T T T T T
Lengths

Minimum Symbol 04 T T T T T T
Length

Symbol Length None T T T T T T
Lock

SWEDA * T

Fujitsu T

OMRON T

IBM Parallel T

46XX Wedge 232* Pen

29

Parameter Default OCIA IBM Key RS- Parallel Light

Bars High as * T
Code 39

Spaces High as T
Code 39

Bars High as T
Scanned

Spaces High as T
Scanned

DTS/SIEMENS T

DTS/NIXDORF * T

NCR F T

NCR S T

Poll Light Pen T
Source

Light Pen Extra T
Transition Before
Bar Code

Multi-drop
Address

Beeper Tone Normal T T T T T T

Fast Beep T T T T T T

Volume Setting Loudest T T T T T T

46XX Wedge 232* Pen

30

Parameter Default OCIA IBM Key RS- Parallel Light

Beep/Transmit Before T T T T T T
Sequence

Communication None T T T T T T
Timeout

Razzberry Tone T T T T T T
on Timeout

Three Beeps on T T T T T T
Timeout

No Beeps on T T T T T T
Timeout

Touch Plate 10 Min. T T T T T T
Timeout

No Same Symbol T T T T T T
Timeout

Infinite Same T T T T T T
Symbol Timeout

Same Symbol T T T T T T
Rescan Timeout:
100 msec

Same Symbol T T T T T T
Rescan Timeout:
200 msecs

Same Symbol * T T T T T T
Rescan Timeout:
500 msecs

Same Symbol T T T T T T
Rescan Timeout:
1250 msecs

Same Symbol T T T T T T
Rescan Timeout:
2000 msecs

46XX Wedge 232* Pen

31

Parameter Default OCIA IBM Key RS- Parallel Light

Scanability Off T

Scan Count Mode Off T

Normal Depth of * T T T T T T
Field

Intercharacter 1 msec T T T T
Delay

Scan Buffer 1 T T T T T T

Transmit UPC-A * T T T T T
Check Digit

Transmit UPC-E T T T T T
Check Digit

Expand UPC-E T T T T T

Convert UPC-A to T T T T T
EAN-13

Transmit Lead T T T T T
Zero on UPC-E

Convert EAN-8 to T T T T T
EAN-13

Transmit EAN-13 * T T T T T
Check Digit

Transmit EAN-8 * T T T T T
Check Digit

Transmit UPC-A * T T T T T
Number System

Transmit Codabar T T T T T
Start/Stop
Characters

CLSI Editing T T T T

46XX Wedge 232* Pen

32

Parameter Default OCIA IBM Key RS- Parallel Light

Transmit Mod 43 T T T T
Check Digit on
Code 39

Transmit Code 39 T T T T
Stop/Start
Characters

Transmit Mod T T T T
10/ITF

Transmit Code 11 T T T T T
Check Digit

Transmit MSI T T T T
Plessey Check
Digits

Transmit UK T T T T
Plessey Check
Digits

Parity Space T

Baud Rate 9600 T

8 Data Bits T

7 Data Bits * T

Transmit Sanyo T T
ID Characters

Shell T T
Schulmberger
Formatting

SNI Beetle Mode T T

French PC Term T

Transmit AIM ID T T
Characters

Nixdorf ID T T

46XX Wedge 232* Pen

33

Parameter Default OCIA IBM Key RS- Parallel Light

UPC Prefix T T

UPC Suffix T T

STX Prefix T T

ETX Suffix T T

Carriage Return * T T

Line Feed * T T

Tab Prefix T T

Tab Suffix T T

"DE" Disable T
Command

"FL" Laser Enable T
Command

DTR Handshaking T
Support

RTS/CTS T
Handshaking

Character * T
RTS/CTS

Message T
RTS/CTS

XON/XOFF T
Handshaking

ACK/NAK T

5 Retries on T
ACK/NAK
Time-out

Keyboard USA T
Country Type

46XX Wedge 232* Pen

34

Parameter Default OCIA IBM Key RS- Parallel Light

Keyboard Type AT T

Caps Lock T

Alt Mode T

Inter Scan Code 800 T
Delay Fsec

Transmit F0H * T
Break Code (AT
and PS/2
keyboards)

Special Software is required for the following:

Two Digit T T T T T
Supplements

Five Digit T T T T T
Supplements

Bookland T T T T T

977 (2 digit) T T T T T
Supplemental
Requirement

Supplements are * T T T T T
not Required

Two Digit * T T T T T
Redundancy

Five Digit T T T T T
Redundancy

200 msec to Find T T T T T
Supplement

100 msec to Find * T T T T T
Supplement

Code 128 Coupon T T T T
Extended Code

Code 128 ]C1 T T T T
Extended Code
Format

46XX Wedge 232* Pen

35

Appendix C

Pin Assignments

Version “1” Pin Assignments for RS-232, OCIA and
Light Pen Emulation

The version “1” scanner head cable is terminated with a male 25-pin D-type
connector. Connecting the scanner to the host device, may require a commu­nication cable. The communication cable may include a connection for a
transformer or it may be designed to draw power directly from the host device.
This can be ordered when the scanner is purchased.

The version “1” scanner is designed to be used for RS-232, OCIA or Light
Pen Emulation communication.

The following is a list of the pin assignments. The pin numbers are impressed
on the head cable’s connector.

Pin Function

1 AC Shield Ground
2 RS-232 Receive Input
3 RS-232 Transmit Output
4 CTS Input
5 RTS Output
6 Reserved
7 Signal Ground

8 - 12 Reserved

13 Earth Ground
14 Power Ground 1
15 Light Pen Source
16 Light Pen Data
17 OCIA Clock In Return
18 OCIA Clock In
19 Power (11 - 30 volts) DC
20 DTR Input
21 OCIA Clock Out
22 OCIA Clock Out Return
23 OCIA RDATA
24 OCIA RDATA Return
25 Power Ground 2

36

Version “2” Pin Assignments for Parallel Communication

The version “2” scanner head cable is terminated with a male 25-pin D-type
connector. Connecting the scanner to the host device, may require a
communication cable. The communication cable may include a connection for a
transformer or it may be designed to draw power directly from the host device.
This can be ordered when the scanner is purchased.

The version “2” scanner is designed to be used for Parallel communication.

The following is a list of the pin assignments. The pin numbers are impressed on
the head cable’s connector.

Pin Function

1 AC Shield Ground
2 RS-232 Receive Input
3 RS-232 Transmit Output
4 CTS Input
5 RTS Output
6 Reserved
7 Signal Ground
8 Reserved

9 Edit Check
10 EOT
11 Data Ready
12 Adaptor Ready
13 Earth Ground
14 Power Ground 1
15 Light Pen Source
16 Light Pen Data
17 Data 1
18 Data 2
19 Power (11 - 30 volts) DC
20 DTR Input
21 Data 3
22 Data 4
23 Data 5
24 Data 6
25 Power Ground 2

37

Version “11” Pin Assignments for RS-485

The version “11” scanner head cable is terminated with a male 25-pin D-type
connector. Connecting the scanner to the host device, may require a
communication cable. The communication cable may include a connection for a
transformer or it may be designed to draw power directly from the host device.
This can be ordered when the scanner is purchased.

The version “11” scanner is designed to be used primarily with IBM 46XX

®

series of electronic cash registers. It can also be configured to communicate using
the full RS-232 and OCIA protocol.

The following is a list of the pin assignments. The pin numbers are impressed on
the head cable’s connector.

Pin Function

1 AC Shield Ground

2 RS-232 Receive Input

3 RS-232 Transmit Output

4 CTS Input

5 RTS Output

6 Reserved

7 Signal Ground

8 - 12 Reserved

13 Earth Ground
14 Power Ground 1
15 468X -B
16 468X +A
17 OCIA Clock In Return
18 OCIA Clock In
19 Power (11 - 30 volts) DC
20 DTR Input
21 OCIA Clock Out
22 OCIA Clock Out Return
23 OCIA RDATA
24 OCIA RDATA Return
25 Power Ground 2

38

Version “17” Pin Assignments for Keyboard Wedge, RS-232 and
Light Pen Emulation

The version “17” scanner head cable is terminated with a male 25-pin D-type
connector. Connecting the scanner to a PC, requires a communication cable and
a transformer. Connecting the communication cable to a PC, may require an
adaptor cable. This can be ordered when the scanner is purchased.

The version “17” scanner is designed to be used as a keyboard wedge. However,
with the appropriate communication cable, the scanner will also provide an RS­232 or light pen emulation interface. When configuring the scanner for one
interface versus another, change all necessary parameters for that particular
interface. For instance, when configuring the scanner for keyboard wedge
emulation, recall defaults, select the PC type, keyboard country type and
intercharacter delay. For further information, refer to the ScanSelect Scanner
Programming Guide or ScanSet Scanner Configuration Guide.

The following is a list of the pin assignments. The pin numbers are impressed on
the head cable’s connector.

Pin Function Pin Function

1 AC Shield Ground 14 Power Ground 1
2 RS-232 Receive Input 15 Light Pen Source
3 RS-232 Transmit Output 16 Light Pen Data
4 CTS Input 17 PC Data
5 RTS Output 18 PC Clock
6 Reserved 19 Power (11 - 30 volts) DC
7 Signal Ground 20 DTR Input

8 - 10 Reserved 21 Keyboard Clock

11 PC +5 Volts DC 22 Keyboard Data
12 Ground 23 - 24 Reserved
13 Earth Ground 25 Power Ground 2

39

Version “3” Pin Assignments for Multi-drop RS-422

The version “3” scanner head cable is terminated with a male 25-pin D-type
connector. Connecting the scanner to the host device, may require a
communication cable. The communication cable may include a connection for a
transformer or it may be designed to draw power directly from the host device.
This can be ordered when the scanner is purchased.

The version “3” scanner is designed to be used for Multi-drop RS-422
communication.

The following is a list of the pin assignments. The pin numbers are impressed on
the head cable’s connector.

Pin Function

1 AC Shield Ground

2 RS-232 Receive Input

3 RS-232 Transmit Output

4 CTS Input

5 RTS Output

6 Reserved

7 Signal Ground

8 Reserved

9 Master Data +
10 Master Data ­11 Slave Data +
12 Slave Data ­13 Earth Ground
14 Power Ground 1
15 Light Pen Source
16 Light Pen Data
17 OCIA Clock In Return
18 OCIA Clock In
19 Power (11 - 30 volts) DC
20 DTR Input
21 OCIA Clock Out
22 OCIA Clock Out Return
23 OCIA RDATA
24 OCIA RDATA Return
25 Power Ground 2

40

Version “26" Pin Assignments for RS-422

The version “26" scanner head cable is terminated with a male 25-pin D-type
connector. Connecting the scanner to the host device, may require a
communication cable. The communication cable may include a connection for a
transformer or it may be designed to draw power directly from the host device.
This can be ordered when the scanner is purchased.

The version “26" scanner is designed to be used for RS-422 communication.

The following is a list of the pin assignments. The pin numbers are impressed on
the head cable’s connector.

Pin Function

1 AC Shield Ground

2 RS-232 Receive Input

3 RS-232 Transmit Output

4 CTS Input

5 RTS Output

6 Reserved

7 Signal Ground

8 Reserved

9 Reserved
10 Reserved
11 Reserved
12 Reserved
13 Earth Ground
14 Power Ground 1
15 Light Pen Source
16 Light Pen Data
17 OCIA Clock In Return
18 OCIA Clock In
19 Power (11 - 30 volts) DC
20 DTR Input
21 OCIA Clock Out
22 OCIA Clock Out Return
23 OCIA RDATA
24 OCIA RDATA Return
25 Power Ground 2

41

Appendix D

Warranty and Disclaimer

Limited Warranty

Products manufactured by Metrologic have a 2-year limited warranty from date of
manufacture.

This warranty is limited to repair, replacement or refund at Metrologic’s discretion. Faulty
equipment must be returned to the Metrologic facility in Blackwood, New Jersey or
Puchheim, Germany. To do this, contact Metrologic Customer Service/Repair for a
Returned Material Authorization (RMA) number.

In the event that it is determined that the equipment failure is covered under the
warranty, Metrologic shall, as its sole option, repair, replace with a functionally
equivalent unit, or refund an amount equal to the purchase price to the original
purchaser, whether distributor, dealer/reseller, or retail consumer, and return the
equipment to the customer without charge for service or return freight.

This limited warranty does not extend to any Product which, in the sole judge-ment
of Metrologic, has been subjected to misuse, neglect, improper installation or
accident, nor does it extend to any Product which has been repaired or altered by
anyone who is not a Metrologic authorized representative.

THIS LIMITED WARRANTY, EXCEPT AS TO TITLE, IS IN LIEU OF ALL
OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING
MERCHANTABILITY OR FITNESS FOR ANY PARTICULAR PURPOSE,
ARISING BY LAW, CUSTOM OR CONDUCT. THE RIGHTS AND
REMEDIES PROVIDED HEREIN ARE EXCLUSIVE AND IN LIEU OF ANY
OTHER RIGHTS OR REMEDIES. IN NO EVENT SHALL METROLOGIC BE
LIABLE FOR INDIRECT, INCIDENTAL, OR CONSEQUENTIAL DAMAGES,
INCLUDING, WITHOUT LIMITATION, ANY INJURY TO PROPERTY OR
PERSON OR EFFECT ON BUSINESS OR PROFIT, AND IN NO EVENT
SHALL ANY LIABILITY OF METROLOGIC EXCEED THE ACTUAL
AMOUNT PAID TO METROLOGIC FOR THE PRODUCT.

Metrologic Instruments, Inc. Customer Service Department
90 Coles Road 1-800-ID-METRO (1-800-436-3876)
Blackwood, NJ 08012 TEL: [phone]

FAX: [phone]
Metrologic Instruments GmbH
Dornierstrasse 2
82178 Puchheim b.
Munich, Germany
TEL: [phone]
FAX: [phone]

42

Disclaimer

Metrologic Instruments, Inc. and the author or authors make no claims or warranties with respect to
the contents or accuracy of this publication, or the product it describes, including any warranties of
fitness or merchantability for a particular purpose. Any stated or expressed warranties are in lieu of
all obligations or liability for any damages, whether special, indirect, or consequential, arising out of
or in connection with the use of this publication or the product it describes. Furthermore, the right is
reserved to make any changes to this publication without obligation to notify any person of such
changes. Metrologic also reserves the right to make any changes to the product described herein.

Exclusion des responsabilités

Metrologic Instruments, Inc. et le/les auteur(s) ne sont ni garants, ni responsables pour l'exhaustivité
et la correction des informations contenues dans cette brochure - que ce soit relativement à leur teneur
et à l' exactitude - ou pour le produit qui y est décrit. Ils ne sont en outre responsables d'aucune
garantie de propriété ou de qualité pour un usage particulier. Toutes les assurances nommées ou
exprimées excluent toute garantie ou responsabilité pour les dommages spéciaux, indirects ou des
suites de l'utilisation de cette brochure ou du produit qui y est décrit respectivement. en rapport avec
l'emploi de cette brochure et du produit qui y est décrit. Il leur est également réservé le droit de
procéder à des modifications de cette brochure sans avoir à en avertir qui que ce soit. Metrologic se
réserve en outre le droit de procéder à des modifications du produit qui y est décrit.

Haftungsausschluß

Metrologic Instruments, Inc. und der/die Autor(en) übernehmen keinerlei Gewähr und haften nicht
für die Richtigkeit im Hinblick auf Inhalt oder Genauigkeit der Angaben dieser Veröffentlichung oder
des hierin beschriebenen Produkts. Sie übernehmen ebenso keinerlei Eignungsgarantie oder
Gewährleistung durchschnittlicher Qualität für einen bestimmten Zweck. Alle benannten oder
ausdrücklichen Zusicherungen schließen sämtliche Verpflichtungen oder Haftungen aus jeglichem
Schaden aus, ganz gleich ob speziell, indirekt oder als Folge der Verwendung dieser Veröffentlichung
oder des hierin beschriebenen Produkts bzw. in Zusammenhang mit der Verwendung dieser
Veröffentlichung oder des hierin beschriebenen Produkts. Darüber hinaus wird das Recht vorbehalten,
Änderungen an dieser Veröffentlichung vorzunehmen ohne die Verpflichtung, irgend jemanden über
solche Änderungen zu unterrichten. Metrologic behält sich ferner das Recht vor, Änderungen an dem
hierin beschriebenen Produkt vorzunehmen.

Esclusione della responsabilità

La Metrologic Instruments, Inc. e l’autore/gli autori non assumono nessuna garanzia e non rispondono
della correttezza per quanto riguarda il contenuto o la precisione di quanto indicato nel presente
Manuale o del prodotto in esso descritto. Neppure essi assumono una garanzia per l’idoneità o una
garanzia della qualità media per un determinato scopo. Tutte le garanzie citate o fatte espressamente
escludono qualsiasi obbligo o responsabilità derivanti da qualsiasi danno, indipendentemente dal fatto
che questo obbligo/questa responsabilità risulti in particolare, indirettamente o come conseguenza
dall’uso del presente Manuale o del prodotto in esso descritto oppure se è legato/a all’uso del presente
Manuale o del prodotto in esso descritto. Inoltre ci si riserva il diritto di modificare il presente
Manuale senza essere obbligati ad informare persona alcuna circa dette modifiche. Metrologic si
riserva il diritto di apportare modifiche al prodotto descritto nel presente Manuale.

43

Appendix E

Notices

Notice

This equipment has been tested and found to comply with limits for a Class A digital device, pursuant
to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference when the equipment is operated in a commercial environment. This equipment
generates, uses and can radiate radio frequency energy and, if not installed and used in accordance
with the instruction manual, may cause harmful interference to radio communications. Operation of
this equipment in a residential area is likely to cause harmful interference, in which case the user will
be required to correct the interference at his own expense. Any unauthorized changes or modifications
to this equipment could void the users authority to operate this device.

Notice

This digital apparatus does not exceed the Class A limits for radio noise emissions from digital
apparatus set out in the Radio Interference Regulations of the Industry and Canada.

Caution

Use of controls or adjustments or performance of procedures other than those specified herein may
result in hazardous laser light. Under no circumstances should the customer attempt to service the
laser scanner. Never attempt to look at the laser beam, even if the scanner appears to be nonfunctional.
Never open the scanner in an attempt to look into the device. Doing so could result in hazardous laser
light exposure. The use of optical instruments with the laser equipment will increase eye hazard.

Remarque

Après contrôle de cet appareil, on a noté qu'il répondait aux valeurs limites de la classe A, c­onformément à la partie 15 des directives de l'administration fédérale américaine pour les t­élécommunications. Ces valeurs limites ont été prévues pour garantir une protection suffisante contre
les effets nocifs dus à l'emploi de l'appareil dans un magasin. L'appareil génère et utilise une énergie
haute fréquence et peut, s'il n'est pas installé et utilisé conformément aux instructions mentionnées
dans le guide d'utilisation, entraîner des perturbations dans la radiocommunications. L'utilisation de
cet appareil dans une zone d'habitation entraînera très vraisemblablement des perturbations. Dans ce
cas, l'utilisateur est tenu de remédier à ces perturbations à ses propres frais. Toute modification ou
remplacement non autorisé sur cet appareil peut entraîner l'invalidité de l'autorisation d'utilisation de
l'appareil.

Remarque

Cet appareil numérique ne va pas contre les valeurs limites pour émissions de bruits radios des
appareils numérique de la classe A, conformément aux directives relatives aux perturbations des
radiocommunications du ministère canadien pour l'industrie.

Attention

L'emploi de commandes, réglages ou procédés autres que ceux décrits ici peut entraîner de graves
irradiations. Le client ne doit en aucun cas essayer d'entretenir lui-même le scanner ou le laser. Ne
regardez jamais directement le rayon laser, même si vous croyez que le scanner est inactif. N'ouvrez
jamais le scanner pour regarder dans l'appareil. Ce faisant, vous vous exposez à une rayonnement
laser mortel. L'emploi d'appareils optiques avec cet équipement laser augmente le risque
d'endommagement de la vision.

44

Anmerkung

Nach Überprüfung dieses Geräts wurde festgestellt, daß es den Grenzwerten für Digitalgeräte der
Klasse A gemäß Teil 15 der Richtlinien der US-amerikanischen Bundesbehörde für das
Fernmeldewesen entspricht. Diese Grenzwerte wurden festgelegt, um einen angemessenen Schutz
gegen schädliche Auswirkungen bei Einsatz des Geräts in einer Ladenumgebung zu gewähren. Das
Gerät erzeugt und verwendet Hochfrequenzenergie und kann diese ausstrahlen, und kann, falls es
nicht gemäß den im Bedienerhandbuch enthaltenen Anweisungen installiert und verwendet wird, zu
einer Störung des Funkverkehrs führen. Der Betrieb dieses Geräts in einem Wohngebiet führt
höchstwahrscheinlich zu Störungen. In diesem Fall ist der Bediener verpflichtet, die Störung auf
eigene Kosten zu beseitigen. Durch jegliche unerlaubte Auswechselung oder Änderung an diesem
Gerät könnte die Genehmigung des Bedieners zur Verwendung dieses Geräts ungültig werden.

Anmerkung

Dieses Digitalgerät verstößt nicht gegen die Grenzwerte für Funkrauschemissionen von Digitalgeräten
der Klasse A gemäß den Richtlinien für Funkstörungen des kanadischen Ministeriums für Industrie.

Achtung

Die Verwendung anderer als der hierin beschriebenen Steuerungen, Einstellungen oder Verfahren
kann eine lebensgefährliche Laserstrahlung hervorrufen. Der Kunde sollte unter keinen Umständen
versuchen, den Laser-Scanner selbst zu warten. Sehen Sie niemals in den Laserstrahl, selbst wenn Sie
glauben, daß der Scanner nicht aktiv ist. Öffnen Sie niemals den Scanner, um in das Gerät
hineinzusehen. Wenn Sie dies tun, können Sie sich einer lebensgefährlichen Laserstrahlung aussetzen.
Der Einsatz optischer Geräte mit dieser Laserausrüstung erhöht das Risiko einer Sehschädigung.

N.B.

Dal controllo di questo apparecchio risulta che esso risponde ai valori limite per apparecchi digitali
della classe A conf. parte 15 delle direttive sulle telecomunicazioni dell’Autorità federale statunitense.
Questi valori limite sono stati fissati per garantire una protezione adeguata contro gli effetti nocivi se
questo apparecchio viene usato all’intero di un negozio. L’apparecchio genera, utilizza e può emettere
energia ad alta frequenza e, se non viene installato ed utilizzato conformemente alle indicazioni fornite
nel Manuale utente, può provocare disturbi al servizio radiofonico. L’uso di questo apparecchio in
zone residenziali causa molto probabilmente dei disturbi. In questo caso l’utente è obbligato ad
eliminare questi disturbi a sue spese. Qualsiasi sostituzione o modifica non autorizzata
all’apparecchio potrebbe rendere invalida l’autorizzazione dell’utente all’uso dell’apparecchio.

N.B.

Questo apparecchio digitale non supera I valori limite per l’emissione di radiorumori da parte di
apparecchi digitali della classe A conformemente alle direttive per radiodisturbi del Ministero
canadese per l’Industria.

Attenzione

L’utilizzo di sistemi di controllo, di regolazioni o di procedimenti diversi da quelli decritti nel presente
Manuale può provocare dei raggi laser pericolosi per la vita. Il cliente non deve assolutamente tentare
di riparare egli stesso lo scanner laser. Non guardate mai nel raggio laser, anche se credete che lo
scanner non sia attivo. Non aprite mai lo scanner per guardare dentro l’apparecchio. Se tuttavia lo
fate, potete esporVi a dei raggi laser pericolosi per la vita. L’uso di apparecchi ottici con questo
equipaggiamento laser aumenta il rischio di danni alla vista.

45

Appendix F

Patents

“Patent Information

This METROLOGIC product may be covered by one or more of the following
U.S. Patents:

U.S. Patent No. 4,360,798; 4,369,361; 4,387,297; 4,460,120; 4,496,831;
4,593,186; 4,607,156; 4,673,805; 4,736,095; 4,758,717; 4,816,660;
4,845,350; 4,896,026; 4,923,281; 4,933,538; 4,992,717; 5,015,833;
5,017,765; 5,059,779; 5,117,098; 5,124,539; 5,130,520; 5,132,525;
5,140,144; 5,149,950; 5,180,904; 5,200,599; 5,229,591; 5,247,162;
5,250,790; 5,250,791; 5,250,792; 5,262,628; 5,280,162; 5,280,164;
5,304,788; 5,321,246; 5,324,924; 5,396,053; 5,396,055; 5,408,081;
5,410,139; 5,436,440; 5,449,891; 5,468,949; 5,479,000; 5,532,469;
5,545,889

No license right or sublicense is granted, either expressly or by implication,
estoppel, or otherwise, under any METROLOGIC or third party intellectual
property rights (whether or not such third party rights are licensed to
METROLOGIC), including any third party patent listed above, except for an
implied license only for the normal intended use of the specific equipment,
circuits, and devices represented by or contained in the METROLOGIC products
that are physically transferred to the user, and only to the extent of
METROLOGIC’s license rights and subject to any conditions, covenants and
restrictions therein.”

46

Volume Control Card

47

48

Index

A

AC input/outlet 3, 10
Adaptor 7, 10

cable 6, 39
Application 26
Application and protocols 25
Asia ii Electrical 26
Assignments Email ii

pin 36-41 Environmental 27
Attaching stand 12 ESD 27

B External Power supply 6
Bar codes 1, 4, 5, 9, 13, 14,
16, 20
Beep 3, 4, 10, 16, 19 Failure indicator 16
Beeper operation 27 Faulty equipment 42
Base 12 Fax ii

C

Cable

adaptor 6, 39 Germany (GmbH) ii, 42

cloning 5 Good read 27

communication 2, 3, 9, Green LED 3, 10, 13, 14, 16
10, 13, 36-41
CDRH class IIa 21, 26 H
Class 1 26
Clean 25, 27
Communication protocol 25
Communications buffer 6
Communications bus 6 I
Compliance 3, 10
Configuration 4, 6-8, 28, 39
Contrast 27
Copyright ii
Current 26
Customer Service ii, 42

D

DC transformer 26
Decode capability 27
Default settings 28-35

Depth of field 22-24, 27
Dimensions 26
Disclaimer 43

E

Europe ii

F

Functions 28-41

G

Headquarters ii
Host 3, 4, 28, 36-38, 40, 41
Humidity 27

Indicators

LED 3, 10, 13, 14, 16-19, 27

Visual 16-19
Interfaces 25, 27
Installation 11
Internet ii
Introduction 1

K

Keyboard Wedge 9, 10, 25, 27, 39

49

L R

Labels 21 Red LED 13, 16, 27
LASERKLASSE 1 21 Repair 42
LEDs 3, 10, 13, 14, 16-19, 27 Rights
Light levels 27 property 46
Light pen emulation 1, 9, 25, warranty 42
27, 36, 39 RMA 42
Light source 26 Roll, pitch, yaw 27
Limited warranty 42 RS-232 1, 4, 9, 25, 27, 36, 38, 39
List 2 RS-422 25, 27, 40, 41
Locations ii RS-485 25, 38

M

Maintenance 25, 27
MECCA 1
Mechanical 26
Model number 21, 25

S

Scan field(s) 22, 27
Scan lines 27
Scan pattern 22, 27
Scanner connections 3, 4
ScanSet 1, 4, 7, 9, 14-20, 39

N

ScanSelect manual 1, 2, 4,

Notices 44, 45 7, 9, 14, 15, 20, 28, 39

Scan speed 27

O Service 42
OCIA 1, 25, 27, 36, 37
Operating current 26
Operating temperature 27
Operation 4, 14
Operational 27
Orientation 26
Output format 6

Shipping carton 2
Socket-outlet 3
South America ii
Specifications 26, 27
Stand 2, 12
Storage temperature 27
System interfaces 27

Output window 25

T

P Temperature 27

Parts 13
Patents 46
PC 1, 9, 10, 39
Pin assignments 36-41

Tones 27
Top cover 13, 26
Transformer 3, 5, 10, 16, 26,
36-41

Port(s) 6-8
Power consumption 26

U

Power supply 2, 6, 26 UL/CSA/TUV 26
Print contrast 27 USA corporate headquarters
Programming guide 1, 2, 4, ii
9, 14, 20, 28, 39
Protocols 25 V

Ventilation 27

50

Version identifiers 25
Vertical stand 2, 12
Voltage 3, 10, 27
Volume control card 47, 48

W

Warranty 42
Watt(s) 26
Weight 26
Window 1, 13, 21, 22, 25-27

51
