INTRODUCTION

The MS7600 Horizon™ series is Metrologic’s next generation in-counter laser bar
code scanner. This compact, hands-free scanner is designed with a dense
20-line omnidirectional scan pattern that helps provide fast, efficient throughput
with a high first pass read rate.

The MS7600 is equipped with a multitude of standard features including:

• Durable die-cast construction

• Available with either a stainless steel (MS7625) or a high-impact plastic

(MS7620) top plate

• Firmware updates via Flash ROM

• Field replaceable window

• EAS deactivation antenna is standard

• Supports commonly used interfaces including USB and Keyboard Wedge

• Custom Edit the bar code data

• PowerLink, user replaceable cables

• RS232 auxiliary port for adding peripherals

• Programmable depth of field

• OPOS and JPOS system compatible

SCANNER INTERFACE

High Impact

Plastic Top

Stainless

Steel Top

MS7620-13

MS7620-37

MS7625-13

MS7625-37

RS232, IBM 46xx, OCIA, Aux

RS232, Light Pen, Keyboard Wedge, Stand­Alone Keyboard, USB, Aux

RS232, IBM 4680, OCIA

RS232, Light Pen, Keyboard Wedge, Stand­Alone Keyboard, USB, Aux

1

SCANNER AND ACCESSORIES

BAS IC KIT

Part # Description

MS7600 Horizon™ Series Scanner

00-02407A-1

&

00-02407A-2

00-02870 MS7600 Horizon™ Series Installation and User’s Guide

49-00298 12” EAS cable

Guides also available for download at www.metrologic.com.

MetroSelect

®

Programming Guide Two Book Set

OPTIONAL ACCESSORIES

Part # Description

54-54xxx*

xxx* specifies connection to the host.

Contact a customer service representative for additional information.

54-54002 Keyboard Wedge PowerLink Cable with Adapter Cable

MVC**

** Contact a Metrologic Customer Service representative for additional

information on Metrologic’s MVC cable series and the host connections
available.

Straight PowerLink Cable with built in power jack.

2.1 m (7') cord with short strain relief

Metrologic Voltage Converter Cable,
+12VDC to +5.2VDC or -12VDC to +5.2VDC

54-54020 Stand Alone Keyboard Wedge PowerLink Cable

54-54667 RS232 AUX PowerLink Cable

Other items may be ordered for the specific protocol being used. To order
additional items, contact the dealer, distributor or call Metrologic’s Customer
Service Department at 1-800-ID-METRO or 1-800-436-3876.

2

SCANNER AND ACCESSORIES (CONTINUED)

OPTIONAL ACCESSORIES

Part # Description

AC to DC Power Transformer - Regulated 5.2V@650 mA output

45-45593 120V United States

45-45591 220V – 240V Continental European

45-45592 220V – 240V United Kingdom

REPLACEMENT PARTS

Part # Description

46-46602

46-46603

46-46604

46-46605 High Impact Plastic Top with Sapphire Window

46-46606

46-46607

Other items may be ordered for the specific protocol being used. To order
additional items, contact the dealer, distributor or call Metrologic’s Customer
Service Department at 1-800-ID-METRO or 1-800-436-3876.

Stainless Steel Top with Sapphire Window

Stainless Steel Top with Everscan Window

Stainless Steel Top with Standard Window

High Impact Plastic Top with Everscan Window

High Impact Plastic Top with Standard Window

3

BEFORE INSTALLING YOUR MS7600

When mounting the MS7600 or replacing
the Top Plate:

DO NOT Turn

the unit upside down.

DO NOT Press

on the window.

Figure 1a

Figure 1b

Lift the Top plate straight up to
remove.

(There is no hardware required to
remove or replace the Top Plate.)

DO NOT PRESS

on the window in the
replacement Top plate.

4

Figure 1c

Figure 1d

MOUNTING THE MS7600 SERIES

There are two options for mounting your MS7600. Option “A” uses a shelf to
support the unit and Option B lets the unit hang free.

Before starting to mount the MS7600, determine the direction of package flow for
your application. The unit must be mounted in the countertop with the small
arrowhead on the top of the unit pointing in same direction as the package flow.

OPTION A: Shelf Support

Figure 2: Package Flow Direction (Top)

Shelf Support Option (Bottom)

5

MOUNTING THE MS7600 SERIES

OPTION B: Free Hanging Support

Figure 3: Package Flow (right)

Free Hanging Support Option (bottom)

6

INSTALLATION FOR OCIA INTERFACE

1. Turn off the host system.

2. Connect the MVC cable to the

nd

jack down from the top of

2
the MS7600.

3. Connect the other end of the MVC
cable to the host.

Before continuing verify that the MVC
cable is connected to the appropriate
interface jack on the scanner. An
incorrect cable connection can cause
communication problems or potential
damage to the scanner.

Manufacturers Note:

Plugging the scanner into the serial
port of the PC does not guarantee
that scanned information will appear
at the PC. A software driver and
correct configuration setting are also
required for proper communication to
occur.

Figure 4: OCIA, Interface

4. Turn on the host system.

Load OCIA Defaults

5. Scan the Load OCIA Defaults bar
code to configure the MS7600 for

³999993

OCIA communication.

For additional communication options for OCIA interfaces refer to the
MetroSelect Programming Guide (

Caution:

To maintain compliance with applicable standards, all circuits connected to the scanner must meet the requirements
for SELV (Safety Extra Low Voltage) according to EN 60950.

To maintain compliance with standard CSA C22.2 No. 60950-00/UL 60950 and norm EN 60950, the power source
should meet applicable performance requirements for a limited power source.

MLPN 00-02407A-1 & -2).

7

INSTALLATION FOR KEYBOARD WEDGE INTERFACE

1. Turn of the host system.

2. Disconnect the keyboard from the host.

3. Connect the PowerLink cable to the 2
jack from the top of the MS7600.

4. Connect the “Y” end of the
PowerLink cable to the keyboard
and the keyboard port on the host.
If necessary use the male/female
adapter cable supplied with the scanner
for proper connections.

Before continuing verify that the
PowerLink cable is connected to the
appropriate interface jack on the scanner.
An incorrect cable connection can cause
communication problems or potential
damage to the scanner.

5. Connect the external power supply
to the power jack on the PowerLink cable.

6. Check the AC input requirements
of the power supply to make sure
the voltage matches the AC outlet.

7. Connect AC power to the transformer.
The outlet should be near the equipment
and easily accessible.

nd

Figure 5: Keyboard Wedge

Interfaces

8. Scan the Load Keyboard Wedge Defaults
bar code to configure the MS7600 for

Load Keyboard

Wedge Defaults

Keyboard Wedge communication.

9. Turn on the host system.

Caution:

To maintain compliance with applicable standards, all circuits connected to the scanner must meet the requirements
for SELV (Safety Extra Low Voltage) according to EN 60950.

To maintain compliance with standard CSA C22.2 No. 60950-00/UL 60950 and norm EN 60950, the power source
should meet applicable performance requirements for a limited power source.

³999994

8

INSTALLATION FOR STAND-ALONE KEYBOARD INTERFACE

t

1. Turn of the host system.

2. Disconnect the keyboard from the host.

3. Connect the PowerLink cable to the 2
jack from the top of the MS7600.

4. Connect the other end of the PowerLink
cable to the keyboard port on the host.

Before continuing verify that the
PowerLink cable is connected to the
appropriate interface jack on the
scanner. An incorrect cable connection
can cause communication problems or
potential damage to the scanner.

5. Connect the external power supply
to the power jack on the PowerLink
cable.

6. Check the AC input requirements
of the power supply to make sure
the voltage matches the AC outlet.

7. Connect AC power to the transformer.
The outlet should be near the equipment
and easily accessible.

8. Scan the Load Keyboard Wedge

Defaults bar code then the
Enable Stand Alone Keyboard bar code

to configure the MS7600 for Stand-Alone
Keyboard communication.

Note: When scanning the bar codes,

cover the code not being scanned
to ensure the codes are read in
the proper sequence.

9. Turn on the host system.

nd

Figure 6: Stand-Alone Keyboard

Scan 1

Scan 2

Interface

S

³999994

Enable Stand-Alone

nd

³5155153

Load Keyboard

Wedge Defaults

Keyboard

Caution:

To maintain compliance with applicable standards, all circuits connected to the scanner must meet the requirements
for SELV (Safety Extra Low Voltage) according to EN 60950.

To maintain compliance with standard CSA C22.2 No. 60950-00/UL 60950 and norm EN 60950, the power source
should meet applicable performance requirements for a limited power source.

9

INSTALLATION FOR USB INTERFACE

1. Turn off the host system.

2. Connect the PowerLink USB cable to

nd

jack down from the top of the

the 2
MS7600.

3. Connect the other end of the USB
cable to the host.

Before continuing verify that the
USB PowerLink cable is connected to
the appropriate interface jack on the
scanner. An incorrect cable
connection can cause communication
problems or potential damage to the
scanner.

Manufacturers Note:

Plugging the scanner into the serial
port of the PC does not guarantee
that scanned information will appear
at the PC. A software driver and
correct configuration setting are also
required for proper communication to
occur.

4. Scan the Enable USB Defaults bar
code to configure the MS7600 for
USB communication.

Figure 7: USB, Interface

5. Turn on the host system.

Caution:

To maintain compliance with applicable standards, all circuits connected to the scanner must meet the requirements
for SELV (Safety Extra Low Voltage) according to EN 60950.

To maintain compliance with standard CSA C22.2 No. 60950-00/UL 60950 and norm EN 60950, the power source
should meet applicable performance requirements for a limited power source.

Enable USB Defaults

³999978

10

INSTALLATION FOR RS232 OR LIGHT PEN INTERFACES

1. Turn off the host system.

2. Connect the PowerLink cable into

st

jack down from the top of the

the 1
MS7600.

3. Connect the other end of the
PowerLink cable to the host.

Before continuing verify that the
PowerLink cable is connected to the
appropriate interface jack on the
scanner. An incorrect cable
connection can cause
communication problems or potential
damage to the scanner.

4. Connect the external power supply
to the power jack on the Power Link
Cable.

5. Check the AC input requirements of
the power supply to make sure the
voltage matches the AC outlet.

6. Connect AC power to the
transformer. The outlet should be
near the equipment and easily
accessible.

Figure 8: RS232 or

Light Pen Interface

7. Scan the appropriate bar codes
on page 12 to configure the MS7600
for RS-232 or Light Pen
communication.

8. Turn on the host system.

Caution:

To maintain compliance with applicable standards, all circuits connected to the scanner must meet the requirements
for SELV (Safety Extra Low Voltage) according to EN 60950.

To maintain compliance with standard CSA C22.2 No. 60950-00/UL 60950 and norm EN 60950, the power source
should meet applicable performance requirements for a limited power source.

11

INSTALLATION FOR RS232 OR LIGHT PEN INTERFACES

Step 8, page 11 continued.

For RS232 Communication:

Recall Defaults

Scan 1st

³999998

For Light Pen Communication:

Recall Defaults

Scan 1st

³999998

Scan 2nd

Enable RS-232

³415554

12

Scan 2nd

Enable Light Pen/Wand

³415524

INSTALLATION FOR IBM 46XX INTERFACE

1. Turn off the host system.

2. Connect the MVC cable to the

st

jack down from the top of

1
the MS7600.

3. Connect the other end of the MVC
cable to the host.

Before continuing verify that the MVC
cable is connected to the appropriate
interface jack on the scanner. An
incorrect cable connection can cause
communication problems or potential
damage to the scanner.

Manufacturers Note:

Plugging the scanner into the serial
port of the PC does not guarantee
that scanned information will appear
at the PC. A software driver and
correct configuration setting are also
required for proper communication to
occur.

Figure 9: RS232/IBM, Interface

4. Turn on the host system.

Load 46xx IBM Defaults

5. Scan the Load 46xx IBM Defaults bar
code to configure the MS7600 for IBM
46xx communication.

³999995

For additional communication options for IBM interfaces refer to the MetroSelect
Programming Guide (

Caution:

To maintain compliance with applicable standards, all circuits connected to the scanner must meet the requirements
for SELV (Safety Extra Low Voltage) according to EN 60950.

To maintain compliance with standard CSA C22.2 No. 60950-00/UL 60950 and norm EN 60950, the power source
should meet applicable performance requirements for a limited power source.

MLPN 00-02407A-1 & -2).

13

INSTALLATION OF AN AUXILIARY SCANNER

1. Turn off the host system.

2. Connect the PowerLink RS232 AUX cable [ MLPN 54-54667A ] to the 3rd jack
down from the top of the the MS7600 (see figure 6).

3. Connect the other end of the PowerLink RS232 AUX cable to the auxiliary
scanner.

The following Metrologic scanners can be used in the “Aux” input of the
MS7600: the MS9520, MS9540, MS7220, MS7120, MS6720, MS6220,
MS6520, MS5145 or another MS7600.

Important: The MS7600 will only receive full RS232 communication from the

auxiliary scanner.

4. Connect the MS7600/Host PowerLink* cable to the appropriate interface
jack on the back of the MS7600.

5. Connect the other end of the MS7600/Host PowerLink cable to the Host.

6. Connect the external power supplies for the auxiliary scanner and the
MS7600 to the power jacks on the two PowerLink cables.

Before continuing verify that the powerlink cable is connected to the
appropriate interface jack on the scanner. An incorrect cable connection
can cause communication problems or potential damage to the scanner.

7. Check the AC input requirements of both power supplies to make sure the
voltage matches the AC outlets.

8. Connect AC power to the transformers. The outlets should be near the
equipment and easily accessible.

9. Configure the MS7600 for the appropriate interface communication*.

10. Configure the auxiliary port and auxiliary scanner. Refer to the
MetroSelect

®

, under Auxiliary Input Port Controls [ MLPN 00-02407A-1 & -2 ]

for the appropriate configuration settings.

11. Turn on the host system.

* The MS7600/host cable connection is interface dependent. Refer to the

installation steps provided for the type of interface required for your
application.

Caution:

To maintain compliance with applicable standards, all circuits connected to the scanner must meet the requirements
for SELV (Safety Extra Low Voltage) according to EN 60950.

To maintain compliance with standard CSA C22.2 No. 60950-00/UL 60950 and norm EN 60950, the power source
should meet applicable performance requirements for a limited power source.

14

INSTALLATION OF AN AUXILIARY SCANNER

Figure 10: Connector Orientation (Top)

Auxiliary Scanner Setup (Bottom)

MLPN 54-54667A

15

SCANNER PARTS









































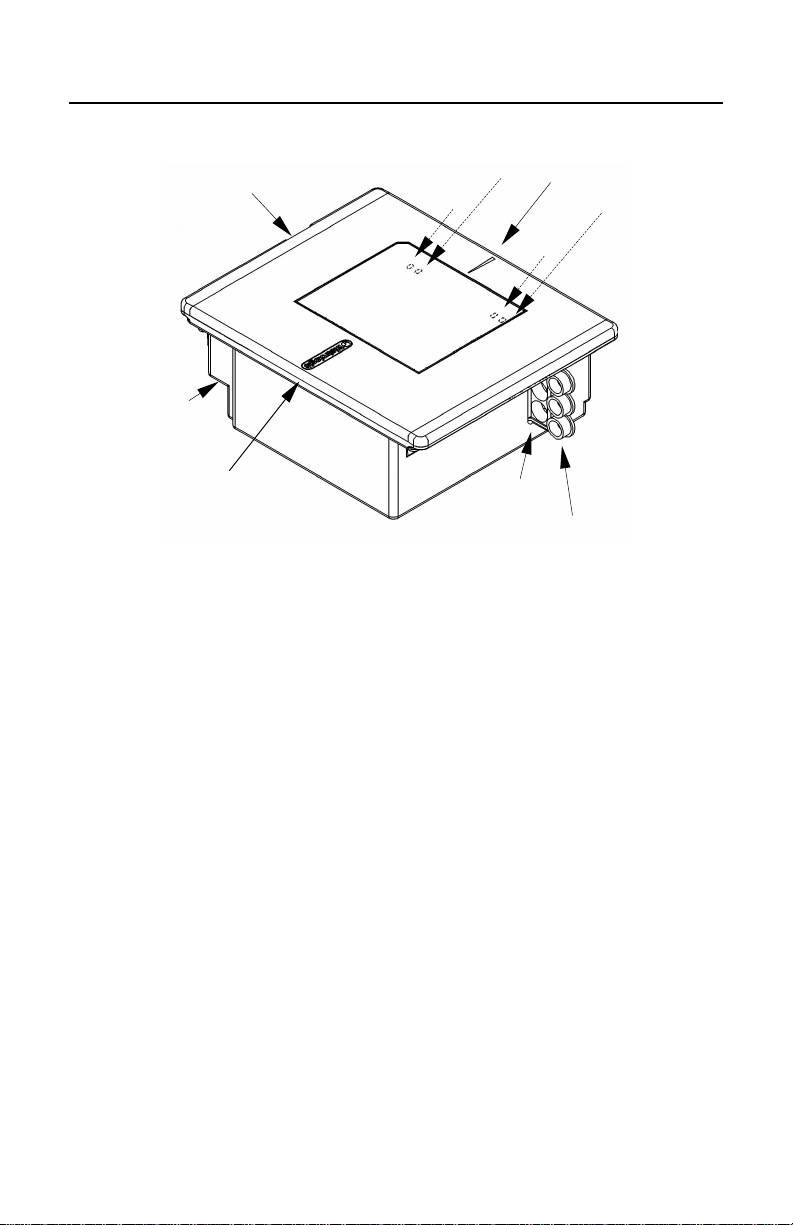

Figure 11: Scanner Parts

Output Window (Laser Aperture)

Red LED (Located Under Window)

Amber LED (Located Under Window)

Speaker

Cable Connection Area

Stainless Steel Top (MS7625 units only)

Package Flow Indicator Arrow Head

Rubber Connector Plug

EAS Deactivation Antenna Connector

16

MAINTENANCE

Smudges and dirt can interfere with the proper scanning of a bar code.
Therefore, the output window will need occasional cleaning.

For the MS7600 glass window:

1. Spray glass cleaner onto lint free, non-abrasive cleaning cloth.

2. Gently wipe the scanner window.

For the MS7600 red window:

1. Use mild soap and water with lint free, non-abrasive cleaning cloth.

2. Gently wipe the scanner window.

EAS DEACTIVATION ANTENNA

SW1 and SW2 are the switch banks inside the Checkpoint Device that set the
deactivation range. Metrologic recommends end users program the MS7600 to
the Fixed Low-Density depth of field, so that the unit does not scan out beyond
the deactivation range.

Unit #

MS7620 1, 2, 3, 4, 5, on SW1 & SW 2 Fixed Low Density*
MS7625 1, 2, 3, 4, 5, on SW1 & SW 2 Fixed Low Density*

EAS Cable
Connector

Contact Checkpoint Systems directly for additional EAS support.

CheckPoint Recommended

Switch Bank Settings

*Note: Minimum element width changes to 6.8 mil when in this mode.

MS7600 Depth of Field

Settings

EAS Cable

MLPN 49-00298

17

SCANNER LABELS

Each scanner has a label on the back of the unit. The label contains information
such as the model number, date of manufacture, serial number, and caution
information. An additional caution label is located under the top plate. The
following are examples of these labels.





Figure 12:

Label Locations



18

AUDIBLE INDICATORS

When the MS7600 scanner is in operation, it provides audible feedback. These
sounds indicate the status of the scanner. Eight settings are available for the
tone of the beep (normal, 6 alternate tones and no tone) plus three volume
settings. To change the tone or volume, refer to the Changing the Beeper Tone
& Volume section of this manual.

One Beep

When the scanner first receives power, the amber LED will turn on,
the red LED will flash and the scanner will beep once. (The red
LED will remain on for the duration of the beep.) The scanner is
now ready to scan.

When the scanner successfully reads a bar code, the red LED will
flash and the scanner beeps once (if programmed to do so). If the
scanner does not beep once and the red light does not flash, then
the bar code has not been successfully read.

Razzberry Tone

This is a failure indicator. Refer to failure modes page 21.

Three Beeps - during operation
When placing the scanner in program mode, the red LED will flash

while the scanner simultaneously beeps three times. The red and
amber LEDs will continue to flash until the unit exits program
mode. Upon exiting program mode, the scanner will beep three
times and the red LED will stop flashing.

When configured, 3 beeps can also indicate a communications
timeout during normal scanning mode.

When using one-code-programming, the scanner will beep three
times (the current selected tone), followed by a short pause, a high
tone and a low tone. This tells the user that the single
configuration bar code has successfully configured the scanner.

Three Beeps - on power up
This is a failure indicator. Refer to failure modes page 21.

19

VISUAL INDICATORS

There is a red LED and amber LED on
the front of the MS7600. When the scanner is
on, the flashing or constant illumination of the
LEDs indicates the
status of the current scan and the scanner.

No Red or Amber LED

The LEDs will not be illuminated if the scanner is
not receiving power from the host or transformer.

Steady Amber

When the laser is active, the amber LED is
illuminated. The amber LED will remain
illuminated until the laser is deactivated.

During the power save mode, the laser will turn
on and off. During this period, the amber LED
remains illuminated.

Steady Amber and Single Red Flash

When the scanner successfully reads a bar
code, the red LED will flash and the scanner will
beep once. If the red LED does not flash or the
scanner does not beep once, then the bar code
has not been successfully read.

Figure 14: LEDs

Steady Amber and Steady Red

After a successful scan, the scanner transmits
the data to the host device. Some
communication modes require that the host
inform the scanner when data is ready to be
received. If the host is not ready to accept the
information, the scanner’s red LED will remain on
until the data can be transmitted.

Flashing Amber then Flashing Red

This indicates the scanner is in program mode.
A razzberry tone indicates that an invalid bar
code has been scanned in this mode.

or

If the unit is in sleep mode, each LED will flash
once every 15 seconds.

Steady Red, Amber off

This indicates the scanner may be waiting for
communication from the host.

20

FAILURE MODES

Figure 15: LEDs

Flashing Amber and One Razzberry Tone

This indicates the scanner has experienced a
laser subsystem failure. Return the unit for
repair at an authorized service center.

Flashing Red and Amber and
Two Razzberry Tones

This indicates the scanner has experienced a
motor failure. Return the unit for repair at an
authorized service center.

Continuous Razzberry Tone with both LEDs
off

If, upon power up, the scanner emits a
continuous razzberry tone, then the scanner has
an electronic failure. Return the unit for repair at
an authorized service center.

Three Beeps - on power up

If the scanner beeps 3 times on power up then,
the nonvolatile memory that holds the scanner
configuration has failed. Return the unit for
repair at an authorized service center.

21

CHANGING THE BEEPER TONE & VOLUME

Changing the Beeper Tone

Beeper tones may be programmed directly or incrementally using the following
bar code. The new tone will be heard followed by a short pause. Two more new
tones will be heard signifying the new setting has been stored in memory. The
silent (no beep) tone is also selectable.

Next Beep Tone

³999975

Changing the Beeper Volume

Volume levels may be programmed directly or incrementally using the following
bar code. The new volume will be heard followed by a short pause. Two more
tones will be heard signifying the new setting has been saved in memory. The
silent (no volume) tone is also selectable.

Next Volume

³999974

These volume control and beeper tone bar codes can also be found under the
Top plate of the scanner and in the MetroSelect Programming Guide.

Figure 13: Additional Beeper Tone and Volume Control Bar Codes.

22

POWER SAVE MODES AND IR DETECTION

The MS7600 has five programmable power save modes. Refer to the
MetroSelect Programming Guide for additional information on Power Save
Modes.

1. Blink Power Save Mode:
“Blinks” the laser OFF & ON after a programmed period of non-use.

When the scanner recognizes a bar code it will exit the Blink mode.

2. Laser Off Power Save Mode:
Turns the laser OFF after a programmed period of non-use. The motor
continues to spin allowing for a faster “wake” up time.

Any movement detected by the IR will “wake” the scanner from the Laser
Off power save mode (see figure 16).

3. Laser & Motor Off Power Save Mode:
Turns the laser and motor OFF after a programmed period of non-use.

Any movement detected by the IR will “wake” the scanner from the power
save mode (see figure 16). This mode’s “wake” time is slightly longer due to
the motor’s need to restart.

4. Dual Action Power Save Mode #1:
“Blinks” the laser OFF & ON after a programmed period of non-use turns the
laser and motor OFF at thirty-minute intervals.

Example:

Last

Scan

Laser starts

“Blinking”

Laser & Motor

turns OFF

If the power save timeout
is set to 15 minutes.

Any movement detected by the IR will “wake” the scanner from the power
save mode (see figure 16).

5. Dual Action Power Save Mode #2 (Default):
Turns the laser OFF after a programmed period of non-use then turns the
motor OFF after thirty-minute intervals.

Example:

Last

Scan

Laser turns

OFF

Motor turns

If the power save timeout
is set to 15 minutes.

Any movement detected by the IR will “wake” the scanner from the power
save mode (see figure 16).

OFF

23

POWER SAVE MODES AND IR DETECTION

Figure 16: IR Activation Area Perpendicular to Package Flow

Specifications subject to change without notice.

24

SCAN VOLUME SPECIFICATIONS

(BASED ON 100% UPC BAR CODES)

Figure 17: Scan Volume in Plane Perpendicular to Flow

Figure 18: Scan Volume in Plane Parallel to Flow

Specifications subject to change without notice.

25

DEPTH OF FIELD BY MINIMUM BAR CODE ELEMENT WIDTH

(BASED ON 100% UPC BAR CODES)

Figure 19: Depth of Field Perpendicular to Flow

Minimum Bar Code Element Width

ABCDE

mm

mils

Specifications subject to change without notice.

26

.13 .19 .26 .33 .48

5.2 7.5 10.4 13 19

TROUBLESHOOTING GUIDE

The following guide is for reference purposes only. Contact a Metrologic
representative at 1-800-ID-METRO or 1-800-436-3876 to preserve the limited
warranty terms.

MS7600 SERIES TROUBLESHOOTING GUIDE

SYMPTOMS POSSIBLE CAUSE(S) SOLUTION

All Interfaces

Check transformer, outlet and
power strip. Make sure the
cable is plugged into the
scanner

Some host systems cannot
supply enough current to power
MS7600 series scanner. Use
the power supply included with
the scanner.

Contact a Metrologic
Representative, if the unit will
not hold the programmed
configuration

No LEDs, beep
or motor spin

No LEDs, beep

3 beeps on
power up

No power is being
supplied to the
scanner

No power is being
supplied to the
scanner from host

Non-volatile RAM
failure

Continuous
razz tone on
power up

Razz tone and
amber LED flash
at power up

Razz tone and
both LEDs flash
at power up

Multiple scans
upon
presentation of
code

The unit powers
up, but does
not scan and/or
beep

RAM or ROM failure

VLD failure

Scanner motor failure

Same symbol timeout
set too short

Beeper disabled
No volume is selected
No tone is selected

Contact a Metrologic
Representative, if the unit will
not function

Contact a Metrologic
Representative

Contact a Metrologic
Representative

Adjust same symbol timeout for
a longer time

Enable beeper
Select volume
Select tone

27

TROUBLESHOOTING GUIDE (CONTINUED)

SYMPTOMS POSSIBLE CAUSE(S) SOLUTION

UPC/EAN, Code 39, interleaved
2 of 5, Code 93, Code 128 and
Codabar are enabled by default.
Verify that the type of bar code
being read has been selected

Verify that the bar code that is
being scanned falls into the
criteria.
(Typical of Non-UPC/EAN
codes. The scanner defaults to

a minimum of 4 character bar
code.)

The unit powers
up, but does
not scan and/or
beep

Scanning a particular
symbology that is not
enabled

The scanner has been
programmed for a
character length lock,
or a minimum length
and bar code being
scanned does not
satisfy the
programmed criteria

The unit scans
a bar code, but
locks up after
the first scan
(red LED stays
on)

The unit scans,
but the data
transmitted to
the host is
incorrect

Scanner beeps
at some bar
codes and NOT
for others of the
same bar code
symbology

The scanner is
configured to support
some form of host
handshaking but is not
receiving the signal

The scanner’s data
format does not match
the host system
requirements

The print quality of the
bar code is suspect

Also check character
length lock.

The aspect ratio of the
bar code is out of
tolerance

If the scanner is setup to support
ACK/NAK, RTS/CTS,
XON/XOFF or D/E, verify that
the host cable and host are
supporting the handshaking
properly

Verify that the scanner’s data
format matches that required by
the host. Make sure that the
scanner is connected to the
proper host port

Check print mode. The type of
printer could be the problem.
Change print settings. For
example change to econo mode
or high speed

28

TROUBLESHOOTING GUIDE (CONTINUED)

SYMPTOMS POSSIBLE CAUSE(S) SOLUTION

The bar code may
have been printed
incorrectly

Scanner beeps
at some bar
codes and NOT
for others of the
same bar code
symbology

Keyboard Wedge Only

The unit scans
the bar code
but there is no
data

The unit scans
but the data is
not correct

The scanner is not
configured correctly
for this type of bar
code

The minimum symbol
length setting does not
work with the bar code

Configuration is not
correct

Configuration is not
correct

Check if it is a check
digit/character/or border problem

Check if check digits are set
properly

Check if the correct minimum
symbol length is set

Make sure the scanner is
configured for the appropriate
mode.

Make sure that the proper PC
type AT, PS2 or XT is selected.
Verify correct country code and
data formatting are selected.
Adjust intercharacter delay
SYMPTOM

The unit is
transmitting
each character

Alpha
characters
show as lower
case

Configuration is not
correct

Computer is in Caps
Lock mode

Increase the interscan code
delay setting. Adjust whether the
F0 break is transmitted. It may
be necessary to try this in both
settings.

Enable Caps Lock detect setting
of the scanner to detect whether
the PC is operating in Caps Lock

29

TROUBLESHOOTING GUIDE (CONTINUED)

SYMPTOMS POSSIBLE CAUSE(S) SOLUTION

Everything
works except
for a couple of
characters

RS-232 Only

The unit is
transmitting
each character

Alpha
characters
show as lower
case

Everything
works except
for a couple of
characters

Power-up OK
and scans OK
but does not
communicate
properly to the
host

These characters may
not be supported by
that country’s key look
up table

Configuration is not
correct

Computer is in Caps
Lock mode

These characters may
not be supported by
that country’s key look
up table

Com port at the host is
not working or
configured properly

Cable not connected
to the proper com port

Com port not
operating properly.

Try operating the scanner in Alt
mode

Increase the interscan code
delay setting. Adjust whether the
F0 break is transmitted. It may
be necessary to try this in both
settings.

Enable Caps Lock detect setting
of the scanner to detect whether
the PC is operating in Caps Lock

Try operating the scanner in Alt
mode

Check to make sure that the
baud rate and parity of the
scanner and the communication
port match and the program is
looking for “RS-232" data

30

TROUBLESHOOTING GUIDE (CONTINUED)

SYMPTOMS POSSIBLE CAUSE(S) SOLUTION

The host is
receiving data but
the data does not
look correct.

Characters are
being dropped.

The scanner and host
may not be configured
for the same interface
font.

Intercharacter delay
needs to be added to
the transmitted output.

Aux port operation with any interface

Trouble with the
Aux port
Scanner.

Cable [MLPN 54-54667]
may not be connected

Aux port

to the proper port.

Scanner
powers up but
data is not
relayed to the
host.

The “Aux” com port
may not be operating
properly.

Check that the scanner and the
host are configured for the same
interface font.

Add some intercharacter delay
to the transmitted output by
using the MetroSelect

®

Programming Guide (MLPN 00­02407A-1 and 00-02407A-2).

Refer to the user guide provided
with the slave scanner.

Ensure Aux port scanner is
connected to the MS7600 com
port marked “Aux” port.

* The MS7600 must be

programmed to enable the
“Aux” port.

The Aux port scanner must be
configured to send “slave”
formatted data (reserve
code 32).

* Use MetroSet®.
For the Auxiliary interface, choose “HoloT rak Decode”.
All remaining parameters will be automatically c hos en.

USB Only

The scanner
Powers up ok,
scans ok but
does not
communicate.

The USB Port is not
operating correctly.

Check that the scanner is
programmed for USB operation.

Check that the host’s USB port
is enabled.

31

DESIGN SPECIFICATIONS

OPERATIONAL

Light Source: VLD 650 ± 10 nm
Laser Power: 1.1 mW maximum

Depth of Field:

Width of Scan Field:

Scan Speed: 2000 scans/second

Scan Pattern: 5 fields of 4 parallel lines (omnidirectional)

Scan Lines: 20

Min Bar Width: 0.127 mm (5.0 mil)

0 mm to 203.2 mm (0”- 8.0”) for 0.33 mm (13 mil) bar
code
85 mm (3.3”) @ 0 mm (0.0”);
142 mm (5.6”) @ 124 mm (4.9”)

MS7600 SERIES DESIGN SPECIFICATIONS

Decode Capability:

System Interfaces:

Print Contrast: 35% minimum reflectance difference

No. Characters

Read:

Roll, Pitch, Yaw: 360°, 60°, 60°

Beeper Operation: 7 tones or no beep

Indicators (LED):

Autodiscriminates all standard bar codes; for other
symbologies call Metrologic

PC Keyboard Wedge, RS-232, OCIA, Light Pen,
Stand Alone PC Keyboard, USB, IBM 46xx

up to 80 data characters(Maximum number will vary
based on symbology and density)

amber = laser on, ready to scan
red = good read, decoding

MECHANICAL

Dimensions:

Weight: 2.88 Kg (6.35 lbs)

Termination: Three 10-pin modular RJ45 jacks

Cable:

Specifications subject to change without notice

193 mm (7.6") H, 88 mm (3.5") D,
229 mm (9.0") W

Standard 2.1m (7’) straight; for other cables call
Metrologic

32

DESIGN SPECIFICATIONS (CONTINUED)

MS7600 SERIES DESIGN SPECIFICATIONS

ELECTRICAL

Input Voltage: 5.2VDC ± 0.25V

Power: 2.6 W

Operating Current: 500 mA

Standby Current:

DC Transformers: Class II; 5.2 V @ 650 mA

Laser Class: IEC 60825-1:1993+A2:2001 Class 1

EMC: FCC, ICES-003 & EN 55022 Class A

ENVIRONMENTAL

Operating Temperature: 0°C to 40°C (32°F to 104°F)

Storage Temperature: -40°C to 60°C (-40°F to 140°F)

Humidity: 5% to 95% relative humidity, non-condensing

Light Levels: 4842 LUX (450 foot candles)

Contaminants: Sealed to resist airborne particulate contaminants

Ventilation: None required

Laser Off Power Save Mode = < 350 mA
Laser/Motor Off Power Save Mode = <165 mA

Specifications subject to change without notice

33

RS232 DEMONSTRATION PROGRAM

If an RS232 scanner is not communicating with your IBM compatible PC, key
in the following BASIC program to test that the communication port and
scanner are working. This program is for demonstration purposes only. It is
only intended to prove that cabling is correct, the com port is working, and the
scanner is working. If the bar code data displays on the screen while using
this program, it only demonstrates that the hardware interface and scanner
are working. At this point, investigate whether the application software and
the scanner configuration match. If the application does not support RS-232
scanners, a software wedge program that will take RS-232 data and place it
into a keyboard buffer may be needed. This program tells the PC to ignore
RTS-CTS, Data Set Ready (DSR) and Data Carrier Detect (DCD) signals. If
the demonstration program works and yours still does not, jumper RTS to
CTS and Data Terminal Reading (DTR) to DCD and DSR on the back of your
PC.

10 CLS
20 ON ERROR GOTO 100
30 OPEN “COM1:9600,S,7,1,CS0,DS0,CD0,LF” AS #1
35 PRINT “SCAN A FEW BAR CODES”
40 LINE INPUT #1, BARCODE$
50 PRINT BARCODE$
60 K$ = INKEY$: IF K$ = CHR$(27) THEN GOTO 32766
70 GOTO 40
100 PRINT “ERROR NO.”; ERR; “ PRESS ANY KEY TO TERMINATE.”
110 K$ = INKEY$: IF K$ = “” THEN GOTO 110
32766 CLOSE: SYSTEM
32767 END

34

APPLICATIONS AND PROTOCOLS

The model number on each scanner includes the scanner number and factory
default communications protocol.

SCANNER

7620
7625

7620
7625

VERSION

IDENTIFIER

13

37

COMMUNICATION PROTOCOL(S)

RS232, IBM 46xx, OCIA, Aux

RS232, Light Pen, Keyboard Wedge,
Stand-Alone Keyboard, USB, Aux

The MS7600 with Built-in PC Keyboard Wedge Interface is designed to be used
for keyboard emulation only. Many RS-232 programmable functions available in
other Metrologic scanners are also available as keyboard wedge functions.

The following are the most important selectable options specific to the keyboard
wedge.

Keyboard Type

• ** AT (includes IBM® PS2 models 50, 55, 60, 80)

• XT

• IBM PS2 (includes models 30, 70, 8556)

Keyboard Country Type

• ** USA • German • Spanish

• Belgium • Italian • Swiss

• French • Japan • United Kingdom

** Refer to pages 36-41 for complete information on the factory default

settings. Refer to the MetroSelect

MLPN 00-02407A-1 & 00-02407A-2) or MetroSet

(

®

Programming Guide

®

2’s help files for

information on how to change the default settings.

35

DEFAULT SETTINGS

Many functions of the scanner can be "programmed" - that is, enabled or
disabled. The scanner is shipped from the factory programmed to a set of
default conditions. The default parameter of the scanner has an asterisk
( * ) in the charts on the following pages. If an asterisk is not in the default
column then the default setting is Off or Disabled. Every communication does
not support every parameter. If the communication supports a parameter listed
in the charts on the following pages, a check mark will appear.

PARAMETER DEFAULT OCIA RS-232

UPC/EAN

Code 128

Code 93

Codabar

Interleaved 2 of 5 (ITF)

MOD 10 Check on ITF

Code 11

Code 39

Full ASCII Code 39
MOD 43 Check on

Code 39
MSI-Plessey
MSI-Plessey 10/10 Check

Digit
MSI-Plessey MOD 10 Check

Digit
Paraf Support

ITF Symbol Lengths Variable

Minimum Symbol Length 4

Symbol Length Lock None

Bars High as Code 39

Spaces High as Code 39

Bars High as Scanned

Spaces High as Scanned

DTS/SIEMENS

DTS/NIXDORF

NCR F

*

======

*

======

*

======

*

======

*

======

======

======

*

======

======

======

======

======

*

======

======

======

======

======

*

=

*

=

=

L

PEN

IGHT

=

=

=

=

IBM

46XX

KBW USB

36

DEFAULT SETTINGS (CONTINUED)

Parameter Default OCIA RS-232

NCR S

Poll Light Pen Source

Beeper Tone Normal

Beep/Transmit Sequence

Beeper Volume Loudest

Communication Timeout None

Razzberry Tone on Timeout

Three Beeps on Timeout

No Beeps on Timeout

Enter Power Save Mode 10 mins.

Blink Power Save Mode

Laser OFF Power Save Mode
Laser & Motor OFF

Power Save Mode
Dual Action Power Save

Mode #1
Dual Action Power Save

Mode #2
Same Symbol Rescan

Timeout: 200 msecs
Same Symbol Rescan

Timeout: 500 msecs
Programmable in 50 msec
steps (MAX 6.35 seconds)

Same Symbol Rescan
Timeout: 1250 msecs

Same Symbol Rescan
Timeout: 2000 msecs

Intercharacter Delay
Programmable in 1 msec
steps (MAX 255 msecs)

Number of Scan Buffers 1

Transmit UPC-A Check Digit

Transmit UPC-E Check Digit

Expand UPC-E

Before

Transmit

1 msecs

10 msecs in

KBW

=

===== =

===== =

===== =

===== =

===== =

===== =

*

===== =

===== =

===== =

===== =

===== =

===== =

*

===== =

===== =

*

===== =

===== =

===== =

== ==

===== =

*

===== =

==== =

===== =

Light

Pen

=

IBM

46XX

KBW USB

37

DEFAULT SETTINGS (CONTINUED)

Parameter Default OCIA RS-232

Convert UPC-A to
EAN-13

Transmit Lead Zero on UPC-E
Convert EAN-8 to

EAN-13
Transmit UPC-A Number

System
Transmit UPC-A

Manufacturer ID#
Transmit UPC-A Item ID#
Transmit Codabar

Start/Stop Characters
CLSI Editing (Enable)
Transmit Mod 43 Check Digit

on Code 39

Transmit Code 39
Stop/Start Characters

Transmit Mod 10/ITF

Transmit MSI-Plessey Check
Characters

Parity Space

Baud Rate 9600

8 Data Bits

== == =

======

== == =

*

== = = = =

*

== = = = =

*

== = = = =

== == =

== == =

== == =

== == =

== == =

== == =

=

=

=

Light

Pen

IBM

46XX

KBW USB

7 Data Bits

Transmit Sanyo ID
Characters

Nixdorf ID

LRC Enabled

UPC Prefix

UPC Suffix

Transmit AIM ID Characters

STX Prefix

ETX Suffix

38

*

=

===

===

===

===

===

===

===

===

DEFAULT SETTINGS (CONTINUED)

Parameter Default OCIA RS-232

Carriage Return

Line Feed - disabled by
default in KBW

Tab Prefix

Tab Suffix

"DE" Disable Command

"FL" Laser Enable Command

DTR Handshaking Support

RTS/CTS Handshaking

Character RTS/CTS

Message RTS/CTS

XON/XOFF Handshaking

ACK/NAK

Two Digit Supplements

Five Digit Supplements

Bookland 978

*
*

*

===

===

===

===

==

==

=

=

=

=

=

=

==

==

==

Light

Pen

as code

39

as code

39

as code

39

IBM

46XX

KBW USB

===

===

===

Bookland 977 (2 digit)
Supplemental Requirement

Supplements are not
Required

Two Digit Redundancy

Five Digit Redundancy

100 msec to Find Supplement
Programmable in 100 msec
steps
(MAX 800 msec)

==== = =

*

==== = =

*

==== = =

==== = =

*

==== = =

39

DEFAULT SETTINGS (CONTINUED)

Parameter Default OCIA RS-232

Coupon Code 128

Programmable Code Lengths 7 avail.

Programmable Prefix
Characters

Suffix Characters

Prefixes for individual Code
Types

Editing

Inter Scan-Code Delay
Programmable (100 µsec
steps)

Function/Control Key
Support

Minimum Element Width
Programmable in 5.6 µsec
steps

Depth of Field

Variable Depth of Field

10 avail.

800 µsec

1 msec

==

= =====

===

===

===

= =====

*

= =====

Light

Pen

as code

39

=

IBM

46XX

KBW USB

===

==

==

Normal Depth of Field

Extended Depth of Field

Long Depth of Field

Ultra Close Depth of Field

40

*

= =====

= =====

*

= =====

= =====

DEFAULT SETTINGS (CONTINUED)

Default settings for “Aux” interface

The slave scanner and the MS7600 always communicate via RS232. Data is
relayed to the host via various primary interfaces.

Parameter Default OCIA RS-232

Aux Baud Rate 38400

Aux parity space

Aux data bits 7

Aux stop bits 2

Aux character RTS

Aux message RTS

Aux Ack/Nak

Aux Xon/Xoff

Aux D/E commands

Aux M/O commands

Aux F/L commands

Aux Intercharacter Delay 1 msec

*

*
*

==== = =

==== = =

==== = =

==== = =

==== = =

==== = =

==== = =

==== = =

==== = =

==== = =

==== = =

==== = =

Light

Pen

IBM

46XX

KBW USB

Aux Port Data Format

None

(Disabled)

==== = =

41

SCANNER AND CABLE TERMINATIONS

Scanner Pinout Connections

The MS7600 scanner interfaces terminate to 10-pin modular jacks located on
the back of the unit. The serial # label indicates the model number of the
scanner.

Figure 20: Scanner Interface Ports

MS762x-13 OCIA MS762x-13 IBM 46xx

Pin Function Pin Function

1 Ground 1 Ground
2 NC 2 RS-232 Transmit Output
3 NC 3 RS-232 Receive Input
4 RDATA 4 RTS Output
5 RDATA Return 5 CTS Input
6 Clock in 6 DTR
7Clock out 7IBM B- (D-)

Clock in Return/

8

Clock out Rtrn

9+5VDC 9+5V IN

10 Shield Ground 10 NC

8 IBM A+ (D+)

MS762x-13/-37 Auxilary Port RS232 IN Only

Pin Function

1 Ground
2 RS-232 Receive Input
3 RS-232 Transmit Output
4 RTS In
5CTS Out

6-10 NC

Continued next page

42

SCANNER AND CABLE TERMINATIONS (CONTINUED)

Figure 21: Scanner Interface Ports

MS762x-37

Keyboard Wedge,

Stand-Keyboard or USB

Pin Function Pin Function

1 Ground 1 Ground
2 USB D- 2 RS-232 Transmit Output
3 USB D+ 3 RS-232 Receive Input
4 PC Data 4 RTS Output
5 PC Clock 5 CTS Input
6 KB Clock 6 DTR Input/LTPN Source
7 PC +5V, V-USB 7 N/C
8 KB Data 8 LTPN Data
9+5VDC 9+5VDC

10 Shield Ground 10 Shield Ground

3

MS762x-37

RS-232 or Light Pen

43

SCANNER AND CABLE TERMINATIONS (CONTINUED)

Cable Connector Configurations (Host End)

PowerLink Cable

MLPN 54-54xxx*

Pin Function

1 Shield Ground
2 RS-232 Transmit Output
3 RS-232 Receive Input
4 DTR Input
5 Power/Signal Ground
6 Reserved
7 CTS Input
8 RTS Output
9+5VDC

xxx* specifies connection to the host

USB PowerLink Cable

MLPN 54-54165, Type A)

(

Pin Function

1N/C
2D­3D+
4 Ground

PowerLink, RS232 LSO/AUX Cable

MLPN 54-54667

Pin Function

1 Ground
2 RS-232 Transmit Output
3 RS-232 Receive Input
4 RTS Output
5 CTS Input

6-10 N/C

95

61

9-Pin D-Type Conn.

4
1

USB Type A (Top)

Locking Type A (Bottom)

4
1

110

10-pin Modular Plug

Stand Alone Keyboard Cable

MLPN 54-54020

Pin Function

1 PC Data
2NC
3 Power Ground
4 +5VDC PC Power to KB
5 PC Clock
6NC

44

1

2

4

3

5

6

6-Pin Male Mini-DIN Conn.

SCANNER AND CABLE TERMINATIONS (CONTINUED)

Cable Connector Configurati on

The PowerLink cable is terminated with a 5-pin DIN female connector on
one end, and a 6-pin mini DIN male on the other.

2

5

4

1

PowerLink Cable

5-Pin DIN, Female

3

Metrologic will supply an adapter cable with a 5-pin DIN male connector
on one end and a 6-pin mini DIN female connector on the other.

2

4

5

3

1

5-Pin Din, Male

Adapter Cable

According to the termination required, connect the appropriate end of the
adapter cable to the PowerLink cable, leaving the necessary termination
exposed for connecting to the keyboard and the keyboard port on the PC.
The pin assignments are as follows:

21

4

3

65

6-Pin DIN, Male

12

3

4

56

6-pin Mini Din, Female

PowerLink Cable Adapter Cable

5-pin Female DIN 5-pin Male DIN

Pin Function Pin Function

1 Keyboard Clock 1 PC Clock
2 Keyboard Data 2 PC Data
3 No Connect 3 No Connect
4 Power Ground 4 Power Ground
5 +5 Volts DC 5 +5 Volts DC

6-pin Male Mini-DIN 6-pin Female Mini-DIN

Pin Function Pin Function

1 Keyboard Data 1 Keyboard Data
2 No Connect 2 No Connect
3 Power Ground 3 Power Ground
4 +5 Volts DC 4 +5 Volts DC
5 PC Clock 5 Keyboard Clock
6 No Connect 6 No Connect

45

LIMITED WARRANTY

The MS7600 Series scanners are manufactured by Metrologic at its Blackwood, New
Jersey, U.S.A. facility. The MS7600 Series scanners have a two (2) year limit ed warranty
from the date of manufacture. Metrologic warrants and represents that all MS7600 Series
scanners are free of all defects in material, workmanship and design, and have been
produced and labeled in compliance with all applicable U.S. Federal, state and local law s ,
regulations and ordinances pertaining to their production and labeling.

This warranty is limited to repair, replacement of Product or refund of Product price at the
sole discretion of Metrologic. Faulty equipment must be returned to the Metrologic facility in
Blackwood, New Jersey, U.S.A. or Puchheim, Germany. To do this, contact Metrologic’s
Customer Service/Repair Department to obtain a Returned Material Authorization (RMA)
number.

In the event that it is determined the equipment failure is covered under this warranty,
Metrologic shall, at its sole option, repair the Product or replace the Product with a
functionally equivalent unit and return such repaired or replaced Product without charge
for service or return freight, whether distributor, dealer/reseller, or retail consumer, or
refund an amount equal to the original purchase price.

This limited warranty does not extend to any Product which, in the sole judgement of
Metrologic, has been subjected to abuse, misuse, neglect, improper installat ion, or
accident, nor any damage due to use or misuse produced from integration of the Product
into any mechanical, electrical or computer system. The warranty is void if the case of
Product is opened by anyone ot her t han Metrologic’s repair department or authorized
repair centers.

THIS LIMITED WARRANTY, EXCEPT AS TO TITLE, IS IN LIEU OF ALL OTHER
WARRANTIES OR GUARANTEES, EITHER EXPRESS OR IMPLIED, AND
SPECIFICALLY EXCLUDES, WITHOUT LIMITATION, WARRANTIES OF
MERCHANTABILITY AND FIT NESS F O R A PARTICULAR PURPOSE UNDER THE
UNIFORM COMMERCIAL CODE, O R A RI S ING OUT OF CUSTOM OR CONDUCT.
THE RIGHTS AND REMEDIES PROVIDED HEREIN ARE EXCLUSIVE AND IN LIEU OF
ANY OTHER RIGHTS OR REMEDIES. IN NO EVENT SHALL METROLOGIC BE
LIABLE FOR ANY I NDIRECT OR CONSEQUENTIAL DAMAG E S , INCIDENTAL
DAMAGES, DAMAGES TO PERSON OR PROPERTY, OR EFFECT ON BUSINESS OR
PROPERTY, OR OTHER DAMAGES OR EXPENSES DUE DIRECTLY OR INDIRECTLY
TO THE PRODUCT, EXCEPT AS STATED IN T HI S WARRANTY. I N NO EVENT SHALL
ANY LIABILITY OF METROLOGIC EXCEED THE ACTUAL AMOUNT PAID TO
METROLOGIC FOR THE PRODUCT. METROLOGIC RESERVES THE RIGHT TO
MAKE ANY CHANGES TO THE PRODUCT DESCRIBED HEREI N.

Corporate Headquarters

Metrologic Instruments, Inc. Customer Service: 1-800-ID-METRO
90 Coles Road Tel: [phone]
Blackwood, NJ 08012-4683 Fax: [phone]

Germany

Metrologic Instruments GmbH Tel: [phone]
Dornierstrasse 2 Fax: [phone]
82178 Puchheim b. Email: [e-mail]
Munich, Germany

Email: info@metrologic.c o m
Website: www.metrologic.com

46

NOTICES

Notice

This equipment has been tested and found to comply with limits for a Class A digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial environment. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio communications. Operation of this
equipment in a residential area is likely to cause harmful interference, in which case the user will be
required to correct the interference at his own expense. Any unauthorized changes or modifications to
this equipment could void the users authority to operate this device.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.

Notice

This Class A digital apparatus complies with Canadian ICES-003.

Remarque

Cet appareil numérique de la classe A est conforme à la norme NMB-003 du Canada.

Caution

Use of controls or adjustments or performance of procedures other than those specified herein may result
in hazardous laser light exposure. Under no circumstances should the customer attempt to service the
laser scanner. Never attempt to look at the laser beam, even if the scanner appears to be nonfunctional.
Never open the scanner in an attempt to look into the device. Doing so could result in hazardous laser light
exposure. The use of optical instruments with the laser equipment will increase eye h a zard.

Atención

La modificación de los procedimientos, o la utilización de controles o ajustes distintos de los
especificados aquí, pueden provocar una luz de láser peligrosa. Bajo ninguna circunstancia el usuario
deberá realizar el mantenimiento del láser del escáner. Ni intentar mirar al haz del láser incluso cuando
este no esté operativo. Tampoco deberá abrir el escáner para examinar el aparato. El hacerlo puede
conllevar una exposición peligrosa a la luz de láser. El uso de instrumentos ópticos con el equipo láser
puede incrementar el riesgo para la vista.

Attention

L'emploi de commandes, réglages ou procédés autres que ceux décrits ici peut entraîner de graves
irradiations. Le client ne doit en aucun cas essayer d'entretenir lui-même le scanner ou le laser. Ne
regardez jamais directement le rayon laser, même si vous croyez que le scanner est inactif. N'ouvrez
jamais le scanner pour regarder dans l'appareil. Ce faisant, vous vous exposez à une rayonnement laser
qú êst hazardous. L'emploi d'appareils optiques avec cet équipement laser augmente le risque
d'endommagement de la vision.

Achtung

Die Verwendung anderer als der hier beschriebenen Steuerungen, Einstellungen oder Verfahren kann
eine gefährliche Laserstrahlung hervorrufen. Der Kunde sollte unter keinen Umständen versuchen, den
Laser-Scanner selbst zu warten. Sehen Sie niemals in den Laserstrahl, selbst wenn Sie glauben, daß der
Scanner nicht aktiv ist. Öffnen Sie niemals den Scanner, um in das Gerät hineinzusehen. Wenn Sie dies
tun, können Sie sich einer gefährlichen Laserstrahlung aussetzen. Der Einsatz optischer Geräte mit
dieser Laserausrüstung erhöht das Risiko einer Sehschädigung.

Attenzione

L’utilizzo di sistemi di controllo, di regolazioni o di procedimenti diversi da quelli descritti nel presente
Manuale può provocare delle esposizioni a raggi laser rischiose. Il cliente non deve assolutamente
tentare di riparare egli stesso lo scanner laser. Non guardate mai il raggio laser, anche se credete che lo
scanner non sia attivo. Non aprite mai lo scanner per guardare dentro l’apparecchio. Facendolo potete
esporVi ad una esposizione laser rischiosa. L’uso di apparecchi ottici, equipaggiati con raggi laser,
aumenta il rischio di danni alla vista.

47

NOTICES (CONTINUED)

European Standard

Warning

This is a class A product. In a domestic environment this product may cause radio
interference in which case the user may be required to take adequate measures.

Funkstöreigenschaften n ach EN 55022:1998

Warnung!

Dies ist eine Einrichtung der Klasse A. Diese Einrichtung kann im Wohnbereich
Funkstörungen verursachen; in diesem fall kann vom Betrieber verlangt werden,
angemessene Maßnahmen durchführen.

Standard Europeo

Attenzione

Questo e’ un prodotto di classe A. Se usato in vicinanza di residenz e private potrebbe
causare interferenze radio che potrebbero richiedere all’utilizzatore opportune misure.

Attention

Ce produit est de classe “A”. Dans un environnement domestique, ce produit peut être
la cause d’interférences radio. Dans ce cas l’utiliseteur peut être amené à predre les
mesures adéquates.

48

PATENTS

“Patent Information
This METROLOGIC product may be covered by one or more of the following U.S. Patents:
U.S. Patent No.;

4,960,985; 5,081,342; 5,216,232; 5,557,093; 5,627,359; 5,637,852; 5,661,292;
5,777,315; 5,789,731; 6,029,894; 6,209,789;

4,360,798; 4,369,361; 4,387,297; 4,460,120; 4,496,831; 4,593,186; 4,607,156;
4,673,805; 4,736,095; 4,758,717; 4,816,660; 4,845,350; 4,896,026; 4,923,281;
4,933,538; 4,992,717; 5,081,342; 5,015,833; 5,017,765; 5,059,779; 5,117,098;
5,124,539; 5,130,520; 5,132,525; 5,140,144; 5,149,950; 5,180,904; 5,200,599;
5,229,591; 5,247,162; 5,250,790; 5,250,791; 5,250,792; 5,260,553; 5,262,628;
5,280,162; 5,280,164; 5,304,788; 5,321,246; 5,324,924; 5,340,973; 5,396,053;
5,396,055; 5,408,081; 5,410,139; 5,424,525; 5,436,440; 5,449,891; 5,468,949;
5,468,951; 5,479,000; 5,484,992; 5,525,789; 5,528,024; 5,532,469; 5,545,889;
5,591,953; 5,616,908; 5,627,359

No license right or sublicense is granted, either expressly or by implication, estoppel, or
otherwise, under any METROLOGIC or third party intellectual property rights (whether or not
such third party rights are licensed to METROLOGIC), including any third party patent listed
above, except for an implied license only for the normal intended use of the specific
equipment, circuits, and devices represented by or contained in the METROLOGIC products
that are physically transferred to the user, and only to the extent of METROLOGIC’S license
rights and subject to any conditions, covenants and rest rictions therein.”

Other worldwide patents pending.

49

INDEX

A

Accessories...............................2

Adapter....................................45

Audible.....................................19

Autodiscriminates....................32

B

Bar Code ...........................25, 26

Beep..................................19, 37

C

Cable..... 2, 11, 16, 30- 32, 42-45

Caution......7, 8, 9, 10, 11, 13, 14

CE......................................47, 48

Communication..................35, 37

Connector..........................44, 45

Customer Service............2, 3, 46

D

Decode Capability ...................32

Default Settings..................36-41

Design Specifications........32, 33

E

EAS .........................................17

Electrical..................................33

Extended Depth of Field..........40

F

Failure Modes..........................21

Function...........40, 42, 43, 44, 45

G

Ground...................42, 43, 44, 45

H

Host.........................................14

I

Indicators.....................19, 20, 32

Input Voltage ...........................33

Installation .................7, 8, 10- 15

Interfaces....................7, 9-13, 27

IR Detection.............................23

K

Keyboard Type........................35

Keyboard Wedge1-2, 8, 32, 35, 43

L

Labels...................................... 18

LED...........16, 19, 20, 27, 28, 32

Light Levels............................. 33

Light Pen.1, 11-13, 32, 35-41, 43

Light Source............................ 32

M

Maintenance............................ 17

Mechanical.............................. 32

Min Bar Width.......................... 32

Modes ..................................... 23

N

Normal Depth of Field.............40

Notices..............................47, 48

O

OCIA ........................7, 32, 36-42

Operating Current ................... 33

Operation .......................... 32, 47

Operational.............................. 32

Output Window........................ 16

P

Parts........................................16

Patents.................................... 49

Port.................................... 41, 42

Power Save.............................23

Programming Guide.......... 31, 35

Protocols.................................35

R

Razzberry Tone........... 19, 21, 37

RDATA.................................... 42

Repair...................................... 46

S

Scan Lines .............................. 32

Scan Pattern ........................... 32

Scan Speed............................. 32

Specifications.. 24, 25, 26, 32, 33

Stand.......................................32

Storage.................................... 33

System Interfaces ................... 32

50

INDEX

T

Termination..............................32

Transformers...........................33

Troubleshooting27, 28, 29, 30, 31

U

USB.........................................10

V

Ventilation ............................... 33

Visual ...................................... 20

Voltage...... 7, 8, 9, 10, 11, 13, 14

W

Warranty ................................. 46

Weight..................................... 32

51

February 2002

Printed in the USA

00-02870
