METROLOGIC INSTRUMENTS, INC.
MS7180 OrbitCG™
Presentation Laser Scanner
Installation and User’s Guide
Copyright
© 2006 by Metrologic Instruments, Inc. All rights reserved. No part of this
work may be reproduced, transmitted, or stored in any form or by any means
without prior written consent, except by reviewer, who may quote brief
passages in a review, or provided for in the Copyright Act of 1976.
Trademarks
Metrologic is a registered trademark of Metrologic Instruments, Inc.
Products identified in this document are hereby acknowledged as
trademarks, registered or otherwise, of Metrologic Instruments, Inc. or their
respective companies.
TABLE OF CONTENTS
Introduction
Product Overview ............................................................................................. 1
Scanner and Accessories................................................................................. 2
Scanner Components....................................................................................... 4
Cable Removal.................................................................................................4
Caution and Serial Number Labels................................................................... 5
Maintenance..................................................................................................... 5
Mounting Specifications ................................................................................... 6
Installation
RS232, or Light Pen ......................................................................................... 7
IBM 46xx .......................................................................................................... 8
Keyboard Wedge.............................................................................................. 9
Stand-Alone Keyboard Wedge....................................................................... 10
Full Speed or Low Speed USB.......................................................................11
EAS Deactivation ........................................................................................... 12
Scanner Operation

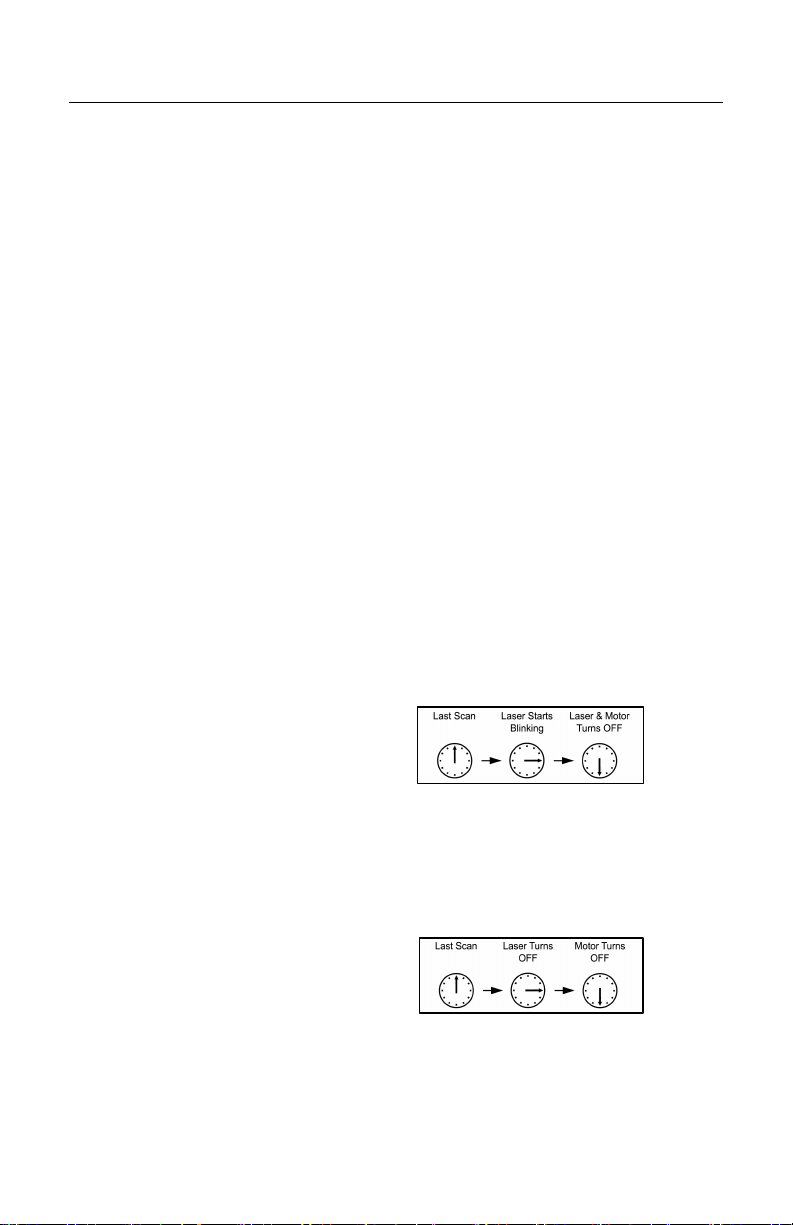

Power Save Modes ........................................................................................ 13
Primary and Secondary Scan Pattern Modes................................................. 14
Button Functions ............................................................................................ 14
Indicators
Audible ....................................................................................................... 17
Visual ......................................................................................................... 18
Failure ........................................................................................................ 19
Depth of Field Specifications
Normal Scan Zone ..................................................................................... 20
Reduced Scan Zone................................................................................... 20
Depth of Field by Bar Code Element Width
Normal Scan Zone ..................................................................................... 21
Reduced Scan Zone................................................................................... 22
ii
TABLE OF CONTENTS
Troubleshooting Guide ....................................................................................... 23
Design Specifications ......................................................................................... 27
Applications and Protocols ................................................................................. 29
Default Settings - Communication Parameters................................................... 30
Upgrading the Flash ROM Firmware.................................................................. 35
Scanner and Cable Terminations
Scanner Pinout Connections.......................................................................... 36

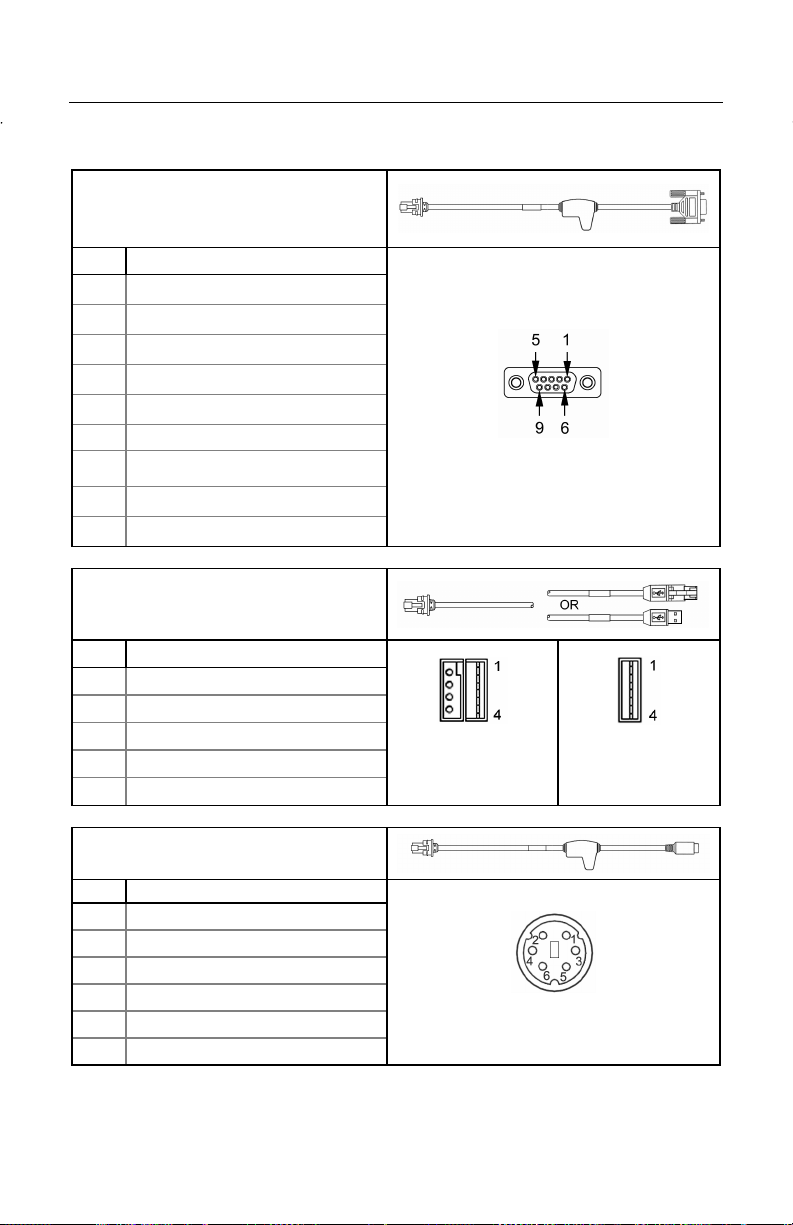

Cable Connector Configurations (Host End) .................................................. 37
Regulatory Compliance
Safety ............................................................................................................. 39
EMC ............................................................................................................... 40
Limited Warranty ................................................................................................ 42
Patents ............................................................................................................... 43
Index .................................................................................................................. 44
Contact Information and Office Locations........................................................... 46
iii
INTRODUCTION
OrbitCG
in retail, convenience, liquor and specialty stores Designed to be lightweight
and rugged, OrbitCG’s small size makes it ideal for applications where counter
space is limited. Its unique contoured shape allows it to be picked-up and used
as a hand-held scanner when scanning large or bulky items.
Key Product Features
™
is an aggressive, omnidirectional laser bar code scanner ideal for use
• Fully Automatic Scanning Operation
• Secondary Single-Line Scan Mode
• CodeGate
• Adjustable Scan Head
• User-Replaceable Single Cable Interface To Host (PowerLink Compatible)
• Integrated EAS Antenna
• 7 Beeper Tones
• Configurable Depth of Field
• Flash – Upgradeable Firmware
• OPOS and JPOS System Compatible
• Support For Common Interfaces Including USB (See Table Below)
• Easy Bar Code Configuration
ORBITCG
MODEL NUMBER
MS7180-38
®
Data Transmission Technology
RS232 Low Speed USB,
Keyboard Emulation Mode or Serial Emulation Mode*
INTERFACE
MS7180-41 RS232/Light Pen Emulation
MS7180-47
MS7180-106 IBM, Full Speed USB and RS232 Transmit/Receive
* Configurable for Keyboard Emulation Mode or Serial Emulation Mode.
Default setting is Keyboard Emulation Mode.
1
Keyboard Wedge,
Stand-Alone Keyboard and RS232 Transmit/Receive
INTRODUCTION
Scanner and Accessories
BASIC KIT COMPONENTS
Part No. Description
MS7180 OrbitCG Presentation Laser Bar Code Scanner
00-02284x
MS7180 OrbitCG Presentation Laser Bar Code Scanner
Installation and User’s Guide
00-02407x MetroSelect® Configuration Guide
* Guides also available for download at www.metrologic.com.
OPTIONAL ACCESSORIES
Part No. Description
AC to DC Power Transformer - Regulated 5.2VDC @ 1A output.
46-00525 120V United States, Canada and Japan
46-00526 220V-240V Continental European
46-00527 220V-240V United Kingdom
46-00528 220V-240V Australia
46-00529 220V-240V China
46-00530 220V-240V India
54-54000x -3
RS232 PowerLink Cable with Built in Power Jack
2.1 m (7 ft.) straight cord
MVC**
IBM Applications
Metrologic Voltage Converter Cable ±12VDC to +5.2VDC
** Contact a Metrologic customer service representative for additional
information on the MVC cable series and the host connections available.
Other items may be ordered for the specific protocol being used. To order additional items,
contact the dealer, distributor or call Metrologic’s customer service department at
1-800-436-3876
.
2
INTRODUCTION
Scanner and Accessories
OPTIONAL ACCESSORIES
Part No. Description
54-54002x-3
54-54020x-3
54-54213x-N-3
54-54214x-N-3
54-54235x-N-3
55-55000x-E-3
55-55165x-E-3
59-59002x-E-3
Keyboard Wedge PowerLink Cable
2.1 m (7 ft.) straight cord
Stand Alone Keyboard PowerLink Cable
2.1 m (7 ft.) straight cord
USB Full Speed Cable, Locking Plus-Power™ Type A
3 m (10 ft.) straight cord
USB Full Speed Cable, Locking Plus-Power™ Type A
5 m (17 ft.) straight cord
This cable is for use with full speed
USB (-106) interface only.
USB Low Speed Communication Cable, Type A
2.8 m (9.2 ft.) straight cord
RS232 PowerLink Cable with Built in Power Jack and
EAS Connection Wire (1 ft.)
1.8 m (6 ft.), straight cable, black
USB Low Speed PowerLink Cable with Built in Power
Jack, Type A and EAS Connection Wire (1 ft.)
2.8 m (9.2 ft.), straight cable, black
Keyboard Wedge PowerLink Cable with Built in Power
Jack and EAS Connection Wire (1 ft.)
2.1 m (7 ft.), straight cable, black
IBM PowerLink Cable with Built in Power Jack and EAS
59-59006x-E-3
45-45619 Counter/Wall Mount Kit
Other items may be ordered for the specific protocol being used. To order additional items,
contact the dealer, distributor or call Metrologic’s customer service department at
1-800-436-3876.
3
Connection Wire (1 ft.)
1.8 m (6 ft.), straight, black
INTRODUCTION
Scanner Components
ITEM NO
1 Mode Select Button/CodeGate Button (see page 14)
2 White LED (see page 17)
3 Blue LED (see page 17)
4 Red Output Window (Laser Aperture)
5 Speaker (see page 17)
6 10-Pin RJ45, Female Socket (see page 37)
7 Pin Hole for Cable Release
8 Adjustable Scan Head
Figure 1. Scanner Components
Cable Removal
Figure 2. Cable Release
DESCRIPTION
1. Locate the small ‘pin-hole’ on the
bottom of the scanner near the
cable.
2. Bend an ordinary paperclip into the
shape shown.
3. Insert the paperclip into the small
‘pin-hole’.
4. You will hear a faint ‘click’ when the
cable lock is released. Pull gently
on the strain-relief of the PowerLink
cable to remove it from the scanner.
4
INTRODUCTION
Caution and Serial Number Labels
Figure 3. Label Location on the Bottom of the Scanner with Example
Caution
To maintain compliance with applicable standards, all circuits connected to the scanner must
meet the requirements for SELV (Safety Extra Low Voltage) according to EN/IEC 60950-1.
To maintain compliance with standard CSA C22.2 No. 60950-1/UL 60950-1 and norm
EN/IEC 60950-1, the power source should meet applicable performance requirements for a
limited power source.
Maintenance
Smudges and dirt can interfere with the proper scanning of a bar code.
The output window should be routinely cleaned with glass cleaner sprayed onto a
lint free, non-abrasive cleaning cloth.
5
INTRODUCTION
Mounting Specifications
Optional Wall/Counter Mount
Item Description Qty.
a. Locking Plate, MLPN 50-50302 1
b. Base Cover, MLPN 50-50301 1
c. #7 x 1.00" Wood Screw, MLPN 18-18013 3
d. M3 x 8 mm Flathead Screw, MLPN 18-18004 4
1. Drill three #39 pilot holes.
Note the position OrbitCG will rest
(see Figure 5). Use the dimensions
provided in figure x or the locking
plate as a template to drill three
#39 pilot holes in the mounting
surface.
2. Attach the locking plate to the wall/counter.
Secure the locking plate to the counter/wall with the three #7 x 1.00" wood
screws provided (see Figure 6).
3. Attach the base plate to the OrbitCG.
Secure the base cover to the bottom of OrbitCG using the four M3 x 8 mm
screws provided (see Figure 7).
4. Mount OrbitCG to the locking plate.
Hold OrbitCG 90° clockwise from the desired position then lower it over the
locking plate until it sits flush to the countertop. Twist OrbitCG counter
clockwise 90° to lock the scanner in place (see Figure 8).
Figure 4. Kit Components
Figure 5.
6
Figure 6.
Figure 7.
Figure 8.
INSTALLATION
RS232, Light Pen Emulation
1. Turn off the host device.
2. Plug the male 10-pin RJ45 end
of the PowerLink cable into the
10-pin socket on the MS7180.
3. Connect the 9-pin female end of the
PowerLink cable to the host device.
4. Plug the external power supply into the
power jack on the PowerLink cable.
Check the AC input requirements
of the power supply to make sure
the voltage matches the AC outlet.
The outlet must be located near
the equipment and be easily
accessible.
5. Connect AC power to the transformer.
6. Turn on the host device.
Figure 9.
When the scanner first receives power, the blue and white LED will
toggle on and off then the scanner will beep once.
Plugging the scanner into the serial port of the PC does not guarantee
that scanned information will appear at the PC. A software driver and
correct configuration setting are also required for proper
communication to occur.
Powering the MS7180 directly from the host device can sometimes
cause interference with the operation of the scanner or the computer.
Not all computers supply the same current. For this reason,
Metrologic recommends using an external power supply. For
additional information contact a Metrologic customer service
representative.
See page 5.
7
INSTALLATION
IBM 46xx
1. Turn off the host device.
2. Plug the male 10-pin RJ45 end
of the MVC cable into the
10-pin socket on the MS7180.
3. Connect the other end of the MVC
cable to the host device.
4. Turn on the host device.
When the scanner first receives power, the blue and white LED will
toggle on and off then the scanner will beep once.
Plugging the scanner into the serial port of the PC does not
guarantee that scanned information will appear at the PC. A software
driver and correct configuration setting are also required for proper
communication to occur.
Figure 10.
8
INSTALLATION
Keyboard Wedge
1. Turn off the host device.
2. Plug the male 10-pin RJ45 end of the
PowerLink cable into the 10-pin
socket on the MS7180.
3. Disconnect the keyboard from the
host device.
4. Connect the “Y” end of the PowerLink
cable to the keyboard and the
keyboard port on the host PC. If
necessary use the male/female
adapter cable supplied with the
scanner for proper connections.
5. Plug the external power supply into the
power jack on the PowerLink cable.
Check the AC input requirements
of the power supply to make sure
the voltage matches the AC
outlet. The outlet must be
located near the equipment and
be easily accessible.
6. Connect AC power to the transformer.
7. Turn on the host device.
When the scanner first receives power, the blue and white LED will
toggle on and off then the scanner will beep once.
Powering the MS7180 directly from the host device can sometimes
cause interference with the operation of the scanner or the computer.
Not all computers supply the same current through the keyboard port.
For this reason, Metrologic recommends using an external power
supply. For additional information contact a Metrologic customer
service representative.
Figure 11.
See page 5.
9
INSTALLATION
Stand-Alone Keyboard
1. Turn off the host device.
2. Plug the male 10-pin RJ45 end
of the PowerLink cable into the
10-pin socket on the MS7180.
3. Connect the other end of the
PowerLink cable to the keyboard
port on the host device.
4. Plug the external power supply into
the power jack on the PowerLink
cable.
Check the AC input
requirements of the power
supply to make sure the
voltage matches the AC
outlet. The outlet must be
located near the equipment
and be easily accessible.
5. Connect AC power to the transformer.
6. Turn on the host device.
When the scanner first receives power, the blue and white LED will
toggle on and off then the scanner will beep once.
Figure 12.
Powering the MS7180 directly from the host device can sometimes
cause interference with the operation of the scanner or the computer.
Not all computers supply the same current through the keyboard port.
For this reason, Metrologic recommends using an external power
supply. For additional information contact a Metrologic customer
service representative.
See page 5.
10
INSTALLATION
Full Speed or Low Speed USB
1. Turn off the host device.
2. Plug the male 10-pin RJ45 end of
the USB cable into the 10-pin
socket on the MS7180.
3. Plug the other end of the USB
interface cable into the host
device’s USB port.
4. Turn on the host device.
When the scanner first receives
power, the blue and white LED
will toggle on and off then the
scanner will beep once.
As a default, the MS7180-38 leaves the factory with USB Keyboard
Emulation Mode enabled. Scan the following bar code to configure
the MS7180-38 for USB Serial Emulation Mode.
Figure 13.
³316460
Plugging the scanner into the USB port of the PC does not guarantee
that scanned information will appear at the PC. A software driver and
the correct configuration settings are also required for proper
communication to occur.
For Previous User’s of the MS7120 Orbit* with an MX009:
The following bar code must be scanned in order for the new
integrated USB MS7180 OrbitCG to function with the same serial
emulation driver as the old external USB MS7120.
³316470
* Orbit models before the MS7120 rev L.
11
INSTALLATION
EAS Deactivation
SW1 and SW2 are the switch banks inside the Checkpoint Device that set the
deactivation range. The following is a list of Checkpoint recommended switch
bank settings.
Checkpoint Recommended Switch Bank Settings
SW1 & SW2 switch 5 set to ON
All OrbitCG models are equipped with EAS capabilities. OrbitCG’s optional EAS
cable is equipped with additional wires for connection to a Checkpoint Device.
Figure 14. EAS Cable
Figure 15 shows the location of the EAS
deactivation area for OrbitCG.
It is important to pass the entire tag through
this area to deactivate the security tag.
12
Figure 15. EAS Deactivation Area
SCANNER OPERATION
POWER SAVE MODES
The OrbitCG has five configurable power save modes. Refer to the MetroSelect
Configuration Guide (
Modes.
1. The Blink Power Save Mode blinks the laser OFF & ON after a configured
period of non-use.
When the scanner recognizes a bar code, the scanner will exit the blink
power save mode.
MLPN 00-02407
x
) for additional information on Power Save
2. The Laser Off Power Save Mode turns the laser OFF after a configured
period of non-use. The motor continues to spin allowing for a faster “wake”
up time.
If the button is pressed, the scanner will “wake” from the power save mode.
3. The Laser & Motor Off Power Save Mode turns the laser and motor OFF
after a configured period of non-use.
If the button is pressed, the scanner will “wake” from the power save mode.
This mode’s “wake” time is slightly longer due to the motor’s need to restart.
4. The Dual Action Power Save Mode #1 (default mode) “blinks” the laser
OFF & ON after a configured period of non-use. The laser and motor will
then turn OFF at the next thirty-minute interval.
Example:
If the power save timeout
is set to 15 minutes.
If the button is pressed the scanner will “wake” from the power save mode.
5. The Dual Action Power Save Mode #2 turns the laser OFF after a
configured period of non-use. The motor will then turn OFF at the next
thirty-minute interval.
Example:
If the power save timeout
is set to 15 minutes.
If the button is pressed the scanner will “wake” from the power save mode.
13
SCANNER OPERATION
Primary and Secondary Scan Pattern Modes
There are two scan pattern modes available with the MS7180.
• The primary scan pattern mode is the default scan pattern active when the
scanner starts.
• The secondary scan pattern mode is activated by pressing the button
located on the top of the scanner. This mode is also referred to as the
button mode. For additional information on OrbitCG’s button modes and an
example of each, please refer to Button Functions below.
The scanner returns to the primary (omni) scan pattern mode after a
double click of the button or if the unit has not scanned a bar code for
the duration of a pre-configured time limit.
Button Functions
The button on the top of the MS7180 can be configured to function in one of
two modes.
• Button Click Mode, with CodeGate Enabled (Default)
• Button Click Mode, with CodeGate Disabled
The following pages include examples of how the button will function when the
unit has been configured to operate in each of the four button modes.
14
SCANNER OPERATION
Configurable Button Functions
SECONDARY SCAN PATTERN
UTTON CLICK MODE WITH CODEGATE ENABLED
B
1. The primary (omni) scan pattern is active
when the scanner starts.
2. To activate the secondary (single-line) scan
pattern, press and release the button.
3. To decode and transmit the bar code,
press and release* the button.
The scanner will beep once.
4. To reactivate the primary (omni) scan
pattern, double click the button or after
5-seconds of no-scanning the unit will
automatically reactivate the primary (omni)
pattern.
* The unit will continued to decode and transmit bar codes placed in the scanner’s scan
field if the button is held down.
15
SCANNER OPERATION
Configurable Button Functions
SECONDARY SCAN PATTERN
UTTON CLICK MODE WITH CODEGATE DISABLED
B
1. The primary (omni) scan pattern is active
when the scanner starts.
2. To activate the secondary (single-line) scan
pattern, press and release the button.
3. The unit will beep once as it decodes and
transmits the bar code.
4. To reactivate the primary (omni) scan
pattern, double click the button or after
5-seconds of no-scanning the unit will
automatically reactivate the primary (omni)
pattern.
16
SCANNER OPERATION
Audible Indicators
When the MS7180 is in operation, it provides audible feedback to indicate the
status of the scanner. Eight settings are available for the tone of the beep
(normal, 6 alternate tones and no tone). For instructions on how to change the
tone of the beeper, refer to the MetroSelect Configuration Guide (00-02407).
One Beep
When the scanner first receives power the blue and white LED will toggle on
and off. The scanner will beep once, then the LEDs will stop toggling and the
blue LED will remain on to indicate the scanner is ready to scan.
When the scanner successfully reads a bar code, the white LED will flash and
the scanner will emit a beep*. If the scanner does not beep once and the white
light does not flash, then the bar code has not been successfully read.
Razzberry Tone
This is a failure indicator. Refer to Failure Mode Indicators on page 19.
When in configuration mode, a razzberry tone indicates that an invalid bar code
has been scanned.
Three Beeps - During Operation
When entering configuration mode
white and blue LED will start to toggle on and off. The blue LED and the white
LED will toggle on and off until the scanner exits the configuration mode.
Upon exiting configuration mode†, the white LED will flash three times and the
scanner will beep three times. The blue LED will then stay on indicating the
scanner is ready to scan.
When using one-code-configuring, the scanner will emit a unique beep three
times after scanning. This indicates that the single configuration bar code has
successfully configured the scanner.
Three beeps* can also indicate a communications timeout during normal
scanning mode.
Three Beeps - On Power Up
This is a failure indicator. Refer to Failure Mode Indicators on page 19.
* This feature is configuration dependent. Refer to the MetroSelect Configuration Guide
to enable this feature.
†
Refer to the Multi-Code Configuration Method in the MetroSelect Configuration Guide.
†
the scanner will beep three times and the
17
SCANNER OPERATION
Visual Indicators
The MS7180 is equipped with a blue and a white LED that indicates the
scanner’s state and the status of the current scan when the unit is in operation.
Figure 16. LED Location
No LEDs
The LEDs will not be illuminated if the scanner is not receiving power from the
host or transformer.
Steady Blue
When the laser is active, the blue LED is illuminated. The blue LED will remain
on until the laser is deactivated.
During the power save mode, the laser will turn on and off. During this period,
the blue LED will remain on.
Steady Blue and Single White Flash
When the scanner successfully reads a bar code, the white LED will flash and
the scanner will beep once. If the white LED does not flash or the scanner
does not beep once, then the bar code has not been successfully read.
Steady White and Blue
After a successful scan, the scanner transmits the data to the host device.
Some communication modes require that the host inform the scanner when
data is ready to be received. If the host is not ready to accept the information,
the scanner’s white LED will remain on until the data can be transmitted.
Alternating (Toggling) Blue and White
This indicates the scanner is in configuration mode. A razzberry tone indicates
that an invalid bar code has been scanned in this mode.
18
SCANNER OPERATION
Failure Mode Indicators
Flashing Blue with One Razzberry Tone
This indicates that the scanner has experienced a laser subsystem failure.
Return the unit to an authorized service center for repair.
Synchronized Flashing of Blue and White with Two Razzberry Tones
This indicates that the scanner has experienced a motor failure. Return the unit
to an authorized service center for repair.
Three Beeps - On Power Up
If the scanner beeps 3 times on power up, then the nonvolatile memory that
holds the scanner configuration may have failed. First, check the scanner’s
settings. Then, try to re-configure the scanner. If the problem persists return
the unit to an authorized service center for repair.
19
SCANNER OPERATION
Depth of Field Specifications*
Normal Scan Zone
Specifications are based on a 0.33 mm (13 mil) bar code.
Figure 17. MS7180 Normal Depth of Field
Reduced Scan Zone
Specifications are based on a 0.33 mm (13 mil) bar code.
Figure 18. MS7180 Reduced Depth of Field
* All specifications are subject to change without notice.
20
SCANNER OPERATION
Depth of Field by Bar Code Element Width*
Normal Scan Zone
MINIMUM BAR CODE ELEMENT WIDTH
A B C D E F G H J K
mm .13 - - - .19 - .25 .33 - .66
mils 5.2 - - - 7.5 - 10 13 - 26
Figure 19. Normal Scan Zone by Bar Code Element Width
* All specifications are subject to change without notice.
21
SCANNER OPERATION
Depth of Field by Bar Code Element Width*
Reduced Scan Zone
MINIMUM BAR CODE ELEMENT WIDTH
A B C D E F G H J K
mm - .15 - - .19 - .25 .33 - .66
mils - 5.7 - - 7.5 - 10 13 - 26
Figure 20. Reduced Scan Zone by Bar Code Element Width
* All specifications are subject to change without notice.
22
TROUBLESHOOTING GUIDE
The following guide is for reference purposes only. Contact a Metrologic
representative at 1-800-ID-METRO or 1-800-436-3876 to preserve the limited
warranty terms on page 42.
Symptoms Possible Cause(s) Solution
All Interfaces
During power
up the unit
beeps 3 times.
During power
up the unit
razzes once
and the blue
LED flashes.
During power
up the unit
razzes twice
and both LEDs
flash in unison.
The unit has no
LEDs, beeper
or motor spin.
The unit has no
LEDs and / or
beeper.
There is a non-volatile
RAM failure.
There is a VLD failure.
There is a scanner
motor failure.
No power is being
supplied to the
scanner.
The unit may be in
power save mode.
No power is being
supplied to the
scanner from host.
The unit may be in
power save mode.
Contact a Metrologic service
representative.
Contact a Metrologic service
representative.
Contact a Metrologic service
representative.
Check the transformer, outlet
and power strip. Make sure the
cable is plugged into the
scanner.
Push the button to “wake” the
unit.
Some host systems cannot
supply enough current to power
the OrbitCG. Use the power
supply included with the
scanner.
Push the button to “wake” the
unit.
The unit powers
up but does not
beep.
The beeper is disabled. Enable the beeper.
No tone is selected. Select a tone.
23
TROUBLESHOOTING GUIDE
Symptoms Possible Cause(s) Solution
All Interfaces
The unit powers
up but does not
scan and/or
beep.
The unit scans
a bar code, but
locks up after
the first scan
(the white LED
stays on).
The unit scans
but the data
transmitted to
the host is
incorrect.
The unit is trying to
scan a particular
symbology that is not
enabled.
The scanner has been
configured for a
character length lock,
or a minimum length
and bar code being
scanned does not
satisfy the configured
criteria.
The scanner is
configured to support
some form of host
handshaking but is not
receiving the signal.
The scanner’s data
format does not match
the host system
requirements.
UPC/EAN, Code 39, Interleaved
2 of 5, Code 93, Code 128 and
Codabar are enabled by default.
Verify that the type of bar code
being read has been selected
Verify that the bar code that is
being scanned falls into the
criteria.
Typical of Non-UPC/EAN codes.
The scanner defaults to a
minimum of 4 character bar
code.
If the scanner is setup to support
ACK/NAK, RTS/CTS,
XON/XOFF or D/E, verify that
the host cable and host are
supporting the handshaking
properly.
Verify that the scanner’s data
format matches the format
required by the host.
Make sure that the scanner is
connected to the proper host
port.
There are
multiple scans
upon
presentation of
code.
24
The same symbol
timeout is set too
short.
Adjust the same symbol timeout
for a longer time increment.
TROUBLESHOOTING GUIDE
Symptoms Possible Cause(s) Solution
All Interfaces
Scanner beeps
at some bar
codes and NOT
for others of the
same bar code
symbology.
RS232 Only
The unit powers
up OK and
scans OK but
does not
communicate
properly to the
host.
The print quality of the
bar code is suspect.
The aspect ratio of the
bar code is out of
tolerance.
The bar code may
have been printed
incorrectly.
The scanner is not
configured correctly for
the type of bar code.
The minimum symbol
length setting does not
work with the bar code.
The com port at the
host is not working or
is not configured
properly.
The cable is not
connected to the
proper com port.
The type of printer and/or the
printer settings could be the
problem.
Check the print mode or change
the printer settings. For
example, change to econo mode
or high speed.
Check if it is a check digit,
character or border problem.
Check if check digits are set
properly.
Check if the correct minimum
symbol length is set.
Check to make sure that the
baud rate and parity of the
scanner and the communication
port match and that the program
is looking for RS232 data.
The com port is not
operating properly.
25
TROUBLESHOOTING GUIDE
Symptoms Possible Cause(s) Solution
RS232 Only
The host is
receiving data
but the data does
not look correct.
Characters are
being dropped.
Keyboard Wedge Only
The unit scans
the bar code
but there is no
data.
The unit scans
but the data is
not correct.
The unit is not
transmitting
each character.
The scanner and host
may not be configured
for the same interface.
The inter character
delay needs to be
added to the
transmitted output.
The unit may not be
configured correctly.
The unit may not be
configured correctly.
The unit may not be
configured correctly.
Check that the scanner and the
host are configured for the same
interface.
Add some inter-character delay to
the transmitted output by using
the MetroSelect Configuration
MLPN 00-02407).
Guide (
Make sure the scanner is
configured for the appropriate
mode.
Make sure that the proper PC
type (i.e. AT or PS2) is selected.
Verify correct country code and
data formatting are selected.
Adjust the inter-scan delay.
Increase the inter-scan code
delay setting. Adjust whether
the F0 break is transmitted. It
may be necessary to try both
settings.
Alpha characters
show as lower
case.
Everything
works except
for a couple of
characters.
26
The computer is in
caps lock mode.
These characters may
not be supported by
the current country’s
key look up table.
Enable caps lock detect setting
of the scanner to detect whether
the PC is operating in caps lock.
Try operating the scanner
in Alt Mode.
DESIGN SPECIFICATIONS
MS7180
Operational
Light Source: Visible Laser Diode (VLD) @ 650 nm
Laser Power: Less than 1 mW average
Normal Depth of Field: 0 mm - 275 mm
Reduced Depth of Field: 0 mm - 190 mm
Scan Speed: 1120 scan lines per second
No. of Scan Lines: 20
Motor Speed: 3360 RPM
Min Bar Width: 0.13 mm (5.0 mil)
Decode Capability:
System Interfaces:
Print Contrast: 35% minimum reflectance difference
No. Characters Read:
Beeper Operation: 7 tones or no beep
All standard 1-D bar codes including RSS-14,
RSS-Expanded, and RSS-14 Limited
RS232, Keyboard Wedge, Stand-Alone Keyboard, Light Pen
Emulation, IBM 46xx, USB (low speed and full speed)
Up to 80 data characters
Maximum number will vary based on symbology and density.
0.33 mm (13 mil) bar code
Indicators (LED):
Mechanical
Width: Base - 102 mm (4.0") Orb - 80 mm (3.1")
Depth : 105 mm (4.1")
Height: 150 mm (5.9")
Weight: 14.5 oz (410 g)
Orb Tilt: 30° Vertical
Blue = laser on, ready to scan
White = good read, decoding
Specifications are subject to change without notice.
27
DESIGN SPECIFICATIONS
MS7180
Electrical
Voltage Supply: 5VDC ± 0.25V
Operating Power: 0.9 W
Standby Power: 0.85 W
Operating Current: 180 mA typical at 5VDC
Standby Current: 170 mA typical at 5VDC
DC Transformers: Class II; 5.2VDC @ 1 A
Blink Power Save Mode 0.85 W
Laser & Motor Off Power Save Mode 0.50 W
For regulatory compliance information, see pages 39 - 41.
Environmental
Operating Temperature: -20°C to 40°C (-4°F to 104°F)
Storage Temperature: -40°C to 60°C (-40°F to 140°F)
Humidity: 5% to 95% relative humidity, non-condensing
Contaminants: Sealed to resist airborne particulate contaminants
Ventilation: None required
Specifications are subject to change without notice.
28
APPLICATIONS AND PROTOCOLS
The model number on each scanner includes the scanner number and factory
default communications protocol.
ERSION
CANNER
S
MS7180
The MS7180 scanner with built-in PC Keyboard Wedge Interface is designed to
be used for keyboard emulation only. Many RS232 configurable
functions (e.g. formatting) available in other Metrologic scanners are also
available as keyboard wedge functions.
The following are the most important selectable options specific to the keyboard
wedge.
Keyboard Type
• ** AT (includes IBM® PS2 models 50, 55, 60, 80)
• IBM PS2 (includes models 30, 70, 8556)
Keyboard Country Type
• USA ** • German • Spanish • United Kingdom
• Belgium • Italian • Swiss
• French • Japan • Sweden/Finland
** Default setting. For a complete list of default settings, see the Default
Settings - Communication Parameters table starting on page 30 of this
guide. Refer to the MetroSelect
MetroSet2’s help files for information on how to change the default settings.
V
IDENTIFIER
38
RS232 Low Speed USB,
Keyboard Emulation or Serial Emulation
COMMUNICATION PROTOCOL(S)
41 Full RS232C/Light Pen Emulation
47
Keyboard Wedge, Stand-Alone Keyboard and
RS232 Transmit/Receive
106 IBM, Full Speed USB and RS232 Transmit/Receive
®
Configuration Guide (MLPN 00-02407) or
29
DEFAULT SETTINGS - COMMUNICATION PARAMETERS
Many functions of the scanner can be "configured" - that is enabled or disabled.
The scanner is shipped from the factory configured to a set of default conditions.
The default parameter of the scanner has an asterisk ( * ) in the charts on the
following pages. If an asterisk is not in the default column then the default setting
is off or Disabled. Every interface does not support every parameter. If the
interface supports a parameter listed in the charts on the following pages, a
check mark () will appear.
PARAMETER DEFAULT RS232
LIGHT
PEN
IBM
46XX
KBW USB
UPC/EAN
Code 128
Code 93
Codabar
Interleaved 2 of 5 (ITF)
MOD 10 Check on ITF
Code 11
Code 39
Full ASCII Code 39
MOD 43 Check on Code 39
MSI-Plessey
MSI-Plessey
10/10 Check Digit
MSI-Plessey
MOD 10 Check Digit
Paraf Support
ITF Symbol Lengths
Minimum Symbol Length
Symbol Length Lock
RSS14 Enable
RSS14 ID “]e0”
RSS14 App ID “01”
RSS14 Check Digit
RSS Expanded Enable
*
*
*
*
*
*
*
Variable
4
None
*
*
*
30
DEFAULT SETTINGS - COMMUNICATION PARAMETERS
PARAMETER DEFAULT RS232
LIGHT
PEN
IBM
46XX
KBW USB
Expanded ID “]e0”
RSS Limited Enable
RSS Limited ID “]e0”
RSS Limited App ID “01”
RSS Limited Check Digit
Bars High as Code 39
Spaces High as Code 39
Bars High as Scanned
Spaces High as Scanned
DTS/SIEMENS
DTS/NIXDORF
NCR F
NCR S
Poll Light Pen Source
Beeper Tone
Beep/Transmit Sequence
Communication Timeout
Razzberry Tone on Timeout
Three Beeps on Timeout
No Beeps on Timeout
Enter Power Save Mode
*
*
*
*
*
*
Normal
Before Transmit
None
*
5 mins.
Same Symbol Rescan Timeout:
500 msecs Configurable in 50
msec steps (MAX 6.35 seconds)
Intercharacter Delay
Configurable in 1 msec steps
(MAX 255 msecs)
Number of Scan Buffers
*
1 msecs
10 msecs in KBW
1
31
DEFAULT SETTINGS - COMMUNICATION PARAMETERS
PARAMETER DEFAULT RS232
LIGHT
PEN
IBM
46XX
KBW USB
Transmit UPC-A
Check Digit
Transmit UPC-E
Check Digit
Expand UPC-E
Convert UPC-A to EAN-13
Transmit Lead Zero on
UPC-E
Convert EAN-8 to EAN-13
Transmit UPC-A
Number System
Transmit UPC-A Manufacturer
ID#
Transmit UPC-A Item ID#
Transmit Codabar
Start/Stop Characters
CLSI Editing (Enable)
Transmit Mod 43 Check Digit on
Code 39
Transmit Code 39
Stop/Start Characters
Transmit Mod 10/ITF
Transmit MSI-Plessey Check
Characters
Parity
Baud Rate
8 Data Bits
7 Data Bits
Stop Bits
Transmit Sanyo ID Characters
*
*
*
*
Space
9600
*
2
32
DEFAULT SETTINGS - COMMUNICATION PARAMETERS
PARAMETER DEFAULT RS232
LIGHT
PEN
IBM
46XX
KBW USB
Nixdorf ID
LRC Enabled
UPC Prefix
UPC Suffix
Transmit AIM ID Characters
STX Prefix
ETX Suffix
Carriage Return
Line Feed - disabled by default
in KBW
Tab Prefix
Tab Suffix
“DE” Disable Command
“FL” Laser Enable Command
DTR Handshaking Support
RTS/CTS Handshaking
*
*
Serial
Emulation
Mode Only
Serial
Emulation
Mode Only
Character RTS/CTS
Message RTS/CTS
XON/XOFF Handshaking
ACK/NAK
Two Digit Supplements
Five Digit Supplements
Bookland
977 (2 digit) Supplemental
Requirement
*
as
code 39
code 39
code 39
as
as
33
Serial
Emulation
Mode Only
Serial
Emulation
Mode Only
DEFAULT SETTINGS - COMMUNICATION PARAMETERS
PARAMETER DEFAULT RS232
Supplements are not Required
Two Digit Redundancy
Five Digit Redundancy
100 msec to Find Supplement
Configurable in 100 msec steps
(MAX 800 msec)
Coupon Code 128
Configurable Code Lengths
Configurable Prefix Characters
Configurable Suffix Characters
Prefixes for individual Code
Types
Editing
Inter Scan-Code Delay
Configurable
(100 µsec steps)
Function/Control Key Support
LIGHT
PEN
*
*
*
7 avail.
10 avail.
10 avail.
800 µsec
code 39
IBM
46XX
as
KBW USB
Keyboard
Emulation
Mode Only
Configurable in 5.6 µsec steps
CodeGate Enabled
Scan Pattern Timeout
Normal Depth of Field
Reduced Depth of Field
34
1 msec
*
5 sec.
*
UPGRADING THE FLASH ROM FIRMWARE
The MetroSet2 program is a functional component of Metrologic’s new line of
Flash-based scanners. This program allows the user of a Metrologic scanner to
quickly upgrade to a new or custom version of firmware. It requires the use of a
personal computer running Windows 95 or greater and the use of a serial port.
The user merely connects the scanner to a serial port on the PC, launches the
MetroSet2 program, and blasts off to new software upgrades.
Each MS7180, regardless of the communication protocol, can be upgraded.
All RS232 (-41), keyboard wedge (-47), light pen (-41), IBM (106), low speed
USB (-38), and full speed USB (-106), units can be upgraded. To upgrade all
units, a power supply and a PowerLink cable (
RS232 units can be upgraded using the standard PowerLink cable
(
MLPN 54-54000x-3).
The program guides the user with its simplistic one click approach. The user
must first select the file. Once the file is selected and verified, the scanner is
ready to be upgraded. Press the “Flash Scanner” button to upgrade the scanner.
The unit will go into a “flash mode”. The user can follow the progress of the
upgrade by watching the screen for details. When the upgrade is complete, the
scanner will respond with its normal one beep on power up. If the scanner did
not upgrade properly there will be an error message in MetroSet. Contact a
Metrologic service representative for additional assistance.
MLPN 54-54014) are required.
35
SCANNER AND CABLE TERMINATIONS
Scanner Pinout Connections
The MS7180 scanner interfaces terminate to a 10-pin modular socket.
The serial # label indicates the interface enabled when the scanner is shipped
from the factory.
MS7180-47 Keyboard Wedge
and Stand-Alone Keyboard
Pin Function Pin Function
1 Ground 1 Ground
2 RS232 Transmit Output 2 RS232 Transmit Output
3 RS232 Receive Input 3 RS232 Receive Input
4 PC Data 4 RTS Output
5 PC Clock 5 CTS Input
6 KB Clock 6 DTR Input/LTPN Source
7 PC +5V 7 Reserved
8 KB Data 8 LTPN Data
9 +5VDC 9 +5VDC
10 Shield Ground
MS7180-106
IBM 468X/469X and Full Speed USB
Pin Function Pin Function
1 Ground 1 Ground
2 RS232 Transmit Output 2 RS232 Transmit Output
3 RS232 Receive Input 3 RS232 Receive Input
4 IBM A+ 4 RTS Output
5 IBM B- 5 CTS Input
6 USB D+ 6 D+
7 USB +V 7 V USB
8 USB D- 8 D9 +5VDC 9 +5VDC
10 Shield Ground
Figure 21.
MS7180-41
RS232C and Light Pen Emulation
10 Shield Ground
MS7180-38
RS232 Low Speed USB
10 Shield Ground
36
SCANNER AND CABLE TERMINATIONS
Cable Connector Configurations (Host End)
“Standard” PowerLink Cable
MLPN 54-54000
Pin Function
1 Shield Ground
2 RS232 Transmit Output
3 RS232 Receive Input
4 DTR Input/Light Pen Source
5 Power/Signal Ground
6 Light Pen Data
7 CTS Input
8 RTS Output
9 +5VDC
USB Power/Communication Cable
MLPN 54-54213
54-54214x-N-3 or 54-54235x-N-3
Pin Function
1 PC +5V/V_USB
2 D3 D+
4 Ground
Shield Shield
Stand Alone Keyboard PowerLink
MLPN 54-54020
Cable
Pin Function
1 PC Data
2 No Connect
3 Power Ground
4 +5VDC PC Power to KB
5 PC Clock
6 No Connect
x
-3 straight
x
-N-3,
x
-3
9-Pin D-Type Connector
Locking, Type A
MLPN 54-54213
MLPN 54-54214
6-Pin Male Mini-DIN Connector
x
-N-3 or
x
-N-3
Non-Locking, Type A
MLPN
54-54214x-N-3
37
SCANNER AND CABLE TERMINATIONS
Cable Connector Configurations (Host End)
Keyboard Wedge PowerLink Cable
54-54002x -3
Pin Function
1 Keyboard Clock
2 Keyboard Data
3 No Connect
4 Power Ground
5 +5 Volts DC
5-Pin DIN, Female
Pin Function
1 PC Data
2 No Connect
3 Power Ground
4 +5 Volts DC
5 PC Clock
6-Pin DIN, Male
6 No Connect
Metrologic will supply an adapter cable with a 5-pin DIN male connector on one
end and a 6-pin mini DIN female connector on the other. According to the
termination required, connect the appropriate end of the adapter cable to the
PowerLink cable, leaving the necessary termination exposed for connecting to
the keyboard and the keyboard port on the PC.
Keyboard Wedge Adapter Cable
Pin Function
1 PC Clock
2 PC Data
3 No Connect
4 Power Ground
5-Pin DIN, Male
5 +5 Volts DC
Pin Function
1 Keyboard Data
2 No Connect
3 Power Ground
4 +5 Volts DC
5 Keyboard Clock
6-pin Mini DIN, Female
6 No Connect
38
REGULATORY COMPLIANCE
Safety
ITE Equipment
IEC 60950-1, EN 60950-1
Laser
Laser Class 1: IEC 60825-1:1993+A1+A2,
Caution
Use of controls or adjustments or performance of procedures other than those specified
herein may result in hazardous laser light exposure. Under no circumstances should the
customer attempt to service the laser scanner. Never attempt to look at the laser beam,
even if the scanner appears to be nonfunctional. Never open the scanner in an attempt to
look into the device. Doing so could result in hazardous laser light exposure. The use of
optical instruments with the laser equipment will increase eye hazard.
Atención
La modificación de los procedimientos, o la utilización de controles o ajustes distintos de
los especificados aquí, pueden provocar una luz de láser peligrosa. Bajo ninguna
circunstancia el usuario deberá realizar el mantenimiento del láser del escáner. Ni intentar
mirar al haz del láser incluso cuando este no esté operativo. Tampoco deberá abrir el
escáner para examinar el aparato. El hacerlo puede conllevar una exposición peligrosa a
la luz de láser. El uso de instrumentos ópticos con el equipo láser puede incrementar el
riesgo para la vista.
Attention
L'emploi de commandes, réglages ou procédés autres que ceux décrits ici peut entraîner
de graves irradiations. Le client ne doit en aucun cas essayer d'entretenir lui-même le
scanner ou le laser. Ne regardez jamais directement le rayon laser, même si vous croyez
que le scanner est inactif. N'ouvrez jamais le scanner pour regarder dans l'appareil. Ce
faisant, vous vous exposez à une rayonnement laser qú êst hazardous. L'emploi
d'appareils optiques avec cet équipement laser augmente le risque d'endommagement de
la vision.
Achtung
Die Verwendung anderer als der hier beschriebenen Steuerungen, Einstellungen oder
Verfahren kann eine gefährliche Laserstrahlung hervorrufen. Der Kunde sollte unter keinen
Umständen versuchen, den Laser-Scanner selbst zu warten. Sehen Sie niemals in den
Laserstrahl, selbst wenn Sie glauben, daß der Scanner nicht aktiv ist. Öffnen Sie niemals
den Scanner, um in das Gerät hineinzusehen. Wenn Sie dies tun, können Sie sich einer
gefährlichen Laserstrahlung aussetzen. Der Einsatz optischer Geräte mit dieser
Laserausrüstung erhöht das Risiko einer Sehschädigung.
Attenzione
L’utilizzo di sistemi di controllo, di regolazioni o di procedimenti diversi da quelli descritti nel
presente Manuale può provocare delle esposizioni a raggi laser rischiose. Il cliente non
deve assolutamente tentare di riparare egli stesso lo scanner laser. Non guardate mai il
raggio laser, anche se credete che lo scanner non sia attivo. Non aprite mai lo scanner per
guardare dentro l’apparecchio. Facendolo potete esporVi ad una esposizione laser
rischiosa. L’uso di apparecchi ottici, equipaggiati con raggi laser, aumenta il rischio di
danni alla vista..
39
EN 60825-1:1994+A1+A2
REGULATORY COMPLIANCE
EMC
Emissions: FCC Part 15, ICES-003, CISPR 22, EN 55022
Immunity: CISPR 24, EN 55024
Class A Devices
Unintentional Radiators
The following is applicable when the scanner cable is greater in length than 3
meters (9.8 feet) when fully extended:
Les instructions ci-dessous s’appliquent aux cables de scanner dépassant 3
métres (9.8 pieds) de long en extension maximale:
Folgendes trifft zu, wenn das Scannerkabel länger als 3 Meter ist:
This equipment has been tested and found to comply with limits for a Class A digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when the equipment is operated in a
commercial environment. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instruction manual,
may cause harmful interference to radio communications. Operation of this equipment in
a residential area is likely to cause harmful interference, in which case the user will be
required to correct the interference at their own expense. Any unauthorized changes or
modifications to this equipment could void the user’s authority to operate this device.
This device complies with part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) This device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause undesired
operation.
Notice
This Class A digital apparatus complies with Canadian ICES-003.
Remarque
Cet appareil numérique de classe A est conforme à la norme canadienne NMB-003.
European Standard
Warning
This is a class A product. In a domestic environment this product may cause radio
interference in which case the user may be required to take adequate measures.
Funkstöreigenschaften nach EN55022:1998
Warnung!
Dies ist eine Einrichtung der Klasse A. Diese Einrichtung kann im Wohnbereich
Funkstörungen verursachen. In diesem Fall kann vom Betreiber verlangt werden,
angemessene Massnahmen durchzuführen.
Standard Europeo
Attenzione
Questo e’ un prodotto di classe A. Se usato in vicinanza di residenze private potrebbe
causare interferenze radio che potrebbero richiedere all’utilizzatore opportune misure.
Attention
Ce produit est de classe “A”. Dans un environnement domestique, ce produit peut être
la cause d’interférences radio. Dans ce cas l’utiliseteur peut être amené à predre les
mesures adéquates.
40
REGULATORY COMPLIANCE
EMC
Class B Devices
Unintentional Radiators
The following is applicable when the scanner cable is less than 3 meters (9.8 feet) in
length when fully extended:
Les instructions ci-dessous s’appliquent aux cables de scanner ne dépassant pas 3
métres (9.8 pieds) de long en extension maximale:
Folgendes trifft zu, wenn das Scannerkabel kürzer als 3 Meter ist:
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) This device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause undesired
operation.
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna
• Increase the separation between the equipment and receiver
• Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected
• Consult the dealer or an experienced radio/TV technician for help
Notice
This Class B digital apparatus complies with Canadian ICES-003.
Remarque
Cet appareil numérique de classe B est conforme à la norme canadienne NMB-003.
41
LIMITED WARRANTY
The MS7180 OrbitCG™ scanners are manufactured by Metrologic at its Blackwood, New Jersey, U.S.A.
facility. The MS7180 OrbitCG scanners have a three (3) year limited warranty from the date of
manufacture. Metrologic warrants and represents that all MS7180 OrbitCG scanners are free of all
defects in material, workmanship and design, and have been produced and labeled in compliance with
all applicable U.S. Federal, state and local laws, regulations and ordinances pertaining to their
production and labeling.
This warranty is limited to repair, replacement of product or refund of product price at the sole discretion
of Metrologic. Faulty equipment must be returned to one of the following Metrologic repair facilities:
Blackwood, New Jersey, USA; Madrid, Spain; or Suzhou, China. To do this, contact the appropriate
Metrologic Customer Service/Repair Department to obtain a Returned Material Authorization (RMA)
number.
In the event that it is determined the equipment failure is covered under this warranty, Metrologic
shall, at its sole option, repair the Product or replace the Product with a functionally equivalent unit
and return such repaired or replaced Product without charge for service or return freight, whether
distributor, dealer/reseller, or retail consumer, or refund an amount equal to the original purchase
price.
This limited warranty does not extend to any Product which, in the sole judgment of Metrologic,
has been subjected to abuse, misuse, neglect, improper installation, or accident, nor any damage
due to use or misuse produced from integration of the Product into any mechanical, electrical or
computer system. The warranty is void if the case of Product is opened by anyone other than
Metrologic’s repair department or authorized repair centers.
THIS LIMITED WARRANTY, EXCEPT AS TO TITLE, IS IN LIEU OF ALL OTHER WARRANTIES
OR GUARANTEES, EITHER EXPRESS OR IMPLIED, AND SPECIFICALLY EXCLUDES,
WITHOUT LIMITATION, WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE UNDER THE UNIFORM COMMERCIAL CODE, OR ARISING OUT OF
CUSTOM OR CONDUCT. THE RIGHTS AND REMEDIES PROVIDED HEREIN ARE
EXCLUSIVE AND IN LIEU OF ANY OTHER RIGHTS OR REMEDIES. IN NO EVENT SHALL
METROLOGIC BE LIABLE FOR ANY INDIRECT OR CONSEQUENTIAL DAMAGES,
INCIDENTAL DAMAGES, DAMAGES TO PERSON OR PROPERTY, OR EFFECT ON
BUSINESS OR PROPERTY, OR OTHER DAMAGES OR EXPENSES DUE DIRECTLY OR
INDIRECTLY TO THE PRODUCT, EXCEPT AS STATED IN THIS WARRANTY. IN NO EVENT
SHALL ANY LIABILITY OF METROLOGIC EXCEED THE ACTUAL AMOUNT PAID TO
METROLOGIC FOR THE PRODUCT. METROLOGIC RESERVES THE RIGHT TO MAKE ANY
CHANGES TO THE PRODUCT DESCRIBED HEREIN.
CORPORATE HEADQUARTERS,
NORTH AMERICA
Metrologic Instruments, Inc. Metrologic Eria Ibérica, SL
90 Coles Rd. C/Alfonso Gomez, 38-40, 1D
Blackwood, NJ 08012-4683 28037 Madrid
Customer Service Department Tel: +34 913 751 249
Tel: 1-800-ID-METRO Fax: +34 913 270 437
Fax: 856-228-6673
Email: info@metrologic.com
MTLG
AUTO ID INSTRUMENTS (SHANGHAI) CO., LTD
Suzhou Sales Office
BLK A, Room# 03/03-04
No.5 Xinghan Street, Xinsu Industrial Square
China-Singapore Suahou Industrial Park, Suzhou, PRC
Tel: 86-512-67622550
Fax: 86-512-67622560
Email: info@cn.metrologic.com
42
METROLOGIC EUROPEAN REPAIR CENTER
(MERC)
PATENTS
Patent Information
This METROLOGIC product may be covered by, but not limited to, one or more
of the following U.S. Patents:
U.S. Patent No.;
4,960,985; 5,081,342; 5,216,232; 5,260,553; 5,340,971; 5,340,973;
5,424,525; 5,468,951; 5,484,992; 5,525,789; 5,528,024; 5,557,093;
5,591,953; 5,616,908; 5,627,359; 5,637,852; 5,661,292; 5,777,315;
5,789,730; 5,789,731; 5,811,780; 5,828,048; 5,844,227; 5,925,870;
6,029,894; 6,098,885; 6,209,789; 6,257,492; 6,283,375; 6,286,760;
6,299,067; 6,347,743; 6,412,696; 6,460,767; 6,607,133; D408,806
No license right or sublicense is granted, either expressly or by implication,
estoppel, or otherwise, under any METROLOGIC or third party intellectual
property rights (whether or not such third party rights are licensed to
METROLOGIC), including any third party patent listed above, except for an
implied license only for the normal intended use of the specific equipment,
circuits, and devices represented by or contained in the METROLOGIC products
that are physically transferred to the user, and only to the extent of
METROLOGIC’S license rights and subject to any conditions, covenants and
restrictions therein.
Other worldwide patents pending.
43
INDEX
A
AC .................................. see power
accessories ...............................2, 3
adapter ....................................9, 38
audible indicator .......................... 14
B
bar width...................................... 27
beep ............................see indicator
blue .............................see indicator
C
cable
communication. 2, 3, 4, 7–11, 37–
38
EAS..........................................12
pin assignments...........36, 37–38
caution..................................... 5, 39
CE ..........................see compliance
class ............................................41
communication
parameters.........................30–34
compliance ........................ 5, 39, 40
configuration
default................................30–34
current .........................................28
customer service ................... 42, 46
H
hole pattern................................... 6
host ....................................... 23–26
I
IBM .............................see interface
immunity...................................... 40
indicator
audible.. 4, 14, 17–19, 23–26, 27,
30–34
failure ...................................... 19
visual ........... 4, 17–19, 23–26, 27
interface ................................ 27, 29
IBM............................ 1, 8, 30–34
Keyboard Wedge. 1, 3, 9, 26, 30–
34
Light Pen ................... 1, 7, 30–34
RS232 ....... 1, 2, 7, 25, 26, 30–34
Stand-Alone Keyboard .... 1, 3, 10
USB........... 1, 2, 3, 11, 12, 30–34
K
keyboard
country..................................... 29
type ......................................... 29
keyboard emulation mode........... 11
Keyboard Wedge ........see interface
D
DC .................................. see power
default settings .... 14, 15, 29, 30–34
depth of field
normal.................... 20, 21, 27, 34
reduced..................20, 22, 27, 34
E
EAS .............................................12
EMC ............................................40
EMI..............................................40
emissions ....................................40
F
flash...............................................1
44
L
label ..............................................5
laser ........................................ 4, 39
LED.............................see indicator
Light Pen.....................see interface
light source.................................. 27
M
manual .......................................... 2
modes ......................................... 13
motor speed................................ 27
N
notices ........................................ 41
INDEX
O
operation .....................................41
P
patents.........................................43
PC ...............................................38
pin assignments
cable ..................................37–38
scanner....................................36
port ..............................7–11, 23–26
power ..................2, 3, 7–11, 27, 28
power save..................................13
PowerLink........................ see cable
protocol........................................29
R
razz .............................see indicator
RMA ............................................42
RS232 ........................ see interface
S
safety..................................... 39, 41
scan lines ....................................27
scan pattern.................................27
horizontal raster .......................14
scan speed..................................27
scan zone.............see depth of field
serial emulation mode .................11
specification
electrical .................................. 28
environmental..........................28
mechanical .............................. 28
operational............................... 27
Stand-Alone Keyboard see interface
storage........................................ 28
switch bank ................................. 12
T
tone......................................... 1, 17
transformer......................see power
troubleshooting ..................... 23–26
U
UL .......................... see compliance
USB ............................see interface
V
ventilation.................................... 28
voltage .............................. 7–11, 28
volume ........................................ 17
W
warranty ...................................... 42
weight ......................................... 27
white ...........................see indicator
window...................................... 4, 5
45
46
October 2006
Printed in the USA
00-02284A
Loading...
