Metrologic Instruments MS7100 User Manual

METROLOGIC INSTRUMENTS, INC.

MS7100 Series Fixed Projection

Laser Scanner

Installation and User’s Guide

MLPN 2408
Printed in USA
October 1998

Locations:

USA Corporate Headquarters Europe

Metrologic Instruments, Inc. Metrologic Instruments GmbH
90 Coles Road Dornierstrasse 2
Blackwood, NJ 08012 82178 Puchheim b.
Customer Service: 1-800-ID-METRO Munich, Germany
Tel: [phone] Tel: [phone]
Fax: [phone] Fax: [phone]
[e-mail] [e-mail]
www.metrologic.com

ASIA

South America Metrologic Asia (PTE) Ltd.

Metrologic Instruments 31, Khaki Bukit Road 3
Rua Flórida, 1.821-5°Andar-Brooklin #05-08 Techlink
CEP 04571-090, São Paulo-SP, Brasil Singapore 417818
Outside Brazil: Tel: [phone]
Tel: [phone] Fax: [phone]
Fax: [phone] [e-mail]
[e-mail]
In Brazil:
Tel: [phone]
Fax: [phone]
[e-mail]

Copyright

© 1998 by Metrologic Instruments, Inc. All rights reserved. No part of this work may

®

be reproduced, transmitted, or stored in any form or by any means without prior written
consent, except by reviewer, who may quote brief passages in a review, or provided for
in the Copyright Act of 1976.

Products and brand names mentioned in this document are trademarks of their
respective companies.

ii

Table of Contents

Introduction ................................................... 1

Scanner and Accessories ......................................... 2

Quick Start .................................................... 3

Operational Test ............................................... 4

Scanner Installation: Powered by External Power Supply ............... 5

Scanner Installation: Powered by the Host Device ..................... 6

Scanner Installation: to the PC for the Scanner with built-in

PC Keyboard Wedge Interface .................................... 7

Scanner Parts .................................................. 8

Audible Indicators ............................................. 9

Failure Modes ......................................... 10

Visual Indicators .............................................. 11

Labels ....................................................... 12

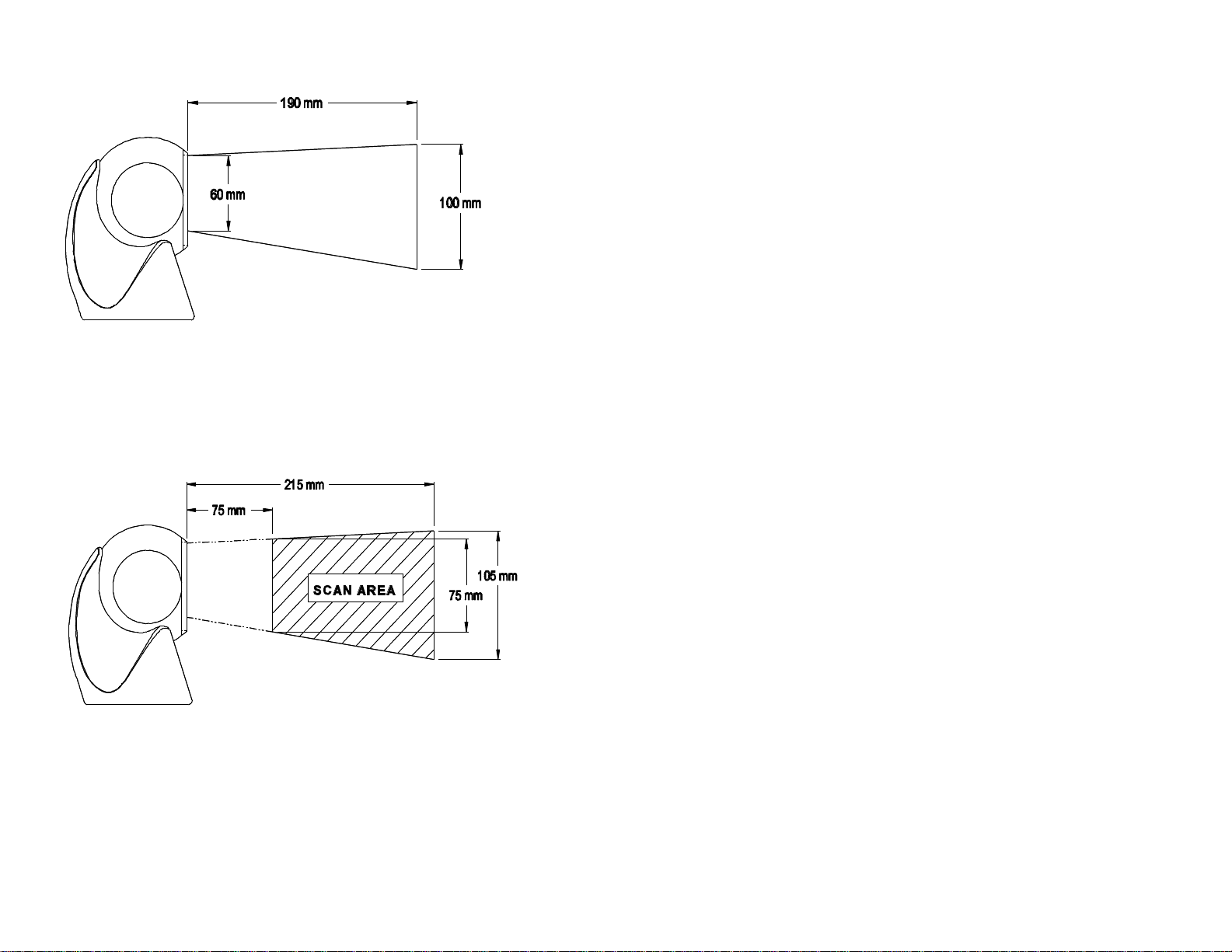

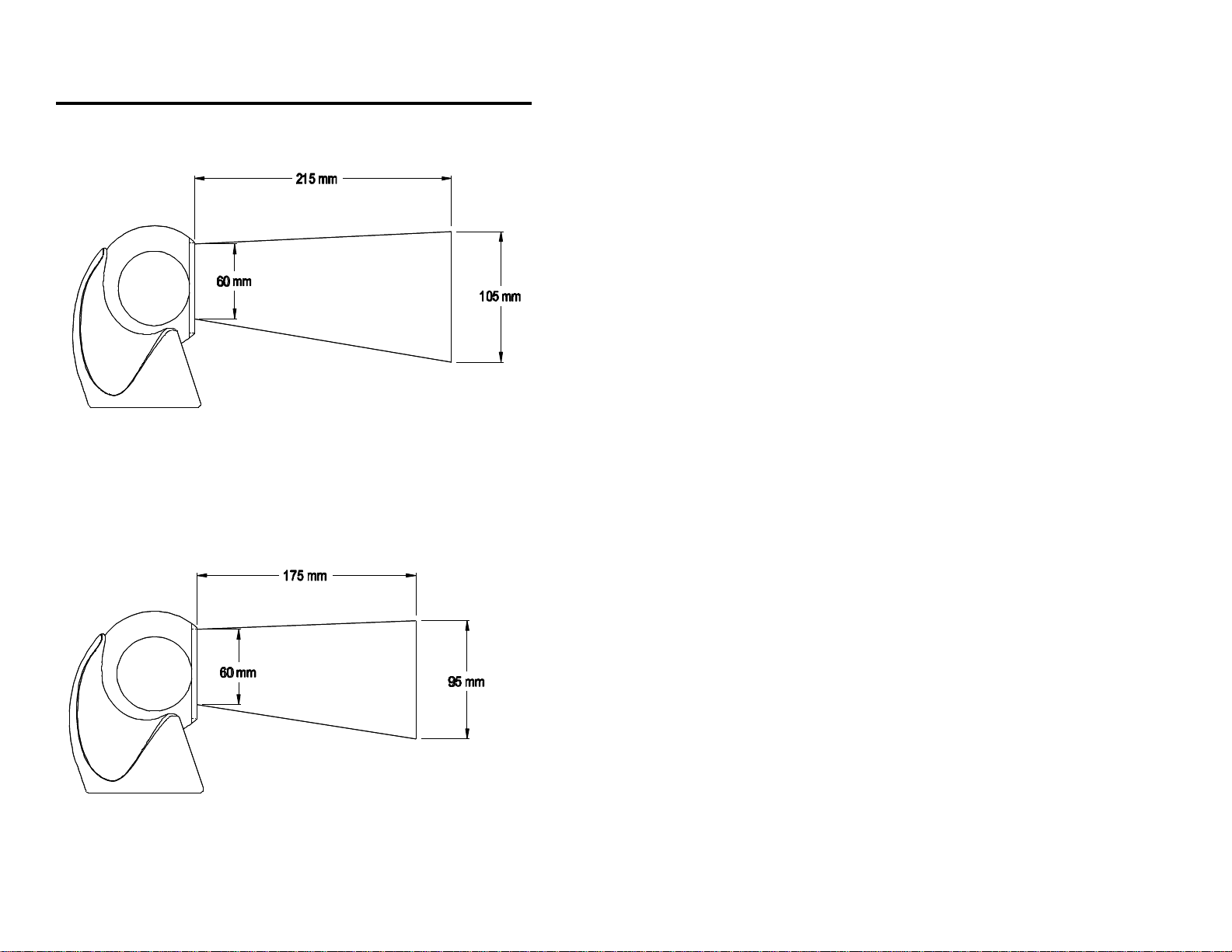

Depth of Field Specifications .................................... 13

Optimal Depth of Field .................................. 13

Close Depth of Field .................................... 13

Normal Depth of Field .................................. 14

Far Depth of Field ...................................... 14

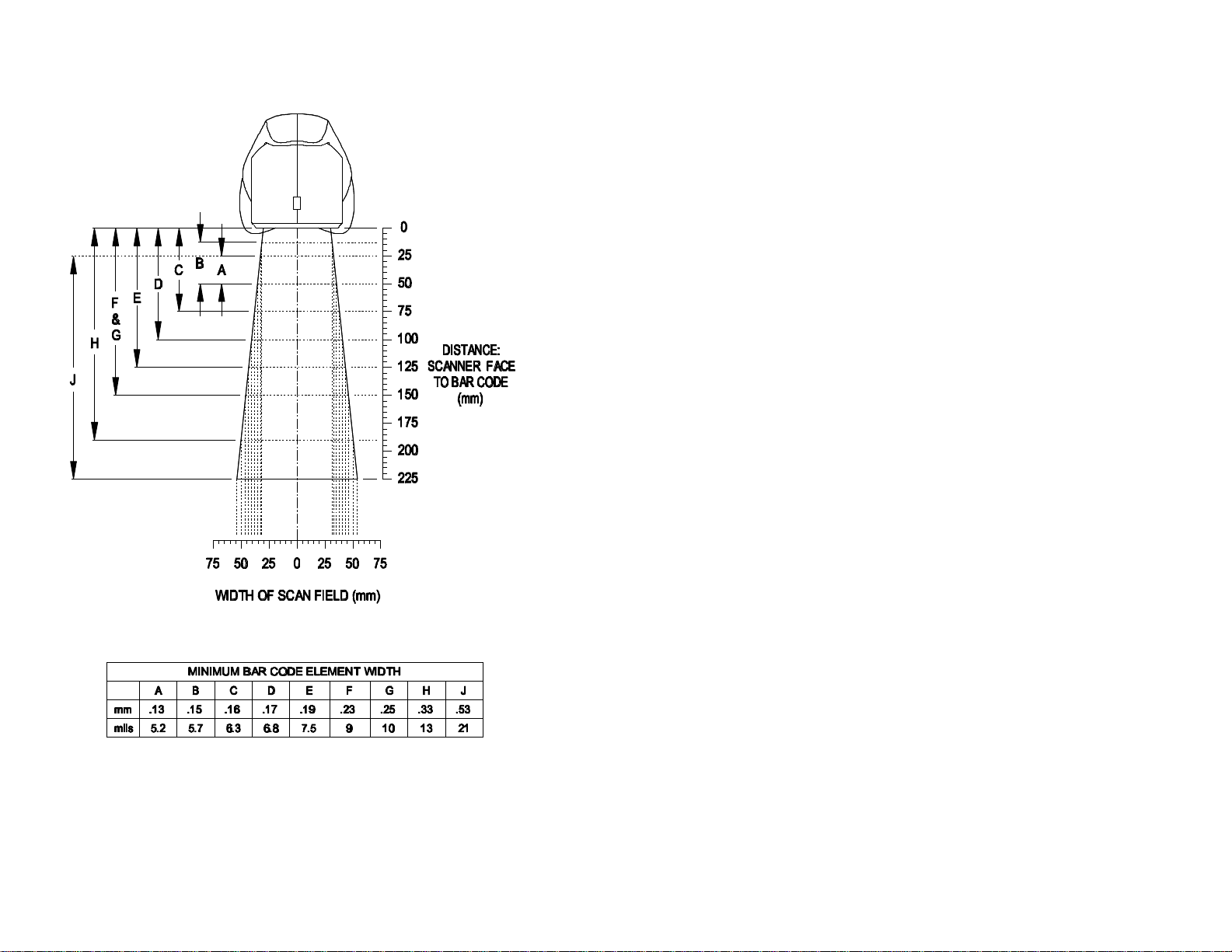

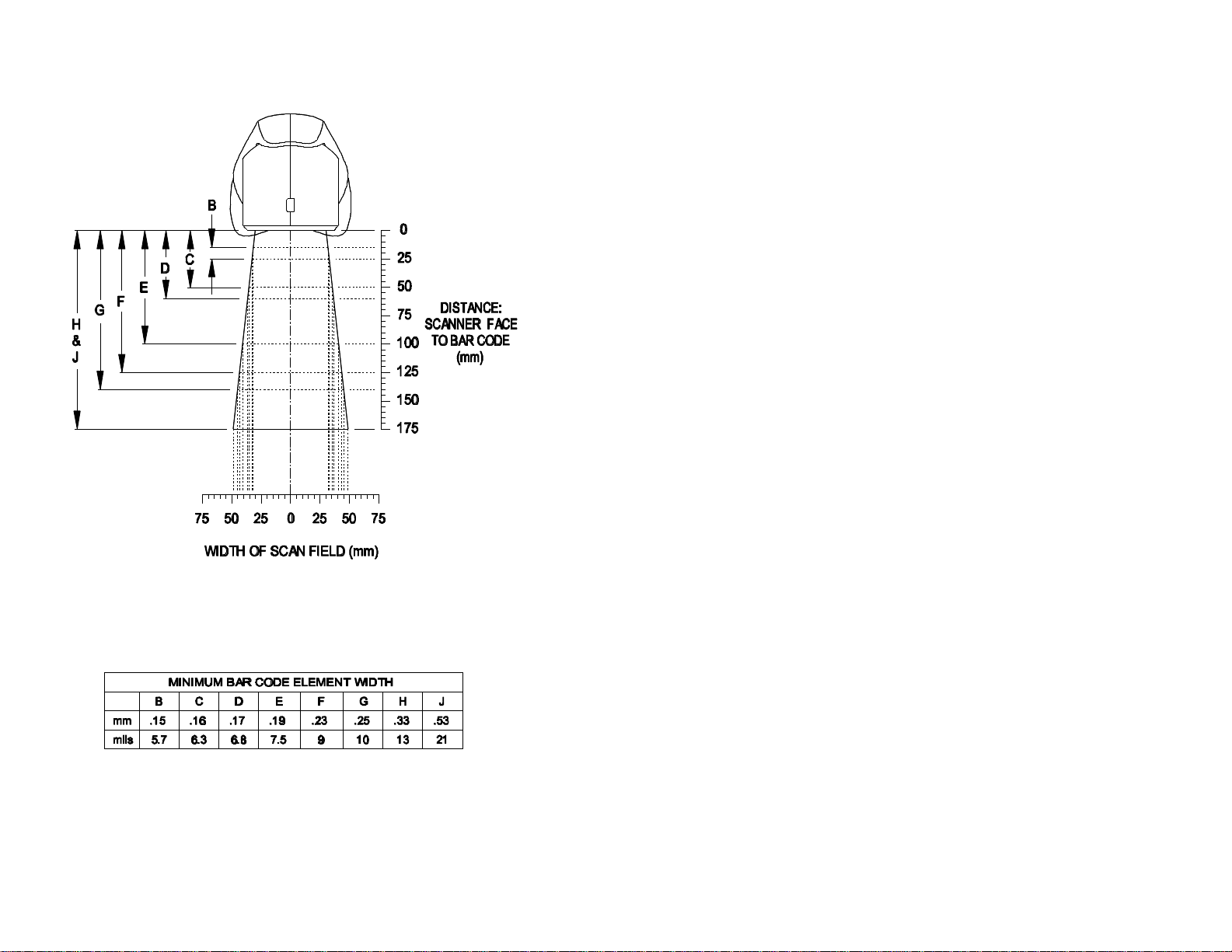

Minimum Bar Code Element From Scanner Face .................... 15

Optimal Depth of Field .................................. 15

Close Depth of Field .................................... 16

Normal Depth of Field .................................. 17

Far Depth of Field ...................................... 18

Maintenance .................................................. 19

Troubleshooting Guide ...................................... 20-25

Application and Protocols ....................................... 26

iii

Appendix A

Design Specifications 27, 28

Appendix B

Default Settings 29-32

Appendix C

Pin Assignments 33-35

Appendix D

Warranty and Disclaimer 36, 37

Appendix E

Notices 38, 39

Index 40, 41

iv

Introduction

Orbit™ is an aggressive, omnidirectional laser bar code scanner. Light-weight
and rugged, Orbit is small in size, but BIG in performance. Designed for
applications where counter space is limited, Orbit is the ideal presentation
scanner for retail, convenience, liquor and specialty stores. In addition, Orbit’s
unique, contoured shape allows it to be picked-up and used as a hand-held
scanner when scanning large or bulky items.

Engineered with a large, easy-to-find optimal scan area, Orbit increases the
first pass read rate for maximum productivity. The scanning head can be tilted
vertically a full 30 for added flexibility when scanning various sized objects.
These features increase the scanning throughput without increasing the
scanner size.

SCANNER INTERFACE

7100-41 RS-232/Light Pen ready (KBW)
7100-47 Keyboard Wedge ready (KBW)
7100-67 RS-232 ready (OCIA)

7100-9 OCIA ready (OCIA)

o

7100-11 IBM 46XX/RS-232 ready (IBM)

Orbit offers a great deal of features to the consumer:

‚ Fully automatic scanning operation
‚ PowerLink compatible
‚ Easy programming
‚ 7 beeper tones
‚ Programmable depth of field
‚ Data editing

1

Scanner and Accessories

The following is a list of the parts included in the MS7100 kit.

! MS7100 Hand-Held Laser Scanner - Refer to page 26 for available

communication protocols

! Power Transformer AC in 120V, 220V- 240V Continental

European or 220V- 240V UK. DC in regulates 5.2V@650mA
(MLPN45593/45591/45592)

! MLPN 2408 User’s and Installation Guide

Access MetroSelect Programming Guide MLPN 2407 on the web
http://www.metrologic.com

RS-232, Light Pen, some OCIA and some 46xx scanners:

! PowerLink cable with built in power jack:

Standard - MLPN 54xxx* - 2.1m (7') straight cord, short strain relief

or

Optional - MLPN 53xxx* - 2.7m (9') coiled cord, long strain relief

*xxx specifies connection to the host

Keyboard Wedge Scanners:

! Keyboard Wedge PowerLink Cable with a 5-pin

DIN female connector on one end and a 6-pin
mini DIN male on the other (MLPN 19763)

! Adapter Cable with a 5-pin DIN male

connector on one end and a 6-pin mini DIN
female connector on the other (MLPN

19716)

Other items may be ordered for the specific protocol being used. To order additional
items, contact the dealer, distributor or call Metrologic’s Customer Service Depart-ment
at 1-800-ID-METRO or 1-800-436-3876.

2

Quick Start

1.) Plug in the scanner. When the MS7100 is ready to scan,
the red LED will turn on, then the green LED will flash
and the scanner will beep once. (the green LED will
remain on for the duration of the beep).

2.) The scanner is shipped from the factory programmed with
default settings. To configure the MS7100 scanner to meet
the host system’s specific needs, refer to the MetroSelect
Programming Guide (MLPN 2407) for instructions on
how to enter the program mode and to select the appro­priate bar codes.

3

Operational Test

Metrologic recommends using the external power supply provided with the
scanner when operating the MS7100. When using power supplied by the host,
the host system should supply a minimum of 250 mA of current @ 5VDC.

Keyboard Wedge Scanners:

1. Connect the 10-pin modular plug of the PowerLink cable into the scanner
jack. Connect the other end of the PowerLink Y-type cable
to the PC. Connect the 5-pin female DIN side of the Y-type cable
into the keyboard connector on the PC and connect the 6-pin male
mini-DIN side into the PC.

2. Check the AC input requirements of the power supply to make sure the
voltage matches the AC outlet. Connect AC power to the transformer.

3. Listen for a single beep that indicates the scanner is ready for use.
(steady red LED and the green LED will flash once)

RS-232, Light Pen, OCIA and 46xx scanners:

1. Connect the 10-pin modular plug of the PowerLink cable into the scanner
jack. Connect the other end of the PowerLink cable (the 9-pin D-type
connector) to the PC.

2. Check the AC input requirements of the power supply to make sure the
voltage matches the AC outlet. Connect AC power to the transformer.

3. Listen for a single beep that indicates the scanner is ready for use.
(steady red LED and the green LED will flash once)

4

Scanner Installation: Powered by External Power Supply

To maintain compliance with applicable standards, all circuits connected to the
scanner must meet the requirements for SELV (Safety Extra Low Voltage)
according to EN 60950.

1. Turn off the host system.

2. Make the necessary PowerLink cable connections to the scanner and
the host.

3. Connect the external transformer into the power jack on the Power Link
cable.

4. Check the AC input requirements of the power supply to make sure the
voltage matches the AC outlet. (the socket-outlet shall be installed near
the equipment and shall be easily accessible.) Connect AC power to the
transformer.

5. Turn on the host system.

NOTE:
a. When the scanner first receives power, the red LED will turn

on. Then the scanner will beep once and the green LED will
flash simultaneously.

b. Plugging the scanner into the serial port of the PC does not

guarantee that scanned information will appear at the PC. A
software driver and correct configuration setting are also
required for proper communication to occur.

5

Scanner Installation: Powered by Host Device

The MS7100 scanner interfaces terminate to a 10-pin modular jack. Connect
the 10-pin modular plug of the PowerLink cable into the jack then connect the
other end of the PowerLink cable to the host. Refer to Appendix C page 33 for
pin assignments.

1. Turn off the host system.

2. Make the necessary PowerLink cable connections to the scanner and the
host.

3. Turn on the host system.

NOTE:
a. When the scanner first receives power, the red LED will turn

on. Then the scanner will beep once and the green LED will
flash simultaneously.

b. Plugging the scanner into the serial port of the PC does not

guarantee that scanned information will appear at the PC. A
software driver and correct configuration setting are also
required for proper communication to occur.

6

Scanner Installation to the PC for the Scanner with Built-in
PC Keyboard Wedge Interface

To maintain compliance with applicable standards, all circuits connected to the
scanner must meet the requirements for SELV (Safety Extra Low Voltage)
according to EN 60950.

1. The MS7100 Keyboard Wedge scanner interface terminates to a 10-pin
modular jack. Connect the 10-pin modular plug of the PowerLink cable
into the jack. The Power Link cable is terminated with a 5-pin DIN
female connector on one end, and a 6-pin mini DIN male on the other.
Metrologic will supply an adapter cable with a 5-pin DIN male
connector on one end and a 6-pin mini DIN female connector on the
other. According to the termination required, connect the appropriate
end of the adapter cable to the PowerLink cable, leaving the neces-sary
termination exposed for connecting to the keyboard and the keyboard

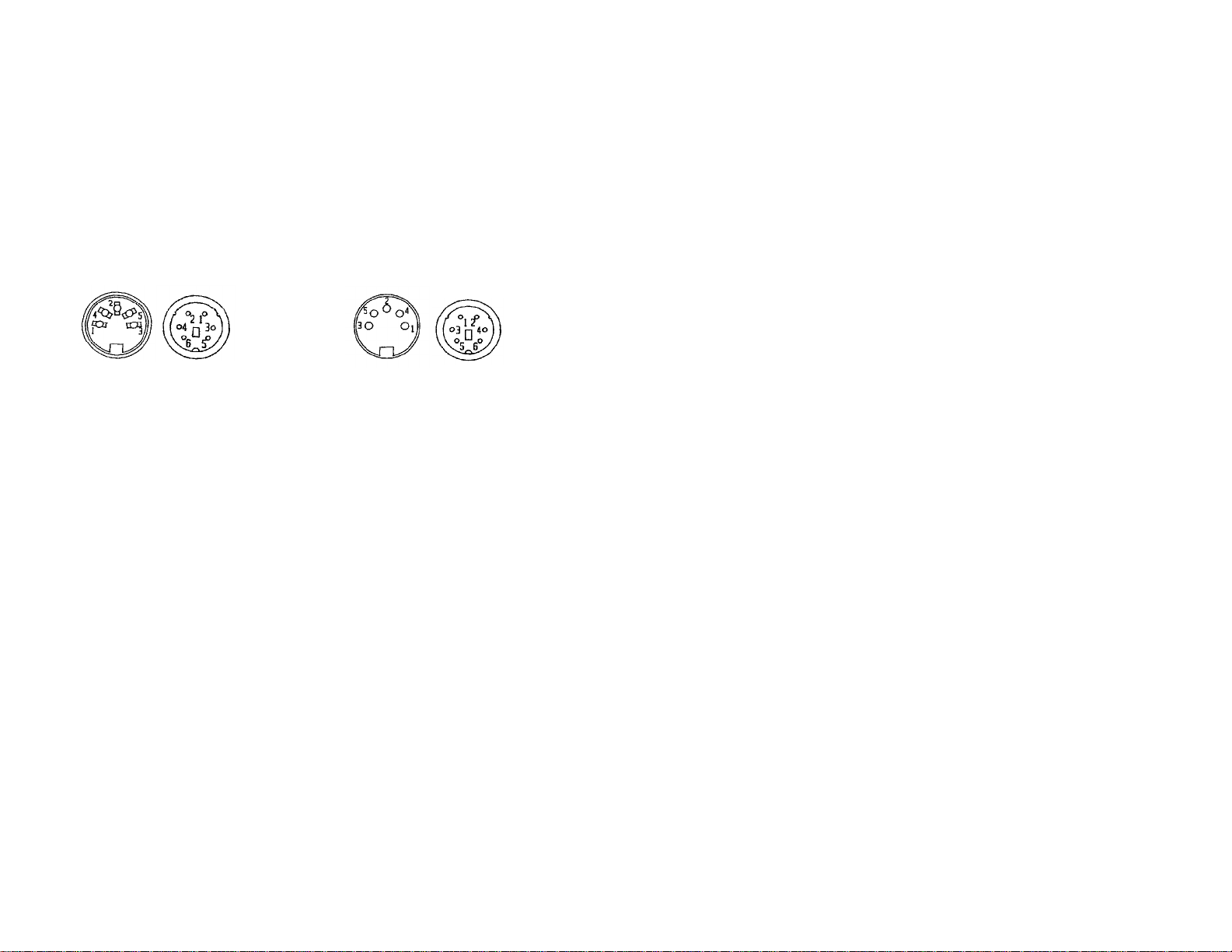

port on the PC. Refer to Appendix C page 35 for pin assignments.

2. If the PC is on, exit the application and turn the PC off.

3. Disconnect the keyboard from the PC.

4. Connect the scanner as described in step 1. Connect the external
transformer into the power jack on the Power Link cable. Refer to
Manufacturer’s Recommendation below. Connect AC power to the
transformer.

5. Power up the PC.

Manufacturer’s Recommendation:

Metrologic recommends the use of an external power supply with
MS7100-47 Keyboard Wedge applications. Powering the MS7100-47
directly from the com-puter keyboard connector could interfere with
the operation of the scanner or the computer. Not all computers supply
the same current through the keyboard port, this explains why a scanner
would work on one computer and not another.

7

Scanner Parts

Green and Red LEDs: When the red LED is on, this

indicates that the laser is on. When the green LED flashes on,
the scanner has read a bar code successfully. When the green
light turns off, communication to the host is complete. The
LEDs are also used as diagnostic indicators and mode
indicators. Refer to pages 9-11 for details.

ú

Orbit Face: þ

o

Tilts 30 vertically
for variable position­ing of the scan pattern.

Output Window: º
Laser light emits
from this aperture.

ü

Cable Connection:

The MS7100 scanner
has a 10-pin modular
jack. The PowerLink
cable will connect its
10-pin modular plug
into the jack. Refer to
pages 5-7 for specific
protocol PowerLink
cable connections.

Side View

8

Top View

Audible Indicators

When the MS7100 scanner is in operation, it provides audible feedback.
These sounds indicate the status of the scanner. Eight settings are available for
the tone of the beep (normal, 6 alternate tones and no tone). To change the
tone, refer to the MetroSelect Programming Guide MLPN 2407.

One Beep

*

When the scanner first receives power, the red LED will turn
on, then the green LED will flash and the scanner will beep once.
(The green LED will remain on for the duration of the beep.) The
scanner performs this startup sequence, the scanner is ready to
scan.

When the scanner successfully reads a bar code, the green LED
will flash and the scanner beeps once (if programmed to do so).
If the scanner does not beep once and the green light does not
flash, then the bar code has not been successfully read.

Razzberry Tone

This is a failure indicator. Refer to failure modes page 10.

Three Beeps - during operation

***

During operation of the scanner, the green LED will flash
while the scanner simultaneously beeps three times (while going
into programming mode).

The green LED will continue to flash until the unit exits program
mode. Upon exiting program mode, the scanner will beep three
times and the green LED will stop flashing. When configured, 3
beeps can also indicate a communications timeout during normal
scanning mode.

When using one-code-programming, the scanner will beep

three times (the current selected tone), followed by a short
pause then by a high tone and a low tone. This tells the user
that the single configuration bar code has successfully con­figured the scanner.

Three Beeps - on power up

This is a failure indicator. Refer to failure modes page 10.

9

Failure Modes

Flashing Red and One Razzberry Tone

This indicates the scanner has experienced a laser

subsystem failure. Return the unit for repair at an

authorized service center.

Flashing Red and Green and Two Razzberry
Tones

This indicates the scanner has experienced a motor

failure. Return the unit for repair at an authorized
service center.

Continuous Razzberry Tone with both LEDs off

If, upon power up, the scanner emits a continuous razz-

berry tone, then the scanner has an electronic failure.

Return the unit for repair at an authorized service
center.

10

Three Beeps - on power up

***

If the scanner beeps 3 times on power up then, the non­volatile memory that holds the scanner configuration
has failed. Return the unit for repair at an authorized
service center.

Visual Indicators

There are a red LED and a green LED on the head of the Orbit MS7100.
When the scanner is on, the flashing or stationary activity of the LEDs
indicates the status of the current scan and the scanner.

No Red or Green LED

The LEDs will not be illuminated if the scanner is not receiving
power from the host or transformer.

Steady Red

When the laser is active, the red LED is illuminated. The red
LED will remain illuminated until the laser is deactivated.

During the power save mode, the laser will turn on and turn off.

During this period, the red LED remains illuminated.

Steady Red and Single Green Flash

When the scanner successfully reads a bar code, the green LED will
flash and the scanner will beep once. If the green LED does not flash

or the scanner does not beep once, then the bar code has not been
successfully read.

Steady Red and Steady Green

After a successful scan, the scanner transmits the data to the host
device. Some communication modes require that the host inform the

scanner when data is ready to be received. If the host is not ready to
accept the information, the scanner’s green LED will remain on until
the data can be transmitted.

Steady Red and Flashing Green

This indicates the scanner is in program mode. A razzberry tone
indicates that an invalid bar code has been scanned in this mode.

Steady Green, Red off

This indicates the scanner may be waiting for communication from
the host.

11

Labels

Each scanner has labels on the bottom of the unit. One label contains
information such as the model number, date of manufacture, serial number and
notes that the device is a Class IIa laser product. The other label states the
device is an LASERKLASSE 1 product. The following are examples of these
labels:

12

Depth of Field Specifications
(based on 100% UPC bar codes)

Optimal Depth of Field (default)

Close Depth of Field

13

Normal Depth of Field

Far Depth of Field

14

Depth of Field by Minimum Bar Code Element Width

Optimal Depth of Field (default)

15

Close Depth of Field

16

Normal Depth of Field

17

Far Depth of Field

18

Maintenance

Smudges and dirt can interfere with the proper scanning of a bar code.
Therefore, the output window will need occasional cleaning.

1. Spray glass cleaner onto lint free, non-abrasive cleaning cloth.

2. Gently wipe the scanner window.

19

Troubleshooting Guide

The following guide is for reference purposes only. Contact a Metrologic
representative at 1-800-ID-METRO or 1-800-436-3876 to preserve the
limited warranty terms on page 36.

All Interfaces

MS7100 Series Troubleshooting Guide

SYMPTOMS POSSIBLE CAUSE(S) SOLUTION

No LEDs, beep No power is being supplied Check transformer, outlet and power
or motor spin to the scanner strip. Make sure the cable is plugged

in to the scanner

No LEDs, beep No power is being supplied Some host system’s cannot supply

to the scanner from host enough current to power Orbit. Use

the power supply included with the
scanner.

3 beeps on Non-volatile RAM failure Contact a Metrologic Rep, if the unit
power up will not hold the programmed

configuration

Continuous razz RAM or ROM failure Contact a Metrologic Rep, if the unit
tone on power will not function
up

Razz tone and VLD failure Contact a Metrologic Rep
red LED flash at
power up

Razz tone and Scanner motor failure Contact a Metrologic Rep
both LEDs flash
at power up

Unit scans, Same symbol timeout set Adjust same symbol timeout for a
Communicates too short longer time
and beeps twice

20

SYMPTOM

The unit powers up properly, lasers come on, but the unit does not scan and does not
beep when a bar code is presented

POSSIBLE CAUSE(S) SOLUTION

Beeper disabled. No tone selected Enable beeper. Select tone

Scanning a particular symbology that is UPC/EAN, Code 39, interleaved 2 of 5,
not enabled Code 93, Code 128 and Codabar are enabled

by default. Verify that the type of bar code
being read has been selected

The scanner has been programmed for a Verify that the bar code that is being scanned
character length lock, or a minimum falls into the criteria. (Typical of Non­length and bar code being scanned does
not satisfy the programmed criteria

UPC/EAN codes.) (The scanner defaults to
a minimum of 4 character bar code)

SYMPTOM

The scanner scans a bar code but the scanner locks up (green LED comes on and stays
on) after the first scan

POSSIBLE CAUSE(S) SOLUTION

The scanner is configured to support If the scanner is setup to support ACK/NAK,
some form of host handshaking but is RTS/CTS, XON/XOFF or D/E, verify that
not receiving the signal the host cable and host are supporting the

handshaking properly

SYMPTOM

The scanner scans and transmit but the data is not correct at the host

POSSIBLE CAUSE(S) SOLUTION

The scanner’s data format does not Verify that the scanner’s data format
match the host system requirements matches that required by the host. Make sure

that the scanner is connected to the proper
host port

21

SYMPTOM

Scanner beeps at some bar codes and NOT for others of the same bar code symbology

POSSIBLE CAUSE(S) SOLUTION

The print quality of the bar code is Check print mode. The type of printer could
suspect be the problem. Change print settings. For

example change to econo mode or high speed

The aspect ratio of the bar code is out of Check print mode. The type of printer could
tolerance be the problem. Change print settings. ie

change to econo mode or high speed

The bar code may have been printed Check if it is a check digit/character/or border
incorrectly problem

The scanner is not configured correctly Check if check digits are set properly
for this type of bar code

The minimum symbol length setting Check if the correct minimum symbol length
does not work with the bar code is set

22

Keyboard Wedge Only

SYMPTOM

The unit scans the bar code but there is no data

POSSIBLE CAUSE(S) SOLUTION

Configuration is not correct Make sure the scanner is configured for the

appropriate mode. Check internal jumper

SYMPTOM

The unit scans but the data is not correct

POSSIBLE CAUSE(S) SOLUTION

Configuration is not correct Make sure that the proper PC type AT, PS2

or XT is selected. Verify correct country code
and data formatting are selected. Adjust
intercharacter delay

SYMPTOM

The unit is transmitting each character

POSSIBLE CAUSE(S) SOLUTION

Configuration is not correct Increase the interscan code delay setting.

Adjust whether the F0 break is transmitted. It
may be necessary to try this in both settings.

SYMPTOM

Alpha characters show as lower case

POSSIBLE CAUSE(S) SOLUTION

Computer is in Caps Lock mode Enable Caps Lock detect setting of the

scanner to detect whether the PC is operating
in Caps Lock

SYMPTOM

Everything works except for a couple of characters

POSSIBLE CAUSE(S) SOLUTION

These characters may not be supported Try operating the scanner in Alt mode
by that country’s key look up table

23

RS-232 only

SYMPTOM

Power-up OK and scans OK but does not communicate properly to the host

POSSIBLE CAUSE(S) SOLUTION

Com port at the host is not working or Check to make sure that the baud rate and
configured properly parity of the scanner and the communica-tion

port match and the program is looking for
“RS-232" data

Cable not connected to the proper com Check to make sure that the baud rate and
port parity of the scanner and the communica-tion

port match and the program is looking for
“RS-232" data

Com port not operating properly Check to make sure that the baud rate and

parity of the scanner and the communica-tion
port match and the program is looking for
“RS-232" data

SYMPTOM

The host is receiving data but the data does not look correct

POSSIBLE CAUSE(S) SOLUTION

The scanner and host may not be Check that the scanner and the host are
configured for the same interface font configured for the same interface font

SYMPTOM

Characters are being dropped

POSSIBLE CAUSE(S) SOLUTION

Intercharacter delay needs to be added Add some intercharacter delay to the
to the transmitted output transmitted output by using the MetroSelect

Programming Guide MLPN 2407

24

RS-232 Demonstration Program

If an RS-232 scanner is not communicating with your IBM compatible PC, key in the
following BASIC program to test that the communication port and scanner are working.
This program is for demonstration purposes only. It is only intended to prove that cabling
is correct, the com port is working, and the scanner is working. If the bar code data
displays on the screen while using this program, it only demon-strates that the hardware
interface and scanner are working. At this point, investigate whether the application
software and the scanner configuration match. If the applica-tion does not support RS­232 scanners, a software wedge program that will take RS-232 data and place it into a
keyboard buffer may be needed. This program tells the PC to ignore RTS-CTS, Data Set
Ready (DSR) and Data Carrier Detect (DCD) signals. If the demonstration program
works and yours still does not, jumper RTS to CTS and Data Terminal Reading (DTR) to
DCD and DSR on the back of your PC.

10 CLS
20 ON ERROR GOTO 100
30 OPEN “COM1:9600,S,7,1,CS0,DS0,CD0,LF” AS #1
35 PRINT “SCAN A FEW BAR CODES”
40 LINE INPUT #1, BARCODE$
50 PRINT BARCODE$
60 K$ = INKEY$: IF K$ = CHR$(27) THEN GOTO 32766
70 GOTO 40
100 PRINT “ERROR NO.”; ERR; “ PRESS ANY KEY TO TERMINATE.”
110 K$ = INKEY$: IF K$ = “” THEN GOTO 110
32766 CLOSE: SYSTEM
32767 END

25

Applications and Protocols

The model number on each scanner includes the scanner number and
communications protocol.

Scanner Version Identifier Communication Protocol(s)

7100 41 RS-232/Light Pen ready (KBW)
7100 47 Keyboard Wedge ready (KBW)
7100 67 RS-232 ready (OCIA)
7100 9 OCIA ready (OCIA)
7100 11 IBM 46XX/RS-232 ready (IBM)

The MS7100 Hand-Held Laser Scanner with Built-in PC Keyboard
Wedge Interface is designed to be used for keyboard emulation only.
However, many RS-232 programmable functions that are available
in other Metrologic scanners are also available as keyboard wedge
functions. The most important selectable options specific to the key­board wedge are the following:

Keyboard Type

! ** AT (includes IBM PS2 models 50, 55, 60, 80)

®

! XT
! IBM PS2 (includes models 30, 70, 8556)

Keyboard Country Type

! ** USA ! United Kingdom
! French ! German
! Italian ! Spanish
! Belgium ! Swiss

**Default setting. Refer to Appendix B pages 29-32 for default settings.

Refer to the MetroSelect Programming Guide (MLPN 2407) for infor­mation on how to change the default settings.

26

Appendix A

Design Specifications

Operational

Light Source: VLD 675 ± 5nm, 0.681 milliwatts (PEAK)
Depth of Field: 0 mm to 215 mm (0" to 8.5") at default
(programmable)
Scan Speed: 1200 scans/second
Scan Pattern: 5 fields of 4 parallel lines (omnidirectional)
Scan Lines: 20
Min Bar Width: 0.13 mm (5.2 mil)
Decode Capability: Autodiscriminates all standard bar codes;

for other symbologies call Metrologic

System Interfaces: PC Keyboard Wedge, RS-232, OCIA, Light Pen,

IBM 46xx, Stand Alone PC Keyboard
Print Contrast: 35% minimum reflectance difference
No. Characters Read: up to 80 data characters

(Maximum number will vary based on symbology

and density)
Roll, Pitch, Yaw: 360E, 60E, 60E
Beeper Operation: 7 tones or no beep
Indicators (LED): red = laser on, ready to scan

green = good read, decoding

Mechanical

Height: 150 mm (5.9")
Depth: 105 mm (4.1")
Width-Orb: 80 mm (3.1")
Width-Base: 102 mm (4.0")
Weight: 380 grams (13.4 oz.)
Termination: 10-pin modular RJ45
Cable: Standard 2.1 m (7') straight; optional 2.7 m (9')

coiled; for other cables call Metrologic
Tilt - Orb: 30 vertical

N

27

Electrical

Input Voltage: 5.2VDC ± 0.25V
Power : 1.1 W
Operating Current : 225 mA
DC Transformers: Class II; 5.2 V @650 mA
Laser Class: CDRH: Class IIa; EN 60 825-1: 1994/A11:1996

Class 1
EMC: FCC Class A, CISPR Class A

Environmental

Operating Temperature: 0EC to 40EC (32EF to 104EF)
Storage Temperature: -40EC to 60EC (-40EF to 140EF)
Humidity: 5% to 95% relative humidity, non-condensing
Light Levels: 4840 LUX (450 foot candles)
Shock: Designed to withstand 1 m (3.1') drops
Contaminants: Sealed to resist airborne particulate contaminants
Ventilation: None required

Specifications subject to change without notice.

This METROLOGIC product may be covered by one or more of the following
U.S. Patents:

U.S. Patent No. 5,081,342; 5,216,232; 5,340,971; 5,525,789; 5,557,093;
5,627,359; 5,637,852

28

Appendix B

Default Settings

Many functions of the scanner can be "programmed" - that is, enabled or
disabled. The scanner is shipped from the factory programmed to a set of
default conditions. The default parameter of the scanner has an asterisk ( * ) in
the charts on the following pages. If an asterisk is not in the default column
then the default setting is Off or Disabled. Every communication does not
support every parameter. If the communication supports a para-meter listed in
the charts on the following pages, a check mark will appear.

Parameter Default OCIA RS- Light IBM KBW

UPC/EAN * TT TT TT TT TT

Code 128 * TT TT TT TT TT

Code 93 * TT TT TT TT TT

Codabar TT TT TT TT TT

Interleaved 2 of 5 (ITF) * TT TT TT TT TT

MOD 10 Check on ITF TT TT TT TT TT

Code 11 TT TT TT TT TT

Code 39 * TT TT TT TT TT

Full ASCII Code 39 TT TT TT TT TT

MOD 43 Check on Code 39 TT TT TT TT TT

MSI-Plessey TT TT TT TT TT

MSI-Plessey 10/10 Check Digit TT TT TT TT TT

MSI-Plessey MOD 10 Check * TT TT TT TT TT
Digit

Paraf Support TT TT TT TT TT

ITF Symbol Lengths Variable TT TT TT TT TT

Minimum Symbol Length 4 TT TT TT TT TT

Symbol Length Lock None TT TT TT TT TT

Bars High as Code 39 * TT

Spaces High as Code 39 TT

Bars High as Scanned TT

Spaces High as Scanned TT

DTS/SIEMENS TT

232* Pen 46XX

29

Parameter Default OCIA RS- Light IBM KBW

232* Pen 46XX

DTS/NIXDORF * TT

NCR F TT

NCR S TT

Poll Light Pen Source TT

Beeper Tone Normal TT TT TT TT TT

Beep/Transmit Sequence Before TT TT TT TT TT

Communication Timeout None TT TT TT TT TT

Razzberry Tone on Timeout TT TT TT TT TT

Three Beeps on Timeout TT TT TT TT TT

No Beeps on Timeout * TT TT TT TT TT

Enter Power Save Mode 10 mins. TT TT TT TT TT

Same Symbol Rescan TT TT TT TT TT
Timeout: 200 msecs

Same Symbol Rescan * TT TT TT TT TT
Timeout: 500 msecs
Programmable in 50 msec
steps
(MAX 6.35 seconds)

Same Symbol Rescan TT TT TT TT TT
Timeout: 1250 msecs

Same Symbol Rescan TT TT TT TT TT
Timeout: 2000 msecs

Intercharacter Delay 1 msecs TT TT TT TT
Programmable in 1 msec steps 10msecs
(MAX 255 msecs) in KBW

Number of Scan Buffers 1 TT TT TT TT TT

Transmit UPC-A Check Digit * TT TT TT TT TT

Transmit UPC-E Check Digit TT TT TT TT TT

Expand UPC-E TT TT TT TT TT

Convert UPC-A to TT TT TT TT
EAN-13

Transmit Lead Zero on UPC-E TT TT TT TT TT

Convert EAN-8 to EAN-13 TT TT TT TT

Transmit UPC-A Number * TT TT TT TT TT
System

Transmit UPC-A * TT TT TT TT TT
Manufacturer ID#

Transmit UPC-A Item ID# * TT TT TT TT TT

Transmit

30

Parameter Default OCIA RS- Light IBM KBW

232* Pen 46XX

Transmit Codabar TT TT TT TT
Start/Stop Characters

CLSI Editing (Enable) TT TT TT TT

Transmit Mod 43 Check Digit TT TT TT TT
on Code 39

Transmit Code 39 TT TT TT TT
Stop/Start Characters

Transmit Mod 10/ITF TT TT TT TT

Transmit MSI-Plessey Check TT TT TT TT
Characters

Parity Space TT

Baud Rate 9600 TT

8 Data Bits TT

7 Data Bits * TT

Transmit Sanyo ID Characters TT TT

Nixdorf ID TT TT

LRC Enabled TT TT

UPC Prefix TT TT

UPC Suffix TT TT

Transmit AIM ID Characters TT TT

STX Prefix TT TT

ETX Suffix TT TT

Carriage Return * TT TT

Line Feed - disabled by default * TT TT
in KBW

Tab Prefix TT TT

Tab Suffix TT TT

"DE" Disable Command TT

"FL" Laser Enable Command TT

DTR Handshaking Support TT

RTS/CTS Handshaking TT

Character RTS/CTS * TT

Message RTS/CTS TT

XON/XOFF Handshaking TT

ACK/NAK TT

31

Parameter Default OCIA RS- Light IBM KBW

232* Pen 46XX

Two Digit Supplements TT TT as code TT TT

Five Digit Supplements TT TT as code TT TT

Bookland TT TT as code TT TT

977 (2 digit) Supplemental TT TT TT TT TT
Requirement

Supplements are not Required * TT TT TT TT TT

Two Digit Redundancy * TT TT TT TT TT

Five Digit Redundancy TT TT TT TT TT
100 msec to Find Supplement * TT TT TT TT TT

Programmable in 100msec
steps (MAX 800 msec)

39

39

39

Coupon Code 128 TT TT as code TT TT

Programmable Code Lengths 7 aval. TT TT TT TT TT

Programmable Prefix 10 avail. TT
Characters

Suffix Characters TT

Prefixes for individual Code
Types

Editing TT TT TT TT TT

Inter Scan-Code Delay 800 msec TT
Programmable (100 msec
steps)

Function/Control Key Support

Minimum Element Width 1 msec TT
Programmable in 5.6 FFsec
steps

Depth of Field

Variable Depth of Field * TT TT TT TT TT

Normal Depth of Field * TT TT TT TT TT

Extended Depth of Field TT TT TT TT TT

Long Depth of Field TT TT TT TT TT

39

Ultra Close Depth of Field TT TT TT TT TT

32

Appendix C

Pin Assignments
Pin Assignments for the PowerLink Cable

The MS7100 scanner interfaces terminate to a 10-pin modular jack.
Connect the 10-pin modular plug of the PowerLink cable into the jack
then connect the other end of the PowerLink cable to the host. (Refer
to page 6 for details). Due to the variations in current supplied by the
many available PC’s, Metrologic suggests the use of an external power
supply.

“9" OCIA “11" IBM 46XX/RS-232*

PIN FUNCTION PIN FUNCTION

1 Ground 1 Ground
2 RS-232 Transmit Output 2 RS-232 Transmit Output
3 RS-232 Receive Input 3 RS-232 Receive Input
4 RDATA 4 RTS Output
5 RDATA Return 5 CTS Input
6 Clock in 6 DTR Input
7 Clock out 7 IBM 46XX Transmit
8 Clock in Return/Clock out Rtrn 8 IBM 46XX Receive
9 +5VDC 9 +5VDC
10 Shield Ground 10 Shield Ground

“67" RS-232/LTPN* “41" RS-232/LTPN

PIN FUNCTION PIN FUNCTION

1 Ground 1 Ground
2 RS-232 Transmit Output 2 RS-232 Transmit Output
3 RS-232 Receive Input 3 RS-232 Receive Input
4 RTS Output 4 RTS Output
5 CTS Input 5 CTS Input
6 DTR Input/LTPN Source 6 DTR Input/LTPN Source
7 Reserved 7 Reserved
8 LTPN Data 8 LTPN Data
9 +5VDC 9 +5VDC
10 Shield Ground 10 Shield Ground

*Preliminary

Options listed are program/cable selections

33

Pin Assignments for the PowerLink Cable Keyboard Wedge
Interface

The MS7100 Keyboard Wedge scanner interface terminates to a 10-pin
modular jack. Connect the 10-pin modular plug of the PowerLink cable
into the jack then connect the other end of the PowerLink Y-type cable to the
host and keyboard (refer to page 7 for details). Due to the variations
in current supplied by the many available PC’s, Metrologic suggests the
use of an external power supply.

“47" Keyboard Wedge

PIN FUNCTION

1 Ground
2 RS-232 Transmit Output
3 RS-232 Receive Input
4 PC Data
5 PC Clock
6 KB Clock
7 PC +5V
8 KB Data
9 +5VDC
10 Shield Ground

Options listed are program/cable selections

34

Pin Assignments for the 5-pin DIN and 6-pin mini-DIN MS7100 Hand­Held Laser Scanner with Built-in PC Keyboard Wedge Interface

The MS7100 Keyboard Wedge scanner interface terminates to a 10-pin
modular jack. Connect the 10-pin modular plug of the PowerLink cable
into the jack. The Power Link cable is terminated with a 5-pin DIN female
connector on one end, and a 6-pin mini DIN male on the other. Metrologic
will supply an adapter cable with a 5-pin DIN male connector on one end
and a 6-pin mini DIN female connector on the other.

PowerLink Cable Connectors

5-pin Female 6-pin Male

Adapter Cable Connectors

5-pin Male 6-pin Female

According to the termination required, connect the appropriate end of the
adapter cable to the PowerLink cable, leaving the necessary termination
exposed for connecting to the keyboard and the keyboard port on the PC.
The pin assignments are as follows:

5-pin Female DIN 6-pin Male mini-DIN
Pin Function Pin Function

1 Keyboard Clock 1 Keyboard Data
2 Keyboard Data 2 No Connect
3 No Connect 3 Power Ground
4 Power Ground 4 +5 Volts DC
5 +5 Volts DC 5 PC Clock

6 No Connect

5-pin Male DIN 6-pin Female mini-DIN
Pin Function Pin Function

1 PC Clock 1 Keyboard Data
2 PC Data 2 No Connect
3 No Connect 3 Power Ground
4 Power Ground 4 +5 Volts DC
5 +5 Volts DC 5 Keyboard Clock

6 No Connect

35

Appendix D

Warranty and Disclaimer

Limited Warranty

Products manufactured by Metrologic have a 2-year limited warranty from
date of manufacture.

This warranty is limited to repair, replacement or refund at Metrologic’s
discretion. Faulty equipment must be returned to the Metrologic facility in
Blackwood, New Jersey or Puchheim, Germany. To do this, contact
Metrologic Customer Service/Repair for a Returned Material Authorization
(RMA) number.

In the event that it is determined that the equipment failure is covered under the
warranty, Metrologic shall, as its sole option, repair, replace with a functionally
equivalent unit, or refund an amount equal to the purchase price to the original
purchaser, whether distributor, dealer/reseller, or retail consumer, and return the
equipment to the customer without charge for service or return freight.

This limited warranty does not extend to any Product which, in the sole judge­ment of Metrologic, has been subjected to misuse, neglect, improper installation
or accident, nor does it extend to any Product which has been repaired or altered
by anyone who is not a Metrologic authorized representative.

THIS LIMITED WARRANTY, EXCEPT AS TO TITLE, IS IN LIEU OF ALL OTHER
WARRANTIES, EXPRESS OR IMPLIED, INCLUDING MERCHANTABILITY OR
FITNESS FOR ANY PARTICULAR PURPOSE, ARISING BY LAW, CUSTOM OR
CONDUCT. THE RIGHTS AND REMEDIES PROVIDED HEREIN ARE EXCLUSIVE
AND IN LIEU OF ANY OTHER RIGHTS OR REMEDIES. IN NO EVENT SHALL
METROLOGIC BE LIABLE FOR INDIRECT, INCIDENTAL, OR CONSEQUENTIAL
DAMAGES, INCLUDING, WITHOUT LIMITATION, ANY INJURY TO PROPERTY
OR PERSON OR EFFECT ON BUSINESS OR PROFIT, AND IN NO EVENT SHALL
ANY LIABILITY OF METROLOGIC EXCEED THE ACTUAL AMOUNT PAID TO
METROLOGIC FOR THE PRODUCT.

Metrologic Instruments, Inc. Customer Service Department
90 Coles Road 1-800-ID-METRO (1-800-436-3876)
Blackwood, NJ 08012 TEL: [phone]

FAX: [phone]
Metrologic Instruments GmbH
Dornierstrasse 2
82178 Puchheim b.
Munich, Germany
TEL: [phone]
FAX: [phone]

36

Disclaimer

Metrologic Instruments, Inc. and the author or authors make no claims or warranties with respect
to the contents or accuracy of this publication, or the product it describes, including any warranties
of fitness or merchantability for a particular purpose. Any stated or expressed warranties are in
lieu of all obligations or liability for any damages, whether special, indirect, or consequential,
arising out of or in connection with the use of this publication or the product it describes.
Furthermore, the right is reserved to make any changes to this publication without obligation to
notify any person of such changes. Metrologic also reserves the right to make any changes to the
product described herein.

Exclusion des responsabilités

Metrologic Instruments, Inc. et le/les auteur(s) ne sont ni garants, ni responsables pour l­'exhaustivité et la correction des informations contenues dans cette brochure - que ce soit r­elativement à leur teneur et à l' exactitude - ou pour le produit qui y est décrit. Ils ne sont en outre
responsables d'aucune garantie de propriété ou de qualité pour un usage particulier. Toutes les
assurances nommées ou exprimées excluent toute garantie ou responsabilité pour les dommages
spéciaux, indirects ou des suites de l'utilisation de cette brochure ou du produit qui y est décrit
respectivement. en rapport avec l'emploi de cette brochure et du produit qui y est décrit. Il leur est
également réservé le droit de procéder à des modifications de cette brochure sans avoir à en avertir
qui que ce soit. Metrologic se réserve en outre le droit de procéder à des modifications du produit
qui y est décrit.

Haftungsausschluß

Metrologic Instruments, Inc. und der/die Autor(en) übernehmen keinerlei Gewähr und haften nicht
für die Richtigkeit im Hinblick auf Inhalt oder Genauigkeit der Angaben dieser Veröffentlichung
oder des hierin beschriebenen Produkts. Sie übernehmen ebenso keinerlei Eignungsgarantie oder
Gewährleistung durchschnittlicher Qualität für einen bestimmten Zweck. Alle benannten oder
ausdrücklichen Zusicherungen schließen sämtliche Verpflichtungen oder Haftungen aus jeglichem
Schaden aus, ganz gleich ob speziell, indirekt oder als Folge der Verwendung dieser
Veröffentlichung oder des hierin beschriebenen Produkts bzw. in Zusammenhang mit der
Verwendung dieser Veröffentlichung oder des hierin beschriebenen Produkts. Darüber hinaus wird
das Recht vorbehalten, Änderungen an dieser Veröffentlichung vorzunehmen ohne die
Verpflichtung, irgend jemanden über solche Änderungen zu unterrichten. Metrologic behält sich
ferner das Recht vor, Änderungen an dem hierin beschriebenen Produkt vorzunehmen.

Esclusione della responsabilità

La Metrologic Instruments, Inc. e l’autore/gli autori non assumono nessuna garanzia e non
rispondono della correttezza per quanto riguarda il contenuto o la precisione di quanto indicato nel
presente Manuale o del prodotto in esso descritto. Neppure essi assumono una garanzia per
l’idoneità o una garanzia della qualità media per un determinato scopo. Tutte le garanzie citate o
fatte espressamente escludono qualsiasi obbligo o responsabilità derivanti da qualsiasi danno,
indipendentemente dal fatto che questo obbligo/questa responsabilità risulti in particolare, i­ndirettamente o come conseguenza dall’uso del presente Manuale o del prodotto in esso descritto
oppure se è legato/a all’uso del presente Manuale o del prodotto in esso descritto. Inoltre ci si
riserva il diritto di modificare il presente Manuale senza essere obbligati ad informare persona
alcuna circa dette modifiche. Metrologic si riserva il diritto di apportare modifiche al prodotto
descritto nel presente Manuale.

37

Appendix E

Notices

Notice

This equipment has been tested and found to comply with limits for a Class A digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a commercial environment. This
equipment generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful interference, in which
case the user will be required to correct the interference at his own expense. Any unauthorized
changes or modifications to this equipment could void the users authority to operate this device.

Notice

This digital apparatus does not exceed the Class A limits for radio noise emissions from digital
apparatus set out in the Radio Interference Regulations of the Industry and Canada.

Caution

Use of controls or adjustments or performance of procedures other than those specified herein may
result in hazardous laser light. Under no circumstances should the customer attempt to service the
laser scanner. Never attempt to look at the laser beam, even if the scanner appears to be
nonfunctional. Never open the scanner in an attempt to look into the device. Doing so could result
in hazardous laser light exposure. The use of optical instruments with the laser equipment will
increase eye hazard.

Remarque

Après contrôle de cet appareil, on a noté qu'il répondait aux valeurs limites de la classe A,
conformément à la partie 15 des directives de l'administration fédérale américaine pour les
télécommunications. Ces valeurs limites ont été prévues pour garantir une protection suffisante
contre les effets nocifs dus à l'emploi de l'appareil dans un magasin. L'appareil génère et utilise une
énergie haute fréquence et peut, s'il n'est pas installé et utilisé conformément aux instructions
mentionnées dans le guide d'utilisation, entraîner des perturbations dans la radiocommunications.
L'utilisation de cet appareil dans une zone d'habitation entraînera très vraisemblablement des
perturbations. Dans ce cas, l'utilisateur est tenu de remédier à ces perturbations à ses propres frais.
Toute modification ou remplacement non autorisé sur cet appareil peut entraîner l'invalidité de
l'autorisation d'utilisation de l'appareil.

Remarque

Cet appareil numérique ne va pas contre les valeurs limites pour émissions de bruits radios des
appareils numérique de la classe A, conformément aux directives relatives aux perturbations des
radiocommunications du ministère canadien pour l'industrie.

Attention

L'emploi de commandes, réglages ou procédés autres que ceux décrits ici peut entraîner de graves
irradiations. Le client ne doit en aucun cas essayer d'entretenir lui-même le scanner ou le laser. Ne
regardez jamais directement le rayon laser, même si vous croyez que le scanner est inactif.
N'ouvrez jamais le scanner pour regarder dans l'appareil. Ce faisant, vous vous exposez à une
rayonnement laser mortel. L'emploi d'appareils optiques avec cet équipement laser augmente le
risque d'endommagement de la vision.

38

Anmerkung

Nach Überprüfung dieses Geräts wurde festgestellt, daß es den Grenzwerten für Digitalgeräte der
Klasse A gemäß Teil 15 der Richtlinien der US-amerikanischen Bundesbehörde für das
Fernmeldewesen entspricht. Diese Grenzwerte wurden festgelegt, um einen angemessenen Schutz
gegen schädliche Auswirkungen bei Einsatz des Geräts in einer Ladenumgebung zu gewähren.
Das Gerät erzeugt und verwendet Hochfrequenzenergie und kann diese ausstrahlen, und kann,
falls es nicht gemäß den im Bedienerhandbuch enthaltenen Anweisungen installiert und verwendet
wird, zu einer Störung des Funkverkehrs führen. Der Betrieb dieses Geräts in einem Wohngebiet
führt höchstwahrscheinlich zu Störungen. In diesem Fall ist der Bediener verpflichtet, die Störung
auf eigene Kosten zu beseitigen. Durch jegliche unerlaubte Auswechselung oder Änderung an
diesem Gerät könnte die Genehmigung des Bedieners zur Verwendung dieses Geräts ungültig
werden.

Anmerkung

Dieses Digitalgerät verstößt nicht gegen die Grenzwerte für Funkrauschemissionen von
Digitalgeräten der Klasse A gemäß den Richtlinien für Funkstörungen des kanadischen
Ministeriums für Industrie.

Achtung

Die Verwendung anderer als der hierin beschriebenen Steuerungen, Einstellungen oder Verfahren
kann eine lebensgefährliche Laserstrahlung hervorrufen. Der Kunde sollte unter keinen
Umständen versuchen, den Laser-Scanner selbst zu warten. Sehen Sie niemals in den Laserstrahl,
selbst wenn Sie glauben, daß der Scanner nicht aktiv ist. Öffnen Sie niemals den Scanner, um in
das Gerät hineinzusehen. Wenn Sie dies tun, können Sie sich einer lebensgefährlichen
Laserstrahlung aussetzen. Der Einsatz optischer Geräte mit dieser Laserausrüstung erhöht das
Risiko einer Sehschädigung.

N.B.

Dal controllo di questo apparecchio risulta che esso risponde ai valori limite per apparecchi
digitali della classe A conf. parte 15 delle direttive sulle telecomunicazioni dell’Autorità federale
statunitense. Questi valori limite sono stati fissati per garantire una protezione adeguata contro gli
effetti nocivi se questo apparecchio viene usato all’intero di un negozio. L’apparecchio genera,
utilizza e può emettere energia ad alta frequenza e, se non viene installato ed utilizzato
conformemente alle indicazioni fornite nel Manuale utente, può provocare disturbi al servizio
radiofonico. L’uso di questo apparecchio in zone residenziali causa molto probabilmente dei
disturbi. In questo caso l’utente è obbligato ad eliminare questi disturbi a sue spese. Qualsiasi
sostituzione o modifica non autorizzata all’apparecchio potrebbe rendere invalida l’autorizzazione
dell’utente all’uso dell’apparecchio.

N.B.

Questo apparecchio digitale non supera I valori limite per l’emissione di radiorumori da parte di
apparecchi digitali della classe A conformemente alle direttive per radiodisturbi del Ministero
canadese per l’Industria.

Attenzione

L’utilizzo di sistemi di controllo, di regolazioni o di procedimenti diversi da quelli decritti nel
presente Manuale può provocare dei raggi laser pericolosi per la vita. Il cliente non deve
assolutamente tentare di riparare egli stesso lo scanner laser. Non guardate mai nel raggio laser,
anche se credete che lo scanner non sia attivo. Non aprite mai lo scanner per guardare dentro
l’apparecchio. Se tuttavia lo fate, potete esporVi a dei raggi laser pericolosi per la vita. L’uso di
apparecchi ottici con questo equipaggiamento laser aumenta il rischio di danni alla vista.

39

Index

A

Accessories 2
AC input/outlet 2, 4, 5, 7
Adapter

cable 2, 7, 35
Approvals 12
Assignments

pin 33-35
Audible indicators 9
Authorized service center 36
Autodiscriminates 27

B

Bar code 3, 8, 9, 11, 13,
15, 19, 21-23, 25, 27
Bar width 27
Beep(s) 3-6, 9-11, 20-22, 27
Beeper operation 27
Built-in PC keyboard wedge
interface 7, 26, 35

C

Cable

adapter 2, 7, 35

pin assignments 33-35

PowerLink 2, 4-8,

33-35

Y-type 7, 34
Caution 38
CDRH 29
Characteristics 8-12
Compliance 5, 7
Configuration procedures 5-7
Connector(s) 36
Current 4, 7, 21, 29, 34, 35
Customer service 37

D

DC transformer 28
Decode capability 27
Default Settings 29-32
Depth of field 13-18
Design specifications 27, 28

Disclaimer 37

E

Electrical 28
External power supply 4, 5,
7, 33, 34

F

Failure indicator(s) 9, 10,
Failure modes 9, 10
Female connector 2, 7,

35

Function(s) 26, 29-35

G

Green LED 3-6, 8, 9, 11,

21

Ground 33-35

H

Host 2-8, 11, 20, 21, 24

I

Indicators

Audible 9-10
Visual 11

LED 3-6, 8, 9, 11, 20, 21
Input voltage 28
Installation 5-7
Interfaces 1, 6, 20, 26, 27,

33

K

Keyboard Type(s) 27
Keyboard Wedge (KBW) 1, 2,
4, 7, 23, 26, 27, 33-35

L

Labels 12
LEDs 3-6, 8, 9, 11, 20, 21
Light levels 28

40

Light Pen 1, 2, 4, 6, 26, RDATA 33

33 Recommendation 7
Light source 27 Red led 3-6, 8, 9, 11, 20
List 2 Repair 10, 36

Rights

M property 36
Maintenance 19
Manufacturer’s recommendation

7

Mechanical 27

warranty 36
RMA 36
Roll, pitch, yaw 27
RS-232 1-6, 24-27, 33, 34

Min bar width 27

S

N Scan lines 27

Normal depth of field 14, 17
Notices 38, 39

Scan pattern(s) 8, 13-18, 27
Scan speed 27
Scanner installation 5-7

O

OCIA 1, 2, 4, 6, 26, 27, 33
Operating current 28
Operating temperature 28
Operation 1, 7, 9, 27
Operational 27

SELV 5, 7
Service 36
Shock 28
Specifications 27, 28
Storage temperature 28
System interfaces 27

Operational test 4
Output 8, 19, 24, 33, 34
Output window 8, 19

T

Termination 33-35
Test 4

P

Parts 8
PC 1, 4-7, 23, 25, 26, 27,

Transformers 28
Troubleshooting 20-25
Tones 1, 9, 10, 27

33-35
Pin assignments 33-35
Port 5-8, 21, 24, 25, 35
Powered by 5, 6
PowerLink cable 2, 4-8, 33-35
Power supply 4, 5, 7, 20, 33,

V

Ventilation 28
Version 26, 33, 34
Visual indicators 11
Voltage 4, 5, 7, 28

34

Programming guide 2, 3,

9, 24, 26

Protocols 26

W

Warranty 36
Weight 27
Window 8, 19

Q

Quick start 3

R

Razzberry tone 9-11

41
