Metrologic Instruments MS3780 User Manual

Copyright

© 2006 by Metrologic Instruments, Inc. All rights reserved. No part of this work may be reproduced, transmitted, or stored in any form or by any means without prior written consent, except by reviewer, who may quote brief passages in a review, or provided for in the Copyright Act of 1976.

Products and brand names mentioned in this document are trademarks of their respective companies.

The Fusion is a hand-held, omnidirectional bar code scanner with optional single-line scanning capabilities. It utilizes the powerful Metrologic QuantumE scan engine to provide an outstanding scan performance on all standard 1D barcode symbologies, including RSS. Designed for retail applications, the Fusion includes additional key product features like:

• Fully Automatic Scanning Operation

• Single-Line Mode for Menu Reading

• Custom Configurable Scan Pattern

• User-Replaceable Single-Cable Interface to Host (PowerLink Compatible)

• User Configurable Depth of Field

• Easy Bar Code Configuration

• Data Editing

• 7 Beeper Tones

• Flash - Upgradeable Firmware

• OPOS and JPOS System Compatible

• CodeGate

• Sunrise 2005 Compliant

SCANNER INTERFACE

®

MS3780-9 OCIA and RS232 Transmit/Receive

MS3780-11 IBM 46xx and Full RS232

MS3780-38

RS232 Low Speed USB*, Keyboard Emulation Mode or USB Serial Emulation Mode

MS3780-40 Full Speed USB

MS3780-41 RS232/Light Pen Emulation

MS3780-47

Keyboard Wedge, Stand-Alone Keyboard and RS232 Transmit/Receive

MS3780-48 Stand Alone Keyboard and RS232 Transmit/Receive

* Configurable for Keyboard Emulation Mode or Serial Emulation Mode.

The default setting is Keyboard Emulation Mode.

1

INTRODUCTION

Scanner and Accessories

BASIC KIT COMPONENTS

Part No. Description

MS3780 Fusion Scanner

00-02099 MS3780 Installation and User’s Guide *

00-02407 MetroSelect® Configuration Guide *

* Guides also available for download at www.metrologic.com.

OPTIONAL ACCESSORIES

Part No. Description

AC to DC Power Transformer - Regulated 5.2VDC @ 650 mA output.

45-45593 120V United States and Canada

45-45591 220V-240V Continental European

45-45592 220V-240V United Kingdom

46-46803 250V Australia

46-46983 250V China

The following cables are for Fusion models not equipped with EAS.

53-53000x-3

53-53002x-3

53-53020x-3

MVC-3MPC-IB9

MVC-3MNC-N7052

Other items may be ordered for the specific protocol being used. To order additional items, contact the dealer, distributor or call Metrologic’s customer service department

at 1-800-436-3876

RS232 PowerLink Cable with Built in Power Jack

2.7 m (9 ft.) coiled cord, long strain relief, black

Keyboard Wedge PowerLink cable with Adapter Cable

2.7 m (9 ft.) coiled cord, long strain relief, black

Stand Alone Keyboard PowerLink Cable

2.7 m (9 ft.) coiled cord, long strain relief, black

Metrologic Voltage Converter Cable, ±12VDC to +5.2VDC For IBM Applications

Metrologic Voltage Converter Cable, ±12VDC to +5.2VDC For OCIA Applications

.

2

INTRODUCTION

Scanner and Accessories

OPTIONAL ACCESSORIES

Part No. Description

53-53213x-N-3

USB Full Speed Cable, Locking Plus-Power™Type A 3 m (10 ft.) straight cord, short strain relief

USB Full Speed Cable, Locking Plus-Power™Type A 5 m (17 ft.) straight cord, short strain relief

53-53214x-N-3

This cable is for use with full speed USB (-40) interface only.

USB Low Speed Communication Cable,

53-53235x-N-3

Type A (Non-Locking) Connector

2.8 m (9.2 ft.) straight cord, short strain relief

The following cables are for Fusion models equipped with EAS.

RS232 PowerLink Cable with Built in Power Jack and

55-55000x-E-3

EAS Connection Wire (1 ft.)

1.8 m (6 ft.), long strain relief, straight cable, black

IBM PowerLink Cable with Built in Power Jack and

55-55006x-E-3

EAS Connection Wire (1 ft.)

1.8 m (6 ft.), long strain relief, straight, black

46-00225 Stand

Other items may be ordered for the specific protocol being used. To order additional items, contact the dealer, distributor or call Metrologic’s customer service department at 1-800-436-3876.

3

INTRODUCTION

Scanner Components

Figure 1. Scanner Components

ITEM NO. DESCRIPTION

1 Red Output Window, Laser Aperture (See page 40)

2 Mode Select Button (See page 13)

3 Beeper (See page 15)

4 Blue LED, Single-Line Mode / Menu Reading (See page 15)

5 White LED (See page 15)

6

Blue LED, All Scan Lines On / Omnidirectional Reading (See page 15)

7 Amber LED, CodeGate (See page 15)

8 CodeGate Button (See page 14)

9 Pin Hole for Cable Release (See page 6)

10 10-Pin RJ45, Female Socket (See page 36)

4

INTRODUCTION

Caution and Serial Number Labels

Figure 2. Caution and Serial Labels

Stand Specifications

Figure 3. Stand Specifications

5

Introduction

Maintenance

Smudges and dirt can interfere with the proper scanning of a bar code. Therefore, the output window will need occasional cleaning.

1. Spray glass cleaner onto a lint free, non-abrasive cleaning cloth.

2. Gently wipe the scanner window.

Cable Removal

Disconnect the power supply from the PowerLink cable and turn off power to the host system before removing the cable from the scanner.

1. Locate the small ‘pin-hole’ beneath the Fusion logo on the front side of the scanner near the end of the handle.

2. Bend an ordinary paperclip into the shape shown above.

3. Insert the paperclip (or other small metallic pin) into the small ‘pin-hole’. There will be a faint ‘click’ when the connector’s lock releases.

4. Pull gently on the cable’s strain-relief to remove the cable.

Cable Connection Warning

Important: If the PowerLink cable is not fully latched the unit can power

intermittently.

Figure 4.

Figure 5. Figure 6.

6

INSTALLATION

RS232 or Light Pen

1. Turn off the host device.

2. Plug the male 10-pin RJ45 end of the PowerLink cable into the 10-pin socket on the MS3780.

3. Connect the 9-pin female end of the PowerLink cable to the appropriate communication port on the host device.

4. Plug the external power supply into the power jack on the PowerLink cable.

Check the AC input requirements of the power supply to make sure the voltage matches the AC outlet. The outlet must be located near the equipment and be easily accessible.

5. Connect AC power to the transformer.

6. Turn on the host device.

When the scanner first receives power the white LED will flash, one blue LED will turn on and the scanner will emit one beep.

Plugging the scanner into the serial port of the PC does not guarantee that scanned information will appear at the PC. A software driver and correct configuration setting are also required for proper communication to occur.

Caution To maintain compliance with applicable standards, all circuits connected to the scanner must meet the requirements for SELV (Safety Extra Low Voltage) according to EN/IEC

60950.

To maintain compliance with standard CSA C22.2 No. 60950/UL 60950 and norm EN/IEC 60950, the power source should meet applicable performance requirements for a limited power source.

Figure 7.

7

INSTALLATION

IBM 46xx or OCIA

1. Turn off the host device.

2. Plug the male 10-pin RJ45 end of the MVC cable into the 10-pin socket on the MS3780.

3. For IBM: Connect the other end of the MVC cable to Port 9 of the host device.

For OCIA: Connect the other end of the MVC cable to the appropriate communication port on the host device.

4. Turn on the host device.

When the scanner first receives power the white LED will flash, one blue LED will turn on and the scanner will emit one beep.

Plugging the scanner into the serial port of the PC does not guarantee that scanned information will appear at the PC. A software driver and correct configuration setting are also required for proper communication to occur.

Caution: To maintain compliance with applicable standards, all circuits connected to the scanner must meet the requirements for SELV (Safety Extra Low Voltage) according to EN/IEC

60950.

To maintain compliance with standard CSA C22.2 No. 60950/UL 60950 and norm EN/IEC 60950, the power source should meet applicable performance requirements for a limited power source.

Figure 8. IBM (above), OCIA (below)

8

INSTALLATION

Keyboard Wedge

1. Turn off the host device.

2. Plug the male 10-pin RJ45 end of the PowerLink cable into the 10-pin socket on the MS3780.

3. Disconnect the keyboard from the host device.

4. Connect the “Y” end of the PowerLink cable to the keyboard and the keyboard port on the host PC. If necessary use the male/female adapter cable supplied with the scanner for proper connections.

5. Plug the external power supply into the power jack on the PowerLink cable.

Check the AC input requirements of the power supply to make sure the voltage matches the AC outlet. The outlet must be located near the equipment and be easily accessible.

6. Connect AC power to the transformer.

7. Turn on the host device.

Figure 9.

When the scanner first receives power the white LED will flash, one blue LED will turn on and the scanner will emit one beep.

Powering the MS3780 directly from the host device can sometimes cause interference with the operation of the scanner or the computer. Not all computers supply the same current through the keyboard port. For this reason, Metrologic recommends using an external power supply. For additional information contact a Metrologic customer service representative.

Caution: To maintain compliance with applicable standards, all circuits connected to the scanner must meet the requirements for SELV (Safety Extra Low Voltage) according to EN/IEC

60950.

To maintain compliance with standard CSA C22.2 No. 60950/UL 60950 and norm EN/IEC 60950, the power source should meet applicable performance requirements for a limited power source.

9

INSTALLATION

Stand-Alone Keyboard

1. Turn off the host device.

2. Plug the male 10-pin RJ45 end of the PowerLink cable into the 10-pin socket on the MS3780.

3. Connect the other end of the PowerLink cable to the keyboard port on the host device.

4. Plug the external power supply into the power jack on the PowerLink cable.

Check the AC input requirements of the power supply to make sure the voltage matches the AC outlet. The outlet must be located near the equipment and be easily accessible.

5. Connect AC power to the transformer.

6. Turn on the host device.

When the scanner first receives power the white LED will flash, one blue LED will turn on and the scanner will emit one beep.

Figure 10.

Powering the MS3780 directly from the host device can sometimes cause interference with the operation of the scanner or the computer. Not all computers supply the same current through the keyboard port. For this reason, Metrologic recommends using an external power supply. For additional information contact a Metrologic customer service representative.

Caution: To maintain compliance with applicable standards, all circuits connected to the scanner must meet the requirements for SELV (Safety Extra Low Voltage) according to EN/IEC

60950.

To maintain compliance with standard CSA C22.2 No. 60950/UL 60950 and norm EN/IEC 60950, the power source should meet applicable performance requirements for a limited power source.

10

INSTALLATION

Full Speed or Low Speed USB (Integrated)

1. Turn off the host device.

2. Plug the male 10-pin RJ45 end of the USB PowerLink cable into the 10-pin socket on the MS3780.

3. Plug the other end of the USB interface cable into the host device’s USB port.

4. Turn on the host device.

As a default, the MS3780-38 leaves the factory with USB Keyboard Emulation Mode enabled.

For information on configuring the MS3780-38 for USB Serial Emulation Mode, please refer to the USB: Low Speed section of the MetroSelect Configuration Guide (MLPN 00-02407).

Figure 11.

When the scanner first receives power the white LED will flash, one blue LED will turn on and the scanner will emit one beep.

Plugging the scanner into the USB port of the PC does not guarantee that scanned information will appear at the PC. A software driver and correct configuration setting are also required for proper communication to occur.

Caution: To maintain compliance with applicable standards, all circuits connected to the scanner must meet the requirements for SELV (Safety Extra Low Voltage) according to EN/IEC

60950.

To maintain compliance with standard CSA C22.2 No. 60950/UL 60950 and norm EN/IEC 60950, the power source should meet applicable performance requirements for a limited power source.

11

INSTALLATION

EAS Deactivation

EAS DEACTIVATION

SW1 and SW2 are the switch banks inside the CheckPoint Device that set the deactivation range. The following is a list of CheckPoint recommended switch bank settings.

CheckPoint Recommended Switch Bank Settings

SW1 & SW2 switches 1 and 6 set to ON

All Fusion models equipped with EAS capabilities have an EAS designation in their model numbers. The cable supplied with these units will have additional wires for connection to the CheckPoint Device.

Figure 12. EAS Cable Connection (Bottom of StratosS)

Figure 13 shows the location of the EAS deactivation area for Fusion.

It is important to pass the entire tag through this area to deactivate the security tag.

12

Figure 13. EAS Deactivation Area

SCANNER OPERATION

The Scan Pattern Mode Select Button

There are two configurable scan pattern modes available with the MS3780.

• The primary scan pattern mode is the default scan pattern active when the scanner starts. By default, the primary scan pattern is set to all-scan-lines for omnidirectional reading.

• Pressing the scan pattern mode button (see figure below) activates the secondary scan pattern mode. By default, the secondary scan pattern is set to single-line mode for menu reading.

Please refer to the MetroSelect Configuration Guide for information on changing the default scan pattern settings.

To Change Scan Pattern Modes

1. To activate the secondary scan pattern, press and release the mode select button.

Press and Release the

Mode Select Button

Pattern Mode LED Switches

to New Active Pattern

Figure 14.

Activating a pattern mode when the scanner is out of its stand does not change the in-stand pattern mode. When the scanner is returned to the stand it will automatically revert to the most recent scan pattern selected during in-stand operation.

2. To re-activate the primary scan pattern, press and release the mode select button again.

13

Figure 15.

SCANNER OPERATION

How to Use CodeGate and the Manual Activation Mode

For illustration purposes the unit’s scan pattern has been set to single-line (menu reading) mode.

CODEGATE MANUAL ACTIVATION MODE*

This feature is not a default setting.

*

Refer to the MetroSelect Configuration Guide for instructions on enabling the Manual Activation Mode.

Figure 16.

Figure 17.

Factory Defaults: In-Stand, CodeGate is not active (Amber LED is On)

Out-of-Stand, CodeGate is active (Amber LED is Off)

For information on how to change the factory defaults, refer to the MetroSelect Configuration Guide (00-02407).

14

SCANNER OPERATION

Audible Indicators

When the MS3780 is in operation, it can provide audible feedback. These sounds indicate the status of the scanner. Eight settings are available for the tone of the beep (normal, 6 alternate tones and no tone). For instruction on how to change the tone of the beeper, refer to the MetroSelect Configuration Guide (00-02407).

One Beep

When the scanner first receives power; the white LED will flash, one blue LED will turn on and the scanner will emit a beep (the white LED will remain on for the duration of the beep). The scanner is now ready to scan.

When the scanner successfully reads a bar code, the white LED will flash and the scanner will emit one beep (if configured to do so). If the scanner does not emit one beep and the white light does not flash, then the bar code has not been successfully read.

Razzberry Tone

This is a failure indicator. Refer to Failure Mode Indicators on page 17.

Three Beeps - during operation

When placing the scanner in configuration mode, the white and blue LEDs will flash while the scanner emits three beeps. The white and blue LEDs will continue to flash until the unit exits the configuration mode. Upon exiting the configuration mode, the scanner will emit three beeps and the white LED will stop flashing.

When configured, 3 beeps can also indicate a communications timeout during normal scanning mode.

When using one-code-programming, the scanner will emit three beeps: the current selected tone, followed by a short pause then a high tone and a low tone. This tells the user that the single code configuration has successfully configured the scanner.

Three Beeps - on power up

This is a failure indicator. Refer to Failure Mode Indicators on page 17.

15

SCANNER OPERATION

Visual Indicators

There are four LEDs located on the top of the MS3780. When the scanner is on, the flashing or constant illumination of the LEDs indicates the status of the current scan and the scanner.

Figure 18. LED Indicators

No LEDs

The LEDs will not be illuminated if the scanner is not receiving power from the host or transformer. They are also not illuminated when all lasers are turned off for any reason.

Steady Blue Single-Line LED

Indicates the laser is active and the scanner is in Single-Line Mode. The blue LED will remain illuminated until the laser is deactivated.

Steady Blue Omni LED

Indicates the laser is active and the scanner is in the Omnidirectionsl Mode. The blue LED will remain illuminated until the laser is deactivated.

Steady Blue Single-Line or Omni LED and a Single White LED Flash

When the scanner successfully reads a bar code, the white LED will flash and the scanner will beep once. If the white LED does not flash or the scanner does not beep, then the bar code has not been successfully read.

Steady White and Blue Single-Line or Omni LED

After a successful scan, the scanner transmits the data to the host device. Some communication modes require that the host inform the scanner when data is ready to be received. If the host is not ready to accept the information, the scanner’s white LED will remain on until the data can be transmitted.

Alternate Flashing of Both Blue LEDs and the White LED

This indicates the scanner is in program mode. A razzberry tone indicates that an invalid bar code has been scanned in this mode.

Steady Amber LED

Indicates that CodeGate is not active (in-stand default).

16

SCANNER OPERATION

Failure Mode Indicators

Both Blue LEDs Flashing with One Emitted Razzberry Tone

This indicates that the scanner has experienced a laser subsystem failure. Return the unit to a Metrologic authorized service center for repair.

Both Blue LEDs and the White LED are Flashing with Two Emitted Razzberry Tones

This indicates that the scanner has experienced a motor failure. Return the unit to a Metrologic authorized service center for repair.

Continuous Razzberry Tone with Both LEDs Off - On Power Up

A continuous razzberry tone upon power up indicates there has been an electronic failure. Return the unit to a Metrologic authorized service center for repair.

Three Beeps - On Power Up

This indicates that the nonvolatile memory that holds the scanner configuration has failed. Return the unit to a Metrologic authorized service center for repair.

17

SCANNER OPERATION

Depth of Field Specifications*

Normal Scan Zone

Specifications are based on a 0.33 mm (13 mil) bar code.

Figure 19. Normal Depth of Field

* All specifications are subject to change without notice.

18

SCANNER OPERATION

Depth of Field Specifications*

Reduced Scan Zone

Specifications are based on a 0.33 mm (13 mil) bar code.

Figure 20. Reduced Depth of Field

* All specifications are subject to change without notice.

19

SCANNER OPERATION

Depth of Field by Bar Code Element Width*

Normal Scan Zone

MINIMUM BAR CODE ELEMENT WIDTH

A B C D E F

mm .13 .15 .19 .25 .33 .66

mils 5.2 5.7 7.5 10 13 26

Figure 21. Normal Scan Zone by Bar Code Element Width

* All specifications are subject to change without notice.

20

SCANNER OPERATION

Depth of Field by Bar Code Element Width*

Reduced Scan Zone

MINIMUM BAR CODE ELEMENT WIDTH

A B C D E F

mm .13 .15 .19 .25 .33 .66

mils 5.2 5.7 7.5 10 13 26

Figure 22. Reduced Scan Zone by Bar Code Element Width

* All specifications are subject to change without notice.

21

SCANNER OPERATION

IR Activation Range*

Normal

Figure 23. Normal IR Activation Range

Reduced

Figure 24. Reduced IR Activation Range

* All specifications are subject to change without notice.

22

TROUBLESHOOTING GUIDE

The following guide is for reference purposes only. Contact a Metrologic representative at 1-800-ID-METRO or 1-800-436-3876 to preserve the limited warranty terms on page 42.

Symptoms Possible Cause(s) Solution

All Interfaces

The unit has no LEDs, beeper or motor spin.

The unit has no LEDs and / or beeper.

There are multiple scans upon presentation of code.

The unit powers up but does not beep.

The unit powers up but does not scan and/or beep.

No power is being supplied to the scanner.

Check the transformer, outlet and power strip. Make sure the cable is plugged into the scanner.

Some host systems cannot No power is being supplied to the scanner from host.

supply enough current to power

the MS3780. Use the power

supply included with the

scanner.

The same symbol timeout is set too short.

Adjust the same symbol timeout

for a longer time increment.

The beeper is disabled. Enable the beeper.

No tone is selected. Select a tone.

The unit is trying to scan a particular symbology that is not enabled.

The scanner has been configured for a character length lock, or a minimum length and bar code being scanned does not satisfy the configured criteria.

UPC/EAN, Code 39, Interleaved

2 of 5, Code 93, Code 128 and

Codabar are enabled by default.

Verify that the type of bar code

being read has been selected

Verify that the bar code that is

being scanned falls into the

criteria.

Typical of Non-UPC/EAN codes.

The scanner defaults to a

minimum of 4 character bar

code.

23

TROUBLESHOOTING GUIDE

Symptoms Possible Cause(s) Solution

All Interfaces

The unit scans a bar code, but locks up after the first scan (the white LED stays on).

The unit scans but the data transmitted to the host is incorrect.

Scanner beeps at some bar codes and NOT for others of the same bar code symbology.

The scanner is configured to support some form of host handshaking but is not receiving the signal.

The scanner’s data format does not match the host system requirements.

The print quality of the bar code is suspect.

The aspect ratio of the bar code is out of tolerance.

The bar code may have been printed incorrectly.

The scanner is not configured correctly for the type of bar code.

If the scanner is setup to support

ACK/NAK, RTS/CTS,

XON/XOFF or D/E, verify that

the host cable and host are

supporting the handshaking

properly.

Verify that the scanner’s data

format matches the format

required by the host.

Make sure that the scanner is

connected to the proper host

port.

The type of printer and/or the

printer settings could be the

problem.

Check the print mode or change

the printer settings. For

example, change to econo mode

or high speed.

Check if it is a check digit,

character or border problem.

Check if check digits are set

properly.

The minimum symbol length setting does not work with the bar code.

24

Check if the correct minimum

symbol length is set.

TROUBLESHOOTING GUIDE

Symptoms Possible Cause(s) Solution

All Interfaces

During power up the unit beeps 3 times.

During power up the unit razzes continuously.

During power up the unit razzes once and the blue LED flashes.

During power up the unit razzes twice and both LEDs flash.

RS232 Only

The unit powers up OK and scans OK but does not communicate properly to the host.

There is a non-volatile RAM failure.

There is a RAM or ROM failure.

There is a VLD failure.

There is a scanner motor failure.

The com port at the host is not working or is not configured properly.

The cable is not connected to the proper com port.

The com port is not operating properly.

Contact a Metrologic service

representative.

Contact a Metrologic service

representative.

Contact a Metrologic service

representative.

Contact a Metrologic service

representative.

Check to make sure that the

baud rate and parity of the

scanner and the communication

port match and that the program

is looking for RS232 data.

25

TROUBLESHOOTING GUIDE

Symptoms Possible Cause(s) Solution

RS232 Only

The host is receiving data but the data does not look correct.

Characters are being dropped.

Keyboard Wedge Only

The unit scans the bar code but there is no data.

The unit scans but the data is not correct.

The unit is not transmitting each character.

The scanner and host may not be configured for the same interface.

The intercharacter delay needs to be added to the transmitted output.

The unit may not be configured correctly.

Check that the scanner and the

host are configured for the same

interface.

Add some intercharacter delay to

the transmitted output by using

the MetroSelect Configuration

MLPN 00-02407).

Guide (

Make sure the scanner is

configured for the appropriate

mode.

Make sure that the proper PC

type (ie. AT, PS2 or XT) is

selected.

Verify correct country code and

data formatting are selected.

Adjust the intercharacter delay.

Increase the interscan code

delay setting. Adjust whether

the F0 break is transmitted. It

may be necessary to try both

settings.

Alpha characters show as lower case.

Everything works except for a couple of characters.

26

The computer is in caps lock mode.

These characters may not be supported by the current country’s key look up table.

Enable caps lock detect setting

of the scanner to detect whether

the PC is operating in caps lock.

Try operating the scanner

in Alt Mode.

DESIGN SPECIFICATIONS

Operational

Light Source: Visible Laser Diode (VLD) @ 650 nm

Laser Power: 1.1 mW (Peak)

Normal Depth of Field: 25 mm - 280 mm (1”- 11”)

Reduced Depth of Field: 25 mm - 150 mm (1”- 6”)

Omni Scan

Single-Line

No. Characters Read:

Mechanical

Scan Speed: 1333 scan lines per second

No. of Scan Lines: 20

Scan Speed: 67 scan lines per second

No. of Scan Lines: 1

Motor Speed: 4000 RPM

Min Bar Width: 0.127 mm (5.0 mil)

Decode Capability:

System Interfaces:

Print Contrast: 35% minimum reflectance difference

Beeper Operation: 7 tones or no beep

Indicators (LED):

Termination: 10 position modular RJ45 connector

Cable: Application Dependent

Scanner Length: 189 mm (7.44”)

All standard 1-D bar codes including RSS-14, RSS-Expanded, and RSS-14 Limited

RS232, Keyboard Wedge, Stand-Alone Keyboard, Light Pen Emulation, IBM468x/469x, USB (low speed and full speed), OCIA

Up to 80 data characters Maximum number will vary based on symbology and density.

Blue = laser on, ready to scan

White = good read, decoding

MS3780

0.33 mm (13 mil) bar code

Scanner Width: 65 mm (2.56”)

Scanner Height: 73 mm (2.88”)

Scanner Weight: 195 g (6.9 oz.)

Specifications subject to change without notice.

27

DESIGN SPECIFICATIONS

Electrical

Voltage Supply: 5VDC ± 0.25V

Operating Power: 1.375 W

Standby Power: 1.0 W

Operating Current: 275 mA typical at 5VDC

Standby Current: 200 mA typical at 5VDC

DC Transformers: Class II; 5.2VDC @ 650 mA

Laser Class 1:

EMC: FCC, ICES-003 & EN 55022 Class A

Environmental

Operating Temperature: -20°C to 40°C (-4°F to 104°F)

Storage Temperature: -40°C to 60°C (-40°F to 140°F)

Humidity: 5% to 95% relative humidity, non-condensing

Contaminants: Sealed to resist airborne particulate contaminants

Ventilation: None required

Shock: Withstands multiple drops from 1.5 meters

Specifications subject to change without notice.

IEC 60825-1:1993+A1:1997+A2:2001 EN 60825-1:1994+A11:1996+A2:2001

MS3780

28

APPLICATIONS AND PROTOCOLS

The model number on each scanner includes the scanner number and factory default communications protocol.

SCANNER

VERSION

IDENTIFIER

INTERFACE

9 OCIA and RS232 Transmit/Receive

11 IBM 46xx and Full RS232

RS232 Low Speed USB*, Keyboard Emulation or USB Serial Emulation Mode

MS3780

38

40 Full Speed USB

41 RS232/Light Pen Emulation

47

48

Keyboard Wedge, Stand-Alone Keyboard and RS232 Transmit/Receive

Stand Alone Keyboard and RS232 Transmit/Receive

The MS3780 scanner with Built-in PC Keyboard Wedge Interface is designed to be used for keyboard emulation only. Many RS232 configurable functions (e.g. formatting) available in other Metrologic scanners are also available as keyboard wedge functions.

The following are the most important selectable options specific to the keyboard wedge.

Keyboard Type

• ** AT (includes IBM® PS2 models 50, 55, 60, 80)

• XT

• IBM PS2 (includes models 30, 70, 8556)

Keyboard Country Type

• USA ** • German • Spanish

• Belgium • Italian • Swiss

• French • Japan • United Kingdom

** Default setting. For a complete list of default settings, see Default Settings -

Communication Parameters starting on page 30 of this guide. Refer to the

MetroSelect

®

Configuration Guide (MLPN 00-02407) or MetroSet2’s help files

for information on how to change the default settings.

29

DEFAULT SETTINGS - COMMUNICATION PARAMETERS

Many functions of the scanner can be "configured" - that is enabled or disabled. The scanner is shipped from the factory configured to a set of default conditions. The default parameter of the scanner has an asterisk ( * ) in the charts on the following pages. If an asterisk is not in the default column then the default setting is off or disabled. Every interface does not support every parameter. If the interface supports a parameter listed in the charts on the following pages, a check mark () will appear in the column for that interface.

PARAMETER DEFAULT OCIA USB RS232*

UPC/EAN

Code 128

Code 93

Codabar

Interleaved 2 of 5 (ITF)

MOD 10 Check on ITF

Code 11

Code 39

Full ASCII Code 39

MOD 43 Check on Code 39

MSI-Plessey

MSI-Plessey 10/10 Check Digit

MSI-Plessey MOD 10 Check Digit

Paraf Support

ITF Symbol Lengths

Minimum Symbol Length

Symbol Length Lock

RSS14 Enable

RSS14 ID “]e0”

RSS14 App ID “01”

RSS14 Check Digit

RSS Expanded Enable

* * * * *

*

Variable

4

None

* * *

LIGHT

PEN

IBM

46XX

KBW

     

30

DEFAULT SETTINGS - COMMUNICATION PARAMETERS

PARAMETER DEFAULT OCIA USB RS232*

Expanded ID “]e0”

RSS Limited Enable

RSS Limited ID “]e0”

RSS Limited App ID “01”

RSS Limited Check Digit

Bars High as Code 39

Spaces High as Code 39

Bars High as Scanned

Spaces High as Scanned

DTS/SIEMENS

DTS/NIXDORF

NCR F

NCR S

Poll Light Pen Source

Beeper Tone

Beep/Transmit Sequence

Communication Timeout

Razzberry Tone on Timeout

Three Beeps on Timeout

No Beeps on Timeout

Enter Power Save Mode

*

* * * *

*

Normal

Before

Transmit

None

*

5 mins.

LIGHT

PEN

IBM

46XX

KBW

     



     

Same Symbol Rescan Timeout: 500 msecs Programmable in 50 msec steps (MAX 6.35 seconds)

Intercharacter Delay Programmable in 1 msec steps (MAX 255 msecs)

Number of Scan Buffers

1 msecs

10 msecs

in KBW

     

*

  

1

     

 

31

DEFAULT SETTINGS - COMMUNICATION PARAMETERS

PARAMETER DEFAULT OCIA USB RS232*

Transmit UPC-A Check Digit

Transmit UPC-E Check Digit

Expand UPC-E

Convert UPC-A to EAN-13

Transmit Lead Zero on UPC-E

Convert EAN-8 to EAN-13

Transmit UPC-A Number System

Transmit UPC-A Manufacturer ID#

Transmit UPC-A Item ID#

Transmit Codabar Start/Stop Characters

CLSI Editing (Enable)

Transmit Mod 43 Check Digit on Code 39

LIGHT

PEN

     

*

    

     

  

     

  

     

  

IBM

46XX

 

KBW

Transmit Code 39 Stop/Start Characters

Transmit Mod 10/ITF

Transmit MSI-Plessey Check Characters

Parity

Baud Rate

8 Data Bits

7 Data Bits

Stop Bits

Transmit Sanyo ID Characters

32

  

Space

9600

*

2

 



 



DEFAULT SETTINGS - COMMUNICATION PARAMETERS

PARAMETER DEFAULT OCIA USB RS232*

Nixdorf ID

LRC Enabled

UPC Prefix

UPC Suffix

Transmit AIM ID Characters

STX Prefix

ETX Suffix

Carriage Return

Line Feed - disabled by default in KBW

Tab Prefix

Tab Suffix

“DE” Disable Command

“FL” Laser Enable Command

DTR Handshaking Support

*

 



 



 



LIGHT

PEN

IBM

46XX

KBW



RTS/CTS Handshaking

Character RTS/CTS

Message RTS/CTS

XON/XOFF Handshaking

ACK/NAK

Two Digit Supplements

Five Digit Supplements

Bookland

977 (2 digit) Supplemental Requirement

*

  

     



as code 39

 

33

9

DEFAULT SETTINGS - COMMUNICATION PARAMETERS

PARAMETER DEFAULT OCIA USB RS232*

Supplements are not Required

Two Digit Redundancy

Five Digit Redundancy

100 msec to Find Supplement Programmable in 100msec steps (MAX 800 msec)

Coupon Code 128

Programmable Code Lengths

Programmable Prefix Characters

Programmable Suffix Characters

Prefixes for individual Code Types

Editing

Inter Scan-Code Delay Programmable (100 µsec steps)

*

7

avail.

10

avail.

10

avail.

800

µsec

LIGHT

PEN

IBM

46XX

KBW

     

  

as code 3

 

     



 



     



Function/Control Key Support

Minimum Element Width Programmable in 5.6 µsec steps

Normal Depth of Field

Reduced Depth of Field

34

1

msec

*



     

UPGRADING THE FLASH ROM FIRMWARE

The MetroSet2 program is a functional component of Metrologic’s new line of Flash- based scanners. This program allows the user of a Metrologic scanner to quickly upgrade to a new or custom version of firmware. It requires the use of a personal computer running Windows The user merely connects the scanner to a serial port on the PC, launches the MetroSet2 program, and blasts off to new software upgrades.

Each MS3780, regardless of the version number or communication protocol, can be upgraded. In other words, all RS232 (-41), keyboard wedge (-47), light pen (-41), OCIA (-9), IBM 468X/469X (-11), low speed USB (-38), and integrated full speed USB (-40) units can be upgraded. To upgrade all units, a power supply and PowerLink cable (

MLPN 54-54014) are required.

RS232 units can be upgraded using the standard PowerLink cable (

MLPN 53-53xxx-3).

The program guides the user with its simplistic one click approach. The user must first select the file. Once the file is selected and verified, the scanner is ready to be upgraded. Press the “Flash Scanner” button to upgrade the scanner. The unit will go into a “flash mode” – both the blue and white LEDs will be on. The user can follow the progress of the upgrade by watching the screen for details. When the upgrade is complete, the scanner will respond with its normal one beep on power up. If two beeps occur, the scanner did not upgrade properly. Contact a Metrologic service representative for additional assistance.

®

95 or greater and the use of a serial port.

35

SCANNER AND CABLE TERMINATIONS

Scanner Pinout Connections

The MS3780 scanner interfaces terminate to a 10-pin modular socket. The serial # label indicates the interface enabled when the scanner is shipped from the factory.

Figure 25.

Keyboard Wedge and

Stand-Alone Keyboard

MS3780-47

Pin Function Pin Function

1 Ground 1 Ground 2 RS232 Transmit Output 2 RS232 Transmit Output 3 RS232 Receive Input 3 RS232 Receive Input 4 PC Data 4 RTS Output 5 PC Clock 5 CTS Input 6 KB Clock 6 DTR Input/LTPN Source 7 PC +5V 7 Reserved 8 KB Data 8 LTPN Data 9 +5VDC 9 +5VDC

10 Shield Ground

RS232 and Light Pen Emulation

MS3780-41

10 Shield Ground

MS3780-40 Full Speed USB RS232 Low Speed USB MS3780-38

Pin Function Pin Function

1 Ground/USB- 1 Ground/USB2 RS232 Transmit Output 2 RS232 Transmit Output 3 RS232 Receive Input 3 RS232 Receive Input 4 RTS Output 4 RTS Output 5 CTS Input 5 CTS Input 6 D+ 6 D+ 7 USB +V 7 USB +V 8 D- 8 D9 +5VDC 9 +5VDC

10 Shield Ground

Continued on next page.

10 Shield Ground

36

SCANNER AND CABLE TERMINATIONS

Figure 26.

MS3780-11 IBM 468X/469X

Pin Function Pin Function

1 Ground 1 Ground 2 RS232 Transmit Output 2 RS232 Transmit Output 3 RS232 Receive Input 3 RS232 Receive Input 4 RTS Output 4 RDATA 5 CTS Input 5 RDATA Return 6 DTR Input 6 Clock In 7 IBM B-Transmit 7 Clock Out

8 IBM A+ Receive 8

9 +5VDC 9 +5VDC

10 Shield Ground

MS3780-9 OCIA

Clock in Return/ Clock out Rtrn

37

SCANNER AND CABLE TERMINATIONS

Cable Connector Configurations (Host End)

Keyboard Wedge PowerLink Cable

53-53002x-3

Pin Function

1 Keyboard Clock 2 Keyboard Data 3 No Connect 4 Power Ground 5 +5 Volts DC

5-Pin DIN, Female

Pin Function

1 PC Data 2 No Connect 3 Power Ground 4 +5 Volts DC

5 PC Clock

6-Pin DIN, Male

6 No Connect

Metrologic will supply an adapter cable with a 5-pin DIN male connector on one end and a 6-pin mini DIN female connector on the other. According to the termination required, connect the appropriate end of the adapter cable to the PowerLink cable, leaving the necessary termination exposed for connecting to the keyboard and the keyboard port on the PC.

Keyboard Wedge Adapter Cable

Pin Function

1 PC Clock 2 PC Data 3 No Connect 4 Power Ground

5-Pin DIN, Male

5 +5 Volts DC

Pin Function

1 Keyboard Data 2 No Connect 3 Power Ground 4 +5 Volts DC 5 Keyboard Clock

6-pin Mini DIN, Female

6 No Connect

39

LASER AND PRODUCT SAFETY

Caution

Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous laser light exposure. Under no circumstances should the customer attempt to service the laser scanner. Never attempt to look at the laser beam, even if the scanner appears to be nonfunctional. Never open the scanner in an attempt to look into the device. Doing so could result in hazardous laser light exposure. The use of optical instruments with the laser equipment will increase eye hazard.

Atención

La modificación de los procedimientos, o la utilización de controles o ajustes distintos de los especificados aquí, pueden provocar una luz de láser peligrosa. Bajo ninguna circunstancia el usuario deberá realizar el mantenimiento del láser del escáner. Ni intentar mirar al haz del láser incluso cuando este no esté operativo. Tampoco deberá abrir el escáner para examinar el aparato. El hacerlo puede conllevar una exposición peligrosa a la luz de láser. El uso de instrumentos ópticos con el equipo láser puede incrementar el riesgo para la vista.

Attention

L'emploi de commandes, réglages ou procédés autres que ceux décrits ici peut entraîner de graves irradiations. Le client ne doit en aucun cas essayer d'entretenir lui-même le scanner ou le laser. Ne regardez jamais directement le rayon laser, même si vous croyez que le scanner est inactif. N'ouvrez jamais le scanner pour regarder dans l'appareil. Ce faisant, vous vous exposez à une rayonnement laser qú êst hazardous. L'emploi d'appareils optiques avec cet équipement laser augmente le risque d'endommagement de la vision.

Achtung

Die Verwendung anderer als der hier beschriebenen Steuerungen, Einstellungen oder Verfahren kann eine gefährliche Laserstrahlung hervorrufen. Der Kunde sollte unter keinen Umständen versuchen, den Laser-Scanner selbst zu warten. Sehen Sie niemals in den Laserstrahl, selbst wenn Sie glauben, daß der Scanner nicht aktiv ist. Öffnen Sie niemals den Scanner, um in das Gerät hineinzusehen. Wenn Sie dies tun, können Sie sich einer gefährlichen Laserstrahlung aussetzen. Der Einsatz optischer Geräte mit dieser Laserausrüstung erhöht das Risiko einer Sehschädigung.

Attenzione L’utilizzo di sistemi di controllo, di regolazioni o di procedimenti diversi da quelli descritti nel presente Manuale può provocare delle esposizioni a raggi laser rischiose. Il cliente non deve assolutamente tentare di riparare egli stesso lo scanner laser. Non guardate mai il raggio laser, anche se credete che lo scanner non sia attivo. Non aprite mai lo scanner per guardare dentro l’apparecchio. Facendolo potete esporVi ad una esposizione laser rischiosa. L’uso di apparecchi ottici, equipaggiati con raggi laser, aumenta il rischio di danni alla vista.

40

LASER AND PRODUCT SAFETY

Notices

This equipment has been tested and found to comply with limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference, in which case the user will be required to correct the interference at their own expense. Any unauthorized changes or modifications to this equipment could void the user’s authority to operate this device.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Notice This Class A digital apparatus complies with Canadian ICES-003.

Remarque Cet appareil numérique de la classe A, conformé a la norme NMB-003 du Canada.

European Standard

Warning

This is a class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures.

Funkstöreigenschaften nach EN 55022:1998

Warnung!

Dies ist eine Einrichtung der Klasse A. Diese Einrichtung kann im Wohnbereich Funkstörungen verursachen; in diesem fall kann vom Betrieber verlangt werden, angemessene Maßnahmen durchführen.

Standard Europeo

Attenzione

Questo e’ un prodotto di classe A. Se usato in vicinanza di residenze private potrebbe causare interferenze radio che potrebbero richiedere all’utilizzatore opportune misure.

Attention

Ce produit est de classe “A”. Dans un environnement domestique, ce produit peut être la cause d’interférences radio. Dans ce cas l’utiliseteur peut être amené à predre les mesures adéquates.

41

9

ype Connector

SCANNER AND CABLE TERMINATIONS

Cable Connector Configurations (Host End)

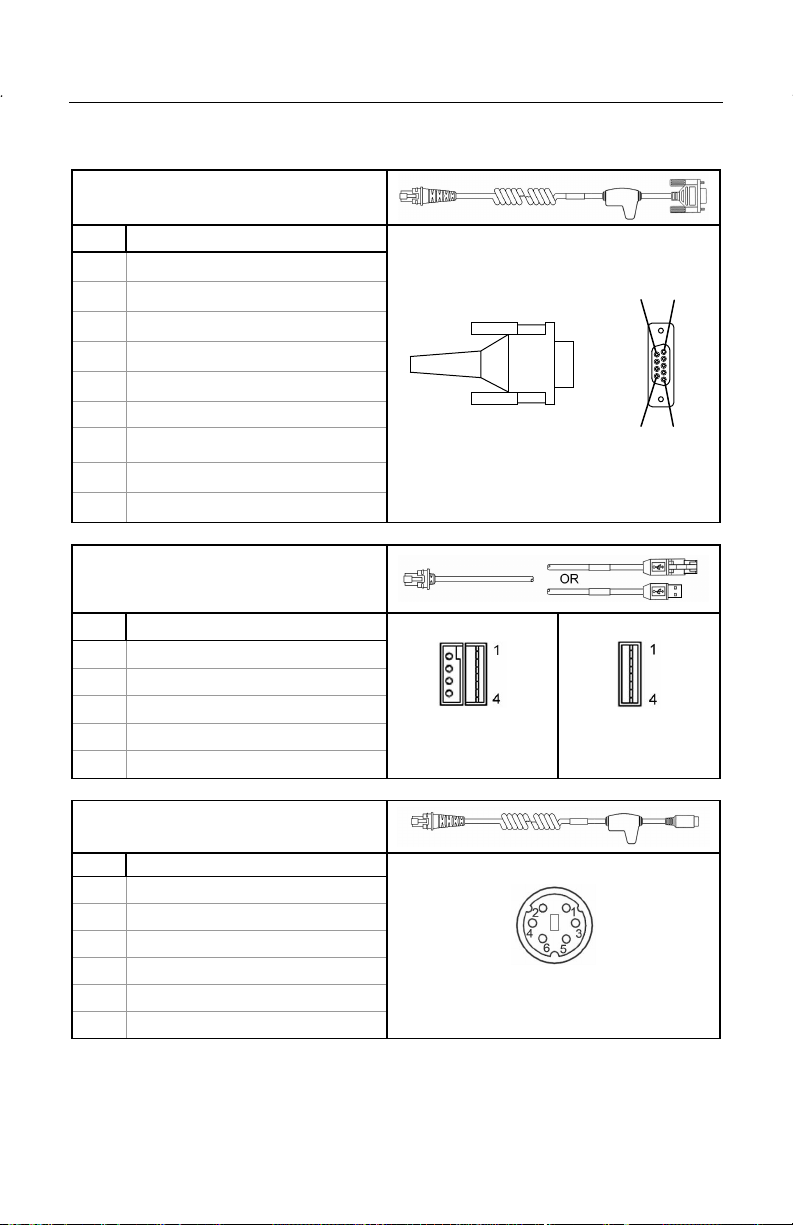

RS232 PowerLink Cable 53-53000-3

Pin Function

1 Shield Ground 2 RS232 Transmit Output 3 RS232 Receive Input 4 DTR Input/Light Pen Source 5 Power/Signal Ground 6 Light Pen Data

CTS Input

7

8 RTS Output 9 +5VDC

USB Power/Communication Cable

53-53213x-N-3, 53-530214x-N-3 or

53-53235x-N-3

Pin Function

1 PC +5V/V_USB 2 D3 D+ 4 Ground

Shield Shield

Stand Alone Keyboard PowerLink

Cable 53-53020x-3

Pin Function

1 PC Data 2 No Connect 3 Power Ground 4 +5VDC PC Power to KB 5 PC Clock 6 No Connect

-Pin D-T

USB Type A

Locking with Power

6-Pin Male Mini-DIN Connector

Non-Locking

95

61

USB

38

LIMITED WARRANTY

The MS3780 Fusion™ scanners are manufactured by Metrologic at its Blackwood, New Jersey, U.S.A. facility. The MS3780 Fusion scanners have a five (5) year limited warranty from the date of manufacture. Metrologic warrants and represents that all MS3780 Fusion scanners are free of all defects in material, workmanship and design, and have been produced and labeled in compliance with all applicable U.S. Federal, state and local laws, regulations and ordinances pertaining to their production and labeling.

This warranty is limited to repair, replacement of product or refund of product price at the sole discretion of Metrologic. Faulty equipment must be returned to one of the following Metrologic repair facilities: Blackwood, New Jersey, USA; Madrid, Spain; or Suzhou, China. To do this, contact the appropriate Metrologic Customer Service/Repair Department to obtain a Returned Material Authorization (RMA) number.

In the event that it is determined the equipment failure is covered under this warranty, Metrologic shall, at its sole option, repair the Product or replace the Product with a functionally equivalent unit and return such repaired or replaced Product without charge for service or return freight, whether distributor, dealer/reseller, or retail consumer, or refund an amount equal to the original purchase price.

This limited warranty does not extend to any Product which, in the sole judgment of Metrologic, has been subjected to abuse, misuse, neglect, improper installation, or accident, nor any damage due to use or misuse produced from integration of the Product into any mechanical, electrical or computer system. The warranty is void if the case of Product is opened by anyone other than Metrologic’s repair department or authorized repair centers.

THIS LIMITED WARRANTY, EXCEPT AS TO TITLE, IS IN LIEU OF ALL OTHER WARRANTIES OR GUARANTEES, EITHER EXPRESS OR IMPLIED, AND SPECIFICALLY EXCLUDES, WITHOUT LIMITATION, WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE UNDER THE UNIFORM COMMERCIAL CODE, OR ARISING OUT OF CUSTOM OR CONDUCT. THE RIGHTS AND REMEDIES PROVIDED HEREIN ARE EXCLUSIVE AND IN LIEU OF ANY OTHER RIGHTS OR REMEDIES. IN NO EVENT SHALL METROLOGIC BE LIABLE FOR ANY INDIRECT OR CONSEQUENTIAL DAMAGES, INCIDENTAL DAMAGES, DAMAGES TO PERSON OR PROPERTY, OR EFFECT ON BUSINESS OR PROPERTY, OR OTHER DAMAGES OR EXPENSES DUE DIRECTLY OR INDIRECTLY TO THE PRODUCT, EXCEPT AS STATED IN THIS WARRANTY. IN NO EVENT SHALL ANY LIABILITY OF METROLOGIC EXCEED THE ACTUAL AMOUNT PAID TO METROLOGIC FOR THE PRODUCT. METROLOGIC RESERVES THE RIGHT TO MAKE ANY CHANGES TO THE PRODUCT DESCRIBED HEREIN.

WORLDWIDE HEADQUARTERS, METROLOGIC THE AMERICAS HEADQUARTERS

Metrologic Instruments, Inc. M

90 Coles Rd. 1571 Imperial Way Suite B Blackwood, NJ 08012-4683 West Deptford, NJ 08066 Tel: 856-228-8100 Tel: 800-ID-METRO (800-436-3876) Fax: 856-228-6673 Fax: 856-537-6474 Email: info@metrologic.com Email: info@us.metrologic.com

AUTO ID INSTRUMENTS (SHANGHAI) CO., LTD METROLOGIC EUROPEAN REPAIR CENTER (MERC)

MTLG

Suzhou Sales Office Metrologic Eria Ibérica, SL

BLK A, Room# 03/03-04 Julian Camarillo 29, D-1 No.5 Xinghan Street, Xinsu Industrial Square 28037 Madrid China-Singapore Tel: +34 913 272 400 Suahou Industrial Park, Suzhou, PRC Fax: +34 913 273 829 Tel: 86-512-67622550 Email: info@es.metrologic.com Fax: 86-512-67622560 Email: info@cn.metrologic.com

ETROLOGIC THE AMERICAS

42

PATENTS

Patent Information

This METROLOGIC product may be covered by one or more of the following U.S. Patents:

U.S. Patent No.; 5,216,232; 5,260,553; 5,340,971; 5,340,973; 5,424,525; 5,468,951; 5,484,992; 5,525,789; 5,528,024; 5,557,093; 5,591,953; 5,616,908; 5,627,359; 5,637,852; 5,661,292; 5,767,501; 5,777,315; 5,789,730; 5,789,731; 5,796,091; 5,811,780; 5,825,012; 5,828,048; 5,844,227; 5,883,375; 5,886,337; 5,895,907; 5,925,870; 5,925,871; 5,939,698; 5,942,743; 6,029,894; 6,098,885; 6,182,898; 6,189,793; 6,286,760; 6,299,067; 6,347,743; 6,412,696; 6,460,767; 6,604,684; 6,856,572; 6,905,071; 6,209,789; 6,860,427

No license right or sublicense is granted, either expressly or by implication, estoppel, or otherwise, under any METROLOGIC or third party intellectual property rights (whether or not such third party rights are licensed to METROLOGIC), including any third party patent listed above, except for an implied license only for the normal intended use of the specific equipment, circuits, and devices represented by or contained in the METROLOGIC products that are physically transferred to the user, and only to the extent of METROLOGIC’S license rights and subject to any conditions, covenants and restrictions therein.

Other worldwide patents pending.

43

INDEX

A

AC .......................................2, 7–11

Accessories ...............................2, 3

Adapter.......................................... 9

Audible Indicator.. 15–17, 23–26, 35

B

Bar Code ............. 15–17, 23–26, 27

Bar Width.....................................27

Beep..............15, 16, 17, 23–26, 35

Blue LED ............. 15–17, 23–26, 35

Button................................4, 13–14

CodeGate ..................................4

Mode Select...............................4

C

Cable

Communication...2, 7–11, 23–26,

35, 38–39

EAS..........................................12

IBM ............................................2

Keyboard Wedge ...........2, 38–39

OCIA..........................................2

Pin Assignments ................38–39

PowerLink .. 2, 6, 7–11, 35, 38–39

RS232........................................ 2

Troubleshooting .................23–26

USB ...................................38–39

Caution..........................5, 7–11, 40

Class ...........................................41

CodeGate......................1, 4, 13–14

Communication .........16, 23–26, 29

Parameters ........................ 30–34

Compliance .............................7–11

Components ..............................2, 4

Configuration.........................15, 17

Default ...............................30–34

Current ........................................28

D

DC ...........................................2, 28

Default Settings .........13, 29, 30–34

Depth of Field

Normal ................... 18, 20, 27, 34

Reduced ..........19, 20, 21, 27, 34

E

EAS............................................. 12

F

Failure

Modes...................................... 17

FCC ............................................ 41

Firmware..................................... 35

Flash ROM.............................. 1, 35

H

Host ...................................... 23–26

I

IBM ................................... 8, 30–34

Indicator

Audible .. 4, 15–17, 23–26, 27, 35

Failure ..................................... 17

Visual .... 4, 15–17, 23–26, 27, 35

Interface...................................... 27

IBM............................ 1, 8, 30–34

Keyboard Wedge. 1, 9, 26, 30–34

Laser Emulation ............ 1, 30–34

Light Pen ................... 1, 7, 30–34

OCIA ......................... 1, 8, 30–34

RS232 ........... 1, 7, 25, 26, 30–34

Stand-Alone Keyboard ........ 1, 10

Troubleshooting................. 23–26

USB......................... 1, 11, 30–34

IR Activation Range

Far........................................... 22

Near ........................................ 22

K

Keyboard..................................... 29

Keyboard Wedge ........ 9, 26, 30–34

L

Label

Caution...................................... 5

Serial Number ........................... 5

Laser....................................... 4, 40

Laser Emulation .................... 30–34

LED....................................... 15–17

Light Pen........................... 7, 30–34

44

INDEX

Light Source ................................27

M

Maintenance..................................6

Manual...............................2, 15, 29

MetroSet2....................................35

Mode of Operation

Button ......................................14

Primary ..............................13–14

Secondary..........................13–14

Mode Select ..................................4

Motor Speed................................27

Mounting Specifications ................5

N

Notices ........................................41

O

OCIA .................................8, 30–34

Omnidirectional Mode ...................4

Operation.....................................41

P

Patents ........................................43

Pin Assignments

Cable .................................38–39

Scanner .............................36–37

Port.............................. 7–11, 23–26

Power ............................2, 7–11, 35

Power Supply ................................6

PowerLink................................7–11

Product Safety.............................40

Protocol .......................................29

R

RAM ............................................25

Razzberry Tone............... 15–17, 25

Read Rate ...................................14

Repair.......................................... 17

ROM............................................25

RS232 ...................7, 25, 26, 30–34

S

Scan Lines .................................. 27

Scan Pattern ........................... 1, 27

Primary.............................. 13–14

Secondary ......................... 13–14

Single-Line ........................ 13–14

Scan Speed ................................ 27

SELV....................................... 7–11

Single-Line Mode .......................... 4

Specification

Electrical.................................. 28

Environmental ......................... 28

Mechanical .............................. 27

Operational.............................. 27

Stand-Alone Keyboard................ 10

Storage ....................................... 28

Switch Bank ................................ 12

T

Tone........................................ 1, 15

Transformer ............................ 2, 28

Troubleshooting .................... 23–26

U

Upgrade ...................................... 35

USB ................................ 11, 30–34

V

Ventilation ................................... 28

Visual Indicator ... 15–17, 23–26, 35

Blue LED ....................... 4, 23–26

White LED ..................... 4, 23–26

Amber LED.................... 4, 23–26

Voltage.............................. 7–11, 28

Volume........................................ 15

W

Weight......................................... 27

White LED........... 15–17, 23–26, 35

Window ......................................... 4

45

NOTES

April 2006

Printed in the USA

00-02269B

Metrologic Instruments MS3780 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Copyright

TABLE OF CONTENTS

INTRODUCTION

Scanner and Accessories

Scanner Components

Caution and Serial Number Labels

Stand Specifications

Maintenance

Cable Removal

Cable Connection Warning

INSTALLATION

RS232 or Light Pen

IBM 46xx or OCIA

Keyboard Wedge

Stand-Alone Keyboard

Full Speed or Low Speed USB (Integrated)

EAS Deactivation

SCANNER OPERATION

The Scan Pattern Mode Select Button

How to Use CodeGate and the Manual Activation Mode

Normal Scan Zone

Normal Scan Zone

Reduced Scan Zone

Normal

Reduced

TROUBLESHOOTING GUIDE

DESIGN SPECIFICATIONS

APPLICATIONS AND PROTOCOLS

DEFAULT SETTINGS - COMMUNICATION PARAMETERS

UPGRADING THE FLASH ROM FIRMWARE

SCANNER AND CABLE TERMINATIONS

Scanner Pinout Connections

LASER AND PRODUCT SAFETY

Cable Connector Configurations (Host End)

LIMITED WARRANTY

PATENTS

INDEX
