IMPORTANT NOTES - BEFORE YOU START
It is important to read carefully the notes marked with a
contained in this manual. Not all configuration codes are designed to be used for
both a single and dual cable scanner/scale system. Many of the configuration
bar codes require additional steps before the unit can be configured and placed
into service. Most of the bar codes in this addendum were designed to be used
with a Stratos model that includes a scale. The text marked with a
provide important additional information about the restrictions and uses of the bar
codes shown.
All of the bar codes in this manual require:
• The scanner/scale to have a firmware number of 15367 or higher
• All configuration bar codes must be scanned with the vertical window
The Unit Configuration bar codes (located on pages 3 and 4 of this
addendum guide) require the scale security seal to be broken.
If the scale security seal is broken, it must be sealed and certified by local
Weights and Measures authorities after the scale calibration process has been
completed. The scanner/scale cannot be placed in service until it is sealed and
certified by the proper authorities.
For further details on calibration procedures for Weights and Measures
certification, refer to the Scale Operation: Calibration section of the Stratos
Installation and User’s Guide.
The certification of the weighing mechanism of the scale version of
this scanner is subject to federal, state and local Weights and
Measures statutes and regulations and can only be performed by
authorized government agencies and/or their duly registered
agents. Each time the scale or weighing mechanism is calibrated,
it should be properly sealed with a paper seal or a wire seal prior to
being placed into service in commerce.
It is the responsibility of the owner of the scale to confirm
compliance with the relevant Weights and Measures statutes and
regulations applicable in your area by checking with the appropriate
government agency before placing a newly calibrated unit into
service or removing any official seals.
symbol on the pages
symbol will
1
IMPORTANT NOTES - BEFORE YOU START

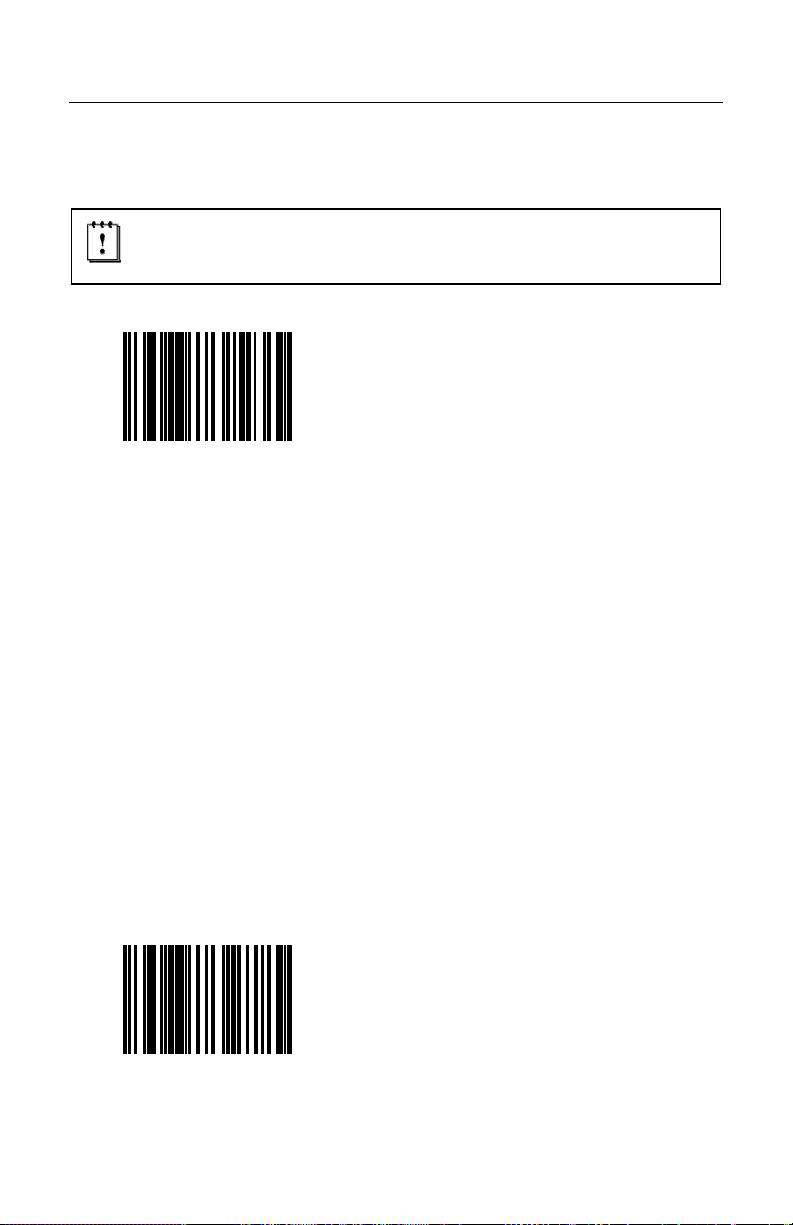

Important Bar Codes
Scale Save Data Bar Code.
The Scale Save Data bar code must be scanned last to “save” the changes in the
scale’s memory. The scale will then reset and begin normal operation. This is
required only for scale configuration items – not for calibration.
Scale Save Data
³996045
Scale Type Bar Code.
The Stratos scanner should have been already programmed to recognize the
type K Diva scale. If, for any reason, the scanner’s non-volatile memory is lost,
the following bar code must be scanned to reprogram the scanner for the
type K Diva scale.
Type K Diva Scale
³446510
2
SCALE/LOAD CELL CONFIGURATION BAR CODES
Single or Dual Cable Scale Configuration Bar Codes
Unit Configuration (Pounds)
For Kilogram weight units see page 4.
The following bar codes can be used to configure a Single or
Dual Cable MS2xx0.
If the MS2xx0 is currently in a Dual Cable configuration, temporarily
disconnect the Scale to Host cable prior to configuring the scale.
The MS2xx0 must be in scale service mode to use these
bar codes.
Pounds Calibration
Set the scale measuring range from
0.00 to 30.00 pounds.
³996042
3
SCALE/LOAD CELL CONFIGURATION BAR CODES
Single or Dual Cable Scale Configuration Bar Codes
Unit Configuration (Kilograms)
For Pound weight units see page 3.
The following bar codes can be used to configure a Single or
Dual Cable MS2xx0.
If the MS2xx0 is currently in a Dual Cable configuration, temporarily
disconnect the Scale to Host cable prior to configuring the scale.
The MS2xx0 must be in scale service mode to use these
bar codes.
Kilograms Calibration
Set the scale measuring range from
0.000 to 15.000 kilograms.
³996044
4
SCALE CONFIGURATION BAR CODES
Single or Dual Cable Scale Configuration Bar Codes
Pole Display Configuration
The following bar codes can be used to configure a Single or
Dual Cable MS2xx0.
If the MS2xx0 is currently in a Dual Cable configuration, temporarily
disconnect the Scale to Host cable prior to configuring the scale.
The MS2xx0 does not need to be in scale service mode.
The Scale Save Data bar code must be scanned last to save the
changed configuration (see page 2).
Scale Display
Single-Line Weight Only
Set the scale to use a single-line weight only
display to show all scale activity.
The single-line display must be plugged into
the Scale to Display connector on the
MS2xx0 (see Figure 1).
³996003
Figure 1. Location of Scale to Display Connector
Scale Display
4-line Price Computing
³996009
5
Set the scale to use a 4-line price computing
display to show all scale activity.
The 4-line display must be plugged into the
Scale to Display connector on the MS2xx0
(see Figure 1).
SCALE CONFIGURATION BAR CODES
Single or Dual Cable Scale Configuration Bar Codes
Pole Display Configuration
The following bar codes can be used to configure a Single or
Dual Cable MS2xx0.
If the MS2xx0 is currently in a Dual Cable configuration, temporarily
disconnect the Scale to Host cable prior to configuring the scale.
The MS2xx0 does not need to be in scale service mode.
The Scale Save Data bar code must be scanned last to save the
changed configuration (see page 2).
Scale Has No Display
³996004
Set the scale to not require a remote
display. All weights are expected on a POS
terminal display.
A remote display can not be plugged into
the Scale to Display connector on the
MS2xx0 (see Figure 1).
6
SCALE CONFIGURATION BAR CODES
Single or Dual Cable Scale Configuration Bar Codes
Scale Settling Filter Configuration
The following bar codes can be used to configure a Single or
Dual Cable MS2xx0.
If the MS2xx0 is currently in a Dual Cable configuration, temporarily
disconnect the Scale to Host cable prior to configuring the scale.
The MS2xx0 does not need to be in scale service mode.
The Scale Save Data bar code must be scanned last to save the
changed configuration (see page 2).
The scale’s filter setting allows the unit to withstand a certain amount of vibration
from the checkout counter. A stronger filter allows for more vibration to be
absorbed but the weight may take a little longer to settle. Scales are normally
shipped with a loose filter.
* Scale = Loose Filter
³996005
7
Loose filter setting for low vibration
environments.
* Factory Default Setting
SCALE CONFIGURATION BAR CODES
Single or Dual Cable Scale Configuration Bar Codes
Scale Settling Filter Configuration
The following bar codes can be used to configure a Single or
Dual Cable MS2xx0.
If the MS2xx0 is currently in a Dual Cable configuration, temporarily
disconnect the Scale to Host cable prior to configuring the scale.
The MS2xx0 does not need to be in scale service mode.
The Scale Save Data bar code must be scanned last to save the
changed configuration (see page 2).
Scale = Medium Filter
Medium filter setting for moderate vibration
environments.
³996006
Scale = Strong Filter
Strong filter setting for high vibration
environments.
³996007
8
SCALE CONFIGURATION BAR CODES
Single or Dual Cable Scale Configuration Bar Codes
Scale Internal Beeper
The following bar codes can be used to configure a Single or
Dual Cable MS2xx0.
If the MS2xx0 is currently in a Dual Cable configuration, temporarily
disconnect the Scale to Host cable prior to configuring the scale.
The MS2xx0 does not need to be in scale service mode.
The Scale Save Data bar code must be scanned last to save the
changed configuration (see page 2).
Scale Beep On
Enable the internal scale beeper to beep
when remote display keys are depressed.
³996090
*Scale Beep Off
³996091
9
Turn off the internal beeper inside the scale.
This is the desired default as the scanner
beeper is the main tone generator.
* Factory Default Setting
SCALE CONFIGURATION BAR CODES
Single or Dual Cable Scale Configuration Bar Codes
Zero Cursor
The following bar codes can be used to configure a Single or
Dual Cable MS2xx0.
If the MS2xx0 is currently in a Dual Cable configuration, temporarily
disconnect the Scale to Host cable prior to configuring the scale.
The MS2xx0 does not need to be in scale service mode.
The Scale Save Data bar code must be scanned last to save the
changed configuration (see page 2).
Zero Cursor Off
Turn off the zero cursor that appears on the
display when the scale is in the zero weight
area.
³996092
*Zero Cursor On
Enable the zero cursor to appear on the
display when the weight is within the zero
weight area.
³996093
* Factory Default Setting
10
SCALE CONFIGURATION BAR CODES
Single or Dual Cable Scale Configuration Bar Codes
Quantitative Separator
The following bar codes can be used to configure a Single or
Dual Cable MS2xx0.
If the MS2xx0 is currently in a Dual Cable configuration, temporarily
disconnect the Scale to Host cable prior to configuring the scale.
The MS2xx0 does not need to be in scale service mode.
The Scale Save Data bar code must be scanned last to save the
changed configuration (see page 2).
Decimal Pt Separator
Use a decimal point to separate the units
from fraction values on the remote display.
³996094
Comma Separator
³996095
11
Use a comma to separate the units from
fraction values on the remote display.
SCALE CONFIGURATION BAR CODES
Dual Cable Scale Configuration Bar Codes
Scale Protocols
The following bar codes will change scale parameters intended for a
Dual Cable environment. To place the scanner in Dual Cable mode,
please refer to page 24.
If the MS2xx0 is currently in a Dual Cable configuration, temporarily
disconnect the Scale to Host cable prior to configuring the scale.
The MS2xx0 does not need to be in scale service mode.
The Scale Save Data bar code must be scanned last to save the
changed configuration (see page 2).
Scale = EPOS Protocol
³996013
Set the scale RS232 protocol to
Serial EPOS.
Communication Port Settings:
• 2400 Baud
• 7 Data Bits
• 1 Stop Bit
• Even Parity
Scale = EPOS2 Protocol
Set the scale RS232 protocol to
Modified Serial EPOS.
This Protocol does not require the POS
terminal to send the weight back to the scale
for validation.
Communication Port Settings:
• 2400 Baud
• 7 Data Bits
• 1 Stop Bit
³996014
• Even Parity
12
SCALE CONFIGURATION BAR CODES
Dual Cable Scale Configuration Bar Codes
Scale Protocols
The following bar codes will change scale parameters intended for a
Dual Cable environment. To place the scanner in Dual Cable mode,
please refer to page 24.
If the MS2xx0 is currently in a Dual Cable configuration, temporarily
disconnect the Scale to Host cable prior to configuring the scale.
The MS2xx0 does not need to be in scale service mode.
The Scale Save Data bar code must be scanned last to save the
changed configuration (see page 2).
Scale = 8217 Protocol
³996050
Set the scale RS232 protocol to 8217.
Communication Port Settings:
• 9600 Baud
• 7 Data Bits
• 1 Stop Bit
• Even Parity
Scale = 8213 Protocol
³996051
13
Set the scale RS232 protocol to 8213.
Communication Port Settings:
• 9600 Baud
• 7 Data Bits
• 1 Stop Bit
• Even Parity
SCALE CONFIGURATION BAR CODES
Dual Cable Scale Configuration Bar Codes
Scale Protocols
The following bar codes will change scale parameters intended for a
Dual Cable environment. To place the scanner in Dual Cable mode,
please refer to page 24.
If the MS2xx0 is currently in a Dual Cable configuration, temporarily
disconnect the Scale to Host cable prior to configuring the scale.
The MS2xx0 does not need to be in scale service mode.
The Scale Save Data bar code must be scanned last to save the
changed configuration (see page 2).
Scale = ICL Protocol
³996049
Set the scale RS232 protocol to Serial ICL.
Communication Port Settings:
• 2400 Baud
• 7 Data Bits
• 1 Stop Bit
• Even Parity
Scale = EMEA
Special Configuration
Set the scale to EPOS protocol, kilograms,
with a remote display, loose filter, no price
computing, and scroll weight.
Communication Port Settings:
• 2400 Baud
• 7 Data Bits
³996041
• 1 Stop Bit
• Even Parity
14
SCALE CONFIGURATION BAR CODES
Dual Cable Scale Configuration Bar Codes
Scale Protocols
The following bar codes will change scale parameters intended for a
Dual Cable environment. To place the scanner in Dual Cable mode,
please refer to page 24.
If the MS2xx0 is currently in a Dual Cable configuration, temporarily
disconnect the Scale to Host cable prior to configuring the scale.
The MS2xx0 does not need to be in scale service mode.
The Scale Save Data bar code must be scanned last to save the
changed configuration (see page 2).
Scale = NCI Protocol
Reserved for Future NCI Protocol Variation
³996016
Scale = NCI-ECR Protocol
³996015
15
Set the scale RS232 protocol to NCI-ECR.
Communication Port Settings:
• 9600 Baud
• 8 Data Bits
• 1 Stop Bit
• No Parity
SCALE CONFIGURATION BAR CODES
Dual Cable Scale Configuration Bar Codes
Scale Protocols
The following bar codes will change scale parameters intended for a
Dual Cable environment. To place the scanner in Dual Cable mode,
please refer to page 24.
If the MS2xx0 is currently in a Dual Cable configuration, temporarily
disconnect the Scale to Host cable prior to configuring the scale.
The MS2xx0 does not need to be in scale service mode.
The Scale Save Data bar code must be scanned last to save the
changed configuration (see page 2).
*NCI = 4 Status Bytes
³996052
Set the number of status bytes reported by
the NCI scale protocol to 4 status bytes.
* Factory Default Setting
NCI = 2 Status Bytes
Set the number of status bytes reported by
the NCI scale protocol to 2 status bytes.
³996053
16
SCALE CONFIGURATION BAR CODES
Dual Cable Scale Configuration Bar Codes
Scale Protocols
The following bar codes will change scale parameters intended for a
Dual Cable environment. To place the scanner in Dual Cable mode,
please refer to page 24.
If the MS2xx0 is currently in a Dual Cable configuration, temporarily
disconnect the Scale to Host cable prior to configuring the scale.
The MS2xx0 does not need to be in scale service mode.
The Scale Save Data bar code must be scanned last to save the
changed configuration (see page 2).
Scale = Price
Compute Setup
³996047
Set the scale for price computing setup.
• Price computing display
• Dialog 06 Protocol
• 9600 Baud
• Odd Parity
• 7 Data Bits, 1 Stop Bit
17
SCALE CONFIGURATION BAR CODES
Dual Cable Scale Configuration Bar Codes
COM Port Settings (Baud Rate)
The following bar codes will change scale parameters intended for a
Dual Cable environment.
If a Scale Protocol bar code from page 12 to 17 is used, the bar codes
below must be scanned after the Scale Protocol bar code in order to be
effective.
If the MS2xx0 is currently in a Dual Cable configuration, temporarily
disconnect the Scale to Host cable prior to configuring the scale.
The MS2xx0 does not need to be in scale service mode.
The Scale Save Data bar code must be scanned last to save the
changed configuration (see page 2).
Scale = 2400 Baud Rate
Set the scale baud rate for dual cable
applications to 2400 baud.
³996017
Scale = 9600 Baud Rate
Set the scale baud rate for dual cable
applications to 9600 baud.
³996018
18
SCALE CONFIGURATION BAR CODES
Dual Cable Scale Configuration Bar Codes
COM Port Settings (Baud Rate)
The following bar codes will change scale parameters intended for a
Dual Cable environment.
If a Scale Protocol bar code from page 12 to 17 is used, the bar codes
below must be scanned after the Scale Protocol bar code in order to be
effective.
If the MS2xx0 is currently in a Dual Cable configuration, temporarily
disconnect the Scale to Host cable prior to configuring the scale.
The MS2xx0 does not need to be in scale service mode.
The Scale Save Data bar code must be scanned last to save the
changed configuration (see page 2).
Scale = 19200 Baud Rate
Set the scale baud rate for dual cable
applications to 19200 baud.
³996019
Scale = 38400 Baud Rate
³996020
19
Set the scale baud rate for dual cable
applications to 38400 baud.
SCALE CONFIGURATION BAR CODES
Dual Cable Scale Configuration Bar Codes
COM Port Settings (Data Bits & Parity)
The following bar codes will change scale parameters intended for a
Dual Cable environment.
If a Scale Protocol bar code from page 12 to 17 is used, the bar codes
below must be scanned after the Scale Protocol bar code in order to be
effective.
If the MS2xx0 is currently in a Dual Cable configuration, temporarily
disconnect the Scale to Host cable prior to configuring the scale.
The MS2xx0 does not need to be in scale service mode.
The Scale Save Data bar code must be scanned last to save the
changed configuration (see page 2).
Scale = 7 Data Bits,
Odd Parity
Set the scale communication parameters to
7 data bits, odd parity.
³996021
Scale = 7 Data Bits,
Even Parity
³996022
Set the scale communication parameters to
7 data bits, even parity.
20
SCALE CONFIGURATION BAR CODES
Dual Cable Scale Configuration Bar Codes
COM Port Settings (Data Bits & Parity)
The following bar codes will change scale parameters intended for a
Dual Cable environment.
If a Scale Protocol bar code from page 12 to 17 is used, the bar codes
below must be scanned after the Scale Protocol bar code in order to be
effective.
If the MS2xx0 is currently in a Dual Cable configuration, temporarily
disconnect the Scale to Host cable prior to configuring the scale.
The MS2xx0 does not need to be in scale service mode.
The Scale Save Data bar code must be scanned last to save the
changed configuration (see page 2).
Scale = 8 Data Bits, No Parity
Set the scale communication parameters to
8 data bit, no parity.
³996023
Scale = Odd Parity
³996024
21
Set the scale communication to odd parity.
SCALE CONFIGURATION BAR CODES
Dual Cable Scale Configuration Bar Codes
COM Port Settings (Data Bits & Parity)
The following bar codes will change scale parameters intended for a
Dual Cable environment.
If a Scale Protocol bar code from page 12 to 17 is used, the bar codes
below must be scanned after the Scale Protocol bar code in order to be
effective.
If the MS2xx0 is currently in a Dual Cable configuration, temporarily
disconnect the Scale to Host cable prior to configuring the scale.
The MS2xx0 does not need to be in scale service mode.
The Scale Save Data bar code must be scanned last to save the
changed configuration (see page 2).
Scale = Even Parity
Set the scale communication to even parity.
³996025
Scale = No Parity
³996026
Set the scale communication to no parity.
22
SCALE CONFIGURATION BAR CODES
Single Cable Scale Configuration Bar Codes
Set Scale for Single Cable Communication
If the MS2xx0 is currently in a Dual Cable configuration, disconnect
and remove the Scale to Host cable prior to configuring the scale.
The MS2xx0 does not need to be in scale service mode.
The Scale Save Data bar code must be scanned last to save the
changed configuration (see page 2).
If your application requires single cable communication, scan the following bar
code to set the scale configuration to the single cable defaults as required by the
scanner.
Scale = Single Cable Interface
Set the scale to communicate via the
single-cable interface.
³996012
23
SCANNER CONFIGURATION BAR CODES
Dual Cable Scanner Configuration Bar Codes
Dual Cable Scanner Mode
The following bar codes can be used to place, as well as configure, the
scanner in Dual Cable mode.
The MS2xx0 does not need to be in scale service mode to use the
following bar codes.
Places the scanner in Dual Cable mode.
Scanner = Dual Cable Mode
³999953
Communication Port Settings:
• 9600 Baud, 8 Data Bits, 1 Stop Bit, No Parity
In a dual cable environment, the scanner
and scale work independently. In this mode
the host must have a dedicated RS232 port
to receive the scale data and the bar code
data is sent via its own cable to a separate
communication port.
There are two methods of configuring the scanner to a stand-alone protocol:
• Scan the Dual Cable Mode bar code on this page (if a scale is used)
or
• If no scale is required, scan one of the single cable protocols on
pages 27 - 36 and then scan the No Scale bar code on page 48.
Dual Cable Scanner OPOS Mode
Scanner Only
Dual Cable OPOS Defaults
³999911
24
Use this bar code when the scanner is to be
setup using the OPOS drivers in the dual
cable mode.
Communication Port Settings:
• 9600 Baud
• 8 Data Bits
• 1 Stop Bit
• No Parity
SCANNER CONFIGURATION BAR CODES
Dual Cable Scanner Configuration Bar Codes
Various Dual Cable Scanner Mode
The following bar codes can be used to configure a Dual Cable
MS2xx0.
The following codes do not require that the MS2xx0 to be in scale
program mode.
REWE
³997010
Dual Cable RS232 - REWE
Communication Port Settings:
• 9600 Baud
• 7 Data Bits
• 2 Stop Bit
• Space Parity
TESCO UK
³997013
25
Dual Cable RS232 – TESCO UK
Communication Port Settings:
• 9600 Baud
• 8 Data Bits
• 1 Stop Bit
• Odd Parity
SCANNER CONFIGURATION BAR CODES
Dual Cable Scanner Configuration Bar Codes
IBM 3rd Generation 46xx and IBM OEM Full Speed USB
The following bar codes can be used to configure a Dual Cable
MS2xx0.
The following codes do not require that the MS2xx0 to be in scale
service mode.
rd
IBM 3
Generation
Communication
³999952
When scanned the Stratos will operate
as a table top scanner only.
Terminal configuration, IBM 4690.OS
terminal device group configuration
screen select:
#1 scanner or
#3 scanner.
IBM OEM Full Speed USB
Communication Defaults
³999970
When scanned the Stratos will operate
as a table top scanner only.
26
SCANNER CONFIGURATION BAR CODES
Single Cable Protocols for POS Compatibility
MSS Global
The following bar codes can be used to configure a Single Cable
MS2xx0.
The following codes do not require that the MS2xx0 to be in scale
service mode.
MSS Global, English
³999951
Scanner/Scale, Single Cable RS232
MSS Global Retail, English Units
Communication Port Settings:
• 9600 Baud
• 7 Data Bits
• 1 Stop Bit
• Odd Parity
MSS Global, Metric
³999950
27
Scanner/Scale, Single Cable RS232 MSS
Global Retail, Metric Units
Communication Port Settings:
• 9600 Baud
• 7 Data Bits
• 1 Stop Bit
• Odd Parity
SCANNER CONFIGURATION BAR CODES
Single Cable Protocols for POS Compatibility
ISS45
The following bar codes can be used to configure a Single Cable
MS2xx0.
The following codes do not require that the MS2xx0 to be in scale
service mode.
ISS45, English
³999949
Scanner/Scale, Single Cable RS232
ISS45, English Units
Communication Port Settings:
• 9600 Baud
• 7 Data Bits
• 1 Stop Bit
• Even Parity
ISS45, Metric
Scanner/Scale, Single Cable RS232
ISS45, Metric Units
Communication Port Settings:
• 9600 Baud
³999948
• 7 Data Bits
• 1 Stop Bit
• Even Parity
28
SCANNER CONFIGURATION BAR CODES
Single Cable Protocols for POS Compatibility
OPOS
The following bar codes can be used to configure a Single Cable
MS2xx0.
The following codes do not require that the MS2xx0 to be in scale
service mode.
OPOS, English
³999958
Scanner/Scale Single Cable RS232 OPOS,
English Scale Defaults
Communication Port Settings:
• 9600 Baud
• 8 Data Bits
• 1 Stop Bit
• No Parity
OPOS, Metric
³999957
29
Scanner/Scale Single Cable RS232 OPOS,
Metric Scale Defaults
Communication Port Settings:
• 9600 Baud
• 8 Data Bits
• 1 Stop Bit
• No Parity
SCANNER CONFIGURATION BAR CODES
Single Cable Protocols for POS Compatibility
Retailix/NCR
The following bar codes can be used to configure a Single Cable
MS2xx0.
The following codes do not require that the MS2xx0 to be in scale
service mode.
Retailix/NCR English
³999956
Scanner/Scale Single Cable RS232
Retailix/NCR Communication, English
Communication Port Settings:
• 9600 Baud
• 8 Data Bits
• 1 Stop Bit
• No Parity
Retailix/NCR Metric
Scanner/Scale Single Cable RS232
Retailix/NCR Comm, Metric
Communication Port Settings:
• 9600 Baud
³999955
• 8 Data Bits
• 1 Stop Bit
• No Parity
30
SCANNER CONFIGURATION BAR CODES
Single Cable Protocols for POS Compatibility
Retailix/OPOS
The following bar codes can be used to configure a Single Cable
MS2xx0.
The following codes do not require that the MS2xx0 to be in scale
service mode.
Retailix / OPOS Metric
³997019
Scanner/Scale Single Cable RS232 Retailix
/ OPOS Communication, Metric
Communication Port Settings:
• 9600 Baud
• 8 Data Bits
• 1 Stop Bit
• No Parity
31
SCANNER CONFIGURATION BAR CODES
Single Cable Protocols for POS Compatibility
IT Retail
The following bar codes can be used to configure a Single Cable
MS2xx0.
The following codes do not require that the MS2xx0 to be in scale
service mode.
IT
Retail, English
³997008
Scanner/Scale Single Cable RS232
IT Retail, English
Communication Port Settings:
• 9600 Baud
• 7 Data Bits
• 1 Stop Bit
• Odd Parity
IT Retail, Metric
Scanner/Scale Single Cable RS232
IT Retail, Metric
Communication Port Settings:
• 9600 Baud
³997009
• 7 Data Bits
• 1 Stop Bit
• Odd Parity
32
SCANNER CONFIGURATION BAR CODES
Single Cable Protocols for POS Compatibility
IBM Self Checkout System
The following bar codes can be used to configure a Single Cable
MS2xx0.
The following codes do not require that the MS2xx0 to be in scale
program mode.
Scanner/Scale Single Cable RS232 -
IBM Self Checkout System,
English
³997020
IBM Self Checkout System, English
Communication Port Settings:
• 19200 Baud
• 7 Data Bits
• 1 Stop Bit
• Odd Parity
IBM Self Checkout System,
Metric
³997021
33
Scanner/Scale Single Cable RS232 -
IBM Self Checkout System, Metric
Communication Port Settings:
• 19200 Baud
• 7 Data Bits
• 1 Stop Bit
• Odd Parity
SCANNER CONFIGURATION BAR CODES
Single Cable Protocols for POS Compatibility
Various RS232 Single Cable Codes
The following bar codes can be used to configure a Single Cable
MS2xx0.
The following codes do not require that the MS2xx0 to be in scale
program mode.
Morrison’s Tec Metric
³997023
Scanner/Scale Single Cable RS232 –
Morrison’s with Tec Display, Metric
Communication Port Settings:
• 9600 Baud
• 7 Data Bits
• 1 Stop Bit
• Odd Parity
Reliance India Metric
Scanner/Scale Single Cable RS232 -
Reliance India, Metric
Communication Port Settings:
• 9600 Baud
³997019
• 8 Data Bits
• 1 Stop Bit
• No Parity
34
SCANNER CONFIGURATION BAR CODES
Single Cable Protocols for POS Compatibility
IBM 3rd Generation 46xx
The following bar codes can be used to configure a Single Cable
MS2xx0.
The following codes do not require that the MS2xx0 to be in scale
service mode.
rd
IBM 3
Generation 46xx,
English
†
Scanner/Scale Single Cable IBM 46xx†,
RS485, English (lbs.)
³999960
† Terminal Configuration, IBM 4690.OS Terminal Device Group
Configuration screen select:
#2 Scanner with integrated scale
or
#4 4696 scanner/scale
rd
IBM 3
Generation 46xx,
³999959
Metric
†
35
Scanner/Scale Single Cable IBM 46xx†,
RS485, Metric (kg)
SCANNER CONFIGURATION BAR CODES
Single Cable Protocols for POS Compatibility
IBM OEM Full Speed USB
The following bar codes can be used to configure a Single Cable
MS2xx0.
The following codes do not require that the MS2xx0 to be in scale
service mode.
IBM OEM
Full Speed USB, English
Table Top Scanner/Scale Single Cable,
IBM OEM Full Speed USB, 4-Digit Weight
Mode, English (lbs.)
³999962
IBM OEM
Full Speed USB, Metric
Table Top Scanner/Scale Single Cable,
IBM OEM Full Speed USB, 5-Digit Weight
Mode, Metric (kg)
³999961
36
SCANNER CONFIGURATION BAR CODES
Additional POS Data Formatting
Full Speed USB Table Top/Handheld
The following codes do not require that the MS2xx0 to be in scale
service mode.
Scanner 4B Handheld
Full Speed USB interface to 4B00h
handheld usage.
³316430
Scanner 4A Flatbed
Full Speed USB interface to 4A00h
table top usage.
³316410
37
SCANNER CONFIGURATION BAR CODES
Additional POS Data Formatting
Full Speed USB Table Top/Handheld
The following codes do not require that the MS2xx0 to be in scale
service mode.
Scanner/Scale 4A/6E
Table Top
Full Speed USB interface to the
4A00h/6E00h table top scanner/scale
usage.
This option is only compatible with Stratos
models that have a scale.
³316440
38
SCANNER CONFIGURATION BAR CODES
Additional POS Data Formatting
Special Function ACK
The following codes do not require that the MS2xx0 to be in scale
service mode.
Enable Special
Function ACK Answer
Answer simple special functions with ACK.
³141714
* Disable Special
Function ACK
³141704
39
*
Factory Default Setting
SCANNER CONFIGURATION BAR CODES
Additional POS Data Formatting
Prefix/Suffix
The following codes do not require that the MS2xx0 to be in scale
service mode.
Use Protocol Prefix/Suffix
Add protocol prefixes and suffixes to the
bar code.
³141715
* Program the
Prefix/Suffix Separate
³141705
* Factory Default Setting
40
SCANNER CONFIGURATION BAR CODES
Additional POS Data Formatting
3x-30 Acknowledge Responses
The following codes do not require that the MS2xx0 to be in scale
service mode.
No 3x-30 Answer
This bar code will inhibit all ‘simple
acknowledge’ (3x-30) answers to POS or
OPOS commands.
³141710
*3x-30 Answer
³141700
The scanner will answer all NCR and OPOS
commands that require a 3x-30
acknowledgement.
* Factory Default Setting
41
SCANNER CONFIGURATION BAR CODES
Additional POS Data Formatting
Special Function Command Responses
The following codes do not require that the MS2xx0 to be in scale
service mode.
Spec Func Ans 3x30
Answer Special Function commands in the
3x-30 format as opposed to the Ack / Nak
which is the norm.
³141914
*Spec Func Ans Ack
³141904
Answer Special Function commands in the
Ack / Nak format.
* Factory Default Setting
42
SCANNER CONFIGURATION BAR CODES
Additional POS Data Formatting
Special Function Command Responses
The following codes do not require that the MS2xx0 to be in scale
program mode.
Spec Func 30-30 Status
³142215
Returns Special Function commands in the
30-30 status as opposed to the 33-30 status.
Note: Requires ‘Spec Func Ans 3x-30’ on
page Error! Bookmark not defined. to be
set.
*No Spec Func 30-30 Status
³142205
Disables redirection of Special Function
3x-30 status to 30-30 status.
* Factory Default Setting
43
SCANNER CONFIGURATION BAR CODES
Additional POS Data Formatting
Special Function Command Responses
The following codes do not require that the MS2xx0 to be in scale
program mode.
No Command Reject Answer
This bar code will ignore sending a
command reject answer to the POS mode.
³142117
*Send Command Reject
Answer
³142107
This bar code will send command reject
answer to the POS if the command is
rejected by the scanner.
* Factory Default Setting
44
SCANNER CONFIGURATION BAR CODES
Additional POS Data Formatting
Special Function Command Responses
The following codes do not require that the MS2xx0 to be in scale
program mode.
No Spec Func Answer
This bar code will ignore sending a special
function response answer in POS mode.
³142116
*Spec Func Answer
³142106
This bar code will send a special function
response answer to the POS.
* Factory Default Setting
45
SCANNER CONFIGURATION BAR CODES
Additional POS Data Formatting
BCC in POS communications
The following codes do not require that the MS2xx0 to be in scale
service mode.
Skip BCC in messages
This bar code will tell the scanner to NOT
expect or transmit the Block Check
Character in all message transmissions..
³141410
*Add BCC in messages
³141400
The scanner will expect and answer all
messages with the Block Check Character
included.
* Factory Default Setting
46
SCANNER CONFIGURATION BAR CODES
Additional POS Data Formatting
3 Scale Status Bytes
The following codes do not require that the MS2xx0 to be in scale
service mode.
Enable
3 Scale Status Bytes
Required for applications where the host
system display is the primary scale display
and there is no remote pole display
connected directly to the scanner/scale unit.
³124813
Disable
3 Scale Status Bytes
³124803
47
SCANNER CONFIGURATION BAR CODES
Additional POS Data Formatting
Scale Options
The following codes do not require that the MS2xx0 to be in scale
service mode.
5-Digit Weight
³141010
Sets the English Mode weight to 5-digits, as
in xx.yyy pounds.
In order to work properly, this bar code must
be scanned AFTER scanning one of the
English configuration bar codes found on
pages 27 - 36.
No Scale
³141407
Scan the No Scale bar code:
1. If no scale is installed and one of the
single cable protocol bar codes found
on pages 27 - 36 has already been
scanned.
2. If the scale is in a dual cable
environment and one of the single cable
protocol bar codes found on
pages 27 - 36 has already been
scanned.
48
SCANNER CONFIGURATION BAR CODES
Additional POS Data Formatting
Remote Display
The following codes do not require that the MS2xx0 to be in scale
service mode.
No Remote Display
When no remote display is installed, scan
the No Remote Display bar code AFTER
scanning one of the configuration bar codes
found on pages 27 - 36 to remove the
scale’s display from the scanner memory.
³140902
Remote Display
³140912
Add remote display to the scanner’s
memory.
49
SCANNER CONFIGURATION BAR CODES
Additional POS Data Formatting
StratosSTATS
The following codes do not require that the MS2xx0 to be in scale
service mode.
Activate StratosSTATS
³997017
This bar code sets:
a. StratosSTATS bar code data
formatting active.
b. Bar code Attempt Interval to
0.5 seconds.
c. Time to find supplements (code 128)
to 0.3 seconds.
Use StratosSTATS monitor to test this
output format. When used with a POS, it
must have the capability to parse and
recognize the additional data.
*StratosSTATS Off
Remove StratosSTATS data formatting from
the bar code output transmission.
³997018
* Factory Default Setting
50
SCANNER CONFIGURATION BAR CODES
Additional POS Data Formatting
StratosSTATS
The following codes do not require that the MS2xx0 to be in scale
program mode.
Do not scan these bar codes unless instructed by a Metrologic
Representative.
Dual Stats Xmit
³138511
Allows non-RS232 interfaces transmit
normally without StratosSTATS and
concurrently RS232 interfaces transmit with
StratosSTATS.
Recommended RS232 Settings:
• 38400 Baud
• 8 Data Bits
• 1 Stop Bit
• No Parity
• No Inter-character Delay
*No Dual Stats Xmit
³138501
51
* Factory Default Setting
SCANNER CONFIGURATION BAR CODES
Additional POS Data Formatting
StratosSTATS
The following codes do not require that the MS2xx0 to be in scale
program mode.
Do not scan these bar codes unless instructed by a Metrologic
Representative.
Dual Xmit Carriage Return
This bar code enables a secondary carriage
return suffix to be used only for the dual
StratosSTATS RS232 transmission.
³138512
*No Dual Xmit Carriage Return
³138502
Resets StratsSTATS RS232 dual
transmission suffix.
* Factory Default Setting
52
SCANNER CONFIGURATION BAR CODES
Additional POS Related Functions
Scanner Beep on Weight Sent
The following codes do not require that the MS2xx0 to be in scale
service mode.
Beep on Weight
³141917
Request scanner beep when a successful
weight is sent. This code should only be
used for ‘weight on demand’ applications. If
used with periodic weight request
applications, the beeper will be continuously
active (ON).
*Disable
Beep on Weight
³141907
When no beep on weight is desired.
* Factory Default Setting
53
SCANNER CONFIGURATION BAR CODES
Additional POS Related Functions
Restrict In-Store Codes
The following codes do not require that the MS2xx0 to be in scale
program mode.
Restrict In-Store Codes
This bar code places tighter restrictions on
in-store codes. These codes are:
EAN13 Sys2
UPCA Sys2 and Sys4
³125810
*No Restrict In-Store Codes
³125800
Disable restrictions on in-store codes.
* Factory Default Setting
54
SCANNER CONFIGURATION BAR CODES
Additional POS Related Functions
Scale Shadow Mode
The following codes do not require that the MS2xx0 to be in scale
program mode.
Scale Shadow Mode
³142217
This bar code sets the scale to the highest
priority to allow for frequent scale - POS
commands.
This bar code is only to be used in single
cable scale mode.
*No Scale Shadow Mode
³142207
Disables the Scale Shadow Mode.
* Factory Default Setting
55
SCANNER CONFIGURATION BAR CODES
Additional POS Related Functions
Scanner Razz on Not-On-File
The following codes do not require that the MS2xx0 to be in scale
program mode.
Razz on Not-On-File
This bar code changes the audible to a razz
signal when a Not-On-File command is
received.
³142115
*Beep on Not-On-File
³142105
This bar code restores the beep as the NotOn-File audible.
* Factory Default Setting
56
SCANNER CONFIGURATION BAR CODES
Additional Scanner Configuration Bar Codes
Horizontal Depth of Field
The following codes do not require that the MS2xx0 to be in scale
program mode.
Do not scan these bar codes unless instructed by a Metrologic
Representative.
*Horizontal High DOF
³218702
This bar code sets the DOF for all horizontal
laser channels to High DOF, which allows
the farthest scanning.
* Factory Default Setting
Horizontal Medium DOF
³218712
57
This bar code sets the DOF for all horizontal
laser channels to Medium DOF.
SCANNER CONFIGURATION BAR CODES
Additional Scanner Configuration Bar Codes
Horizontal Depth of Field
The following codes do not require that the MS2xx0 to be in scale
program mode.
Do not scan these bar codes unless instructed by a Metrologic
Representative.
Horizontal Close DOF
This bar code sets the DOF for all horizontal
laser channels to Close DOF.
³218722
Horizontal Ultra Close DOF
³218732
This bar code sets the DOF for all horizontal
laser channels to Ultra Close DOF.
58
SCANNER CONFIGURATION BAR CODES
Additional Scanner Configuration Bar Codes
Vertical Depth of Field
The following codes do not require that the MS2xx0 to be in scale
program mode.
Do not scan these bar codes unless instructed by a Metrologic
Representative.
*Vertical High DOF
³218700
This bar code sets the DOF for the vertical
laser channels to High DOF, which allows
the farthest scanning.
* Factory Default Setting
Vertical Medium DOF
³218710
59
This bar code sets the DOF for vertical laser
channels to Medium DOF.
SCANNER CONFIGURATION BAR CODES
Additional Scanner Configuration Bar Codes
Vertical Depth of Field
The following codes do not require that the MS2xx0 to be in scale
program mode.
Do not scan these bar codes unless instructed by a Metrologic
Representative.
Vertical Close DOF
³218720
This bar code sets the DOF for the vertical
laser channels to Close DOF.
Vertical Ultra Close DOF
This bar code sets the DOF for vertical laser
channels to Ultra Close DOF.
³218730
60
SCANNER CONFIGURATION BAR CODES
Auxiliary Port
StratosSCHOOL™
The following codes do not require that the MS2xx0 to be in scale
service mode.
Auxiliary History Report
³997011
The Auxiliary port may be used to download
or clear data to StratosSCHOOL™.
The two commands that can be used are
Upload Scanner Data and Clear Scanner
Data within the Serial Program Interface box
on the StratosSCHOOL™ screen.
Auxiliary Program Cable
(
MLPN 57-57008x-N-3) is required
for this feature.
61
SCANNER CONFIGURATION BAR CODES
Auxiliary Port
Quick Start for a Secondary Metrologic Scanner
The following codes do not require that the MS2xx0 to be in scale
service mode.
STEP 1
Use the Stratos to scan the following bar code. This bar code will configure
the Stratos’ auxiliary port to accept a Metrologic scanner as the secondary
scanner.
Enable Stratos Auxiliary Port
³437320
The auxiliary input port’s data format must match the main output format
of the secondary scanner
STEP 2
Configure the secondary scanner to match the auxiliary port’s data format.
Use the Secondary Scanner to scan the following bar codes in the order
shown.
Enter Configuration Mode
³999999
Enable Auxiliary Output
³124817
62
SCANNER CONFIGURATION BAR CODES
Auxiliary Port
Quick Start for a Secondary Metrologic Scanner
Configuration sequence continued from previous page.
Set Stratos Format
³437520
Disable Secondary
Scanner Beeper
³318505
Enable Communication
Time Out
³118412
Disable CR Suffix
³116603
Disable LF Suffix
³116602
Exit Configuration Mode
³999999
63
SCANNER CONFIGURATION BAR CODES
EAS Bar Codes
EAS Device Types
The following codes do not require that the MS2xx0 to be in scale
program mode.
*No EAS Device
³337200
No EAS device is connected.
* Factory Default Setting
EAS Device Type 1
³337210
64
SCANNER CONFIGURATION BAR CODES
EAS Bar Codes
EAS Device Types
The following codes do not require that the MS2xx0 to be in scale
program mode.
EAS Device Type 2
³337220
EAS Device Type 3
³337230
65
SCANNER CONFIGURATION BAR CODES
EAS Bar Codes
EAS Device Types
The following codes do not require that the MS2xx0 to be in scale
program mode.
EAS Device Type 4
³337240
66
SCANNER CONFIGURATION BAR CODES
EAS Bar Codes
EAS Timeout
The following codes do not require that the MS2xx0 to be in scale
program mode.
*EAS = 0 seconds
³846000
* Factory Default Setting
EAS = 1 second
³84600100
67
SCANNER CONFIGURATION BAR CODES
EAS Bar Codes
EAS Timeout
The following codes do not require that the MS2xx0 to be in scale
program mode.
EAS = 2 seconds
³84600200
EAS = 3 seconds
³84600300
68
SCANNER CONFIGURATION BAR CODES
EAS Bar Codes
EAS Timeout
The following codes do not require that the MS2xx0 to be in scale
program mode.
EAS = 4 seconds
³84600400
EAS = 5 seconds
³84600500
69
SCANNER CONFIGURATION BAR CODES
EAS Bar Codes
EAS Timeout
The following codes do not require that the MS2xx0 to be in scale
program mode.
EAS = 7 seconds
³84600700
EAS = 10 seconds
³84601000
70
SCANNER CONFIGURATION BAR CODES
EAS Bar Codes
EAS Timeout
The following codes do not require that the MS2xx0 to be in scale
program mode.
EAS = 15 seconds
³84601500
EAS = 20 seconds
³84602000
71
SCANNER CONFIGURATION BAR CODES
EAS Bar Codes
EAS Connection
The following codes do not require that the MS2xx0 to be in scale
program mode.
*EAS Digital Aux Port
³146100
The EAS signals use the RTS and CTS line
of the Auxiliary RS232 In connector.
* Factory Default Setting
EAS Digital Host Port
The EAS signals use the RTS and CTS lines
of the scanner RS232 to Host connector.
³146110
72
SCANNER CONFIGURATION BAR CODES
EAS Bar Codes
EAS Connection
The following codes do not require that the MS2xx0 to be in scale
program mode.
EAS RS232 on Aux Port
³146111
This bar code allows the EAS RS232 signal
to use the Tx Out and Rx In lines of the
scanner to Aux RS232 In connector.
*No EAS RS232 on Aux Port
³146101
There is no EAS RS232 signal (Tx Out and
Rx In) used on the scanner Aux RS232 In
connector.
* Factory Default Setting
73
SCANNER CONFIGURATION BAR CODES
EAS Bar Codes
EAS Connection
The following codes do not require that the MS2xx0 to be in scale
program mode.
EAS RS232 on Host Port
³146112
This bar code allows the EAS RS232 signal
to use the Tx Out and Rx In lines of the
scanner to Host RS232 In connector.
*No EAS RS232 on Host Port
³146102
There is no EAS RS232 signal (Tx Out and
Rx In) used on the scanner to Host RS232
In connector.
* Factory Default Setting
74
SCANNER CONFIGURATION BAR CODES
EAS Bar Codes
Continuous Mode
The following codes do not require that the MS2xx0 to be in scale
program mode.
EAS Continuous Mode
³146115
When in continuous mode and the scanner
is enabled, the EAS will always be online to
deactivate an EAS tag.
*EAS Interlock Mode
³146105
This bar code establishes EAS is used in the
Interlocked mode.
* Factory Default Setting
75
SCANNER CONFIGURATION BAR CODES
EAS Bar Codes
EAS Deactivation
The following codes do not require that the MS2xx0 to be in scale
program mode.
Blink Scan LED on
Deactivation
The scanner will blink the scan LED upon
receipt of an EAS deactivate acknowledge
signal.
³146113
*No Blink LED on Deactivation
³146103
Do not blink the scan LED upon receipt of
an EAS deactivate acknowledge signal.
* Factory Default Setting
76
SCANNER CONFIGURATION BAR CODES
EAS Bar Codes
EAS Deactivation
The following codes do not require that the MS2xx0 to be in scale
program mode.
Fast Beep on Deactivation
Fast beep the scanner’s beeper receipt of
an EAS deactivate acknowledge signal.
³146114
*No Beep on Deactivation
³146104
Do not fast beep the scanner’s beeper
receipt of an EAS deactivate acknowledge
signal.
* Factory Default Setting
77
SCANNER CONFIGURATION BAR CODES
EAS Bar Codes
EAS Deactivation
The following codes do not require that the MS2xx0 to be in scale
program mode.
Volume Switch = Manual
The volume switch is used for manual EAS
deactivation switch.
³146116
*Volume Switch = Normal
³146106
Volume switch is used for normal volume
function.
* Factory Default Setting
78
SCANNER CONFIGURATION BAR CODES
EAS Bar Codes
Sensormatic ScanMax Pro
The following codes do not require that the MS2xx0 to be in scale
program mode.
The RS232 EAS cable must be connected to one of the RS232 scanner
ports.
EAS Function #1
³998065
For Sensormatic ScanMax Pro, get EAS’s
deactivation count and transmit the
information over the current scanner
interface.
EAS Function #2
³998066
79
For Sensormatic ScanMax Pro, get EAS’s
device type and transmits the information
over the current scanner interface.
SCANNER CONFIGURATION BAR CODES
EAS Bar Codes
Sensormatic ScanMax Pro
The following codes do not require that the MS2xx0 to be in scale
program mode.
The RS232 EAS cable must be connected to one of the RS232 scanner
ports.
EAS Function #3
³998067
For Sensormatic ScanMax Pro, get EAS’s
hardware version, software version, and
serial number and transmit the information
over the current scanner interface.
ScanMax RS232 Defaults
For Sensormatic ScanMax Pro, RS232
default setup.
• AUX port connect
• 5 second timeout
• blink LED on deactivate
³999909
80
SCANNER TEST BAR CODES
Supplemental Tests
Display Software Numbers
The following codes do not require that the MS2xx0 to be in scale
service mode.
These codes are for test purposes only.
The following code will display software #’s on the 2-digit diagnostic display.
The lasers will be turned off while the numbers are being displayed. The first
number is the main decode processor software number. The second number is
the I/O processor’s software number. Since only 2 digits can be displayed at a
time, the following sequence is used as an example of what may be observed:
2-Digit
Display
Description of each sequentially displayed sets of digits.
(Example shown will represent: ‘ 15269’ ‘ 15138’)
x 1 =
5 2 = The second and third digits.
6 9 = The forth and fifth digits.
x x = Pause before next set of numbers.
x 1 =
5 1 = The second and third digits.
3 8 = The forth and fifth digits.
x = Blank / No Digit Displayed
The first digit of the five main decode processor software number
appears right justified.
The first digit of the five digit I/O processor software number
appears right justified.
After the last sets of digits are displayed, the scanner resumes scanning
operation. If the current interface does not use an I/O processor, the software
number may appear ‘ 0 00 00’. This capability exists in software 15269 and
later.
Display Software Number
³998062
81
82
NOTES
NOTES
May 2008
Printed in the USA
00 -02272C
Loading...
