METROLOGIC INSTRUMENTS, INC.
MS2221 / MS2222
StratosS™
Scanner Installation and User’s Guide
Copyright
© 2006 by Metrologic Instruments, Inc. All rights reserved. No part of this work may be reproduced, transmitted, or stored
in any form or by any means without prior written consent, except by reviewer, who may quote brief passages in a review,
or provided for in the Copyright Act of 1976.
Trademarks
Metrologic is a registered trademark of Metrologic Instruments, Inc. Products identified in this document are hereby
acknowledged as trademarks, registered or otherwise, of Metrologic Instruments, Inc. or their respective companies.
TABLE OF CONTENTS
NTRODUCTION
I
Manual Scope ..........................................................................................................................................................................1
Product Overview..................................................................................................................................................................... 1
Base Kit Components...............................................................................................................................................................2
Optional Accessories................................................................................................................................................................2
Replacement Parts................................................................................................................................................................... 3
General Precautions.................................................................................................................................................................4
MS2221/MS2222 Scanner Design Specifications ....................................................................................................................5
BASE MODEL CHARACTERISTICS
MS2221 Scanner......................................................................................................................................................................6
Components......................................................................................................................................................................... 6
Dimensions ..........................................................................................................................................................................7
Connector Panel...................................................................................................................................................................7
Caution and Serial Number Labels.......................................................................................................................................8
MS2222 Scanner......................................................................................................................................................................9
Components......................................................................................................................................................................... 9
Dimensions ........................................................................................................................................................................10
Connector Panel.................................................................................................................................................................10
Caution and Serial Number Labels.....................................................................................................................................11
INSTALLATION
Quick Installation Outline........................................................................................................................................................ 12
Site Requirements.................................................................................................................................................................. 12
Vertical Clearance.............................................................................................................................................................. 12
Ventilation and Spacing...................................................................................................................................................... 12
Service Access................................................................................................................................................................... 12
Power Installation............................................................................................................................................................... 12
Checkout Counter Layout Consideration............................................................................................................................ 12
Unpacking the Unit................................................................................................................................................................. 13
MS2221 Mounting Diagram................................................................................................................................................ 14
MS2222 Mounting Diagram................................................................................................................................................ 15
Cable Installation (Interface Specific) ..................................................................................................................................... 16
RS232 ................................................................................................................................................................................ 16
Full Speed USB.................................................................................................................................................................. 18
IBM OEM......................................................................................................................................................................... 18
USB Serial Emulation Mode ............................................................................................................................................19
Keyboard Emulation Mode .............................................................................................................................................. 19
IBM 46xx ............................................................................................................................................................................20
OCIA ..................................................................................................................................................................................22
Cable Installation (Secondary Metrologic Scanner)................................................................................................................24
EAS Deactivation ................................................................................................................................................................... 26
ii
TABLE OF CONTENTS
CANNER OPERATION
S
Scan Zone.............................................................................................................................................................................. 27
IR Activation Area (IR LED Output)........................................................................................................................................ 29
Indicator Descriptions............................................................................................................................................................. 30
Audible ...............................................................................................................................................................................30
Visual .................................................................................................................................................................................30
Failure ................................................................................................................................................................................31
Diagnostic Indicator Display; Error Codes..........................................................................................................................32
Power Save Modes ................................................................................................................................................................35
Beeper Options and Button Functions.................................................................................................................................... 36
Beeper Tone and Volume Control ...................................................................................................................................... 36
The Multi-Function Button .................................................................................................................................................. 36
Startup....................................................................................................................................................................................37
Power-Up Test Mode .............................................................................................................................................................37
Configuration Mode................................................................................................................................................................ 37
MAINTEN ANCE
Horizontal Scan Window Replacement ..................................................................................................................................38
Vertical Scan Window Replacement ......................................................................................................................................39
Daily Maintenance.................................................................................................................................................................. 39
TROUBLESHOOTING
Troubleshooting Symptom / Solution Chart............................................................................................................................ 40
RS232 Demonstration Program .............................................................................................................................................42
DEFAULT SETTINGS
Communication Parameters................................................................................................................................................... 43
SCANNER AND CABLE TERMINATIONS
Scanner Pinout Connections.................................................................................................................................................. 50
Cable Connector Configurations ............................................................................................................................................52
REGULATORY COMPLIANCE
Safety..................................................................................................................................................................................... 54
EMC .......................................................................................................................................................................................55
LIMITED WARRANTY ......................................................................................................................................................................57
PATENTS ...................................................................................................................................................................................... 58
INDEX .......................................................................................................................................................................................... 59
iii
INTRODUCTION
MANUAL SCOPE
This guide provides information on the installation, setup and operation of the MS2221 and the MS2222 StratosS scanner only
models. If the MS2221 scanner has been integrated with a scale, please refer to the Scale Addendum for detailed
instructions on the appropriate cable connections, communication specifications and calibration procedures required by the
scale manufacturer and local Weights and Measures Authorities.
This manual is also available for download in Adobe
PRODUCT OVERVIEW
Metrologic’s MS2221 and MS2222 StratosS models are designed to meet the demanding needs of high volume supermarket
and point-of-sale applications. With advanced features like 5-sided, 360° scanning, 5400 scans per second, a complex scan
zone and advanced decoding software, this high performance series of in-counter scanner/scale ready products guarantees
fast customer checkouts with minimal operator fatigue and stress. The StratosS is equipped with a multitude of standard
features including:
• StratosSCAN™ – 5-sided, 360° scanning that minimizes product orientation
®
Acrobat® file format at www.metrologic.com/corporate/guides.htm.
• StratosSPHERE™ – Decoding software that reads poor quality and damaged bar codes
• StratosSYNC™ – Horizontal and vertical scanning zones operate independently from one another
• RSS-14 Decoding – Decodes RSS-14, RSS Limited and RSS expanded emerging symbologies
• Flash ROM – Upgrade latest software enhancements on site
• Powered Aux Port – Connect hand-held scanner for large or bulky items
• Scale Ready Model – The MS2221 model is designed for custom scale integration
• Loud Speaker – 3 volume/7 tone settings can be heard in all environments
®
• Easy Configuration – Windows
• Fully Automatic – “No touch” infrared wake up from power save modes
• EAS Deactivation – Electronic Article Surveillance (EAS) included
• Field Replaceable Vertical Window – Quickly remove vertical window for cleaning or replacement
• StratosSCOPE™ – Visual diagnostic indicator for easy-to read feedback on scanner condition
• StratosSWAP™ – Modular optics engine technology – small, pre-aligned, field replaceable modules
• StratosSCHOOL™ – Operator training software
based utility or simple bar code setup
1
INTRODUCTION
B
ASE KIT COMPONENTS
BASE KIT COMPONENTS
Part # Description
MS222x-105Nz StratosS™ Series Scanner
1 Scanner Only, Scale Ready – Compact
x
2 Scanner Only – Sub-Compact
D Diamonex Horizontal Window
z
S Sapphire Horizontal Window
00-02407 MetroSelect® Configuration Guide
00-02034 MS2xxx Stratos Series Configuration Addendum
00-02268 MS2221 / MS2222 StratosS Scanner Installation and User’s Guide
Guides also available for download at www.metrologic.com.
Other items may be ordered for the specific protocol being used. To order additional items, contact the dealer, distributor or call Metrologic’s
Customer Service Department at 1-800-ID-METRO or 1-800-436-3876.
O
PTIONAL ACCESSORIES
OPTIONAL ACCESSORIES
Part # Description
57-57210x-N-3 RS232 Interface Cable, Straight, 3.7 m (12') Cord with Short Strain Relief
57-57212x-N-3 IBM 46xx Port 9 Cable, Straight 3.7 m (12') Cord
57-57016x-N-3 OCIA Interface Cable, Straight, 3.7 m (12') Cord with Short Strain Relief
57-57201x-N-3 USB Full Speed Communication Cable, Straight 4.0 m (13') Cord, Type A (Non-Locking) Connector
57-57227x-N-3 USB Full Speed Communication Cable, Straight 4.0 m (13') Cord, Locking 12V Plus-Power™ Type A
57-57008x-N-3 Aux Program Cable, Straight 2.3 m (7.5') Cord with Short Strain Relief
57-57099x-3 LSO RS232 PowerLink AUX Cable with built in power jack, Straight, 2.1 m (7') cord
52-52511x 24" EAS cable
2
INTRODUCTION
OPTIONAL ACCESSORIES
Part # Description
AC to DC Power Transformer - Regulated
46-00226 120V United States and Canada
46-00227 220V – 240V Continental European
46-00228 220V – 240V United Kingdom
46-00229 220V – 240V China
46-00230 220V – 240V Australia
OPTIONAL ACCESSORIES
Output: +5.2V @ 2A
+12V @ 1A
REPLACEMENT PARTS
REPLACEMENT PARTS
Part # Description
Window types (Diamonex and Sapphire) are not
Caution
46-00232 Vertical Window
46-00233 Diamonex Platter – Compact
46-00296 Diamonex Platter – Compact with Platter Lift Handle
46-00234 Diamonex Platter – Sub-Compact Size
46-00235 Sapphire Platter – Compact
performance differences.
To change window type, the scanner must be returned to the manufacturer for reconfiguration.
interchangeable due to laser safety and/or scanner
46-00297 Sapphire Platter – Compact with Platter Lift Handle
46-00236 Sapphire Platter – Sub-Compact Size
Other items may be ordered for the specific protocol being used. To order additional items, contact the dealer, distributor or call Metrologic’s
Customer Service Department at 1-800-ID-METRO or 1-800-436-3876.
3
INTRODUCTION
GENERAL PRECAUTIONS
The following are some general precautions to remember when handling the StratosS.
DO NOT TURN the unit upside down with the platter in place.
DO NOT PRESS on the window in the platter or the
vertical window frame.
PLATTER REMOVAL
No hardware or tools are required to remove the platter
(see Figure 3). Refer to the Maintenance section of this manual for
additional information on platter replacement.
See caution statement on page 3.
FINGER RECESSES
There are two finger recess areas provided to assist when lifting the
StratosS.
added stability when lifting the unit by the finger recesses.
REST both thumbs against the vertical window frame for
Figure 1
Figure 2
Figure 3
Figure 4
4
INTRODUCTION
MS2221 / MS2222 SCANNER DESIGN SPECIFICATIONS
Operational
Light Source: VLD 650 nm
Peak Laser Power: <1.5 mW
Maximum IR LED Output:
Horizontal Depth of Field: 0 mm - 152 mm (0”- 6”) for 0.33 mm (13 mil) Bar Code
Vertical Depth of Field: 0 mm - 216 mm (0”- 8.5”) for 0.33 mm (13 mil) Bar Code
Scan Speed: 5400 Scan Lines per Second
No. of Scan Lines: 54 (38 Horizontal / 16 Vertical)
Motor Speed: 6000 / 6000 RPM (Horizontal / Vertical )
Min Bar Width: 0.127 mm (5.0 mil)
Scan Zone: 360°
Decode Capability: All Standard 1-D Bar Codes, RSS-14, RSS-Expanded, and RSS-14 Limited Bar Codes
System Interfaces: RS232, Aux RS232, IBM468x/469x, USB, and OCIA
Print Contrast: 35% Minimum Reflectance Difference
No. Characters Read: Up to 80 data characters. Maximum number will vary based on symbology and density.
Beeper Operation: 7 Tones or No Beep; 3 Volume Settings
Indicators (LED):
Mechanical
MS2221 L x W x H: 399 mm (15.7") Length 292 mm (11.5") Width 130 mm (5.12") Tower Height
MS2222 L x W x H: 353 mm (13.9") Length 292 mm (11.5") Width 130 mm (5.12") Tower Height
Depth (Below Counter): 100 mm (3.9"), All Models
Weight (with Platter): MS2222, 5.98 kg (13.20 lbs.) MS2221, 9.28 kg (20.5 lbs.)
Electrical
Voltage Supply: 2A @ +5.2V / 1A @ +12V
Power: Operating, 11.9 Watts Standby, 3.25 Watts
Current: Operating, 1.5A @ 5.2V / 0.3A @ 12V Standby, .44A @ 5.2V / 0.08A @ 12V
Current Limits on Integrated
Scale and/or Scale Display:
DC Transformers: Class II; 5.2VDC @ 2A; 12VDC @ 1A
For Regulatory Compliance Information refer to pages 54 - 56.
Environmental
Operating Temperature: 0°C to 40°C (32°F to 104°F)
IP Rating: IP 55
Light Levels: 4842 Lux (450 footcandles)
Storage Temperature: -40°C to 60°C (-40°F to 140°F)
Humidity: 5% to 95% Relative Humidity, Non-Condensing
Contaminants: Sealed to resist airborne particulate contaminants.
Ventilation: None Required
Specifications are subject to change without notice.
50μW per IEC 60825-1 measurement procedure
Blue Laser ON, Ready to Scan
White Good Read, Decoding
Do not exceed maximum current of 12V @ 0.7A / 5V @ 0.2A
Design Specifications
5
BASE MODEL CHARACTERISTICS
MS2221 Scanner
Components
Figure 5. MS2221 Components
Components
ITEM NO. DESCRIPTION OF ITEM
1 Volume/Tone Multi-Function Button (see page 36)
2 Blue and White LED Indicators (see page 30)
3 Speaker
4 Finger Recesses for Lifting
5 High Impact Window Frame / Vertical Window (Laser Aperture)
6 Replaceable Stainless Steel Platter with Diamonex or Sapphire Horizontal Window (Laser Aperture)
7 Flow Direction Indicators
8 Platter Support Bumpers (see page 38)
9
10 Diagnostic Indicator Display (see page 32 for Error Codes)
11 Interface, Aux Scanner and EAS Connectors (see page 7)
12 Power Connector Area (see page 7)
Optional Product Weight Roll Bar / Platter Lift Handle
(Option provided with scale ready MS2221-105x models only.)
13 Optional Leveling Feet (Option provided with scale ready MS2221-105x models only.)
Scanner label information can be found on page 8.
6
BASE MODEL CHARACTERISTICS
MS2221 Scanner
Dimensions
Connector Panel
Figure 6. MS2221 Dimensions
Figure 7. MS2221 Connector Panel
Scale ready MS2221 models supply additional connectors for scale and display communication cabling.
The use of these connections is dependent on the specific manufacturer of the scale being integrated.
Please refer to the custom Scale Installation Guide for detailed instructions on the appropriate cable hookups
and calibration procedures for local Weights and Measures authorities.
Specifications are subject to change without notice.
7
BASE MODEL CHARACTERISTICS
MS2221 Scanner
Caution and Serial Number Labels
Figure 8. MS2221 Label Locations (Top) and Examples (Bottom)
Caution: To maintain compliance with applicable standards, all circuits connected to the scanner must meet the requirements for SELV
To maintain compliance with standard CSA C22.2 No. 60950-1/UL 60950-1 and norm EN/IEC 60950-1, the power source
(Safety Extra Low Voltage) according to EN/IEC 60950-1.
should meet applicable performance requirements for a limited power source.
8
BASE MODEL CHARACTERISTICS
MS2222 Scanner
Components
Figure 9. MS2222 Components
Components
ITEM NO. DESCRIPTION OF ITEM IN FIGURE 15
1 Volume/Tone Multi-Function Button (see page 36)
2 Blue and White LED Indicators (see page 30)
3 Speaker (see page 30)
4 Finger Recesses for Lifting (Located Under Platter)
5 High Impact Window Frame / Vertical Window (Laser Aperture)
6 Replaceable Stainless Steel Platter with Diamonex or Sapphire Horizontal Window (Laser Aperture)
7 Flow Direction Indicator
8 Platter Support Bumpers (see page 38)
9 Diagnostic Indicator Display (see page 32)
10 Interface, Aux Scanner and EAS Connectors (see page 10)
11 Power Connector (see page 10)
Scanner label information can be found on page 11.
9
BASE MODEL CHARACTERISTICS
MS2222 Scanner
Dimensions
Connector Panel
Specifications are subject to change without notice.
Figure 10. MS2222 Dimensions
Figure 11. MS2222 Connectors
10
BASE MODEL CHARACTERISTICS
MS2222 Scanner
Caution and Serial Number Labels
Figure 12. MS2222 Label Locations (Top) and Examples (Bottom)
Caution: To maintain compliance with applicable standards, all circuits connected to the scanner must meet the requirements for SELV
To maintain compliance with standard CSA C22.2 No. 60950-1/UL 60950-1 and norm EN/IEC 60950-1, the power source
(Safety Extra Low Voltage) according to EN/IEC 60950-1.
should meet applicable performance requirements for a limited power source.
11
INSTALLATION
Q
UICK INSTALLATION OUTLINE
The following is a quick preview of the steps required for 1
section.
• Determine clearance, ventilation and service access requirements.
• Determine checkout counter layout taking into account package flow, cable routing and power requirements.
• Choose the mounting option which provides the best cable/power access and unit stability.
• Unpack the unit.
• Make the appropriate countertop cutouts and install all support brackets.
• Place the unit in the counter.
• Install the platter.
• Follow the steps under the correct interface to connect the cables and power supply.
• Configure the unit for the correct interface.
SITE REQUIREMENTS
Before installing your StratosS scanner, please consider the following items.
Vertical Clearance
A minimum clearance height of 5.25" from the checkout counter surface is needed for the vertical 'hood' on all of the scanner
models.
Ventilation and Spacing
All StratosS models have a die-cast housing to dissipate heat allowing the unit to operate without a ventilation fan. Metrologic
recommends that the temperature surrounding the unit does not exceed 40°C (104°F). There should be adequate convection
and minimal heat producing equipment in close proximity of the unit. A cooling fan with a filter is recommended if there will be
a conveyor motor or other heat producing equipment close to the unit that will create a high temperature environment.
Service Access
When routing and installing the cable(s) and power supply, make sure you leave access so that these components may be
swapped easily without the need to remove the unit from the checkout counter.
When changing the StratosSWAP optics engine modules, Metrologic recommends removing the unit completely from the
checkout counter.
Power Installation
The Power Supply (AC/DC) should be connected to an AC Outlet that is free of electrical noise (clean). A qualified electrician
can determine the amount of electrical noise on the AC line. See additional information on power installation and restrictions
under the Installation: Interface section of this manual.
Metrologic recommends using a switched AC outlet. The switch should be located on the operator’s side of the
checkout counter in close proximity to the StratosS to facilitate service of the unit.
Checkout Counter Layout Considerations
When placing a scanner in a checkout counter, the following factors should be considered.
• Items should flow at a distance to the operator that maximizes comfort. The operator should not need to stretch or strain
to reach for and scan packages.
• The StratosS can scan a bar code on five sides of a package. The packages should flow into the scan area that provides
the maximum reading performance. No lifting or orientation of the items is necessary. A properly placed item diverter can
maximize the flow of packages.
• In what direction are the packages flowing? Most checkout counters are designed for left-handed takeaway. If the
operator is facing the vertical window of the scanner, packages flow from the operator's right to left. The packages are in
queue on the conveyor to the right and the bagging is to the left.
st
time installations. Each item is discussed in detail later in this
12
INSTALLATION
UNPACKING THE UNIT
1. Make sure the shipping box is top-side up before opening.
2. Remove the accessories box and check the box’s content for the following
items.
• Product Manuals
• Power Supply
• Communication Cables
3. Lift the scanner out of the shipping box by gripping the bottom of the
unit on both sides.
Important! Do not lift the unit out of the box by gripping the sides of the
platter.
4. Carefully remove the shipping foam around the unit.
Important! Do not turn the unit upside down or tilt the unit onto its side
while removing the shipping foam. The platter is not attached
to the unit and can fall off!
5. Lift the platter off the unit and store it in a safe location until the unit is
installed in the checkout counter.
Figure 13
Figure 14
Once the unit has been properly installed in the checkout counter,
remove all protective film covering the platter’s horizontal window,
the horizontal window under the platter on the unit base, and the
vertical window. The unit will not function properly if the
protective films are not removed.
Figure 16
Figure 15
13
INSTALLATION
INSTALLING THE UNIT IN THE COUNTER
MS2221 Mounting Diagram
Specifications are subject to change without notice.
14
Figure 17. MS2221 Mounting Diagram
INSTALLATION
INSTALLING THE UNIT IN THE COUNTER
MS2222 Mounting Diagram
Specifications are subject to change without notice.
Figure 18. MS2222 Mounting Diagram
15
INSTALLATION
CABLE INSTALLATION (INTERFACE SPECIFIC)
RS232
The following steps describe how to properly install the cables for an RS232 StratosS application. The scanner must then be
configured to match the host’s RS232 parameters. Cable installation alone does not guarantee that the StratosS will
communicate properly with the host system.
Configuration bar codes are located in the MetroSelect Configuration Guide
MS2xxx Stratos Series Configuration Addendum (MLPN 00-02034x).
1. Turn off the host system.
(MLPN 00-02407x) and the
2. Plug the 10-pin RJ45 end of the RS232 interface cable (MLPN 57-57210x-N-3)
into the 10-pin socket labeled Scanner Host RS232, on the bottom of the SratosS. Refer to figure on page 17.
3. Connect the other end of the RS232 cable to the proper communication port on the host device.
Before continuing, verify that the RS232 interface cable is connected to the appropriate interface socket on the
scanner. An incorrect cable connection can cause communication problems or potential damage to the scanner
and/or terminal.
4. Plug the external power supply (MLPN 46-002xx) into the 3-pin Molex socket labeled, DC Power In, on the bottom of the
StratosS.
Check the AC input requirements of the power supply to make sure the voltage matches the AC outlet.
The outlet should be located near the equipment and be easily accessible.
Metrologic recommends using a switched AC outlet. The switch should be located on the operator’s side of the
checkout counter in close proximity to the StratosS to facilitate calibration and service of the unit.
5. Connect AC power to the transformer. If the AC outlet is equipped with an on/off switch, turn the power on.
6. Turn on the host system.
7. Scan the recall Recall Defaults bar code.
The Recall Defaults bar code is located in the MetroSelect Configuration Guide (
Start Over.
8. Configure the StratosS to match the host system’s RS232 parameters.
Refer to the MetroSelect Configuration Guide (MLPN 00-02407x) under Section G: RS232 for enabling RS232
Mode (scan the recall defaults bar code first).
MLPN 00-02407x), under Need to
16
INSTALLATION
CABLE INSTALLATION (INTERFACE SPECIFIC)
RS232
xx** Specifies international connection. See the Base Kit Components and Optional
Accessories section of this guide for a complete listing.
See power source caution statement on pages 8 or 11 of this manual.
Figure 19. RS232 Interface Cable Installation Schematic
17
INSTALLATION
CABLE INSTALLATION (INTERFACE SPECIFIC)
ULL SPEED USB
F
The following steps describe how to properly install the cables for a Full Speed USB StratosS application. The scanner must
then be configured to match the host’s USB parameters. Cable installation alone does not guarantee that the StratosS will
communicate properly with the host system.
Configuration bar codes are located in the MetroSelect Configuration Guide
MS2xxx Stratos Series Configuration Addendum (MLPN 00-02034x).
1. Turn off the host system.
(MLPN 00-02407x) and the
2. Plug the 10-pin RJ45 end of the USB interface cable (MLPN 57-57201x-N-3 or 57-57227x-N-3) into the 10-pin socket
labeled, Scanner Host USB, on the bottom of the StratosS. Refer to Figure on page 19.
3. Connect the other end of the USB interface cable to the appropriate USB port on the host device.
Before continuing verify that the USB interface cable is connected to the appropriate socket on the scanner. An
incorrect cable connection can cause communication problems or potential damage to the scanner and/or terminal.
Manufacturers Note: Plugging the scanner into the USB port of the host does not guarantee that scanned
information will appear at the host. A software driver and correct configuration setting are also required for proper
communication to occur.
4. Plug the external power supply (MLPN 46-002xx) into the 3-pin Molex socket labeled, DC Power In, on the bottom of the
StratosS.
Check the AC input requirements of the power supply to make sure the voltage matches the AC outlet. The outlet
should be located near the equipment and be easily accessible.
Metrologic recommends using a switched AC outlet. The switch should be located on the operator’s side of the
checkout counter in close proximity to the StratosS to facilitate calibration and service of the unit.
5. Connect AC power to the transformer. If the AC outlet is equipped with an on/off switch, turn the power on.
6. Turn on the host system.
7. Configure the StratosS to match the host system’s USB parameters.
Applies only with StratosS non-scale scanner models. If a scale has been integrated into a scale ready MS2321, the configuration bar code
**
shown does not apply.
The IBM OEM Full Speed USB Communication Defaults** bar code is located in the
MS2xxx Stratos Series Configuration Addendum (MLPN 00-02034x) under Scanner Configuration Bar Codes:
Dual Cable Scanner Configuration Bar Codes, IBM OEM Full Speed USB Communication Defaults and
IBM OEM Full Speed USB Protocols.
18
INSTALLATION
CABLE INSTALLATION (INTERFACE SPECIFIC)
ULL SPEED USB
F
Step 8 is for USB Serial Emulation Mode or Keyboard Emulation Mode only.
8. Configure the StratosS for USB Serial Emulation Mode or USB Keyboard Emulation Mode by scanning the
appropriate configuration bar codes in the USB section of the MetroSelect Configuration Guide (MLPN 00-02407x)
under Low Speed USB. Any low speed USB warnings may be disregarded when utilizing these codes for a
Full Speed USB StratosS scanner.
Step 7 must be completed before continuing to step 8 for these features to work properly.
xx** Specifies international connection. See the Base Kit Components and
Optional Accessories section of this guide for a complete listing.
See power source caution statement on pages 8 or 11 of this manual.
Figure 20. USB Cable Installation Schematic
19
INSTALLATION
CABLE INSTALLATION (INTERFACE SPECIFIC)
46XX
IBM
The following steps describe how to properly install the cables for an IBM 46xx StratosS application. The scanner must then
be configured to match the host’s IBM 46xx parameters. Cable installation alone does not guarantee that the StratosS will
communicate properly with the host system.
Configuration bar codes are located in the MetroSelect Configuration Guide
MS2xxx Stratos Series Configuration Addendum (MLPN 00-02034x).
1. Turn off the host system.
(MLPN 00-02407x) and the
2. Plug the 10-pin RJ45 end of the IBM interface cable (MLPN 57-57212x-N-3) into the 10-pin socket labeled Scanner Host
46xx, on the bottom of the StratosS. Refer to Figure on page 21.
3. Connect the other end of the IBM cable to communication port 9 on the host device.
Before continuing verify that the IBM cable is connected to the appropriate interface socket on the scanner. An
incorrect cable connection can cause communication problems or potential damage to the scanner and/or terminal.
Manufacturers Note: Plugging the scanner into the serial port of the host device does not guarantee that scanned
information will appear at the host device. A software driver and correct configuration settings are also required for
proper communication to occur.
4. Plug the external power supply (MLPN 46-002xx) into the 3-pin Molex socket labeled, DC Power In, on the bottom of the
StratosS.
Check the AC input requirements of the power supply to make sure the voltage matches the AC outlet. The outlet
should be located near the equipment and be easily accessible.
Metrologic recommends using a switched AC outlet. The switch should be located on the operator’s side of the
checkout counter in close proximity to the StratosS to facilitate calibration and service of the unit.
5. Connect AC power to the transformer. If the AC outlet is equipped with an on/off switch, turn the power on.
6. Turn on the host system.
7. Configure the StratosS to match the host system’s IBM 46xx parameters.
MLPN 00-02034x) under Scanner Configuration
20
Refer to the MS2xxx Stratos Series Configuration Addendum (
Bar Codes: IBM 3rd Generation Communication Defaults and IBM 3rd Generation Protocols.
Additional general configuration bar codes can be found in the MetroSelect Configuration Guide
(MLPN 00-02407x).
INSTALLATION
CABLE INSTALLATION (INTERFACE SPECIFIC)
IBM 46XX
xx** Specifies international connection. See the Base Kit Components and Optional
Accessories section of this guide for a complete listing.
See power source caution statement on pages 8 or 11 of this manual.
Figure 21. IBM Cable Installation Schematic
21
INSTALLATION
CABLE INSTALLATION (INTERFACE SPECIFIC)
OCIA
The following steps describe how to properly install the cables for an OCIA StratosS application. The scanner must then be
configured to match the host’s OCIA parameters. Cable installation alone does not guarantee that the StratosS will
communicate properly with the host system.
Configuration bar codes are located in the MetroSelect Configuration Guide
MS2xxx Stratos Series Configuration Addendum (MLPN 00-02034x).
1. Turn off the host system.
(MLPN 00-02407x) and the
2. Plug the 10-pin RJ45 end of the OCIA interface cable (MLPN 57-57016x-N-3) into the 10-pin socket labeled Scanner Host
OCIA on the bottom of the StratosS. Refer to figure on page 23.
3. Connect the other end of the OCIA Interface cable (MLPN 57-57016x-N-3) to the appropriate communication port on the
host device.
Before continuing verify that the OCIA cable pinouts match the host system’s and is connected to the appropriate
interface socket on the scanner. An incorrect cable connection can cause communication problems or potential
damage to the scanner and/or terminal.
Manufacturers Note: Plugging the scanner into the serial port of the host device does not guarantee that scanned
information will appear at the host device. A software driver and correct configuration settings are also required for
proper communication to occur.
4. Plug the external power supply (MLPN 46-002xx) into the 3-pin Molex socket labeled, DC Power In, on the bottom of the
StratosS.
Check the AC input requirements of the power supply to make sure the voltage matches the AC outlet. The outlet
should be located near the equipment and be easily accessible.
Metrologic recommends using a switched AC outlet. The switch should be located on the operator’s side of the
checkout counter in close proximity to the StratosS to facilitate calibration and service of the unit.
5. Connect AC power to the transformer. If the AC outlet is equipped with an on/off switch, turn the power on.
6. Turn on the host system.
7. Configure the StratosS to match the host system’s OCIA parameters.
Refer to the MetroSelect Configuration Guide (
OCIA Parameters.
MLPN 00-02407x) under Section I: OCIA for Enabling and Setting
22
INSTALLATION
CABLE INSTALLATION (INTERFACE SPECIFIC)
OCIA
xx** Specifies international connection. See the Base Kit Components and Optional
Accessories section of this guide for a complete listing.
See power source caution statement on pages 8 or 11 of this manual.
Figure 22. OCIA Cable Installation Schematic
23
INSTALLATION
CABLE INSTALLATION (SECONDARY METROLOGIC SCANNER)
The following steps describe how to properly install the cables between a secondary Metrologic scanner and the StratosS.
The StratosS and the secondary scanner must then be configured to communicate properly. Cable installation alone does
not guarantee that the StratosS will communicate properly with the host system and secondary scanner.
Contact a Metrologic customer service representative before connecting another manufacturer’s scanner to the
StratosS as a secondary scanner.
Configuration bar codes are located in the
MS2xxx Stratos Series Configuration Addendum (MLPN 00-02034x) under Scanner Configuration Bar Codes:
Auxiliary Port, Quick Start for a Secondary Metrologic Scanners.
1. Refer to pages 16 - 22 for the type of interface (RS232, IBM 46xx, etc.) required for your application. Follow the cable
installation steps under the appropriate interface before continuing. Once the communication and power cables have
been installed follow step 2 below for the secondary scanner installation.
2. Connect the straight end of the RS232 PowerLink AUX cable (MLPN 57-57099x-3) into the RS232 socket of the secondary
scanner (see figure on page 25).
3. Connect the angled end of the RS232 AUX cable (MLPN 57-57099x-3) into the 10-pin socket labeled Aux RS232 In, on
the bottom of the StratosS.
Important: The StratosS series’ aux port requires the signals; transmit, receive, RTS & CTS from the secondary scanner.
StratosS’ auxiliary port will support 5VDC devices with a 150mA maximum current. If the auxiliary device exceeds
this specification an external power supply will be required to power the auxiliary device.
The following Metrologic scanners can receive power from StratosS: the MS9520, MS9540, and the MS5145.
4. This step is required for secondary devices that require >5VDC and/or 150mA current to operate. Skip to step 5 if
the secondary device requires ≤ 5VDC.
Plug the power supply into the secondary scanner’s PowerLink cable (MLPN 57-57099x-3) and connect AC power to the
secondary scanner.
Check the AC input requirements of the power supply to make sure the voltage matches the AC outlet. The outlet
should be located near the equipment and be easily accessible.
5. Configure the StratosS and the secondary scanner. The auxiliary input port’s data format must match the main output
format of the secondary scanner.
MLPN 00-02034x) under Scanner Configuration
24
Refer to the MS2xxx Stratos Series Configuration Addendum (
Bar Codes: Auxiliary Port, Quick Start for a Secondary Metrologic Scanners.
INSTALLATION
CABLE INSTALLATION (SECONDARY METROLOGIC SCANNER)
† See Aux power notes on page 24
See power source caution statement on pages 8 or 11 of this manual.

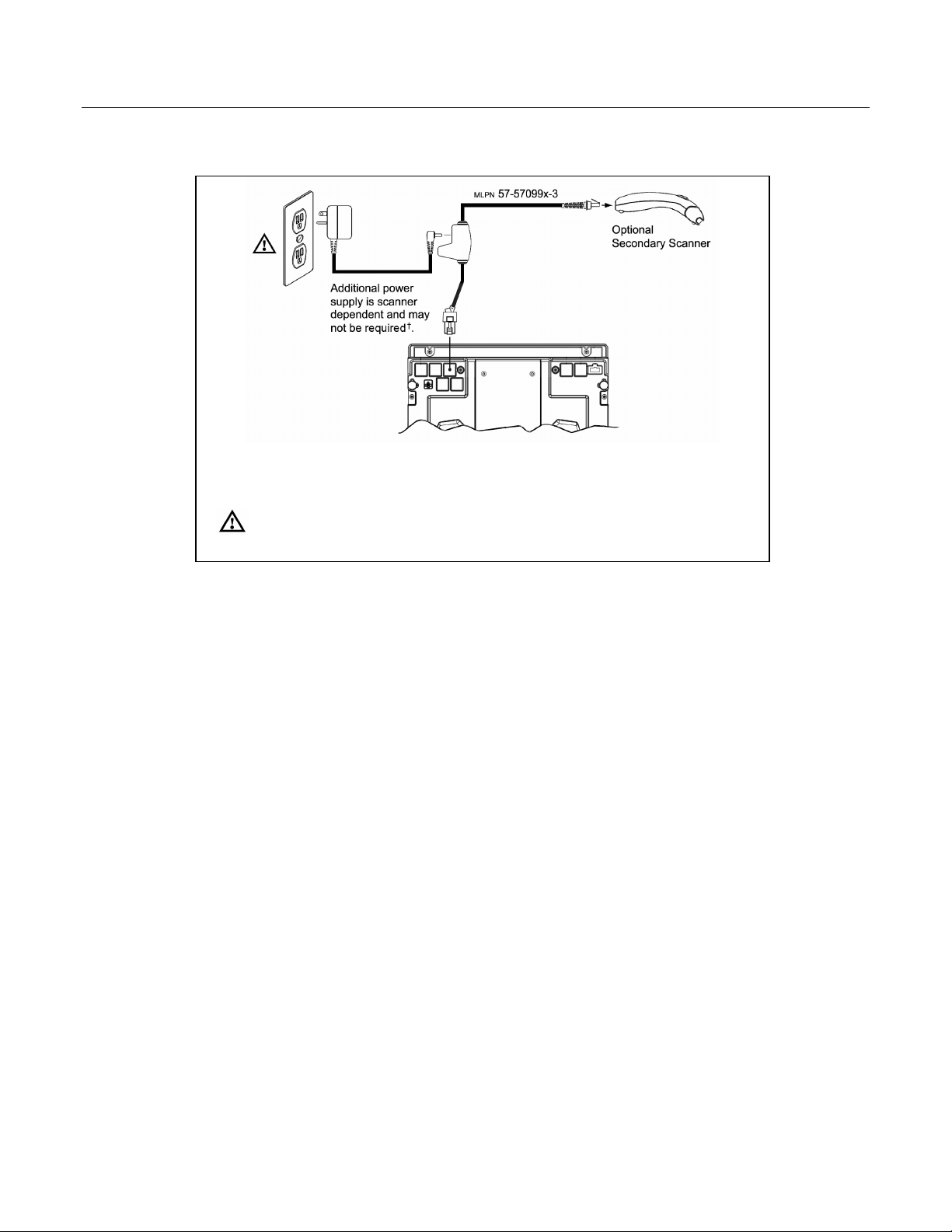

Figure 23. Secondary Scanner Cable Installation Schematic
25
INSTALLATION
EAS DEACTIVATION
SW1 and SW2 are the switch banks inside the Checkpoint device that set the deactivation range. The following is a list of
Checkpoint recommended switch bank settings.
Base Model Checkpoint Recommended Switch Bank Settings
MS2221 SW1 & SW2 switches 1 and 6 set to ON
MS2222 SW1 & SW2 switches 1 and 6 set to ON
All StratosS models have a connector labeled EAS In on the bottom of the unit. Metrologic has an optional EAS cable
(MLPN 52-52511x) available for purchase for connection between the Checkpoint device and the StratosS.
Figure 24. EAS Cable Connection (Bottom of StratosS)
The following figure shows the location of the EAS deactivation area for the StratosS. It is important to pass the entire tag
through this area to deactivate the security tag.
Figure 25. EAS Deactivation Area
26
SCANNER OPERATION
SCAN ZONE
Specifications are subject to change without notice.
Figure 26. Checker-Side (13 mil)
Figure 27. Horizontal Left/Right (13 mil)
27
SCANNER OPERATION
SCAN ZONE
Specifications are subject to change without notice.
Figure 28. Horizontal Direct (13 mil)
Figure 29. Vertical Direct (13 mil)
28
SCANNER OPERATION
IR ACTIVATION AREA (IR LED OUTPUT)
The StratosS’s default power save mode
†
is Dual Action Power Save Mode #2 (see page 35). This power save mode
turns the laser OFF after a configured period of non-use then turns the motor OFF after thirty-minute intervals.
Any movement detected by the IR in the activation area, shown below in grey, will cause the scanner to exit the power save
mode. The motor will restart automatically and the laser will turn back on preparing the scanner for bar code recognition,
decoding and transmission.
†
Figure 30. IR Activation Area Perpendicular to Package Flow (IR LED Output)
†
Refer to the MetroSelect Configuration Guide (00-02407) for additional information on configurable power save modes.
Specifications are subject to change without notice
.
29
SCANNER OPERATION
INDICATOR DESCRIPTIONS
Audible
When in operation the StratosS provides audible feedback that indicates the status of the unit and the current scan.
Eight settings are available for the tone of the beep (normal, 6 alternate tones and no tone) plus three volume settings.
To change the tone or volume, refer to the Changing the Beeper Tone & Volume section of this manual.
One Beep
When the scanner first receives power the white LED will flash, the blue LED will turn on and the scanner will beep once
(the white LED will remain on for the duration of the beep). The scanner is now ready to scan.
When the scanner successfully reads a bar code, the white LED will flash and the scanner beeps once (if configured to do
so). If the scanner does not beep once and the white light does not flash, then the bar code has not been successfully read.
Razzberry Tone
This is a failure indicator. Refer to failure modes on page 31.
Three Beeps - during operation
When placing the scanner in configuration mode, the white LED will flash while the scanner simultaneously beeps three
times. The white and blue LEDs will continue to flash until the unit exits configuration mode. Upon exiting configuration
mode, the scanner will beep three times and the white LED will stop flashing.
When configured, three beeps can also indicate a communications timeout during normal scanning mode.
When using one-code-configuring, the scanner will beep three times (the current selected tone), followed by a short pause,
a high tone and a low tone. This tells the user that the single configuration bar code has successfully configured the
scanner.
Three Beeps - on power up
This is a failure indicator. Refer to failure modes on page 31.
Descending Tone
The scanner will emit a descending tone when the microprocessor is about to Flash upgrade.
Ascending Tone
The scanner will emit an ascending tone when the interface coprocessor is about to Flash upgrade.
Visual
White and blue LEDs are located near the bottom corner of the vertical
output window. When the scanner is
illumination of the LEDs indicates the status of the StratosS and the
current scan.
No White or Blue LED
The LEDs will not be illuminated if the scanner is not receiving power from the host or transformer.
They are also not illuminated when all lasers are turned off.
ON, the flashing or constant,
Figure 31. LEDs
30
SCANNER OPERATION
INDICATOR DESCRIPTIONS
Visual
Steady Blue
When all lasers are active, the blue LED is illuminated. The blue LED will remain illuminated until all lasers are deactivated.
Steady Blue and Single White Flash
When the scanner successfully reads a bar code, the white LED will flash and the scanner will beep once. If the white LED
does not flash or the scanner does not beep once, then the bar code has not been successfully read.
Steady White and Blue
After a successful scan, the scanner transmits the data to the host device. Some communication modes require that the
host inform the scanner when data is ready to be received. If the host is not ready to accept the information, the scanner’s
white LED will remain on until the data can be transmitted.
Flashing Blue then Flashing White
This indicates the scanner is in program mode. A razzberry tone indicates that an invalid bar code has been scanned
in this mode.
or
If the unit is in sleep mode, each LED will flash once every 15 seconds.
Steady White, Blue Off
This indicates the scanner may be waiting for communication from the host.
Flashing Blue
This indicates there is an error active on the diagnostic indicator display (see Error Codes on page 32).
The scanner may continue to operate depending on the type of error.
Failure Modes
Flashing Blue and One Razzberry Tone
This indicates that the scanner has experienced a laser subsystem failure. The scanner will try up to 3 times to correct the
failure condition. If the laser subsystem continues to fail, that subsystem (horizontal or vertical) will be shut down and an
error indication will be shown on the Diagnostic Indicator Display. This error stays on the display until corrected. If the
remaining subsystem is still operational, scanning will continue using the operational components.
Flashing Blue and White and Two Razzberry Tones
This indicates that the scanner has experienced a motor subsystem failure. The scanner will try up to 3 times to correct the
failure condition. If the motor subsystem continues to fail, that subsystem (horizontal or vertical) will be shut down and an
error indication will be shown on the Diagnostic Indicator Display. This error stays on the display until corrected. If the
remaining subsystem is still operational, scanning will continue using the still operational components.
Continuous Razzberry Tone with Both LEDs Off
If, upon power up, the scanner emits a continuous razzberry tone, then the scanner has an electronic failure. Return the unit
for repair at an authorized service center.
Three Beeps - On Power Up
If the scanner beeps 3 times on power up then, the nonvolatile memory that holds the scanner configuration has failed.
Return the unit for repair at an authorized service center.
31
SCANNER OPERATION
INDICATOR DESCRIPTIONS
Diagnostic Indicator Display
There is a two-digit error code display located under horizontal output window near the Metrologic logo on the platter (see
figure below).
Figure 32. Error Code Display (Optional Product Roll Bar Shown)
The following is a list of possible error codes and their meanings. Some errors will require immediate scanner maintenance.
ERROR
CODE
01 Reserved
DESCRIPTION
RAM ERROR – The scanner’s Random Access Memory (RAM) is tested as faulty. Return the unit for repair at an
02
authorized service center.
PROGRAM ERROR – The scanner’s software program is failing. Return the unit for repair.
03
INTERFACE ERROR – After power up and any application exit (e.g. MetroSet, etc.), the scanner checks the
interface hardware with that chosen in configuration. If they do not agree, an interface error exists. Correct this
04
problem by getting the proper hardware interface OR programming StratosS configuration for the proper interface
hardware attached.
CONFIGURATION ERROR – The non-volatile configuration memory did not agree with the data last saved.
Default configuration data is then used and the scanner continues operating. This error is also accompanied by 3
05
beeps. This error will remain during operation as a reminder that this power cycle is scanning against a defaultgenerated configuration.
COMMUNICATION ERROR – The RS232 data line is being held active. This causes the scanner to read a
“break” signal constantly and continuous attempts are made to enter MetroSet configuration mode. A short on the
RX Data line can cause this condition. It can also be the result of a laptop in power save mode. The scanner will
06
abort attempts to enter configuration mode after a short timeout. The scanner can automatically recover from this
condition once the short in the RX Data line is corrected.
COPROCESSOR COMMUNICATION ERROR – The main microprocessor is not communicating with the interface
coprocessor. The interface coprocessor may be in a fault condition with the host or just not able to respond. This
09
error may appear when the scanner is configured for USB or IBM interface applications or during an attempt to
update the interface software through the flash utility. The unit should be repaired at an authorized service center.
32
SCANNER OPERATION
INDICATOR DESCRIPTIONS
Diagnostic Indicator Display
ERROR
CODE
SWITCH ERROR – The switch used for volume selection or sleep mode is detected in error (always closed). The
condition is self-correcting if possible. If the error persists, return the unit for repair at an authorized service center.
11
The scanning operation can continue with this error active.
LASER #1 (VERTICAL) ERROR – The laser in the vertical scanning subsystem denotes a failure. The scanner
21
will try three times to correct the laser operation. If the laser error persists, the vertical scanning subsystem will be
shut down and this error code will remain on the Diagnostic Indicators.
LASER #2 (RIGHT HORIZONTAL) ERROR – The right laser in the horizontal scanning subsystem denotes a
failure. The scanner will try three times to correct the laser operation. If the laser error persists, and the left
22
horizontal laser (#3) is also in error, the horizontal scanning subsystem will be shut down and this error code will
remain on the Diagnostic Indicators.
DESCRIPTION
LASER #3 (LEFT HORIZONTAL) ERROR – The left laser in the horizontal scanning subsystem denotes a failure.
The scanner will try three times to correct the laser operation. If the laser error persists, and the right horizontal
23
laser (#2) is also in error, the horizontal scanning subsystem will be shut down and this error code will remain on
the Diagnostic Indicators.
LASER #1 (VERTICAL) HIGH CURRENT WARNING – The laser in the vertical scanning subsystem is drawing
excessive current. This could be a warning for a future total failure. Have the unit checked at an authorized
24
service center when convenient.
LASER #2 (RIGHT HORIZONTAL) HIGH CURRENT WARNING – The laser in the vertical scanning subsystem is
drawing excessive current. This could be a warning for a future total failure. Have the unit checked at an
25
authorized service center when convenient.
LASER #3 (LEFT HORIZONTAL) HIGH CURRENT WARNING – The laser in the vertical scanning subsystem is
26
drawing excessive current. This could be a warning for a future total failure. Have the unit checked at an
authorized service center when convenient.
LASER #1 (VERTICAL) UNDERCURRENT WARNING – The laser in the vertical scanning subsystem is drawing
27
too little current. The laser is probably not on. This could be the result of a loss of the required set point in
memory. Have the unit checked at an authorized service center.
LASER #2 (RIGHT HORIZONTAL) UNDERCURRENT WARNING – The laser in the right horizontal scanning
28
subsystem is drawing too little current. The laser is probably not on. This could be the result of a loss of the
required set point in memory. Have the unit checked at an authorized service center.
33
SCANNER OPERATION
INDICATOR DESCRIPTIONS
Diagnostic Indicator Display
ERROR
CODE
LASER #3 (LEFT HORIZONTAL) UNDERCURRENT WARNING – The laser in the left vertical scanning
29
subsystem is drawing too little current. The laser is probably not on. This could be the result of a loss of the
required set point in memory. Have the unit checked at an authorized service center.
MOTOR #1 (VERTICAL) ERROR – The motor in the vertical scanning subsystem denotes a failure. The scanner
31
will try three times to correct the motor operation. If the motor error persists, the vertical scanning subsystem will
be shut down and this error code will remain on the Diagnostic Indicators.
MOTOR #2 (HORIZONTAL) ERROR – The motor in the horizontal scanning subsystem denotes a failure. The
32
scanner will try three times to correct the motor operation. If the motor error persists, the horizontal scanning
subsystem will be shut down and this error code will remain on the Diagnostic Indicators.
DESCRIPTION
MOTOR #1 (VERTICAL) SPEED ERROR – The motor in the vertical section cannot be speed controlled as
34
desired. Have the unit checked at an authorized service center.
MOTOR #2 (HORIZONTAL) SPEED ERROR – The motor in the horizontal section cannot be speed controlled as
35
desired. Have the unit checked at an authorized service center.
34
SCANNER OPERATION
POWER SAVE MODES
The StratosS has five configurable power save modes. Refer to the MetroSelect Configuration Guide for additional
information on Power Save Modes.
1. Blink Power Save Mode:
Blinks the laser OFF & ON after a configured period of non-use.
When the scanner recognizes a bar code it will exit the Blink mode.
2. Laser Off Power Save Mode:
Turns the laser OFF after a configured period of non-use. The motor continues to spin allowing for a faster “wake” up
time.
Any movement detected by the IR will “wake” the scanner from the Laser Off power save mode (see Figure 30
on page 29).
3. Laser & Motor Off Power Save Mode:
Turns the laser and motor OFF after a configured period of non-use.
Any movement detected by the IR will “wake” the scanner from the power save mode (see Figure 30 on page 29).
This mode’s “wake” time is slightly longer due to the motor’s need to restart.
4. Dual Action Power Save Mode #1:
“Blinks” the laser OFF & ON after a configured period of non-use turns the laser and motor OFF at thirty-minute intervals.
Example:
If the power save timeout is set to 15 minutes.
Any movement detected by the IR will “wake” the scanner from the power save mode (see Figure 30 on page 29).
5. Dual Action Power Save Mode #2 (Default):
Turns the laser OFF after a configured period of non-use then turns the motor OFF after thirty-minute intervals.
Example:
If the power save timeout is set to 15 minutes.
Any movement detected by the IR will “wake” the scanner from the power save mode (see Figure 30 on page 29).
35
SCANNER OPERATION
BEEPER OPTIONS AND BUTTON FUNCTIONS
Changing the Beeper Tone
Beeper tones may be configured incrementally using the following bar code. The new tone will be heard followed by a short
pause. Two more new tones will be heard signifying the new setting has been stored in memory. The silent (no beep) tone is
also selectable.
Next Beep Tone
³999975
Changing the Beeper Volume
Volume levels may be configured using the volume button or incrementally using the following bar code. The new volume will
be heard followed by a short pause. Two more tones will be heard signifying the new setting has been saved in memory.
The silent (no volume) tone is also selectable.
Next Volume
³999974
The Multi-Function Button
Figure 33. The Multi-Function Button
Changing the Beeper Volume
A
short (<3 second) depression and the beeper volume will change.
The new volume will be heard. The silent (no beep) volume is also selectable.
Figure 34. Changing the Beeper Volume
Placing the Unit in Laser & Motor Off Power Save Mode
Long (>3 seconds) depression The Laser & Motor Off Power Save Mode is the only
power save mode that can be activated with the multi-function button*.
Figure 35. Laser & Motor Off Power
Save Move
This feature is configuration dependent. Refer to the MetroSelect Configuration Guide
*
MLPN 00-02407x) under Scanner Operation: Power Save Modes to enable this feature.
(
Waking the Unit from All Power Save Modes
The next button depression will awaken the scanner for normal operation.
Figure 36. Normal Operation
36
SCANNER OPERATION
STARTUP
When the scanner first receives power the white LED will flash, the blue LED will turn on and the scanner will beep once (the
white LED will remain on for the duration of the beep). The scanner is now ready to scan.
POWER-UP TEST MODE
When a StratosS scanner is first powered up, it cycles through a number of self-tests before starting normal operation. If there
are any initial failures during this sequence of tests the scanner will beep or razz to indicate the error and an error code will
appear in the diagnostic indicator display.
The following are examples of the types of tests performed at power-up.
1. Memory tests
2. Hardware setup tests
3. Motor tests
4. Laser tests
5. Configuration tests
6. Interface tests
These tests are also performed on a periodic basis with the operator alerted to any failures.
CONFIGURATION MODE
All StratosS series scanners have been configured at the factory with a set of default communication protocols. Since many
host systems have unique formats and protocol requirements, Metrologic provides a wide range of configurable features that
may be selected with the use of the MetroSelect
Configuration Addendum (
For a complete list of the factory default settings, refer to the Default Settings section of this guide.
MLPN 00-02034x) and MetroSet.
®
Configuration Guide (MLPN 00-02407x), the MS2xxx Stratos Series
37
MAINTENANCE
HORIZONTAL SCAN WINDOW REPLACEMENT
After the replacement platter has been installed, remove all protective film from the new platter’s window.
The unit will not function properly if the protective film is not removed.
Figure 37. Platter/Horizontal Scan Window Replacement
* See replacement parts on page 3.
† If the platter on the MS2221 is not equipped with a product weight roll bar / lift handle, it can be removed using the same method as shown
for the MS2222.
38
MAINTENANCE
VERTICAL SCAN WINDOW REPLACEMENT (MLPN 46-00232)
After the replacement vertical window has been installed, remove all protective film from the window.
The unit will not function properly if the protective film is not removed.
Figure 38. Vertical Scan Window Replacement
D
AILY MAINTENANCE
Smudges and dirt can interfere with the proper scanning of a bar code. Therefore, the horizontal and vertical output windows
will need occasional cleaning.
For the glass window:
1. Spray glass cleaner onto lint free, non-abrasive cleaning cloth.
2. Gently wipe the scanner window.
For the inner plastic window:
1. Use mild soap and water with lint free, non-abrasive cleaning cloth.
2. Gently wipe the scanner window.
39
TROUBLESHOOTING
The following guide is for reference purposes only. Contact a Metrologic representative at 1-800-ID-METRO or 1-800-4363876 to preserve the limited warranty terms.
Symptom Possible Cause(s) Solution
All Interfaces
No LEDs, beep or motor
spin.
During power up the unit
beeps 3 times.
During power up the unit
razzes continuously.
During power up the unit
razzes once and the blue
LED flashes.
During power up the unit
razzes twice and both
LEDs flash.
There are
multiple scans upon
presentation of code.
The unit powers up but
does not beep.
No power is being supplied
to the scanner.
A Non-volatile RAM failure.
A RAM or ROM failure.
A VLD failure. Contact a Metrologic service representative.
Scanner motor failure. Contact a Metrologic service representative.
The same symbol timeout is
set to short.
The beeper is disabled. Enable the beeper.
No volume is selected. Select a volume.
No tone is selected. Select a tone.
Check the transformer, outlet and the power strip. Make sure
the power cable is plugged into the scanner.
Contact a Metrologic service representative, if the unit will not
hold the configuration.
Contact a Metrologic service representative, if the unit will not
function.
Adjust same symbol timeout for a longer time.
The unit powers up but
does not scan and/or
beep.
The unit scans a bar code,
but locks up after the first
scan (the white LED stays
on).
The unit scans but the
data transmitted to the
host is incorrect.
40
The unit is trying to scan a
particular symbology that is
not enabled.
The unit has been
configured for a character
length lock or a minimum
length and the bar code
being scanned does not
satisfy the configured
criteria.
The scanner is configured to
support some form of host
handshaking but is not
receiving the signal.
The scanner’s data format
does not match the host
system requirements.
UPC/EAN and Code 128 are enabled by default. Verify that
the type of bar code being read has been selected.
Verify that the bar code that is being scanned falls into the
criteria.
Typical of Non-UPC/EAN codes. The scanner defaults to a
minimum of 4 character bar code.
If the scanner is setup to support ACK/NAK, RTS/CTS,
XON/XOFF or D/E, verify that the host cable and host are
supporting the handshaking properly.
Verify that the scanner’s data format matches that required by
the host. Make sure that the scanner is connected to the
proper host port.
TROUBLESHOOTING
Symptom Possible Cause(s) Solution
All Interfaces
Scanner beeps at some
bar codes and NOT form
others of the same bar
code symbology.
The print quality of the bar
code is suspect.
Check the character length
lock.
The aspect ratio of the bar
code is out of tolerance.
The type of printer and/or the printer settings could be the
problem.
Check the print mode or change the printer settings. For
example change to econo mode or high speed.
The unit powers up but
does not scan and/or
beep.
The unit beeps at some
bar codes but NOT for
others of the same bar
code symbology.
RS232 Only
The unit powers up OK
and scans OK but does
not communicate properly
to the host.
The unit is trying to scan a
particular symbology that is
not enabled.
The unit has been
configured for a character
length lock or a minimum
length and the bar code
being scanned does not
satisfy the configured
criteria.
The bar code may have
been printed incorrectly.
The scanner is not
configured correctly for this
type of bar code.
The minimum symbol length
setting does not work with
the bar code.
The com port at the host is
not working or is not
configured properly.
The cable is not connected
to the proper com port.
UPC/EAN and Code 128 are enabled by default. Verify that
the type of bar code being read has been selected.
Verify that the bar code that is being scanned falls into the
criteria.
Typical of Non-UPC/EAN codes. The scanner defaults to a
minimum of 4 character bar code.
Check if it is a check digit, character or border problem.
Check if check digits are set properly.
Check if the correct minimum symbol length is set.
Check to make sure that the baud rate and parity of the
scanner and the communication port match and the program is
looking for RS232 data.
The com port is not
operating properly.
41
TROUBLESHOOTING
Symptom Possible Cause(s) Solution
RS232 Only
The host is receiving
data but the data
does not look correct.
Characters are being
dropped.
Aux Port Operation With Any Interface
The secondary
scanner is not
functioning.
The secondary
scanner powers up
but data is not
relayed to the host.
* Refer to the MS2xxx Stratos Series Configuration Addendum (MLPN 00-02034x) under Scanner Configuration Bar
Codes: Auxiliary Port, Quick Start for a Secondary Metrologic Scanner.
The scanner and host may not be
configured for the same interface.
The intercharacter delay needs to be
added to the transmitted output.
The secondary scanner cable may
not be connected to the proper port
on the StratosS.
The auxiliary com port may not be
operating properly.
Check that the scanner and the host are configured for the
same interface.
Add some intercharacter delay to the transmitted output by
using the MetroSelect Configuration Guide (
02407x).
Refer to the user’s guide provided with the secondary
scanner.
Ensure that the secondary scanner is connected to the
MS2220 com port marked “Aux” port.
* The StratosS must be configured to enable the auxiliary
port.
The auxiliary input port’s data format must match the main
output format of the secondary scanner.
MLPN 00-
RS232 DEMONSTRATION PROGRAM
If an RS232 scanner is not communicating with your IBM compatible PC, key in the following BASIC program to test that
the communication port and scanner are working. This program is for demonstration purposes only. It is only intended to
prove that cabling is correct, the com port is working, and the scanner is working. If the bar code data displays on the
screen while using this program, it only demonstrates that the hardware interface and scanner are working. At this point,
investigate whether the application software and the scanner configuration match. If the application does not support
RS232 scanners, a software wedge program that will take RS232 data and place it into a keyboard buffer may be needed.
This program tells the PC to ignore RTS-CTS, Data Set Ready (DSR) and Data Carrier Detect (DCD) signals. If the
demonstration program works and yours still does not, jumper RTS to CTS and Data Terminal Reading (DTR) to DCD and
DSR on the back of your PC.
10 CLS
20 ON ERROR GOTO 100
30 OPEN “COM1:9600,S,7,1,CS0,DS0,CD0,LF” AS #1
35 PRINT “SCAN A FEW BAR CODES”
40 LINE INPUT #1, BARCODE$
50 PRINT BARCODE$
60 K$ = INKEY$: IF K$ = CHR$(27) THEN GOTO 32766
70 GOTO 40
100 PRINT “ERROR NO.”; ERR; “ PRESS ANY KEY TO TERMINATE.”
110 K$ = INKEY$: IF K$ = “” THEN GOTO 110
32766 CLOSE: SYSTEM
32767 END
42
DEFAULT SETTINGS
COMMUNICATION PARAMETERS
Many functions of the scanner can be "configured" - that is, enabled or disabled. The scanner is shipped from the factory preconfigured to a set of default conditions. The default parameter of the scanner has an asterisk ( * ) in the charts on the
following pages. If an asterisk is not in the default column then the default setting is Off or Disabled. Every interface does not
support every parameter. If the interface supports a parameter listed in the charts on the following pages, a check mark will
appear.
PARAMETER DEFAULT OCIA RS232 IBM 46XX USB
UPC/EAN
Code 128
Code 93
Codabar
Interleaved 2 of 5 (ITF)
MOD 10 Check on ITF
Code 11
Code 39
Full ASCII Code 39
MOD 43 CD on Code 39
Transmit Mode 43 CD
Paraff
Paraff Lead “A”
Allow Paraff Failures
French PC Terminal
MSI-Plessey
Airline (15 digit) 2 of 5
Airline (13 digit) 2 of 5
Matrix 2 of 5
Telepen
UK Plessey
STD 2 of 5
MSI-Plessey 10/10 Check Digit
MSI-Plessey MOD 10 Check Digit
ITF Symbol Lengths Variable
ITF Minimum Symbol Length 6
Symbol Length Lock None
Minimum Symbol Length 4
Trioptic
RSS14 Enable
RSS14 ID “]e0”
RSS14 App ID “01”
RSS14 Check Digit
*
*
*
*
*
9 9 9 9
9 9 9 9
9 9 9 9
9 9 9 9
9 9 9 9
9 9 9 9
9 9 9 9
9 9 9 9
9 9 9 9
9 9 9 9
9 9 9 9
9 9 9 9
9 9 9 9
9 9 9 9
9
9 9 9 9
9 9 9 9
9 9 9 9
9 9 9 9
9 9 9 9
9 9 9 9
9 9 9 9
9 9 9 9
9 9 9 9
9 9 9 9
9 9 9 9
9 9 9 9
9 9 9 9
9 9 9 9
9 9 9 9
9 9 9 9
9 9 9 9
9 9 9 9
43
DEFAULT SETTINGS
COMMUNICATION PARAMETERS
PARAMETER DEFAULT OCIA RS232 IBM 46XX USB
RSS Expanded Enable
Expanded ID “]e0”
RSS Limited Enable
RSS Limited ID “]e0”
RSS Limited App ID “01”
RSS Limited Check Digit
DTS/SIEMENS
DTS/NIXDORF
NCR F
NCR S
Beeper Tone Normal
Beep Transmit Sequence Before Transmit
Beeper Volume Loudest
Power-Up Disable Good Scan Beep
Communication Timeout None
Razzberry Tone on Timeout
Three Beeps on Timeout
No Beeps on Timeout
Fast Beep
Beep Twice on Supplements
No Beeps on Timeout
5 Retries Before Timeout
Timeout In … 2 secs.
Laser Off Between Records
Variable Laser Off Delay
Disable Button Control of Power Save Mode
Disable Button Control of Beep Volume
Bright LED Intensity
Dim LED Intensity
Flash LED on Good Scan
Reverse LED Convention
Flash LED on Good Scan
Enter Power Save Mode 61 mins.
Blink Power Save Mode
Laser OFF Power Save Mode
Laser & Motor OFF Power Save Mode
Dual Action Power Save Mode #1
*
*
*
*
*
*
*
5 - 635 msec
*
*
*
9 9 9 9
9 9 9 9
9 9 9 9
9 9 9 9
9 9 9 9
9 9 9 9
9
9
9
9
9 9 9 9
9 9 9 9
9 9 9 9
9 9 9 9
9 9 9 9
9 9 9 9
9 9 9 9
9 9 9 9
9 9 9 9
9 9 9 9
9 9 9 9
9 9 9 9
9 9 9 9
9 9 9 9
9 9 9 9
9 9 9 9
9 9 9 9
9 9 9 9
9 9 9 9
9 9 9 9
9 9 9 9
9 9 9 9
9 9 9 9
9 9 9 9
9 9 9 9
9 9 9 9
9 9 9 9
44
DEFAULT SETTINGS
COMMUNICATION PARAMETERS
PARAMETER DEFAULT OCIA RS232 IBM 46XX USB
Dual Action Power Save Mode #2
Same Symbol Rescan Timeout:
500 msecs Configurable in
50 msec steps (MAX 6.35 seconds)
*
*
9 9 9 9
9 9 9 9
Intercharacter Delay Configurable in
1 msec steps (MAX 255 msecs)
Number of Scan Buffers 1
UPC GTIN-14 Format
EAN-8 Enable
Transmit EAN-8 Check Digit
Convert EAN-8 to EAN-13
EAN-8 with Small Borders
EAN-13 Enable
Transmit EAN-13 Check Digit
UPC-A Enable
Convert UPC-A to EAN-13
Transmit UPC-A Check Digit
Transmit UPC-A Number System
Transmit UPC-A Manufacturers ID.
Transmit UPC-A Item ID
UPC-E Enable
Expand UPC-E
Transmit UPC-E Lead ‘0’
Transmit UPC-E Check Digit
Disable UPC-E Auto Redundancy
Transmit Codabar Start/Stop Characters
Codabar CLSI
Dual Field Codabar
Tab Between Dual field Codabar
Codabar CLSI Check Digit
Codabar 7-Check Check Digit
Codabar Mod-16 Check Digit
Transmit MSI Plessey Check Digits
Number of MSI Plessey Check Digits 0
UK Plessey A to X Convert
UK Plessey Special 12 Character Format
Transmit UK Plessey Check Digit
1 msecs
10 msecs in KBW
9 9 9
9 9 9 9
*
*
*
*
*
*
*
*
*
*
*
*
9 9 9 9
9 9 9 9
9 9 9 9
9 9 9 9
9 9 9 9
9 9 9 9
9 9 9 9
9 9 9 9
9 9 9 9
9 9 9 9
9 9 9 9
9 9 9 9
9 9 9 9
9 9 9 9
9 9 9 9
9 9 9 9
9 9 9 9
9 9 9 9
9 9 9 9
9 9 9 9
9 9 9 9
9 9 9 9
9 9 9 9
9 9 9 9
9 9 9 9
9 9 9 9
9 9 9 9
9 9 9 9
9 9 9 9
9 9 9 9
45
DEFAULT SETTINGS
COMMUNICATION PARAMETERS
PARAMETER DEFAULT OCIA RS232 IBM 46XX USB
EAN 128 Enable
Enable French Pharma
Enable Matrix 2 of 5 Check Digit
Enable Hong Kong 2 of 5
Enable Alpha Telepen
Telepen Convert Lead ‘^L’ to ‘E’
Enable Code 11 Check Digit
Parity Space
Baud Rate 9600
8 Data Bits
7 Data Bits
Stop Bits 2
RTS / CTS Enabled
Message RTS
Character RTS
ACK / NAK
O / N Handshaking
Host Bell / Cancel
Xon / Xoff
No Transmit Without DTR Present
French PC Terminal Emulation
“D/E” Disable Command
“Z/R” Disable Command
“F/L” Laser Command
“M/O” Motor Enable Commands
Beep on Bell
Razz on ‘z’
CTS Scan Transmit Enable
Limit 1 Scan per CTS
Activate on DTR
Activate on DC2 Character
Xmit No Read Message on DC2 Timeout
No Transmit LED During No Read Message
Configurable “No Read” Message
Recv “I” = Transmit “METROLOGIC”
Recv “i” = Transmit Scanner ID Byte
*
*
9 9 9 9
9 9 9 9
9 9 9 9
9 9 9 9
9 9 9 9
9 9 9 9
9 9 9 9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9 9 9
9
9
9
9
9
9
46
DEFAULT SETTINGS
COMMUNICATION PARAMETERS
PARAMETER DEFAULT OCIA RS232 IBM 46XX USB
STX Prefix
TAB Prefix
Metrologic Prefix
UPC Prefix
ETX Suffix
TAB Suffix
Carriage Return Suffix
Line Feed Suffix
UPC Suffix
Transmit LRC
Start LRC on 1st Byte
Start LRC on 2nd Byte
‘c’ Prefix for UPC
‘$’ Prefix for UPC
Configurable Prefix Characters 10 avail
Configurable Suffix Characters 10 avail
Predefined Code ID Sets Multiple Selections
Configurable Prefix for Code Types
Configurable Suffix for Code Types
Configurable Code Length Locks 7 avail
Code Selects 7 avail
Transmit High Priority Code at Timeout
Random Code Deselects 1 Set
Do not transmit Similar Codes
Target Code Deselects 1 Set
Transmit Lower Priority Codes
Code Select / Deselect Timeout 0.1 to 25.5
seconds
Razz on Code Select Timeout
Replace 1 Character in Transmission
Japan Dual Field Code Selects
EAN-13 Only in Japan Dual Field
Two Digit Supplements
Five Digit Supplements
Require Supplements
Remote Supplement Support
Two Digit Redundancy
*
*
5 sec
*
9 9 9 9
9 9 9 9
9 9 9 9
9 9 9 9
9 9 9 9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9 9 9
9 9 9
9 9 9
9 9 9
9 9 9
9 9 9
9 9 9
9 9 9
9 9 9
9
9 9 9
9 9 9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
47
DEFAULT SETTINGS
COMMUNICATION PARAMETERS
PARAMETER DEFAULT OCIA RS232 IBM 46XX USB
Five Digit Redundancy
Enable Coupon Code 128
Transmit Coupon ‘]C1’
Group Separator
Coupon Code Can Begin with ’4’
Enable EAN-99 Coupon Code
Bookland Supplements
French 378/379 Supplements
German 434/439 Supplements
Convert Bookland to ISBN
Bookland 979 Supplements
Convert 979 to ISBN
Convert 290 to ISBN
Reformat ISBN
Add EAN Article ID
Transmit ISBN / EAN Check Digit
977 Supplements (2-digit)
Convert 977 to ISSN
Reformat ISSN
Transmit ISSN Check Digit
414 / 419 Requires Supplements
Number System 2 Enables Supplements
Number System 2 Requires 5-Digit Supplements
Number System 5 Enables Supplements
Allow Code ID’s with Supplements
High Density Codes
Medium Density Codes
Low Density Codes
*
*
*
9 9 9 9
9 9 9 9
9 9 9 9
9 9 9 9
9 9 9 9
9 9 9 9
9 9 9 9
9 9 9 9
9 9 9 9
9 9 9 9
9 9 9 9
9 9 9 9
9 9 9 9
9 9 9 9
9 9 9 9
9 9 9 9
9 9 9 9
9 9 9 9
9 9 9 9
9 9 9 9
9 9 9 9
9 9 9 9
9 9 9 9
9 9 9 9
9 9 9 9
9 9 9 9
9 9 9 9
9 9 9 9
48
DEFAULT SETTINGS
COMMUNICATION PARAMETERS
Default settings for “Aux” interface
The secondary scanner and the StratosS series always communicates via RS232. Data is relayed to the host via various
primary interfaces
PARAMETER DEFAULT OCIA RS232 IBM 46XX USB
Aux Baud Rate 38400
Aux Parity none
Aux Data Bits 8
Aux Stop Bits 1
Aux Character RTS
Aux Message RTS
Aux Ack/Nak
Aux Xon/Xoff
Aux D/E Commands
Aux M/O Commands
Aux F/L Commands
Aux Intercharacter Delay 1 msec
*
*
*
9 9 9 9
9 9 9 9
9 9 9 9
9 9 9 9
9 9 9 9
9 9 9 9
9 9 9 9
9 9 9 9
9 9 9 9
9 9 9 9
9 9 9 9
9 9 9 9
Aux Port Data Format None (Disabled)
Aux Port to StratosSCHOOLl† None (Disabled)
9 9 9 9
9 9 9 9
† When the Aux Port connects to a host port, the Aux Port Data Format should be disabled (requires cable MLPN 57-57008x-N-3).
49
SCANNER AND CABLE TERMINATIONS
SCANNER PINOUT CONNECTIONS
The StratosS scanner terminates to 10-pin modular jacks located on the bottom of the unit. The serial number label indicates
the model number and interface of the scanner.
EAS
Pin Function
1 EAS In
2 EAS Out
DC Power
Pin Function
1 12VDC
2 Ground
3 5.2VDC
Scanner to Host, IBM 46xx
Pin Function Pin Function
1 Signal Ground 1 Ground
2
Reserved for RS232 Interface
3
Reserved for RS232 Interface
4
Reserved for RS232 Interface
5
Reserved for RS232 Interface
6
Reserved for RS232 Interface
7
No Connect
8
Reserved for RS232 Interface
9 IBM B- 9
10 IBM A+ 10
Pin Function Pin Function
1 Signal Ground 1 Signal Ground
2 OCIA R Data 2
3 OCIA Clock In 3
4 Shield Ground 4 Shield
5 OCIA Clock Out 5
6 OCIA Clock In Return / Clock Out Return 6
7
Reserved for USB Interface
8 OCIA R Data Return 8
9
Reserved for USB Interface
10
Reserved for USB Interface
Specifications are subject to change without notice
Auxiliary RS232 In
Pin Function
1 Ground
2 RS232 Receive Input
3 RS232 Transmit Output
4 RS232 RTS In
5 RS232 CTS Out
6-8
No Connect
9 +5V Out
10
No Connect
Scanner to Host, OCIA
Figure 39. Connector Layout
2 RS232 Transmit
3 RS232 Receive
4 RS232 RTS Out
5 RS232 CTS In
6 RS232 DTR In
7
8 DSR
7 PC+5VDC
9 Data 10 Data +
Scanner to Host, RS232
No Connect
Reserved for IBM 46xx Interface
Reserved for IBM 46xx Interface
Scanner to Host, USB
Reserved for OCIA Interface
Reserved for OCIA Interface
Reserved for OCIA Interface
Reserved for OCIA Interface
Reserved for OCIA Interface
.
50
SCANNER AND CABLE TERMINATIONS
SCALE READY MS2221 MODELS – ADDITIONAL PINOUT CONNECTIONS
There are four additional 10-pin modular jacks located on the bottom of the of the MS2221 StratosS models that may be used
for an integrated scale application and the use of a remote display.
Please keep in mind that every application is unique. The use of these connections depends on the
specifications of the scale’s manufacturer. The following pinouts are for reference only. If the scanner has
been integrated with a scale, refer to the Scale Addendum for detailed instructions on the appropriate cable
connections, communication specifications and calibration procedures required by the scale manufacturer and
local Weights and Measures authorities.
When connecting any combination of scale/external scale display to the M2221 do not exceed the
following current restrictions: 12V @ 0.7A max. / 5V @ 0.2A max.
Scale Display Data In Scale
Data to Display from the Load
Cell Interface
Pin
Function
**
Pin
Figure 40. Scale Ready Connector Layout
Scale Data In
RS232 from the Load Cell
Interface
Function**
Scale RS232 to Host
Scale Data, Dual Cable
Applications
Pin
Function**
Pin
Scale to
Display
Function
1 SIG1 1 12V 1 Ground 1 SIG1
2 SIG2 2 Ground 2 Scale RS232 TX Out 2 SIG2
3 SIG3 3 5V 3 Scale RS232 RX In 3 SIG3
4 SIG4 4 Ground 4 Scale RS232 RTS Out 4 SIG4
5 SIG5 5 RS232 TX In 5 Scale RS232 CTS In 5 SIG5
6 SIG6 6 RS232 RX Out 6
7 SIG7 †† 7 RS232 CTS In 7
8 SIG8 †† 8 RS232 RTS Out 8
9 SIG9 †† 9 Scale Status, TTL 9
No Connect
No Connect
No Connect
No Connect
6 SIG6
7 SIG7 ††
8 SIG8 ††
9 SIG9 ††
10 SIG10 †† 10 Scale Zero, TTL 10 Shield 10 SIG10 ††
** All signals are referenced from the StratosS scanner.
†† The use of these pins depends upon the specifications of the scale’s manufacturer.
Specifications are subject to change without notice.
**
51
SCANNER AND CABLE TERMINATIONS
CABLE CONNECTOR CONFIGURATIONS
The following cables are examples of some of the standard cables that may be shipped with the StratosS scanner.
Please keep in mind that every application is unique and the cables received with the StratosS may be custom cables that are
not shown below.
RS232 Interface Cable,
Pin
1
No Connect
2 RS232 TX Output
3 RS232 RX Input
4 DTR Input
5 Power/Signal Ground
6 DSR Output
7 CTS Input
8 RTS Output
9
No Connect
Full Speed USB Cable,
MLPN 57-57201x-N-3 or MLPN 57-57227x-N-3
Pin
1 PC+5V USB
2 Data 3 Data +
4 Ground
MLPN 57-57210x-N-3
Function**
Function**
9-Pin D-Type Connector
Locking,
Type A
57-57227x-N-3
Non-Locking, Type A
57-57201x-N-3
IBM 46xx Cable, MLPN 57-57212x-N-3
Pin
Function**
1 Signal Ground
2 IBM A+
3 IBM B 4
No Connect
OCIA Cable, MLPN 57-57016x-N-3
Pin
Function**
1 Shield Ground
2 R Data
3 R Data Return
4 Clock Out
5 Signal Ground
6 OCIA Clock In Return
7 Clock Out Return
8 Clock In
9
No Connect
** All signals are referenced from the StratosS scanner.
Specifications are subject to change without notice.
4-Pin SDL
9-Pin D-Type Connector
52
SCANNER AND CABLE TERMINATIONS
CABLE CONNECTOR CONFIGURATIONS
Aux Port Configuration Cable*, MLPN 57-57008x-N-3
Pin
1
No Connect
2 Output from Scanner
3 Input to Scanner
4
No Connect
5 Ground
6-9
No Connect
Function**
9-Pin D-Type Connector
RS232 LSO/AUX Cable, MLPN 57-57099x-3
Pin
1 Signal Ground
2 RS232 from Aux / Secondary Scanner
3 RS232 to Aux / Secondary Scanner
4 RTS from Aux / Secondary Scanner
5 CTS to Aux / Secondary Scanner
6-8
No Connect
9 +5VDC – Transformer / Direct
10 Shield Ground
* This configuration cable was designed to be used with the StratosS auxiliary connector only.
** All signals are referenced from the StratosS scanner.
† All signals are referenced from the auxiliary / secondary scanner.
Specifications are subject to change without notice.
Function†
10-Position Angled Modular Plug
53
REGULATORY COMPLIANCE
SAFETY
ITE Equipment
IEC 60950-1; EN 60950-1
Laser
Laser Class 1: IEC 60825-1:1993+A1+A2, EN: 60825-1:1994+A1+A2
Caution
Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous laser
light exposure. Under no circumstances should the customer attempt to service the laser scanner. Never attempt to look at the
laser beam, even if the scanner appears to be nonfunctional. Never open the scanner in an attempt to look into the device.
Doing so could result in hazardous laser light exposure. The use of optical instruments with the laser equipment will increase
eye hazard.
Atención
La modificación de los procedimientos, o la utilización de controles o ajustes distintos de los especificados aquí, pueden
provocar una luz de láser peligrosa. Bajo ninguna circunstancia el usuario deberá realizar el mantenimiento del láser del
escáner. Ni intentar mirar al haz del láser incluso cuando este no esté operativo. Tampoco deberá abrir el escáner para
examinar el aparato. El hacerlo puede conllevar una exposición peligrosa a la luz de láser. El uso de instrumentos ópticos con
el equipo láser puede incrementar el riesgo para la vista.
Attention
L'emploi de commandes, réglages ou procédés autres que ceux décrits ici peut entraîner de graves irradiations. Le client ne
doit en aucun cas essayer d'entretenir lui-même le scanner ou le laser. Ne regardez jamais directement le rayon laser, même
si vous croyez que le scanner est inactif. N'ouvrez jamais le scanner pour regarder dans l'appareil. Ce faisant, vous vous
exposez à une rayonnement laser qú êst hazardous. L'emploi d'appareils optiques avec cet équipement laser augmente le
risque d'endommagement de la vision.
Achtung
Die Verwendung anderer als der hier beschriebenen Steuerungen, Einstellungen oder Verfahren kann eine gefährliche
Laserstrahlung hervorrufen. Der Kunde sollte unter keinen Umständen versuchen, den Laser-Scanner selbst zu warten.
Sehen Sie niemals in den Laserstrahl, selbst wenn Sie glauben, daß der Scanner nicht aktiv ist. Öffnen Sie niemals den
Scanner, um in das Gerät hineinzusehen. Wenn Sie dies tun, können Sie sich einer gefährlichen Laserstrahlung aussetzen.
Der Einsatz optischer Geräte mit dieser Laserausrüstung erhöht das Risiko einer Sehschädigung.
Attenzione
L’utilizzo di sistemi di controllo, di regolazioni o di procedimenti diversi da quelli descritti nel presente Manuale può provocare
delle esposizioni a raggi laser rischiose. Il cliente non deve assolutamente tentare di riparare egli stesso lo scanner laser. Non
guardate mai il raggio laser, anche se credete che lo scanner non sia attivo. Non aprite mai lo scanner per guardare dentro
l’apparecchio. Facendolo potete esporVi ad una esposizione laser rischiosa. L’uso di apparecchi ottici, equipaggiati con raggi
laser, aumenta il rischio di danni alla vista.
54
REGULATORY COMPLIANCE
EMC
Emissions: FCC Part 15, ICES-003, CISPR 22, EN 55022
Immunity: CISPR 24, EN 55024
Class A Devices
The following is applicable when the scanner cable is greater in length than 3 meters (9.8 feet) when fully extended:
Les instructions ci-dessous s’appliquent aux cables de scanner dépassant 3 métres (9.8 pieds) de long en extension
maximale:
Folgendes trifft zu, wenn das Scannerkabel länger als 3 Meter ist:
This equipment has been tested and found to comply with limits for a Class A digital device, pursuant to part 15 of the FCC
Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is
operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful interference, in which case the user will be required
to correct the interference at their own expense. Any unauthorized changes or modifications to this equipment could void the
user’s authority to operate this device.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may
not cause harmful interference, and (2) this device must accept any interference received, including interference that may
cause undesired operation.
Notice
This Class A digital apparatus complies with Canadian ICES-003.
Remarque
Cet appareil numérique de classe A est conforme à la norme canadienne NMB-003.
European Standard
Warning
This is a class A product. In a domestic environment this product may cause radio interference in which case the user may
be required to take adequate measures.
Funkstöreigenschaften nach EN55022:1998
Warnung!
Dies ist eine Einrichtung der Klasse A. Diese Einrichtung kann im Wohnbereich Funkstörungen verursachen. In
diesem Fall kann vom Betreiber verlangt werden, angemessene Massnahmen durchzuführen.
Standard Europeo
Attenzione
Questo e’ un prodotto di classe A. Se usato in vicinanza di residenze private potrebbe causare interferenze radio che
potrebbero richiedere all’utilizzatore opportune misure.
Attention
Ce produit est de classe “A”. Dans un environnement domestique, ce produit peut être la cause d’interférences radio.
Dans ce cas l’utiliseteur peut être amené à predre les mesures adéquates.
55
REGULATORY COMPLIANCE
EMC
Class B Devices
The following is applicable when the scanner cable is less than 3 meters (9.8 feet) in length when fully extended:
Les instructions ci-dessous s’appliquent aux cables de scanner ne dépassant pas 3 métres (9.8 pieds) de long en
extension maximale:
Folgendes trifft zu, wenn das Scannerkabel kürzer als 3 Meter ist:
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may
not cause harmful interference, and (2) this device must accept any interference received, including interference that may
cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the
FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee
that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna
• Increase the separation between the equipment and receiver
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected
• Consult the dealer or an experienced radio/TV technician for help
Notice
This Class B digital apparatus complies with Canadian ICES-003.
Avertissement
Cet appareil numérique de classe B est conforme à la norme canadienne NMB-003.
56
LIMITED WARRANTY
The MS2200 StratosS ™ Series scanners are manufactured by Metrologic at its Blackwood, New Jersey, U.S.A. facility. The
MS2200 StratosS Series scanners have a two (2) year limited warranty from the date of manufacture. Metrologic warrants
and represents that all MS2200 StratosS Series scanners are free of all defects in material, workmanship and design, and
have been produced and labeled in compliance with all applicable U.S. Federal, state and local laws, regulations and
ordinances pertaining to their production and labeling.
This warranty is limited to repair, replacement of product or refund of product price at the sole discretion of Metrologic. Faulty
equipment must be returned to one of the following Metrologic repair facilities: Blackwood, New Jersey, USA; Madrid, Spain;
or Suzhou, China. To do this, contact the appropriate Metrologic Customer Service/Repair Department to obtain a Returned
Material Authorization (RMA) number.
In the event that it is determined the equipment failure is covered under this warranty, Metrologic shall, at its sole option,
repair the Product or replace the Product with a functionally equivalent unit and return such repaired or replaced Product
without charge for service or return freight, whether distributor, dealer/reseller, or retail consumer, or refund an amount
equal to the original purchase price.
This limited warranty does not extend to any Product which, in the sole judgment of Metrologic, has been subjected to
abuse, misuse, neglect, improper installation, or accident, nor any damage due to use or misuse produced from integration
of the Product into any mechanical, electrical or computer system. The warranty is void if the case of Product is opened by
anyone other than Metrologic’s repair department or authorized repair centers.
THIS LIMITED WARRANTY, EXCEPT AS TO TITLE, IS IN LIEU OF ALL OTHER WARRANTIES OR GUARANTEES,
EITHER EXPRESS OR IMPLIED, AND SPECIFICALLY EXCLUDES, WITHOUT LIMITATION, WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE UNDER THE UNIFORM COMMERCIAL CODE, OR
ARISING OUT OF CUSTOM OR CONDUCT. THE RIGHTS AND REMEDIES PROVIDED HEREIN ARE EXCLUSIVE AND
IN LIEU OF ANY OTHER RIGHTS OR REMEDIES. IN NO EVENT SHALL METROLOGIC BE LIABLE FOR ANY
INDIRECT OR CONSEQUENTIAL DAMAGES, INCIDENTAL DAMAGES, DAMAGES TO PERSON OR PROPERTY, OR
EFFECT ON BUSINESS OR PROPERTY, OR OTHER DAMAGES OR EXPENSES DUE DIRECTLY OR INDIRECTLY TO
THE PRODUCT, EXCEPT AS STATED IN THIS WARRANTY. IN NO EVENT SHALL ANY LIABILITY OF METROLOGIC
EXCEED THE ACTUAL AMOUNT PAID TO METROLOGIC FOR THE PRODUCT. METROLOGIC RESERVES THE
RIGHT TO MAKE ANY CHANGES TO THE PRODUCT DESCRIBED HEREIN.
ORLDWIDE HEADQUARTERS,
W
Metrologic Instruments, Inc.
90 Coles Rd. 1571 Imperial Way Suite B
Blackwood, NJ 08012-4683 West Deptford, NJ 08066
Tel: 856-228-8100 Tel: 800-ID-METRO (800-436-3876)
Fax: 856-228-6673 Fax: 856-537-6474
Email: info@metrologic.com Email: info@us.metrologic.com
MTLG AUTO ID INSTRUMENTS (SHANGHAI) CO., LTD
Suzhou Sales Office
BLK A, Room# 03/03-04 Julian Camarillo 29, D-1
No.5 Xinghan Street, Xinsu Industrial Square 28037 Madrid
China-Singapore Tel: +34 913 272 400
Suahou Industrial Park, Suzhou, PRC Fax: +34 913 273 829
Tel: 86-512-67622550 Email: info@es.metrologic.com
Fax: 86-512-67622560
Email: info@cn.metrologic.com
METROLOGIC THE AMERICAS HEADQUARTERS
M
ETROLOGIC THE AMERICAS
METROLOGIC EUROPEAN REPAIR CENTER (MERC)
Metrologic Eria Ibérica, SL
57
PATENTS
Patent Information
This METROLOGIC product may be covered by, but not limited to, one or more of the following U.S. Patents:
U.S. Patent No.;
5,343,027; 5,627,359; 5,686,717; 5,789,731; 5,828,049; 6,029,894; 6,209,789; 6,299,065; 6,345,505; 6,422,467;
6,481,625; 6,494,377; 6,814,292; 6,830,190; 6,874,690; 6,918,540; 6,951,304;
No license right or sublicense is granted, either expressly or by implication, estoppel, or otherwise, under any METROLOGIC
or third party intellectual property rights (whether or not such third party rights are licensed to METROLOGIC), including any
third party patent listed above, except for an implied license only for the normal intended use of the specific equipment,
circuits, and devices represented by or contained in the METROLOGIC products that are physically transferred to the user,
and only to the extent of METROLOGIC’S license rights and subject to any conditions, covenants and restrictions therein.
Other worldwide patents pending.
58
INDEX
A
AC ...................................................................... see power
application .................................................................32, 42
audible...........................................................see indicators
AUX.......................................................................6, 42, 50
B
beep ..............................................................see indicators
blue LED .......................................................see indicators
button
multi-function ......................................................6, 9, 36
tone ....................................................................6, 9, 36
volume................................................................6, 9, 36
C
cable..............................................................12, 40, 41, 42
communication ...........................................2, 13, 16–23
EAS ........................................................................2, 26
pinouts..................................................................50–53
power............................................................................2
caution...............................................3, 4, 8, 11, 16–23, 54
CE ...................................................................................54
checkout counter.............................................................12
class..........................................................................55, 56
communication parameters
default...................................................................43–49
compliance ......................................................5, 16–23, 57
components...................................................................6, 9
connector ..................................................................50–53
connector panel...........................................................7, 10
current ............................................................. 5, 30, 40, 51
customer service ...............................................................2
cutout ........................................................................14–15
D
DC...................................................................... see power
default settings ....................................................37, 43–49
depth of field..........................................................5, 27–28
diagnostic indicator........................................................6, 9
dimensions ............................................................7, 10, 12
display...............................................................6, 9, 32–34
Display ............................................................................51
E
EAS...................................................................6, 9, 26, 50
electrical ..........................................................................57
error codes .......................................................... 32, 33, 34
F
failure
error codes ...........................................................32–34
indicator......................................................................30
modes...................................................................30, 31
finger recess..............................................................4, 6, 9
flow................................................................................6, 9
frame.................................................................................9
function....................................................40, 47, 48, 50–53
G
ground.......................................................................50–53
H
host ............................................. 30, 31, 37, 40–42, 43–49
I
IBM 46xx ...................................................................43–49
indicators...........................................................................5
audible.............................. 30, 36, 37, 40–42, 44, 45, 46
diagnostic .............................................................32–34
error codes ...........................................................32–34
failure .............................................................31, 32–34
visual ........................ 6, 9, 30, 31, 30–31, 37, 40, 41, 45
interface ..................................................................5, 8, 11
IBM 46xx ................................20–21, 42, 43–49, 50, 52
OCIA ............................................22–23, 43–49, 50, 52
RS232 ..........................................16–17, 43–49, 50, 52
USB.............................................. 18–19, 43–49, 50, 52
IR ...................................................................................29
L
labels...........................................................................8, 11
laser aperture................................................................6, 9
LED ...............................................................see indicators
light source........................................................................5
M
maintenance .............................................................32, 39
manual ..................................................................2, 13, 30
mechanical......................................................................57
modes .............................................................................35
mounting .............................................................12, 14–15
N
notices....................................................................... 55, 56
O
OCIA ................................................. 22, 23, 43–49, 50, 51
operation ...................................................................55, 56
output window ...........................................................32, 39
P
parameters................................................................43–49
patents ............................................................................58
pinouts ......................................................................50–53
platter ........................................................ 3, 4, 6, 9, 12, 13
port......................................................................41, 42, 49
power ........................................ 2, 5, 12, 16–23, 40, 50, 51
power save................................................................ 35, 36
property...........................................................................58
protocols .........................................................................37
R
razzberry tone .....................................................30, 31, 45
regulatory compliance............................................... 54–56
repair.......................................................31, 32, 33, 34, 57
RS232 ....................................................................... 43–49
59
INDEX
S
safety.........................................................................55, 56
Scale ...............................................................................51
scan pattern ......................................................................5
scan speed........................................................................5
scan zone..................................................................27–28
scanner
pinouts..................................................................50–53
secondary scanner....................................................24, 25
SELV.........................................................................16–23
specifications.....................................................................5
storage ..............................................................................5
switch ..............................................................................26
T
test ..................................................................................37
tone ...................................................................6, 9, 30, 36
transformer......................................................... see power
troubleshooting..........................................................40–42
U
USB...........................................................................43–49
V
ventilation....................................................................5, 12
visual...............................................................................31
voltage ........................................................2, 5, 16–23, 51
volume ....................................................................6, 9, 36
W
warranty ....................................................................40, 57
weight................................................................................5
white LED......................................................see indicators
window .......................................................... 3, 4, 6, 12, 39
60
December 2006
Printed in the USA
00- 02268B
Loading...
