Metrologic Instruments MS1690 Focus, MS1690 User Manual

METROLOGIC INSTRUMENTS, INC.

MS1690 Focus® Series

Area Imaging Bar Code Scanner

Installation and User's Guide

Copyright

© 2008 by Metrologic Instruments, Inc. All rights reserved. No part of this work may be reproduced, transmitted, or stored in any form or by any means without prior written consent, except by reviewer, who may quote brief passages in a review, or provided for in the Copyright Act of 1976.

Trademarks

Metrologic is a registered trademark of Metrologic Instruments, Inc. Products identified in this document are hereby acknowledged as trademarks, registered or otherwise, of Metrologic Instruments, Inc. or their respective companies.

Metrologic's MS1690 Focus® series of high performance hand-held area imaging bar code scanners utilizes high-resolution CMOS imaging sensors for superior image quality. Omniplanar, Inc.’s SwiftDecoder® software, for reliable decoding of both 1D and 2D bar code symbologies. Sharp images can be captured and transmitted in a variety of outputs including: .jpg, .bmp, and .tiff.

The MS1690 series provides an extended depth of field and a built in object detection sensor (IR) that instantly turns on the scanner when an object is presented within the scanner’s field of view. Automatic in-stand detection switches the scanner to a “presentation” mode for convenient in-stand scanning.

Model Interface

MS1690 – 11 RS485S, RS232-TXD, RXD, RTS, CTS

MS1690 – 14

or

MS1691 – 14

MS1690 – 38 Low Speed USB

RS232 (TX, RX, RTS, CTS, DTR)

MS1690 – 40 Full Speed USB

MS1690 – 47

or

MS1691 – 47

MS1690 – 106

or

Keyboard Wedge, Stand-Alone Keyboard and RS232 Transmit/Receive

S

RS485

, Full Speed USB, and RS232 Transmit/Receive

MS1691 – 106

Decoding and functional capability of the unit is restricted through the use of license numbers provided by Metrologic. Units will not support key features such as, but not limited to, the ability to decode PDF, 2D or OCR fonts without the proper licenses. Desired licenses can be specified at the time of sale or call a Metrologic representative for more information. Standard models ship with the ability to read all 1D, PDF and 2D bar codes. OCR fonts are disabled by default and must be specifically requested at an additional cost.

S

Applicable for IBM

®

Host applications.

1

INTRODUCTION

Scanner and Accessories

BASIC KIT

Part # Description

MS1690

or

MS1691

Area Imaging Bar Code Scanner or Area Imaging HD Bar Code Scanner

00-02544 MetroSelect® Single-Line Configuration Guide*

00-02281 Supplemental Configuration Guide*

00-02098

MS1690 Series Area Imaging Bar Code Scanner Installation and User’s Guide*

* Available on the Metrologic website - www.metrologic.com

OPTIONAL ACCESSORIES

Part # Description

AC to DC Power Transformer - Regulated 5.2VDC @ 1 A output.

46-00525 90VAC-255VAC United States, Canada, and Japan

46-00526 90VAC-255VAC Continental European

46-00527 90VAC-255VAC United Kingdom

46-00528 90VAC-255VAC Australia

46-00529 90VAC-255VAC China

53-53000-3-FR

53-53002-3

53-53020-3

Other items may be ordered for the specific protocol being used. To order additional items, contact the dealer, distributor or call Metrologic’s Customer Service Department at 1-800-ID-METRO or 1-800-436-3876.

2

RS232 PowerLink Cable with Built in Power Jack coiled cord, long strain relief, black with ferrite

Keyboard Wedge PowerLink Cable with Adapter Cable coiled cord, long strain relief, black

Stand Alone Keyboard PowerLink Cable coiled cord, long strain relief, black

INTRODUCTION

Scanner and Accessories

OPTIONAL ACCESSORIES

Part # Description

53-53213x-N-3-FR

USB Full Speed Cable, Locking Plus-Power™ Type A, coiled cord, long strain relief, black with ferrite

53-53214x-N-3-FR

This cable is for use with full speed USB (-40) interface only.

53-53235x-N-3-FR

MVC-2MPC-IB9

USB Low Speed Communication Cable Type A, coiled cord, long strain relief, black with ferrite

S

RS485

Applications Metrologic Voltage Converter (MVC) Cable* ±12VDC to +5.2VDC

S

MVC-3M106C-IB9

RS485 Metrologic Voltage Converter (MVC) Cable*

Applications

±12VDC to +5.2VDC

* Contact a Metrologic customer service representative for additional

information on the MVC cable series and the host connections available.

00-02001 MS1690 Stand (46-00147) Installation Guide

46-00147 Modular Presentation Stand

Other items may be ordered for the specific protocol being used. To order additional items, contact the dealer, distributor or call Metrologic’s Customer Service Department at 1-800-ID-METRO or 1-800-436-3876.

S

Applicable for IBM

®

Host applications.

3

INTRODUCTION

Scanner Components

Figure 1. Scanner Components

Item Description

1 Yellow LED See Visual Indicators (on page 17)

2 White LED See Visual Indicators (on page 17)

3 Blue LED See Visual Indicators (on page 17)

4 Speaker See Audible Indicators (on page 16)

5 Trigger

6 Red Window LED Aperture

7 Cable Release See The PowerLink Cable (on page 5)

8 Cable Connection

4

See Scanner Pinout Connections (on page 36)

10-pin RJ45, Female Socket,

INTRODUCTION

The PowerLink Cable

Connecting

Important: If the PowerLink cable is not fully ‘latched’ the unit can

power intermittently.

Figure 2. Figure 3.

Disconnecting

Before removing the cable from the scanner, Metrologic recommends that the power on the host system is off and the power supply has been disconnected from the PowerLink cable.

Figure 4. Releasing the PowerLink Cable

1. Locate the small ‘pin-hole’ on the handle of the unit near the cable.

2. Bend an ordinary paperclip into the shape shown above.

3. Insert the paperclip (or other small metallic pin) into the small ‘pin-hole’.

4. There will be a faint ‘click’ when the lock is released. Pull gently on the strain-relief of the PowerLink cable to remove the cable from the unit.

5

INTRODUCTION

Labels

Each scanner has a label located on the underside of the head. This label provides the unit’s model number, date of manufacture, serial number, CE and caution information. The following figure gives an example of the label and its location.

Figure 5. Label Sample and Location

Caution:

To maintain compliance with applicable standards, all circuits connected to the scanner must meet the requirements for SELV (Safety Extra Low Voltage) according to EN/IEC 60950-1.

To maintain compliance with standard CSA-C22.2 No. 60950-1/UL 60950-1 and norm EN/IEC 60950-1, the power source should meet applicable performance requirements for a limited power source.

Maintenance

Smudges and dirt on the unit's window can interfere with the unit's performance. If the window requires cleaning, use only a mild glass cleaner containing no ammonia. When cleaning the window, spray the cleaner onto a lint free, nonabrasive cleaning cloth then gently wipe the window clean.

If the unit's case requires cleaning, use a mild cleaning agent that does not contain strong oxidizing chemicals. Strong cleaning agents may discolor or damage the unit's exterior.

6

INSTALLING THE SCANNER TO THE HOST SYSTEM

RS232

1. Turn off the host device.

2. Plug the male 10-pin RJ45 end of the PowerLink cable into the 10-pin socket on the scanner. There will be an audible click when the connector lock engages.

3. Connect the 9-pin D-type connector of the communication cable to the proper COM port of the host device.

4. Plug the power supply into the power jack on the PowerLink cable.

Check the AC input requirements of the power supply to verify the voltage matches the AC outlet. The outlet must be located near the equipment and be easily accessible.

5. Connect AC power to the transformer.

6. The scanner will start to initialize. All LEDs (yellow, white, and blue) will light for approximately two seconds then start to alternately flash. When the scanner has finished initializing the LEDs will stop flashing and the unit will beep three times indicating that the scanner is ready for use.

7. Turn on the host device.

Plugging the scanner into a port on the host system does not guarantee that scanned information will be communicated properly to the host system. The scanner is shipped from the factory configured with default settings. Please refer to the MetroSelect Single-Line Configuration Guide (MLPN 00-02544) or MetroSet2’s help files for instructions on changing the scanner’s configuration. In addition, please check that the scanner and host system are using the same communication protocol.

See power source caution statement located on page 6 of this manual.

Figure 6.

7

INSTALLING THE SCANNER TO THE HOST SYSTEM

Keyboard Wedge

1. Turn off the host device.

2. Plug the 10-pin RJ45 male end of the PowerLink cable into 10-pin socket on the scanner. There will be an audible click when the connector lock engages.

3. Disconnect the keyboard from the host device.

4. Connect the “Y” ends of the communication cable to the keyboard and keyboard port on the host device. If necessary use the male/female adapter cable supplied with the scanner for proper connections.

5. Plug the external power supply (required) into the power jack on the PowerLink cable.

Check the AC input requirements of the power supply to verify the voltage matches the AC outlet. The outlet must be located near the equipment and be easily accessible.

6. Connect AC power to the transformer.

7. The scanner will start to initialize. All LEDs (yellow, white, and blue) will light for approximately two seconds then start to alternately flash. When the scanner has finished initializing the LEDs will stop flashing and the unit will beep three times indicating that the scanner is ready for use.

8. Turn on the host device.

Plugging the scanner into a port on the host system does not guarantee that scanned information will be communicated properly to the host system. The scanner is shipped from the factory configured with default settings. Please refer to the MetroSelect Single-Line Configuration Guide (MLPN 00-02544) or MetroSet2’s help files for instructions on changing the scanner’s configuration. In addition, please check that the scanner and host system are using the same communication protocol.

See power source caution statement located on page 6 of this manual.

Figure 7.

8

INSTALLING THE SCANNER TO THE HOST SYSTEM

Stand Alone Keyboard

1. Turn off the host device.

2. Plug the male 10-pin RJ45 end of the PowerLink cable into the 10-pin socket on the scanner. There will be an audible click when the connector lock engages.

3. Plug the other end of the communication cable into the host’s keyboard port.

4. Plug the external power supply into the power jack on the PowerLink cable.

Check the AC input requirements of the power supply to verify the voltage matches the AC outlet. The outlet must be located near the equipment and be easily accessible.

5. Connect AC power to the transformer.

6. The scanner will start to initialize. All LEDs (yellow, white, and blue) will light for approximately two seconds then start to alternately flash. When the scanner has finished initializing the LEDs will stop flashing and the unit will beep three times indicating that the scanner is ready for use.

7. Turn on the host device.

Plugging the scanner into a port on the host device does not guarantee that scanned information will be communicated properly to the host device. The scanner is shipped from the factory configured with default settings. Please refer to the MetroSelect Single-Line Configuration Guide (MLPN 00-02544) or MetroSet2’s help files for instructions on changing the scanner’s configuration. In addition, please check that the scanner and host system are using the same communication protocol.

See power source caution statement located on page 6 of this manual.

Figure 8.

9

INSTALLING THE SCANNER TO THE HOST SYSTEM

RS485S

1. Turn off the host device.

2. Plug the male 10-pin RJ45 end of the MVC cable into the 10-pin socket on the scanner. There will be an audible click when the connector lock engages.

3. Connect the other end of the MVC cable to the host device.

4. Turn on the host device.

5. The scanner will start to initialize. All LEDs (yellow, white, and blue) will light for approximately two seconds then start to alternately flash. When the scanner has finished initializing the LEDs will stop flashing and the unit will beep three times indicating that the scanner is ready for use.

S

Applicable for IBM

®

Host applications.

Plugging the scanner into a port on the host system does not guarantee that scanned information will be communicated properly to the host system. The scanner is shipped from the factory configured with default settings. Please refer to the MetroSelect Single-Line Configuration Guide (MLPN 00-02544) or MetroSet2’s help files for instructions on changing the scanner’s configuration. In addition, please check that the scanner and host system are using the same communication protocol.

See power source caution statement located on page 6 of this manual.

Figure 9.

10

INSTALLING THE SCANNER TO THE HOST SYSTEM

Integrated USB:

Full Speed (- 40 or - 106) Low Speed (- 38)

1. Turn off the host device.

2. Plug the male 10-pin RJ45 end of the USB cable into the 10-pin socket on the scanner. There will be an audible click when the connector lock engages.

3. Plug the USB type A end of the USB cable into the host’s USB port.

4. Turn on the host device.

5. The scanner will start to initialize. All LEDs (yellow, white, and blue) will light for approximately two seconds then start to alternately flash. When the scanner has finished initializing the LEDs will stop flashing and the unit will beep three times indicating that the scanner is ready for use.

As a default, the MS1690-38 leaves the factory with USB Keyboard Emulation Mode enabled.

For information on configuring the MS1690-38 for USB Serial Emulation Mode, please refer to the USB section of the MetroSelect Single-Line Configuration Guide (MLPN 00-02544).

Plugging the scanner into a port on the host device does not guarantee that scanned information will be communicated properly to the host device. The scanner is shipped from the factory configured with default settings. Please refer to the MetroSelect Single-Line Configuration Guide (MLPN 00-02544) or MetroSet2’s help files for instructions on changing the scanner’s configuration. In addition, please check that the scanner and host system are using the same communication protocol.

See power source caution statement located on page 6 of this manual.

Figure 10.

11

STAND KITS

Stand Components, MLPN 46-00147

12

Figure 11. Stand Components

Item Description Qty.

a. Stand Base Qty. 1

b. Flexible Shaft Qty. 1

c. Flexible Shaft Cover Qty. 1

d. Scanner Cradle Qty. 1

e. ¼" – 20 x 3/8" Flat Head Phillips, 100° Undercut Qty. 2

f. #8 Round Head Wood Screw Qty. 2

STAND KITS

Hard Mounting the Stand (Optional)

Metrologic provides two #8 wood screws for securing the stand base to the counter top. The following figure provides the pilot hole dimensions for securing the stand base.

Figure 12. Stand Base Hole Pattern (Not to Scale)

13

STAND KITS

Assembling the Stand

14

Figure 13. Assembling the Stand

SCANNER OPERATION

Two Default Modes of Operation*

Multi-Trigger, Out of Stand

1. The IR detects an object in the IR

activation range and automatically turns on linear illumination.

2. Aim the scanner’s line of light

over the bar code.

3. Pull the trigger to initiate scanning.

The scanner’s light output will start to flash as it attempts to scan the bar code.

4. When scanner successfully reads the

bar code it will beep once, the white LED will flash and the decoded data will be transmitted to the host.

If the trigger is released the scanner will stop trying to scan.

Figure 14. Multi-Trigger, Out-of-Stand

Presentation, In-Stand

1. The IR detects an object in the IR activation range and the scanner’s

light output automatically starts to flash as it attempts to scan the bar code.

2. The scanner continuously attempts to scan the bar code until either it

succeeds or the bar code is removed from the scanner’s field of view.

3. When scanner successfully reads the bar code it will beep once, the

white LED will flash and the decoded data will be transmitted to the host.

* For additional configurable modes of operation, please refer to the Area

Imaging Bar Code Supplemental Configuration Guide (

MLPN 00-02281).

15

SCANNER OPERATION

Audible Indicators

When the MS1690 series scanner is in operation, the scanner provides audible feedback. These sounds indicate the status of the scanner. Eight settings are available for the tone of the beep (normal, 6 alternate tones and no tone). To change the tone, refer to the MetroSelect Single-Line Configuration Guide,

MLPN 00-02544 or MetroSet2’s help files.

One Beep When the scanner successfully reads a bar code it will beep once and the

white LED will turn on indicating data is being transmitted.

If the scanner does not beep once and the white light does not turn on, then the bar code has not been successfully read.

Short Razzberry Tone

This tone is a failure indicator (see Failure Modes on page 18).

Long Razzberry Tone

This tone is a failure indicator (see Failure Modes on page 18).

Three Beeps - At Power Up

When the scanner first receives power it will start an initialization sequence. All LEDs (yellow, white, and blue) will light for approximately two seconds then start to alternately flash. When the scanner has finished initializing the LEDs will stop flashing and the unit will beep three times indicating that the scanner is ready for use.

Three Beeps - Configuration Mode

When entering configuration mode, the white LED will flash while the scanner simultaneously beeps three times. The white and blue LEDs will continue to flash while in this mode. Upon exiting configuration mode, the scanner will beep three times, and the LEDs will stop flashing.

When configured, three beeps can also indicate a communications timeout during normal scanning mode.

When using single-code-configuring, the scanner will beep three times: a normal tone followed by a short pause, a high tone and then a low tone. This indicates that the single configuration bar code has successfully configured the scanner.

16

SCANNER OPERATION

Visual Indicators

The MS1690 series scanner has three LED indicators (yellow, white and blue) located on the top of the scanner. When the scanner is on, the flashing or stationary activity of the LEDs indicates the status of the current scan and the scanner.

No LEDs are Illuminated

The LEDs will not be illuminated if the scanner is not receiving power from the host or transformer.

The scanner is in stand-by mode. Present a bar code to the scanner and the blue LED will turn on when the IR detects the object.

Steady Yellow

The yellow LED is illuminated when the scanner is in the stand.

Steady Blue

The blue LED is illuminated when the scanner is active and linear illumination is on or when the scanner is attempting to decode a bar code.

Steady Blue and Single White Flash

When the scanner successfully reads a bar code it will beep once and the white LED will turn on indicating data is being transmitted.

If the scanner does not beep once and the white light does not turn on, then the bar code has not been successfully read.

Steady White

When the scanner successfully reads a bar code it will beep once and the white LED will turn on indicating data is being transmitted.

After a successful scan, the scanner transmits the data to the host device. Some communication modes require that the host inform the scanner when data is ready to be received. If the host is not ready to accept the information, the scanner’s white LED will remain on until the data can be transmitted.

Alternating Flashing of Blue and White

This indicates the scanner is in configuration mode. A short razzberry tone indicates that an invalid bar code has been scanned while in this mode.

Flashing Blue

The blue LED will flash if the trigger is pressed while the scanner is in the in-stand presentation mode. The blue LED will stop flashing after a brief period of time.

Figure 15.

17

SCANNER OPERATION

Failure Modes

Long Razzberry Tone – During Power Up

Failed to initialize or configure the scanner. If the scanner does not respond after reprogramming, return the scanner for repair.

Short Razzberry Tone – During Scanning An Invalid bar code has been scanned when in configuration mode.

18

SCANNER OPERATION

MS1690 Depth of Field by Minimum Bar Code Element Width

MINIMUM BAR CODE ELEMENT WIDTH

A B C D E

mm

mils

.132 .19 .254 .33 .533

5.2 7.5 10.4 13 21

Figure 16. MS1690 Depth of Field by Minimum Bar Code Element Width

Decoding and functional capability of the unit is restricted through the use of license numbers provided by Metrologic. Units will not support key features such as, but not limited to, the ability to decode PDF, 2D or OCR fonts without the proper licenses. Desired licenses can be specified at the time of sale or call a Metrologic representative for more information. Standard models ship with the ability to read all 1D, PDF and 2D bar codes. OCR fonts are disabled by default and must be specifically requested at an additional cost.

Specifications are subject to change without notice.

1D PDF

.254 .381

10 15.9

F G

19

SCANNER OPERATION

MS1691 Depth of Field by Minimum Bar Code Element Width

MINIMUM BAR CODE ELEMENT WIDTH

A B C D E

mm

mils

.102 .127 .330

4.0 5.0 13

Figure 17. MS1691 Depth of Field by Minimum Bar Code Element Width

Decoding and functional capability of the unit is restricted through the use of license numbers provided by Metrologic. Units will not support key features such as, but not limited to, the ability to decode PDF, 2D or OCR fonts without the proper licenses. Desired licenses can be specified at the time of sale or call a Metrologic representative for more information. Standard models ship with the ability to read all 1D, PDF and 2D bar codes. OCR fonts are disabled by default and must be specifically requested at an additional cost.

Specifications are subject to change without notice.

20

1D Data Matrix

.127 .191

5.0 7.5

SCANNER OPERATION

MS1690 IR Activation Range

The MS1690 scanner has a built in object detection sensor that instantly turns on the scanner when an object is presented within the scanner’s IR activation Area.

Figure 18. MS1690 IR Activation Area

Specifications are subject to change without notice.

21

SCANNER OPERATION

MS1691 IR Activation Range

The MS1691 scanner has a built in object detection sensor that instantly turns on the scanner when an object is presented within the scanner’s IR activation Area.

Figure 19. MS1691 IR Activation Area

Specifications are subject to change without notice.

22

TROUBLESHOOTING GUIDE

The following guide is for reference purposes only. Contact a Metrologic representative at 1-800-ID-Metro or 1-800-436-3876 to preserve the limited warranty terms.

All Interfaces

MS1690 Series Troubleshooting Guide

Symptoms Possible Causes Solution

No LEDs, beep or illumination

Long Razz tone on power up

Long Razz tone when exiting configuration mode

No power is being supplied to the scanner.

No power is being supplied to the scanner from the host.

The wrong communication cable has been used.

There has been a scanner configuration failure.

There has been a diagnostic failure.

There was a failure saving the new configuration.

Check transformer, outlet and power strip. Make sure the cable is plugged into the scanner.

Some host systems cannot supply enough current to power The MS1690. A power supply may be required.

Check that the communication cable matches the unit type and scanner configuration.

Contact a Metrologic service representative, if the unit will not hold the saved configuration.

Contact a Metrologic service representative, if the unit will not function.

Re-try to configure the scanner. Contact a Metrologic Service Representative if the unit will not hold the saved configuration.

Long Razz tone

Short Razz tone in configuration mode

There is a scanning mechanism failure.

An invalid bar code has been scanned.

Contact a Metrologic service representative.

Scan a valid bar code or quit configuration mode.

23

TROUBLESHOOTING GUIDE

Symptoms Possible Causes Solution

The unit powers up, but does not beep when bar code is scanned.

The unit powers up, but does not scan and/or beep.

The following item is only relevant for RS232 and USB interfaces.

The unit scans a bar code, but locks up after the first scan and the white LED stays on.

The beeper is disabled and no tone is selected.

The bar code symbology trying to be scanned is not enabled.

The scanner is trying to scan a bar code that does not match the configured criteria.

The scanner is configured to support some form of host handshaking but is not receiving the signal.

Enable the beeper and select a tone.

UPC/EAN, Code 39, interleaved 2 of 5, Code 93, Code 128, Codabar and PDF are enabled by default. Verify that the type of bar code being read has been selected.

Verify that the bar code being scanned falls into the configured criteria (i.e. character length lock or minimum bar code length settings).

If the scanner is setup to support ACK/NAK, RTS/CTS, or XON/XOFF, verify that the host cable and host are supporting the handshaking properly.

The unit scans, but the data transmitted to the host is incorrect.

24

The scanner’s data format does not match the host system requirements.

Verify that the scanner’s data format matches that required by the host. Make sure that the scanner is connected to the proper host port.

TROUBLESHOOTING GUIDE

Symptoms Possible Causes Solution

The bar code may have been printed incorrectly.

The unit beeps at some bar codes and NOT for others of the same bar code symbology.

The unit scans the bar code but there is no data.

The following four items are only relevant for a Keyboard Wedge interface.

The unit scans but the data is not correct.

The scanner is not configured correctly for this type of bar code.

The minimum symbol length setting does not work with the bar code.

The configuration is not set correctly.

The scanner and host may not be configured for the same interface parameters.

Check if it is a check digit/character/ or border problem.

Check if check digits are set properly.

Check if the correct minimum symbol length is set.

Make sure the scanner is configured for the appropriate mode.

Make sure that the proper PC type AT, or PS2 is selected. Verify correct country code and data formatting are selected. Adjust inter-character delay symptom.

Check that the scanner and the host are configured for the same interface parameters.

25

TROUBLESHOOTING GUIDE

Symptoms Possible Causes Solution

The unit is transmitting each character twice.

Alpha characters show as lower case.

Everything works except for a couple of characters.

The configuration is not set correctly.

The computer is in Caps Lock mode.

These characters may not be supported by that country’s key look up table.

Increase interscan code delay setting. Adjust whether the F0 break is transmitted. It may be necessary to try this in both settings.

Enable Caps Lock detect setting of the scanner to detect if the PC is operating in Caps Lock.

Try operating the scanner in Alt mode.

The following items are only relevant for an RS232 interface.

Check to make sure that the baud rate and parity of the scanner and the communication port match and the program is looking for “RS232” data.

The unit powers up OK and scans OK but does not

The com port at the host is not working or not configured properly.

communicate properly with the host.

The cable is not connected to the correct com port.

Check to make sure that the cable is connected to the correct com port.

Characters are being dropped.

26

Inter-character delay needs to be added to the transmitted output.

Add some inter-character delay to the transmitted output by using the Configuration Guides

MLPN 00-02544 and 00-02281).

(

DESIGN SPECIFICATIONS

MS1690 SERIES DESIGN SPECIFICATIONS

OPERATIONAL

Light Source: LED 645 nm

Pulse Duration: 10 µs to 8000 µs

Maximum Output: 0.76 mW peak

MS1690 0 mm – 330 mm (0" – 13")

Depth of Scan Field:

Field of View:

Minimum Bar Width:

Infrared Activation:

Motion Tolerance: 47 cm/sec (18"/sec) 100% UPC in stand

Decode Capability:

MS1691 25 mm – 155 mm (1" – 6.25")

49 mm W x 19 mm H (1.9" W x 0.8" H) at 20 mm (0.8")

264 mm x 106 mm (10.4" W x 4.2" H) at 280 mm (11.0")

MS1690

MS1691

0.038 mm (3.5 mil) 1D,

0.254 mm (10.0 mil) 2D

0.102 mm (4.0 mil) 1D,

0.127 mm (5.0 mil) Data Matrix

Long 0 mm – 203 mm (4" – 8")

MS1690

Short 0 mm – 101 mm (0" – 4")

Long 0 mm – 150 mm (4" - 6")

MS1691

Short 0 mm – 101 mm (0" – 4")

Autodiscriminates All Standard 1-D, GS1 Databar, PDF417, microPDF, MaxiCode, Data Matrix, QR Code, UCC, EAN Composites, Postals, Aztec

0.330 mm (13 mil) Bar Code

From Window

BMP, TIFF, or JPEG output

Image Transfer*:

*RS232 and USB only

PC Keyboard Wedge, RS232, RS485

System Interfaces:

Keyboard, USB (Low Speed and Full Speed)

S

Applicable for IBM® Host applications.

Print Contrast: 20% Minimum Reflectance Difference

Number Characters Read:

Up to 80 Data Characters on 1D; 1850 Text Characters for PDF417

Beeper Operation: 7 tones or no beep

Blue Unit Powered, Ready to Scan

Indicators (LED)

Default Settings:

White Good Read

Yellow In Stand

Specifications are subject to change without notice.

S

, Stand Alone

27

DESIGN SPECIFICATIONS

MS1690 SERIES DESIGN SPECIFICATIONS

MECHANICAL

Height: 183 mm (7.2")

Width:

Depth: 111 mm (4.9")

Weight: 225 g (8.0 oz)

Termination: 10 pin modular RJ45

Cable: Standard 2.7 m (9') Coiled; Optional 2.1 m (7') Straight

ELECTRICAL

Input Voltage: 5.0VDC ± 0.25V

Power:

Handle 30 mm (1.2")

Head 79 mm (3.1")

Peak = 2 W (Typical)

Operating = 1.65 W (Typical)

Idle / Standby = 800 mW (Typical)

Peak = 400 mA (Typical)

Current:

DC Transformer: Class 2; 5.2VDC @ 1 A

For Regulatory Compliance information, see pages 41 - 43.

ENVIRONMENTAL

Temperature:

Humidity: 0% to 95% Relative Humidity, Non-Condensing

Light Levels: Up to 100,000 Lux (9,290 Footcandles)

Shock: Designed to withstand 1.5 m (5 ft.) drops

Contaminants: Sealed to resist airborne particulate contaminants

Ventilation: None required

Specifications are subject to change without notice.

Operation = 330 mA (Typical)

Idle / Standby = 160 mA (Typical)

Operating = 0°C to 40° (32° to 104°F)

Storage = -40°C to 60°C (-40°F to 140°F)

28

APPLICATIONS AND PROTOCOLS

The model number on each scanner includes the scanner number and factory default communications protocol.

SCANNER

MS1690 11 RS485S, RS232-TXD, RXD, RTS, CTS

MS1690

or

MS1691

MS1690 38 Low Speed USB

MS1690 40 Full-speed USB

VERSION

IDENTIFIER

COMMUNICATION PROTOCOL(S)

14 RS232 (TX, RX, RTS, CTS, DTR)

MS1690

or

MS1691

MS1690

or

MS1691

S

Applicable for IBM

47

106

®

Host applications.

Keyboard Wedge, Stand-Alone Keyboard and RS232 Transmit/Receive

S

RS485

, Full Speed USB, and RS232

Transmit/Receive

The MS1690-47 and MS1691-47 with a built-in PC Keyboard Wedge Interface is designed for Keyboard emulation use only. Many RS232 configurable functions available in other Metrologic scanners are also available as keyboard wedge functions.

The following are the most important selectable options specific to the keyboard wedge.

Keyboard Type

• **AT (includes IBM® PS2 models 50, 55, 60, 80)

• IBM PS2 (includes models 30, 70, 8556)

Keyboard Country Type

• **USA • Italian • Swiss

• Belgium • Japanese • Swedish/Finnish

• French

• German

• Hungarian

• Russian Cyrillic

• Slovenian

• Spanish

• Turkish

• United Kingdom

** For additional information on the MS1690 series default settings refer to

pages 30-33. For information on how to change the default settings, refer to help files in MetroSet2 or the MetroSelect Single-Line Configuration Guide (

MLPN 00-02544).

29

DEFAULT SETTINGS – COMMUNICATION PARAMETERS

Many functions of the scanner can be “configured” – that is, enabled or disabled. The scanner is shipped from the factory configured to a set of default conditions. The default parameter of the scanner has an asterisk (*) in the charts on the following pages. If an asterisk is not in the default column then the default setting is OFF or DISABLED. Every interface does not support every parameter. If the interface supports a parameter listed in the charts on the following pages, a check mark (9) will appear.

PARAMETER DEFAULT RS232 RS485S KBW USB

Multi-Try Trigger Out-of-Stand *

Presentation Mode In-Stand *

Continuous Trigger

Single Trigger

Aiming in Trigger and Continuous Modes

Aiming in Presentation Mode

Long-Range In-Stand *

Short-Range In-Stand

Long-Range Out-of-Stand *

Short-Range Out-of-Stand

UPC/EAN *

Code 128 *

Code 93 *

Codabar *

Interleaved 2 of 5 (ITF) *

MOD 10 check on ITF

Code 11

Code 39 *

Full ASCII Code 39

PDF *

Data Matrix

QR Code

S

Applicable for IBM

®

Host applications.

9

*

9

9 9 9

30

DEFAULT SETTINGS – COMMUNICATION PARAMETERS

PARAMETER DEFAULT RS232 RS485S KBW USB

Maxicode

Aztec

Postals

Mod 43 Check on Code 39

MSI-Plessy 10/10 Check Digit

MSI-Plessy Mod 10 Check Digit *

Paraf Support ITF

ITF Symbol Lengths Variable

Symbol Length Lock None

Beeper tone Normal

Beep/transmit sequence

Communication timeout None

Razzberry tone on timeout

Three beeps on timeout

Same symbol rescan timeout: 1000 msecs

Same symbol rescan timeout configurable in 50 msec steps (maximum of 6.35 sec.)

No Same symbol timeout

Before

transmit

*

9

9 9 9

Infinite Same symbol timeout

Inter-character delay configurable in 1 msec steps (maximum of 255 msecs)

Number of scan buffers (maximum)

Transmit UPC-A check digit *

Transmit UPC-E check digit

Expand UPC-E

Convert UPC-A to EAN-13

S

Applicable for IBM

®

Host applications.

1 msecs

10 msecs

in KBW

8

9

9 9 9

31

DEFAULT SETTINGS – COMMUNICATION PARAMETERS

PARAMETER DEFAULT RS232 RS485S KBW USB

Transmit lead zero on UPC-E

Transmit UPC-A number system *

Transmit UPC-A Manufacturer ID# *

Transmit UPC-A Item ID# *

Transmit Codabar Start/Stop Characters

CLSI Editing (Enable)

Transmit Mod 43 Check digit on Code 39

Transmit Mod 10/ITF

Transmit MSI-Plessy

Parity No

Baud Rate 9600

8 Data Bits *

7 Data Bits

Stop Bits 1

Transmit Sanyo ID Characters

Nixdorf ID

LRC Enabled

UPC Prefix

UPC Suffix

Carriage Return *

Line Feed-Disabled by default in KBW

Tab Prefix

Tab Suffix

“DE” Disable Command

Enable Command

DTR Handshaking support

RTS/CTS Handshaking

Character RTS/CTS *

Message RTS/CTS

S

Applicable for IBM

32

®

Host applications.

9

*

9

9 9 9

9

DEFAULT SETTINGS – COMMUNICATION PARAMETERS

PARAMETER DEFAULT RS232 RS485S KBW USB

XON/XOFF Handshaking

ACK/NAK

Two Digit Supplements

Five Digit Supplements

Bookland

977 (2 digit) Supplemental Requirement

Supplements are not Required *

Two Digit Redundancy *

Five digit Redundancy

Coupon Code 128

† Configurable Code Lengths 7 avail

† Code Selects with configurable

Code Length Locks

Configurable Prefix characters 10 avail

Suffix characters 10 avail

3 avail

9

9 9 9

9

Prefixes for Individual Code types

Editing

Function/Control Key Support *

Omnidirectional Scanning *

Linear Only Scanning

Linear 1D / Omni 2D

9

9 9 9

9

† These options are mutually exclusive. One can not be used in conjunction with the

other.

S

Applicable for IBM

®

Host applications.

33

CONFIGURATION MODES

The MS1690 series has three modes of configuration.

• Bar Codes The MS1690 series can be configured by scanning the bar codes included in the Metrologic Single-Line Configuration Guide ( manual can be downloaded for FREE from Metrologic’s website (www.metrologic.com).

• MetroSet2 This user-friendly Windows-based configuration program allows you to simply ‘point-and-click’ at the desired scanner options. This program can be downloaded for FREE from Metrologic’ website (www.metrologic.com) or set-up disks can be ordered by calling 1-800-ID-METRO.

• Serial Configuration This mode of configuration is ideal for OEM applications. This mode gives the end-user the ability to send a series of commands using the serial port of the host system. The commands are equivalent to the numerical values of the bar codes located in the MetroSelect Single-Line Configuration Guide (

MLPN 00-02544).

MLPN 00-02544). This

34

UPGRADING THE FLASH ROM FIRMWARE

The MS1690 Focus series is part of Metrologic's line of scanners with flash upgradeable firmware. The upgrade process requires a new firmware file supplied to the customer by a customer service representative MetroSet2 software



. A personal computer running Windows 95 or greater with

an available RS232 serial or USB port is also required to complete the upgrade.

PowerLink Cable #54-54014 is required when using RS232 for the

upgrade process. This cable can be ordered from Metrologic at 1-800-ID-METRO. Do not use the standard cable supplied with keyboard wedge or RS485S scanner interface kits. If using USB for the upgrade process, the standard USB Type A cable provided with the scanner can be used.

To upgrade the firmware in the MS1690 series scanner:

1. Plug the scanner into a serial communication port on the host system.

2. Start the MetroSet2 software.

3. Click on the plus sign (+) next to POS Scanners to expand the supported scanner list.

4. Choose the MS1690 Focus from the list.

5. Click on the C

onfigure Focus/1690 Scanner button.

6. Choose Flash Utility from the options list located on the left side of the screen.

7. Click on the Open File button in the Flash Utility window.

8. Locate and open the flash upgrade file supplied by Metrologic.

9. Select the COM port that the scanner is connected to on the host system.

10. Verify the settings listed in the Flash Utility window.

11. Click on the Flash Scanner button to begin the flash upgrade.

12. A message will appear on the screen when the upgrade is complete.



Metrologic's customer service department can be reached at

1-800-ID-METRO or 1-800-436-3876.



MetroSet2 is available for download, at no additional cost, from

http://www.metrologic.com/corporate/download

.

S

Applicable for IBM

®

Host applications.



and Metrologic's

35

SCANNER AND CABLE TERMINATIONS

Scanner Pinout Connections

The MS1690 series scanner interfaces terminate to a 10-pin, RJ45 Female Socket. The serial number label indicates the interface enabled when the scanner is shipped from the factory.

MS1690-14 or MS1691-14, RS232

Pin Function

1 Ground 2 RS232 Transmit Output 3 RS232 Receive Input 4 RTS Output 5 CTS Input 6 DTR Input 7 Reserved 8 Reserved 9 +5VDC

10 Shield Ground

MS1690-47 or MS1691-47,

Keyboard Wedge & Stand-Alone Keyboard

Pin Function

1 Ground 2 RS232 Transmit Output 3 RS232 Receive Input 4 PC Data 5 PC Clock 6 KB Clock 7 PC +5V 8 KB Data 9 +5VDC

10 Shield Ground

MS1690-11, RS485S

36

Figure 20.

Pin Function

1 Ground 2 RS232 Transmit Output 3 RS232 Receive Input 4 RTS Output 5 CTS Input 6 Reserved 7 IBM B-Transmit 8 IBM A+ Receive 9 +5VDC

10 Shield Ground

S

Applicable for IBM

®

Host applications.

SCANNER AND CABLE TERMINATIONS

Scanner Pinout Connections

MS1690-38, Low Speed USB

Pin Function

1 Ground 2 RS232 Transmit Output 3 RS232 Receive Input 4 RTS Output 5 CTS Input 6 USB D+ 7 V USB 8 USB D9 +5VDC

10 Shield Ground

MS1690-40, Full Speed USB

Pin Function

1 Ground 2 RS232 Transmit Output 3 RS232 Receive Input 4 RTS Output 5 CTS Input 6 USB D+ 7 V USB 8 USB D9 +5VDC

10 Shield Ground

MS1690-106 or MS1691-106,

Pin Function

1 Ground 2 RS232 Transmit Output 3 RS232 Receive Input 4 IBM A+ 5 IBM B6 USB D+ 7 V USB 8 USB D9 +5VDC

10 Shield Ground

S

Applicable for IBM

RS485

S

/Full Speed USB

®

Host applications.

Figure 21.

37

9

ype Connector

r

SCANNER AND CABLE TERMINATIONS

Cable Connector Configurations (Host End)

“Standard” PowerLink Cable

53-53000-3-FR Coiled

Pin Function

1 Shield Ground 2 RS232 Transmit Output 3 RS232 Receive Input 4 DTR Input/Light Pen Source 5 Power/Signal Ground 6 Reserved

CTS Input

7

8 RTS Output 9 +5VDC

Stand Alone Keyboard PowerLink

Cable

53-53020-3

Pin Function

1 PC Data 2 NC 3 Power Ground 4 +5VDC PC Power to KB 5 PC Clock 6 NC

USB Power/Communication Cable

53-53213-N-3-FR, 53-53214-N-3-FR or

53-53235-N-3-FR

Pin Function

1 PC +5V/V_USB 2 D3 D+ 4 Ground

Shield Shield

Locking with Power

-Pin D-T

6-Pin Male Mini-DIN Connecto

USB Type A

95

61

1

2

4

3

5

6

USB

Non-Locking

38

SCANNER AND CABLE TERMINATIONS

Cable Connector Configurations (Host End)

Keyboard Wedge PowerLink Cable

Pin Function

1 Keyboard Clock 2 Keyboard Data 3 No Connect 4 Power Ground 5 +5 VDC

Pin Function

1 PC Data 2 No Connect 3 Power Ground 4 +5 VDC

5 PC Clock 6 No Connect

Metrologic will supply an adapter cable with a 5-pin DIN male connector on one end and a 6-pin mini DIN female connector on the other. According to the termination required, connect the appropriate end of the adapter cable to the PowerLink cable, leaving the necessary termination exposed for connecting to the keyboard and the keyboard port on the PC.

Keyboard Wedge Adapter Cable

Pin Function

1 PC Clock 2 PC Data 3 No Connect 4 Power Ground 5 +5 VDC

Pin Function

1 Keyboard Data 2 No Connect 3 Power Ground 4 +5 VDC 5 Keyboard Clock 6 No Connect

53-53002-3 Coiled

2

5

4

1

3

5-Pin DIN, Female

1

2

4

3

5

6

6-Pin DIN, Male

2

4

5

3

1

5-Pin DIN, Male

2

1

3

4

5 6

6-pin Mini DIN, Female

39

LIMITED WARRANTY

The MS1690 Focus® series scanners are manufactured by Metrologic at its Suzhou, China .The MS1690 series scanners have a five (5) year limited warranty from the date of manufacture. Metrologic warrants and represents that all MS1690 series scanners are free of all defects in material, workmanship and design, and have been produced and labeled in compliance with all applicable U.S. Federal, state and local laws, regulations and ordinances pertaining to their production and labeling.

This warranty is limited to repair, replacement of product or refund of product price at the sole discretion of Metrologic. Faulty equipment must be returned to one of the following Metrologic repair facilities: Blackwood, New Jersey, USA; Madrid, Spain; or Suzhou, China. To do this, contact the appropriate Metrologic Customer Service/Repair Department to obtain a Returned Material Authorization (RMA) number.

In the event that it is determined the equipment failure is covered under this warranty, Metrologic shall, at its sole option, repair the Product or replace the Product with a functionally equivalent unit and return such repaired or replaced Product without charge for service or return freight, whether distributor, dealer/reseller, or retail consumer, or refund an amount equal to the original purchase price.

This limited warranty does not extend to any Product which, in the sole judgment of Metrologic, has been subjected to abuse, misuse, neglect, improper installation, or accident, nor any damage due to use or misuse produced from integration of the Product into any mechanical, electrical or computer system. The warranty is void if: (i) the case of Product is opened by anyone other than Metrologic’s repair department or authorized repair centers; or (ii) any software is installed on the Product other than a software program approved by Metrologic.

THIS LIMITED WARRANTY, EXCEPT AS TO TITLE, IS IN LIEU OF ALL OTHER WARRANTIES OR GUARANTEES, EITHER EXPRESS OR IMPLIED, AND SPECIFICALLY EXCLUDES, WITHOUT LIMITATION, WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE UNDER THE UNIFORM COMMERCIAL CODE, OR ARISING OUT OF CUSTOM OR CONDUCT. THE RIGHTS AND REMEDIES PROVIDED HEREIN ARE EXCLUSIVE AND IN LIEU OF ANY OTHER RIGHTS OR REMEDIES. IN NO EVENT SHALL METROLOGIC BE LIABLE FOR ANY INDIRECT OR CONSEQUENTIAL DAMAGES, INCIDENTAL DAMAGES, DAMAGES TO PERSON OR PROPERTY, OR EFFECT ON BUSINESS OR PROPERTY, OR OTHER DAMAGES OR EXPENSES DUE DIRECTLY OR INDIRECTLY TO THE PRODUCT, EXCEPT AS STATED IN THIS WARRANTY. IN NO EVENT SHALL ANY LIABILITY OF METROLOGIC EXCEED THE ACTUAL AMOUNT PAID TO METROLOGIC FOR THE PRODUCT. METROLOGIC RESERVES THE RIGHT TO MAKE ANY CHANGES TO THE PRODUCT DESCRIBED HEREIN.

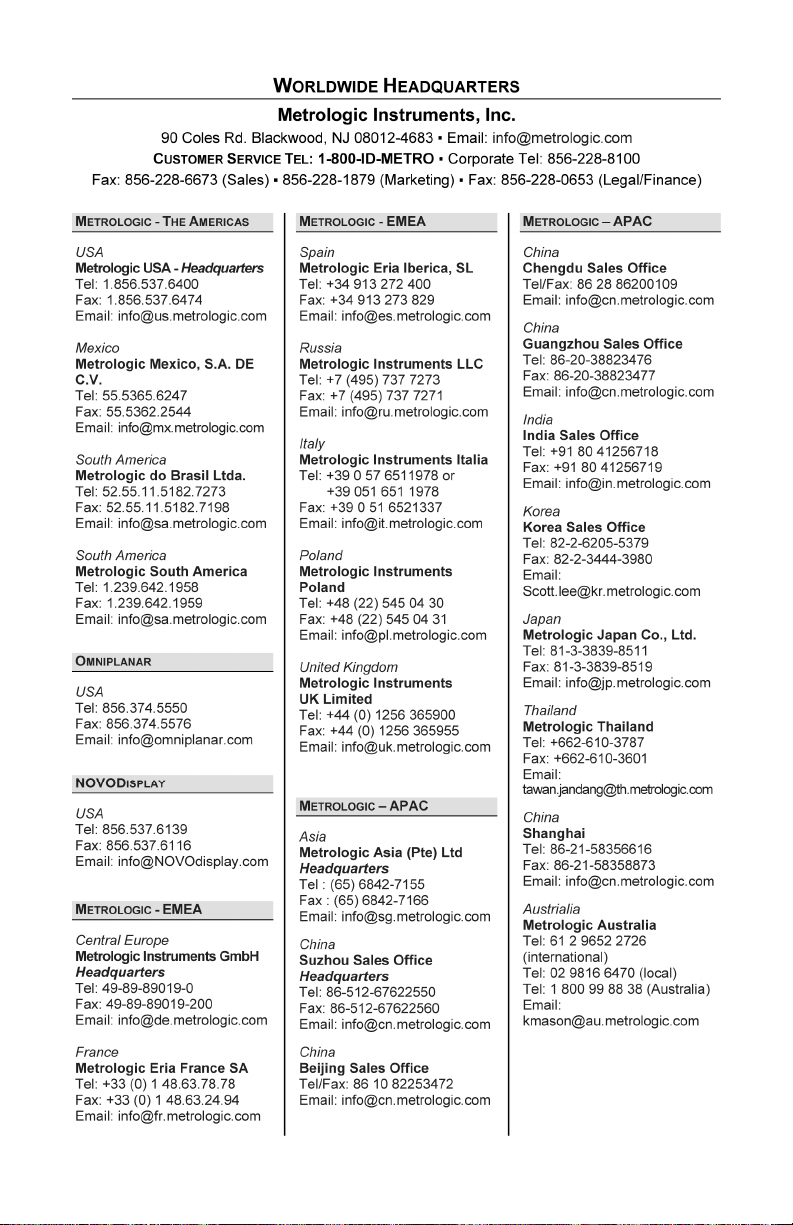

CORPORATE HEADQUARTERS, NORTH AMERICA

Metrologic Instruments, Inc. Metrologic Eria Ibérica, SL

90 Coles Rd. C/Alfonso Gomez, 38-40, 1D Blackwood, NJ 08012-4683 28037 Madrid Customer Service Department Tel: +34 913 751 249 Tel: 1-800-ID-METRO Fax: +34 913 270 437 Fax: 856-228-6673 Email: info@metrologic.com

MTLG

AUTO ID INSTRUMENTS (SHANGHAI) CO., LTD

Suzhou Sales Office

BLK A, Room# 03/03-04 No.5 Xinghan Street, Xinsu Industrial Square China-Singapore Suahou Industrial Park, Suzhou, PRC Tel: 86-512-67622550 Fax: 86-512-67622560 Email: info@cn.metrologic.com

METROLOGIC EUROPEAN REPAIR CENTER (MERC)

40

REGULATORY COMPLIANCE

Safety

ITE Equipment

IEC 60950-1, EN 60950-1

LED

Class 1 LED Product: IEC 60825-1:1993+A1+A2,

Caution

Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. Under no circumstances should the customer attempt to service the LED scanner. Never attempt to look at the LED beam, even if the scanner appears to be nonfunctional. Never open the scanner in an attempt to look into the device. Doing so could result in hazardous radiation exposure. The use of optical instruments with the LED equipment will increase eye hazard.

Atención

La modificación de los procedimientos, o la utilización de controles o ajustes distintos de los especificados aquí, pueden provocar una exposición de luz brillante peligrosa. Bajo ninguna circunstancia el usuario deberá realizar el mantenimiento del LED (Diodo Emisor de Luz) del lector. Ni intentar mirar al haz del LED incluso cuando este no esté operativo. Tampoco deberá abrir el lector para examinar el aparato. El hacerlo puede conllevar una exposición peligrosa a la luz del LED. El uso de instrumentos ópticos con el equipo LED puede incrementar el riesgo para la vista.

Attention

L'emploi de commandes, réglages ou procédés autres que ceux décrits ici peut entraîner de graves irradiations. Le client ne doit en aucun cas essayer d'entretenir lui-même le scanner ou la LED. Ne regardez jamais directement le rayon LED, même si vous croyez que le scanner est inactif. N'ouvrez jamais le scanner pour regarder dans l'appareil. Ce faisant, vous vous exposez à un risque d’irradiation. L'emploi d'appareils optiques avec cet équipement à LED augmente le risque d'endommagement de la vision.

Achtung

Die Verwendung anderer als der hier beschriebenen Steuerungen, Einstellungen oder Verfahren kann eine gefährliche Licht emittierender Dioden strahlung hervorrufen. Der Kunde sollte unter keinen Umständen versuchen, den Licht emittierender Dioden-Scanner selbst zu warten. Sehen Sie niemals in den Licht emittierender Diodenstrahl, selbst wenn Sie glauben, daß der Scanner nicht aktiv ist. Öffnen Sie niemals den Scanner, um in das Gerät hineinzusehen. Wenn Sie dies tun, können Sie sich einer gefährlichen Licht emittierender Diodenstrahlung aussetzen. Der Einsatz optischer Geräte mit dieser Laserausrüstung erhöht das Risiko einer Sehschädigung.

Attenzione

L'utilizzo di sistemi di controllo, di regolazioni o di procedimenti diversi da quelli descritti nel presente Manuale può provocare delle rischiose esposizioni radiattive. Il cliente non deve assolutamente tentare di riparare egli stesso lo scanner LED (o diodo emettitore di luce). Non guardate mai il raggio LED (d. emettitore di luce), anche se credete che lo scanner non sia attivo. Non aprite mai lo scanner per guardare dentro l'apparecchio. Facendolo potete esporVi ad una radiazione rischiosa. L'uso di apparecchi ottici, equipaggiati con raggi LED (d. emettitori di luce), aumenta il rischio di danni alla vista.

EN 60825-1:1994+A1+A2

41

REGULATORY COMPLIANCE

EMC

Emissions

FCC Part 15, ICES-003, CISPR 22, EN 55022

Immunity

CISPR 24, EN 55024

NOTE: Immunity performance is not guaranteed for scanner cables greater than 3 meters in

length when fully extended.

Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

Class A Devices

The following is applicable when the scanner cable is greater in length than 3 meters (9.8 feet) when fully extended: Les instructions ci-dessous s’appliquent aux cables de scanner dépassant 3 métres (9.8 pieds) de long en extension maximale: Folgendes trifft zu, wenn das Scannerkabel länger als 3 Meter ist:

This equipment has been tested and found to comply with limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference, in which case the user will be required to correct the interference at their own expense. Any unauthorized changes or modifications to this equipment could void the user’s authority to operate this device.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Notice

This Class A digital apparatus complies with Canadian ICES-003.

Remarque

Cet appareil numérique de classe A est conforme à la norme canadienne NMB-003.

European Standard

Warning This is a class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures.

Funkstöreigenschaften nach EN55022:1998

Warnung! Dies ist eine Einrichtung der Klasse A. Diese Einrichtung kann im Wohnbereich Funkstörungen verursachen. In diesem Fall kann vom Betreiber verlangt werden, angemessene Massnahmen durchzuführen.

42

REGULATORY COMPLIANCE

EMC

Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

Standard Europeo

Attenzione Questo e’ un prodotto di classe A. Se usato in vicinanza di residenze private potrebbe causare interferenze radio che potrebbero richiedere all’utilizzatore opportune misure.

Attention Ce produit est de classe “A”. Dans un environnement domestique, ce produit peut être la cause d’interférences radio. Dans ce cas l’utiliseteur peut être amené à predre les mesures adéquates.

Class B Devices

The following is applicable when the scanner cable is less than 3 meters (9.8 feet) in length when fully extended:

Les instructions ci-dessous s’appliquent aux cables de scanner ne dépassant pas 3 métres (9.8 pieds) de long en extension maximale:

Folgendes trifft zu, wenn das Scannerkabel kürzer als 3 Meter ist:

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna

• Increase the separation between the equipment and receiver

• Connect the equipment into an outlet on a circuit different from that to which

the receiver is connected

• Consult the dealer or an experienced radio/TV technician for help

Notice

This Class B digital apparatus complies with Canadian ICES-003.

Remarque

Cet appareil numérique de classe B est conforme à la norme canadienne NMB-003.

43

PATENTS

For patent information, please refer to www.honeywellaidc.com/patents.

44

INDEX

A

AC .................................2, 7–11, 28

Accessories ...................................2

Adapter.................................... 2, 39

Aperture.........................................4

Audible Indicator.............. 17–18, 35

USB................................... 30–33

E

EMC................................ 28, 42, 43

EMI ....................................... 42, 43

Emissions.............................. 42, 43

B

Bar Code ................... 23–26, 27, 34

Bar Code Element .................19, 20

Beep..............17–18, 23–26, 27, 35

Blue LED ........... 4, 7–11, 17–18, 35

C

Cable.............................................3

Keyboard Wedge ...........8, 38–39

MVC...........................................3

PowerLink . 2, 5, 7–11, 23–26, 35,

38–39

RS232............................ 7, 38–39

RS485...................................... 10

Stand Alone Keyboard ...9, 38–39

USB .............................11, 38–39

Caution..................7–11, 41–42, 41

CE .......................................6, 7–11

Class ...........................................41

Communication Parameters..30–33

Compliance ....7–11, 40, 41–42, 41,

42, 43

Configuration ... 2, 23–26, 29, 34, 35

Connector Pinouts.................36–37

Converter.....................................11

Current ........................................28

Customer Service................2, 3, 40

D

DC ................... 2, 28, 36–37, 38–39

Decode........................................27

Default Parameters .........29, 30–33

Keyboard Wedge ...............30–33

RS232................................ 30–33

RS485................................ 30–33

Stand Alone Keyboard.......30–33

F

Firmware..................................... 35

Flash ROM.................................. 35

H

Host .................................... 5, 7–11

I

Immunity ............................... 42, 43

Indicator

Audible .............. 4, 17–18, 27, 35

Failure

........................... 4, 17–18

Visual ................ 4, 17–18, 27, 35

Interface.......................... 23–26, 27

Cable....................... 7–11, 38–39

Keyboard Wedge. 1, 2, 8, 29, 30–

33, 36–37 RS232 . 1, 2, 7, 29, 30–33, 36–37 RS485 1, 3, 10, 29, 30–33, 36–37 Stand Alone Keyboard 1, 2, 9, 29,

30–33, 36–37 USB... 1, 3, 11, 29, 30–33, 36–37

IR ................................ 1, 15, 21, 22

K

Keyboard Country Type .............. 29

Keyboard Type............................ 29

Keyboard Wedge .......................... 2

L

Labels ........................................... 6

LED........... 7–11, 23–26, 27, 41–42

Blue ......................... 7–11, 17–18

White ....................... 7–11, 17–18

Yellow...................... 7–11, 17–18

45

INDEX

Light Levels .................................28

Light Source ................................27

M

Maintenance..................................6

MetroSelect ..................... 16, 29, 34

MetroSet2.................................... 35

Mode of Operation.......................15

MS1690 Depth of Field................ 19

MS1691 Depth of Field................ 20

N

Notices ........................................41

P

Patent..........................................44

PDF .......................................19, 20

Pinouts ......................36–37, 38–39

Power ..........................7–11, 28, 35

Power Supply ...................... 5, 7–11

PowerLink......................................4

Presentation ................................15

Product Safety.......................41–42

Protocols .....................................29

R

Razz ..........................17–18, 23–26

Repair.......................................... 40

RMA ............................................40

RS232 ...........................................2

S

Safety ..........................................41

SELV .......................................7–11

Service ........................................40

Single Trigger ..............................15

Specifications

Electrical.................................. 28

Environmental ......................... 28

Mechanical .............................. 27

Operational.............................. 27

Stand .......................... 3, 12–14, 15

Stand Alone Keyboard .................. 2

Swiftdecoder

T

Tone...................................... 17–18

Alternate.................................. 16

Transformer .................. 2, 7–11, 28

Trigger .......................................... 4

Troubleshooting .................... 23–26

U

UL ....................................... 6, 7–11

Upgrade ...................................... 35

USB

Full Speed .... 1, 3, 11, 29, 30–33,

37, 38 Low Speed ... 1, 3, 11, 29, 30–33,

37, 38

V

Ventilation ................................... 28

Visual Indicator ............... 17–18, 35

Voltage........................................ 28

W

Warranty ..................................... 40

White LED......... 4, 7–11, 17–18, 35

Window ..................................... 4, 6

Y

Yellow LED ............. 4, 7–11, 17–18

®

............................... 1

46

47

NOTES

July 2008

00-02098G

Metrologic Instruments MS1690 Focus, MS1690 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

TABLE OF CONTENTS

INTRODUCTION

Product Overview

Scanner and Accessories

Scanner Components

The PowerLink Cable

Labels

Maintenance

INSTALLING THE SCANNER TO THE HOST SYSTEM

RS232

Keyboard Wedge

Stand Alone Keyboard

STAND KITS

Stand Components, MLPN 46-00147

Assembling the Stand

SCANNER OPERATION

Audible Indicators

Visual Indicators

Failure Modes

MS1690 Depth of Field by Minimum Bar Code Element Width

MS1691 Depth of Field by Minimum Bar Code Element Width

MS1690 IR Activation Range

MS1691 IR Activation Range

TROUBLESHOOTING GUIDE

DESIGN SPECIFICATIONS

APPLICATIONS AND PROTOCOLS

DEFAULT SETTINGS – COMMUNICATION PARAMETERS

CONFIGURATION MODES

UPGRADING THE FLASH ROM FIRMWARE

SCANNER AND CABLE TERMINATIONS

Scanner Pinout Connections

REGULATORY COMPLIANCE

Safety

PATENTS

INDEX
