METROLOGIC INSTRUMENTS, INC.

HoloTrak® IS8000 Series

Holographic Scanners

Installation and User’s Guide

Copyright
© 2005 by Metrologic Instruments, Inc. All rights reserved. No part of this work

may be reproduced, transmitted, or stored in any form or by any means without
prior written consent, except by reviewer, who may quote brief passages in a
review, or provided for in the Copyright Act of 1976.

Products and brand names mentioned in this document are trademarks of their
respective companies.

TABLE OF CONTENTS

Introduction...........................................................................................................1

Scanner and Accessories..................................................................................... 2

Installing the Scanner to the Host (Standard Features)

Single Holotrak
Holotrak

Installing the Scanner to the Host (Optional Features)

Industrial Controller MX001 Interface Option....................................................5

External Speaker Box Option ........................................................................... 6

Hand-held Port Option......................................................................................7

Configuration to the Host System.........................................................................8

Installing and Running the MetroSet

Parts of the Scanner........................................................................................... 10

Mounting Bracket Installation ............................................................................. 11

Visual and Audible Indicators............................................................................. 12

Labels................................................................................................................. 13

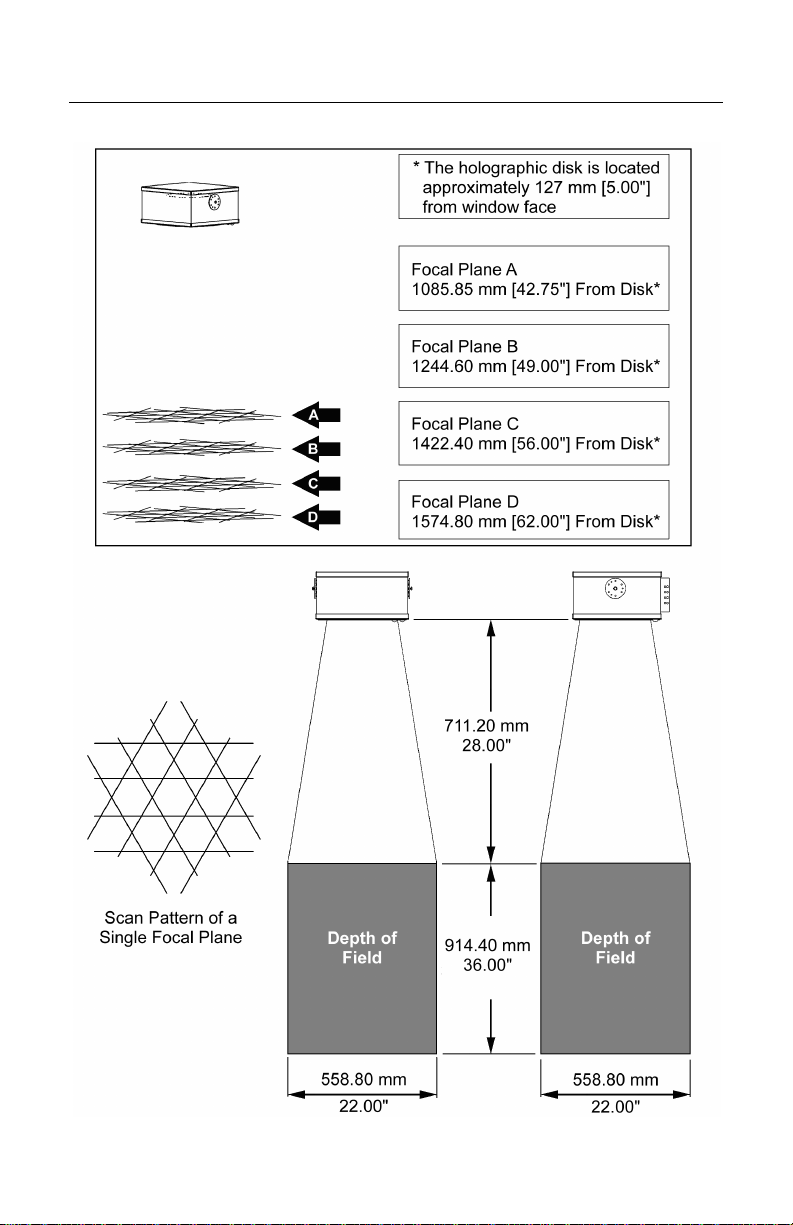

Depth of Field and Scan Pattern Characteristics

IS8300 Depth of Field and Scan Pattern ........................................................ 14

IS8400 Depth of Field and Scan Pattern ........................................................ 15

IS8500 Depth of Field and Scan Pattern ........................................................ 16

IS8800 Depth of Field and Scan Pattern ........................................................ 17

Maintenance.......................................................................................................18

Trouble Shooting Guide .....................................................................................19

Appendix A

Design Specification....................................................................................... 20

Appendix B

Default Settings ..............................................................................................22

Appendix C

IS8000 Series Pinout Connections.................................................................27

Appendix D

Limited Warranty.............................................................................................29

Appendix E

Notices............................................................................................................ 30

Appendix F

Patents ........................................................................................................... 32

Index .................................................................................................................. 33

®

®

Installation ............................................................................. 3

Primary/Secondary Installation.........................................................3

®

2 Program..................................................8

ii

iii

INTRODUCTION

Metrologic's IS8000 series scanners bring the benefits of holography to long­range industrial bar code scanning. Enclosed in rugged NEMA-12 cases for
industrial environments, the IS8000 series provides omnidirectional scanning
with optional no code/wrong code warning. They can be mounted in any
orientation and are capable of primary/secondary setup for added versatility.

There are several IS8000 models to choose from depending on the scanning
application.

¾ The IS8300 produces 5,250 scan lines per second with a depth of field of

457.2 mm (18”)** and a width covering 304.8 mm (12”)**

¾ The IS8400 produces 3,360 scan lines per second with a depth of field of

711.2 mm (28”)* and a width covering 558.8 (22”)*

¾ The IS8500 produces 5,600 scan lines per second with a depth of field of

711.2 mm (28”)* and a width covering 558.8 (22”)*

¾ The IS8800 produces 5,600 scan lines per second with a depth of field of

812.8 mm (32”)* and a width covering 457.2 (18”)*

* The area defined is based conservatively on a 0.33 mm/0.013” bar code

width. Actual scan areas will vary by label size and application.

** The area defined is based conservatively on a 0.25 mm/0.010” bar code

width. Actual scan areas will vary by label size and application.

Several optional features are also available for the IS8000 series including a
hand-held scanner port, Triac output, a high volume external speaker box and
object sensor input with the use of a MX001 industrial control interface. All
scanners can be programmed using Metrologic’s MetroSet
program available on CD or downloadable from Metrologic’s web site at
www.metrologic.com.

®

configuration

Applications and Protocols

The following chart specifies the version identifier for the communication
protocol.

Scanner

IS8300 or

IS8800

IS8400 or

IS8500

Version

Identifier

1 RS-232/RS-422/Light Pen Emulation

1L RS-232/RS-422/Light Pen Emulation Low Speed Option

1 RS-232/RS-422/Light Pen Emulation

1E RS-232/RS-422/Light Pen Emulation with External Speaker

1L RS-232/RS-422/Light Pen Emulation Low Speed Option

1LE

Communication Protocol(s)

RS-232/RS-422/Light Pen Emulation

Low Speed Option with External Speaker

1

SCANNER AND ACCESSORIES

The following is a list of parts included in a standard IS8000 kit:

¾ IS8000 Series HoloTrak® Holographic Scanner
¾ Power Supply

¾ [

MLPN 46-46207-US] 12VDC @ 4.16 Amps, 220VAC or

¾ [MLPN 46-46207-UK] 12VDC @ 4.16 Amps, 240VAC or
¾ [

MLPN 46-46207-EC] 12VDC @ 4.16 Amps, 120VAC

¾ Communication Cable

¾ [

MLPN 52-52702] Standard 2 meter (6 ft.) cable

¾ Mounting Bracket

¾ [

MLPN 45-45615] for IS8300 or

¾ [MLPN 45-45616] for IS8400/IS8500/IS8800
¾ Installation and User's Guide [
¾ MetroSet

®

Scanner Configuration Software for Windows

Optional Accessories available:

MLPN MX008] MX008 External Speaker (for use with IS8400 & IS8500 only)

¾ [

¾ MX008 High Volume Speaker

¾ [

MLPN 52-52206] 3.7 meter (12 ft.) Communication Cable

¾ [

MLPN 45-45745] MX001 for Single Scanner Setup

¾ MX001 Industrial Controller

¾ [

MLPN 52-52708] Communication Cable

¾ [

MLPN 45-45718] MX001 for Primary/Secondary Scanner Setup

¾ [

MLPN 45-45745] MX001 for Single Scanner Setup

¾ [MLPN 52-52709] Communication “Y” Cable
¾ Cables

¾ [

MLPN 52-52704] 6 meter (20 ft.) IS8000 Series Communication Cable

¾ [MLPN 52-52707] 3 meter (10 ft.) IS8000 Secondary Cable

(not for use with MX001)

¾ [

MLPN 51-51882] 0.25 meter (10 inch) Tech Secondary Adapter Cable

¾ Replacement Parts

¾ [

MLPN 45-45224] Scan Window for IS8300

¾ [

MLPN 45-45223] Scan Window for IS8400/IS8500/IS8800

MLPN 00-02377]

If any item is missing or to order additional items, contact the dealer, distributor
or call Metrologic's Customer Service Department at 1-800-ID-METRO or
1-800-436-3876.

2

INSTALLING THE SCANNER TO THE HOST (STANDARD FEATURES)

Single HoloTrak® Installation

To avoid potential problems, do not power up the scanner until the
communication cable is secured to the host.

1. Turn off the host system.

2. Connect the communications

cable to the HoloTrak
to the host.

3. Check the AC input

requirements of the power
supply to make sure the
voltage matches the AC
outlet.

4. Plug the power supply to

the scanner.

5. Plug the power supply into

the AC outlet to supply
power to the scanner.

6. Power up the host system.

®

and

HoloTrak Primary/Secondary Feature

The primary/secondary feature gives the ability to connect or "daisy-chain" two
scanners together to act as one scanner interfacing with only one host.

PRIMARY/SECONDARY COVERAGE WITH ONE HOST AND TWO HOLOTRAKS

Single Conveyor Two Conveyors

IS8300 12” (305 mm) to 24” (610 mm) 12” (305 mm) coverage per conveyor

IS8400 22" (559 mm) to 44" (1118 mm) 22” (559 mm) coverage per conveyor

IS8500 22" (559 mm) to 44" (1118 mm) 22” (559 mm) coverage per conveyor

IS8800 18” (457 mm) to 36” (914 mm) 18” (457 mm) coverage per conveyor

Continued on next page

Caution:

To maintain compliance with applicable standards, all circuits connected to the scanner must meet
the requirements for SELV (Safety Extra Low Voltage) according to EN 60950.

To maintain compliance with standard CSA C22.2 No. 950/UL 1950 and norm EN 60950, the power
source should meet applicable performance requirements for a limited power source.

3

INSTALLING THE SCANNER TO THE HOST (STANDARD FEATURES)

Primary/Secondary setup continued from previous page.

All equipment must be connected before power-up. After both units complete the
power-up diagnostics, the operator will need to program the primary unit with the
MetroSet Program provided.

Additional Equipment needed: Primary/Secondary Cable [

To avoid potential problems, do not power up the scanner until the
communication cable is secured to the host.

1. Turn off the host system.

2. Connect the

communications cable to

the HoloTrak

®

primary

scanner and to the host.

3. Connect the

Primary/Secondary cable

to the primary scanner and

the secondary scanner.

4. Check the AC input

requirements of the power

supplies for both scanners

to make sure the voltages

match the AC outlets.

5. Connect the power

supplies to the scanners.

6. Plug the power supplies

into the AC outlets to

supply power to the both

scanners.

MLPN 52-52707]

7. Power up the host system.

Caution:

To maintain compliance with applicable standards, all circuits connected to the scanner must meet
the requirements for SELV (Safety Extra Low Voltage) according to EN 60950.

To maintain compliance with standard CSA C22.2 No. 950/UL 1950 and norm EN 60950, the power
source should meet applicable performance requirements for a limited power source.

4

INSTALLING THE SCANNER TO THE HOST (OPTIONAL FEATURES)

Industrial Controller MX001 Interface Option

The MX001 Industrial Control Interface performs three functions.

¾ Through an object sensor input, the scanner can be alerted to any package

present in the scan field. The sensor must have a 12V or 5V at 10mA output

signal or switch closure (relay) output. The MX001 can also supply 12VDC

power at 200mA (max) to the sensor. (MetroSet 2 configuration required)

¾ The MX001 electronic switch or Triac, allows the scanner to control an

external device directly by switching on and off a 115 VAC at 10 Amps or

230VAC at 6 Amps output signal. (MetroSet 2 configuration required)

¾ It can alert the user that sensor conditions are not nominal (Sensor Alarm).

Special configuration of the MX001 Industrial controller is necessary for
proper installation. Please refer to the MX001 Industrial Control Interface
Installation and User's Guide [MLPN 00-02173] and the MetroSet 2
documentation for complete details.

To avoid potential problems, do not power up the scanner until the
communication cable is secured to the host.

Only one MX001 can be used in the primary/secondary setting
(not shown), and it MUST be connected to the primary scanner.

1. Turn off the host system.

2. Connect the communications

cable to the HoloTrak

the host.

3. Connect the External

MX001/Triac cable to the

HoloTrak and the MX001.

4. Check the AC input

requirements of the power

supply for the scanner

to make sure the voltage

matches the AC outlet.

5. Connect the power supply

to the HoloTrak.

6. Plug the power supply into

the AC outlet.

7. Power up the host system.

®

and to

Refer to caution statement on page 4.

5

INSTALLING THE SCANNER TO THE HOST (OPTIONAL FEATURES)

External Speaker Box Option

When attached, beeper tones from the scanner are emitted from both the
scanner speaker and external speaker to serve as an audible indication of the
operation of the scanner.

There are 6 beeper options available:

¾ Normal Tone ¾ Tone 2 ¾ Tone 4
¾ Tone 1 ¾ Tone 3 ¾ No Tone

®

Beeper tones can be adjusted by using the MetroSet

To avoid potential problems, do not power up the scanner until the
communication cable is secured to the host.

1. Turn off the host system.

2. Connect the

communications cable to

the HoloTrak

®

and to the

host.

3. Connect the External

MX008 cable to the

HoloTrak and the MX008.

4. Check the AC input

requirements of the power

supply for the scanner and

the MX008 to make sure

the voltages match the AC

outlets.

5. Connect the power supply

to the HoloTrak.

6. Plug the power supplies

into the AC outlet.

program.

7. Power up the host system

Caution:

To maintain compliance with applicable standards, all circuits connected to the scanner must meet
the requirements for SELV (Safety Extra Low Voltage) according to EN 60950.

To maintain compliance with standard CSA C22.2 No. 950/UL 1950 and norm EN 60950, the power
source should meet applicable performance requirements for a limited power source.

6

INSTALLING THE SCANNER TO THE HOST (OPTIONAL FEATURES)

Hand-held Port Option

A Non-Decode Hand-Held Scanner can be connected to an IS8000 series fixed
scanner.

To avoid potential problems, do not power up the scanner until the
communication cable is secured to the host.

1. Turn off the host

system.

2. Connect the

communications cable

to the HoloTrak

the host.

3. Connect the

communication cable of

the hand-held scanner

to the HoloTrak.

4. Check the AC input

requirements of the

power supply for the

scanner to make sure

the voltage matches

the AC outlet.

®

and to

5. Connect the power

supply to the HoloTrak.

6. Plug the power supply

into the AC outlet.

7. Power up the host

system.

When the hand-held scanner first receives power, it will immediately go
through a self-diagnostic routine, then the green and red LEDs will flash,
and the unit will beep once.

Caution:

To maintain compliance with applicable standards, all circuits connected to the scanner must meet
the requirements for SELV (Safety Extra Low Voltage) according to EN 60950.

To maintain compliance with standard CSA C22.2 No. 950/UL 1950 and norm EN 60950, the power
source should meet applicable performance requirements for a limited power source.

7

CONFIGURATION TO THE HOST SYSTEM

The scanner is shipped from the factory configured to a set of default conditions
noted in the Default Settings section of this guide. In order for the scanner to
communicate with the host system, it will need to be properly configured. Since
each host system is unique, the scanner must be configured to match the host
system requirements. Use the MetroSet®2 Scanner Configuration Program
provided to configure the scanner.

Primary/Secondary Configuration Note

During configuration, the secondary scanner’s communication protocol will be
established automatically through the primary scanner. If the configuration is to
be downloaded from the host to the scanners, it is required that both the primary
and the secondary scanners are powered up and ready to scan. The appropriate
communications cables should be connected between the host and the primary
scanner and between the primary and the secondary scanner.

Once a configuration is downloaded to the primary scanner, the primary will
automatically configure the HoloTrak secondary scanner. This step is necessary
in order to configure the secondary scanner properly. For all practical purposes,
the scanners will act as one scanner. Once both units are configured, the
scanner settings are stored in non-volatile RAM, and will not need to be
configured again.

INSTALLING AND RUNNING THE METROSET

®

2 PROGRAM

Installation

1. Close all open applications.

®

2. Insert the MetroSet

3. The installation wizard will display the Welcome dialog box, select Next to

proceed to with the installation.

If the wizard does not automatically start, go to the windows Start

menu, choose Run, designate the CD-ROM drive, type setup

(d:\setup) and then click OK.

4. To accept the default installation directory, select Next. To change the

destination folder, select Browse to locate and choose the desired folder.

5. To accept the default program folder, select Next. To change the default

program folder type a new folder name or choose an existing folder.

6. When the setup process is complete, select Yes, and choose Finish to

restart your computer.

8

2 CD into your CD drive.

®

INSTALLING AND RUNNING THE METROSET

2

PROGRAM

How to Start

To avoid potential problems, do not power up the scanner until the
communication cable is secured to the host.

1. Turn off the PC after installing the MetroSet 2 program.

2. Connect the communication cable to the scanner and to the RS-232C
serial port (COM1 or COM2) located on the PC.

3. Check the AC input requirements of the transformer to make sure the
voltage matches the AC outlet. An easily accessible socket-outlet
should be installed near the equipment.

4. Power up the scanner.

5. Turn on the PC.

6. From your Start menu choose Programs, MetroSet 2, MetroSet 2.

7. Select Holotrak® as the unit to configure.

8. Then choose Configure.

9. For detailed instructions on the configuration options available choose
Help from the menu bar.

Metrologic’s HoloSet

Caution:

To maintain compliance with applicable standards, all circuits connected to the scanner must meet
the requirements for SELV (Safety Extra Low Voltage) according to EN 60950.

To maintain compliance with standard CSA C22.2 No. 950/UL 1950 and norm EN 60950, the power
source should meet applicable performance requirements for a limited power source.

®

program can also be used to configure the scanner.

9

PARTS OF THE SCANNER

Green and Red LEDs

c

The red LED is on when the unit is done power up, the VLD is emitting light
and the unit is ready to scan. The green LED flashes when the scanner
has read a bar code successfully. The functions of the LED's can be
reversed through special configuration with the MetroSet®2 configuration
program. See the Visual and Audible Indicators section of this guide for
more details.

Speaker

d

The speaker is configured to emit a beep when a bar code has been
transmitted. The IS8800 has an additional 90 dB speaker location on the
side of the case.

Laser Output Window

e

This aperture emits and receives laser light.

D-type Connector Area

f

This area contains four D-type male connectors, a 25-pin, 15-pin, and two
9-pin D-sub connectors. The 25-pin connector is designed to attach a
communication cable to the host device. The 15-pin connector is used to
attach two scanners as primary/secondary and/or to connect the MX001
industrial control interface to the scanner. The first 9-pin connector is used
to attach the power supply to the scanner and the second 9-pin connector
is used to attach a hand held 5V non-decode type scanner to the
HoloTrak

D-type Connector Area

g

The 8-pin Male AMP Connector is used to attach the optional MX008
external speaker box. Refer to Appendix C for Pinout details

10

®

. Refer to Appendix C for Pinout details.

MOUNTING BRACKET INSTALLATION

1. Locate the mounting bolts on the sides of the scanner.

2. Align the bolts on the scanner with the channels on the mounting bracket.

3. Slide the unit into place until the scanner bolts sit securely in the bottom of
the channels.

4. Rotate the unit to the desired angle and secure into place with a locking
bolt in the lower slot.

5. Tighten both bolts to secure the scanner in place.

Mounting Bracket Hole Pattern

11

VISUAL AND AUDIBLE INDICATORS

When the scanner is on, the activity of the red and green LEDs
indicate the status of the scanner.

Flashing Red, No Green

During power-up and diagnostic mode.

Steady Red, No Green

Unit has completed power-up, the VLD is emitting
light, and the unit is ready to scan.

Steady Red, Green Flash

When the scanner transmits a successful read, the
green LED will flash. Generally, if the green LED does
not flash, then the bar code has not been successfully
read. If handshaking is being used, the green LED
goes out when proper handshaking has completed.
When the green light turns off, communication to the
host is complete.

Alternating Red and Green with razz tone

This indicates a motor failure.

12

Steady Red, Green Flashing with a beep

Scanner has entered program mode successfully.
(See Running the MetroSet
details on configuring the scanner).

Steady Red, Green Flashes 3 times with 3 beeps

Scanner has exited program mode successfully.

Note: If the scanner has been configured for reverse

LED convention, via MetroSet 2, all mode
indicators described above also reverse.

®

2 Program for more

LABELS

–

A

B

C

D

13

DEPTH OF FIELD AND SCAN PATTERN CHARACTERISTICS

A

IS8300 Depth of Field and Scan Pattern

The depth of field area defined is
based conservatively on a 0.25
mm/0.010” bar code width.

ctual scan areas will vary by

label size and application.

14

DEPTH OF FIELD AND SCAN PATTERN CHARACTERISTICS

A

IS8400 Depth of Field and Scan Pattern

The depth of field area defined
is based conservatively on a

0.33 mm/0.013” bar code width.
ctual scan areas will vary by

label size and application.

15

DEPTH OF FIELD AND SCAN PATTERN CHARACTERISTICS

A

IS8500 Depth of Field and Scan Pattern

The depth of field area defined
is based conservatively on a

0.33 mm/0.013” bar code width.

ctual scan areas will vary by

label size and application.

16

DEPTH OF FIELD AND SCAN PATTERN CHARACTERISTICS

IS8800 Depth of Field and Scan Pattern

The depth of field area defined is based
conservatively on a 0.33 mm/0.013” bar
code width. Actual scan areas will vary
by label size and application.

17

MAINTENANCE

Smudges and dirt can interfere with the proper scanning of a bar code.
Therefore, the output window will need occasional cleaning.

1. Spray optical quality cleaning fluid onto lint free, nonabrasive cleaning cloth.

2. Gently wipe the output window.

Do not use solvents like alchohol or acetone. These materials can
damage the window.

18

TROUBLESHOOTING GUIDE

PROBLEM POSSIBLE CAUSE(S) ACTION NEEDED

No LEDs No Power

No Scan Pattern No Power

Check the power
supply and outlet.

Alternating Red and
Green LEDs flash with
a razz tone.

The unit scans but
does not communicate
with the host.

The host is receiving
data but the data does
not look correct.

Unit has shows a
reduction in scan
performance.

Motor Failure

The communication
cable is not connected to
the COM port.

The communication
cable is damaged.

Scanner configuration
settings have been lost.

There is an interface
format incompatibility.

Scan window dirty

Contact a Metrologic
service representative.

Check the
communication cable
connection at the host
and scanner.

Replace the
communication cable.

Reconfigure using
MetroSet 2.

Check that the unit and
the host are configured
for the same interface
format.

Clean the unit’s window
(refer to the
maintenance section).

19

APPENDIX A

Design Specifications

IS8800 IS8500 IS8400 IS8300

Optical

Number of VLD 5 5 3 5

Scan pattern Omni Omni Omni Omni

Scan lines per second 5,600 5,600 3,360 5,250

Focal planes 4 4 4 5

Scan lines per focal
plane

Total scan lines 80 80 48 75

Minimum bar width 0.30 mm/0.012” 0.25 mm/0.010” 0.25 mm/0.010” 0.20 mm/0.008”

Scan Area (Small Bar Widths)

Bar width 0.33 mm/0.013” 0.33 mm/0.013” 0.33 mm/0.013” 0.25 mm/0.010”

Near scan 790 mm/31” 910 mm/36” 910 mm/36” 510 mm/20”

Far scan 1600 mm/63” 1630 mm/64” 1630 mm/64” 970 mm/38”

Depth of field 810 mm/32” 720 mm/28” 720 mm/28” 460 mm/18”

Width 460 mm/18” 560 mm/22” 560 mm/22” 310 mm/12”

Conveyor speed 1.5 mps/300 fpm 1.5 mps/300 fpm 1.5 mps/300 fpm 1.5 mps/300 fpm

Mechanical

Length 349 mm/13.75” 349 mm/13.75” 349 mm/13.75” 254 mm/10”

Width 336 mm/13.25” 336 mm/13.25” 336 mm/13.25” 380 mm/11.1”

Height 177 mm/7.0” 177 mm/7.0” 177 mm/7.0” 141 mm/5.5”

Weight 11.0 kg/25lb 11.0 kg/25lb 11.0 kg/25lb 9.0 kg/20lb

Case NEMA 12 NEMA 12 NEMA 12 NEMA 12

Mounts any orientation Yes Yes Yes Yes

Interfaces

Serial: RS-232C RS232C RS232C RS232C RS232C

Serial: Point-to-Point
RS422

Light Pen Emulation Light Pen Light Pen Light Pen Light Pen

Handheld Scanner Port Option Option Option Option

Master slave Yes Yes Yes Yes

Industrial Controller/Triac Yes Yes Yes Yes

20 20 12 15

RS422 RS422 RS422 RS422

20

APPENDIX A (CONTINUED)

Design Specifications

IS8800 IS8500 IS8400 IS8300

Electrical

Input Voltage 12 VDC 12 VDC 12 VDC 12 VDC

Starting Power 69 watts 69 watts 53 watts 53 watts

Operating power 43 watts 43 watts 34 watts 34 watts

EMC: FCC, ICES-003 &
EN 55022

Laser

Wavelength 658 nm ± 5 nm 658 nm ± 5 nm 658 nm ± 5 nm 658 nm ± 5 nm

Laser power (peak) 7.7 mW 7.7 mW 7.7 mW 7.7 mW

Laser power (average) <1 mW <1 mW <1 mW <1 mW

Laser class: CDRH Class II Class II Class II Class II

Laser class: EN Class 2 Class 2 Class 2 Class 2

Environmental

Operating Temperature 0°C to 40°C (32°F to 104°F)

Storage Temperature -40°C to 60°C (-40°F to 140°F)

Humidity 5% to 95% relative humidity, non-condensing

Light Levels Up to 297.4 lux (3200 foot candles) – works in direct sunlight

Shock 100 g for 1 ms

Contaminants Protects against dust, falling dirt, and dripping non-corrosive liquid

Ventilation None required

Class A Class A Class A Class A

Actual scan areas will vary by label size and application.

Specifications subject to change without notice.

21

APPENDIX B

Default Settings

Many functions of the scanner can be configured, or enabled/disabled. The
factory programs the scanner to a set of default parameters. These defaults are
marked with an asterisk (*) in the default column on the following pages.
Unmarked parameters show the unavailability for that protocol. To speak with
the host system properly, the scanner must be configured to match the systems
individual requirements. Not all functions support all communication protocols. If
the protocol supports a function, a check mark appears on the chart.

PARAMET ER DEFAULT RS-232 RS-422

INTERFACE FORMAT
RS-232 (RS-422) *
Light Pen

No Comm

CODE TYPES
All UPC/EAN *
Code 39 *
Full ASCII Code 39
MOD 43 Check on Code 39
Code 93 *
Code 128 *
Codabar *
Interleaved 2 of 5 (ITF) *
MOD 10 Check on ITF
Do Not Scan EAN-8
Do Not Scan EAN-13
Do Not Scan UPC-E
Do Not Scan UPC-A
Paraf
UCC Supplemental Codes Special firmware required
2 Digits Supps
5 Digit Supps
977 (2 Digit Supps)
Bookland
Redundancy 2 Digits
Redundancy 5 digits
Require Supps
100 msec to find Supps *

Test Mode

Only

9 9

9 9 9

999

9 9 9

999

9 9 9

999

9 9 9

999

9 9 9

999

9 9 9

999

9 9 9

999

999

9 9 9

999

9 9 9

999

9 9 9

999

9 9 9

LIGHT

PEN

9

22

APPENDIX B (CONTINUED)

PARAMET ER DEFAULT RS-232 RS-422

200 msec to find Supps
Code 128 Coupon Option
Code 128 Coupon Conversion
378/379 lock on supplement
Remote supplement required
MISCELLANEOUS
Beep after transmitting
Beep before transmitting *
Faster Beep/Same Tone

Lost Communication Timeout 3 beeps on timeout
razz beep on timeout 5 retrys before timeout

Support 'D/E' disable/enable commands
Support 'F/L' laser off/on commands
Enable MECCA
One Compare Buffer *
Two Compare Buffers
Four Compare Buffers
Eight Compare Buffers
Scan Count
Reverse LED convention
Support multiple beep 'B'/razz 'Z' commands
Support host BEL/CAN (cancel) command
Enter program mode only after power up
Enable status reporting
Number of good scans required (1-8) 1
Special code select
Normal volume *
Loud Volume
Support 'M/O' motor off/on commands
TRIAC/LINE SENSOR
Support Line Sensor
Support Line Sensor Alarm
Transmit 'No Read' message on sensor timeout
Scans per Sensor Activation (1-5)
Scan Duration (sec.)
Support Triac
Triac Controlled by the Host (DC2/DC4)
Triac Normally On
Enable Read and Match Mode

LIGHT

PEN

999

9 9 9

999

9 9 9

999

999

9 9 9

999

9 9 9

99

9 9

999

9 9 9

999

9 9 9

999

9 9 9

999

9 9

99

9 9 9

99

9 9 9

999

9 9 9

999

9 9

9 9 9

999

9 9 9

999

9 9 9

999

9 9

999

9 9 9

23

APPENDIX B (CONTINUED)

PARAMET ER DEFAULT RS-232 RS-422

Fire triac if good read/match

Fire triac if bad match

Fire triac if no read

Triac Duration (sec.)

Delay Time before firing (sec.)

Enable programmable 'No Read' message

Retain same symbol timers along with line sensor

Supports dual line sensor inputs

Buffer scans until line sensor cycle completes

Save read and match bar code if power down 9 9 9

SCAN RANGE

Close, Extended and Normal Extended

RESERVE CODES

Reserve Code 1-99

RS232 FORMAT

BAUD

300-38,400 9600

DATA FORMAT

Odd, Space, Even, Mark, None Parity Space

7 Data Bits/8 Data Bits 7 Data Bits

1 Stop bit/2 Stop bits 2 Stop bits

OPTIONS

Ack/Nak handshaking

CR *

LF *

DTR support

Nixdorf ID

RTS/CTS handshaking

RTS/CTS (character)

RTS/CTS (message)

ETX suffix

STX prefix

Tab prefix

Tab suffix

UPC prefix

UPC suffix

Schlumberger/Shell format

Transmit AIM ID Chr 9 9

999

9 9 9

999

9 9 9

999

9 9 9

999

9 9 9

999

9 9 9

9 9 9

99

99

9 9

99

99

9 9

99

9 9

99

9 9

99

9 9

99

9 9

99

9 9

99

9 9

99

LIGHT

PEN

24

APPENDIX B (CONTINUED)

PARAMET ER DEFAULT RS-232 RS-422

Transmit SANYO ID Chr
SNI Beetle Mode

French PC Term

Xon/Xoff handshaking
Programmable prefix identifiers
Xmit (dec) as 1st prefix identifier
Xmit (dec) as 2nd prefix identifier
Programmable suffix identifiers
Xmit (dec) as 1st suffix identifier
Xmit (dec) as 2nd suffix identifier
LIGHT PEN FORMAT
POLL SRC
No/Yes No
HI/OUTPUT

Bars/Code 39, Spaces/Code 39, Spaces/Code 39,
Bars/as scanned, Spaces/as scanned

OPTIONS
Extra Transition before Bar Code
50x element border
10x narrow element border

1.0 ms narrow element *
.50 ms narrow element
.30 ms narrow element
.15 ms narrow element
FORMATTING - UPC
Convert EAN-8 to EAN-13
Convert UPC-A to EAN-13
Expand UPC-E
Transmit lead zero on UPC-E
Transmit UPC-A check digit *
Transmit UPC-A Number System *
Transmit UPC-E check digit
Transmit EAN-13 check digit *
Transmit EAN-8 check digit *
FORMATTING - NONUPC
CLSI editing
Transmit Codabar Start/Stop Characters

not

currently

supported

Spaces/as

scanned

LIGHT

PEN

99

9 9

99

9 9

99

9 9

9

9

9

9

9

9

9

9

9

99

9 9

99

9 9

99

9 9

99

9 9

99

99

9 9

25

APPENDIX B (CONTINUED)

PARAMET ER DEFAULT RS-232 RS-422

Transmit Code 39 Start/Stop Characters

Transmit ITF Mod 10 check digit

Transmit Code 39 Mod 43 check digit

SYMBOL LENGTH

ITF(variable length-50 char)

Min 1-50 4

Lock 0-50 0

BEEPER TONE

Normal, Alt1, Alt 2, Alt3, Alt4, None Normal 999

LED

Flash/None Flash

Same Symbol Time Out

.1, .2, .5, 1.25, 2.00secs, infinite .5 secs

TRANSMISSION DELAY - Inter character

1,5,20 msec, none 1 msec.

14 char

lock

99

9 9

99

999

9 9 9

999

999

999

99

LIGHT

PEN

26

APPENDIX C

IS8000 Series Pinout Connections

DESCRIPTION PIN SIGNAL

Connector Type on Scanner
DB25P (D-Type 25 Pin Male)

Function:

Communication Pinouts for
RS-232/RS-422 and Light Pen Emulation.

RS-232 Cable Note: Cables for RS-232
should leave the RS-422 pins unterminated
at the scanner.
RS-422 Cable Note: Cables for RS-422
should leave the RS-422 should leave the
RS-232 transmit and receive pins
unterminated at the scanner.

IS8400/IS8500/IS8800

1Ground
2 RS-232 Receive Input
3 RS-232 Transmit Output
4 CTS Input
5 RTS Output
6 Reserved
7Ground
8 Reserved

9 RS-422 Receive – (B-)
10 RS-422 Receive + (A+)
11 RS-422 Send + (Y+)
12 RS-422 Send – (Z-)
13 Ground
14 Ground
15 Light Pen Source
16 Light Pen Data
17 Reserved
18 Reserved
19 Open
20 DTR Input
21 Reserved
22 Reserved
23 Reserved
24 Reserved
25 Ground

IS8300

DESCRIPTION PIN SIGNAL

Connector Type on Scanner:
DA15P (D-Type 15-Pin Male)

Function:

Auxiliary RS-234 industrial Interface Port

1 RS-232 Receive Data (Input)

2 Clear to Send (Output)

3 Reserved

4 Reserved

5Triac +

6 Sensor +

7 Sensor Alarm +

8 Reserved

9 RS-232 Transmit Data (Output)
10 Request to Send (Input)
11 Signal Ground
12 Reserved
13 Triac ­14 Sensor ­15 Sensor Alarm -

27

APPENDIX C

IS8000 Series Pinout Connections

IS8400/IS8500/IS8800

DESCRIPTION PIN SIGNAL

1 12VDC Input Power to Scanner

2 12VDC Input Power to Scanner

Connector Type on Scanner:
DEC9P (D-Type 9-Pin Male)

Function:

Power Port

3 Earth Ground

5 Power Ground

4 Power Ground

6 12VDC Input Power to Scanner

7 12VDC Input Power to Scanner

8 Power Ground

9 Power Ground

DESCRIPTION PIN SIGNAL

1 Flip Sense

2Data

Connector Type on Scanner:
DEC9P (D-Type 9 Pin Male)

Function:

Hand Held Port (Low Speed Option)

3 Decode LED

4 Reserved

5 Proximity Detect

6 Laser/Motor Control

7Ground

8 Shield

9 +5VDC Power to Scanner

IS8400E/IS8400LE and IS8500E/IS8500LE Scanners Only

ESCRIPTION PIN SIGNAL

D

1 Beeper Signal

Connector Type on Scanner
8 Pin AMP CPC Male

Function:

External Speaker Box Port

2N/C

3 Red LED

4 Power Ground

5Green LED

6N/C

7N/C

8N/C

IS8300

28

APPENDIX D

Limited Warranty

The IS8000 series scanners are manufactured by Metrologic at its Blackwood, New Jersey,
U.S.A. facility. The IS8000 series scanners have a two (2) year limited warranty from the
date of manufacture. Metrologic warrants and represents that all IS8000 series scanners
are free of all defects in material, workmanship and design, and have been produced and
labeled in compliance with all applicable U.S. Federal, state and local laws, regulations and
ordinances pertaining to their production and labeling.

This warranty is limited to repair, replacement of Product or refund of Product price at the
sole discretion of Metrologic. Faulty equipment must be returned to the Metrologic facility
in Blackwood, New Jersey, U.S.A. or Puchheim, Germany. To do this, contact Metrologic's
Customer Service/Repair Department to obtain a Returned Material Authorization (RMA)
number.

In the event that it is determined the equipment failure is covered under this warranty,
Metrologic shall, at its sole option, repair the Product or replace the Product with a
functionally equivalent unit and return such repaired or replaced Product without charge
for service or return freight, whether distributor, dealer/reseller, or retail consumer, or
refund an amount equal to the original purchase price.

This limited warranty does not extend to any Product which, in the sole judgement of
Metrologic, has been subjected to abuse, misuse, neglect, improper installation, or
accident, nor any damage due to use or misuse produced from integration of the Product
into any mechanical, electrical or computer system. The warranty is void if the case of
Product is opened by anyone other than Metrologic's repair department or authorized
repair centers.

THIS LIMITED WARRANTY, EXCEPT AS TO TITLE, IS IN LIEU OF ALL OTHER
WARRANTIES OR GUARANTEES, EITHER EXPRESS OR IMPLIED, AND
SPECIFICALLY EXCLUDES, WITHOUT LIMITATION, WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE UNDER THE
UNIFORM COMMERCIAL CODE, OR ARISING OUT OF CUSTOM OR CONDUCT.
THE RIGHTS AND REMEDIES PROVIDED HEREIN ARE EXCLUSIVE AND IN LIEU
OF ANY OTHER RIGHTS OR REMEDIES. IN NO EVENT SHALL METROLOGIC BE
LIABLE FOR ANY INDIRECT OR CONSEQUENTIAL DAMAGES, INCIDENTAL
DAMAGES, DAMAGES TO PERSON OR PROPERTY, OR EFFECT ON BUSINESS
OR PROPERTY, OR OTHER DAMAGES OR EXPENSES DUE DIRECTLY OR
INDIRECTLY TO THE PRODUCT, EXCEPT AS STATED IN THIS WARRANTY. IN NO
EVENT SHALL ANY LIABILITY OF METROLOGIC EXCEED THE ACTUAL AMOUNT
PAID TO METROLOGIC FOR THE PRODUCT. METROLOGIC RESERVES THE
RIGHT TO MAKE ANY CHANGES TO THE PRODUCT DESCRIBED HEREIN.

Corporate Headquarters

Metrologic Instruments, Inc. Customer Service: 1-800-ID-METRO
90 Coles Road Tel: [phone]
Blackwood, NJ 08012-4683 Fax: [phone]
Email: [e-mail]
Website: www.metrologic.com

Germany

Metrologic Instruments GmbH Tel: [phone]
Dornierstrasse 2 Fax: [phone]
82178 Puchheim b. Email: [e-mail]
Munich, Germany

29

APPENDIX E

Notices

This equipment has been tested and found to comply with limits for a Class A digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference when the equipment is operated in a commercial
environment. This equipment generates, uses and can radiate radio frequency energy and,
if not installed and used in accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this equipment in a residential area is
likely to cause harmful interference, in which case the user will be required to correct the
interference at his own expense. Any unauthorized changes or modifications to this
equipment could void the users authority to operate this device.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) This device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause undesired
operation.

Notice

This Class A digital apparatus complies with Canadian ICES-003.

Remarque

Cet appareil numérique de la classe A conformé a la norme NMB-003 du Canada.

Caution

Use of controls or adjustments or performance of procedures other than those specified
herein may result in hazardous laser light exposure. Under no circumstances should the
customer attempt to service the laser scanner. Never attempt to look at the laser beam, even
if the scanner appears to be nonfunctional. Never open the scanner in an attempt to look
into the device. Doing so could result in hazardous laser light exposure. The use of optical
instruments with the laser equipment will increase eye hazard.

Atención

La modificación de los procedimientos, o la utilización de controles o ajustes distintos de
los especificados aquí, pueden provocar una luz de láser peligrosa. Bajo ninguna
circunstancia el usuario deberá realizar el mantenimiento del láser del escáner. Ni intentar
mirar al haz del láser incluso cuando este no esté operativo. Tampoco deberá abrir el
escáner para examinar el aparato. El hacerlo puede conllevar una exposición peligrosa a la
luz de láser. El uso de instrumentos ópticos con el equipo láser puede incrementar el
riesgo para la vista.

Attention

L'emploi de commandes, réglages ou procédés autres que ceux décrits ici peut entraîner
de graves irradiations. Le client ne doit en aucun cas essayer d'entretenir lui-même le
scanner ou le laser. Ne regardez jamais directement le rayon laser, même si vous croyez
que le scanner est inactif. N'ouvrez jamais le scanner pour regarder dans l'appareil. Ce
faisant, vous vous exposez à une rayonnement laser qú êst hazardous. L'emploi
d'appareils optiques avec cet équipement laser augmente le risque d'endommagement de
la vision.

30

APPENDIX E (CONTINUED)

Achtung

Die Verwendung anderer als der hier beschriebenen Steuerungen, Einstellungen oder
Verfahren kann eine gefährliche Laserstrahlung hervorrufen. Der Kunde sollte unter keinen
Umständen versuchen, den Laser-Scanner selbst zu warten. Sehen Sie niemals in den
Laserstrahl, selbst wenn Sie glauben, daß der Scanner nicht aktiv ist. Öffnen Sie niemals
den Scanner, um in das Gerät hineinzusehen. Wenn Sie dies tun, können Sie sich einer
gefährlichen Laserstrahlung aussetzen. Der Einsatz optischer Geräte mit dieser
Laserausrüstung erhöht das Risiko einer Sehschädigung.

Attenzione

L’utilizzo di sistemi di controllo, di regolazioni o di procedimenti diversi da quelli descritti nel
presente Manuale può provocare delle esposizioni a raggi laser rischiose. Il cliente non
deve assolutamente tentare di riparare egli stesso lo scanner laser. Non guardate mai il
raggio laser, anche se credete che lo scanner non sia attivo. Non aprite mai lo scanner per
guardare dentro l’apparecchio. Facendolo potete esporVi ad una esposizione laser
rischiosa. L’uso di apparecchi ottici, equipaggiati con raggi laser, aumenta il rischio di
danni alla vista.

European Standard

Warning

This is a class A product. In a domestic environment this product may cause
radio interference in which case the user may be required to take adequate
measures.

Funkstöreigenschaften nach EN 55022:1998

Warnung!

Dies ist eine Einrichtung der Klasse A. Diese Einrichtung kann im
Wohnbereich Funkstörungen verursachen; in diesem fall kann vom Betrieber
verlangt werden, angemessene Maßnahmen durchführen.

Standard Europeo

Attenzione

Questo e' un prodotto di classe A. Se usato in vicinanza di residenze private
potrebbe causare interferenze radio che potrebbero richiedere all'utilizzatore
opportune misure.

Attention

Ce produit est de classe "A". Dans un environnement domestique, ce produit
peut être la cause d'interférences radio. Dans ce cas l'utiliseteur peut être
amené à predre les mesures adéquates

31

APPENDIX F

Patents

"Patent Information

This METROLOGIC product may be covered by one or more of the following
U.S. Patents:

U.S. Patent No.; 5,081,342; 5,260,553; 5,343,027; 5,686,717; 5,777,315;
5,828,049; 5,975,419; 5,984,185; 6,003,772; 6,006,993; 6,024,282;
6,062,479; 6,073,846; 6,076,736; 6,085,978; 6,085,980; 6,112,990;
6,185,659; 6,182,897; 6,199,759; 6,290,132; 6,328,215; 6,347,743;
6,360,947; 6,375,074; 6,415,980; 6,422,466; 6,439,462; 6,457,642;
6,457,646; 6,464,141; 6,474,556;

4,360,798; 4,369,361; 4,387,297; 4,460,120; 4,496,831; 4,593,186;
4,607,156; 4,673,805; 4,736,095; 4,758,717; 4,816,660; 4,845,350;
4,896,026; 4,923,281; 4,933,538; 4,992,717; 5,015,833; 5,017,765;
5,059,779; 5,117,098; 5,124,539; 5,130,520; 5,132,525; 5,140,144;
5,149,950; 5,180,904; 5,200,599; 5,229,591; 5,247,162; 5,250,790;
5,250,791; 5,250,792; 5,262,628; 5,280,162; 5,280,164; 5,304,788;
5,321,246; 5,324,924; 5,396,053; 5,396,055; 5,408,081; 5,410,139;
5,436,440; 5,449,891; 5,468,949; 5,479,000; 5,532,469; 5,545,889

No license right or sublicense is granted, either expressly or by implication,
estoppel, or otherwise, under any METROLOGIC or third party intellectual
property rights (whether or not such third party rights are licensed to
METROLOGIC), including any third party patent listed above, except for an
implied license only for the normal intended use of the specific equipment,
circuits, and devices represented by or contained in the METROLOGIC products
that are physically transferred to the user, and only to the extent of
METROLOGIC's license rights and subject to any conditions, covenants and
restrictions therein."

Other worldwide patents pending.

32

INDEX

A

ac input/outlet .............3-7, 9, 21, 28

accessories ...................................2

approvals.........4, 13, 20, 21, 30, 31

assignments

pin................................10, 27, 28

audible............................... 6, 10, 12

B

bar code ............1, 5, 10, 12, 18, 24

bar width...................................... 21

beep ..................6, 7, 10, 12, 23, 28

C

cable.......................... 2, 3, 4, 5, 7, 8

communication............. 10, 19, 27

pin assignments...........10, 27, 28

caution..................... 3, 4, 5, 6, 7, 30

cdrh .......................................13, 21

communication ...... 1, 22, 23, 27, 30

compliance .............. 3, 4, 6, 7, 9, 29

configuration procedures 1, 2, 5,

8-10, 19

customer service ............... ii, 29, 30

D

dc transformer ........................... 2, 9

decode capability......................... 28

default settings .................. 8, 22, 26

depth of field....1, 14, 15, 16, 17, 21

design specifications .............20, 21

E

electrical power supply .........2-7, 19

F

failure indicator(s)..................12, 19

H

host ..... 3, 4, 5, 6, 7, 8, 9, 12, 19, 23

I

indicators............................... 10, 12

input voltage....... 2-4, 21, 24, 27, 28

installation................. 3, 5, 8, 11, 29

interfaces ........ 1, 10, 19, 21, 22, 27

L

light pen ................ 1, 21, 22, 26, 27

light source.................. 3, 4, 6, 9, 27

M

maintenance ......................... 18, 19

N

notices......................................... 30

O

operating current......................... 21

operating temperture................... 21

P

parts........................................ 2, 10

pin assignments .............. 10, 27, 28

port.................. 1, 5, 7, 9, 10, 19, 21

power supply............ 3-7, 10, 19, 21

programming....................... 5, 8, 12

R

razzberry tone....................... 12, 19

repair........................................... 29

RMA............................................ 29

RS-232.............. 1, 9, 21, 22, 26, 27

S

scan pattern ............... 14-17, 19, 21

SELV................................. 3, 6, 7, 9

service..........................ii, 19, 29, 30

33

INDEX

specifications.........................20, 21

system interfaces ..........1, 8, 20, 22

T

tones..............................................6

transformers .................................. 9

troubleshooting............................19

V

ventilation.................................... 21

visual..................................... 10, 12

voltage ........................................ 21

W

warranty ...................................... 29

weight ......................................... 21

window........................ 2, 10, 18, 19

34

CONTACT INFORMATION AND OFFICE LOCATIONS

CORPORATE HEADQUARTERS
N

ORTH AMERICA

USA, New Jersey

Metrologic Instruments, Inc. Metrologic Instruments GmbH
Tel: 1-800-ID-METRO Fax: [phone] Tel: [phone] Fax: [phone]
Email: [e-mail] Email: [e-mail]

SOUTH AMERICA AND CENTRAL AMERICA

Brazil São Paulo

Metrologic do Brasil Ltda. Email: [e-mail]
Tel: [phone] Fax: [phone]
Email: [e-mail]

Tel: [phone] Fax: [phone]

Outside Brazil São Paulo

Metrologic South America
Tel: [phone] Fax: [phone] Metrologic Instruments Italia srl
Email: [e-mail]

ASIAN HEADQUARTERS

Asia, Singapore

Metrologic Asia (Pte) Ltd
Tel: [phone] Fax: [phone] Tel: [phone]
Email: [e-mail]

China

MTLG Auto ID Instruments (Shanghai) Co., Ltd
Tel: [phone] Fax: [phone] Metrologic Eria Ibérica, SL
Email: [e-mail]

Metro (Suzhou) Sales Office
Tel: [phone] Fax: [phone] Metrologic European Repair Center (MERC)
Email: [e-mail] Metrologic Eria Ibérica, SL
Tel: [phone] Fax: [phone]
Guangzhou Sales Office
Tel/: 86-20-38823476 Fax: [phone]
Email: [e-mail] Metrologic Instruments UK Limited
Tel: [phone]
Beijing Sales Office Fax: [phone]
Tel/Fax: [phone] Email: [e-mail]
Email: [e-mail]

Japan, Tokyo

Metrologic Japan Co., Ltd.
Tel: [phone] Fax: [phone] Email: [e-mail]
Email: [e-mail]

India, Bangalore

Metrologic India Tel: [phone]
Tel: [phone] Fax: [phone] Fax: [phone]
Email: [e-mail] Email: [e-mail]

EUROPEAN, MIDDLE EAST & AFRICAN
HEADQUARTERS

Germany, Munich

Germany, Austria and Switzerland

Tel: [phone] Fax: [phone]

Eastern Europe and Middle East

Italy, Bologna

Tel: [phone] Fax: [phone]

Fax: [phone]
Email: [e-mail]

Email: [e-mail]

France, Paris

Metrologic Eria France SA

Spain, Madrid

Tel: [phone] Fax: [phone]
Email: [e-mail]

United Kingdom, Basingstoke

Russia, Moscow

Metrologic Russia
Tel: [phone] Fax: [phone]

Poland, Warsaw

Metrologic Instruments Poland Sp.z o.o

March 2005

Printed in the USA

00- 02377A
