Metrologic Instruments IS3480-00 User Manual

LOCATIONS

CORPORATE HEADQUARTERS
NORTH AMERICA

EUROPEAN, MIDDLE EAST & AFRICAN
HEADQUARTERS

USA, NEW JERSEY GERMANY, MUNICH

Metrologic Instruments, Inc. Metrologic Instruments GmbH
Tel: 1-800-ID-METRO Fax: [phone] Tel: [phone] Fax: [phone]
Email: [e-mail] Email: [e-mail]

SOUTH AMERICA, BRAZIL SÃO PAULO GERMANY, MUNICH

Metrologic do Brasil Ltda. Metrologic Instruments GmbH
Tel: [phone] Fax: [phone] Tel: [phone] Fax: [phone]
Email: [e-mail] Email: [e-mail]

SOUTH AMERICA, OUTSIDE BRAZIL SÃO PAULO ITALY, BOLOGNA

Metrologic South America Metrologic Instruments Italia srl
Tel: [phone] Fax: [phone] Tel: [phone] Fax: [phone]
Email: [e-mail] Email: [e-mail]

ASIA, SINGAPORE FRANCE, PARIS

Metrologic Asia (Pte) Ltd Metrologic Eria France SA
Tel: [phone] Fax: [phone] Tel: [phone]
Email: [e-mail] Fax: [phone]

Email: [e-mail]

CHINA, SUZHOU

Metro Technologies Co., Ltd.
Tel: [phone] Fax: [phone] Metrologic Eria Ibérica, SL
Email: [e-mail] Tel: [phone] Fax: [phone]

Metro Sales Office
Tel: [phone] Fax: [phone] Metrologic Europe Repair Center (MERC)
Email: [e-mail] Metrologic Eria Ibérica, SL

SPAIN, MADRID

Email: [e-mail]

Tel: [phone] Fax: [phone]

JAPAN, TOKYO

Metrologic Japan Co., Ltd.
Tel: [phone] Fax: [phone] Metrologic Instruments UK Limited
Email: [e-mail] Tel: [phone]

UNITED KINGDOM, BASINGSTOKE

Fax: [phone]
Email: [e-mail]

RUSSIA, MOSCOW

Metrologic Russia
Tel: [phone] Fax: [phone]
Email: [e-mail]

Copyright

© 2004 by Metrologic Instruments, Inc. All rights reserved. No part of this work may be
reproduced, transmitted, or stored in any form or by any means without prior written
consent, except by reviewer, who may quote brief passages in a review, or provided for in
the Copyright Act of 1976.

Products and brand names mentioned in this document are trademarks of their respective
companies.

ii

TABLE OF CONTENTS

Introduction

Product Overview............................................................................................. 1

Scanner and Accessories................................................................................. 2

Scanner Components....................................................................................... 4

Maintenance..................................................................................................... 4

Caution and Serial Number Labels...................................................................5

Mounting Specifications ...................................................................................5

Installation

RS232, RS232 TTL or Light Pen...................................................................... 6

IBM 46xx or OCIA ............................................................................................ 7

Keyboard Wedge.............................................................................................. 8

Stand-Alone Keyboard Wedge ......................................................................... 9

Full Speed or Low Speed USB (Integrated) ................................................... 10

Low Speed USB (External with MX009)......................................................... 11

Notes for Laser Emulation.............................................................................. 11

Scanner Operation

Configurable Primary and Secondary Scan Pattern Modes ........................... 12

Configurable Button Functions ....................................................................... 12

Sweet Spot Mode........................................................................................... 17

Indicators

Audible ....................................................................................................... 18

Visual ......................................................................................................... 19

Failure ........................................................................................................ 20

Depth of Field Specifications

Normal Scan Zone .....................................................................................21

Reduced Scan Zone................................................................................... 22

Depth of Field by Bar Code Element Width

Normal Scan Zone .....................................................................................23

Reduced Scan Zone................................................................................... 24

IR Activation Range

Normal........................................................................................................ 25

Reduced..................................................................................................... 25

Troubleshooting Guide....................................................................................... 26

Design Specifications......................................................................................... 30

Applications and Protocols................................................................................. 32

Default Settings - Communication Parameters................................................... 33

Upgrading the Flash ROM Firmware.................................................................. 38

Scanner and Cable Terminations....................................................................... 39

Laser and Product Safety................................................................................... 43

Limited Warranty ................................................................................................ 45

Patents ............................................................................................................... 46

Index................................................................................................................... 47

iii

INTRODUCTION

Quantum™E is a miniature, omni-directional scanning engine with optional single­line scanning capability. The self-contained device is fully enclosed eliminating
the need for an external window or custom enclosure. It is designed for use in
OEM equipment such as price lookup systems and kiosks. Its slim design makes
it ideal for integration and use with flat-screens.

Key Product Features

• Fully Automatic Scanning Operation

• PowerLink Compatible

• Data Editing

• 7 Beeper Tones

• Programmable Depth of Field

• Easy Programming

• Flash - Upgradeable Firmware

• User Configurable Pattern

• CodeGate

• Sunrise 2005 Compliant

SCANNER INTERFACE

IS3480-00 Laser Emulation, RS232 Transmit/Receive

IS3480-9 OCIA and RS232 Transmit/Receive

®

IS3480-11 IBM 46xx and Full RS232

IS3480-38 RS232 Low Speed USB, HID

IS3480-39 RS232 Low Speed USB, POS

IS3480-40 Full Speed USB

IS3480-41 RS232/Light Pen Emulation

IS3480-47

IS3480-102 RS232, TTL

Keyboard Wedge, Stand-Alone Keyboard and RS232
Transmit/Receive

1

INTRODUCTION

Scanner and Accessories

BASIC KIT COMPONENTS

Part No. Description

IS3480

00-02026 IS3480 Installation and User’s Guide *

00-02407 MetroSelect® Configuration Guide *

00-02090 IS3480 Supplemental Configuration Guide *

* Guides also available for download at www.metrologic.com.

Quantum™E Scanner

OPTIONAL ACCESSORIES

Part No. Description

AC to DC Power Transformer - Regulated 5.2VDC @ 650 mA output.

45-45593 120V United States and Canada

45-45591 220V-240V Continental European

45-45592 220V-240V United Kingdom

46-46803 220V-240V Australia

46-46983 220V-240V China

xxx - specifies connection to the host

54-54xxx-3

(default)

53-53xxx-3

(optional)

PowerLink cable with built in power jack

2.1m (7') straight cord, short strain relief

PowerLink cable with built in power jack

2.7m (9') coiled cord, long strain relief

** Contact a Metrologic customer service representative for additional

information on the MVC and MX009 cable series and the host
connections available.

MVC** Metrologic Voltage Converter Cable ±12VDC to +5.2VDC

MX009-2** MX009 USB Converter Cable

Other items may be ordered for the specific protocol being used. To order additional items,
contact the dealer, distributor or call Metrologic’s customer service department at

1-800-436-3876

2

.

INTRODUCTION

Scanner and Accessories

OPTIONAL ACCESSORIES

Part No. Description

54-54002x-3 Keyboard Wedge PowerLink cable

54-54020x-3 Stand Alone Keyboard PowerLink cable

54-54213x-N-3

54-54214x-N-3

54-54235x-N-3

49-00462 Utility Cable, 203 mm (8") Length

54-54249x-N-3

USB Locking Power/Communication Cable,
3 m (10') straight cord, short strain relief

Full Speed USB Locking Power/Communication Cable,
5 m (17') straight cord, short strain relief

This cable is for use with full speed
USB (-40) interface only.

Low Speed USB Non-Locking Communication Cable

2.8 m (9.2') straight cord, short strain relief

Communication Cable, Host end Not Terminated
203 mm (8") straight cord, short strain relief

REPLACEMENT PARTS

Part No. Description

36-01822x-3 Rubber Utility Seal

Other items may be ordered for the specific protocol being used. To order additional items,
contact the dealer, distributor or call Metrologic’s customer service department at
1-800-436-3876.

3

INTRODUCTION

Scanner Components

Figure 1. Scanner Components

ITEM NO. DESCRIPTION

n

o
p
q
r
s
t
u
v

Utility Connector Located Under Rubber Seal

The rubber seal protecting the utility connector should
only be removed if the utility connector is to be used.

10-Pin RJ45, Female Socket

Blue, White and Yellow LED Indicators

Red Output Window (Laser Aperture)

Pin Hole for Cable Release

Speaker

Three M2.5 x 0.45 Threaded Mounting Points

Two M2.5 x 0.45 Threaded Mounting Points

Button

Maintenance

Smudges and dirt can interfere with the proper scanning of a bar code.
Therefore, the output window will need occasional cleaning.

1. Spray glass cleaner onto a lint free, non-abrasive cleaning cloth.

2. Gently wipe the scanner window.

4

INTRODUCTION

Caution and Serial Number Labels

Figure 2.

Mounting Specifications

Figure 3.

5

INSTALLATION

RS232, RS232 TTL or Light Pen

1. Turn off the host device.

2. Plug the male 10-pin RJ45 end

of the PowerLink cable into the
10-pin socket on the IS3480.

3. Connect the 9-pin female end of the

PowerLink cable to the host device.

Note: Skip to step 6 if receiving

power from the host device.

4. Plug the external power supply into

the power jack on the PowerLink
cable.

Check the AC input
requirements of the power
supply to make sure the
voltage matches the AC
outlet. The outlet must be
located near the equipment
and be easily accessible.

Figure 4.

5. Connect AC power to the transformer.

6. Turn on the host device.

When the scanner first receives power, the blue LED will turn on; the
scanner will simultaneously beep once and flash the white LED.

Plugging the scanner into the serial port of the PC does not guarantee
that scanned information will appear at the PC. A software driver and
correct configuration setting are also required for proper
communication to occur.

Caution

To maintain compliance with applicable standards, all circuits connected to the scanner
must meet the requirements for SELV (Safety Extra Low Voltage) according to EN/IEC

60950.

To maintain compliance with standard CSA C22.2 No. 60950/UL 60950 and norm
EN/IEC 60950, the power source should meet applicable performance requirements for
a limited power source.

6

INSTALLATION

IBM 46xx or OCIA

1. Turn off the host device.

2. Plug the male 10-pin RJ45 end

of the MVC cable into the
10-pin socket on the IS3480.

3. Connect the other end of the MVC

cable to the host device.

4. Turn on the host device.

When the scanner first receives power, the blue LED will turn on; the
scanner will simultaneously beep once and flash the white LED.

Figure 5.

Plugging the scanner into the serial port of the PC does not guarantee
that scanned information will appear at the PC. A software driver and
correct configuration setting are also required for proper
communication to occur.

Caution:
To maintain compliance with applicable standards, all circuits connected to the scanner
must meet the requirements for SELV (Safety Extra Low Voltage) according to EN/IEC

60950.

To maintain compliance with standard CSA C22.2 No. 60950/UL 60950 and norm
EN/IEC 60950, the power source should meet applicable performance requirements for
a limited power source.

7

INSTALLATION

Keyboard Wedge

1. Turn off the host device.

2. Plug the male 10-pin RJ45 end of

the PowerLink cable into the 10-pin
socket on the IS3480.

3. Disconnect the keyboard from the

host device.

4. Connect the “Y” end of the

PowerLink cable to the keyboard
and the keyboard port on the host
PC. If necessary use the
male/female adapter cable supplied
with the scanner for proper
connections.

5. Plug the external power supply into

the power jack on the PowerLink
cable.

Check the AC input
requirements of the power
supply to make sure the
voltage matches the AC
outlet. The outlet must be
located near the equipment
and be easily accessible.

Figure 6.

6. Connect AC power to the transformer.

7. Turn on the host device.

Powering the IS3480 directly from the host device can sometimes
cause interference with the operation of the scanner or the computer.
Not all computers supply the same current through the keyboard port.
For this reason, Metrologic recommends using an external power
supply. For additional information contact a Metrologic customer
service representative.

Caution:
To maintain compliance with applicable standards, all circuits connected to the scanner
must meet the requirements for SELV (Safety Extra Low Voltage) according to EN/IEC

60950.

To maintain compliance with standard CSA C22.2 No. 60950/UL 60950 and norm
EN/IEC 60950, the power source should meet applicable performance requirements for
a limited power source.

8

INSTALLATION

Stand-Alone Keyboard Wedge

1. Turn off the host device.

2. Plug the male 10-pin RJ45 end

of the PowerLink cable into the
10-pin socket on the IS3480.

3. Connect the other end of the

PowerLink cable to the keyboard
port on the host device.

4. Plug the external power supply into

the power jack on the PowerLink
cable.

Check the AC input
requirements of the power
supply to make sure the
voltage matches the AC
outlet. The outlet must be
located near the equipment
and be easily accessible.

5. Connect AC power to the

transformer.

6. Turn on the host device.

Figure 7.

Powering the IS3480 directly from the host device can sometimes
cause interference with the operation of the scanner or the computer.
Not all computers supply the same current through the keyboard port.
For this reason, Metrologic recommends using an external power
supply. For additional information contact a Metrologic customer
service representative.

Caution:
To maintain compliance with applicable standards, all circuits connected to the scanner
must meet the requirements for SELV (Safety Extra Low Voltage) according to EN/IEC

60950.

To maintain compliance with standard CSA C22.2 No. 60950/UL 60950 and norm
EN/IEC 60950, the power source should meet applicable performance requirements for
a limited power source.

9

INSTALLATION

Full Speed or Low Speed USB (Integrated)

1. Turn off the host device.

2. Plug the male 10-pin RJ45 end of

the USB PowerLink cable into the
10-pin socket on the IS3480.

3. Plug the other end of the USB

interface cable into the host
device’s USB port.

4. Plug the external power supply in

to the power jack on the USB
PowerLink cable.

Check the AC input
requirements of the power
supply to make sure the
voltage matches the AC
outlet. The outlet must be
located near the equipment
and be easily accessible.

5. Connect AC power to the

transformer.

6. Turn on the host device.

Plugging the scanner into the USB port of the PC does not guarantee
that scanned information will appear at the PC. A software driver and
correct configuration setting are also required for proper
communication to occur.

Caution:
To maintain compliance with applicable standards, all circuits connected to the scanner
must meet the requirements for SELV (Safety Extra Low Voltage) according to EN/IEC

60950.

To maintain compliance with standard CSA C22.2 No. 60950/UL 60950 and norm
EN/IEC 60950, the power source should meet applicable performance requirements for
a limited power source.

10

Figure 8.

INSTALLATION

Notes for Low Speed USB (External with MX009)

Metrologic’s MX009 USB cable is a device that converts serial RS232 formatted
data to either USB Keyboard or USB Point-of-Sale communication protocol.

Please refer to the MX009 USB Converter Cable Programming Guide
(MLPN 00-02574) supplied with your MX009 cable for detailed installation and
programming guidelines.

Notes for Laser Emulation

IS3480-00 Only

The IS3480-00 leaves the factory with the Laser Emulation Mode enabled. If the
Recall Defaults bar code is scanned while reconfiguring the scanner the laser
emulation mode will no longer be enabled.

Scan the following barcode to re-enable the laser emulation interface. This
feature is only supported for IS3480-00 models.

Enable Laser Emulation Mode

³999979

11

SCANNER OPERATION

Configurable Primary and Secondary Scan Pattern Modes

There are two configurable scan pattern modes available with the IS3480.

• The primary scan pattern mode is the default scan pattern active when the

scanner starts.

• The secondary scan pattern mode is activated by pressing the button

located on the side of the scanner. This mode is also referred to as the
button mode. For additional information on QuantumE’s button modes and
an example of each, please refer to Configurable Button Functions below.

The scanner returns to the primary scan pattern mode after a double
click of the button or if the unit has not scanned a bar code for the
duration of a pre-configured time limit.

Each pattern mode can be configured to use one of three scan patterns listed
below. Please refer to the MetroSelect Configuration Guide for information on
changing the default scan pattern settings.

• all scan lines on (omnidirectional reading)

• single-line (menu reading)

• horizontal raster

If CodeGate is enabled, it will apply to the secondary pattern mode
when scanning. For detailed information on CodeGate and the button
refer to the Configurable Button Functions.

Configurable Button Functions

The button on the side of the IS3480 can be configured to function in one of
four modes.

• Button Click Mode, with CodeGate Enabled (Default)

• Button Click Mode, with CodeGate Disabled

• Button Hold Mode, with CodeGate Enabled

• Button Hold Mode, with CodeGate Disabled

The following pages include examples of how the button will function when the
unit has been configured to operate in each of the four button modes.

12

SCANNER OPERATION

Configurable Button Functions

SECONDARY SCAN PATTERN

BUTTON CLICK MODE WITH CODEGATE ENABLED

For illustration purposes the unit’s primary scan pattern has been set to
all scan lines (omnidirectional reading) and the secondary pattern has
been set to single-line (menu reading) with a 10 second button click
timeout configured.

1. The primary scan pattern is active when the
scanner starts.

2. To activate the secondary scan pattern,
press and release the button.

3. To decode and transmit the bar code,
press and release the button.
The scanner will beep once.

4. To reactivate the primary scan pattern,
double click the button or after 10-seconds
of no-scanning the unit will automatically
reactivate the primary pattern.

13

SCANNER OPERATION

Configurable Button Functions

SECONDARY SCAN PATTERN

BUTTON CLICK MODE WITH CODEGATE DISABLED

For illustration purposes the unit’s primary scan pattern has been set to
all scan lines (omnidirectional reading) and the secondary pattern has
been set to single-line (menu reading) with a 10 second button click
timeout configured.

1. The primary scan pattern is active when the
scanner starts.

2. To activate the secondary scan pattern,
press and release the button.

14

3. The unit will beep once as it decodes and
transmits the bar code.

4. To reactivate the primary scan pattern,
double click the button or after 10-seconds
of no-scanning the unit will automatically
reactivate the primary pattern.

SCANNER OPERATION

Configurable Button Functions

SECONDARY SCAN PATTERN

BUTTON HOLD MODE WITH CODEGATE ENABLED

For illustration purposes the unit’s primary scan pattern has been set to
all scan lines (omnidirectional reading) and the secondary pattern has
been set to single-line (menu reading) with a 10 second button click
timeout configured.

1. The primary scan pattern is active when the
scanner starts.

2. To activate the secondary scan pattern,
press and hold the button.

3. To scan the bar code, align the laser line
over the bar code while continuing to hold
down the button.

4. To transmit the bar code, release the
button. The scanner will beep once.

5. To scan and transmit additional bar codes,
repeat steps 2 through 4.

6. The primary scan pattern will automatically
reactivate after the button is released and no
bar code is present in the scan field.

15

SCANNER OPERATION

Configurable Button Functions

SECONDARY SCAN PATTERN

BUTTON HOLD MODE WITH CODEGATE DISABLED

For illustration purposes the unit’s primary scan pattern has been set to
all scan lines (omnidirectional reading) and the secondary pattern has
been set to single-line (menu reading) with a 10 second button click
timeout configured.

1. The primary scan pattern is active when the
scanner starts.

2. To activate the secondary scan pattern,
press and hold the button.

3. To scan and transmit the bar code, align the
laser line over the bar code while continuing
to hold down the button. The scanner will
beep once to indicate the bar code has been
scanned and transmitted.

16

4. The primary scan pattern will automatically
reactivate after the button is released and no
bar code is present in the scan field.

SCANNER OPERATION

Sweet Spot Mode

The sweet spot mode is used to determine where the maximum read rate area or “sweet spot” is located for a specific bar code type. When activated this mode provides visual and audible feedback indicating how the scanner is scanning.

Number of Illuminated LEDs Beeper Pitch % of Maximum Read Rate

4 high 81 - 100%

3 61 - 80%

2 41 - 60%

1 21 - 40%

0 low 0 - 20%

For further information on the sweet spot mode and instructions on how to enable
it, refer the MetroSelect Configuration Guide (00-02407).

17

SCANNER OPERATION

Audible Indicators

When the IS3480 is in operation, it can provide audible feedback. These sounds
indicate the status of the scanner. Eight settings are available for the tone of the
beep (normal, 6 alternate tones and no tone). For instruction on how to change
the tone of the beeper, refer to the MetroSelect Configuration Guide (00-02407).

One Beep

When the scanner first receives power the white LED will flash, the
blue LED will turn on and the scanner will beep once (the white
LED will remain on for the duration of the beep). The scanner is
now ready to scan.

When the scanner successfully reads a bar code, the white LED
will flash and the scanner beeps once (if configured to do so). If the
scanner does not beep once and the white light does not flash, then
the bar code has not been successfully read.

Razzberry Tone

This is a failure indicator. Refer to Failure Mode Indicators
on page 20.

Three Beeps - during operation

18

When placing the scanner in configuration mode, the white LED will
flash while the scanner simultaneously beeps three times. The
white and blue LEDs will continue to flash until the unit exits
configuration mode. Upon exiting configuration mode, the scanner
will beep three times and the white LED will stop flashing.

When configured, 3 beeps can also indicate a communications
timeout during normal scanning mode.

When using one-code-programming, the scanner will beep three
times: the current selected tone, followed by a short pause, a high
tone and a low tone. This tells the user that the single configuration
bar code has successfully configured the scanner.

Three Beeps - on power up

This is a failure indicator. Refer to Failure Mode Indicators
on page 20.

SCANNER OPERATION

Visual Indicators

There are four LEDs located on the top of the IS3480. When the scanner is on,
the flashing or constant illumination of the LEDs indicates the status of the
current scan and the scanner.

No LEDs

The LEDs will not be illuminated if the scanner is not receiving power from
the host or transformer. They are also not illuminated when all lasers are
turned off for any reason.

Steady Blue

When the laser is active, the blue LED is illuminated. The blue LED will
remain illuminated until the laser is deactivated.

Steady Blue and Single White Flash

When the scanner successfully reads a bar code, the white LED will flash
and the scanner will beep once. If the white LED does not flash or the
scanner does not beep once, then the bar code has not been successfully
read.

Steady White and Blue

After a successful scan, the scanner transmits the data to the host device.
Some communication modes require that the host inform the scanner when
data is ready to be received. If the host is not ready to accept the
information, the scanner’s white LED will remain on until the data can be
transmitted.

Alternating Blue and White Flashes

This indicates the scanner is in program mode. A razzberry tone indicates
that an invalid bar code has been scanned in this mode.

Steady White, Blue Off

This indicates the scanner may be waiting for communication from the host.

19

SCANNER OPERATION

Failure Mode Indicators

Flashing Blue and One Razzberry Tone

This indicates that the scanner has experienced a laser subsystem failure.
Return the unit to an authorized service center for repair.

Flashing Blue and White and Two Razzberry Tones

This indicates that the scanner has experienced a motor failure. Return the
unit to an authorized service center for repair.

Continuous Razzberry Tone with Both LEDs Off

If, upon power up, the scanner emits a continuous razzberry tone, then the
scanner has an electronic failure. Return the unit to an authorized service
center for repair.

Three Beeps - On Power Up

If the scanner beeps 3 times on power up then, the nonvolatile memory that
holds the scanner configuration has failed. Return the unit to an authorized
service center for repair.

20

SCANNER OPERATION

Depth of Field Specifications*

Normal Scan Zone

Specifications are based on a 0.33 mm (13 mil) bar code.

Figure 9. Normal Depth of Field

* All specifications are subject to change without notice.

21

SCANNER OPERATION

Depth of Field Specifications*

Reduced Scan Zone

Specifications are based on a 0.33 mm (13 mil) bar code.

Figure 10. Reduced Depth of Field

* All specifications are subject to change without notice.

22

SCANNER OPERATION

Depth of Field by Bar Code Element Width*

Normal Scan Zone

MINIMUM BAR CODE ELEMENT WIDTH

ABCDEF

mm

mils

* All specifications are subject to change without notice.

.13 .15 .19 .25 .33 .66

5.2 5.7 7.5 10 13 26

Figure 11. Normal Scan Zone by Bar Code Element Width

23

SCANNER OPERATION

Depth of Field by Bar Code Element Width*

Reduced Scan Zone

MINIMUM BAR CODE ELEMENT WIDTH

ABCDEF

mm

mils

* All specifications are subject to change without notice.

24

.13.15.19.25.33.66

5.2 5.7 7.5 10 13 26

Figure 12. Reduced Scan Zone by Bar Code Element Width

SCANNER OPERATION

IR Activation Range*

Normal

Figure 13. Normal IR Activation Range

Reduced

Figure 14. Reduced IR Activation Range

* All specifications are subject to change without notice.

25

TROUBLESHOOTING GUIDE

The following guide is for reference purposes only. Contact a Metrologic
representative at 1-800-ID-METRO or 1-800-436-3876 to preserve the limited
warranty terms on page 45.

Symptoms Possible Cause(s) Solution

All Interfaces

The unit has no
LEDs, beeper
or motor spin.

The unit has no
LEDs and / or
beeper.

There are
multiple scans
upon
presentation of
code.

The unit powers
up but does not
beep.

The unit powers
up but does not
scan and/or
beep.

No power is being
supplied to the
scanner.

No power is being
supplied to the
scanner from host.

The same symbol
timeout is set too
short.

The beeper is disabled. Enable the beeper.

No tone is selected. Select a tone.

The unit is trying to
scan a particular
symbology that is not
enabled.

The scanner has been
programmed for a
character length lock,
or a minimum length
and bar code being
scanned does not
satisfy the
programmed criteria

Check the transformer, outlet
and power strip. Make sure the
cable is plugged into the
scanner.

Some host systems cannot
supply enough current to power
the IS3480. Use the power
supply included with the
scanner.

Adjust the same symbol timeout
for a longer time increment.

UPC/EAN, Code 39, Interleaved
2 of 5, Code 93, Code 128 and
Codabar are enabled by default.
Verify that the type of bar code
being read has been selected

Verify that the bar code that is
being scanned falls into the
criteria.

Typical of Non-UPC/EAN codes.
The scanner defaults to a
minimum of 4 character bar
code.

26

TROUBLESHOOTING GUIDE

Symptoms Possible Cause(s) Solution

All Interfaces

The unit scans
a bar code, but
locks up after
the first scan
(the white LED
stays on).

The unit scans
but the data
transmitted to
the host is
incorrect.

Scanner beeps
at some bar
codes and NOT
for others of the
same bar code
symbology.

The scanner is
configured to support
some form of host
handshaking but is not
receiving the signal.

The scanner’s data
format does not match
the host system
requirements.

The print quality of the
bar code is suspect.

The aspect ratio of the
bar code is out of
tolerance.

The bar code may
have been printed
incorrectly.

The scanner is not
configured correctly
for the type of bar
code.

If the scanner is setup to support
ACK/NAK, RTS/CTS,
XON/XOFF or D/E, verify that
the host cable and host are
supporting the handshaking
properly.

Verify that the scanner’s data
format matches the format
required by the host.
Make sure that the scanner is
connected to the proper host
port.

The type of printer and/or the
printer settings could be the
problem.

Check the print mode or change
the printer settings. For
example, change to econo mode
or high speed.

Check if it is a check digit,
character or border problem.

Check if check digits are set
properly.

The minimum symbol
length setting does not
work with the bar
code.

Check if the correct minimum
symbol length is set.

27

TROUBLESHOOTING GUIDE

Symptoms Possible Cause(s) Solution

All Interfaces

During power
up the unit
beeps 3 times.

During power
up the unit
razzes
continuously.

During power
up the unit
razzes once
and the blue
LED flashes.

During power
up the unit
razzes twice
and both LEDs
flash.

RS232 Only

The unit powers
up OK and
scans OK but
does not
communicate
properly to the
host.

There is a non-volatile
RAM failure.

There is a RAM or
ROM failure.

There is a VLD failure.

There is a scanner
motor failure.

The com port at the
host is not working or
is not configured
properly.

The cable is not
connected to the
proper com port.

The com port is not
operating properly.

Contact a Metrologic service
representative.

Contact a Metrologic service
representative.

Contact a Metrologic service
representative.

Contact a Metrologic service
representative.

Check to make sure that the
baud rate and parity of the
scanner and the communication
port match and that the program
is looking for RS232 data.

28

TROUBLESHOOTING GUIDE

Symptoms Possible Cause(s) Solution

RS232 Only

The host is
receiving data
but the data does
not look correct.

Characters are
being dropped.

Keyboard Wedge Only

The unit scans
the bar code
but there is no
data.

The unit scans
but the data is
not correct.

The unit is not
transmitting
each character.

The scanner and host
may not be configured
for the same interface.

The intercharacter
delay needs to be
added to the
transmitted output.

The unit may not be
configured correctly.

The unit may not be
configured correctly.

The unit may not be
configured correctly.

Check that the scanner and the
host are configured for the same
interface.

Add some intercharacter delay to
the transmitted output by using
the MetroSelect Configuration

MLPN 00-02407).

Guide (

Make sure the scanner is
configured for the appropriate
mode.

Make sure that the proper PC
type (ie. AT, PS2 or XT) is
selected.

Verify correct country code and
data formatting are selected.

Adjust the intercharacter delay.

Increase the interscan code
delay setting. Adjust whether
the F0 break is transmitted. It
may be necessary to try both
settings.

Alpha characters
show as lower
case.

Everything
works except
for a couple of
characters.

The computer is in
caps lock mode.

These characters may
not be supported by
the current country’s
key look up table.

Enable caps lock detect setting
of the scanner to detect whether
the PC is operating in caps lock.

Try operating the scanner
in Alt Mode.

29

DESIGN SPECIFICATIONS

Operational

Light Source:

Laser Power: 1.1 mW

Normal Depth of Field: 25 mm - 280 mm (1”- 11”)

Reduced Depth of Field: 25 mm - 150 mm (1”- 6”)

Omni Scan

Scan Speed: 1650 scan lines per second

No. of Scan Lines: 20

Single-Line

Scan Speed: 80 scan lines per second

No. of Scan Lines: 1

Motor Speed: 5000 RPM

Min Bar Width: 0.127 mm (5.0 mil)

Decode Capability:

System Interfaces:

Print Contrast: 35% minimum reflectance difference

No. Characters Read:

Beeper Operation: 7 tones or no beep

Indicators (LED):

Visible L

All standard 1-D bar codes including RSS-14,
RSS-Expanded, and RSS-14 Limited

RS232, Keyboard Wedge, Stand-Alone Keyboard, Light Pen
Emulation, IBM468x/469x, USB (low speed and full speed),
Laser Emulation, RS232 TTL

Up to 80 data characters
Maximum number will vary based on symbology and density.

Blue = laser on, ready to scan

White = good read, decoding

aser Diode (VLD) @ 650 nm

IS3480

0.33 mm (13 mil)
bar code

Mechanical

Width: 63 mm (2.48”)

Depth: 50 mm (1.97”)

Height: 68 mm (2.68”)

Weight: 6 oz (170 g)

Specifications subject to change without notice.

30

DESIGN SPECIFICATIONS

Electrical

Voltage Supply: 5VDC ± 0.25V

Operating Power: 1.375 W

Standby Power: 1.0 W

Operating Current: 275 mA typical at 5VDC

Standby Current: 200 mA typical at 5VDC

DC Transformers: Class II; 5.2VDC @ 650 mA

Laser Class 1:

EMC: FCC, ICES-003 & EN 55022 Class A

Environmental

Operating Temperature: -20°C to 40°C (-4°F to 104°F)

Storage Temperature: -40°C to 60°C (-40°F to 140°F)

Humidity: 5% to 95% relative humidity, non-condensing

Contaminants: Sealed to resist airborne particulate contaminants

Ventilation: None required

IEC 60825-1:1993+A1:1997+A2:2001
EN 60825-1:1994+A11:1996+A2:2001

IS3480

Specifications subject to change without notice.

31

APPLICATIONS AND PROTOCOLS

The model number on each scanner includes the scanner number and factory
default communications protocol.

CANNER

S

VERSION

IDENTIFIER

COMMUNICATION PROTOCOL(S)

00 Laser Emulation and RS232 Transmit/Receive

9 OCIA and RS232 Transmit/Receive

11 IBM 46XX and Full RS232C

38 RS232 Low Speed USB, HID

IS3480

39 RS232 Low Speed USB, POS

40 Full-Speed USB

41 Full RS232C/Light Pen Emulation

47

102

Keyboard Wedge, Stand-Alone Keyboard and
RS232 Transmit/Receive

RS232, Transistor to T

ransistor Logic (TTL)

The IS3480 scanner with Built-in PC Keyboard Wedge Interface is designed to
be used for keyboard emulation only. Many RS232 programmable
functions (e.g. formatting) available in other Metrologic scanners are also
available as keyboard wedge functions.

The following are the most important selectable options specific to the keyboard
wedge.

Keyboard Type

®

• ** AT (includes IBM

PS2 models 50, 55, 60, 80)

• XT

• IBM PS2 (includes models 30, 70, 8556)

Keyboard Country Type

• USA ** • German • Spanish

• Belgium • Italian • Swiss

• French • Japan • United Kingdom

** Default setting. For a complete list of default settings, see Default Settings -

Communication Parameters starting on page 33 of this guide. Refer to the

MetroSelect

®

Programming Guide (MLPN 00-02407) or MetroSet2’s help files

for information on how to change the default settings.

32

DEFAULT SETTINGS - COMMUNICATION PARAMETERS

Many functions of the scanner can be "programmed" - that is enabled or
disabled. The scanner is shipped from the factory programmed to a set of
default conditions. The default parameter of the scanner has an asterisk ( * ) in
the charts on the following pages. If an asterisk is not in the default column then
the default setting is Off or Disabled. Every interface does not support every
parameter. If the interface supports a parameter listed in the charts on the
following pages, a check mark (9) will appear.

RS232*

OR

LIGHT

PARAMETER DEFAULT OCIA USB

UPC/EAN

Code 128

Code 93

Codabar

Interleaved 2 of 5 (ITF)

MOD 10 Check on ITF

Code 11

Code 39

Full ASCII Code 39

MOD 43 Check on Code 39

MSI-Plessey

MSI-Plessey
10/10 Check Digit

MSI-Plessey
MOD 10 Check Digit

Paraf Support

ITF Symbol Lengths

Minimum Symbol Length

Symbol Length Lock

RSS14 Enable

RSS14 ID “]e0”

RSS14 App ID “01”

RSS14 Check Digit

RSS Expanded Enable

*
*
*
*
*

*

Variable

4

None

*
*
*

IBM

RS232

TTL

PEN

46XX

KBW

9 9 9 9 9 9 9

9 9 9 9 9 9 9

9 9 9 9 9 9 9

9 9 9 9 9 9 9

9 9 9 9 9 9 9

9 9 9 9 9 9 9

9 9 9 9 9 9 9

9 9 9 9 9 9 9

9 9 9 9 9 9 9

9 9 9 9 9 9 9

9 9 9 9 9 9 9

9 9 9 9 9 9 9

9 9 9 9 9 9 9

9 9 9 9 9 9 9

9 9 9 9 9 9 9

9 9 9 9 9 9 9

9 9 9 9 9 9 9

9 9 9 9 9 9 9

9 9 9 9 9 9 9

9 9 9 9 9 9 9

9 9 9 9 9 9 9

9 9 9 9 9 9 9

LASER

EMULATION

33

DEFAULT SETTINGS - COMMUNICATION PARAMETERS

RS232*

OR

LIGHT

PARAMETER DEFAULT OCIA USB

Expanded ID “]e0”

RSS Limited Enable

RSS Limited ID “]e0”

RSS Limited App ID “01”

RSS Limited Check Digit

Bars High as Code 39

Spaces High as Code 39

Bars High as Scanned

Spaces High as Scanned

DTS/SIEMENS

DTS/NIXDORF

NCR F

NCR S

Poll Light Pen Source

Beeper Tone

Beep/Transmit Sequence

Communication Timeout

Razzberry Tone on Timeout

Three Beeps on Timeout

No Beeps on Timeout

Enter Power Save Mode

*

*
*
*
*

*

Normal

Before

Transmit

None

*

10 mins.

RS232

TTL

9 9 9 9 9 9 9

9 9 9 9 9 9 9

9 9 9 9 9 9 9

9 9 9 9 9 9 9

9 9 9 9 9 9 9

9

9

9

9

9 9 9 9 9 9 9

9 9 9 9 9 9 9

9 9 9 9 9 9 9

9 9 9 9 9 9 9

9 9 9 9 9 9 9

9 9 9 9 9 9 9

9 9 9 9 9 9 9

IBM

PEN

46XX

9 9

9 9

9 9

9 9

9

KBW

LASER

EMULATION

Same Symbol Rescan
Timeout: 500 msecs
Programmable in 50 msec
steps (MAX 6.35 seconds)

Intercharacter Delay
Programmable in 1 msec
steps (MAX 255 msecs)

Number of Scan Buffers

34

*

1 msecs

10 msecs in

KBW

1

9 9 9 9 9 9 9

9 9 9 9 9

9 9 9 9 9 9 9

DEFAULT SETTINGS - COMMUNICATION PARAMETERS

RS232*

OR

LIGHT

PARAMETER DEFAULT OCIA USB

Transmit UPC-A
Check Digit

*

RS232

TTL

9 9 9 9 9 9 9

PEN

IBM

46XX

KBW

LASER

EMULATION

Transmit UPC-E
Check Digit

Expand UPC-E

Convert UPC-A to EAN-13

Transmit Lead Zero on
UPC-E

Convert EAN-8 to EAN-13

Transmit UPC-A
Number System

Transmit UPC-A
Manufacturer ID#

Transmit UPC-A Item ID#

Transmit Codabar
Start/Stop Characters

CLSI Editing (Enable)

Transmit Mod 43 Check
Digit on Code 39

Transmit Code 39
Stop/Start Characters

Transmit Mod 10/ITF

Transmit MSI-Plessey
Check Characters

Parity

Baud Rate

8 Data Bits

7 Data Bits

Stop Bits

Transmit Sanyo ID
Characters

*

*

*

Space

9600

*

2

9 9 9 9 9 9

9 9 9 9 9 9 9

9 9 9 9 9

9 9 9 9 9 9 9

9 9 9 9 9

9 9 9 9 9 9 9

9 9 9 9 9 9 9

9 9 9 9 9 9 9

9 9 9 9 9

9 9 9 9 9

9 9 9 9 9

9 9 9 9 9

9 9 9 9 9

9 9 9 9 9

9

9

9

9

9

9 9 9

35

DEFAULT SETTINGS - COMMUNICATION PARAMETERS

RS232*

OR

LIGHT

PARAMETER DEFAULT OCIA USB

Nixdorf ID

LRC Enabled

UPC Prefix

UPC Suffix

Transmit AIM ID
Characters

STX Prefix 9

RS232

TTL

9 9 9

9 9 9

9 9 9

9

9 9

9 9 9

9 9

PEN

IBM

46XX

KBW

LASER

EMULATION

ETX Suffix

Carriage Return

Line Feed - disabled by
default in KBW

Tab Prefix

Tab Suffix

“DE” Disable Command

“FL” Laser Enable
Command

DTR Handshaking Support

RTS/CTS Handshaking

Character RTS/CTS

Message RTS/CTS

XON/XOFF Handshaking

ACK/NAK

Two Digit Supplements

Five Digit Supplements

Bookland

977 (2 digit) Supplemental
Requirement

9 9 9

*

*

9 9 9

9 9 9

9 9 9

9 9 9

9

9

9

9

*

9

9

9

9

9 9 9

9 9 9

9 9 9

as code

39

as code

39

as code

39

9 9 9 9 9 9 9

9 9

9 9

9 9

as code

39

as code

39

as code

39

36

DEFAULT SETTINGS - COMMUNICATION PARAMETERS

RS232*

OR

LIGHT

PARAMETER DEFAULT OCIA USB

Supplements are not
Required

*

RS232

TTL

9 9 9 9 9 9 9

PEN

IBM

46XX

KBW

LASER

EMULATION

Two Digit Redundancy

Five Digit Redundancy

100 msec to Find
Supplement
Programmable in
100msec steps
(MAX 800 msec)

Coupon Code 128

Programmable Code
Lengths

Programmable Prefix
Characters

Programmable Suffix
Characters

Prefixes for individual
Code Types

Editing

Inter Scan-Code Delay
Programmable
(100 µsec steps)

Function/Control Key
Support

Minimum Element Width
Programmable in 5.6 µsec
steps

*

*

7 avail.

10

avail.

10

avail.

800

µsec

1 msec

9 9 9 9 9 9 9

9 9 9 9 9 9 9

9 9 9 9 9 9 9

9 9 9

as code

39

9 9

as code

9 9 9 9 9 9 9

9

9

9

9

9

9

9 9 9

9 9 9 9 9 9 9

9

9

9 9

39

Normal Depth of Field

Reduced Depth of Field

Sweet Spot Mode

9 9 9 9 9 9 9

*

9 9 9 9 9 9 9

9 9 9 9 9 9 9

37

UPGRADING THE FLASH ROM FIRMWARE

The MetroSet2 program is a functional component of Metrologic’s new line of
Flash- based scanners. This program allows the user of a Metrologic scanner to
quickly upgrade to a new or custom version of firmware. It requires the use of a
personal computer running Windows 95 or greater and the use of a serial port.
The user merely connects the scanner to a serial port on the PC, launches the
MetroSet2 program, and blasts off to new software upgrades.

Each IS3480, regardless of the version number or communication protocol, can
be upgraded. In other words, all RS232 (-41), keyboard wedge (-47), light pen
(-41), laser emulation (-00), OCIA (-9), IBM 468X/469X (-11), low speed HID
USB (-38), low speed POS USB (-39), integrated full speed USB (-40), and
RS232, TTL (-102) units can be upgraded. To upgrade all units, a power supply
and PowerLink cable
(

MLPN 54-54014) are required.

RS232 units can be upgraded using the standard PowerLink cable
(MLPN 53-53xxx-3 or 54-54xxx-3).

The program guides the user with its simplistic one click approach. The user
must first select the file. Once the file is selected and verified, the scanner is
ready to be upgraded. Press the “Flash Scanner” button to upgrade the scanner.
The unit will go into a “flash mode” – both the blue and white LEDs will be on.
The user can follow the progress of the upgrade by watching the screen for
details. When the upgrade is complete, the scanner will respond with its normal
one beep on power up. If two beeps occur, the scanner did not upgrade
properly. Contact a Metrologic service representative for additional assistance.

MetroSet2 incorporates all functions that were previously in Meteor.

38

SCANNER AND CABLE TERMINATIONS

Scanner Pinout Connections

The IS3480 scanner interfaces terminate
to a 10-pin modular socket. The serial #
label indicates the interface enabled when
the scanner is shipped from the factory.

Figure 15.

IS3480-47 Keyboard Wedge

and Stand-Alone Keyboard

Pin Function Pin Function

1 Ground 1 Ground
2 RS232 Transmit Output 2 RS232 Transmit Output
3 RS232 Receive Input 3 RS232 Receive Input
4 PC Data 4 RTS Output
5 PC Clock 5 CTS Input
6 KB Clock 6 DTR Input/LTPN Source
7 PC +5V 7 Reserved
8 KB Data 8 LTPN Data
9+5VDC 9+5VDC

10 Shield Ground 10 Shield Ground

IS3480-102 RS232, TTL

Pin Function

1 Ground
2 Transmit (Full RS232)
3 Receive (Full RS232)
4 RTS Output (TTL RS232)
5 CTS Input (TTL RS232)
6 DTR Input (TTL RS232)
7 Transmit (TTL RS232)
8 Receive (TTL RS232)
9+5VDC

10 Shield Ground

IS3480-41

RS232C and Light Pen Emulation

IS3480-40 Full Speed USB

Pin Function Pin Function

1 Ground 1 Ground
2 RS232 Transmit Output 2 No Connect
3 RS232 Receive Input 3 No Connect
4 RTS 4 No Connect
5 CTS 5 No Connect
6USB D+ 6D+
7 V USB 7 PC +5V/V_USB
8USB D- 8D­9 +5VDC 9 No Connect

10 Shield Ground 10 Drain Wire

Continued on next page.

RS232 Low Speed USB,

HID IS3480-38 and POS IS3480-39

39

SCANNER AND CABLE TERMINATIONS

IS3480-11 IBM 468X/469X IS3480-9 OCIA

Pin Function Pin Function

1 Ground 1 Ground
2 RS232 Transmit Output 2 RS232 Transmit Output
3 RS232 Receive Input 3 RS232 Receive Input
4 RTS Output 4 RDATA
5 CTS Input 5 RDATA Return
6 DTR Input 6 Clock In
7 IBM B-Transmit 7 Clock Out

8 IBM A+ Receive 8

9+5VDC 9+5VDC

10 Shield Ground 10 Shield Ground

IS3480-00 Laser Emulation

Pin Function

Ground

1
2 RS232 Transmit Output

RS232 Receive Input

3

Flip Sense/Start of Scan Output

4

Proximity Detect/Trigger Emulation Output

5

Scan/Laser Enable Input

6

Reserved

7

Data Out

8

+5VDC

9

Shield Ground

10

Clock in Return/
Clock out Rtrn

Insulation Displacement Connector

(IDC), 6-pin Utility Connector

Pin Function

1 Laser On Indicator (Output)
2 Good Read Indicator (Output)
3 Beeper
4 Activate Button (Input)
5 General Purpose (Output)
6 Ground

40

Figure 16.

SCANNER AND CABLE TERMINATIONS

Cable Connector Configurations (Host End)

“Standard” PowerLink Cable

53-53xxx-3 coiled or

54-54xxx-3 straight

Pin Function

1 Shield Ground
2 RS232 Transmit Output
3 RS232 Receive Input
4 DTR Input/Light Pen Source
5 Power/Signal Ground
6 Light Pen Data

7

CTS Input
8 RTS Output
9+5VDC

USB Power/Communication Cable

54-54213x-N-3, 54-540214x-N-3 or

54-54235x-N-3

Pin Function

1 PC +5V/V_USB
2D­3D+
4 Ground

Shield Shield

Locking with Power

-

USB Type A

95

61

-

USB

Non-Locking

Stand Alone Keyboard PowerLink

Cable 54-54020x-3

Pin Function

1 PC Data
2 No Connect
3 Power Ground
4 +5VDC PC Power to KB
5 PC Clock
6 No Connect

6-Pin Male Mini-DIN Connector

41

SCANNER AND CABLE TERMINATIONS

Cable Connector Configurations (Host End)

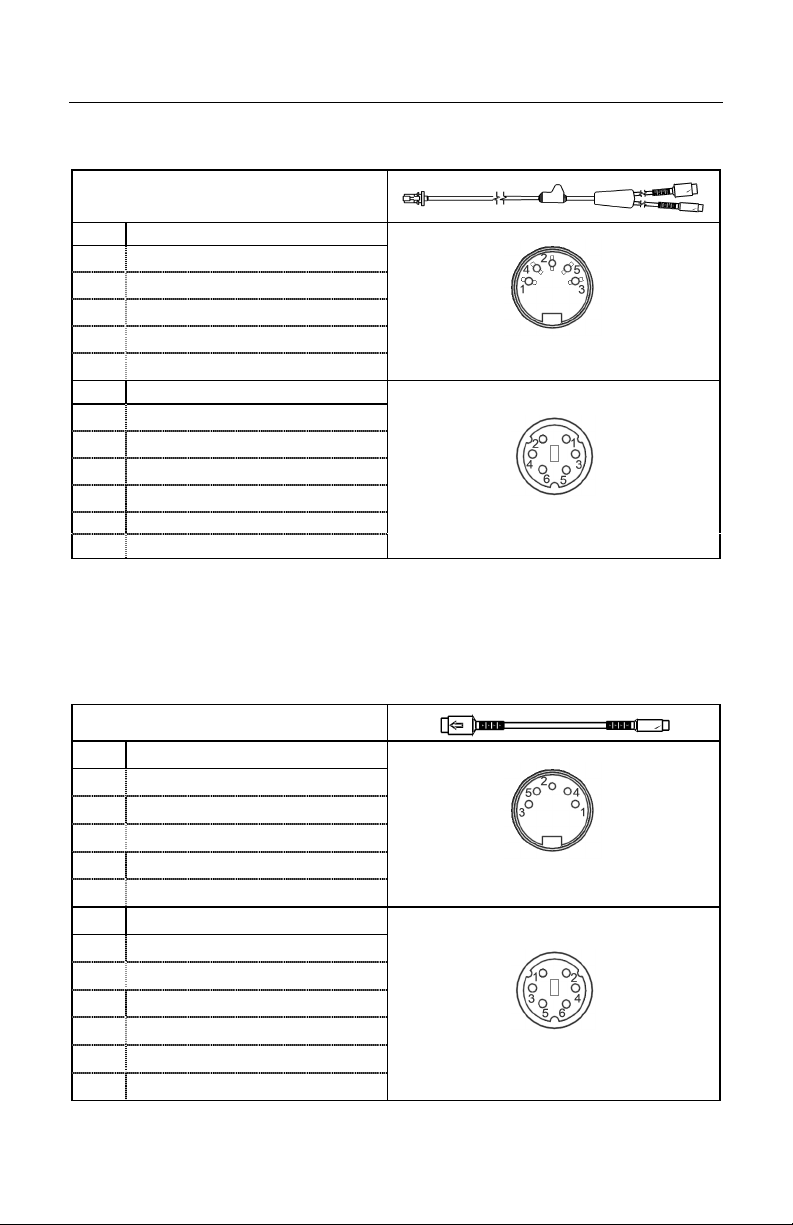

Keyboard Wedge PowerLink Cable

54-54002x-3

Pin Function

1 Keyboard Clock
2 Keyboard Data
3 No Connect
4 Power Ground
5+5 Volts DC

Pin Function

1 PC Data
2 No Connect
3 Power Ground
4+5 Volts DC

5 PC Clock
6 No Connect

Metrologic will supply an adapter cable with a 5-pin DIN male connector on one
end and a 6-pin mini DIN female connector on the other. According to the
termination required, connect the appropriate end of the adapter cable to the
PowerLink cable, leaving the necessary termination exposed for connecting to
the keyboard and the keyboard port on the PC.

5-Pin DIN, Female

6-Pin DIN, Male

Keyboard Wedge Adapter Cable

Pin Function

1 PC Clock
2 PC Data
3 No Connect
4 Power Ground
5+5 Volts DC

Pin Function

1 Keyboard Data
2 No Connect
3 Power Ground
4+5 Volts DC
5 Keyboard Clock
6 No Connect

42

5-Pin DIN, Male

6-pin Mini DIN, Female

LASER AND PRODUCT SAFETY

Caution

Use of controls or adjustments or performance of procedures other than those specified
herein may result in hazardous laser light exposure. Under no circumstances should the
customer attempt to service the laser scanner. Never attempt to look at the laser beam,
even if the scanner appears to be nonfunctional. Never open the scanner in an attempt to
look into the device. Doing so could result in hazardous laser light exposure. The use of
optical instruments with the laser equipment will increase eye hazard.

Atención

La modificación de los procedimientos, o la utilización de controles o ajustes distintos de
los especificados aquí, pueden provocar una luz de láser peligrosa. Bajo ninguna
circunstancia el usuario deberá realizar el mantenimiento del láser del escáner. Ni intentar
mirar al haz del láser incluso cuando este no esté operativo. Tampoco deberá abrir el
escáner para examinar el aparato. El hacerlo puede conllevar una exposición peligrosa a
la luz de láser. El uso de instrumentos ópticos con el equipo láser puede incrementar el
riesgo para la vista.

Attention

L'emploi de commandes, réglages ou procédés autres que ceux décrits ici peut entraîner
de graves irradiations. Le client ne doit en aucun cas essayer d'entretenir lui-même le
scanner ou le laser. Ne regardez jamais directement le rayon laser, même si vous croyez
que le scanner est inactif. N'ouvrez jamais le scanner pour regarder dans l'appareil. Ce
faisant, vous vous exposez à une rayonnement laser qú êst hazardous. L'emploi
d'appareils optiques avec cet équipement laser augmente le risque d'endommagement de
la vision.

Achtung

Die Verwendung anderer als der hier beschriebenen Steuerungen, Einstellungen oder
Verfahren kann eine gefährliche Laserstrahlung hervorrufen. Der Kunde sollte unter keinen
Umständen versuchen, den Laser-Scanner selbst zu warten. Sehen Sie niemals in den
Laserstrahl, selbst wenn Sie glauben, daß der Scanner nicht aktiv ist. Öffnen Sie niemals
den Scanner, um in das Gerät hineinzusehen. Wenn Sie dies tun, können Sie sich einer
gefährlichen Laserstrahlung aussetzen. Der Einsatz optischer Geräte mit dieser
Laserausrüstung erhöht das Risiko einer Sehschädigung.

Attenzione

L’utilizzo di sistemi di controllo, di regolazioni o di procedimenti diversi da quelli descritti nel
presente Manuale può provocare delle esposizioni a raggi laser rischiose. Il cliente non
deve assolutamente tentare di riparare egli stesso lo scanner laser. Non guardate mai il
raggio laser, anche se credete che lo scanner non sia attivo. Non aprite mai lo scanner per
guardare dentro l’apparecchio. Facendolo potete esporVi ad una esposizione laser
rischiosa. L’uso di apparecchi ottici, equipaggiati con raggi laser, aumenta il rischio di
danni alla vista.

43

LASER AND PRODUCT SAFETY

Notices

This equipment has been tested and found to comply with limits for a Class A digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference when the equipment is operated in a commercial
environment. This equipment generates, uses and can radiate radio frequency energy and,
if not installed and used in accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this equipment in a residential area is
likely to cause harmful interference, in which case the user will be required to correct the
interference at their own expense. Any unauthorized changes or modifications to this
equipment could void the user’s authority to operate this device.

This device complies with part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) This device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause undesired
operation.

Notice

This Class A digital apparatus complies with Canadian ICES-003.

Remarque

Cet appareil numérique de la classe A, conformé a la norme NMB-003 du Canada.

European Standard

Warning

This is a class A product. In a domestic environment this product may cause radio
interference in which case the user may be required to take adequate measures.

Funkstöreigenschaften nach EN 55022:1998

Warnung!

Dies ist eine Einrichtung der Klasse A. Diese Einrichtung kann im Wohnbereich
Funkstörungen verursachen; in diesem fall kann vom Betrieber verlangt werden,
angemessene Maßnahmen durchführen.

Standard Europeo

Attenzione

Questo e’ un prodotto di classe A. Se usato in vicinanza di residenze private potrebbe
causare interferenze radio che potrebbero richiedere all’utilizzatore opportune misure.

Attention

Ce produit est de classe “A”. Dans un environnement domestique, ce produit peut être
la cause d’interférences radio. Dans ce cas l’utiliseteur peut être amené à predre les
mesures adéquates.

44

LIMITED WARRANTY

The IS3480 Quantum™E scanners are manufactured by Metrologic at its Blackwood, New
Jersey, U.S.A. facility. The IS3480 QuantumE scanners have a three (3) year limited
warranty from the date of manufacture. Metrologic warrants and represents that all IS3480
QuantumE scanners are free of all defects in material, workmanship and design, and have
been produced and labeled in compliance with all applicable U.S. Federal, state and local
laws, regulations and ordinances pertaining to their production and labeling.

This warranty is limited to repair, replacement of Product or refund of Product price at the
sole discretion of Metrologic. Faulty equipment must be returned to the Metrologic facility
in Blackwood, New Jersey, U.S.A. or Puchheim, Germany. To do this, contact Metrologic’s
Customer Service/Repair Department to obtain a Returned Material Authorization (RMA)
number.

In the event that it is determined the equipment failure is covered under this warranty,
Metrologic shall, at its sole option, repair the Product or replace the Product with a
functionally equivalent unit and return such repaired or replaced Product without
charge for service or return freight, whether distributor, dealer/reseller, or retail
consumer, or refund an amount equal to the original purchase price.

This limited warranty does not extend to any Product which, in the sole judgement of
Metrologic, has been subjected to abuse, misuse, neglect, improper installation, or
accident, nor any damage due to use or misuse produced from integration of the
Product into any mechanical, electrical or computer system. The warranty is void if the
case of Product is opened by anyone other than Metrologic’s repair department or
authorized repair centers.

THIS LIMITED WARRANTY, EXCEPT AS TO TITLE, IS IN LIEU OF ALL OTHER
WARRANTIES OR GUARANTEES, EITHER EXPRESS OR IMPLIED, AND
SPECIFICALLY EXCLUDES, WITHOUT LIMITATION, WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE UNDER THE
UNIFORM COMMERCIAL CODE, OR ARISING OUT OF CUSTOM OR CONDUCT.
THE RIGHTS AND REMEDIES PROVIDED HEREIN ARE EXCLUSIVE AND IN LIEU
OF ANY OTHER RIGHTS OR REMEDIES. IN NO EVENT SHALL METROLOGIC BE
LIABLE FOR ANY INDIRECT OR CONSEQUENTIAL DAMAGES, INCIDENTAL
DAMAGES, DAMAGES TO PERSON OR PROPERTY, OR EFFECT ON BUSINESS
OR PROPERTY, OR OTHER DAMAGES OR EXPENSES DUE DIRECTLY OR
INDIRECTLY TO THE PRODUCT, EXCEPT AS STATED IN THIS WARRANTY. IN
NO EVENT SHALL ANY LIABILITY OF METROLOGIC EXCEED THE ACTUAL
AMOUNT PAID TO METROLOGIC FOR THE PRODUCT. METROLOGIC
RESERVES THE RIGHT TO MAKE ANY CHANGES TO THE PRODUCT
DESCRIBED HEREIN.

CORPORATE HEADQUARTERS
NORTH AMERICA

Metrologic Instruments, Inc. Metrologic Instruments GmbH
90 Coles Rd. Dornierstrasse 2
Blackwood, NJ 08012-4683 82178 Puchheim b
Customer Service Department Munich, Germany
Tel: 1-800-ID-METRO Tel: [phone]
Fax: [phone] Fax: [phone]
Email: [e-mail] Email: [e-mail]

GERMANY

45

PATENTS

Patent Information

This METROLOGIC product may be covered by one or more of the following
U.S. Patents:

U.S. Patent No.;
5,216,232; 5,260,553; 5,340,971; 5,424,525; 5,484,992; 5,525,789;
5,528,024; 5,557,093; 5,616,908; 5,627,359; 5,637,852; 5,661,292;
5,777,315; 5,789,730; 5,789,731; 5,811,780; 5,828,048; 5,844,227;
5,925,870; 6,029,894; 6,098,885; 6,209,789; 6,257,492; 6,286,760;
6,299,067; 6,347,743; 6,412,696; 6,460,767;

No license right or sublicense is granted, either expressly or by implication,
estoppel, or otherwise, under any METROLOGIC or third party intellectual
property rights (whether or not such third party rights are licensed to
METROLOGIC), including any third party patent listed above, except for an
implied license only for the normal intended use of the specific equipment,
circuits, and devices represented by or contained in the METROLOGIC products
that are physically transferred to the user, and only to the extent of
METROLOGIC’S license rights and subject to any conditions, covenants and
restrictions therein.

Other worldwide patents pending.

46

INDEX

A

AC .......................................2, 6–10

Accessories...............................2, 3

Adapter..........................................8

Audible Indicator.............12, 18–20,

26–29, 38

B

Bar Code ............. 18–20, 26–29, 30

Bar Width.....................................30

Beep..............18, 19, 20, 26–29, 38

Blue LED ............. 18–20, 26–29, 38

Button................................4, 12–17

C

Cable

Communication...............2, 6–10,

26–29, 38, 41–42

Keyboard Wedge ...............41–42

Pin Assignments................41–42

PowerLink......2, 6–10, 38, 41–42

Troubleshooting.................26–29

USB ...................................41–42

Caution..........................5, 6–10, 43

Class ...........................................44

CodeGate..........................1, 12–17

Communication .........19, 26–29, 32

Parameters ........................33–37

Compliance .............................6–10

Components..............................2, 4

Configuration.........................18, 20

Default ...............................33–37

Current ........................................31

Customer Service.................... ii, 45

D

DC ........................................... 2, 31

Default Settings...12, 13, 32, 33–37
Depth of Field

Normal ...................21, 23, 30, 37

Reduced ..........22, 23, 24, 30, 37

F

Failure

Modes......................................20

FCC.............................................44

Firmware..................................... 38

Flash ROM.............................. 1, 38

H

Host ...................................... 26–29

I

IBM.................................... 7, 33–37

Indicator

Audible ....... 4, 12, 18–20, 26–29,

30, 38

Failure ..................................... 20

Visual .... 4, 18–20, 26–29, 30, 38

Interface...................................... 30

IBM............................ 1, 7, 33–37

Keyboard Wedge. 1, 8, 29, 33–37

Laser Emulation ...... 1, 11, 33–37

Light Pen ................... 1, 6, 33–37

OCIA.......................... 1, 7, 33–37

RS232 ........... 1, 6, 28, 29, 33–37

RS232 TTL...................... 1, 6, 32

Stand-Alone Keyboard .......... 1, 9

Troubleshooting................. 26–29

USB................... 1, 10, 11, 33–37

IR Activation Range

Far........................................... 25

Near ........................................ 25

K

Keyboard Country Type.............. 32

Keyboard Type............................ 32

Keyboard Wedge ........ 8, 29, 33–37

L

Label

Caution...................................... 5

Serial Number ...........................5

Laser........................................... 43

Laser Aperture .............................. 4

Laser Emulation.............. 11, 33–37

LED....................................... 18–20

Light Pen........................... 6, 33–37

Light Source................................ 30

M

Maintenance ................................. 4

47

INDEX

Manual...............................2, 18, 32

Meteor .........................................38

MetroSet2....................................38

Mode of Operation

Button ......................................17

Primary ..............................12–17

Secondary..........................12–17

Sweet Spot Mode ..............17, 37

Motor Speed................................30

Mounting Specifications ................5

MX009.........................................11

N

Notices ........................................44

O

OCIA..................................7, 33–37

Omnidirectional .....................12–17

Operation.....................................44

P

Patents ........................................46

PC .........................................32, 42

Pin Assignments

Cable .................................41–42

Scanner .............................39–40

Port..............................6–10, 26–29

Power ............................ 2, 6–10, 38

PowerLink................................6–10

Product Safety.............................43

Property.......................................46

Protocol .......................................32

R

RAM ............................................28

Raster....................................12–17

Razzberry Tone...............18–20, 28

Read Rate ...................................17

Repair..........................................20

Replacement Parts........................3

RMA ............................................45

ROM............................................28

RS232 ...................6, 28, 29, 33–37

RS232 TTL..............................6, 32

Rubber Utility Seal.....................3, 4

S

Scan Lines .................................. 30

Scan Pattern ........................... 1, 30

Horizontal Raster..................... 12

Omnidirectional ................. 12–17

Primary.............................. 12–17

Secondary ......................... 12–17

Single-Line ........................ 12–17

Scan Speed ................................ 30

SELV....................................... 6–10

Single-Line............................ 12–17

Specification

Electrical.................................. 31

Environmental .........................31

Mechanical .............................. 30

Operational.............................. 30

Stand-Alone Keyboard.................. 9

Storage ....................................... 31

Sweet Spot Mode.................. 17, 37

T

Tone............................................ 18

Tones............................................ 1

Transformer ............................ 2, 31

Troubleshooting.................... 26–29

U

Upgrade ...................................... 38

USB .......................... 10, 11, 33–37

Utility Connector............................ 4

V

Ventilation ................................... 31

Visual Indicator ... 18–20, 26–29, 38

Blue LED ........... 4, 18–20, 26–29

White LED ......... 4, 18–20, 26–29

Yellow LED........ 4, 18–20, 26–29

Voltage.............................. 6–10, 31

Volume........................................ 18

W

Warranty ..................................... 45

Weight......................................... 30

White LED........... 18–20, 26–29, 38

Window ......................................... 4

48

NOTES

May 2004

Printed in the USA

00- 02026A
