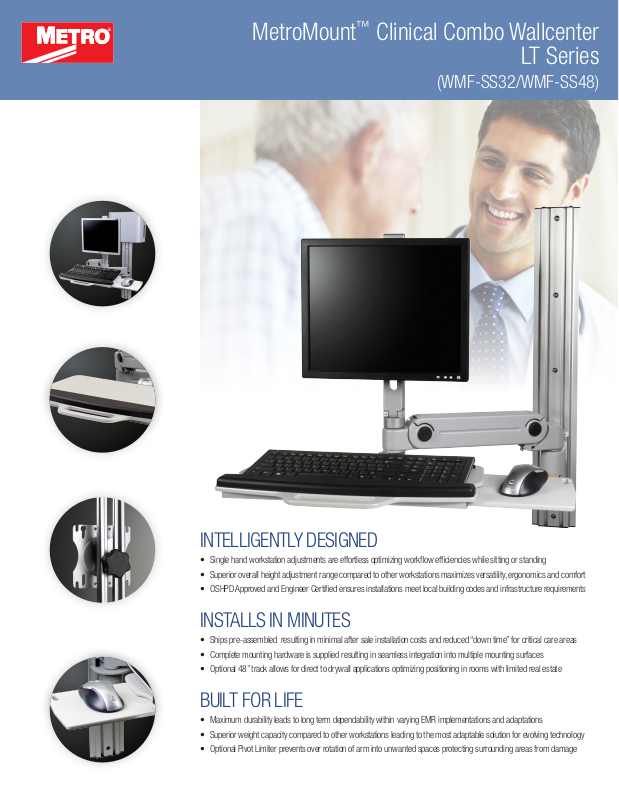

Metro WMF-SS32 User Manual
®
MetroMount™ Clinical Combo Wallcenter
LT Series
(WMF-SS32/WMF-SS48)
INTELLIGENTLY DESIGNED
• Single hand workstation adjustments are effortless optimizing workow efciencies while sitting or standing
• Superior overall height adjustment range compared to other workstations maximizes versatility, ergonomics and comfort
• OSHPD Approved and Engineer Certied ensures installations meet local building codes and infrastructure requirements
INSTALLS IN MINUTES
• Ships pre-assembled resulting in minimal after sale installation costs and reduced “down time” for critical care areas
• Complete mounting hardware is supplied resulting in seamless integration into multiple mounting surfaces
• Optional 48” track allows for direct to drywall applications optimizing positioning in rooms with limited real estate
BUILT FOR LIFE
• Maximum durability leads to long term dependability within varying EMR implementations and adaptations
• Superior weight capacity compared to other workstations leading to the most adaptable solution for evolving technology
• Optional Pivot Limiter prevents over rotation of arm into unwanted spaces protecting surrounding areas from damage
2.25” 2.25”
1.0” 1.0”
8.0” Min - 22.0” Max
19.5”
(11.5” x 3.0”)
3.875”
7.0”
11.3”
48.0”
8.5”
16.0”
31.0”
9.5” LCD Height
32.0”
38º
Adjustment
3.375”
11.0”
14” Height
Adjustment
36.27” Max
15.93”
3.03”
MetroMount™ LT
Accessories
16”/18” Extension Arm Pivot Limiter
Vesa/Wall Scanner Mount
Silver
8.65”
Keyboard
Flips up and
Down
MetroMount™ Clinical
Combo Wallcenter
LCD Height Combo Arm Combo Arm LCD Counter Balanced
Model Description adjustment Max Weight Reach Rotation Height Range LCD Tilt Range Mounting Standard OPA Number Track Length
WMF-SS32 MetroMount™ 32” Clinical Combo Wallcenter 9.5” 4-20 lbs. 4” - 37” 360° 270° 38° VESA 75mm/100mm 2479.10 32”
Shipping weight: 32 lbs. Box dimensions: 36” x 21” x 9”
WMF-SS48 MetroMount™ 48” Clinical Combo Wallcenter 9.5” 4-20 lbs. 4” - 37” 360° 270° 38° VESA 75mm/100mm 2479.10 48”
Shipping weight: 24 lbs. & 12 lbs. Box dimensions: 36” x 21” x 9” & 50” x 5” x 5”
MetroMount™ LT Series
InterMetro Industries Corporation
651 North Washington Street
Wilkes-Barre, PA 18705
www.metro.com
Finish:
LO7-101e
