Metro WireShelving User Manual
Item# _______________________________________________
Job _________________________________________________

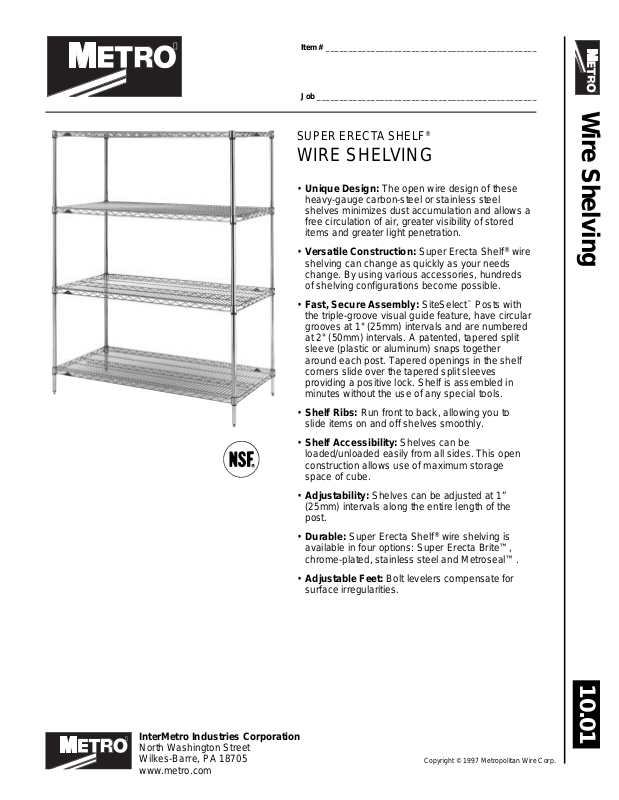

SUPER ERECTA SHELF
®
WIRE SHELVING
• Unique Design: The open wire design of these
heavy-gauge carbon-steel or stainless steel
shelves minimizes dust accumulation and allows a
free circulation of air, greater visibility of stored
items and greater light penetration.
• Versatile Construction: Super Erecta Shelf®wire
shelving can change as quickly as your needs
change. By using various accessories, hundreds
of shelving configurations become possible.
• Fast, Secure Assembly: SiteSelect™Posts with
the triple-groove visual guide feature, have circular
grooves at 1" (25mm) intervals and are numbered
at 2" (50mm) intervals. A patented, tapered split
sleeve (plastic or aluminum) snaps together
around each post. Tapered openings in the shelf
corners slide over the tapered split sleeves
providing a positive lock. Shelf is assembled in
minutes without the use of any special tools.
Wire Shelving
• Shelf Ribs: Run front to back, allowing you to
slide items on and off shelves smoothly.
• Shelf Accessibility: Shelves can be
loaded/unloaded easily from all sides. This open
construction allows use of maximum storage
space of cube.
• Adjustability: Shelves can be adjusted at 1”
(25mm) intervals along the entire length of the
post.
• Durable: Super Erecta Shelf®wire shelving is
available in four options: Super Erecta Brite™,
chrome-plated, stainless steel and Metroseal™.
• Adjustable Feet: Bolt levelers compensate for
surface irregularities.
10.01
Copyright © 1993 InterMetro Industries Corporation
InterMetro Industries Corporation
North Washington Street
Wilkes-Barre, PA 18705
www.metro.com
Copyright © 1997 Metropolitan Wire Corp.
Job____________________________________________
SUPER ERECTA SHELF
10.01
WIRE SHELVING
WIRE SHELVES
SUPER ERECTA SHELF meets U.S.
Government Specifications MIL-S40144E.
PLATED SHELVING has clear
protective coating.
For load capacity guidelines, ask your
InterMetro representative for a copy of
“Helpful Hints.”
Split Sleeves
®
Width Length Pkd. Wt. Cat. No. Cat. No. Cat. No.
(in.) (mm) (in.) (mm) (lbs.) (kg) Super Erecta Brite Chrome Stainless
________________________________________________________________________
14 355 24 610 6 2.7 1424BR 1424NC 1424NS
________________________________________________________________________
14 355 30 760 7 3.2 1430BR 1430NC 1430NS
________________________________________________________________________
14 355 36 910 8 3.6 1436BR 1436NC 1436NS
________________________________________________________________________
14 355 42 1060 91/24.3 1442BR 1442NC 1442NS
________________________________________________________________________
14 355 48 1220 101/24.7 1448BR 1448NC 1448NS
________________________________________________________________________
14 355 60 1525 14 6.3 1460BR 1460NC 1460NS
________________________________________________________________________
14 355 72 1825 17 7.7 1472BR 1472NC 1472NS
________________________________________________________________________
18 455 24 610 7 3.2 1824BR 1824NC 1824NS
________________________________________________________________________
18 455 30 760 8 3.6 1830BR 1830NC 1830NS
________________________________________________________________________
18 455 36 910 91/24.3 1836BR 1836NC 1836NS
________________________________________________________________________
18 455 42 1060 11 5.0 1842BR 1842NC 1842NS
________________________________________________________________________
18 455 48 1220 12 5.4 1848BR 1848NC 1848NS
________________________________________________________________________
18 455 54 1370 141/26.6 1854BR 1854NC 1854NS
________________________________________________________________________
18 455 60 1525 17 7.7 1860BR 1860NC 1860NS
________________________________________________________________________
18 455 72 1825 20 9.1 1872BR 1872NC 1872NS
________________________________________________________________________
21 530 24 610 8 3.6 2124BR 2124NC 2124NS
________________________________________________________________________
21 530 30 760 9 4.1 2130BR 2130NC 2130NS
________________________________________________________________________
21 530 36 910 11 5.0 2136BR 2136NC 2136NS
________________________________________________________________________
21 530 42 1060 12 5.4 2142BR 2142NC 2142NS
________________________________________________________________________
21 530 48 1220 14 6.4 2148BR 2148NC 2148NS
________________________________________________________________________
21 530 54 1370 16 7.6 2154BR 2154NC 2154NS
________________________________________________________________________
21 530 60 1525 18 8.2 2160BR 2160NC 2160NS
________________________________________________________________________
21 530 72 1825 24 10.9 2172BR 2172NC 2172NS
________________________________________________________________________
24 610 24 610 9 4.1 2424BR 2424NC 2424NS
________________________________________________________________________
24 610 30 760 11 5.0 2430BR 2430NC 2430NS
________________________________________________________________________
24 610 36 910 13 5.9 2436BR 2436NC 2436NS
________________________________________________________________________
24 610 42 1060 15 6.8 2442BR 2442NC 2442NS
________________________________________________________________________
24 610 48 1220 16 7.3 2448BR 2448NC 2448NS
________________________________________________________________________
24 610 54 1370 18 8.6 2454BR 2454NC 2454NS
________________________________________________________________________
24 610 60 1525 21 9.5 2460BR 2460NC 2460NS
________________________________________________________________________
24 610 72 1825 26 11.8 2472BR 2472NC 2472NS
________________________________________________________________________
NOTE: For Metroseal shelving information see sheet No. 10.10.
Approx.
“S” Hooks
Used to “add-on”
shelving units
with only two
posts required.
Cat. No. 9995Z
Important: When ordering by components remember that stability decreases as the ratio of height to width increases. Units should be kept
as wide and low as possible. With 14” shelving, foot plates should be used and secured to the floor on free-standing units; on mobile units,
maximum post height is 54”.
Manufactured by: Phone 717-825-2741
InterMetro Industries Corp. FAX 717-825-2852
Wir e Shelving
North Washington Street For Product Information, call 1-800-433-2232
Wilkes-Barre, PA 18705 For Customer Service, call 1-800-992-1776
SiteSelect™Posts
Height* Pkd. Wt. Cat. No. Cat. No.
(in.) (mm) (lbs.) (kg) Plated Stainless
___________________________________________
75/
8
___________________________________________
141/2368 1 0.5 13P 13PS
___________________________________________
281/2724 13/40.75 27P 27PS
___________________________________________
341/2876 2 0.9 33P 33PS
___________________________________________
549/161386 3 1.4 54P 54PS
___________________________________________
629/161589 31/21.6 63P 63PS
___________________________________________
745/81895 4 1.8 74P 74PS
___________________________________________
865/82200 5 2.3 86P 86PS
___________________________________________
*Height includes leveling bolt and cap.
InterMetro Industries Corporation
North Washington Street
Wilkes-Barre, PA 18705
www.metro.com
Approx.
190 1/2 0.2 7P
SiteSelect™
Posts are
grooved at 1"
(25mm)
increments and
numbered at 2"
(50mm)
increments.
Posts are triplegrooved every 8"
(203mm) for
easy
identification.
L02-006
Rev. 3/98 BJ
Information and specifications are subject to change
without notice. Please confirm at time of order.
Printed in U.S.A.
