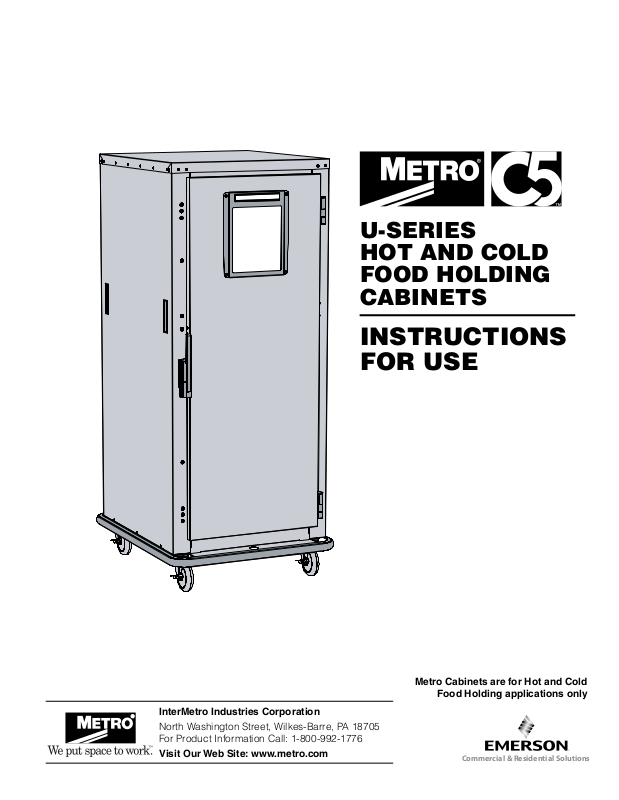

U-SERIES
hOT AND COLD
FOOD hOLDINg
CAbINETS
INSTRUCTIONS
FOR USE
InterMetro Industries Corporation
North Washington Street, Wilkes-Barre, PA 18705
For Product Information Call: 1-800-992-1776
Visit Our Web Site: www.metro.com
Metro Cabinets are for Hot and Cold
Food Holding applications only
Commercial & Residential Solutions
Page 2
TAbLE OF CONTENTS
®
MODEL NO.
®
INTERMETRO INDUSTRIES CORP., WILKES-BARRE, PA 18705
WWW.METRO.COM
C5UX-XXX
PRODUCTION DATE.
XXXX
Made in USA
C5 U 9
-
S U
A
SAFETY INFORMATION .................................................................................................................................................................................................... 2
IDENTIFY YOUR CABINET ................................................................................................................................................................................................ 2
PRODUCT FEATURES ...................................................................................................................................................................................................... 2
INSTALLATION AND SETUP ............................................................................................................................................................................................. 3
CARE AND MAINTENANCE .............................................................................................................................................................................................. 4
REPLACEMENT PARTS ..................................................................................................................................................................................................... 5
WARRANTY ....................................................................................................................................................................................................................... 6
SAFETY INFORMATION
This cabinet is only for hot and cold food holding applications.
Follow all food safety guidelines. Food must be at the appropriate temperature before
being placed into cabinet. Use a food probe to check internal food temperature - the
cabinet temperature is not necessarily the internal food temperature.
IDENTIFYINg YOUR CAbINET
For future reference, note the serial and model number found on the data plate of the cabinet here:
Model number ________________________________
Date the cabinet was put into service _______________________________
Fill out and return the warranty card located at the back of this manual.
PART NUMbERINg
CABINET NAME
SERIES
U = INSULATED NON POWERED

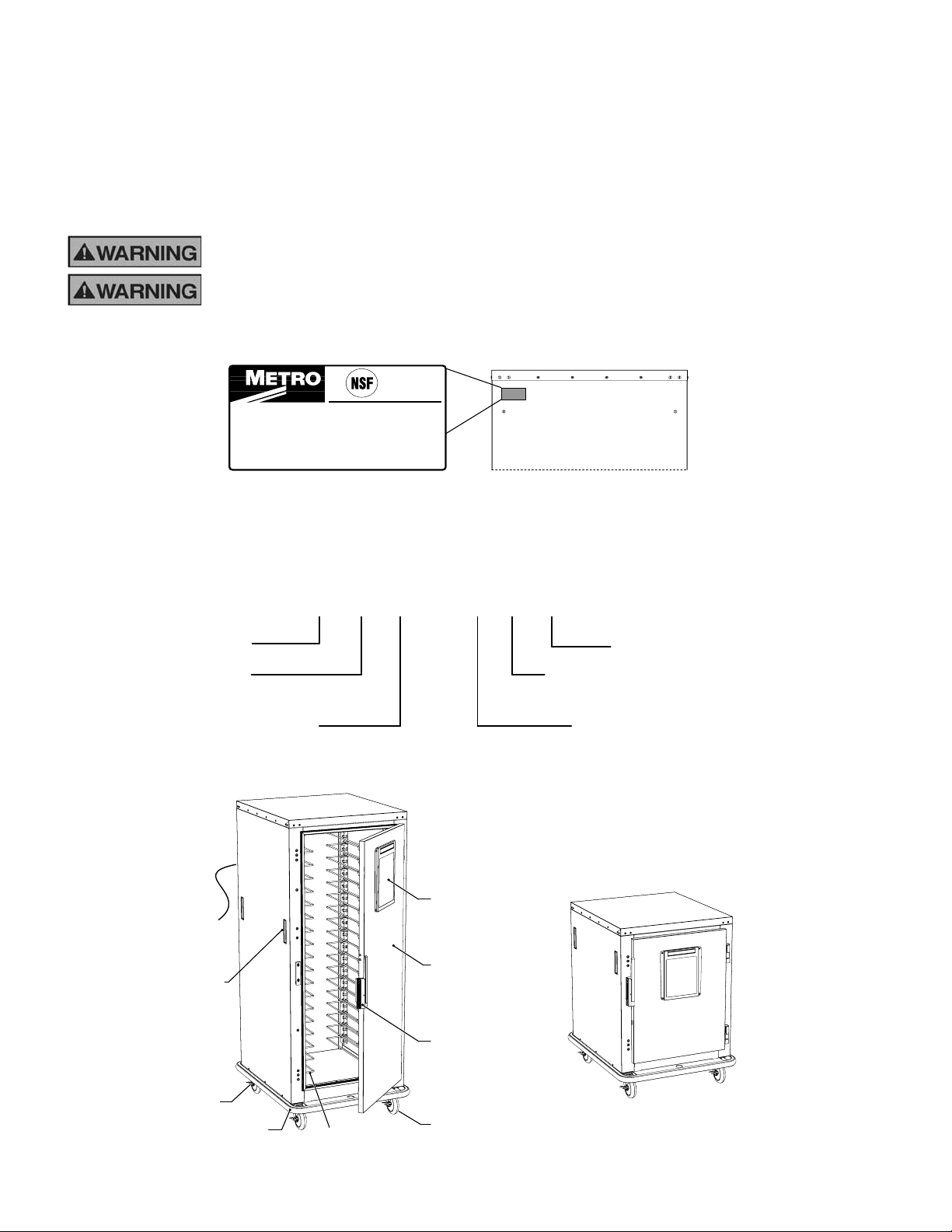

PRODUCT FEATURES
Rear Push Handle
(Optional, Not on
1
/2 Height Cabinets)
Pocket
Handle
(2) Swivel Caster
— Rear
Perimeter Bumper
(Optional)
__
HEIGHT
9 = FULL
5 = HALF
_
Slides
_
Info Panel
(Optional)
_
_
Door
Door
Latch
(2) Brake Caster
— Front
2
_
ACCESSORIES
SLIDES
U = UNIVERSAL WIRE SHELF
F = FIXED LIP LOAD
MATERIAL
S = STAINLESS STEEL
N = ALUMINIUM
HALF HEIGHT
CABINET
Page 3
INSTALLATION AND SETUP
NOTE: The First 4 steps below are common to all cabinets.
1. Check for Shipping Damage: Check the packaging and cabinet for shipping damage before and after unloading the
unit, and after removing all packaging materials.
2. The receiver of this product is responsible for filing freight damage claims. This equipment must be opened
immediately for inspection. All visible damage must be reported to the freight company within 48 hours and must be
noted on freight bill at the time of delivery.
3. Concealed damage is your responsibility — you must advise the carrier of any loss or damage within 15 days after
receipt of the cabinet. If there is damage, retain the original packaging for inspectors.
4. After unpacking the cabinet, remove all packing material from the inside as well as outside of the unit.

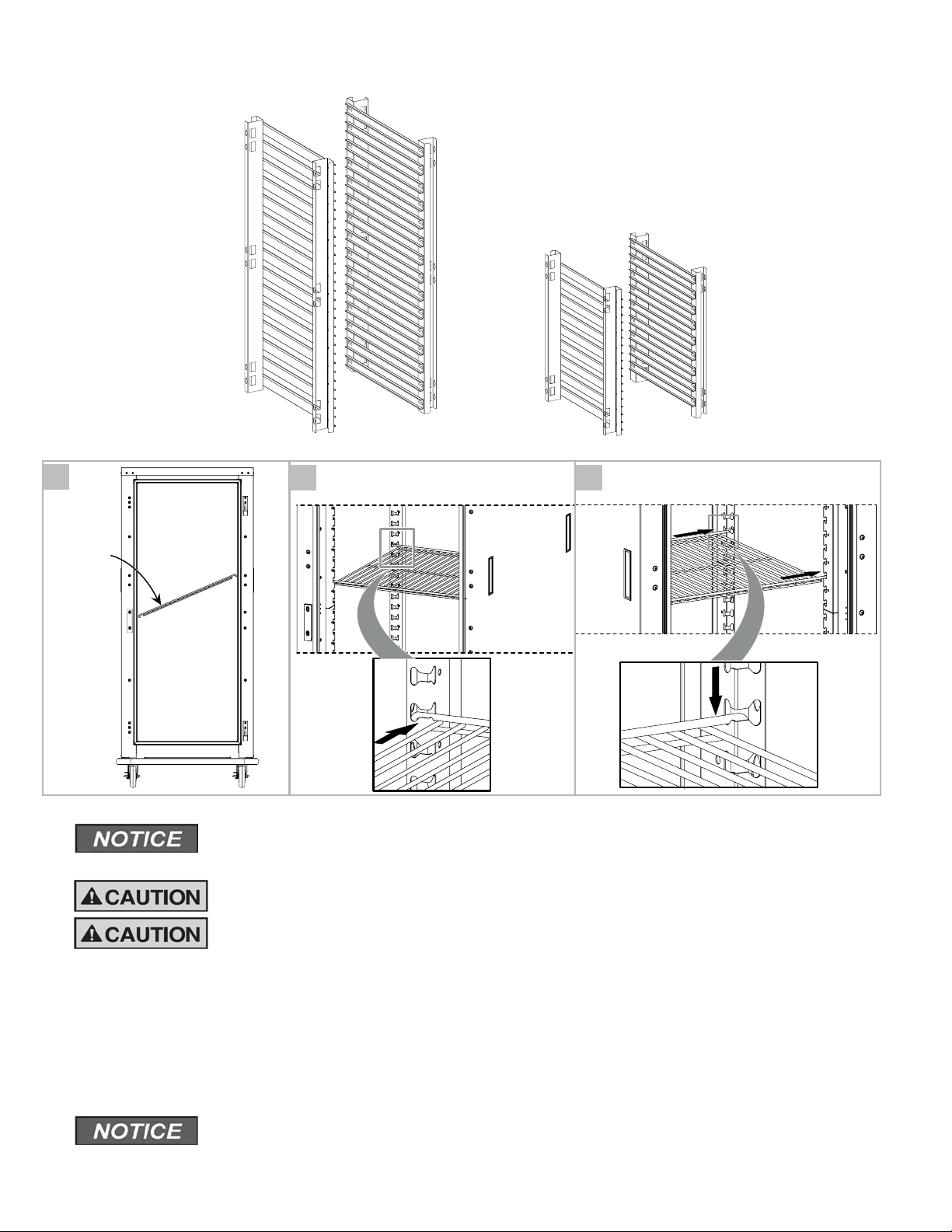

Installation of Universal Slide
The rack uprights have
been installed at the
factory. If removed for
cleaning, reinstall by
hanging them on the
shoulder rivets on the
side walls of the cabinet.
Slide Position to Maximize 3" Pan Capacity of Universal Slides
SiteSelect™ features
make slide installation
easier.
FULL HEIGHT CABINET
18 Levels
Position 2
nd
from Bottom
Part No. RPC5-U9
(includes slides and uprights)
17
17
1
/2 HEIGHT CABINET
9 Levels
Position 2
(includes slides and uprights)
nd
from Bottom
Part No. RPC5-U5
Slides sold in pairs. For additional pair of wire slides, order C5-USLIDEPR-C for Chrome or C5-USLIDEPR-S for Stainless Steel.
To order individual universal uprights only, see item 17.
3
Page 4

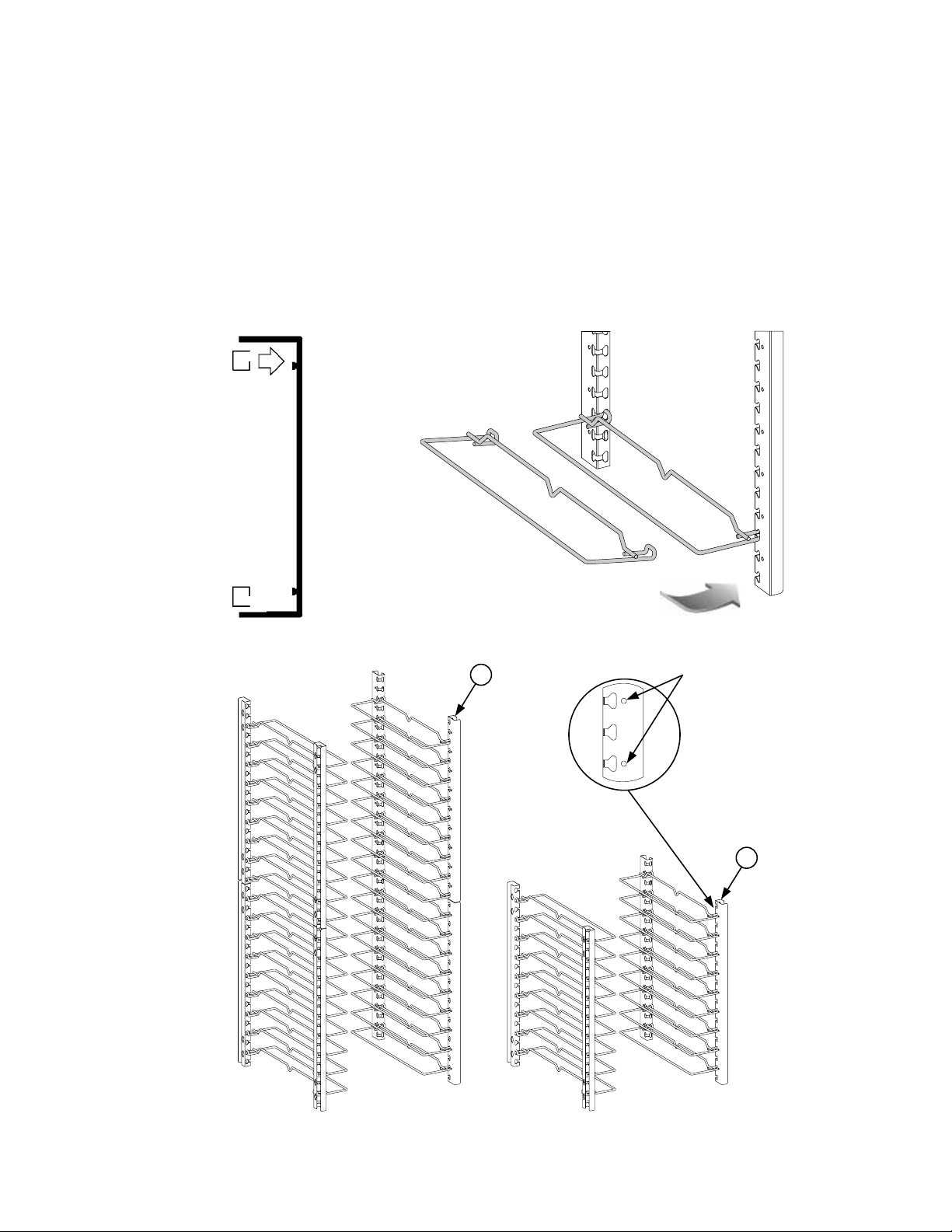

Fixed Lip Load Slide Configurations
Wire
Shelf
FULL HEIGHT CABINET
Part No. RPC5-L9
Wire Shelf Installation
1
2
CARE AND MAINTENANCE
Before proceeding with any maintenance activity strictly follow “Safety Information” on page 2 of this
manual.
Cleaning The Cabinet
To clean the cabinet, wipe with a damp cloth and dry with a towel. Use only cleaning agents
approved for stainless steel.
Do not use cleaners with chlorides or phosphates as they may cause damage to stainless steel.
Insert left side of wire shelf into upright at
an angle and then lower right side to level
and shift shelf to fit into right side upright.
HALF HEIGHT CABINET
Part No. RPC5-L5
NOTE: Wire shelf must be used with cabinet
3
uprights
1. Use cleaners in the proper concentrations. Follow the manufacturer’s directions for the cleaning product used. After
using any cleaning products, thoroughly rinse all surfaces to remove residue.
2. Use a damp cloth or sponge. Mild soap suitable for stainless steel is acceptable. Dry with a clean towel. Wipe up
spills as soon as possible and regularly clean the cabinet to avoid staining and difficult to clean conditions.
Cabinet Maintenance-All Models
C5 U-Series cabinets have been designed to require very little maintenance. With normal use, cleaning is the only form
of maintenance that need to be done on a regular basis. Keeping the casters free of dirt build-up will go a long way in
prolonging their life.
Regularly inspect the casters. Tighten loose fasteners and replace worn or damaged parts with new
InterMetro approved parts. Replace worn or damaged casters immediately; lubricate casters regularly
(if applicable).
4
Page 5

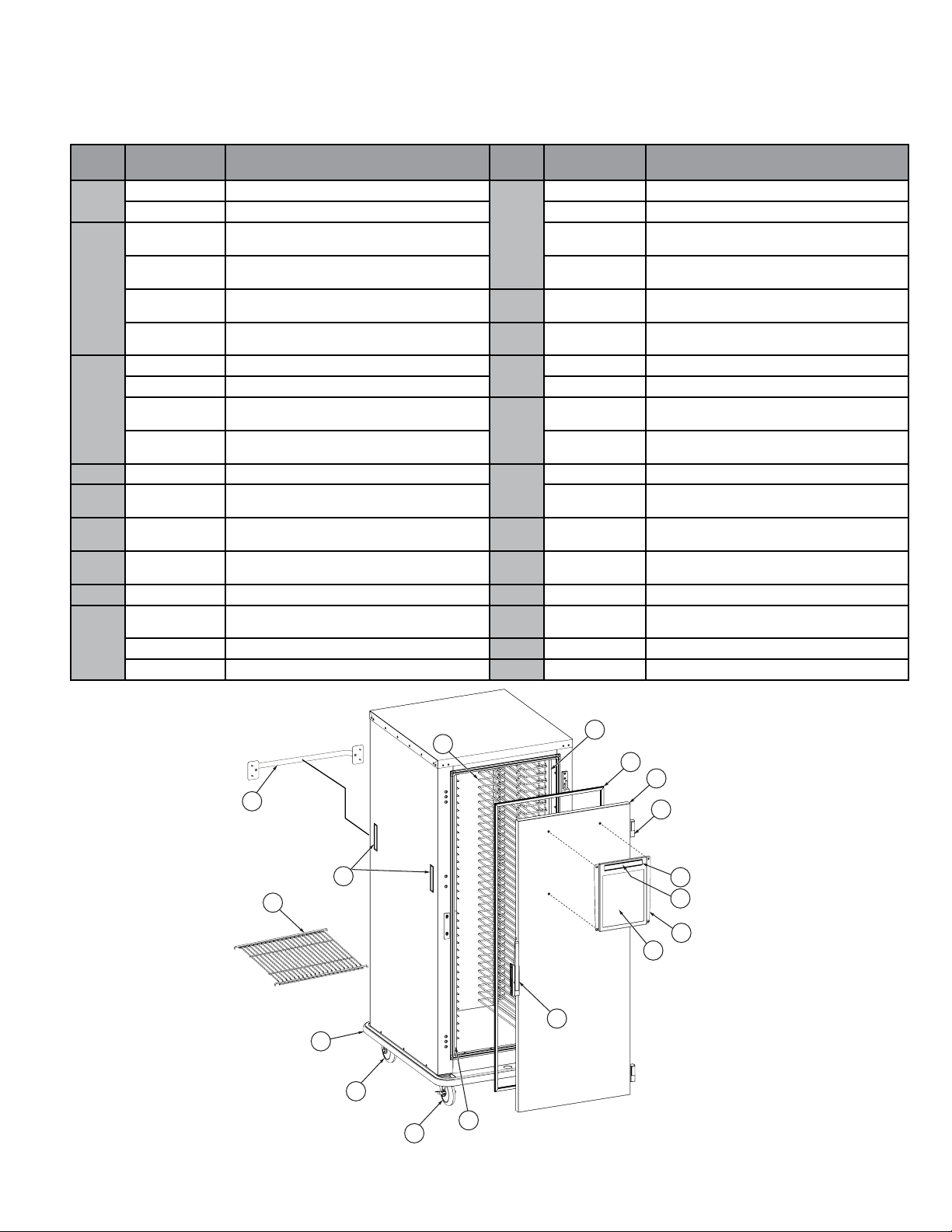

REPLACEMENT PARTS
WARNING: Only factory approved service agents should attempt to service, repair or replace components.
Cabinet and Door Parts
ITEM #
Replacement
Part No.
1 RPC06-873B FULL HEIGHT DOOR GASKET 10 B5DN 5" SWIVEL CASTER
RPC06-873A
2 RPC5U-S9DR COMPLETE STAINLESS STEEL FULL HEIGHT
RPC5U-S5DR COMPLETE STAINLESS STEEL
RPC5U-N9DR COMPLETE ALUMINUM FULL HEIGHT DOOR
RPC5U-N5DR COMPLETE ALUMINUM
3 RPC11-274 DOOR LATCH, OFFSET HANDLE 13 RPC5-L9 FULL HEIGHT LIP LOADED SLIDE ASSEMBLY
RPC14-253 DOOR LATCH, FLUSH HANDLE RPC5-L5
RPC5-LTHTWST DOOR LATCH, TWIST LOCK FLUSH HANDLE 14 RPC5-U9 FULL HEIGHT UNIVERSAL SLIDE
RPC14-129 DOOR LATCH , KEY LOCK RPC5-U5
4 RPC14-042 DOOR HINGE (Qty. 1) 15 C5-USLIDEPR-C CHROME UNIVERSAL WIRE SLIDE — 1 PAIR
5 RPC5-INFOPNL COMPLETE INFO PANEL ASSEMBLY
6 RP-WHITEBRD WHITE BOARD WITH CLIPS 16 C5-SHELF-S ACCESSORY STAINLESS STEEL SHELF
7 RPC06-1032 INFO PANEL EXTRUSION 17 RPC5-9-URT5 INDIVIDUAL UNIVERSAL UPRIGHT
8 C5TINFOLBL-10 INFO PANEL LABELS (10 PACK) 18 C5-PERMBUMP PERIMETER BUMPER ASSEMBLY (OPTIONAL)
9 B5DNB 5" BRAKE CASTER 19 RPC59-HRGKT RACK HANGER REPAIR KIT (4 PIECES) —
RPQC02-248 6" BRAKE CASTER 20 RPC5-9-HANDLE REAR HANDLE (OPTIONAL)
B3B 3" BRAKE CASTER
Description
1
/2 HEIGHT DOOR GASKET B5RNR 5" RIGID CASTER
DOOR ASSEMBLY WITH FLUSH HANDLE
1
DOOR ASSEMBLY WITH FLUSH HANDLE
ASSEMBLY WITH FLUSH HANDLE
ASSEMBLY WITH FLUSH HANDLE
(OPTIONAL)
/2 HEIGHT
1
/2 HEIGHT DOOR
ITEM #
Replacement
Part No.
RPQC02-247 6" SWIVEL CASTER
B3 3" SWIVEL CASTER
11 RPC5-SSLEG-1 STATIONARY EQUIPMENT LEG (Qty. 1)
12 RPC06-872 POCKET HANDLE
C5-USLIDEPR-S STAINLESS STEEL UNIVERSAL WIRE SLIDE
Description
1
/2 HEIGHT LIP LOADED SLIDE ASSEMBLY
ASSEMBLY (SLIDES & UPRIGHTS)
1
/2 HEIGHT UNIVERSAL SLIDE ASSEMBLY
(SLIDES & UPRIGHTS)
— 1 PAIR
(USED WITH UPRIGHTS)
1
(FULL &
FOR REPAIR OF HANGER
/2 HEIGHT) (Qty. 1)
20
OPTIONAL
16
18
OPTIONAL
15
14
1
2
4
12
7
8
5
OPTIONAL
6
3
10
x2
13
9
x2
5
