INSTRUCTIONS FOR USE
METROMAX DRYING RACK UNIT

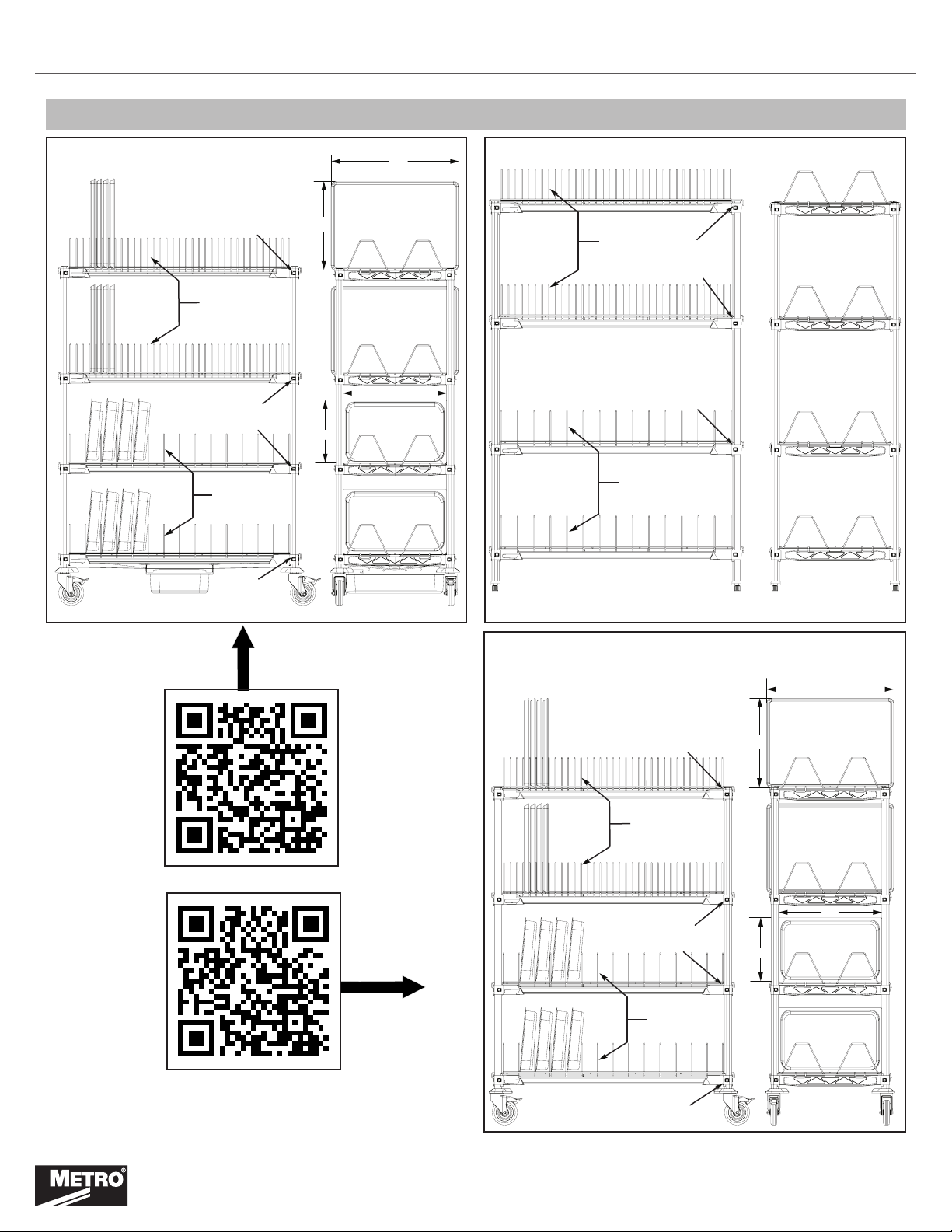

Pan & Tray Rack: (2) Stainless Drop-in Shelves, (1) Tray Rack
PR48VX3-XDR (Includes drip tray accessory)
PR48VX3
MAX4-PR48VX3
XTR2436XE
XTR2448XE
XTR2460XE
Place 18x26 Bun Pans and 12x20 Steam Pans Evenly on Racks
Groove#62
Groove#46
Groove#30
DR36S
DR48S
DR60S
Groove#5
TOP: Shelf with plastic
shelf mats
26
18x26 Bun Pan
(Evenly Placed)
18
PR48X3
Place 18x26 Bun Pans and 12x20 Steam Pans Evenly on Racks
XTR2436XE
XTR2448XE
XTR2460XE
DR36S
DR48S
DR60S
Groove#74
Groove#51
Groove#28
Bottom shelf must be 6” off oor.
Alternate Conguration
Tray Rack on Top
PR48VX3
MAX4-PR48VX3
Groove#62
XTR2436XE
XTR2448XE
XTR2460XE
Groove#43
Groove#24
DR36S / XDR36S
DR48S / XDR48S
DR60S / XDR60S
Groove#5
18
26
18x26 Bun Pan
(Evenly Placed)
NOTE: The tray rack may also be positioned on the bottom shelf. See
PR48VX3-XDR for groove positions to allow clearance for full size sheet pans.
Page 2
METROMAX DRYING RACK UNIT — INSTRUCTIONS FOR USE

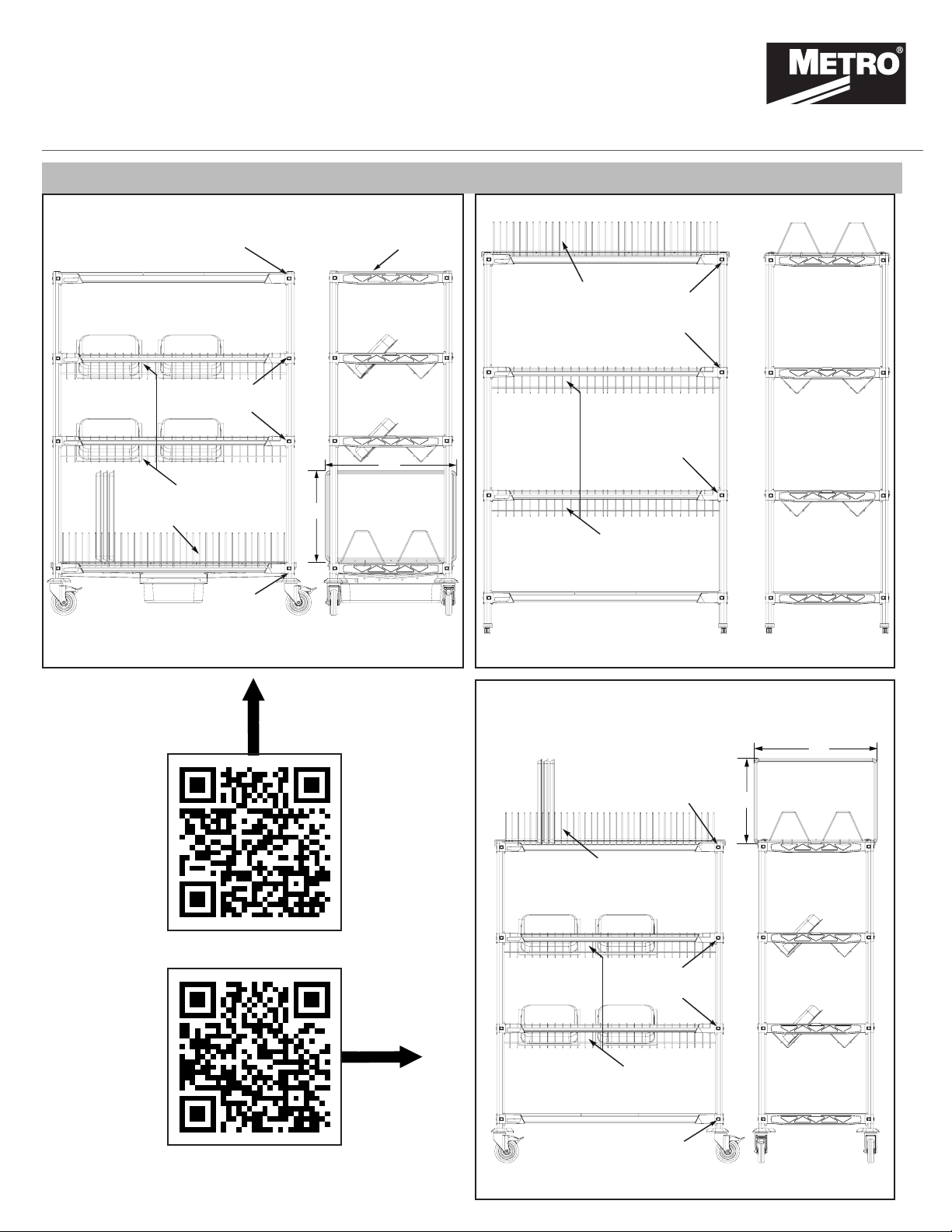

Tray and Pan Rack: (2) Tray Racks, (2) Pan Racks
PR48VX4-XDR
Place 18x26 Bun Pans and 12x20 Steam Pans Evenly on Racks
Groove#62
XTR2436XE
XTR2448XE
XTR2460XE
Groove#41
Groove#23
XTR2436XEA
XTR2448XEA
XTR2460XEA
Groove#5
18
12
26
20
12x20 Steam Pan
(Evenly Placed)
12x20 Steam Pan
(Evenly Placed)
PR48X4
XTR2436XE
XTR2448XE
XTR2460XE
Groove#74
Groove#51
Groove#28
XTR2436XEA
XTR2448XEA
XTR2460XEA
Bottom shelf must be 6” off oor.
Place 18x26 Bun Pan and 12x20 Steam Pan Evenly on Racks
PR48VX4
MAX4-PR48VX4
Groove#62
XTR2436XE
XTR2448XE
XTR2460XE
Groove#41
Groove#23
XTR2436XEA
XTR2448XEA
XTR2460XEA
18
12
26
18x26 Bun Pan
(Evenly Placed)
18x26 Bun Pan
(Evenly Placed)
20
12x20 Steam Pan
(Evenly Placed)
12x20 Steam Pan
(Evenly Placed)
2
www.metro.com
Groove#5
INSTR-MAXA
REV 05/19
Page 3
PR48VX2-XDR
Minimum Groove #49,
For more room, Groove #53
Minimum Groove #28,
For more room, Groove #30
METROMAX DRYING RACK UNIT — INSTRUCTIONS FOR USE

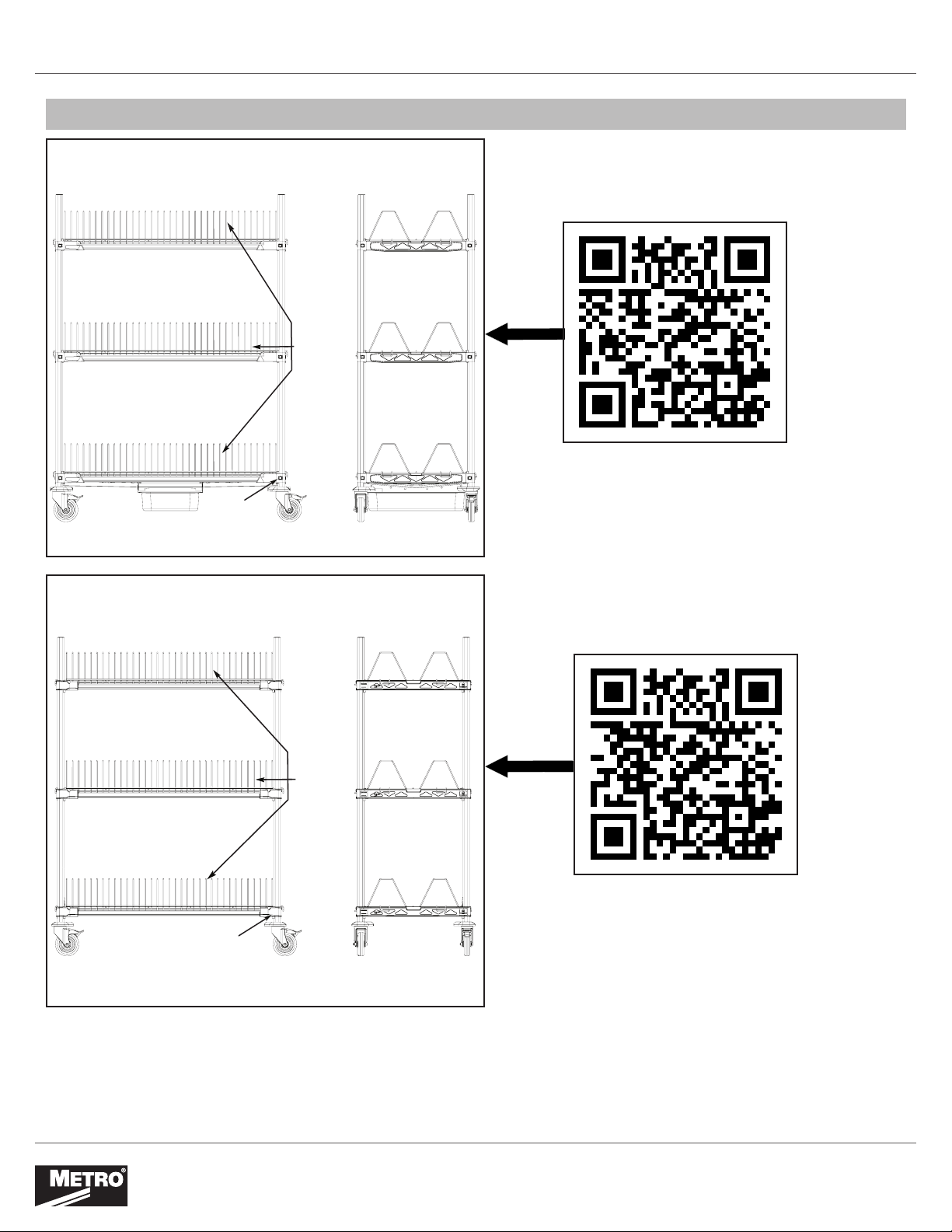

Tray Rack: (3) Tray Racks
XTR2436XE
XTR2448XE
XTR2460XE
Groove#5
MAX4-PR48VX2
Minimum Groove #49,
For more room, Groove #53
Minimum Groove #28,
For more room, Groove #30
Groove#5
XTR2436XE
XTR2448XE
XTR2460XE
Note: Steam pan that mounts to the drip tray
accessory is not provided.
THIS COMPLETES INSTALLATION OF THE METROMAX DRYING RACK UNIT
3
www.metro.com
INSTR-MAXA
REV 05/19
Page 4
METROMAX DRYING RACK UNIT — INSTRUCTIONS FOR USE

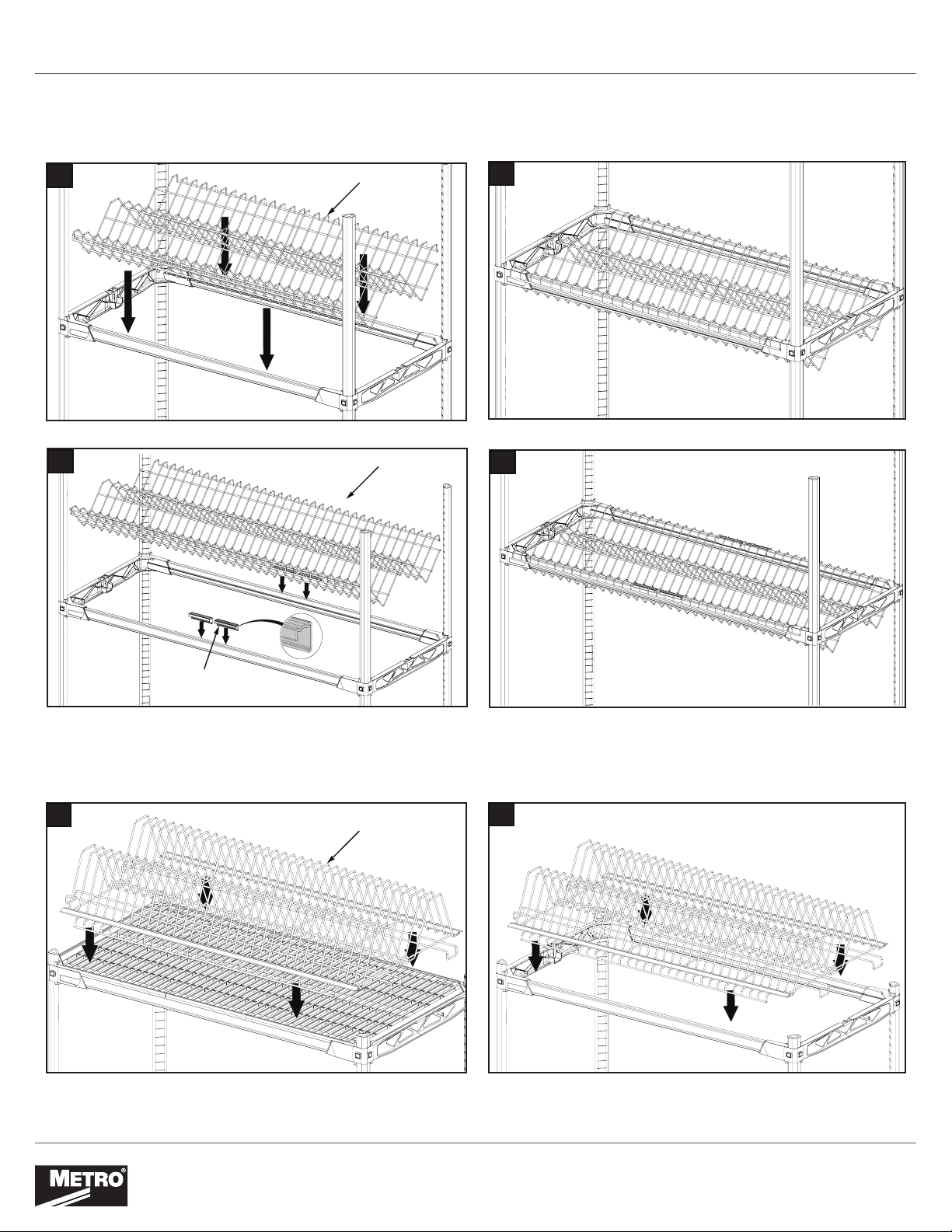

MetroMax i® - Installation of Stainless Steel Drop-in Rack
Model Numbers: DR36S, DR48S
1
SS Drop-in
Model Number: DR60S [60" (1524mm) length]
1
Rack
SS Drop-in
Rack
Stainless steel drop-ins mount to an open shelf frame
2
2
Plastic
Extrusion
MetroMax i® - Installation of top-mount drying racks
Tray racks - XTR2436XE, XTR2448XE, XTR2460XE
Pan racks - XTR2436XEA, XTR2448XEA, XTR2460XEA
A
Tray Drying
Rack
Mounts to full shelf (A) or open frame (B)
B
4
www.metro.com
INSTR-MAXA
REV 05/19
Page 5
METROMAX DRYING RACK UNIT — INSTRUCTIONS FOR USE
MetroMax 4
Attention-Drying Rack accessories for MetroMax 4 must mount on an open shelf frame.

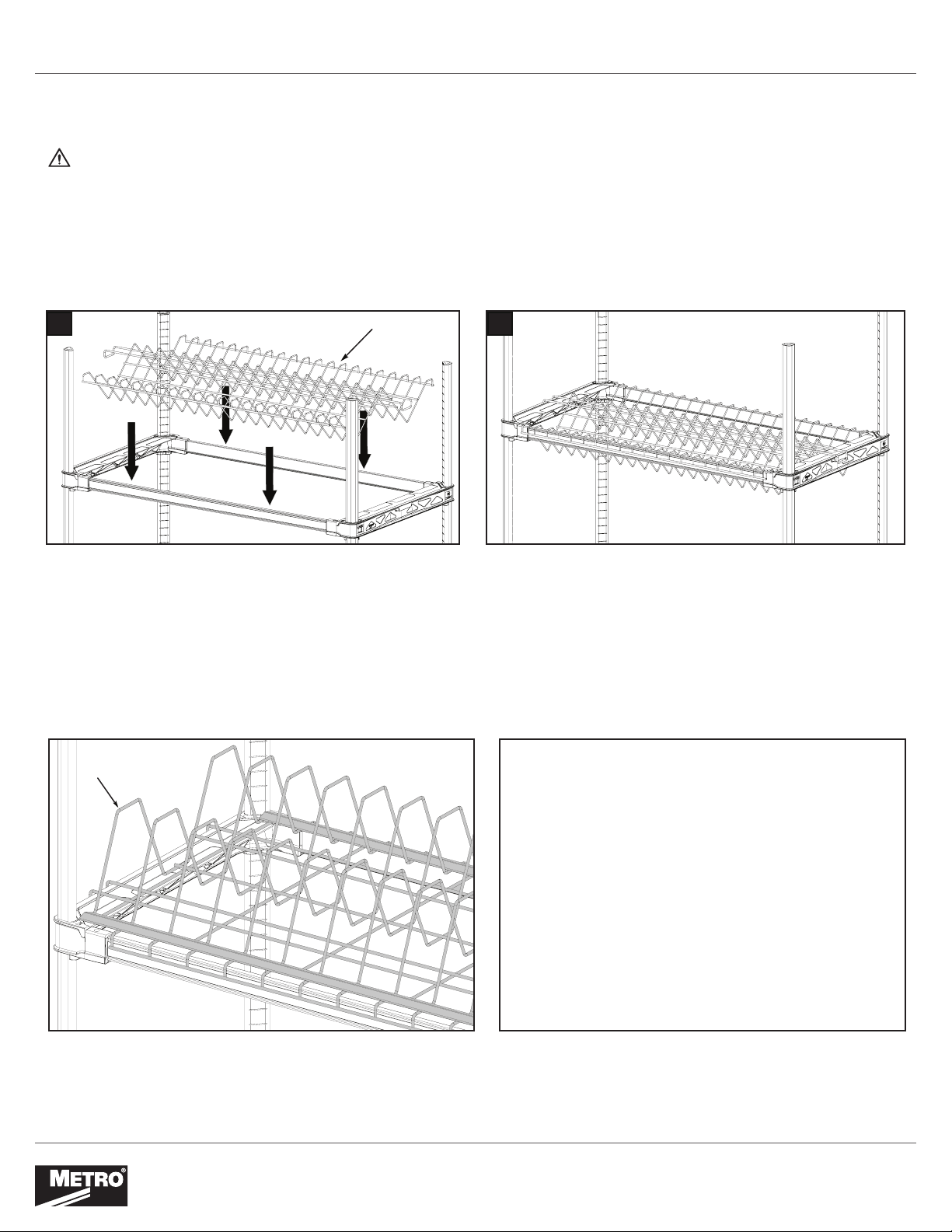

MetroMax 4® - Installation of Stainless Steel Drop-in Rack
Model Numbers: MAX4-DR36S, MAX4-DR48S, MAX4-DR60S
1
SS Drop-in
Rack
MetroMax 4® - Installation of Tray and Pan Racks
Model Numbers:
Tray racks- XTR2436XE, XTR2448XE, XTR2460XE
Pan racks- XTR2436XEA, XTR2448XEA, XTR2460XEA
Tray Drying
Rack
2
On MetroMax 4, the tray and pan racks must
A MetroMax 4 shelf can be converted to an
5
www.metro.com
mount on an open shelf frame.
open frame by removing the shelf mat
sections.
INSTR-MAXA
REV 05/19
Page 6
METROMAX DRYING RACK UNIT — INSTRUCTIONS FOR USE

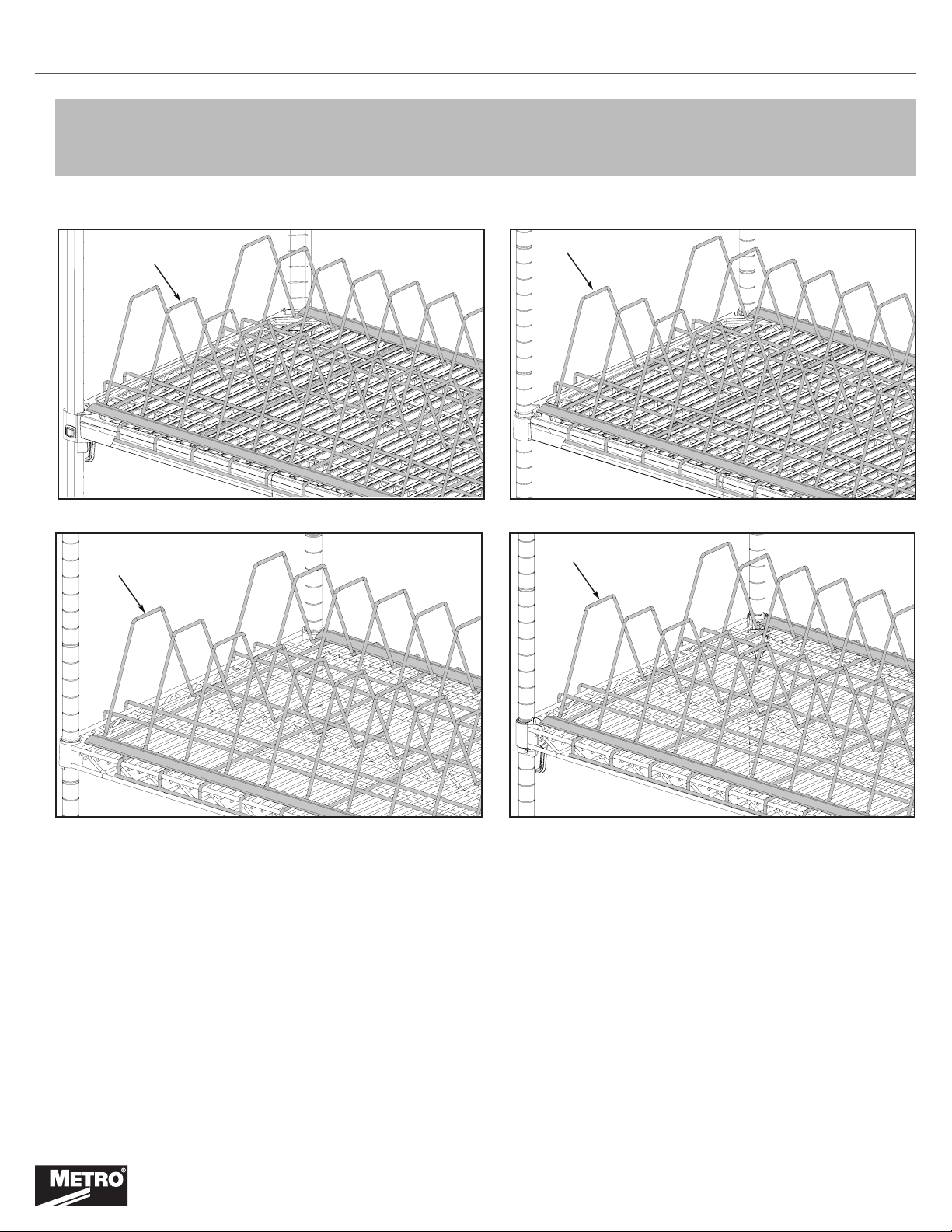

Compatibility of the top-mount drying racks with Metro shelving.
Tray racks – XTR2436XE, XTR2448XE, XTR2460XE
Pan racks – XTR2436XEA, XTR2448XEA, XTR2460XEA
Super Erecta Pro ShelvingMetroMax Q Shelving
Tray Drying
Rack
Tray Drying
Rack
Super Erecta Shelving
Tray Drying
Rack
Super Adjustable Super Erecta
Tray Drying
Rack
6
www.metro.com
INSTR-MAXA
REV 05/19
Page 7
METROMAX DRYING RACK UNIT — INSTRUCTIONS FOR USE
Weight Capacity:
The weight of any tier using a ware drying accessory shall not exceed 200 lbs (90.71 Kg), and the total weight of any
assembled drying unit must not exceed the weight capacity of the shelving system being used.
Usage Guidelines
A. Clean and Sanitize using a 4-Step Process:
1.
Clean
2.
Rinse
3.
Sanitize
4.
Air Dry
B. Always ensure cleaning and sanitizing products are recommended for use on plastics, epoxy coated, stainless, plated
and galvanized steel. Avoid using abrasive cleaners, harsh chemicals, stiff brushes and scouring pads as these will void
the warranty.
C. The entire unit may be rinsed with a hose or low pressure power washer. Intermittent exposure is limited to 200°F (93°C)
Please note: This product is NOT to be used with an automated high temperature cart washing system of autoclave.
THIS SECTION INTENTIONALLY LEFT BLANK
7
www.metro.com
INSTR-MAXA
REV 05/19
Page 8
Component
MX2448G
M4F2448
MX63UP
DR48S
XTR2448XE
5PCBX
5PCX
XDRIP
Description
Max i shelf
open shelf frame
polymer post
SS drop-in rack (Max i)
tray rack
polymer brake caster
polymer swivel caster
drip tray
Qty Component
1 MX2448G
3 M4F2448
4 MX63UP
2 DR48S
1 XTR2448XE
2 5PCBX
2 5PCX
1
Part List
Description
Max i shelf
open shelf frame
polymer post
SS drop-in rack (Max i)
tray rack
polymer brake caster
polymer swivel caster
Qty Component
2 MAX4-2448G
2 MAX4-F2448
4 MX63UP
2 MAX4-DR48S
1 XTR2448XE
25PCBX
25PCX
4 xaMorteMi xaMorteM
3XV84RP-4XAM*3XV84RPRDX-3XV84RP
Description
Max 4 shelf
open shelf frame
polymer post
SS drop-in rack (Max 4)
tray rack
polymer brake caster
polymer swivel caster
Qty
1
3
4
2
1
2
2
Component
MX2436G
M4F2436
MX63UP
DR36S
XTR2436XE
5PCBX
5PCX
XDRIP
*NOTE PR48X3 and PR48X4 stationary models: use (4) MX74P pos ts in place of the MX63UP posts; stationary models do not include casters.
Component
M4F2448
MX63UP
XTR2448XE
XTR2448XEA
5PCBX
5PCX
XDRIP
PR36VX4-XDR 4XV63RP-4XAM
Component
M4F2436
MX63UP
XTR2436XE
XTR2436XEA
5PCBX
5PCX
XDRIP
*NOTE PR48X3 and PR48X4 stationary models: use (4) MX74P pos ts in place of the MX63UP posts; stationary models do not include casters.
Description
Max i shelf
open shelf frame
polymer post
SS drop-in rack (Max i)
tray rack
polymer brake caster
polymer swivel caster
drip tray
Description
open shelf frame
polymer post
tray rack
pan rack
polymer brake caster
polymer swivel caster
drip tray
Description
open shelf frame
polymer post
tray rack
pan rack
polymer brake caster
polymer swivel caster
drip tray
Qty Component
XCP52
1
Qty Component
4 MX2448G
4 MX63UP
2 XTR2448XE
2 XTR2448XEA
2 5PCBX
2 5PCX
Description
Max i shelf
polymer post
tray rack
pan rack
polymer brake caster
polymer swivel caster
Qty Component
4 MAX4-F2448
4 MX63UP
2 XTR2448XE
2 XTR2448XEA
25PCBX
25PCX
1
Qty Component
XCP52
1
XBCP52
XBCP52
G6342-4XAM1
6342F-4XAM3
PU36XM4
S63RD-4XAM2
EX6342RTX1
6342F-4XAM4
PU36XM4
EX6342RTX2
AEX6342RTX2
3XV63RP-4XAMRDX-3XV63RP
Description
Max 4 shelf
open shelf frame
polymer post
SS drop-in rack (Max 4)
tray rack
polymer brake caster
polymer swivel caster
4XV84RP-4XAM*4XV84RPRDX-4XV84RP
Description
open shelf frame
polymer post
tray rack
pan rack
polymer brake caster
polymer swivel caster
Description
open shelf frame
polymer post
tray rack
pan rack
polymer brake caster
polymer swivel caster
Qty
Qty
1
3
4
2
1
2
2
ytQ
4
4
2
2
2
2
4
4
2
2
2
2
PR48VX2-XDR 2XV84RP-4XAM
Component
M4F2448
MX63UP
XTR2448XE
5PCX
5PCBX
XDRIP
PR36VX2-XDR
Component
M4F2436
MX63UP
5PCX
5PCBX
XTR2436XE
XDRIP
Description
open shelf frame
polymer post
tray rack
polymer brake caster
polymer swivel caster
drip tray
Description
open shelf frame
polymer post
tray rack
polymer brake caster
polymer swivel caster
drip tray
Qty ytQtnenopmoC
1
Qty
1
* Save this document for future application, load rating and/or safety reference.
© 2019 InterMetro Industries Corporation, Wilkes-Barre, PA 18705
INSTR-MAXA REV 05/19
Description
open shelf frame
8442F-4XAM3
polymer post
PU36XM4
tray rack
EX8442RTX3
6342F-4XAM3
PU36XM4
EX6342RTX3
polymer brake caster
polymer swivel caster
open shelf frame
polymer post
tray rack
polymer brake caster
polymer swivel caster
XCP52
XBCP52
MAX4-PR36VX2
Component
XCP52
XBCP52
Description
3
4
3
2
2
Qty
3
4
2
2
3
