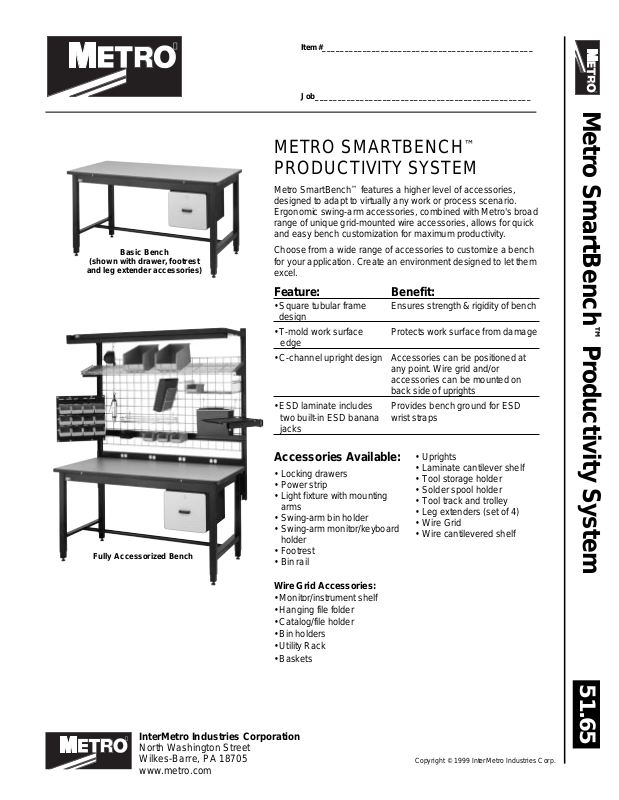

METRO SMARTBENCH
™
PRODUCTIVITY SYSTEM
Metro SmartBench™features a higher level of accessories,
designed to adapt to virtually any work or process scenario.
Ergonomic swing-arm accessories, combined with Metro's broad
range of unique grid-mounted wire accessories, allows for quick
and easy bench customization for maximum productivity.
Choose from a wide range of accessories to customize a bench
for your application. Create an environment designed to let them
excel.
Feature: Benefit:
• Square tubular frame Ensures strength & rigidity of bench
design
• T-mold work surface Protects work surface from damage
edge
• C-channel upright design Accessories can be positioned at
any point. Wire grid and/or
accessories can be mounted on
back side of uprights
• ESD laminate includes Provides bench ground for ESD
two built-in ESD banana wrist straps
jacks
Copyright © 1999 InterMetro Industries Corp.
Basic Bench
(shown with drawer, footrest
and leg extender accessories)
Fully Accessorized Bench
Accessories Available:
• Locking drawers
• Power strip
• Light fixture with mounting
arms
• Swing-arm bin holder
• Swing-arm monitor/keyboard
holder
• Footrest
• Bin rail
• Uprights
• Laminate cantilever shelf
• Tool storage holder
• Solder spool holder
• Tool track and trolley
• Leg extenders (set of 4)
• Wire Grid
• Wire cantilevered shelf
Wire Grid Accessories:
• Monitor/instrument shelf
• Hanging file folder
• Catalog/file holder
• Bin holders
• Utility Rack
• Baskets
Job____________________________________________
METRO SMARTBENCH
™
PRODUCTIVITY SYSTEM
InterMetro Industries Corporation
North Washington Street
Wilkes-Barre, PA 18705
www.metro.com
Phone 570-825-2741
FAX 570-825-2852
For Product Information, call 1-800-433-2232
For Customer Service, call 1-800-992-1776
Metro SmartBench
™
Productivity System
SPECIFICATIONS:
Workbenches & Accessories: Basic bench consists of legs (4), rails (2), top (1) and hardware. Bench frame
and all accessories are made from 14 gauge steel and are finished in a black, semi-gloss, powder-coating,
unless otherwise indicated. Standard laminate, ESD laminate and drawer face are gray.
WORKBENCH
Width/Length/Height Top Approx. Pkd. Wt.
(in.) (mm) Material Cat. No. (lbs.) (kg)
_____________________________________________________________________________________________________________
33x60x31 838x1524x787 ESD MSB3060C 118 53.5
33x60x31 838x1524x787 Standard Laminate MSB3060L 118 53.5
33x72x31 838x1829x787 ESD MSB3072C 135 61.2
33x72x31 838x1829x787 Standard Laminate MSB3072L 135 61.2
39x60x31 991x1524x787 ESD MSB3660C 135 61.2
39x60x31 991x1524x787 Standard Laminate MSB3660L 135 61.2
39x72x31 991x1829x787 ESD MSB3672C 142 64.4
39x72x31 991x1829x787 Standard Laminate MSB3672L 142 64.4
NOTE 1: All benches unit packed.
NOTE 2: ESD tops are static dissipative. ESD tops have a surface resistivity of 10
6
- 109ohms/sq. per ASTMD257 and meet the requirements of FTM 101G, Method 4046 for static
decay (5000 - 0 volts ≤ 0.05 seconds).
NOTE 3: Weight capacity for work surfaces — 1,000 lbs. (453 kg) evenly distributed weight.
ACCESSORIES:
(shown on opposite page)
Approx.
Dimensions (LxWxH) Pkd. Wt.
Item Cat. No. (in.) (mm) (lbs.) (kg)
(A) Light Assembly - 60" MSA-LA60 60x12x2 1524x305x51 23 10.4
(A) Light Assembly - 72" MSA-LA72 72x12x2 1829x305x51 25 11.3
(B) Tool Track & Trolley - 60" MSA-TT60 60x3x3 1524x76x76 8 3.6
(B) Tool Track & Trolley - 72" MSA-TT72 72x3x3 1829x76x76 10 4.5
(C) Wire Cantilevered Shelf - 60" (Chrome finish) MSA-WS60 12x60x21/
2
305x1524x631/
2
13 5.9
(C) Wire Cantilevered Shelf - 72" (Chrome finish) MSA-WS72 12x72x21/
2
305x1829x631/
2
15 6.8
(D) Swing-Arm Monitor/Keyboard Holder MSA-SMH 14x14x2 355x355x51 18 8.2
(E) Starter 12" Drwr, Locking, Gray Lam. MSA-SDL12 12x19x14 305x483x355 37 16.8
(E) Starter 6" Drwr, Locking, Gray Lam. MSA-SDL6 6x19x14 152x483x355 27 12.2
(E) Add-On 6" Drwr, Locking, Gray Lam. MSA-ADL6 6x19x14 152x483x355 27 12.2
(E) Add-On 12" Drwr, Locking, Gray Lam. MSA-ADL12 12x19x14 305x483x353 37 16.8
(F) Footrest - 60" MSA-FR60 60x3x3 1524x76x76 15 6.8
(F) Footrest - 72" MSA-FR72 72x3x3 1829x76x76 17 7.7
(G) Power Strip - 60" MSA-PS60 60x3x3 1524x76x76 9 4
(G) Power Strip - 72" MSA-PS72 72x3x3 1829x76x76 10 4.5
(H) Swing-Arm/Bin Holder MSA-SBH 19x2x14 483x51x353 24 10.8
(I) Bin Rail - 60" MSA-BR60 60x3x3 1524x76x76 4 1.8
(I) Bin Rail - 72" MSA-BR72 72x3x3 1829x76x76 5 2.3
(J) Wire Grid Panel (Chrome finish) MSA-WG60 60Lx33H 1524x838 21 9.5
(J) Wire Grid Panel (Chrome finish) MSA-WG72 72Lx33H 1829x838 25 11.3
(K) Uprights MSA-UR60 60x3x4 1524x76x102 13 5.9
(L) Leg Extenders (set of 4) MSA-LE 3x3x6 76x76x152 6 2.7
(M) Overhead Mounting Arms MSA-MARMS 22x3x3 559x76x76 6 2.7
Laminate Cantilevered Shelf - 60" (not shown) MSA-LAM60 60x12x2 1524x305x51 27 12.2
Laminate Cantilevered Shelf - 72" (not shown) MSA-LAM72 72x12x2 1829x305x51 34 15.5
Tool Storage Holder (not shown) MSA-TSH 6x6x6 152x152x152 2 .9
Solder Spool Holder (not shown) MSA-SSH 6x6x6 152x152x152 2 .9
NOTE 1: Starter drawers (6" & 12") include drawer and mounting kit. Add-on drawers do not require mounting kit for mounting. Drawers come standard with gray laminate face.
NOTE 2: Light assembly includes light fixture, mounting arms, and hardware.
NOTE 3: Solder spool holder and tool storage holder mount on bin rail. (Cat. No. MSA-BR60/MSA-BR72)
NOTE 4: Tool track and trolley requires overhead mounting arms for mounting off uprights.
NOTE 5: Wire cantilevered shelf can be pitched or placed horizontally utilizing the same mounting brackets. Oversized bins or totes may be placed on the 12" deep shelf since
there is no back ledge.
