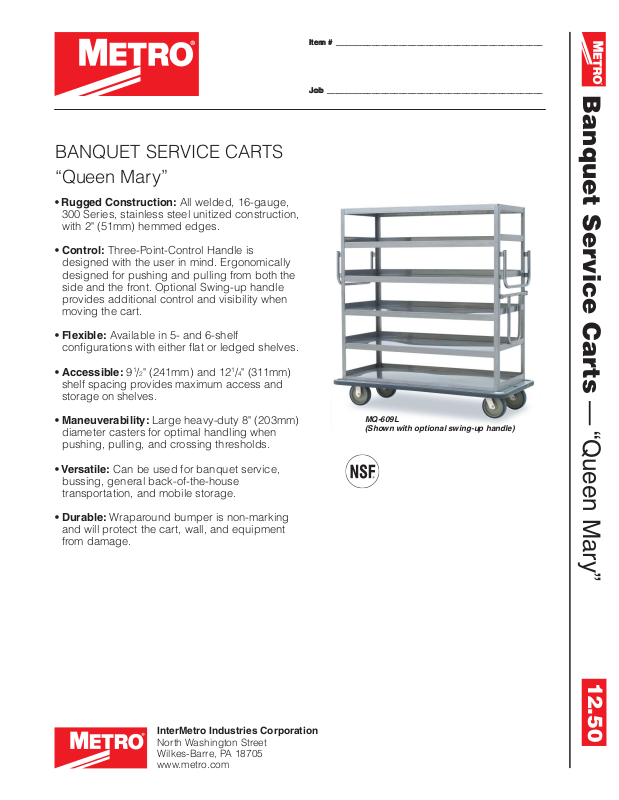

BANQUET SERVICE CARTS
“Queen Mary”
• Rugged Construction: All welded, 16-gauge,
300 Series, stainless steel unitized construction,
with 2" (51mm) hemmed edges.
• Control: Three-Point-Control Handle is
designed with the user in mind. Ergonomically
designed for pushing and pulling from both the
side and the front. Optional Swing-up handle
provides additional control and visibility when
moving the cart.
Item # ______________________________________________
Item # ______________________________________________
Job ________________________________________________
Job ________________________________________________
Banquet Service Carts — “Queen Mary”
• Flexible: Available in 5- and 6-shelf
configurations with either flat or ledged shelves.
1
• Accessible: 9
shelf spacing provides maximum access and
storage on shelves.
• Maneuverability: Large heavy-duty 8" (203mm)
diameter casters for optimal handling when
pushing, pulling, and crossing thresholds.
• Versatile: Can be used for banquet service,
bussing, general back-of-the-house
transportation, and mobile storage.
• Durable: Wraparound bumper is non-marking
and will protect the cart, wall, and equipment
from damage.
/2" (241mm) and 121/4" (311mm)
MQ-609L
(Shown with optional swing-up handle)
InterMetro Industries Corporation
North Washington Street
Wilkes-Barre, PA 18705
www.metro.com
12.50
Page 2
12.50
Job ________________________________________________Job ________________________________________________
BANQUET SERVICE CARTS
Specifications
• Construction: Welded, hemmed, stainless
steel construction.
• Material: Polished, 300 Series stainless steel.
• Shelves: 16-gauge stainless steel with 2" (51mm)
hemmed edge. Each shelf is 24" (610mm) wide x
57" (1447mm) long (usable space).
• Uprights: 11-gauge stainless steel.
• Casters: Four 8" (203mm) polyurethane casters.
Two rigid, two swivel with brakes.
• Handle: Unique Three-Point-Control Handle.
1" (25mm) diameter stainless steel construction.
• Bumper: Non-marking, solid vinyl bumper mounted
1
/8" (3.1mm) thick aluminum support channel with
to
closed corners.
• Load Rating: 200 Ibs. (91kg) equally distributed
per shelf; 1,000 Ibs. (455kg) per cart.
65.750
57.441
9.500
MQ-609F
63.625
57.441
1.500
12.250
24.441
1.500
MQ-609L
30.625
24.441
Banquet Service Carts — “Queen Mary”
MQ-512F
63.625
Dimensions
Approx.
Length/Width/Height Pkd. Wt.
Model No. Description (in.) (mm) (lbs.) (kg)
MQ-512F Five Shelves — Flat 63.625x30.625x65.75 1616x778x1670 300 136
MQ-609F Six Shelves — Flat 63.625x30.625x65.75 1616x778x1670 325 147
MQ-512L Five Shelves — Ledged* 63.625x30.625x65.75 1616x778x1670 300 136
MQ-609L Six Shelves — Ledged* 63.625x30.625x65.75 1616x778x1670 325 147
*Top shelf is flat.
For swing-up handle, add “-H” to the part number. Example: MQ-609F-H.
(Shown with optional swing-up handle)
MQ-512L
30.625
All Metro Catalog Sheets are available on our website: www.metro.com
InterMetro Industries Corporation
North Washington Street, Wilkes-Barre, PA 18705
Phone: 570-825-2741
Product Information. U.S. and Canada: 1.800.992.1776
Outside U.S. and Canada: www.metro.com/contactus
Information and specifications are subject to
change without notice. Please confirm at time of order.
Copyright © 2016 InterMetro Industries Corp.
Printed in U.S.A. Rev. 7/16
