MX 26
MULTIMETRE NUMERIQUE
DIGITAL MULTIMETER
DIGITAL MULTIMETER
MULTIMETRO DIGITALE
MULTIMETRO DIGITAL
User's manual
Copyright © 906129650 - Ed. 5 - 03/13
page 15 Chapter
II
4
Interface optique RS232
RS232 optical interface
optische Schnittstelle RS232
Interfacia ottica RS232
Interfaz optica RS232
18
17
16
15
1
13
12
11
5
6
7
19
20
21
22
8
9
10
COM
1 2 3
4
Multimètre digital portable 5000 points, avec entrées courant

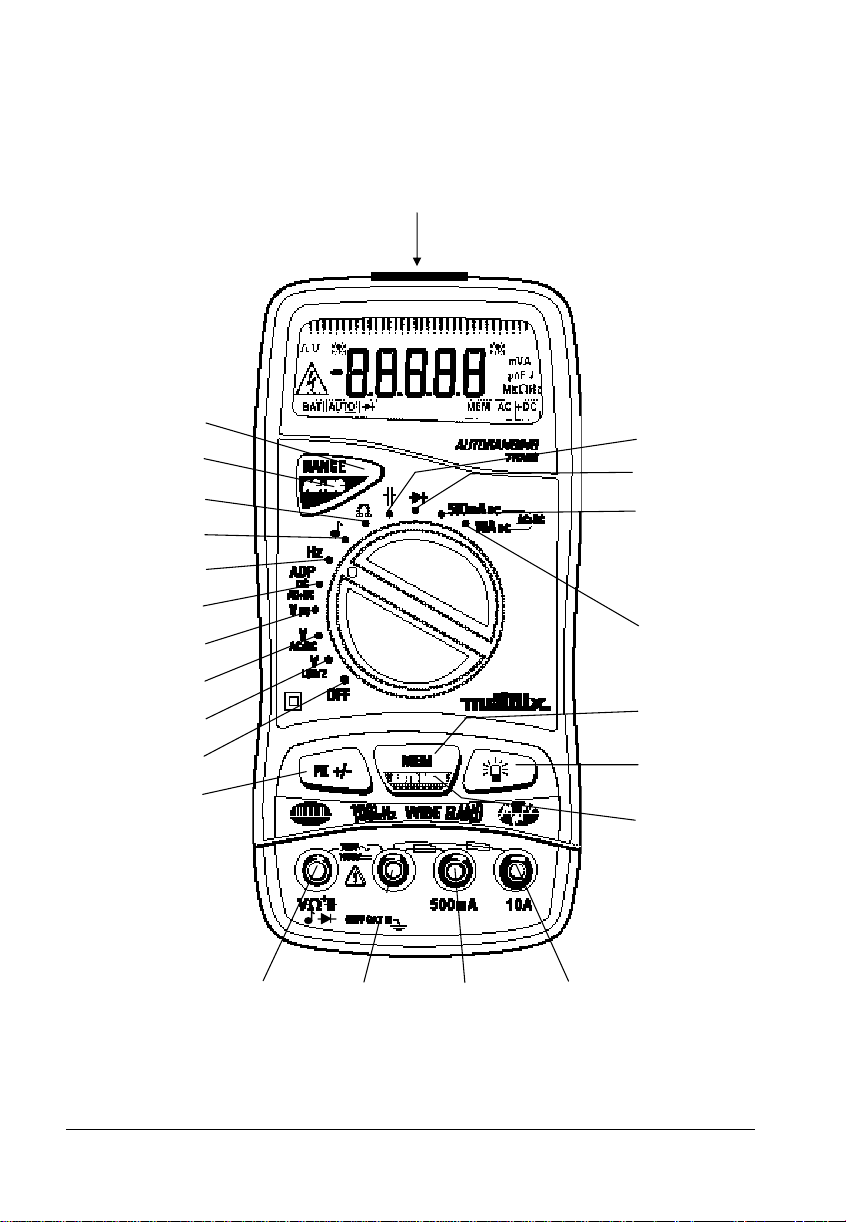

LEGENDE / LEGEND / BESCHREIBUNG / LEGENDA / LEYENDA
Borne d’entrée (positions 12 à 20)
1
Entrée de référence du multimètre
2
Borne d’entrée: gammes 500 mA
3
Borne d’entrée: gammes 10 A
4
Changement de gamme: RANGE
5
Fonctions secondaires: AC+DC
6
Mesure de pics +/-
7
Gel de l’affichage
8
Activation du rétro-éclairage
9
Mémorisation automatique
10
Mise hors tension
11
I
nput terminal (positions from 12 to 20)
1
Multimeter reference input
2
Input terminal, ranges 500 mA
3
Input terminal, ranges 10 A
4
Range change: RANGE
5
Secondary functions: AC+DC
6
+/- Peak measurement
7
Display hold
8
Backlighting
9
Automatic storage
10
Power off
11
E
ingansbuchse (Stellungen von 12 bis 20)
1
COM-Eingangsbuchse
2
3
Eingangsbuchse: (∗) 500 mA
4
Eingangsbuchse: (∗) 10 A
Bereichsumschaltung: RANGE
5
Zweitfunktionen: AC+DC
6
+/- Peak-Messung
7
Anzeige Speicherung
8
Anzeige Hintergrundbeleuchtung
9
Anzeige Autospeicherung
10
Multimeter Ausschalten
11
Boccola ingresso posizioni 12 a 20
1
Ingresso di riferimento del multimetro
2
Boccola ingresso portate 500 mA
3
Bocola ingresso portate 10 A
4
Cambiamento di portata: RANGE
5
Funzioni secondarie: AC+DC
6
Reti Peak +/-
7
Blocco lettura su display
8
Retroiluminazione del display
9
Memorizzazione automatica
10
Spegnimento
11
DC
DC
and 10 A
DC
DC
und 10 A
DC
DC
et 500 mA
DC
et 10 A
AC+DC
and 500 mA
AC+DC
und 500 mA
AC+DC
e 500 mA
DC
e 10 A
AC+DC
AC+DC
AC+DC
AC+DC
14Misura di tensione DC: portate da 5 VDC a 1000 VDC
AC+DC
Mesure de tensions AC: gammes 5 V
12
Mesure de tensions AC+DC: gammes 5 V
13
14Mesure de tensions DC: gammes 5 VDC à 1000 VDC
Mesure de tensions: gammes 500 mVDC et 500 mV
15
Mesure de fréquence
16
Test de continuité
17
Mesure de résistance
18
Mesure de capacité
19
Testeur de diode
20
Mesure de courant: gammes 500 mA
21
Mesure de courant: gammes 10 A
22
AC voltage measurement, ranges 5 V
12
AC+DC voltage measurement, ranges 5 V
13
DC voltage measurement, ranges 5 VDC to 1000 VDC
14
Voltage measurement, ranges 500 mVDC to 500 mV
15
Frequency measurement
16
Continuity test
17
Resistance measurement
18
Capacitance measurement
19
Diode test
20
Current measurement, ranges 500 mA
21
Current measurement, ranges 10 A
22
12
Messung von AC-Spannungen: (∗) 5 V
13
Messung von AC+DC-Spannungen: (∗) 5 V
14
Messung von DC-Spannungen: (∗) 5 VDC bis 1000 VDC
15
Spannungsmessung: (∗) 500 mVDC und 500 mV
Frequenzmessung
16
Durchgangsprüfung
17
Widerstandsmessung
18
Kapazitätsmessung
19
Diodentest
20
21
Strommessung: (∗) 500 mA
22
Strommessung: (∗) 10 A
(∗) Meßbereich (∗∗) niedrige Impedanz
Misura di tensione AC: portate da 5 V
12
Misura di tensione AC+DC: portate da 5 V
13
Misura di tensione: portate da 500 mVDC a 500 mV
15
Misura di frequenza
16
Test di continuitá
17
Misura di resistenza
18
Misura di capacitá
19
Test diodo
20
Misura di corrente: portate 500 mA
21
Misura di corrente: portate 10 A
22
und 10 A
DC
DC
und 500 mA
DC
DC
e 10 A
DC
à 750 VAC (basse impédance)
AC
AC+DC
et 500 mA
DC
et 10 A
AC+DC
to 750 VAC (low impedance)
AC
AC+DC
and 500 mA
DC
and 10 A
DC
bis 750 V
AC
AC+DC
AC+DC
AC+DC
a 750 VAC (bassa impedenza)
AC
AC+DC
e 500 mA
AC+DC
à 750 V
AC+DC
AC+DC
to 750 V
AC+DC
AC+DC
AC
bis 750 V
AC+DC
a 750 V
AC+DC
AC+DC
AC+DC
(∗∗)
AC+DC
AC+DC
AC+DC
AC+DC
B
orne de entrada calibres 12 a 20
1
Entrada de referencia del multímetro
2
Borne de entrada calibres 500 mA
3
Borne de entrada calibres 10 A
4
Cambio de calibre: RANGE
5
Fonctiones segundarias: AC+DC
6
Medidas de peak +/-
7
Memorización de la representación visual
8
Retroiluminación
9
Memorización automatica
10
Puesta fuera de servicio
11
DC
y 500 mA
DC
y 10 A
AC+DC
AC+DC
Medida de tensiones AC: calibres 5 V
12
Medida de tensiones AC+DC: calibres 5 V
13
Medida de tensiones DC: calibres 5 V
14
Medida de tensiones: calibres 500 mVDC y 500 mV
15
Medida de frecuencia
16
Test de continuidad
17
Medida de resistencias
18
Medida de capacidades
19
Test diodo
20
Medida de corrientes: calibres 500 mA
21
Medida de corrientes: calibres 10 A
22
Multimètre digital portable 5000 points, avec entrées courant
a 600 VAC (baja impedancia)
AC
a 750 V
DC
DC
DC
y 10 A
AC+DC
a 1000 VDC
y 500 mA
AC+DC
AC+DC
AC+DC
AC+DC
Chapter II
USER’S MANUAL
CONTENTS
1. GENERAL INSTRUCTIONS...................................................................................................................16
1.1. Precautions and safety measures...................................................................................................16
1.1.1. Preliminary...................................................................................................................................16
1.1.2. During use...................................................................................................................................16
1.1.3. Symbols.......................................................................................................................................17
1.1.4. Instructions..................................................................................................................................17
1.2. Protection mechanisms...................................................................................................................18
1.3. Safety mechanisms.........................................................................................................................18
1.4. Warranty..........................................................................................................................................18
1.5. Maintenance and metrological verification ......................................................................................18
1.6. Unpacking - Repackaging...............................................................................................................18
2. DESCRIPTION........................................................................................................................................19
2.1. Selector switch ................................................................................................................................19
2.2. Keypad............................................................................................................................................19
2.3. Display.............................................................................................................................................19
2.4. Power supply...................................................................................................................................19
2.5. Input terminals.................................................................................................................................19
3. GETTING STARTED...............................................................................................................................20
3.1. Connecting the test leads................................................................................................................20
3.2. Switching on the instrument............................................................................................................20
3.3. Switching off the instrument............................................................................................................20
3.4. Special configuration.......................................................................................................................20
3.5. Multimeter maintenance..................................................................................................................20
3.5.1. Fuse self-test...............................................................................................................................20
3.5.2. Battery self-test............................................................................................................................21
3.5.3. Replacing the battery or fuses.....................................................................................................21
3.5.4. Cleaning ......................................................................................................................................21
3.5.5. Storage........................................................................................................................................21
4. FUNCTION DESCRIPTION ....................................................................................................................22
4.1. RANGE / AC+DC key......................................................................................................................22
4.1.1. ADPDC / ADPAC+DC Position....................................................................................................22
4.1.2. 500 mADC / 500 mAAC+DC Position .........................................................................................22
4.1.3. 10 ADC / 10 AAC+DC Position....................................................................................................23
4.2. +/- Peak key....................................................................................................................................23
4.3. MEM / AUTO MEM key..................................................................................................................23
4.4 key............................................................................................................................................23
5. SOFTWARE KIT (optional)....................................................................................................................24
6. TECHNICAL SPECIFICATIONS.............................................................................................................25
6.1. General............................................................................................................................................25
6.2. Characteristics.................................................................................................................................25
6.2.1. DC voltages.................................................................................................................................25
6.2.2. AC voltages (AC and AC+DC).....................................................................................................25
6.2.3. DC current...................................................................................................................................26
6.2.4. AC currents (AC+DC)..................................................................................................................26
6.2.5. Resistance / Continuity test .........................................................................................................26
6.2.6. Capacitance.................................................................................................................................27
6.2.7. Diode threshold voltage measurement........................................................................................27
6.2.8. Frequencies.................................................................................................................................27
6.2.9. Safety..........................................................................................................................................27
6.2.10. General information .................................................................................................................28
6.2.11. Environment ............................................................................................................................28
6.2.12. EMC.........................................................................................................................................28
6.3. Accessories.....................................................................................................................................29
6.3.1. Supplied with the multimeter .......................................................................................................29
6.3.2. Optional.......................................................................................................................................29
5000-count portable digital multimeter, with current inputs
15
1. GENERAL INSTRUCTIONS
Chapter II
Y
ou are the new owner of a 5000 ct portable digital multimeter and we thank you for y
choice.
T
his instrument complies with the specification set
concerning safety
from
this instrument, read carefully this user's manual and respect the detailed safety
precautions.
The contents of this manual must not be reproduced in any form whatsoever without our
consent.
Precautions and safety measures
1.1.
1.1.1. Preliminary
- This device can be used for measurements on category ΙΙΙ installations, for voltages
never exceeding 600 V (AC or DC) relative to the earth.
- Definition of overvoltage categories
CAT I
CAT II
CAT III
CAT IV
requirements for electronic measuring apparatus. To get the best
(see. publication IEC 664-1) :
: The CAT I circuits are protected by safety measures limiting transient
overvoltages to appropriate low level.
Example
: The CAT II circuits are power supply circuits of appliances or portable
equipment with transient overvoltages of an average level.
Example
: The CAT III circuits are power supply circuits of power equipment with
high transient overvoltages.
Example
: The CAT IV circuits may comprise very high transient overvoltages.
Example
: protected electronic circuits
: appliances and portable equipment
: fixed installation or industrial equipment
: primary supply level
out in the IEC 61010-1 + A1 + A2,
our
service
When using this multimeter, the user must observe all normal safety rules concerning:
∗
- protection against the dangers of electric current.
- protection of the multimeter against misuse.
∗ For your own safety, only use the test probes supplied with the instrument and,
check, before use, that they are in good working condition.
1.1.2. During use
∗ Test equipment risk assessment : Users of this equipment and/or their employers
are reminded that Health and Safety Legislation requires them to carry out a valid
risk assessment of all electrical work so as to identify potential sources of electrical
danger and risk of electrical injury such as from inadvertent short circuits. Where the
assessment show that the risk is significant then the use of fused test leads
constructed in accordance with the HSE guidance note GS38 "Electrical Test
Equipment for use by Electricians" should be used.
∗ Never exceed the protection limit values indicated in the specifications for each type of
measurement.
16
5000-count portable digital multimeter, with current inputs
Chapter II
∗ When the multimeter is linked to measurement circuits, do not touch unused
terminals.
∗ W hen the range of the value to be measured is unknown, check that the range initially
set on the multimeter is the highest possible or, wherever possible, choose the
autoranging mode.
∗ Before changing functions, disconnect the test leads from the circuit under test.
∗ In TV repair work, or when carrying out measurements on power switching circuits,
remember that high amplitude voltage pulses at the test points can damage the
multimeter. Use of a TV filter will attenuate any such pulses.
∗ Never perform resistance or continuty measurements on live circuits.
1.1.3. Symbols
1.1.4. Instructions
∗ Before opening up the instrument, always disconnect from all sources of electric
current and make sure you are not charged with static electricity, which may destroy
internal components.
∗ Fuses must be replaced with fuses of the same rating and type.
∗ Any adjustment, maintenance or repair work carried out on the multimeter while it is
live should be carried out only by appropriately qualified personnel, after having
taken into account the instructions in this present manual.
A "qualified person" is someone who is familiar with the installation, construction
and operation of the equipment and the hazards involved. He is trained and
authorized to energize and de-energize circuits and equipment in accordance with
established practices.
∗ When the instrument is opened up, remember that some internal capacitors can
retain a dangerous potential even after the instrument is switched off.
∗ If any faults or abnormalities are observed, take the instrument out of service and
ensure that it cannot be used until it has been checked out.
∗ It is recommended to remove the battery from the instrument if not used.
Warning: Risk of danger.
Refer to the operating manual to find out the nature of the potential hazards
and the action necessary to avoid such hazards.
Attention : Risk of electrical shock
Earth terminal
Equipment protected throughout by double insulation.
The rubbish bin with a line through it means that in the European Union, the
product must undergo selective disposal for the recycling of electric and
electronic material, in compliance with Directive WEEE 2002/96/EC.
Conforms CE
Power supply : 9 V (6LF22) battery
5000-count portable digital multimeter, with current inputs
17
1.2. Protection mechanisms
This instrument is fitted with various protection mechanisms :
∗ Varistor protection for limiting transients of over 1100 V at the VΩ terminal,
particularly 6 kV pulse streams as defined by the French standard IEEE 587.
∗ A PTC (positive temperature coefficient) resistor protects against permanent
overvoltages of up to 600 V during resistance, capacitance, continuity and diode test
measurements. This protection is reset automatically after overload.
∗ Two HBC fuses provide protection up to 600 V during measurements of intensity
type.
∗ An IP protection rating of 40.
∗ Maximum protection beteen mA and 10 A input terminals : 500 V.
1.3. Safety mechanisms
1.4. Warranty
∗ The battery unit cannot be accessed without first disconnecting the measuring leads.
∗ When measuring voltages above 24 V, the sign blinks
∗ When measuring voltages above 10 A, the sign blinks
intermittent audible signal warns the user.
∗ If the maximum range is repeatedly exceeded, an intermittent audible signal warns
the user in volt (DC and AC+DC) and current (DC and AC+DC) functions.
This equipment is warranted against any defects of manufacture or materials according to
the general conditions of sale.
During the warranty period (3 years), defective parts will be replaced, the manufacturer
reserving the right to repair or replace the product. In the event of the equipment being
returned to the distributor or to a local agency, carriage to the centre shall be payable by
the customer. The warranty does not cover the following :
1.
Repairs necessitated by misuse of the equipment or use in association wi
incompatible equipment.
Modification of the equipment or any related software wi
2.
of the manufacturer.
3.
Repairs necessitated by attempts to repair or maintain the product made by
not approved by
Adaptation to a specific application not provided for
4.
equipment or the user manual.
5. Damage after a drop, a shock or flooding.
the manufacturer.
on the display.
on the display and an
thout the explicit authorization
in the specifications of the
Chapter II
th
a person
Maintenance and metrological verification
1.5.
Return your instrument to your distributor for any work to be done within or outside the
guarantee.
1.6. Unpacking - Repackaging
This equipment has been fully checked out mechanically and electrically before shipping.
All precautions have been taken to ensure that the instrument arrives at its destination
undamaged. However, it is advisable to carry out a rapid check for damage sustained in
shipping. If there is any evidence of damage, make this known immediately to the shipper.
* Should you need to return the multimeter, preferably use the original packaging and
indicate the r
18
5000-count portable digital multimeter, with current inputs
easons as clearly as possible on an accompanying note.
Chapter II
2. DESCRIPTION
This compact multimeter is a self-contained with an appropriate mechanical construction,
enables hand-held version, with a protective elastomer case. It is designed for a high
degree of user safety, maximum protection and unrivalled performance.
2.1. Selector switch
This multimeter is a standalone, hand-held professional measuring instrument, capable of
measuring the following quantities (accessed by the twelve-position rotary selector switch):
∗ AC voltages with AC (or RMS) capacitive coupling (Input impedance : 500
∗ AC voltages with AC+DC (or TRMS) direct coupling
∗ DC voltages
∗ DC / AC+DC voltages, range 500 mV
∗ AC currents with AC+DC (or TRMS) direct coupling
∗ DC currents
∗ resistance values
∗ continuity (with beeper)
∗ capacitance
∗ diode threshold voltage
∗ frequencies
2.2. Keypad
A four-key keypad lets you :
∗ select the autoranging mode (RANGE / AC+DC key)
∗ store a value (MEM key)
∗ activate the positive or negative peaks (Pk +/- key)
∗ select a function derived from the main function, or switch on the multimeter again
after it has been shut down automatically (RANGE / AC+DC key)
∗ activate back lighting of the display unit ( key)
∗ activate the RS232 link (Pk +/- and keys + switch to OFF).
2.3. Display
2.5. Input terminals
This multimeter display provides :
∗ 5 000-count measurements (50 000-count Hz-measurement),
∗ function indicator (V, A, AC+DC, F, Hz,
, Ω, , AUTO, MEM, ) and
multiplicator (n, µ, m, k, M),
∗ battery discharged indicator BAT : approximately 12 hours of operation,
∗ clearly legible figures (11 mm high),
∗ an analogue readout of the parameter being measured through a 34-segment
bargraph,
∗ validation of the RS232 interface.
Display backlight when required in poor lighting conditions. Automatic switch-off.
2.4. Power supply
This multimeter is powered by a standard 9 V battery (6LF22) which provides
approximately 500 hours of operation (on function V
Measurements are performed using two measuring leads supplied with the instrument
DC).
connected to input terminals 1, 2, 3 and 4, as indicated in section 3.1.
kΩ)
5000-count portable digital multimeter, with current inputs
19
3. GETTING STARTED
3.1. Connecting the test leads
Connect the black lead to the COM socket (for all measurements). Depending on the
position of the selector switch, connect the red lead as follows:
Rotary selector switch position Input terminal
VLOW Z, VAC+DC, VDC, ADPDC (ADPAC+DC), Hz, , Ω, , V Ω
500 mADC (500 mAAC+DC) 500 mA
10 ADC (10 AAC+DC) 10 A
RS232 lead :
Connect the RS232 optical interface (optional kit) to the top of the multimeter casing and
the DB9F plug to PC (COM port). Refer to § 5.
3.2. Switching on the instrument
The selector switch is on the OFF position.
Turn the selector switch to the required function.
All segments of the display come on for a few seconds. The instrument is then ready for
measurements.
3.3. Switching off the instrument
The instrument can be switched off manually by returning the selector switch to the OFF
position, or automatically after approximately half an hour if no key is pressed or the switch
is not operated.
Note For user safety, automatic shutdown is disabled when a measured
)
magnitude (voltage/current) present at the input exceeds dangerous level
(
indicator displayed).
Chapter II
3.4. Special configuration
To adapt the configuration of the instrument to the measurement environment, the user
can choose 50 Hz or 60 Hz rejection :
Switch on with the rotary switch while holding down the MEM key. The selection is
reversed from the last configuration, is displayed for two seconds and remains backed
up in non-volatile memory.
To initialise the RS232 communication, keep the Pk +/- and keys simultaneously
pressed, then set the rotary switch to the selected position.
3.5. Multimeter maintenance
3.5.1. Fuse self-test
This check can be carried out with the multimeter in use without opening up the casing.
- 0.63 A fuse (F1) : set the rotary switch to the
VΩ sockets. The display should read approx. 0.001 V. If the digital display indicates an
overflow « .OL ». The fuse is blown.
- 10 A fuse (F2) : set the rotary switch to the
sockets. The display should read approx. 0.001 V. If the digital display indicates an
overflow « .OL ». The fuse is blown.
20
5000-count portable digital multimeter, with current inputs
position and short-circuit the 500 mA and
position and short-circuit the COM and VΩ
Chapter II
3.5.2. Battery self-test
When the BAT indication appears on the display, the instrument still has approximately 12
hours of operation, but specifications can no longer be guaranteed.
Replace the battery.
3.5.3. Replacing the battery or fuses
* Caution !
Use the following procedure:
Fuses must be replaced
Disconnect test leads from any circuit under test, turn the meter off
emove test leads from the input terminals .
and r
1 - Disconnect test leads from any input terminals.
2 - Using an appropriate tool, slide off the case bottom of the instrument.
3 - Replace the battery or fuse (respect the value and the type).
4 - Replace the removable part.
F1 0.63 A HBC 18 kA / 600 V F2 10 A HBC 50 kA / 600 V
by fuses of the same
rating and type.
6LF22
9 V BATTERY
* Fitting the fuses :
T
hose fuses are correctly fitted ; those ones are not.
3.5.4. Cleaning
Clean the instrument using a damp cloth and soap. Never use abrasive or solvents.
3.5.5. Storage
To guarantee the measurement accuracy, after a long period storage in extreme
environment conditions, wait enough time for the instrument to acclimatise to the working
environment conditions (see environment specifications).
5000-count portable digital multimeter, with current inputs
21
4. FUNCTION DESCRIPTION
4.1.
RANGE / AC+DC key
The RANGE key is operative in following positions of the selector switch :
LOW Z, VAC+DC, VDC, Ω, , Hz.
V
This key makes it possible :
• In AUTO (Autoranging) mode to sw
In MANUAL mode, to select the next range (short press) or return to AUTO
•
(long press), the AUTO sign appears on the display.
This can be used to switch on the multimeter again after an automatic shutdown. It can also
be used to access secondary functions associated with the selector switch positions : mode
AC+DC.
The flowcharts below define these various functions.
itch to MANUAL mode (short press).
Chapter II
mode
4.1.1. ADP
DC / ADPAC+DC Position
This function is adapted for accessories with mV output.
ADPDC
4.1.2. 500 mA
DC voltage measurement
(Range 500 mV
AC+DC voltage measurement (TRMS)
(Range 500 mV
DC / 500 mAAC+DC Position
DC current measurement
(Range 50 mA
AC+DC key
ADPAC+DC
AC+DC key
500 mADC
AC+DC key
AC+DC)
DC)
DC)
The AC+DC sign
appears on the display.
500 mAAC+DC
AC+DC current measurement (TRMS)
(Range 500 mA
22
5000-count portable digital multimeter, with current inputs
AC+DC key
AC+DC)
The AC+DC sign
appears on the display.
Chapter II
4.1.3. 10 A
4.2. +/- Peak key
DC / 10 AAC+DC Position
DC current measurement
AC+DC current measurement (TRMS)
10 ADC
(Range 10 A
AC+DC key
10 AAC+DC
(Range 10 A
AC+DC key
AC+DC)
DC)
The AC+DC sign
appears on the display.
The fast positive or negative peak measurement functions (> 1 msec.) can be accessed by
repeatedly pressing this key in the V
DC, ADPDC, mADC and 10 ADC functions.
This key also desactivates the auto power-off, if it is pressed when switching on (“P-OFF”
is displayed).
Automatic shutdown of the instrument is disabled in order to avoid interrupting the peak
measurements (Pk +/-).
4.3. MEM / AUTO MEM key
Short press (MEM) : Fixes the display on the current value. A second short press returns the
multimeter to normal mode. The “MEM” sign appears on the display.
The MEM mode is available on all measurements.
Long press (AUTO MEM) : Accesses or quits the “autostore” mode.
The “MEM” sign blinking on the display.
LOW Z, VAC+DC, VDC, ADPDC, ADPAC+DC
Autostore
Affected ranges : V
Set the probes on the point to be measured. An audio signal indicates whether the
measurement is stable. When you remove the probes, a second audible signal indicates
that this stable value displayed has been stored.
) The bargraph remains active during the "autostore” and display “MEM “mode.
Pressing this key
when switching on the instrument enables the selection of a rejection of
50 or 60 Hz. The selection is reversed from the last configuration. It is displayed for 2
secs. and remains backed up in non-volatile memory.
4.4. key
Activates/desactivates back lighting of the display unit. It automatically goes off after
≈ 60 seconds.
5000-count portable digital multimeter, with current inputs
23
5. SOFTWARE KIT (optional)
Chapter II
Connection of the kit and installation of the SX-DMM softw
ith the software kit option, the multimeter can interface directly wi
W
Connect the optical plug at the top of the shockproof sheath. A mechanical
1.
are :
device is provided on the left-hand side to prevent connection the w
2.
Plug the connector into one of the PC's "COM
3.
Keep the "Pk +/-"
from the "OFF
T
RS232
optical connector
Mechanical
fail-safe
device
he digital display briefly indicates "RS232
and "
" multimeter keys pressed down and then move the switch
" position to the position required.
RS232
interface
cable
" ports.
".
Plug
COM
th a computer or PC:
fail-safe
rong way
round.
PC
Multimeter with its sheath
Install the SX-DMM software on the PC using the 2 floppy
4.
5.
Start up the software
to perform data acquisition and to take advantage of the various
disks.
display possibilities such as cursors, curves, tables, etc.
24
5000-count portable digital multimeter, with current inputs
Chapter II
6. TECHNICAL SPECIFICATIONS
6.1. Genera
l
Only the values assigned tolerances or given limits are guaranteed values. Values without
tolerances are giv
measurement errors must be considered in an env
en for information only, without guarantee (s
ironment of reference temperature (refer to
tandard NFC 42670). The
6.2.11).
It is essential that all measuring instruments are regularly calibrated.
6.2. Characteristics
Accuracy is ± [% reading (R) + number of digits (D)].
{Accuracy : ‘’n %R + n D’’ means ‘’n % of the reading + n digits’’ }
6.2.1. DC voltages
Selector switch
Ranges
Accuracy
position
ADPDC 500 mVDC
5 VDC
VDC 50 VDC 0,3 % R + 2 D 775 Vrms 10 mVDC
500 VDC
1000 VDC 1 VDC
(∗) Acceptance permanent max. voltage
Input impedance
10 MΩ
11 MΩ ± 1100 V
10 MΩ
Protection
PEAK
(∗)
Number of points : 5 000
Range selection : automatic or manual for the 5 V, 50 V,
500 V, 1000 V ranges
Common mode rejection : at 50 and 60 Hz, better than 120 dB
Serial mode rejection : at 50 and 60 Hz, better than 60 dB
Intermittent signal sounds and « OL » on the display in case of range overpassing.
For measurements performed on alternative signals, the selected range must tally with the max.
value of the signal peak.
Additional error in Pk +/- mode for a pulse width of ≥ 1 ms : 1 % R ± 50 D
Resolution
0.1 mVDC
DC
1 mV
100 mVDC
§
6.2.2.
AC voltages (AC and AC+DC)
Switch Range Input Protection Accuracy Resolution
position impedance (*) 40Hz to 1 kHz 1 to 4 kHz 4 to 20 kHz 20 to 50 kHz 50 to 100 kHz
VLOW Z 50 VAC
ADPAC+DC 500 mVAC+DC
VAC+DC 50 VAC+DC ± 1100 Vpk 1 % L + 3 D 1 % L + 3 D 2 % L + 3 D 3 % L + 3 D 5 % L + 3 D 10 mVAC+DC
5 VAC 1 mVAC
500 VAC 775 Vrms 100 mVAC
750 VAC - - - - 1 mVAC
5 VAC+DC
500 VAC+DC
750 VAC+DC - - - - 1 VAC+DC
(∗) Acceptance permanent max. voltage
± 1100 Vpk 1 % L + 3 D 1 % L + 3 D 2 % L + 3 D 3 % L + 3 D 5 % L + 3 D 10 mVAC
500 kΩ
± 1100 Vpk
10 MΩ
//100 pF
11 MΩ
10 MΩ
1.5 % L + 3 D - - - - 0.1 mV
775 Vrms
775 Vrms 100 mVAC+DC
1 mVAC+DC
Specifications applicable from 10 % to 100 % of the range for a sinusoidal signal in band 40 Hz
to 20 kHz and from 20 % to 100 % of the range in band 20 kHz to 100 kHz.
Number of points : 5 000
Range selection : automatic or manual for the 5 V, 50 V,
500 V, 750 V ranges
Common mode rejection : at 50 and 60 Hz, better than 60 dB
Additional error according to crest factor : 0.5 % for a crest factor of 2 to 3
1 % for a crest factor of 3 to 6
Intermittent signal sounds and « OL » on the display in case of range overpassing.
5000-count portable digital multimeter, with current inputs
AC+DC
25
Chapter II
5
5
5
6.2.3. DC current
Selector switch position Ranges Accuracy Max volt. drop Protection
Fuses
(∗)
Resolution
500 mADC 500 mADC 0.3 % R + 2 D < 600 mV 600 VRMS F1 + F2 100 µADC
DC 1 % R + 2 D < 700 mV 600 VRMS F2 10 mADC
10 ADC (∗∗)
10 A
(∗) Refer to fuse specifications section 3.5.3.
(∗∗) Acceptance 20 A overload during 30 s. max, observing a 5 min break at least between 2
measurements.
Beyond 7 A, the measurement is limited to one minute.
Number of points : 5 000
« OL » on the display (range 500 mADC only) and intermittent signal sounds in case of range overpassing.
For measurements performed on alternative signals, the selected range must tally with the max. value of
the signal peak.
Additional error in Pk +/- mode for a pulse width of ≥ 1 ms : 1 % R ± 50 D
6.2.4.
AC currents (AC+DC)
Selector switch
position
500 mAAC+DC 500 mAAC+DC 40 Hz to 10 kHz :
10 AAC+DC (∗∗)
Ranges Accuracy Max.
10 AAC+DC 40 Hz to 2 kHz
1.5 % R + 2 D
% R + 2 D
10 kHz to 30 kHz :
% R + 2 D
: 2.
2 kHz to 10 kHz
% R + 2 D
volt.drop
< 600 mV 600 VRMS F1 + F2 100 µAAC+DC 1 A
:
< 700 mV 600 VRMS F2 10 mAAC+DC
Protection Fuses
(∗)
Resolution Max.
(∗) Refer to fuse specifications section 3.5.3.
(∗∗) Acceptance 20 A overload during 30 s. max, observing a 5 min break at least between 2
measurements.
At 10 A, the measurement is limited to a period of 30 minutes.
500 mAAC+DC range
:
Specifications applicable from 10 % to 100 % of the range for a sinusoidal signal in band 40 Hz to 30 kHz.
10 AAC+DC range
:
Specifications applicable from 10 % to 100 % of the range for a sinusoidal signal in band 40 Hz to 2 kHz
and 20 % to 100 % of the range in band 2 kHz to 10 kHz.
Number of points : 5 000
Additional error according to crest factor : 0.5 % for a crest factor of 2 to 3
1 % for a crest factor of 3 to 6
« OL » on the display (range 500 mAAC+DC only) and intermittent signal sounds in case of range
overpassing.
* blinks and an intermittent signal sounds (10 ADC and 10 ADC+DC ranges) in case of
measurements over 10 ADC and 10 ADC+DC.
crest
6.2.5.
Resistance / Continuity test
Selector switch Ranges Accuracy Measur. current
500 Ω
500 Ω
5 kΩ
Ω 50 kΩ
500 kΩ
5 MΩ
50 MΩ
0.3 % R + 3 D
0.3 % R + 3 D
0.5 % R + 3 D
1 % R + 5 D
1 mA
1 mA
100 µA
10 µA 600 V
1 µA
100 nA
50 nA
Protection
RMS
(∗)
Resolution
0.1 Ω
0.1 Ω
1 Ω
10 Ω
100 Ω
1 kΩ
10 kΩ
(∗) Overload protection can be reset automatically.
Number of points :5 000
Range selection : auto or manual (fixed in continuity mode)
Maximum open circuit voltage : 7 V
Detection threshold in continuity mode : 10 Ω to 15 Ω
Response time in continuity mode : 1 ms
For measurements in 5 MΩ and 50 MΩ ranges, the use of shielded and very short connection is highly
recommended.
26
5000-count portable digital multimeter, with current inputs
Chapter II
6.2.6. Capacitance
Note Discharge all capacitors before taking measurements.
)
Selector switch
position
(∗) Overload protection can be reset automatically.
Ranges Accuracy Measurement
50 nF 100 nA < 1 s 10 pF
500 nF 1 µA < 1 s 100 pF
5 µF 10 µA < 1 s 1 nF
50 µF
1 % R + 2 D 100 µA < 1 s 600 V
500 µF 1 mA < 2 s 100 nF
5000 µF 1 mA
50 mF 2 % R + 2 D 1 mA
current
Max measurement
time
≈ 3 s/mF
≈ 3 s/mF
Number of points : 5 000
Range selection : automatic or manual
Maximum open circuit voltage : 7 V
For measurements in 50 nF range, the use of shielded and very short connection is highly
recommended.
6.2.7.
Diode threshold voltage measurement
Measurable voltages : 0 to 1.999 V
Measurement current : 1 mA
Resolution : 1 mV
Protection : 600 V
20 %
+/-
RMS, can be reset automatically
Protection
(∗)
RMS 10 nF
Resolution
1 µF
10 µF
6.2.8. Fr
equencies
Selector switch
position
Hz 50 to 500 Hz 0.03 % R + 1 D
Ranges Accuracy Input
0.62 to 5 Hz 0.0001 Hz
5 to 50 Hz 0.001 Hz
500 Hz to 5 kHz (VAC+DC) 775 Vrms 0.1 Hz
5 to 50 kHz 1 Hz
50 to 500 kHz 0.05 % R + 1 D 10 Hz
Number of points :
50 000
impedance
10 MΩ
Protection Resolution
± 1100 VPEAK
Range selection : The measurement is realised by the capacitive
coupling. The frequency meter is automatically
positioned on 5 V range.
Voltage range manual selection possible, if necessary.
Sensitivity
Range 5 V to 500 V 750 V
0.62 Hz to 5 kHz (*) 2 % of range 100 V
5 kHz to 50 kHz 5 % of range 250 V
50 kHz to 500 kHz 10 % of range -
(*) square signals
) In this switch position, only the voltage frequency can be measured.
6.2.9. Safety
5000-count portable digital multimeter, with current inputs
IEC 61010-1 + A1 + A2
Insulation : class 2
Pollution degree : 2
Indoor use, altitude < 2000 m
Installation category
of input : CAT III, 600 V max. to earth
0.01 Hz
27
6.2.10. General information
Mechanical
Dimensions 170 x 80 x 35 mm
Weight (inc. battery) 285 g
Casing and circuit self-extinguishing materials
Packaging
Dimensions 230 x 155 x 65 mm
Weight 385 g
Power supply
Power requirements single 9 V alkaline battery (6LF22)
Low battery indication BAT is displayed when the battery
voltage drops below operating voltage
DC
Battery life 500 hours approx. in V
mode
Display
Liquid crystal display comprising
- a 50 000-count display + sign (digits 11 mm high)
- a 34-bar analogue bargraph display
- appropriate units for each type of measurement
- triggered mode indicators (storage, ranging, ...)
- battery discharged indicator
Measurement rate
Digital display 2 measurements/s
Bargraph 20 measurements/s
6.2.11. Environment
Reference temperature 23°C ± 5°C
Limit range of operation 0°C to 50°C
Not specified rated range of use -10°C to 0°C and 50°C to 55°C
Storage temperature range -20°C to 70°C
Temperature coefficient max. 0.1 x (accuracy) / °C
Relative humidity 0 to 80 % from 0 to 35°C
(70 % max. for ranges from 5 and 50 MΩ)
0 to 70 % from 35°C to 50°C
Water-tightness IP 40
Max. influence in electro-magnetic fields at
3 V/m acc. to EN 61000-4-3 ± 300 D in V
DC and VAC ranges
± 200 D in IDC and IAC ranges
± 200 D in Ohm range
Chapter II
6.2.12. EMC
This apparatus was designed in accordance with the EMC standards in force and its
compatibility has been tested accordance with the following standards :
Emission EN 61326-1
•
• Immunity EN 61326-1
The product conforms to the prescriptions of the European directiv
73/23/EEC and the EMC directive 89/336/EEC, amended by 93/68/EEC.
28
5000-count portable digital multimeter, with current inputs
e low voltage directive
Chapter II
6.3. Accessories
6.3.1. Supplied with the multimeter
One set of test leads with safety probes
One 6LF22 9 V battery AL0042
One user’s manual 906129650
Protective elastomer case with RS232 window HX0010
6.3.2. Optional
Communication kit SX-DMMK
Acquisition Software (part. nr. SX-DMMC)
RS232 lead (DB9F) (part. nr. HX2002)
Software
Calibration software SX-MX26CAL
Connection
RS232 lead (DB9F) HK2002
Probes
EHT 3 kVAC/DC HT0203
EHT
T
ype K thermocouple, 1 mV/°C, general purpose
DC HT0212
30 kV
and surface type, -25°C to +350°C HK0210N
Optical tachometer, 100 rpm to 60 000 rpm HA1237
Current clamps
Range 200 A
Range 200 A
Range 600 A
Range 1000 A
AC, 1 AAC/1 mVAC, max cable ∅ 20 mm, connection : sockets AM0014N
AC, 1 AAC/10 mVAC, max cable ∅ 20 mm, connection : sockets AM0016N
DC, 600 AAC, max cable ∅ 30 mm, connection : sockets AM0600N
DC, 600 AAC, max cable ∅ 43 mm, connection : sockets AM1000N
Shunts
DC / 300 mV, ± 0.5% HA0170
30 A
DC / 50 mV, ± 0.5% HA0512
50 A
DC / 30 mV, ± 0.5% HA0300
300 A
Fuses
Fuse 6.3 x 32 mm, 10 A, 50 kA / 600 V AT0084
Fuse 6.3 x 32 mm, 0.63 A, 18 kA / 600 V AT0519
Miscellaneous
Carrying bag AE0190
Carrying case (Nr. 30) HX0009
Set of test leads with safety probes (bent bananas) AG0475A
5000-count portable digital multimeter, with current inputs
29
Loading...
