CORDLESS DRILLS / SCREWDRIVERS
METABO
CORDLESS.
Metabo has a solid range of cordless machines that can cover a wide range of
applications. The compatibility of the battery packs ensures econo mically efficient use.
With LI Power – the lithium-ion technology by Metabo – a new battery technology
era has begun. Li Power batteries are up to 40% lighter and yet still provide up to
40% more power than previous battery packs. Along with the Metabo AIR COOLED
charging technology, Metabo is once again one step ahead when it comes to battery
technology. Metabo. Work. Don’t play.
126 |
CORDLESS DRILLS / SCREWDRIVERS
Li Power battery packs
are up to 40% lighter
and still provide up to
40% more power than
NiCd battery packs.
| 127
CORDLESS DRILLS / SCREWDRIVERS
TRUE PROS GET EVERYWHERE.
For professional users, mobility is essential. They still
want to screw, drill, cut and saw even without electrical
power supply. They need power, for as long as pos sible.
Therefore, besides the torque and speed criteria, the
battery capacity and the charging system also plays an
important role.
Robust housing
made of fibre
glass-reinforced
polyamide
Durability and
robustness in
good shape.
Ergonomic Z shape
The unique design
enables fatigue-free
work and the perfect
use of force.
Three-level planetary
metal gears
Extends the service life
of the machine by an
enormous degree.
Metabo “Impulse”
For the simple
removal of tightfitting screws.
Clockwise/anticlockwise switch
Due to the symmetrical, heart-shaped design
suitable for righthanded and left-handed users.
Die cast aluminium housing
(only Plus class machines)
Increases the service life of the
machine. The machine is more robust
and dissipates heat faster.
Metabo „Quick“
Quick, one-hand tool change due to
quick-action keyless chuck and spindle
stop gear mechanism.
Rubber-coated handle
Metabo “Impulse” technology
Tight-fitting screws or damaged screw
heads can be easily removed using this
“start-up aid”.
Metabo AIR-COOLED technology
Faster charging and more charging
cycles per battery. This makes your
cordless device even more
independent of the power supply.
Gentle and faster charging
The new Metabo quick re-charging devices
are suited to re-charge old and new Metabo
NiCd- and NiMH-battery packs. With the
„Plus” devices, Li-power battery-packs can
also be re-charged
System flexibility
Battery packs that always fit. Regardless
of the charger you use.
128 |
THE METABO RANGE OF BATTERIES WITH HIGH SYSTEM FLEXIBILITY.
For charging your battery packs, you can choose
between the universal quick chargers C 45, the pulse
computer quick charger ICS 10 and the air-cooled char-
gers AC 30, AC 30 Plus, ACS 15 and ACS 15 Plus. You can
even charge battery packs of the first genera tion with
our latest chargers and thus enjoy shorter charging
times. When the charging process is finished, the
charger automatically switches to trickle charging. The
battery pack can therefore remain in the charger, is not
overcharged and is always fully ready for use.
RANGE OF BATTERIES
ANGLE GRINDERSMETAL PROCESORSHAMMERSIMPACT DRILLSDRILLSSCREWDRIVERS
4,8 V
PowerMaxx
9,6 V
BZ 9.6 SP
12 V
BZ 12 SP
BSZ 12
BSZ 12 Impuls
SSP 12
BSZ 12
BSZ 12 Impuls
SSP 12
14,4 V
BSZ 14.4
BSZ 14.4 Impuls
BSZ 14.4 Impuls
SBZ 14.4 Impuls
18 V
BSZ 18
BSZ 18 Impuls
KSAP 18
ASE 18
BSZ 18 Impuls
SBZ 18 Impuls
KSAP 18
ASE 18
Battery pack 4,8 V
1,25 Ah NiCd
„AIR COOLED“ battery packs 9,6 V
1,4 Ah NiCd
„AIR COOLED“ battery packs 12 V
1,4 Ah NiCd
2,0 Ah NiCd
3,0 Ah NiMH
2,2 Ah Li-Ion
„AIR COOLED“ battery packs 14,4 V
1,4 Ah NiCd 3,0 Ah NiMH
2,0 Ah NiCd
2,2 Ah Li-Ion
„AIR COOLED“ battery packs 18 V
1,4 Ah NiCd
2,0 Ah NiCd
3,0 Ah NiMH
2,2 Ah Li-Ion
Charger
2 h
Connection piece
6.31976
„AIR COOLED“Chargers
AC 30/30 min*
ACS 15/15 min*
„AIR COOLED“Chargers
AC 30 Plus/30 min*
ACS 15 Plus/15 min*
All batteries from 9.6–18 V
9,6–18 V
ULA 9.6–18
12 V
BSP 12 Plus
SBP 12 Plus
15,6 V
BSP 15.6 Plus
18 V
BSP 18 Plus
SBP 18 Plus
18 V
BHA 18
BHA 18 2,2 Ah Li-Ion
24 V
KHA 24
KHA 24
With the exception of battery
packs from Power Grip and
Bh EA 14 S- R+L

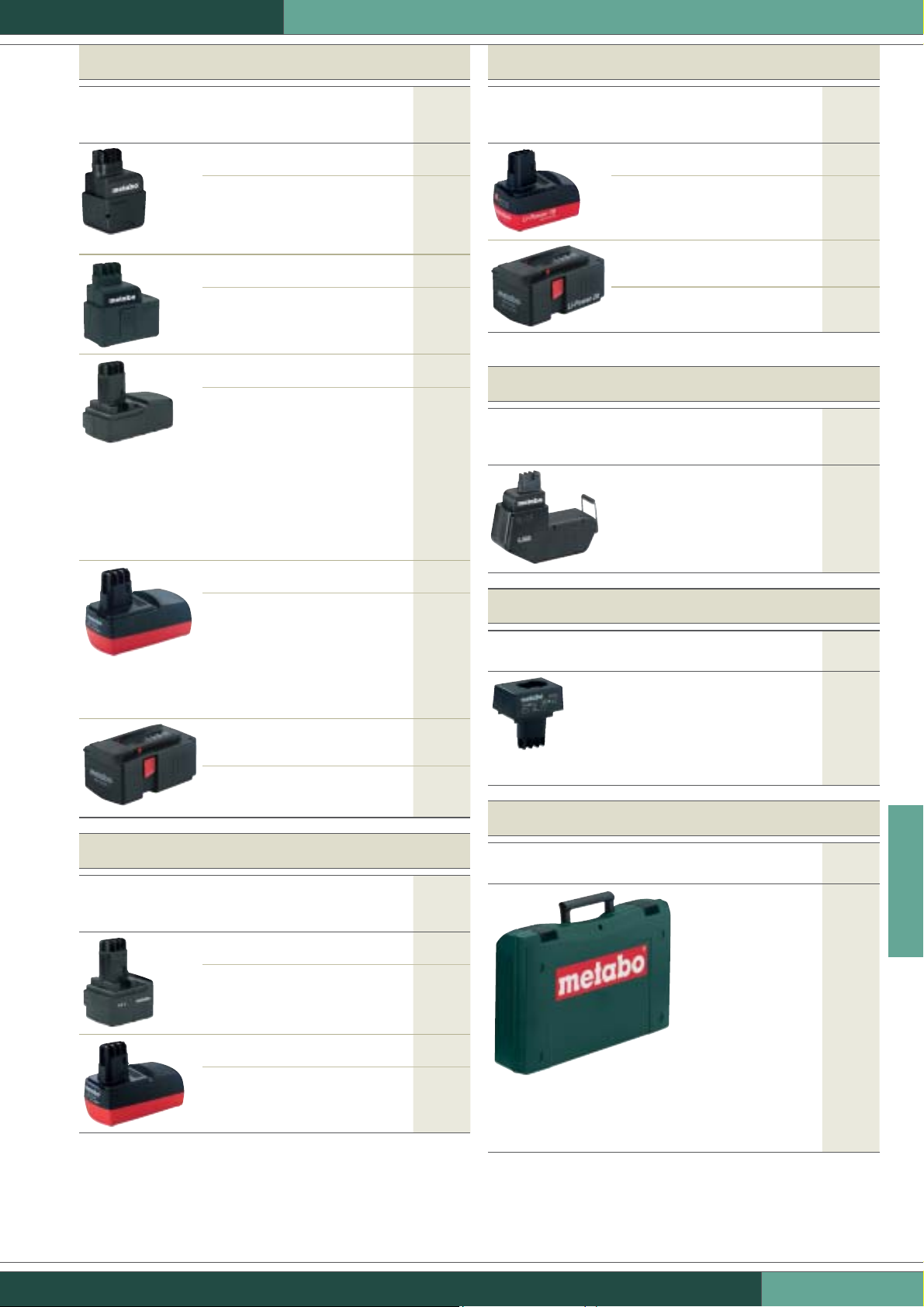

Battery packs 12 V
1,25 Ah NiCd 2,4 Ah NiCd
1,4 Ah NiCd 3,0 Ah NiMH
2,0 Ah NiCd
Battery packs15,6 V
1,25 Ah NiCd 3,0 Ah NiMH
2,4 Ah NiCd
Battery packs18 V
1,25 Ah NiCd 2,4 Ah NiCd
2,0 Ah NiCd
Battery pack 18 V
2,0 Ah NiCd
Battery pack 24 V
2,0 Ah NiCd
Battery pack 25,2 V
2,2 Ah Li-Ion
Connection
piece
6.27075
Chargers
C 45/45 min*
C 45 Car/45 min*
Charger
ICS 10/10 min*
„AIR COOLED“Chargers
ASS 15 Plus/15 min*
*charging time at 9,6 V/1,4 Ah
MACHINES
WOOD SANDING
ROUTERS
AND PLANERS
| 129
CORDLESS SCREWDRIVER / CORDLESS DRILL
EQUIPMENT FEATURES
Lightweight for fatigue-free work
Variospeed (V) electronics
Motor with integrated air cooling
Quick stop
Spindle stop
Integrated working light
Sturdy die cast gear housing
Pistol grip for optimum power transmission in direction of drilling
Rubber-coated handle
With LC 60 charger, charging time approx. 30 mins (for 1.1 Ah)
... 40%
more output with
40% less weight
NEW
EQUIPMENT FEATURES
Lightweight for fatigue-free work
Variospeed (V) electronics
20-level adjustable torque, plus drilling level
Clockwise and anticlockwise rotation
Quick stop
Spindle stop
Spindle with hexagon recess for screwdriver bits
Pistol grip for optimum power transmission in direction of drilling
Sturdy die cast gear housing
Easy and quick change of battery pack
Charger (charge time approx. 2 hours)
PowerMaxxPowerGrip Li
7.2 Volt
Cordless Screwdriver
Power Grip Li
Comparative device characteristics
Type of battery pack Li-Ion
Battery pack voltage 7,2 V
1)
Capacity of battery pack 1,1 Ah
Maximum torque, soft 7 Nm
Maximum torque, hard 13 Nm
No load speed 0 - 250 /min
Adjustable torque 0,3 - 3,5 Nm
Weight (including battery pack) 0,6 kg
Standard equipment Li-Ion battery pack
(7.2 V/1.1 Ah), charger,
charger LC 60, bit assortment
(7-piece)
1)
at nominal voltage,
maximum voltage 8 Volts
Type PowerGrip Li
Order no. 6.00077.50
ACCESSORIES FOR THE CORDLESS SCREWDRIVER
POWERGRIP LI
Rechargeable battery pack
7.2 V, 2.2 Ah, Li-Ion
Order
no.
6.25487
Cordless Drill / Screwdriver
Comparative device characteristics
Type of battery pack NiCd
Battery pack voltage 4,8 V
Capacity of battery pack 1,25 Ah
Maximum torque, soft 5 Nm
Maximum torque, hard 9 Nm
No-load speeds 0 - 200 / 0 - 600 /min
Weight (including battery pack) 0,66 kg
Standard equipment NiCd battery pack (4.8 V/
1.25 Ah), charger, carry case,
bit assortment (7-piece)
Type PowerMaxx
Order no. 6.00059.51
ACCESSORIES FOR THE CORDLESS DRILL /
SCREWDRIVER POWERMAXX
Battery charger 2 h, 4.8 V, EU
Mains voltage: 230 - 240 V
Mains frequency: 50/60 Hz
4,8 Volt
PowerMaxx
Order
no.
6.27270
130 |
NEW
Rechargeable battery pack
7.2 V, 1.1 Ah, Li-Ion
(as spare)
6.25485
Battery pack 4.8 V, 1.25 Ah, NiCd
Accessories for PowerGrip/
6.31858
6.31976
PowerMaxx rechargeable battery
For using the 4.8 Volt battery pack
in the current Metabo chargers
COMMON FEATURES
Lightweight for fatigue-free work
Variospeed (V) electronics
20-level adjustable torque, plus drilling level
Motor with integrated air cooling
Clockwise and anticlockwise rotation
Quick stop
Spindle stop
Spindle with hexagon recess for screwdriver bits
... 40%
more output with
40% less weight
CORDLESS DRILLS / SCREWDRIVERS
Pistol grip for optimum power transmission
in direction of drilling
Rubber-coated handle
3-level planetary metal gears
Sturdy die cast gear housing
Powerful Li-Ion battery pack. No memory effect!
Charger (charge time approx. 1 hours)
ANGLE GRINDERSMETAL PROCESORSHAMMERSIMPACT DRILLSDRILLSSCREWDRIVERS
PowerMaxx
Li Basic
PowerMaxx
Li Basic
NEW NEW
Cordless Drill / Screwdriver
7.2 Volt
PowerMaxx Li Basic
Cordless Drill / Screwdriver
7.2 Volt
PowerMaxx Li Pro
Comparative device characteristics
Maximum torque, soft 9 Nm 9 Nm
Maximum torque, hard 16 Nm 16 Nm
Drilling capacity in
- Steel 3 mm 3 mm
- Wood 6,5 mm 6,5 mm
No-load speeds 0 - 250 / 0 - 750 /min 0 - 250 / 0 - 750 /min
Drilling spindle thread 1/2" - 20 UNF 1/2" - 20 UNF
Chuck capacity – 0,8 - 6,5 mm
Weight (including battery pack) 0,73 kg 0,73 kg
Standard equipment 2 Li-Ion battery packs (7.2 V
charger LC 60, carry case,
bit assortment (20-piece)
/2.2 Ah),
Quick-action keyless chuck Futuro Plus,
screw-type angle attachment, 2 Li-Ion battery
1)
packs (7.2 V
/2.2 Ah), charger LC 60,
1)
carry case, bit assortment (20-piece)
1)
at nominal voltage,
maximum voltage 8 Volts
Type PowerMaxx Li Basic PowerMaxx Li Pro
Order no. 6.00068.50 6.00069.50
ACCESSORIES FOR THE CORDLESS DRILL /
SCREWDRIVER POWERMAXX
Quick-action keyless chuck
Futuro Plus H1 M
Clamping width: 0,8 - 6,5 mm
Screw-type angle attachment for
PowerMaxx
For fixing screws more easily
at locations difficult to reach
Specially for PowerMaxx
Magnetic bit holder with 1/4" (6.35mm)
hexagonal shank
Gears made of special steel
Suitable for clockwise and
anticlockwise rotation
1)
Standard equipment with power Maxx Li Pro
Order
no.
6.36623
6.30650
ACCESSORIES FOR
THE CORDLESS DRILL /
SCREWDRIVER POWERMAXX
1)
Battery charger LC 60, 7.2 V, EU
1)
ACCESSORIES FOR THE CORDLESS SCREWDRIVER
POWERMAXX LI BASIC / PRO
Rechargeable battery pack
7.2 V, 2.2 Ah, Li-Ion
(as spare)
Order
no.
6.27306
MACHINES
WOOD SANDING
Order
no.
6.25487
ROUTERS
AND PLANERS
| 131
CORDLESS DRILLS / SCREWDRIVERS
COMMON FEATURES
Variospeed (V) electronics
20-level adjustable torque, plus drilling level
Clockwise and anticlockwise rotation
Quick stop
Quick-action keyless chuck and spindle stop gear for
convenient one-hand tool change: Metabo "Quick"
T-handle for optimum centre of gravity
Fatigue-free operation due to perfect ergonomy
3-level planetary metal gears
Gentle gear change
Built-in collector fan to prevent overheating
Bit case for two bits
Maximum system flexibility through free combination
of chargers and battery packs (within a voltage class)
Easy and quick change of battery pack
BSZ 12BZ 12 SP
12 Volt
Cordless Drill / Screwdriver
BZ 12 SP
Cordless Drill / Screwdriver
12 Volt
BSZ 12
Cordless Drill / Screwdriver
BSZ 12
12 Volt
BSZ 12
Special advantages
Rubber-coated handle
Li-Ion battery packs for up to 40% more
power with up to 40% less weight. No
memory effect!
Comparative device characteristics
Maximum torque, soft 18 Nm 22 Nm 22 Nm
Maximum torque, hard 35 Nm 52 Nm 52 Nm
Drilling capacity in
- Steel 10 mm/5 mm 10 mm/5 mm 10 mm/5 mm
- Wood 20 mm/16 mm 25 mm/20 mm 25 mm/20 mm
No-load speeds 0 - 400 / 0 - 1.450 /min 0 - 400 / 0 - 1.350 /min 0 - 400 / 0 - 1.350 /min
Drilling spindle thread 1/2" - 20 UNF 1/2" - 20 UNF 1/2" - 20 UNF
Chuck capacity 1 - 10 mm 1,5 - 13 mm 1,5 - 13 mm
Weight (including battery pack) 1,7 kg 2 kg 1,7 kg
Standard equipment 2 battery packs,
charger, carry case
2 battery packs,
charger, carry case
2 battery packs,
charger, carry case
1)
at maximum voltage, nominal voltage 10,8 Volts
Type BZ 12 SP BSZ 12 BSZ 12
Order no. Machine with
Battery pack Charger
– NiCd (12 V / 2 Ah) AC 30
1)
– Li-Ion (12 V
/ 2,2 Ah) AC 30 Plus – – 6.02161.50
6.02151.50 6.02153.51 –
132 |
COMMON FEATURES
Selectable impulse mode
Variospeed (V) electronics
20-level adjustable torque, plus drilling level
Clockwise and anticlockwise rotation
Quick stop
Quick-action keyless chuck and spindle stop gear for
convenient one-hand tool change: Metabo "Quick"
T-handle for optimum centre of gravity
Fatigue-free operation due to perfect ergonomy
... 40% more output
with 40% less weight
CORDLESS DRILLS / SCREWDRIVERS
Rubber-coated handle
3-level planetary metal gears
Gentle gear change
Built-in collector fan to prevent overheating
Bit case for two bits
Maximum system flexibility through free combination
of chargers and battery packs (within a voltage class)
Easy and quick change of battery pack
ANGLE GRINDERSMETAL PROCESORSHAMMERSIMPACT DRILLSDRILLSSCREWDRIVERS
BSZ 12 Impuls
12 Volt
Cordless Drill / Screwdriver
BSZ 12 Impuls
Cordless Drill / Screwdriver
12 Volt
BSZ 12 Impuls
BSP 12 PlusBSZ 12 Impuls
12 Volt
Cordless Drill / Screwdriver
BSP 12 Plus
Special advantages
Side handle
Die cast aluminium gear housing
Li-Ion battery packs for up to 40% more
power with up to 40% less weight. No
memory effect!
Comparative device characteristics
Maximum torque, soft 22 Nm 22 Nm 20 Nm
Maximum torque, hard 52 Nm 52 Nm 55 Nm
Drilling capacity in
- Steel 10 mm/5 mm 10 mm/5 mm 13 mm/8 mm
- Wood 25 mm/20 mm 25 mm/20 mm 40 mm/20 mm
No-load speeds 0 - 400 / 0 - 1.350 /min 0 - 400 / 0 - 1.350 /min 0 - 400 / 0 - 1.400 /min
Drilling spindle thread 1/2" - 20 UNF 1/2" - 20 UNF 1/2" - 20 UNF
Chuck capacity 1,5 - 13 mm 1,5 - 13 mm 1,5 - 13 mm
Weight (including battery pack) 2 kg 1,7 kg 2,5 kg
Standard equipment 2 battery packs,
charger, carry case
2 battery packs,
charger, carry case
Quick-action keyless chuck
Futuro Plus, additional handle,
2 battery packs, charger,
carry case
1)
at maximum voltage, nominal voltage 10,8 Volts
Type BSZ 12 Impuls BSZ 12 Impuls BSP 12 Plus
Order no. Machine with
Battery pack Charger
– NiCd (12 V / 2 Ah) AC 30 6.02157.51 – 6.02419.50
– NiCd (12 V / 2 Ah) ACS 15 – – 6.02419.51
– NiMH (12 V / 3 Ah) AC 30 6.02157.60 – –
– Li-Ion (12 V
– Li-Ion (12 V
1)
/ 2,2 Ah) AC 30 Plus – 6.02164.51 –
1)
/ 2,2 Ah) ACS 15 Plus – 6.02164.50 –
MACHINES
WOOD SANDING
ROUTERS
AND PLANERS
| 133
CORDLESS DRILLS / SCREWDRIVERS
COMMON FEATURES
Variospeed (V) electronics
20-level adjustable torque, plus drilling level
Clockwise and anticlockwise rotation
Quick stop
Quick-action keyless chuck and spindle stop gear for
convenient one-hand tool change: Metabo "Quick"
T-handle for optimum centre of gravity
Fatigue-free operation due to perfect ergonomy
Rubber-coated handle
3-level planetary metal gears
Gentle gear change
Built-in collector fan to prevent overheating
Bit case for two bits
Maximum system flexibility through free combination
of chargers and battery packs (within a voltage class)
Easy and quick change of battery pack
BSZ 14.4 BSP 15.6 Plus
BSZ 14.4
Impuls
14,4 Volt
Cordless Drill / Screwdriver
BSZ 14.4
Cordless Drill / Screwdriver
14.4 Volt
BSZ 14.4 Impuls
Cordless Drill / Screwdriver
15,6 Volt
BSP 15.6 Plus
Special advantages
Selectable impulse mode
Side handle
Die cast aluminium gear housing
Comparative device characteristics
Maximum torque, soft 24 Nm 24 Nm 26 Nm
Pulse torque – 28 Nm 28 Nm
Maximum torque, hard 55 Nm 55 Nm 60 Nm
Drilling capacity in
- Steel 12 mm/5 mm 12 mm/5 mm 13 mm/8 mm
- Wood 30 mm/22 mm 30 mm/22 mm 45 mm/25 mm
No-load speeds 0 - 400 / 0 - 1.400 /min 0 - 400 / 0 - 1.400 /min 0 - 400 / 0 - 1.400 /min
Drilling spindle thread 1/2" - 20 UNF 1/2" - 20 UNF 1/2" - 20 UNF
Chuck capacity 1,5 - 13 mm 1,5 - 13 mm 1,5 - 13 mm
Weight (including battery pack) 2,1 kg 2,1 kg 2,6 kg
Standard equipment 2 battery packs,
charger, carry case
2 battery packs,
charger, carry case
Quick-action keyless chuck
Futuro Plus, additional handle,
2 battery packs, charger,
carry case
2)
at nominal voltage, maximum voltage 16 Volts
Type BSZ 14.4 BSZ 14.4 Impuls BSP 15.6 Plus
Order no. Machine with
Battery pack Charger
– NiCd (14,4 V / 2 Ah) AC 30 6.02154.51 6.02158.53 –
– NiMH (14,4 V / 3 Ah) AC 30 – 6.02158.60 –
– Li-Ion (14,4 V
– Li-Ion (14,4 V
2)
/ 2,2 Ah) AC 30 – 6.02165.51 –
2)
/ 2,2 Ah) ACS 15 – 6.02165.50 –
– NiCd (15,6 V / 1,25Ah) AC 30 – – 6.02420.50
– NiCd (15,6 V / 2,4 Ah) AC 30 – – 6.02420.51
– NiCd (15,6 V / 2,4 Ah) ACS 15 – – 6.02420.60
134 |
COMMON FEATURES
Variospeed (V) electronics
20-level adjustable torque, plus drilling level
Clockwise and anticlockwise rotation
Quick stop
Quick-action keyless chuck and spindle stop gear for
convenient one-hand tool change: Metabo "Quick"
T-handle for optimum centre of gravity
Fatigue-free operation due to perfect ergonomy
Rubber-coated handle
... 40% more
output
with 40%
less weight
CORDLESS DRILLS / SCREWDRIVERS
3-level planetary metal gears
Gentle gear change
Built-in collector fan to prevent overheating
Bit case for two bits
Maximum system flexibility through free combination
of chargers and battery packs (within a voltage class)
Easy and quick change of battery pack
ANGLE GRINDERSMETAL PROCESORSHAMMERSIMPACT DRILLSDRILLSSCREWDRIVERS
BSZ 18
BSZ 18 Impuls
18 Volt
Cordless Drill / Screwdriver
BSZ 18
BSP 18 Plus
18 Volt
Cordless Drill / Screwdriver
BSZ 18 Impuls
Cordless Drill / Screwdriver
18 Volt
BSP 18 Plus
Special advantages
Selectable impulse mode
Side handle
Die cast aluminium gear housing
Li-Ion battery packs for up to 40% more
power with up to 40% less weight. No
memory effect!
Comparative device characteristics
Maximum torque, soft 28 Nm 28 Nm 30 Nm
Pulse torque – 32 Nm 32 Nm
Maximum torque, hard 62 Nm 62 Nm 65 Nm
Drilling capacity in
- Steel 12 mm/6 mm 12 mm/6 mm 13 mm/8 mm
- Wood 30 mm/22 mm 30 mm/22 mm 50 mm/25 mm
No-load speeds 0 - 450 / 0 - 1.450 /min 0 - 450 / 0 - 1.450 /min 0 - 400 / 0 - 1.400 /min
Drilling spindle thread 1/2" - 20 UNF 1/2" - 20 UNF 1/2" - 20 UNF
Chuck capacity 1,5 - 13 mm 1,5 - 13 mm 1,5 - 13 mm
Weight (including battery pack) 2,2 kg 1,9 kg 2,8 kg
Standard equipment 2 battery packs,
charger, carry case
2 battery packs,
charger, carry case
Quick-action keyless chuck
Futuro Plus, additional handle,
2 battery packs, charger,
carry case
3)
at nominal voltage, maximum voltage 20 Volts
MACHINES
WOOD SANDING
Type BSZ 18 BSZ 18 Impuls BSP 18 Plus
Order no. Machine with
Battery pack Charger
– NiCd (18 V / 1,25 Ah) AC 30 – – 6.02421.50
– NiCd (18 V / 2 Ah) AC 30 6.02155.60 6.02159.53 –
– NiCd (18 V / 2,4 Ah) AC 30 – – 6.02421.60
– NiCd (18 V / 2,4 Ah) ACS 15 – – 6.02421.51
– NiMH (18 V / 3 Ah) AC 30 – 6.02159.61 –
– Li-Ion (18 V
– Li-Ion (18 V
3)
/ 2,2 Ah) AC 30 – 6.02166.51 –
3)
/ 2,2 Ah) ACS 15 – 6.02166.50 –
ROUTERS
AND PLANERS
| 135
CORDLESS IMPACT SCREWDRIVERS
EQUIPMENT FEATURES
Compact cordless impact screwdriver for tough applications
High torque machine with low kick-back torque
T-handle for optimum centre of gravity
Rubber-coated handle
Variospeed (V) electronics
Ergonomic clockw./anticl. switch for comfortable,
hassle free operation
Die cast aluminium gear housing
Bit case
Maximum system flexibility through free combination
of chargers and battery packs (within a voltage class)
Easy and quick change of battery pack
Li-Ion battery packs for up to 40% more power with
up to 40% less weight. No memory effect!
ACCESSORIES FOR CORDLESS SCREWDRIVERS
Screwdriver bit assortments
1/4" (6.35 mm) hexagonal shank
Bit box with stainless steel bits
(10-piece)
Small plastic case
Consisting of a "rapid in/easy out" bit
holder and the bits mostly commonly
NEW
used in woodwork.
Sizes: PH2, PZ2x2, PZ1, TX10, TX15,
TX20, TX25, TX30
Bits and holders are made from
stainless steel.
Order
no.
6.25388
... 40%
more output
with 40% less
weight
SSP 12
Cordless Impact Screwdriver
Comparative device characteristics
Type of battery pack Li-Ion
Battery voltage 12 V
Capacity of battery pack 2,2 Ah
No load speed 0 - 2.500 /min
Maximum impact rate 3.000 /min
Maximum tightening torque 100 Nm
Bit retainer Hexagon recess 1/4" (6.35 mm)
Weight (including battery pack) 1,6 kg
Standard equipment 2 Li-Ion battery packs
(12 V/2.2 Ah), "AIR COOLED"
quick charger AC 30 Plus,
1)
at maximum voltage,
nominal voltage 10,8 Volts
Type SSP 12
Order no. 6.02167
12 Volt
SSP 12
1)
carry case
Bit box with stainless steel bits
(10-piece)
Small plastic case
Consisting of a "rapid in/easy out"
bit holder and the bits
NEW
most commonly used in metalworking.
Sizes: PH1x2, PH2x2, PH3,
Allen 2.5,3.0,4.0,5.0.
Bits and holders are made from
stainless steel.
Bit box torsion (10-piece)
Small plastic case
Consisting of:
Phillips bits, sizes 1, 2, 3 (1 each size)
Pozidriv bits, sizes 1, 2, 3 (1 each size)
each with one bit for slotted-head
screws 0.8 x 5.5 mm, 1.0 x 5.5 mm
and 1.2 x 6.5 mm
Bit holder "Rapid in/easy out"
Bit box Torx + Pozidriv (10-piece)
Small plastic case
Consisting of:
Pozidriv bits sizes 1, 2,
3 (torsion bits, 1 each size)
Torx bits sizes TX 10, 15, 20,
25, 30 and 40 (1 each)
Bit holder "Rapid in/easy out"
Bit box torsion Universal (10-piece)
Small plastic case
Consisting of:
Phillips bits, sizes 1, 2,
3 (1 each size)
NEW
Pozidriv bits, sizes 1, 2,
3 (1 each size)
bits for slotted-head
screws 0.8x5.5 mm, 1.0x5.5 mm
and 1.2x6.5 mm (1 each)
Bit holder "Rapid in/easy out"
Bit box diamond Pozidriv (7-piece)
Small plastic case
Consisting of:
Pozidriv bits 2 x size 1, 3 x size 2,
1 x size 3 (diamond)
Bit holder "Rapid in/easy out"
Bit box torsion Torx (7-piece)
Small plastic case
Consisting of:
Torx bits 8, 9, 10, 15, 20, 25, 27,
NEW
30 and 40 (1 each)
Bit holder "Rapid in/easy out"
Bit box diamond Universal (7-piece)
Small plastic case
Consisting of:
Phillips bits, sizes 1, 2, 3 (1 each size)
NEW
Pozidriv bits, sizes 1, 2, 3 (1 each size)
bits for slotted-head
screws 0.8x5.5 mm, 1.0x5.5 mm
and 1.2x6.5 mm (1 each)
Bit holder "Rapid in/easy out"
Further accessories for the cordless screwdrivers
can be found on pages 147–149.
6.25389
6.25390
6.25391
6.25396
6.25393
6.25394
6.25397
136 |
136 |
CHARGERS
Universal fast-action charger
Order
no.
Universal quick charger AC 30
For charging all old (with 6.27075 adapter)
and new Metabo NiCd and NiMH battery
packs of 4.8 V -18 V
Monitored charging with microcontroller
Battery diagnosis
Charge time approx. 30 minutes at 1.4 Ah
"AIR COOLED" function
For connecting to 230/240 V, 50-60 Hz (EU)
to 230/240 V, 50-60 Hz (GB)
to 230/240 V, 50-60 Hz (AUS/NZ)
to 110/120 V, 50-60 Hz (USA/CDN)
6.27300
6.27303
6.27305
6.27304
Fast-action charger
Super quick charger ACS 15
For charging all old (with 6.27075 adapter)
and new Metabo NiCd and NiMH battery
packs of 4.8 V -18 V
Monitored charging with microcontroller
Battery diagnosis
Charge time approx. 15 minutes at 1.4 Ah
"AIR COOLED" function
For connecting to 230/240 V, 50-60 Hz (EU)
to 230/240 V, 50-60 Hz (GB)
to 230/240 V, 50-60 Hz (AUS/NZ)
to 110/120 V, 50-60 Hz (USA/CDN)
Order
no.
ANGLE GRINDERSMETAL PROCESORSHAMMERSIMPACT DRILLSDRILLSSCREWDRIVERS
6.27089
6.27090
6.27092
6.27091
Universal quick charger AC 30 Plus
For charging all old (with adapter 6.27075)
and new Metabo NiCd and NiMH battery
packs of 4.8 V -18 V, as well as the new
Li-Ion battery packs of 12 V-18 V
Monitored charging with microcontroller
Battery diagnosis
Charge time approx. 30 minutes at 1.4 Ah
"AIR COOLED" function
For connecting to 230/240V, 50-60 Hz (EU)
to 230/240V, 50-60 Hz (GB)
to 230/240V, 50-60 Hz (AUS/NZ)
to 110/120V, 50-60 Hz (USA/CDN)
6.27275
6.27276
6.27278
6.27277
Super quick charger ACS 15 Plus
For charging all old (with adapter 6.27075)
and new Metabo NiCd and NiMH battery
packs of 4.8 V -18 V, as well as the new
Li-Ion battery packs of 12 V-18 V
Monitored charging with microcontroller
Battery diagnosis
Charge time approx. 15 minutes at 1.4 Ah
"AIR COOLED" function
"Refresh" function for maintenance of batteries
for NiCd and NiMH battery packs
For connecting to 230/240 V, 50-60 Hz (EU)
to 230/240 V, 50-60 Hz (GB)
to 230/240 V, 50-60 Hz (AUS/NZ)
to 110/120 V, 50-60 Hz (USA/CDN)
Super quick charger ASS 15 Plus
For charging Metabo NiCd battery
packs of 24 V, as well as Li-Ion
battery packs of 25.2 V.
The battery packs must be suitable for being
pushed on to the charger. (slide in design)
Monitored charging with microcontroller
Battery diagnosis
Charge time approx. 15 minutes at 1.4 Ah
"AIR COOLED" function
"Refresh" function for maintenance of batteries
for NiCd battery packs
For connecting to 230/240 V, 50-60 Hz (EU)
to 230/240 V, 50-60 Hz (GB)
to 230/240 V, 50-60 Hz (AUS/NZ)
to 110/120 V, 50-60 Hz (USA/CDN)
6.27060
6.27061
6.27063
6.27062
6.27283
6.27284
6.27286
6.27285
MACHINES
WOOD SANDING
ROUTERS
AND PLANERS
| 137
| 137
BATTERY PACKS
YOU WON’T FIND A BETTER PERCENTAGE ANYWHERE!
Greater efficiency with more power at considerably less
weight: That’s Metabo Li-Power! A Metabo Li-power
lithium battery supplies around 96% efficiency, 16%
more than NiCd or NiMH, as a result it can provide
approximately 40% more energy the NiCd & NiMH batteries. At the same time it is around 40% lighter. A 18
V 2.2 Ah Li-ion pack weighs in at approx 700g where as
a normal NiMH battery pack comes in at just over 1kg!
This is not all Li-Power has to offer. Thanks to its lower
self discharge rate, Li-ion packs can be used immediately
at full power even after long period of non use. When
you charge the battery, neither the memory nor the lazy
battery effect arises. And unlike NiMH batteries, Li-ion
batteries work from -20 °C to 50 °C without any problems
(just like NiCd).
Circuit boards
of the highest quality
and with gold-plated
surface.
Electronics
An electronic overcharging
and discharging protection
mechanism ensures optimum charging and the
maximisation of the service
life of the battery pack.
Patented multifunction display
All information on one display:
capacity querying, temperature
monito ring, overload warning and
automatic display when a low
capacity level is reached.
Power tool lithium cells
of the highest quality for
maximum performance.
Corepack
METABO AIR COOLED CHARGING TECHNOLOGY: THE QUICKEST CHARGERS.
"AIR COOLED" is a technology that only
Metabo has to offer. In combination with
Li Power, it forms what is possibly the most
effective battery system on the market.
The cooler the battery is while charging the
faster it can be used again. Every battery heats
up when used, which impedes an immediate,
effective recharge. The new, patented
AIR COOLED charging technology takes this
problem out of the equation, since the battery
is cooled down before and during the charging
process. The charging process thus becomes
around 30% quicker, the batteries last longer and
138 |
Cell connector
Their special design guarantees
optimum conductivity and an
extremely robust construction.
Control and monitoring of every
single cell for protection against
overcharging, undercharging,
total discharge and overstraining.
you save yourself the hassle of hanging around
waiting for batteries to charge. Another outstanding new feature is the refresh function (only with
ACS 15 PLUS). This feature brings the performance impairing unbalanced charge levels of the
cells back into line. This ‘cell balancing’ process
should be activated at the end of the charging
process once every month on NiCd and NiMH
batteries only.
BATTERY PACKS
NiCd battery packs
Battery pack
voltage
V
Capacity of
battery pack
Ah
Order
no.
NiCd battery packs
series 1
7,2 1,4 6.30069
9,6 1,4 6.30070
9,6 1,7 6.30072
12 1,7 6.30073
12 2 6.31723
NiCd battery packs
series 2
9,6 1,7 6.30065
12 2 6.31724
14,4 2 6.31725
NiCd battery packs
series 3
9,6 1,4 6.31746
9,6 2 6.31728
12 1,25 6.31737
12 1,4 6.31747
12 2 6.31729
12 2,4 6.31748
15,6 1,25 6.31738
15,6 2,4 6.31749
18 1,25 6.31739
18 2 6.31857
18 2,4 6.31740
"AIR COOLED"
NiCd battery packs
9,6 1,4 6.25470
9,6 2 6.25471
12 1,4 6.25473
12 2 6.25474
14,4 1,4 6.25475
14,4 2 6.25476
18 1,4 6.25477
18 2 6.25478
"AIR COOLED"
NiCd battery packs
"AIR COOLED" Li-Ion battery packs
Battery pack
1)
voltage
V
"AIR COOLED"
Li-Ion battery packs
10.8 / 12 2,2 6.25486
14.4 / 16 2,2 6.25482
18 / 20 2,2 6.25484
"AIR COOLED"
Li-Ion battery packs
25,2 / 28 2,2 6.25489
1)
Nominal voltage / max. voltage
NiCd battery pack for Bh EA 14 S - R+L
Battery pack
voltage
V
14,4 4 6.31727
Adapter for older Metabo chargers
For inserting older battery packs
(starting 1981, models 1 and 2)
into the new "AIR COOLED" chargers.
Also for inserting "AIR COOLED"
batteries into older chargers
Capacity of
battery pack
Ah
Capacity of
battery pack
Ah
Order
no.
ANGLE GRINDERSMETAL PROCESORSHAMMERSIMPACT DRILLSDRILLSSCREWDRIVERS
Order
no.
Order
no.
6.27075
NiMH battery packs
24 2 6.25488
Battery pack
voltage
V
Capacity of
battery pack
Ah
Order
no.
NiMH battery packs
series 1
12 3 6.31776
15,6 3 6.31777
"AIR COOLED"
NiMH battery packs
12 3 6.25479
14,4 3 6.25480
18 3 6.25481
Carry case
Carry case SBT/BSP/SBP
For BSP 12 Plus, BSP 15.6 Plus, BSP 18 Plus
and chargers ACS 15, AC 30, ICS 10, C 45
For SBP 12 Plus, SBP 18 Plus and
chargers ACS 15, AC 30, ICS 10, C 45
Order
no.
6.25441
MACHINES
WOOD SANDING
ROUTERS
AND PLANERS
| 139
Loading...
