EURO/IEC Fuses & Accessories
gF, gI-gG, aM CYLINDRICAL FUSE-LINKS
DOMESTIC AND INDUSTRIAL CYLINDRICAL
FUSE-LINKS
Ferraz Shawmut gF, gI-gG and aM fuse-links cover a
wide range of physical sizes and ampere ratings for
250, 400, 500, and 690 volts AC. gF fuse-links are for
domestic use. gI-gG and aM fuse-links are for industrial
applications. Most ratings are available with an optional
indicator. All industrial fuse-links have the option of a
built-in striker. All cylindrical fuse-links have ceramic
bodies and silver-plated ferrules.
gF
FULL RANGE
PROTECTION
➤
7 physical sizes
from 6.3 x 23m to
10.3 x 38 mm
➤
250 and 400 Volt
ratings -
0.5A through 32A
Most ratings available
➤
with indicator
➤
Meet IEC, NFC,
UNE and British
standards
gI-gG
FULL RANGE
PROTECTION
4 physical sizes
➤
from 8 x 31mm
to 22 x 58 mm
400, 500 and 690
➤
Volt ratings - 0.5A
through 125A
Most ratings available
➤
with indicator
Meet IEC, NFC and
➤
UNE standards
Approved by
➤
Lloyds Register of
Shipping and
Bureau Veritas
gI-gG
FULL RANGE
PROTECTION
Fuse-links with
Striker
2 sizes-
➤
14 x 51mm
and 22 x 58mm
400, 500 and
➤
690 Volt ratings -
4A through 125A
All ratings include
➤
striker
Meet IEC, NFC and
➤
UNE standards
Approved by Lloyds
➤
Register of Shipping
and Bureau Veritas
aM
SHORT CIRCUIT
PROTECTION
4 physical sizes
➤
from 8 x 31mm
to 22 x 58mm
400, 500 and 690
➤
Volt ratings - .
16A through 125A
Most ratings
➤
available with
indicator
Meet IEC, NFC and
➤
UNE standards
Approved by Lloyds
➤
Register of Shipping
and Bureau Veritas
aM
SHORT CIRCUIT
PROTECTION
Fuse-links with
Striker
➤
2 sizes -
14 x 51mm
and 22 x 58mm
400, 500 and
➤
690 Volt ratings -
2A through 125A
All ratings include
➤
striker
Meet IEC, NFC and
➤
UNE standards
Approved by Lloyds
➤
Register of Shipping
and Bureau Veritas
F 2
EURO/IEC Fuses & Accessories

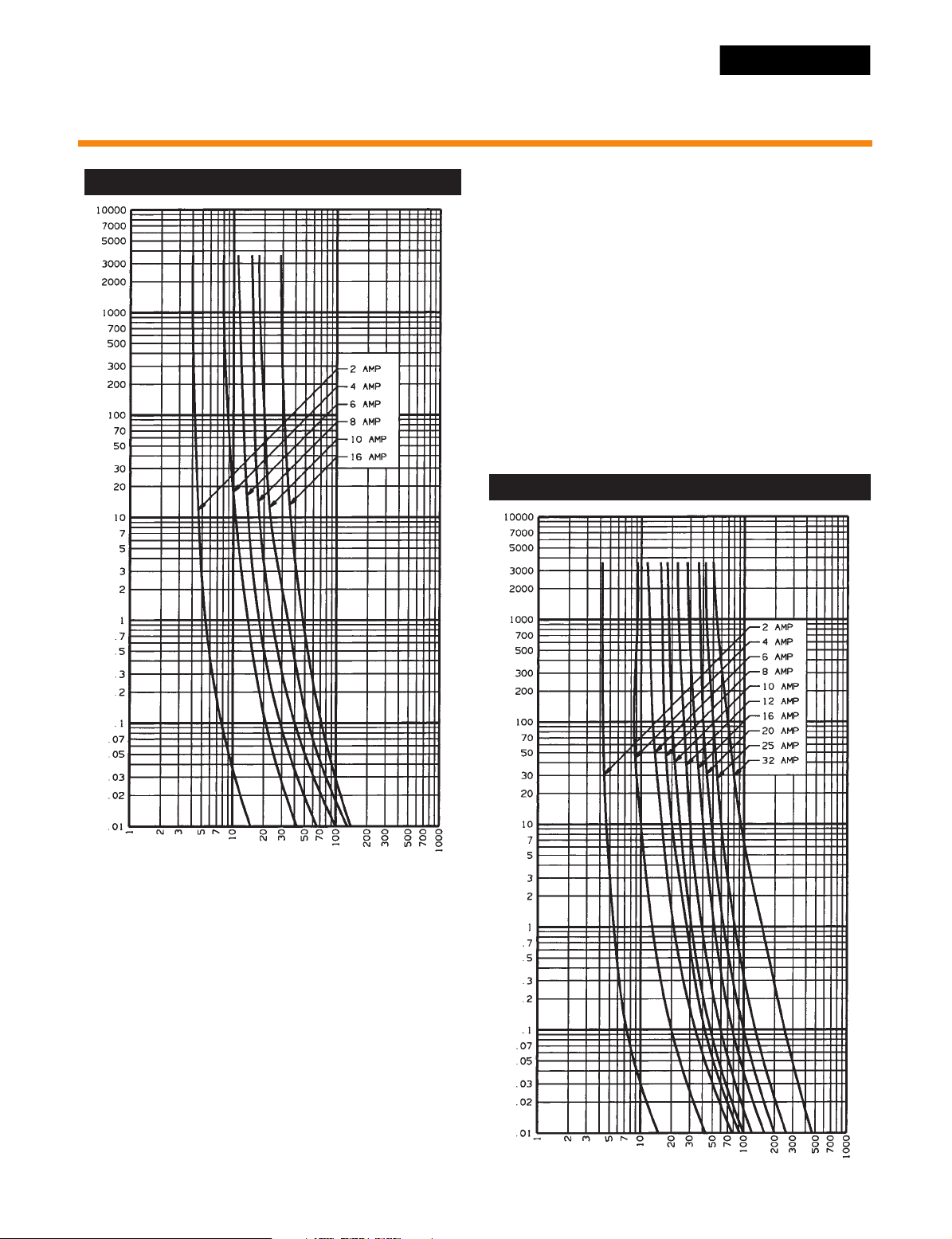

gF CYLINDRICAL FUSE-LINKS
Catalog Numbers, Ratings – gF (Optional Blown-Fuse Indicator)
10031-G
10235-G
10637-G
10839-G
11035-G
11243-G
SIZE RATED In RATED
(mm x mm) CURRENT (A) VOLTAGE w/o Indicator w/Indicator RATING (A) PACK/CTN.
2 250V 10013-G - 6,000 10/100
6.3 x 23 4 10019-G 6 10023-G 10 10031-G -
2 250V 10213-G 12213-G 6,000 10/100
4 10219-G 12219-G
8.5 X 23 6 10223-G 12223-G
10 10231-G 12231-G
16 10235-G 12235-G
6 250V 10423-G 12423-G 6,000 10/100
10.3 X 25.8 10 10431-G 12431-G
16 10435-G 12435-G
0.5 400V 10609-G 12609-G 20,000 10/100
1 10611-G 12611-G
2 10613-G 12613-G
4 10619-G 12619-G
6 10623-G 12623-G
8.5 x 31.5 8 10627-G 12627-G
10 10631-G 12631-G
12 10633-G 12633-G
16 10635-G 12635-G
20 10637-G 12637-G
25 10639-G 12639-G
16 400V 10835-G 12835-G 20,000 10/100
10.3 x 31.5 20 10837-G 12837-G
25 10839-G 12839-G
CATALOG NUMBER
INTERRUPTING STANDARD
2 400V 11013-G 13013-G 20,000 10/100
4 11019-G 13019-G
6 11023-G 13023-G
8.5 x 36 10 11031-G 13031-G
16 11035-G 13035-G
20 11037-G 13037-G
25 11039-G 13039-G
32 11043-G 13043-G
10.3 x 38 25 400V 11239-G 13239-G 20,000 10/100
32 11243-G 13243-G
F
F
1 Ceramic body
2 Sand
3 Indicator contact
4 Lower contact
5 Contact ring
6 Melting element
7 Indicator
Dimensions
FUSE SIZE
(mm x mm) A B C
6.3 X 23 6.3 23 5
8.5 X 23 8.5 23 5
10.3 x 25.8 10.3 25.8 6.3
8.5 x 31.5 8.5 31.5 6.3
10.3 x 31.5 10.3 31.5 10
8.5 x 36 8.5 36 6.3
10.3 x 38 10.3 38 10
F 3
Blown-Fuse Indicator
BEFORE
AFTER
