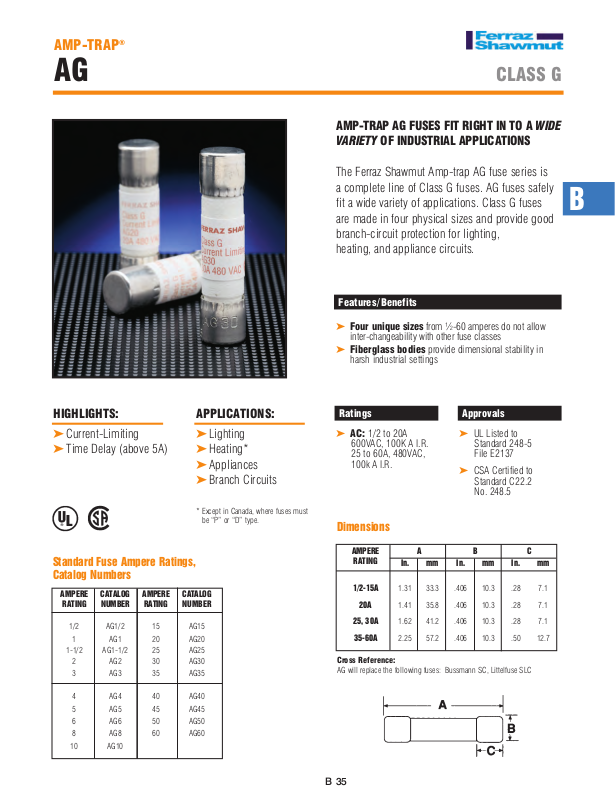

Mersen, formerly Ferraz Shawmut AG Catalog Page

AMP-TRAP

®

AG CLASS G

AMP-TRAP AG FUSES FIT RIGHT IN TO A wide
variety OF INDUSTRIAL APPLICATIONS

The Ferraz Shawmut Amp-trap AG fuse series is
a complete line of Class G fuses. AG fuses safely
fit a wide variety of applications. Class G fuses
are made in four physical sizes and provide good
branch-circuit protection for lighting,
heating, and appliance circuits.

Features/Benefits

B

HIGHLIGHTS:

Current-Limiting

➤

Time Delay (above 5A)

➤

APPLICATIONS:

➤
➤
➤
➤

* Except in Canada, where fuses must

Standard Fuse Ampere Ratings,
Catalog Numbers

AMPERE CATALOG AMPERE CATALOG

RATING NUMBER RATING NUMBER

1/2 AG1/2 15 AG15
1 AG1 20 AG20

1-1/2 AG1-1/2 25 AG25
2 AG2 30 AG30
3 AG3 35 AG35

4 AG4 40 AG40
5 AG5 45 AG45
6 AG6 50 AG50
8 AG8 60 AG60
10 AG10

Lighting
Heating*
Appliances
Branch Circuits

be “P” or “D” type.

➤

Four unique sizes

inter-changeability with other fuse classes
Fiberglass bodies provide dimensional stability in

➤

harsh industrial settings

Ratings

AC: 1/2 to 20A

➤

600VAC, 100K A I.R.
25 to 60A, 480VAC,
100k A I.R.

from ½-60 amperes do not allow

Approvals

UL Listed to

➤

Standard 248-5
File E2137

CSA Certified to

➤

Standard C22.2
No. 248.5

Dimensions

AMPERE A B C
RATING

1/2-15A 1.31 33.3 .406 10.3 .28 7.1

20A 1.41 35.8 .406 10.3 .28 7.1

25, 30A 1.62 41.2 .406 10.3 .28 7.1

35-60A 2.25 57.2 .406 10.3 .50 12.7

Cross Reference:

AG will replace the following fuses: Bussmann SC, Littelfuse SLC

In. mm In. mm In. mm

B 35

AMP-TRAP

®

TIME DELAY/CLASS G FUSES AG

AG1 to 10

Current in Amperes

Melting Time – Current Data, 480V Fuses

Time in Seconds

AG15 to 60

Current in Amperes

Melting Time – Current Data, 480V Fuses

Time in Seconds

Peak Let-Thru Current Data – AG1 to 60, 480 Volts AC

Maximum Instantaneous Peak Let-Thru Amperes

Available Current in RMS

Symmetrical Amperes

B 36
