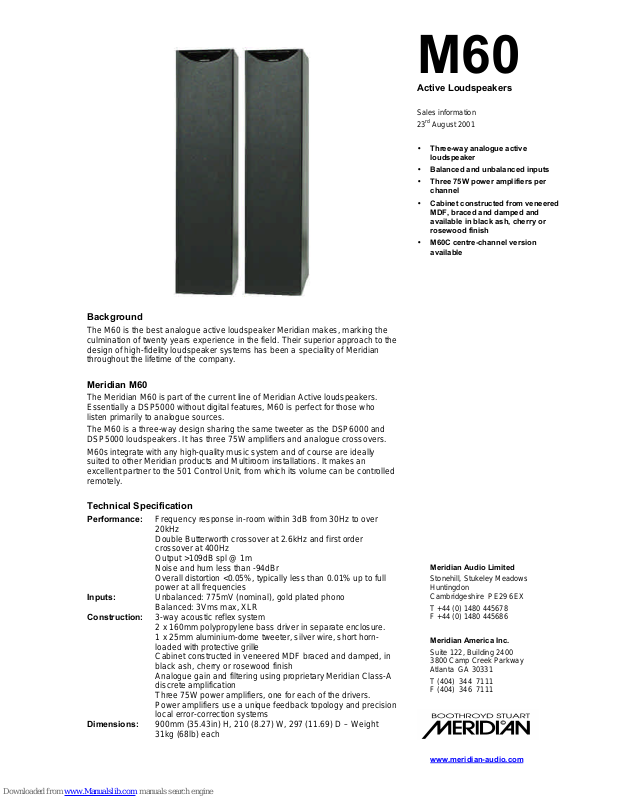

Meridian M60 Specification Sheet
Background
The M60 is the best analogue active loudspeaker Meridian makes, marking the
culmination of twenty years experience in the field. Their superior approach to the
design of high-fidelity loudspeaker systems has been a speciality of Meridian
throughout the lifetime of the company.
Meridian M60
The Meridian M60 is part of the current line of Meridian Active loudspeakers.
Essentially a DSP5000 without digital features, M60 is perfect for those who
listen primarily to analogue sources.
The M60 is a three-way design sharing the same tweeter as the DSP6000 and
DSP5000 loudspeakers. It has three 75W amplifiers and analogue crossovers.
M60s integrate with any high-quality music system and of course are ideally
suited to other Meridian products and Multiroom installations. It makes an
excellent partner to the 501 Control Unit, from which its volume can be controlled
remotely.
Technical Specification
Performance: Frequency response in-room within 3dB from 30Hz to over
20kHz
Double Butterworth crossover at 2.6kHz and first order
crossover at 400Hz
Output >109dB spl @ 1m
Noise and hum less than -94dBr
Overall distortion <0.05%, typically less than 0.01% up to full
power at all frequencies
Inputs: Unbalanced: 775mV (nominal), gold plated phono
Balanced: 3Vms max, XLR
Construction: 3-way acoustic reflex system
2 x 160mm polypropylene bass driver in separate enclosure.
1 x 25mm aluminium-dome tweeter, silver wire, short horn-
loaded with protective grille
Cabinet constructed in veneered MDF braced and damped, in
black ash, cherry or rosewood finish
Analogue gain and filtering using proprietary Meridian Class-A
discrete amplification
Three 75W power amplifiers, one for each of the drivers.
Power amplifiers use a unique feedback topology and precision
local error-correction systems
Dimensions: 900mm (35.43in) H, 210 (8.27) W, 297 (11.69) D – Weight
31kg (68lb) each
M60
Active Loudspeakers
Sales information
23rd August 2001
• Three-way analogue active
loudspeaker
• Balanced and unbalanced inputs
• Three 75W power amplifiers per
channel
• Cabinet constructed from veneered
MDF, braced and damped and
available in black ash, cherry or
rosewood finish
• M60C centre-channel version
available
Meridian Audio Limited
Stonehill, Stukeley Meadows
Huntingdon
Cambridgeshire PE29 6EX
T +44 (0) 1480 445678
F +44 (0) 1480 445686
Meridian America Inc.
Suite 122, Building 2400
3800 Camp Creek Parkway
Atlanta GA 30331
T (404) 344 7111
F (404) 346 7111
www.meridian-audio.com
