MH-10KT
Hydraulic Calibration Hand Pump
Operating Instructions
The MH-10KT Hydraulic Calibration Hand Pump utilizes a fully adjustable stroke control that allows for quick priming, easy pumping
and fast pressure generation up to 10,000 psi (700 bar). The ergonomically engineered handles provide extra comfort, while the patented
triple filtration system ensures pump operation in spite of dirty conditions. The shatterproof reservoir and stainless steel construction
guarantee leak free operation. The pump has oversized check valves to provide smooth controlled operation.

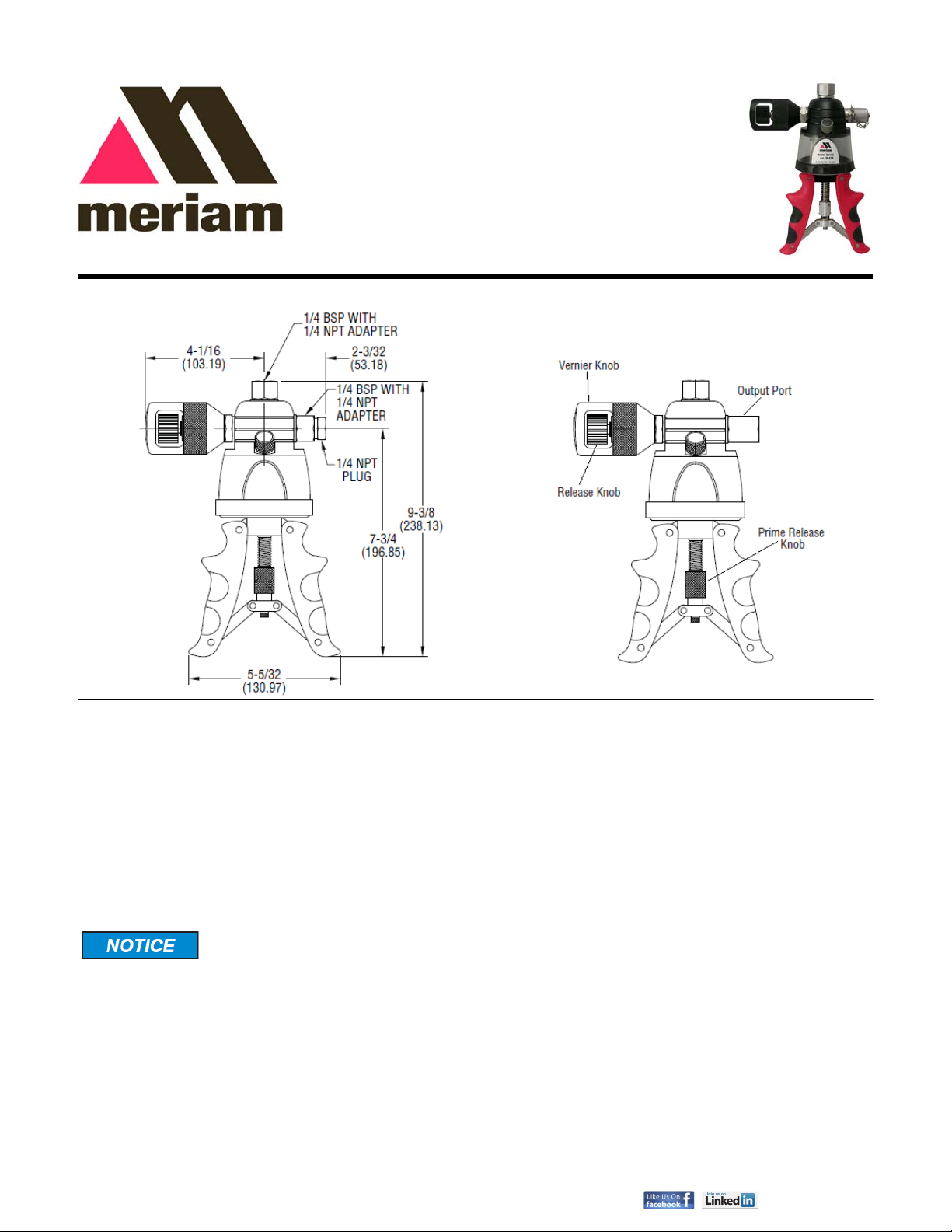

SPECIFICATIONS
Output Ranges:
Gauge Connection:
Process Connection:
Materials:
Weight:
POINTS TO REMEMBER
Do not exceed 10,000 psi (700 bar) as this is the MH-10KT’s maximum pressure.
The MH-10KT h
be installed (I
Do not use thread sealant paste or tape on the male adapters (Paste or tape may be used on female adapters). Bonded washers
(included) are required to insure a proper seal. To seal the adapters, simply h
over-tighten.
Use with distilled water or mineral-based hydraulic oil.
ncluded BSP to NPT adapters).
0 – 10,000 psi (0 to 700 bar)
3
/8” BSP (1/4” NPT adapter included)
1/4” BSP (1/4” NPT adapter included)
Stainless steel fittings, polyurethane, anodized aluminum housing, plastic/rubber handles, PTFE, nitrile o-rings
3 lbs (1.36 kg)
as 3/8” and 1/4” BSP ports. In order to
use NPT fittings, the required NPT to BSP Parallel thread adapters need to
and-tighten and snug up with a wrench. Do not
Madison Avenue│Cleveland, OH│1.216.281.1100│www.meriam.com│
10920
│
10/14
Page 2
OPERATION
1. Remove the fill cap and fill reservoir to the recommended level with the appropriate fluid. Replace the cap.
2. Connect hose fittings and calibrators to the adapters.
Connect the master instrument to the MH-10KT via the top port.
3.
4. Connect instrument under test to the flexible hose/gauge adapter.
To prime the system, twist the knurled kn
5.
ob marked “Release”. Squeeze the handles together and release. Twist the knob once again. Repeat
as necessary until system is fully primed and low pressure is indicated on either the master or test instrument. This feature can be changed at
any pressure.
Operate handle several times to build pressure. Please note that on
6.
ce pressure starts to rise, it will rise very rapidly. Be sure to not exceed the
maximum operating pressure indicated on the face of the MH-10KT.
7. Careful use of the release valve and fine control enable a controlled release of pressure, essential for calibration purposes.
8.
9.
just the pressure relief valve, release the pressure and turn the valve counter clockwise 1/16 turn and then proceed to re-pressurize. Re-
To ad
peat the process if further reduction is necessary
.
If the fluid level in the reservoir falls considerably during use, a partial vacuum can be created in the reservoir which may affect pump performance. To avoid this, simply allow air to enter the reservoir by partly unscrewing the fill cap.
MAINTENANCE
No routine maintenance is required. A periodic check of system calibration is recommended, however. While the MH-10KT is field serviceable it
is recommended it be returned to Meriam Process Technologies if repair is needed. Be sure to include a brief description of the problem plus any
relevant application notes. Contact customer service to receive a return materials authorization (RMA) number before shipping.
WARRANTY/DISCLAIMER
The MH-10KT is warranted to be free of defects in materials and workmanship for a period of twenty-five months from date of purchase.
If the unit malfunctions, it must be returned to the factory for evaluation. The Meriam Customer Service Department will issue a return material
authorization (RMA) number immediately upon phone or written request. If the product is found to be defective or upon examination by the Repair
Department, the product will be repaired or replaced at no charge. This warranty also includes damage that may have occurred in the regular activities that the pump is designed for (Including accidental dropping of the product, as it is designed to withstand considerable damage). Unauthorized
repair attempts or modification of the product may result in voiding of the warranty, and should be avoided.
RETURN REQUESTS / INQUIRIES
Direct all warranty and repair requests/inquiries to the Meriam Process Technologies Customer Service Department. BEFORE RETURNING
ANY PRODUCT(S) TO Meriam Process Technologies, PURCHASER MUST OBTAIN A RETURN MATERIAL AUTHORIZATION (RMA )
NUMBER FROM MERIAM PROCESS TECHNOLOGIES CUSTOMER SERVICE DEPARTMENT IN ORDER TO AVOID PROCESSING
DELAYS. The assigned RMA number should then be marked on the outside of the return package and on any correspondence.
The purchaser is responsible for any shipping charges, freight, insurance and proper packaging to prevent breakage in transit.
FOR WARRANTY RETURNS, please have the f ollowing information available
BEFORE contacting Meriam Process Technologies:
1. Purchase Order number under whic h the product was PURCHASED
2. Model and serial number of the product under warranty; and
3. Repair instructions and/or specific problems relative to the product.
FOR NON-WARRANTY REPAIRS, have the following information available BEFORE
contacting Meriam Process Technologies for current repair charges:
1. Purchase Order number to cover the COST of the repair.
2. Model and serial number of the product; and
3. Repair instructions and/or specific problems relative to the product.
CONTACT INFORMATION
Address: Meriam Process Technologies Phone Number: 216-281-1100
10920 Madison Avenue│Cleveland, OH│1.216.281.1100│www.meriam.com│
10920 Madison Ave.
Cleveland, OH 44102 Website: www.meriam.com
Fax Number: 216-281-0228
E-Mail: [email protected]
│
