Mencom JAN (M8) Junction Blocks Catalog Page

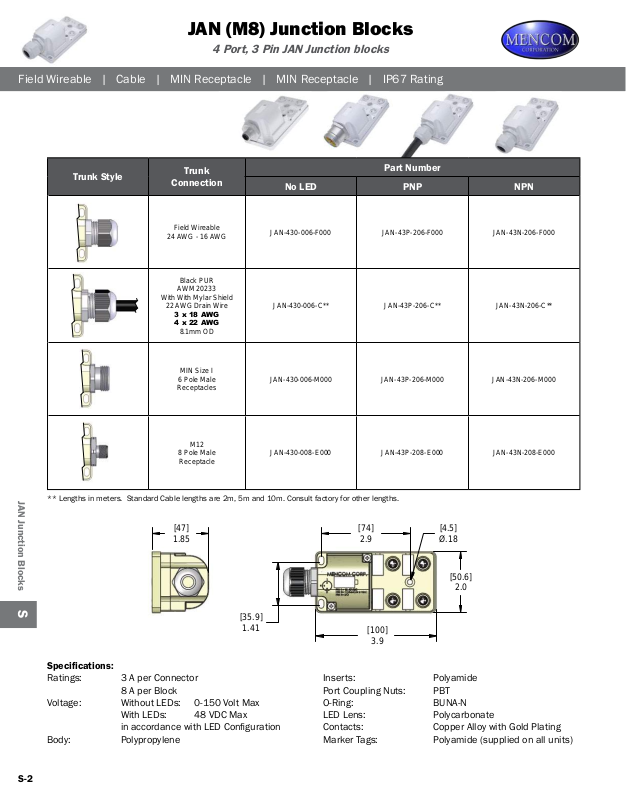

JAN (M8) Junction Blocks
4 Port, 3 Pin JAN Junction blocks
Field Wireable | Cable | MIN Receptacle | MIN Receptacle | IP67 Rating
Trunk Style
Trunk
Connection
Field Wireable
24 AWG - 16 AWG
Black PUR
AWM 20233
With With Mylar Shield
22 AWG Drain Wire
3 x 18 AWG
4 x 22 AWG
8.1mm OD
MIN Size I
6 Pole Male
Receptacles
M12
8 Pole Male
Receptacle
Part Number
No LED PNP NPN
JAN-430-006-F000 JAN-43P-206-F000 JAN-43N-206-F000
JAN-430-006-C** JAN-43P-206-C** JAN-43N-206-C**
JAN-430-006-M000 JAN-43P-206-M000 JAN-43N-206-M000
JAN-430-008-E000 JAN-43P-208-E000
JAN-43N-208-E000
** Lengths in meters. Standard Cable lengths are 2m, 5m and 10m. Consult factory for other lengths.
JAN Junction Blocks S
[47]
1.85
[35.9]
1.41
Specications:
Ratings: 3 A per Connector
8 A per Block
Voltage: Without LEDs: 0-150 Volt Max
With LEDs: 48 VDC Max
inaccordancewithLEDConguration
Body: Polypropylene
S-2
Inserts: Polyamide
Port Coupling Nuts: PBT
O-Ring: BUNA-N
LED Lens: Polycarbonate
Contacts: Copper Alloy with Gold Plating
Marker Tags: Polyamide (supplied on all units)
[74]
2.9
[4.5]
Ø.18
[50.6]
2.0
[100]
3.9
JAN (M8) Junction Blocks
4 Port, 3 Pin JAN Junction blocks
Field Wireable | Cable | MIN Receptacle | MIN Receptacle | IP67 Rating
No LED Version PNP Version
3
1
4
+V
SIGNAL
Function
+ V PIN #6 PIN #5 Brown
- V PIN #3 PIN # 1 Blue
-V
Receptacle Version
+V
MIN-6MR
3
2
4
6
1
5
7/8”-16UN2
1
4
SIGNAL
3
-V
MDC-8MR
Receptacle Version
1
7
8
3
M12 x 1
6
5
4
2
NPN Version
+V
3
1
4
SIGNAL
Cable Version
Cable O.D. 8.9 mm
-V
PORT 1
PIN 4 (L4)
PORT 2
PIN 4 (L4)
PORT 3
PIN 4 (L4)
PORT 4
PIN 4 (L4)
Mating Plug
PIN #2 PIN #2 White
PIN #1 PIN #3 Green
PIN #5 PIN #4 Yellow
PIN #4 PIN #2 Gray
MIN-6FP-* MDCP-8FP-**
* Length in feet. Standard Cable lengths are 3, 6, 12, 20, 30 & 50 feet. Consult factory for other lengths.
** Lengths in meters. Standard Cable lengths are 1, 2, 4, 5, 6, 10 & 15 meters. Consult factory for other lengths.
JAN Junction Blocks
S
S-3
