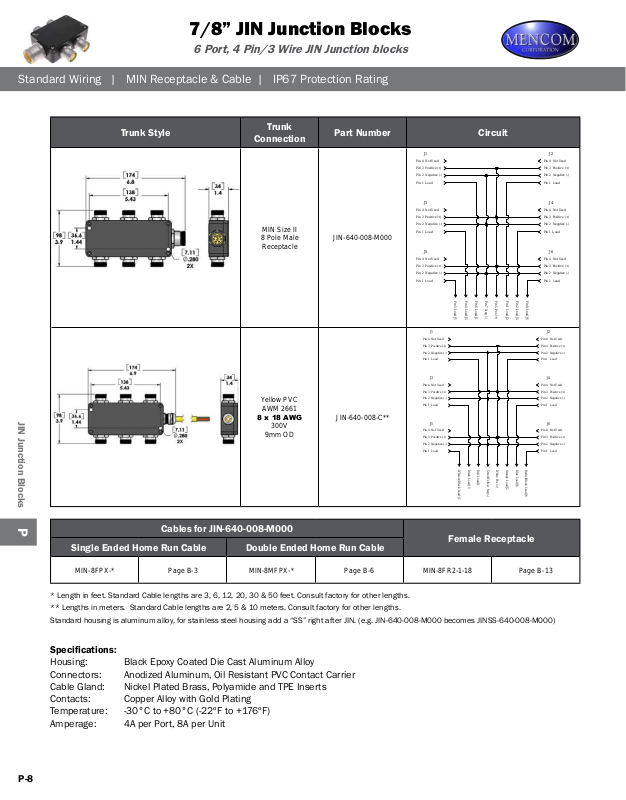

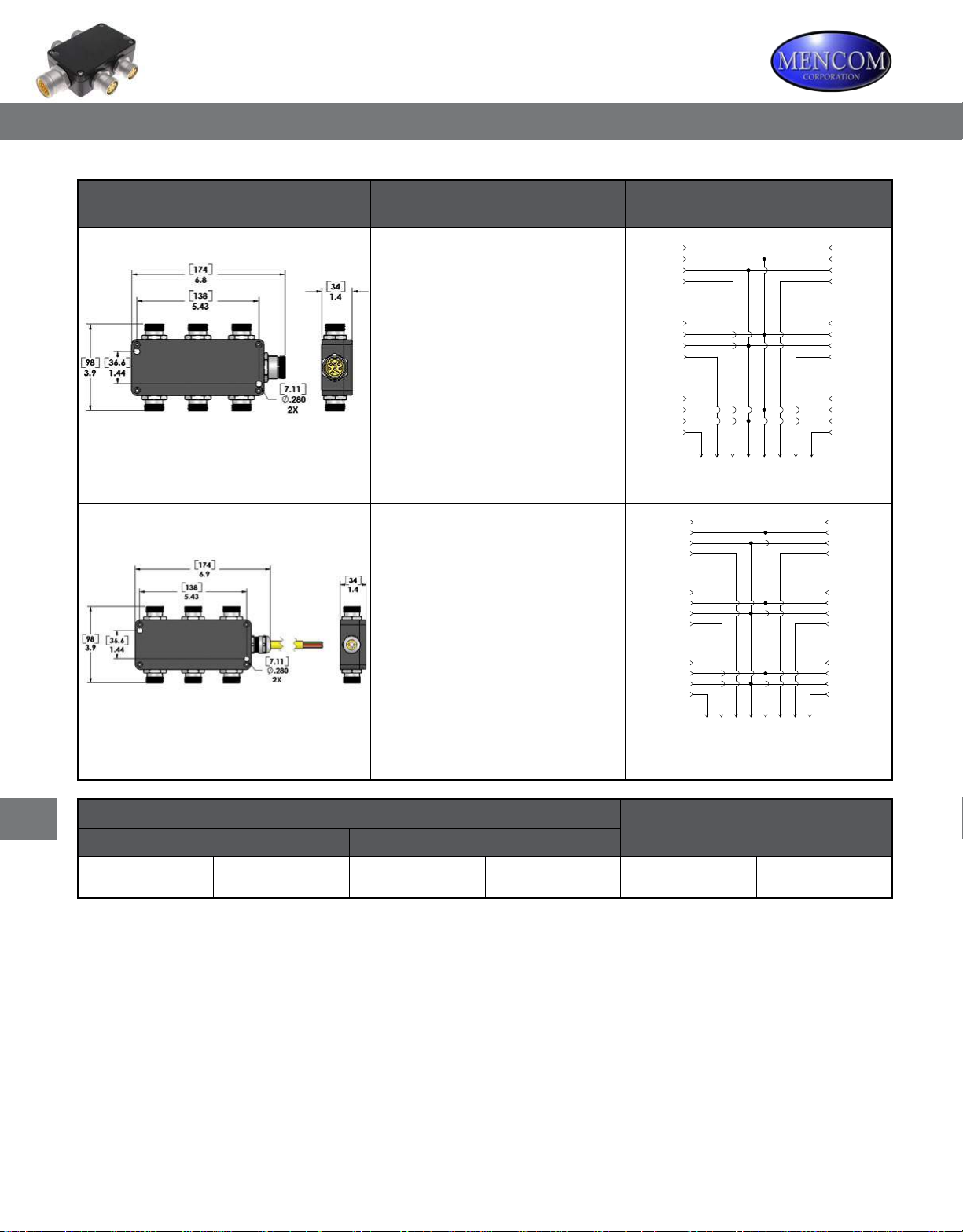

7/8” JIN Junction Blocks
6 Port, 4 Pin/3 Wire JIN Junction blocks
Standard Wiring | MIN Receptacle & Cable | IP67 Protection Rating
JIN Junction Blocks P
Trunk Style
Trunk
Connection
MIN Size II
8 Pole Male
Receptacle
Yellow PVC
AWM 2661
8 x 18 AWG
300V
9mm OD
Part Number Circuit
J1 J2
Pin 4 Not Used
Pin 3 Positive (+)
Pin 2 Negative (-)
Pin 1 Load
J3 J4
Pin 4 Not Used
Pin 3 Positive (+)
Pin 2 Negative (-)
JIN-640-008-M000
JIN-640-008-C**
Pin 1 Load
J5 J6
Pin 4 Not Used Pin 4 Not Used
Pin 3 Positive (+)
Pin 2 Negative (-)
Pin 1 Load
Pin 3 Load J5
Pin 4 Load J3
Pin 6 Load J1
Pin 7 Neg (-)
Pin 5 Pos (+)
J1 J2
Pin 4 Not Used
Pin 3 Positive (+)
Pin 2 Negative (-)
Pin 1 Load
J3 J4
Pin 4 Not Used
Pin 3 Positive (+)
Pin 2 Negative (-)
Pin 1 Load
J5 J6
Pin 4 Not Used Pin 4 Not Used
Pin 3 Positive (+)
Pin 2 Negative (-)
Pin 1 Load
Pin 4 Not Used
Pin 3 Positive (+)
Pin 2 Negative (-)
Pin 1 Load
Pin 4 Not Used
Pin 3 Positive (+)
Pin 2 Negative (-)
Pin 1 Load
Pin 3 Positive (+)
Pin 2 Negative (-)
Pin 1 Load
Pin 1 Load J2
Pin 2 Load J4
Pin 8 Load J6
Pin 4 Not Used
Pin 3 Positive (+)
Pin 2 Negative (-)
Pin 1 Load
Pin 4 Not Used
Pin 3 Positive (+)
Pin 2 Negative (-)
Pin 1 Load
Pin 3 Positive (+)
Pin 2 Negative (-)
Pin 1 Load
White w/Black Load J5
Black Load J3
Red Load J1
Green/Yellow Neg (-)
White Pos (+)
Orange Load J2
Blue Load J4
Red w/Black Load J6
Cables for JIN-640-008-M000
Female Receptacle
Single Ended Home Run Cable Double Ended Home Run Cable
MIN-8FPX-* Page B-3 MIN-8MFPX-* Page B-6 MIN-8FR2-1-18 Page B-13
* Length in feet. Standard Cable lengths are 3, 6, 12, 20, 30 & 50 feet. Consult factory for other lengths.
** Lengths in meters. Standard Cable lengths are 2, 5 & 10 meters. Consult factory for other lengths.
Standard housing is aluminum alloy, for stainless steel housing add a “SS” right after JIN. (e.g. JIN-640-008-M000 becomes JINSS-640-008-M000)
Specications:
Housing: Black Epoxy Coated Die Cast Aluminum Alloy
Connectors: Anodized Aluminum, Oil Resistant PVC Contact Carrier
Cable Gland: Nickel Plated Brass, Polyamide and TPE Inserts
Contacts: Copper Alloy with Gold Plating
Temperature: -30°C to +80°C (-22ºF to +176ºF)
Amperage: 4A per Port, 8A per Unit
P-8
