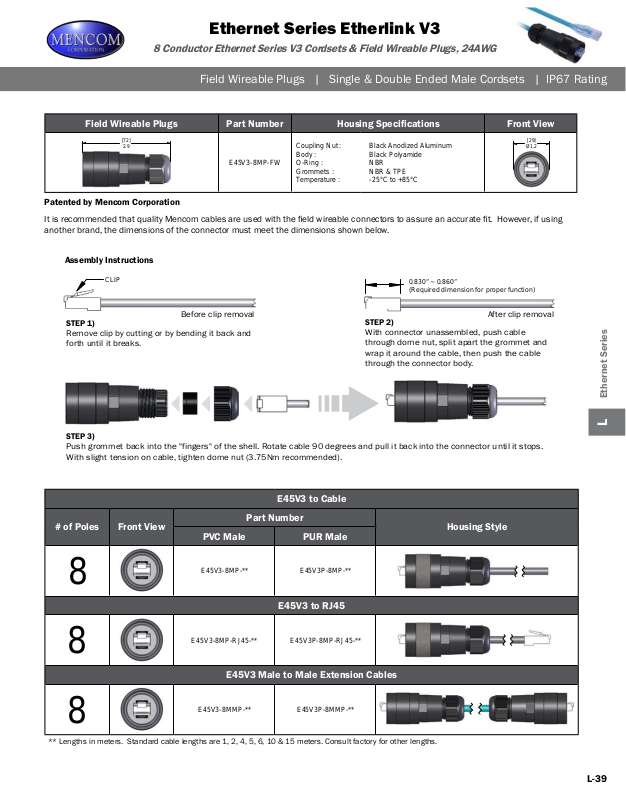

Ethernet Series Etherlink V3

8 Conductor Ethernet Series V3 Cordsets & Field Wireable Plugs, 24AWG

Field Wireable Plugs | Single & Double Ended Male Cordsets | IP67 Rating

Field Wireable Plugs Part Number Housing Specications Front View

[72]

2.9

E45V3-8MP-FW

Patented by Mencom Corporation

It is recommended that quality Mencom cables are used with the eld wireable connectors to assure an accurate t. However, if using
another brand, the dimensions of the connector must meet the dimensions shown below.

Assembly Instructions

Coupling Nut :
Body :
O-Ring :
Grommets :
Temperature :

Black Anodized Aluminum
Black Polyamide
NBR
NBR & TPE

-25°C to +85°C

[29]

Ø1.2

CLIP

STEP 1)

Remove clip by cutting or by bending it
forth until it breaks.

STEP 3)

Push grommet back into the "fingers" of the shell.
With slight tension on

Before clip removal

back and

cable, tighten dome nut (3.75Nm recommended).

# of Poles Front View

PVC Male PUR Male

E45V3-8MP-** E45V3P-8MP-**

8

0.830” ~ 0.860”
(Required dimension for proper function)

STEP 2)

With connector unassembled, push cable
through
wrap it
through

Rotate cable 90 degrees and pull it back into the

dome nut, split apart the grommet and

around the cable, then push the cable

the connector body.

E45V3 to Cable

Part Number

After clip removal

Ethernet Series

L

connector until it stops.

Housing Style

E45V3 to RJ45

E45V3-8MP-RJ45-** E45V3P-8MP-RJ45-**

8

E45V3 Male to Male Extension Cables

E45V3-8MMP-**

E45V3P-8MMP-**

8

** Lengths in meters. Standard cable lengths are 1, 2, 4, 5, 6, 10 & 15 meters. Consult factory for other lengths.
