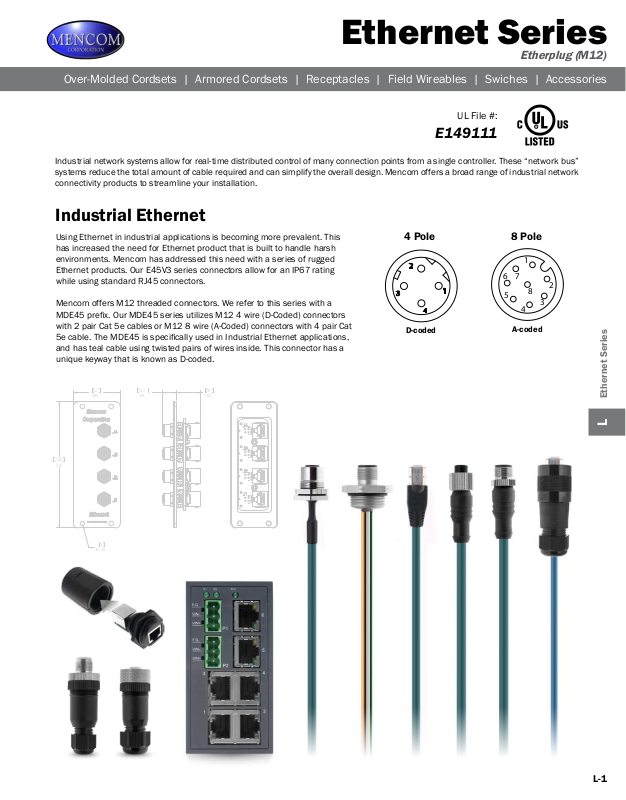

Mencom Ethernet Series General Product Line Information

Ethernet Series

5.51

140

Ø .20

5

2.05

52

.64

16.2

1.02

26

Etherplug (

Over-Molded Cordsets | Armored Cordsets | Receptacles | Field Wireables | Swiches | Accessories

UL File #:

E149111

Industrial network systems allow for real-time distributed control of many connection points from a single controller. These “network bus”
systems reduce the total amount of cable required and can simplify the overall design. Mencom offers a broad range of industrial network
connectivity products to streamline your installation.

Industrial Ethernet

M12)

Using Ethernet in industrial applications is becoming more prevalent. This
has increased the need for Ethernet product that is built to handle harsh
environments. Mencom has addressed this need with a series of rugged
Ethernet products. Our E45V3 series connectors allow for an IP67 rating
while using standard RJ45 connectors.

Mencom offers M12 threaded connectors. We refer to this series with a

MDE45 prex. Our MDE45 series utilizes M12 4 wire (D-Coded) connectors
with 2 pair Cat 5e cables or M12 8 wire (A-Coded) connectors with 4 pair Cat
5e cable. The MDE45 is specically used in Industrial Ethernet applications,

and has teal cable using twisted pairs of wires inside. This connector has a
unique keyway that is known as D-coded.

4 Pole 8 Pole

2

6

7

3

D-coded

1

4

5

A-coded

1

2

8

3

4

Ethernet Series

L

L-1

Ethernet (M12) Series Etherplug Cordsets

Ethernet Series Cordset Part Number Matrix

Not all options available with all cordsets, please consult factory.

MDE45

- -- - - - -

Cable Type

Blank = PVC
P = PUR
PB = PUR / Braided Shield
M = Mylar Shield

WB = Continuous Flex. TPE / Braided

Number of Conductors

4
8

Connector Conguration

MP = Male Plug
FP = Female Plug

MFP = Male / Female Extension

MFRP = Male Straight / Female Right Angle
MRFP = Male Right Angle / Female Straight

MMP = Male/Male Extension
FFP = Female/Female Extension

MSP = Male-Shielded to Coupling Nut
FSP = Female-Shielded to Coupling Nut
MFPS = Male & Female-Shielded to Coupling Nut
MSFP = Male Shielded to Coupling Nut / Female Not
MFSP = Female Shielded to Coupling Nut / Male Not
MMSP = Male/Male Shielded to Coupling Nut
FFSP = Female/Female Shielded to Coupling Nut

Armor (See L-19 for more details)

Blank = No Armor
A01 = SS w/ Cable Inside
A03 = PVC Covered SS w/ Cable Inside

A50 = Silicone (Stops at Overmold)
A51 = Silicone (Covers Overmold)

Ethernet Series

L

Coupling Nut

Blank = Nickel plated brass
SS = Stainless Steel

Cable Jacket Color

Length in Meters

1M
2M
4M
5M
6M
10M
15M

Other lengths are available by request.

RJ45

RJ45 = RJ45 Male on Second End

Blank = Teal
RD = Red

R/A or Straight

Blank = Straight *
R = Right Angle **

* Unless the Connector Conguration is MFRP or MRFP
** If single ended cable, right angle connector to ying leads
If double ended cable, right angle on both connectors

L-3
