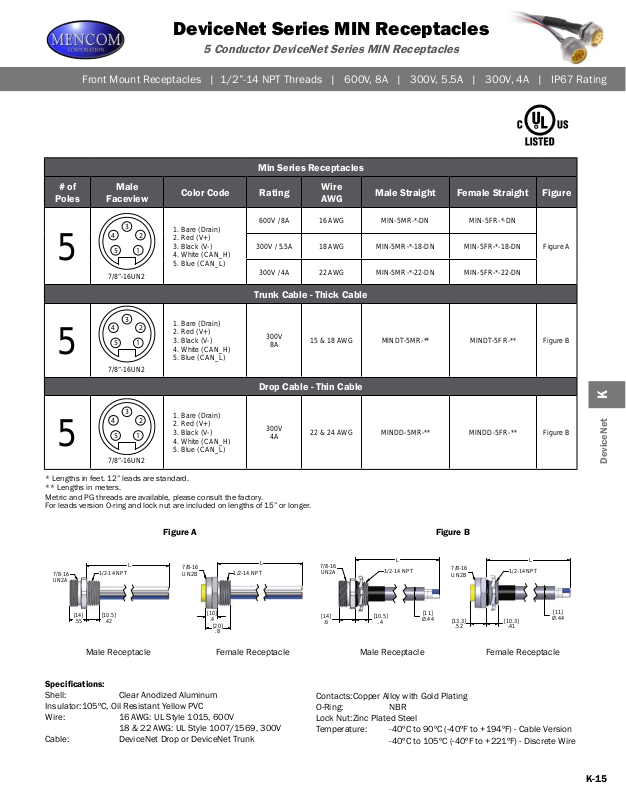

Mencom DeviceNet Series MIN Receptacles Catalog Page
DeviceNet Series MIN Receptacles
L
[10.5]
.4
[14]
.6
[11]
Ø.44
1/2-14 NPT
7/8-16
UN2A
[10]
.4
[20]
.8
1/2-14 NPT
L
5 Conductor DeviceNet Series MIN Receptacles
Front Mount Receptacles | 1/2”-14 NPT Threads | 600V, 8A | 300V, 5.5A | 300V, 4A | IP67 Rating
Min Series Receptacles
# of
Poles
5
Male
Faceview
3
2
4
5
1
7/8”-16UN2
Color Code Rating
600V / 8A 16 AWG MIN-5MR-*-DN MIN-5FR-*-DN
1. Bare (Drain)
2. Red (V+)
3. Black (V-)
4. White (CAN_H)
5. Blue (CAN_L)
300V / 4A 22 AWG MIN-5MR-*-22-DN MIN-5FR-*-22-DN
Trunk Cable - Thick Cable
5
3
4
5
1
7/8”-16UN2
2
1. Bare (Drain)
2. Red (V+)
3. Black (V-)
4. White (CAN_H)
5. Blue (CAN_L)
300V
8A
Drop Cable - Thin Cable
3
2
4
5
5
1
7/8”-16UN2
* Lengths in feet. 12” leads are standard.
** Lengths in meters.
Metric and PG threads are available, please consult the factory.
For leads version O-ring and lock nut are included on lengths of 15” or longer.
1. Bare (Drain)
2. Red (V+)
3. Black (V-)
4. White (CAN_H)
5. Blue (CAN_L)
300V
4A
Wire
AWG
15 & 18 AWG MINDT-5MR-** MINDT-5FR-** Figure B
22 & 24 AWG
Male Straight Female Straight Figure
Figure A300V / 5.5A 18 AWG MIN-5MR-*-18-DN MIN-5FR-*-18-DN
MINDD-5MR-** MINDD-5FR-** Figure B
K
DeviceNet
Figure A
[10.5]
.4
L
1/2-14 NPT
L
[14]
.55
1/2-14 NPT
[10.5]
.42
7/8-16
UN2A
Male Receptacle Male Receptacle
Specications:
7/8-16
UN2B
[10]
.4
[20]
.8
Female Receptacle Female Receptacle
Shell: Clear Anodized Aluminum
Insulator: 105ºC, Oil Resistant Yellow PVC
Wire: 16 AWG: UL Style 1015, 600V
18 & 22 AWG: UL Style 1007/1569, 300V
Cable: DeviceNet Drop or DeviceNet Trunk
1/2-14 NPT
L
7/8-16
UN2A
[14]
.6
Contacts: Copper Alloy with Gold Plating
O-Ring: NBR
Lock Nut: Zinc Plated Steel
Temperature: -40ºC to 90ºC (-40ºF to +194ºF) - Cable Version
-40ºC to 105ºC (-40ºF to +221ºF) - Discrete Wire
[11]
Ø.44
Figure B
7/8-16
UN2B
[13.3]
.52
1/2-14 NPT
[10.3]
.41
L
[11]
Ø.44
K-15
