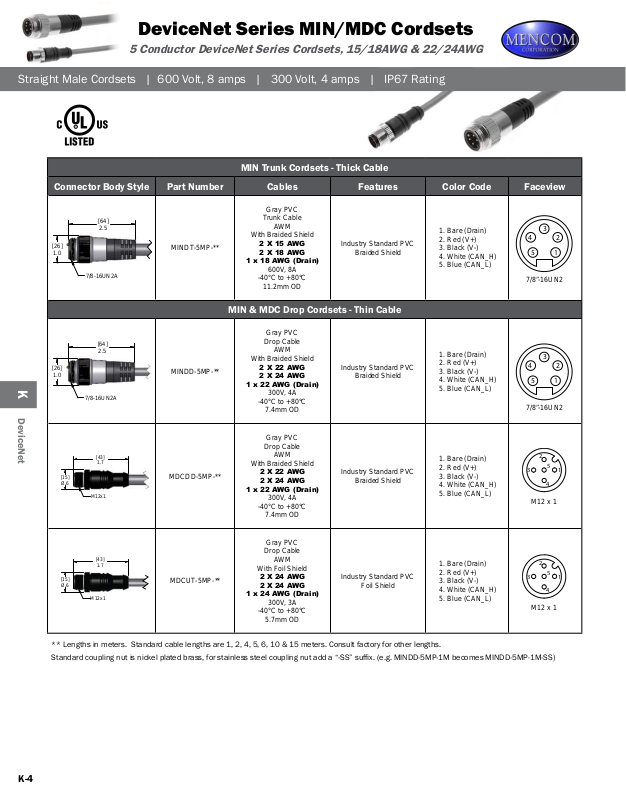

DeviceNet Series MIN/MDC Cordsets
5 Conductor DeviceNet Series Cordsets, 15/18AWG & 22/24AWG
Straight Male Cordsets | 600 Volt, 8 amps | 300 Volt, 4 amps | IP67 Rating
MIN Trunk Cordsets - Thick Cable
Connector Body Style Part Number Cables Features Color Code Faceview
Gray PVC
Trunk Cable
AWM
With Braided Shield
2 X 15 AWG
2 X 18 AWG
1 x 18 AWG (Drain)
600V, 8A
-40°C to +80°C
11.2mm OD
Industry Standard PVC
Braided Shield
[26]
1.0
[64]
2.5
7/8-16UN2A
MINDT-5MP-**
MIN & MDC Drop Cordsets - Thin Cable
1. Bare (Drain)
2. Red (V+)
3. Black (V-)
4. White (CAN_H)
5. Blue (CAN_L)
3
4
5
1
7/8”-16UN2
2
DeviceNetK
[26]
1.0
[15]
Ø.6
[15]
Ø.6
[64]
2.5
7/8-16UN2A
[43]
1.7
M12x1
[43]
1.7
M12x1
MINDD-5MP-**
MDCDD-5MP-**
MDCUT-5MP-**
Gray PVC
Drop Cable
AWM
With Braided Shield
2 X 22 AWG
2 X 24 AWG
1 x 22 AWG (Drain)
300V, 4A
-40°C to +80°C
7.4mm OD
Gray PVC
Drop Cable
AWM
With Braided Shield
2 X 22 AWG
2 X 24 AWG
1 x 22 AWG (Drain)
300V, 4A
-40°C to +80°C
7.4mm OD
Gray PVC
Drop Cable
AWM
With Foil Shield
2 X 24 AWG
2 X 24 AWG
1 x 24 AWG (Drain)
300V, 3A
-40°C to +80°C
5.7mm OD
Industry Standard PVC
Braided Shield
Industry Standard PVC
Braided Shield
Industry Standard PVC
Foil Shield
1. Bare (Drain)
2. Red (V+)
3. Black (V-)
4. White (CAN_H)
5. Blue (CAN_L)
1. Bare (Drain)
2. Red (V+)
3. Black (V-)
4. White (CAN_H)
5. Blue (CAN_L)
1. Bare (Drain)
2. Red (V+)
3. Black (V-)
4. White (CAN_H)
5. Blue (CAN_L)
3
4
5
1
7/8”-16UN2
2
5
3
4
M12 x 1
2
5
3
4
M12 x 1
2
1
1
K-4
** Lengths in meters. Standard cable lengths are 1, 2, 4, 5, 6, 10 & 15 meters. Consult factory for other lengths.
Standard coupling nut is nickel plated brass, for stainless steel coupling nut add a “-SS” sufx. (e.g. MINDD-5MP-1M becomes MINDD-5MP-1M-SS)
