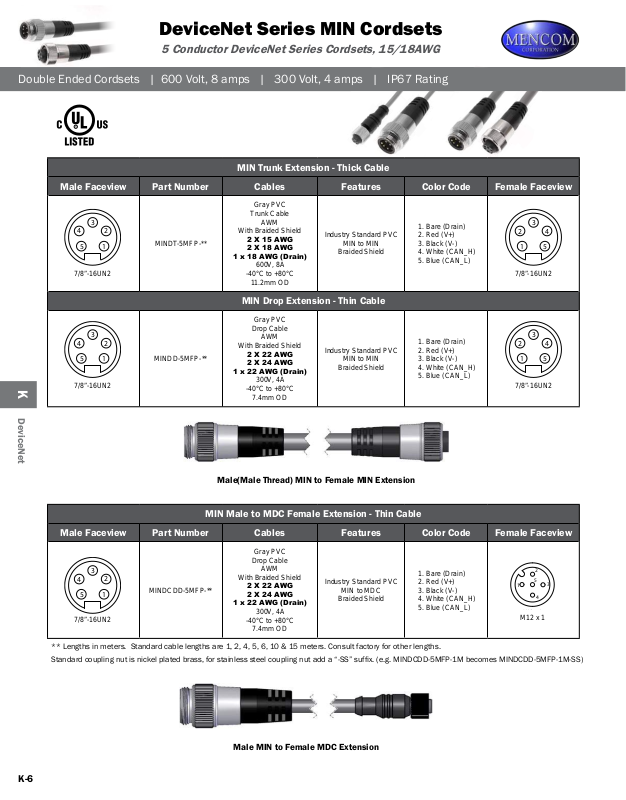

Mencom DeviceNet Series MIN Cordsets Catalog Page
DeviceNet Series MIN Cordsets
5 Conductor DeviceNet Series Cordsets, 15/18AWG
Double Ended Cordsets | 600 Volt, 8 amps | 300 Volt, 4 amps | IP67 Rating
MIN Trunk Extension - Thick Cable
Male Faceview Part Number Cables Features Color Code Female Faceview
Gray PVC
Trunk Cable
3
2
4
5
1
7/8”-16UN2 7/8”-16UN2
3
2
4
5
1
7/8”-16UN2
MINDT-5MFP-**
MINDD-5MFP-**
AWM
With Braided Shield
2 X 15 AWG
2 X 18 AWG
1 x 18 AWG (Drain)
600V, 8A
-40°C to +80°C
11.2mm OD
Industry Standard PVC
MIN to MIN
Braided Shield
MIN Drop Extension - Thin Cable
Gray PVC
Drop Cable
AWM
With Braided Shield
2 X 22 AWG
2 X 24 AWG
1 x 22 AWG (Drain)
300V, 4A
-40°C to +80°C
7.4mm OD
Industry Standard PVC
MIN to MIN
Braided Shield
1. Bare (Drain)
2. Red (V+)
3. Black (V-)
4. White (CAN_H)
5. Blue (CAN_L)
1. Bare (Drain)
2. Red (V+)
3. Black (V-)
4. White (CAN_H)
5. Blue (CAN_L)
3
2
1
5
3
2
1
5
7/8”-16UN2
4
4
DeviceNetK
Male(Male Thread) MIN to Female MIN Extension
MIN Male to MDC Female Extension - Thin Cable
Male Faceview Part Number Cables Features Color Code Female Faceview
Gray PVC
Drop Cable
3
4
5
1
7/8”-16UN2
2
MINDCDD-5MFP-**
AWM
With Braided Shield
2 X 22 AWG
2 X 24 AWG
1 x 22 AWG (Drain)
300V, 4A
-40°C to +80°C
7.4mm OD
Industry Standard PVC
MIN to MDC
Braided Shield
1. Bare (Drain)
2. Red (V+)
3. Black (V-)
4. White (CAN_H)
5. Blue (CAN_L)
** Lengths in meters. Standard cable lengths are 1, 2, 4, 5, 6, 10 & 15 meters. Consult factory for other lengths.
Standard coupling nut is nickel plated brass, for stainless steel coupling nut add a “-SS” sufx. (e.g. MINDCDD-5MFP-1M becomes MINDCDD-5MFP-1M-SS)
1
M12 x 1
2
5
3
4
K-6
Male MIN to Female MDC Extension
