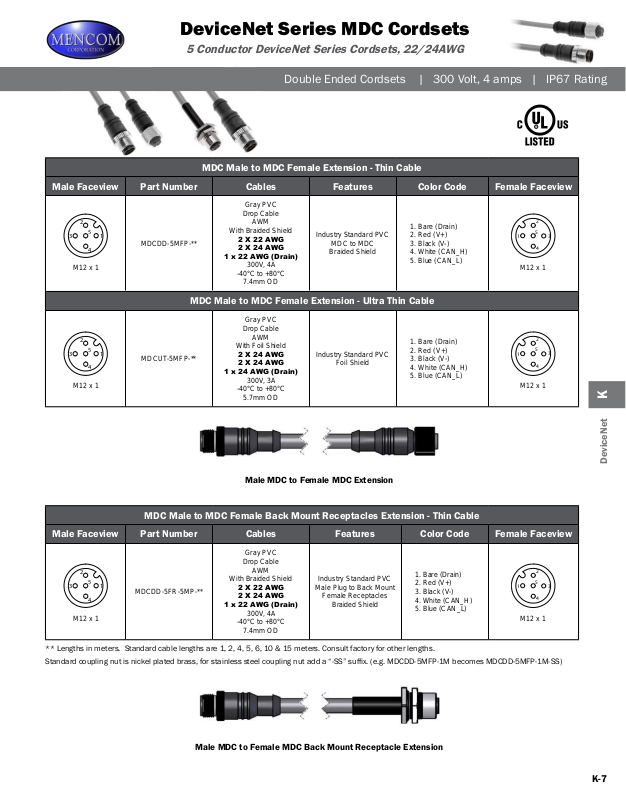

DeviceNet Series MDC Cordsets
5 Conductor DeviceNet Series Cordsets, 22/24AWG
Double Ended Cordsets | 300 Volt, 4 amps | IP67 Rating
MDC Male to MDC Female Extension - Thin Cable
Male Faceview Part Number Cables Features Color Code Female Faceview
Gray PVC
2
3
M12 x 1
2
3
M12 x 1
Drop Cable
AWM
5
1
4
MDCDD-5MFP-**
With Braided Shield
2 X 22 AWG
2 X 24 AWG
1 x 22 AWG (Drain)
300V, 4A
-40°C to +80°C
7.4mm OD
Industry Standard PVC
MDC to MDC
Braided Shield
1. Bare (Drain)
2. Red (V+)
3. Black (V-)
4. White (CAN_H)
5. Blue (CAN_L)
MDC Male to MDC Female Extension - Ultra Thin Cable
Gray PVC
Drop Cable
AWM
5
1
4
MDCUT-5MFP-**
With Foil Shield
2 X 24 AWG
2 X 24 AWG
1 x 24 AWG (Drain)
300V, 3A
-40°C to +80°C
5.7mm OD
Industry Standard PVC
Foil Shield
1. Bare (Drain)
2. Red (V+)
3. Black (V-)
4. White (CAN_H)
5. Blue (CAN_L)
1
M12 x 1
1
M12 x 1
2
5
3
4
2
5
3
4
K
Male MDC to Female MDC Extension
MDC Male to MDC Female Back Mount Receptacles Extension - Thin Cable
Male Faceview Part Number Cables Features Color Code Female Faceview
Gray PVC
Drop Cable
2
3
M12 x 1
5
1
4
MDCDD-5FR-5MP-**
AWM
With Braided Shield
2 X 22 AWG
2 X 24 AWG
1 x 22 AWG (Drain)
300V, 4A
-40°C to +80°C
7.4mm OD
Industry Standard PVC
Male Plug to Back Mount
Female Receptacles
Braided Shield
1. Bare (Drain)
2. Red (V+)
3. Black (V-)
4. White (CAN_H)
5. Blue (CAN_L)
** Lengths in meters. Standard cable lengths are 1, 2, 4, 5, 6, 10 & 15 meters. Consult factory for other lengths.
Standard coupling nut is nickel plated brass, for stainless steel coupling nut add a “-SS” sufx. (e.g. MDCDD-5MFP-1M becomes MDCDD-5MFP-1M-SS)
Male MDC to Female MDC Back Mount Receptacle Extension
1
M12 x 1
2
5
3
4
