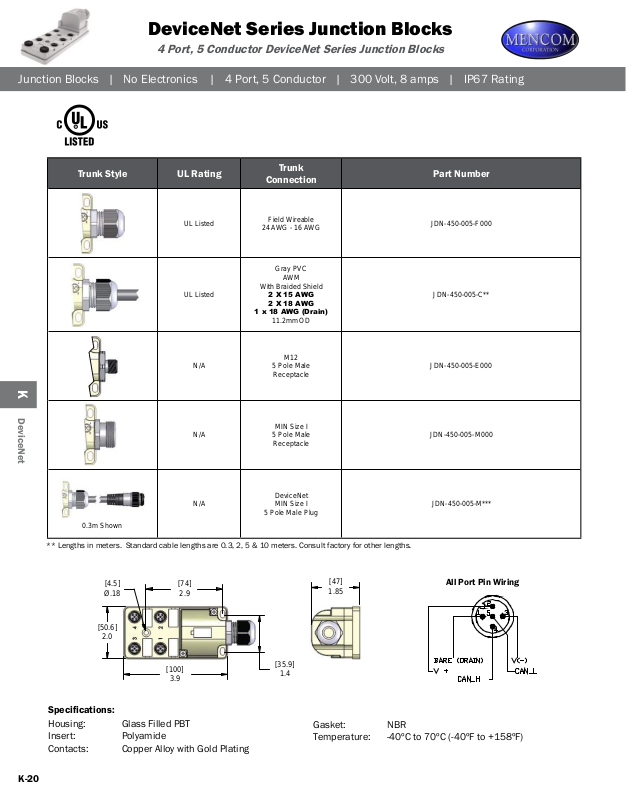

DeviceNet Series Junction Blocks
4 Port, 5 Conductor DeviceNet Series Junction Blocks
Junction Blocks | No Electronics | 4 Port, 5 Conductor | 300 Volt, 8 amps | IP67 Rating
DeviceNetK
Trunk Style UL Rating
UL Listed
UL Listed
N/A
N/A
Trunk
Connection
Field Wireable
24 AWG - 16 AWG
Gray PVC
AWM
With Braided Shield
2 X 15 AWG
2 X 18 AWG
1 x 18 AWG (Drain)
11.2mm OD
M12
5 Pole Male
Receptacle
MIN Size I
5 Pole Male
Receptacle
Part Number
JDN-450-005-F000
JDN-450-005-C**
JDN-450-005-E000
JDN-450-005-M000
N/A
0.3m Shown
** Lengths in meters. Standard cable lengths are 0.3, 2, 5 & 10 meters. Consult factory for other lengths.
[4.5]
Ø.18
[50.6]
2.0
[74]
2.9
[100]
3.9
DeviceNet
MIN Size I
5 Pole Male Plug
[47]
1.85
[35.9]
1.4
Specications:
Housing: Glass Filled PBT
Insert: Polyamide
Gasket: NBR
Temperature: -40ºC to 70ºC (-40ºF to +158ºF)
Contacts: Copper Alloy with Gold Plating
K-20
JDN-450-005-M***
All Port Pin Wiring
