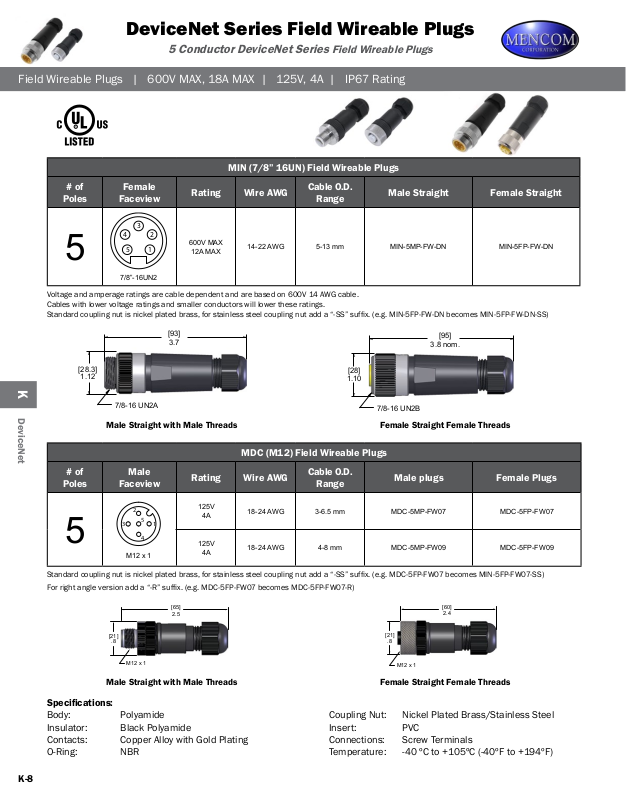

Mencom DeviceNet Series Field Wireable Plugs Catalog Page
DeviceNet Series Field Wireable Plugs
3.8 nom.
[95]
[28]
1.10
3.8 nom.
[95]
[28]
1.10
7/8-16 UN2B
7/8-16 UN2B
[60]
2.4
[21]
.8
M12 x 1
5 Conductor DeviceNet Series
Field Wireable Plugs
Field Wireable Plugs | 600V MAX, 18A MAX | 125V, 4A | IP67 Rating
MIN (7/8” 16UN) Field Wireable Plugs
# of
Poles
5
Voltage and amperage ratings are cable dependent and are based on 600V 14 AWG cable.
Cables with lower voltage ratings and smaller conductors will lower these ratings.
Standard coupling nut is nickel plated brass, for stainless steel coupling nut add a “-SS” sufx. (e.g. MIN-5FP-FW-DN becomes MIN-5FP-FW-DN-SS)
Female
Faceview
3
2
4
5
1
7/8”-16UN2
Rating Wire AWG
600V MAX
12A MAX
[93]
3.7
Cable O.D.
Range
14-22 AWG 5-13 mm MIN-5MP-FW-DN MIN-5FP-FW-DN
Male Straight Female Straight
[95]
3.8 nom.
DeviceNetK
[28.3]
1.12
7/8-16 UN2A
Male Straight with Male Threads
[28]
1.10
7/8-16 UN2B
Female Straight Female Threads
MDC (M12) Field Wireable Plugs
# of
Poles
5
Standard coupling nut is nickel plated brass, for stainless steel coupling nut add a “-SS” sufx. (e.g. MDC-5FP-FW07 becomes MIN-5FP-FW07-SS)
For right angle version add a “-R” sufx. (e.g. MDC-5FP-FW07 becomes MDC-5FP-FW07-R)
Specications:
Body: Polyamide
Insulator: Black Polyamide
Contacts: Copper Alloy with Gold Plating
O-Ring: NBR
Male
Faceview
3
M12 x 1
[21]
.8
M12 x 1
2
5
1
4
Rating Wire AWG
125V
4A
125V
4A
[65]
2.5
Male Straight with Male Threads
Cable O.D.
Range
18-24 AWG 3-6.5 mm MDC-5MP-FW07 MDC-5FP-FW07
18-24 AWG 4-8 mm MDC-5MP-FW09 MDC-5FP-FW09
Male plugs Female Plugs
[60]
2.4
[21]
.8
M12 x 1
Female Straight Female Threads
Coupling Nut: Nickel Plated Brass/Stainless Steel
Insert: PVC
Connections: Screw Terminals
Temperature: -40 ºC to +105ºC (-40ºF to +194ºF)
K-8
