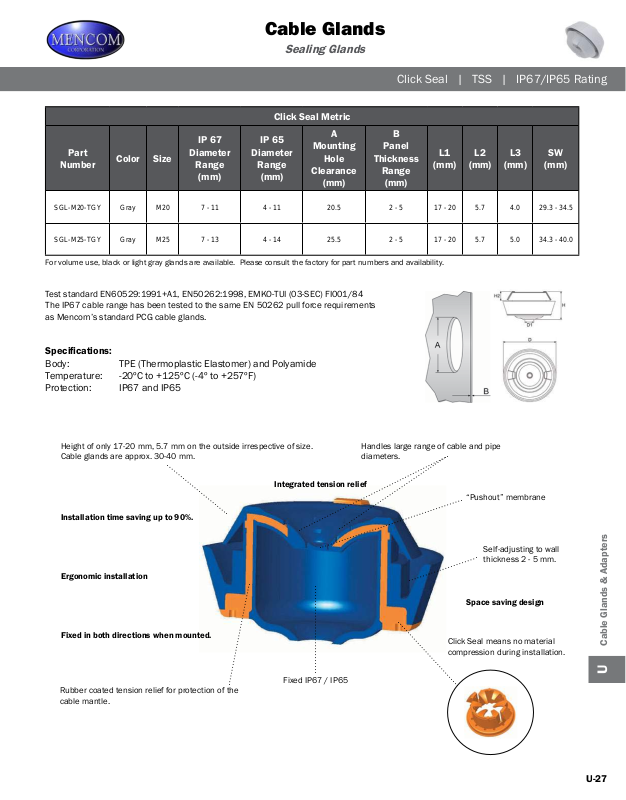

Mencom Cable Glands Catalog Page

Cable Glands

Sealing Glands

Click Seal Metric

Click Seal | TSS | IP67/IP65 Rating

IP 67

Part

Number

Color Size

Diameter

Range

(mm)

SGL-M20-TGY Gray M20 7 - 11 4 - 11 20.5 2 - 5 17 - 20 5.7 4.0 29.3 - 34.5

SGL-M25-TGY Gray M25 7 - 13 4 - 14 25.5 2 - 5 17 - 20 5.7 5.0 34.3 - 40.0

For volume use, black or light gray glands are available. Please consult the factory for part numbers and availability.

Test standard EN60529:1991+A1, EN50262:1998, EMKO-TUI (03-SEC) FI001/84

The IP67 cable range has been tested to the same EN 50262 pull force requirements
as Mencom’s standard PCG cable glands.

IP 65

Diameter

Range

(mm)

A

Mounting

Hole

Clearance

(mm)

B

Panel

Thickness

Range

(mm)

L1

(mm)L2(mm)L3(mm)SW(mm)

Specications:

Body: TPE (Thermoplastic Elastomer) and Polyamide
Temperature: -20ºC to +125ºC (-4º to +257ºF)

Protection: IP67 and IP65

Height of only 17-20 mm, 5.7 mm on the outside irrespective of size.

Cable glands are approx. 30-40 mm.

Integrated tension relief

Installation time saving up to 90%.

Ergonomic installation

Fixed in both directions when mounted.

Fixed IP67 / IP65

Rubber coated tension relief for protection of the
cable mantle.

Handles large range of cable and pipe
diameters.

“Pushout” membrane

Self-adjusting to wall
thickness 2 - 5 mm.

Space saving design

Click Seal means no material

compression during installation.

Cable Glands & Adapters
