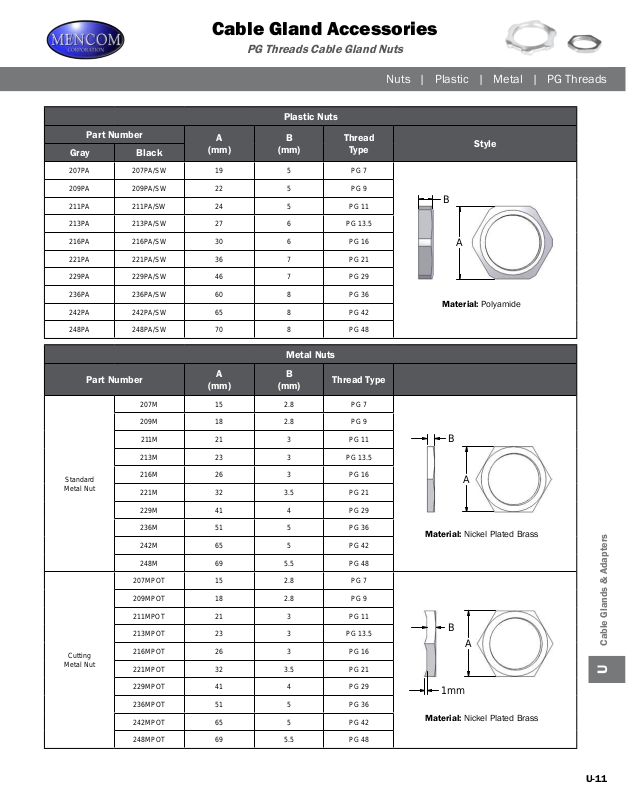

Mencom Cable Gland Accessories Catalog

Cable Gland Accessories

PG Threads Cable Gland Nuts

Nuts | Plastic | Metal | PG Threads

Plastic Nuts

Part Number

Gray Black

207PA 207PA/SW 19 5 PG 7

209PA 209PA/SW 22 5 PG 9

211PA 211PA/SW 24 5 PG 11

213PA 213PA/SW 27 6 PG 13.5

216PA 216PA/SW 30 6 PG 16

221PA 221PA/SW 36 7 PG 21

229PA 229PA/SW 46 7 PG 29

236PA 236PA/SW 60 8 PG 36

242PA 242PA/SW 65 8 PG 42

248PA 248PA/SW 70 8 PG 48

A

(mm)

B

(mm)

Thread

Type

Metal Nuts

Part Number

A

(mm)

207M 15 2.8 PG 7

209M 18 2.8 PG 9

B

(mm)

Thread Type

Style

B

A

Material: Polyamide

Standard

Metal Nut

Cutting

Metal Nut

211M 21 3 PG 11

213M 23 3 PG 13.5

216M 26 3 PG 16

221M 32 3.5 PG 21

229M 41 4 PG 29

236M 51 5 PG 36

242M 65 5 PG 42

248M 69 5.5 PG 48

207MPOT 15 2.8 PG 7

209MPOT 18 2.8 PG 9

211MPOT 21 3 PG 11

213MPOT 23 3 PG 13.5

216MPOT 26 3 PG 16

221MPOT 32 3.5 PG 21

229MPOT 41 4 PG 29

236MPOT 51 5 PG 36

242MPOT 65 5 PG 42

B

A

Material: Nickel Plated Brass

B

A

1mm

Material: Nickel Plated Brass

Cable Glands & Adapters

U

248MPOT 69 5.5 PG 48

U-11
